SOLAR HEATING Solar energy can be used for • Solar water heating • Solar space heating • Solar pool heating
Solar Water Heating

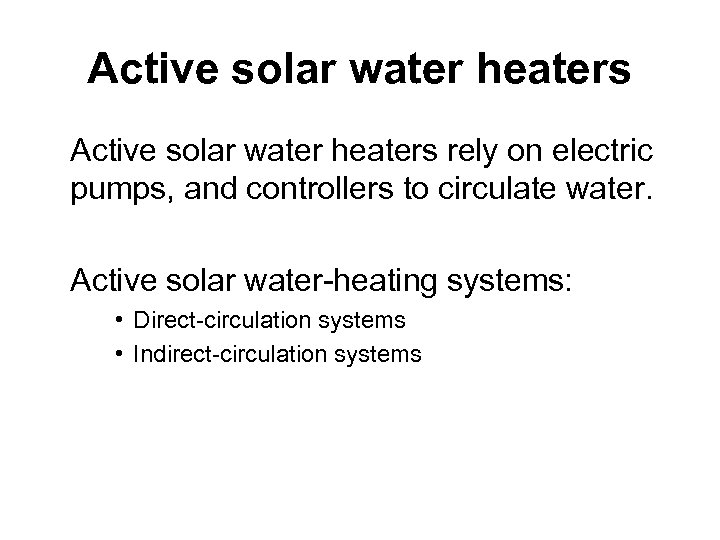

Active solar water heaters rely on electric pumps, and controllers to circulate water. Active solar water-heating systems: • Direct-circulation systems • Indirect-circulation systems

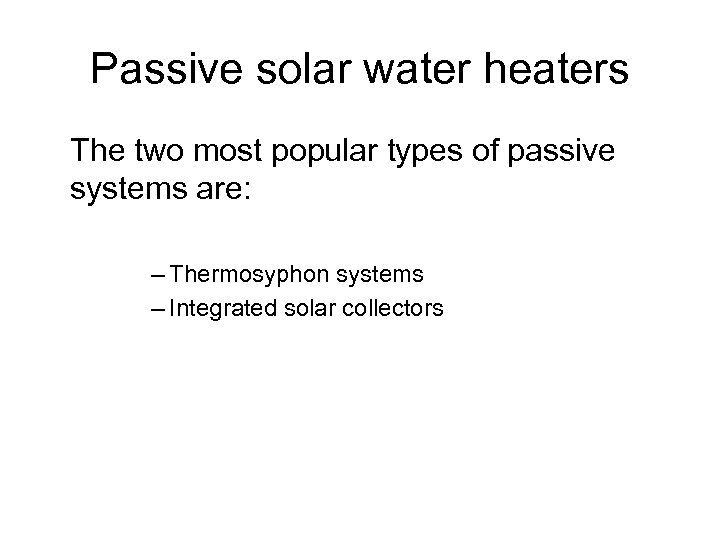

Passive solar water heaters The two most popular types of passive systems are: – Thermosyphon systems – Integrated solar collectors

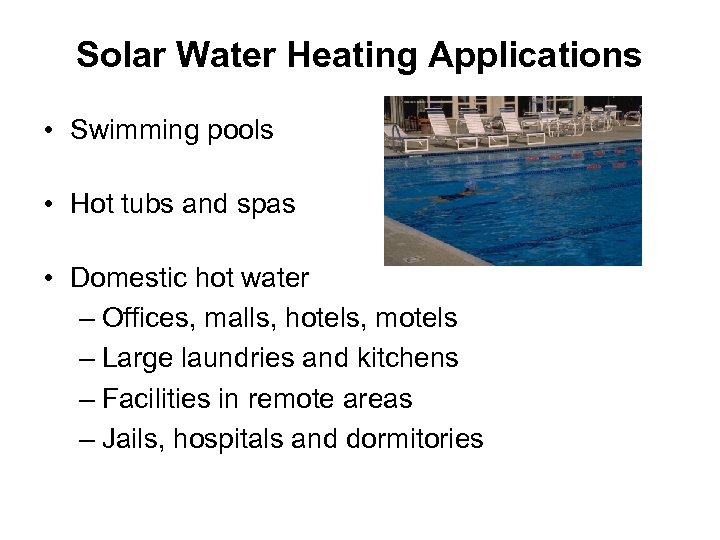

Solar Water Heating Applications • Swimming pools • Hot tubs and spas • Domestic hot water – Offices, malls, hotels, motels – Large laundries and kitchens – Facilities in remote areas – Jails, hospitals and dormitories

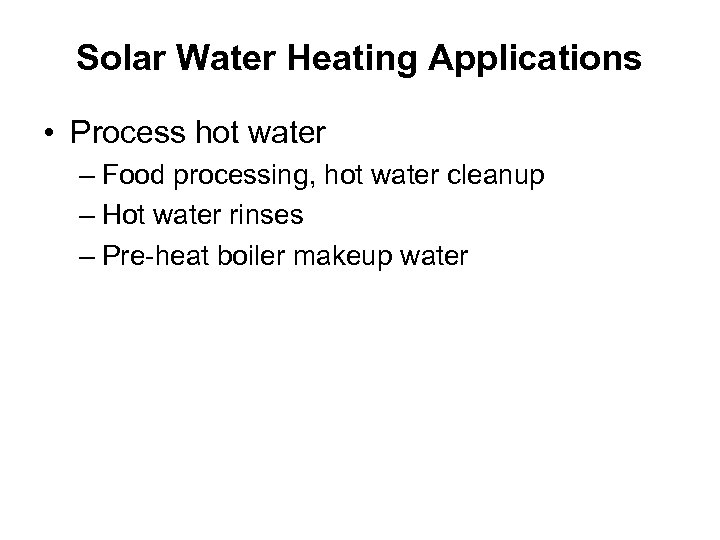

Solar Water Heating Applications • Process hot water – Food processing, hot water cleanup – Hot water rinses – Pre-heat boiler makeup water

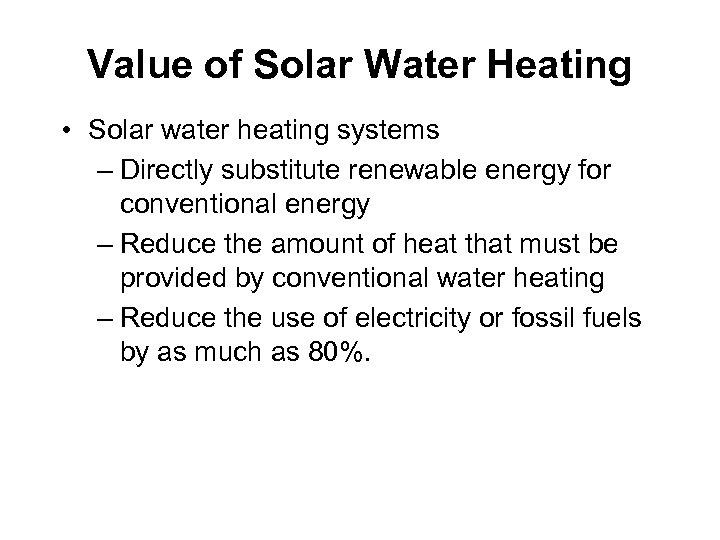

Value of Solar Water Heating • Solar water heating systems – Directly substitute renewable energy for conventional energy – Reduce the amount of heat that must be provided by conventional water heating – Reduce the use of electricity or fossil fuels by as much as 80%.

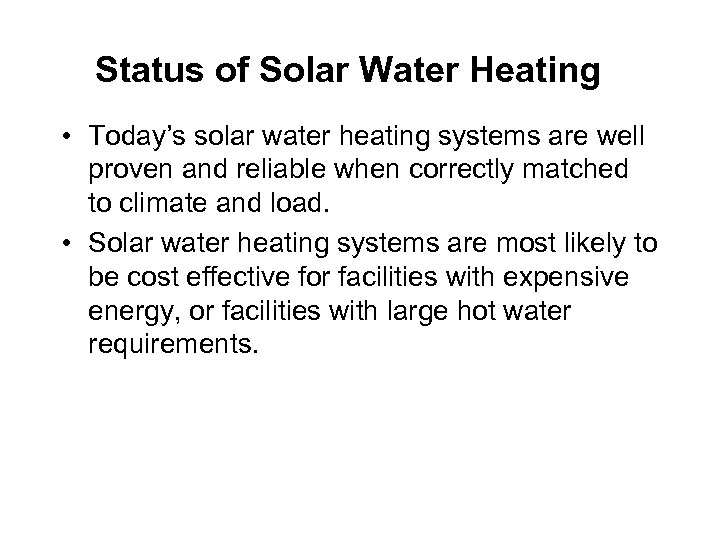

Status of Solar Water Heating • Today’s solar water heating systems are well proven and reliable when correctly matched to climate and load. • Solar water heating systems are most likely to be cost effective for facilities with expensive energy, or facilities with large hot water requirements.

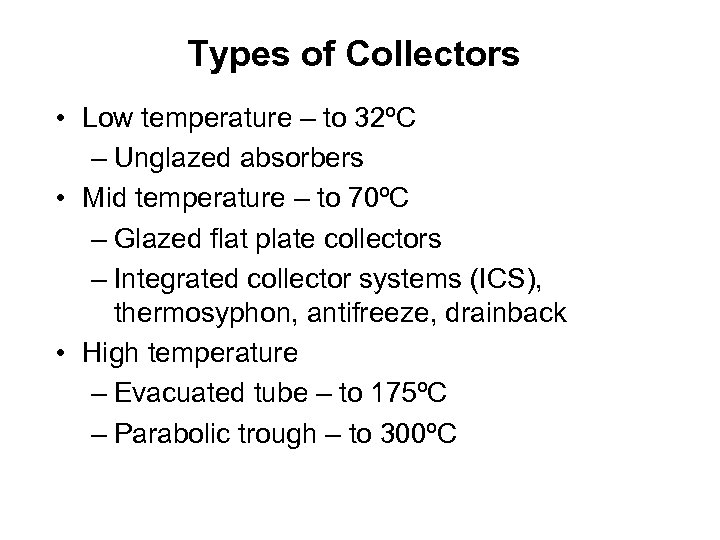

Types of Collectors • Low temperature – to 32ºC – Unglazed absorbers • Mid temperature – to 70ºC – Glazed flat plate collectors – Integrated collector systems (ICS), thermosyphon, antifreeze, drainback • High temperature – Evacuated tube – to 175ºC – Parabolic trough – to 300ºC

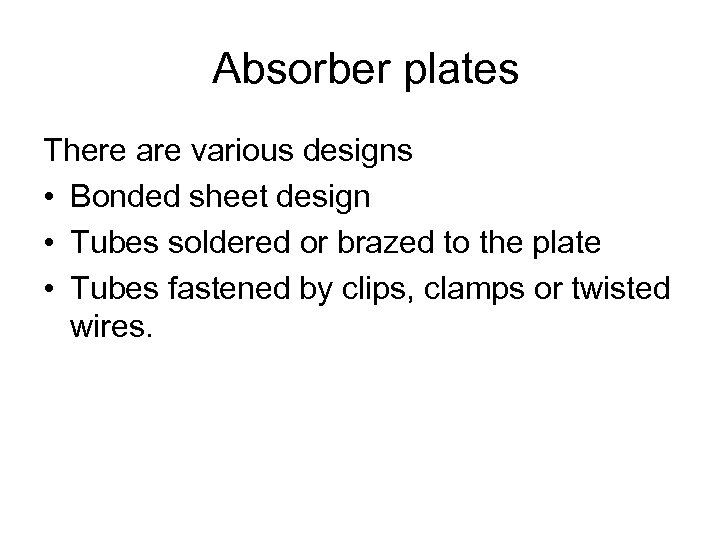

Absorber plates There are various designs • Bonded sheet design • Tubes soldered or brazed to the plate • Tubes fastened by clips, clamps or twisted wires.

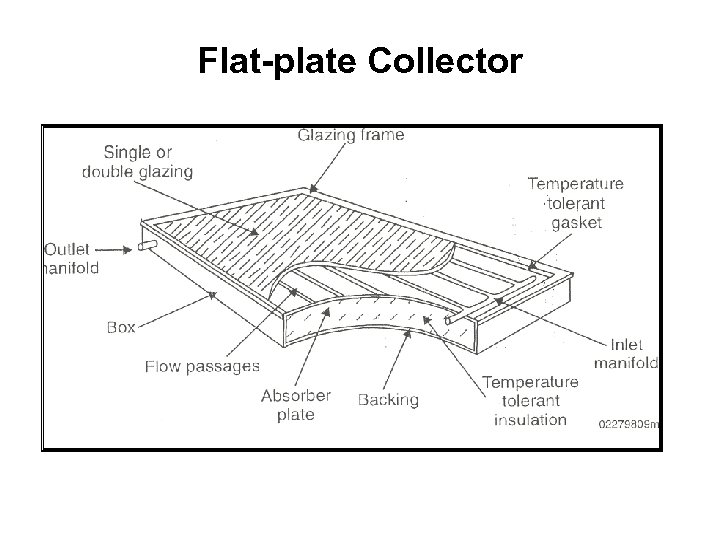

Flat-plate Collector

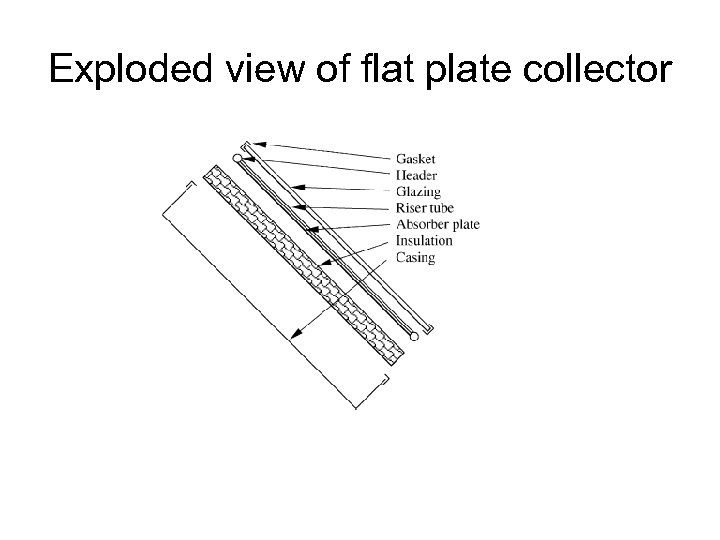

Exploded view of flat plate collector

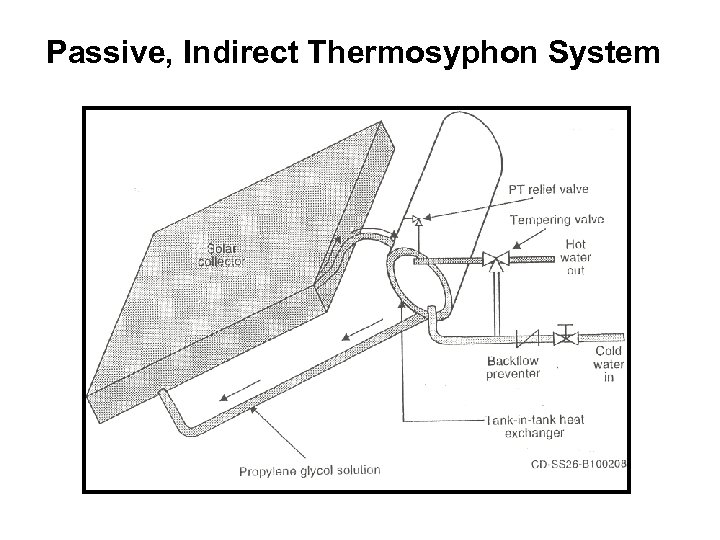

Passive, Indirect Thermosyphon System

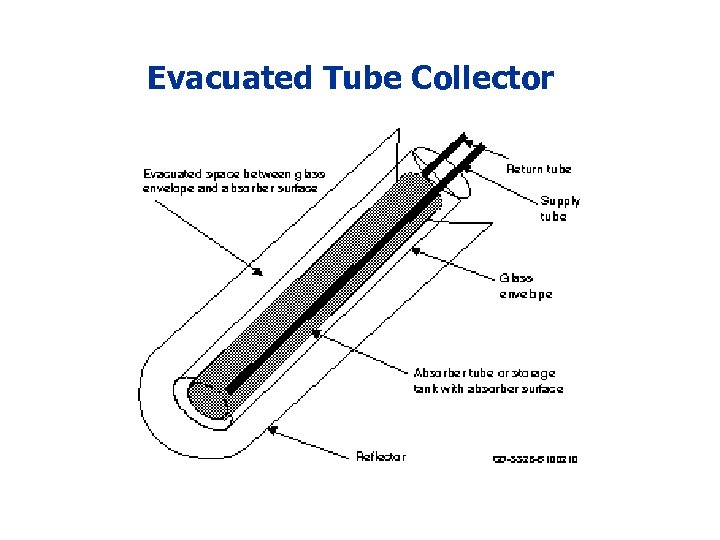

Evacuated Tube Collector
Evacuated-tube collector http: //www 1. eere. energy. gov/solar/printable_versions/sh_basics_collectors. html

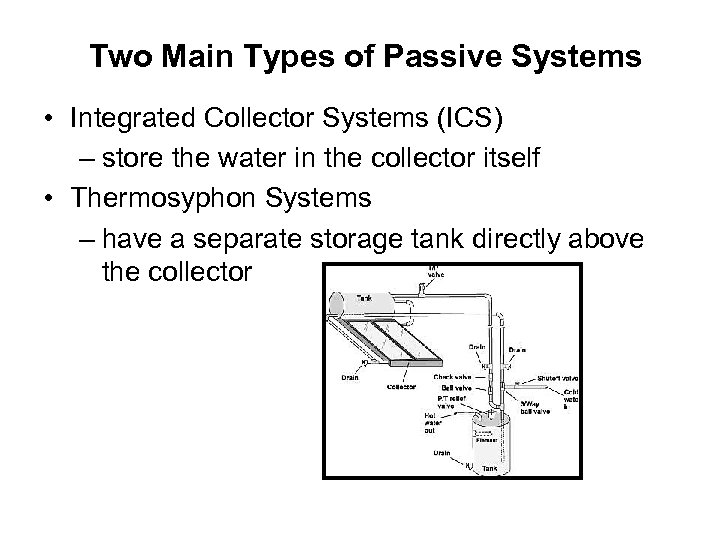

Two Main Types of Passive Systems • Integrated Collector Systems (ICS) – store the water in the collector itself • Thermosyphon Systems – have a separate storage tank directly above the collector

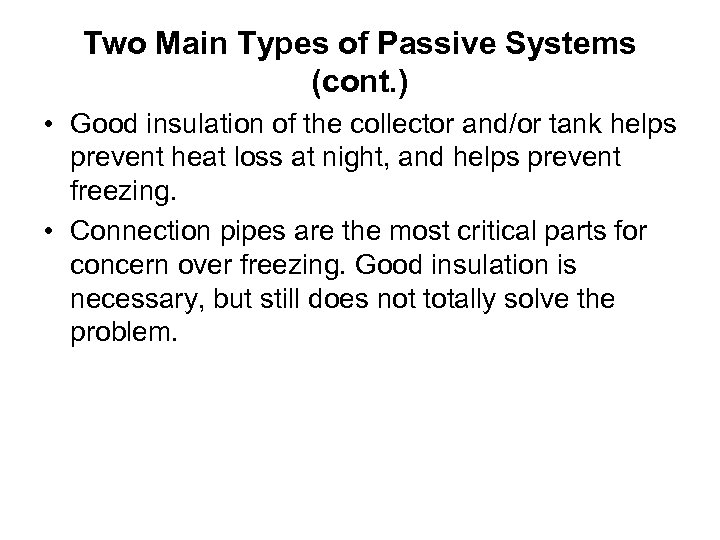

Two Main Types of Passive Systems (cont. ) • Good insulation of the collector and/or tank helps prevent heat loss at night, and helps prevent freezing. • Connection pipes are the most critical parts for concern over freezing. Good insulation is necessary, but still does not totally solve the problem.

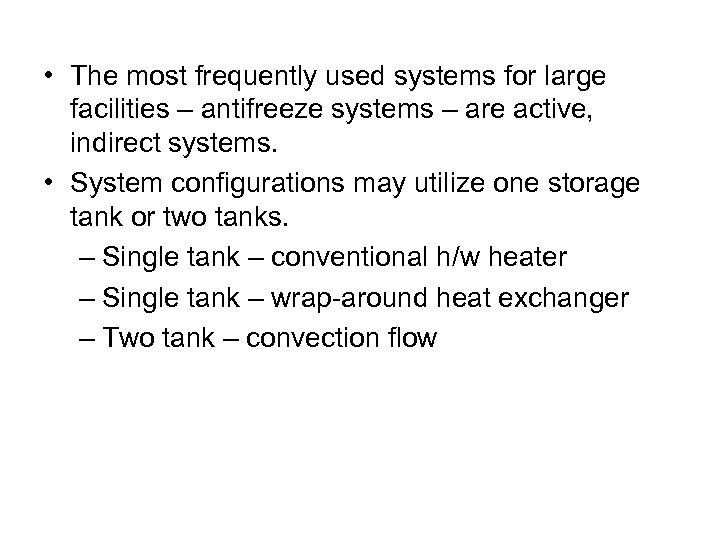

• The most frequently used systems for large facilities – antifreeze systems – are active, indirect systems. • System configurations may utilize one storage tank or two tanks. – Single tank – conventional h/w heater – Single tank – wrap-around heat exchanger – Two tank – convection flow

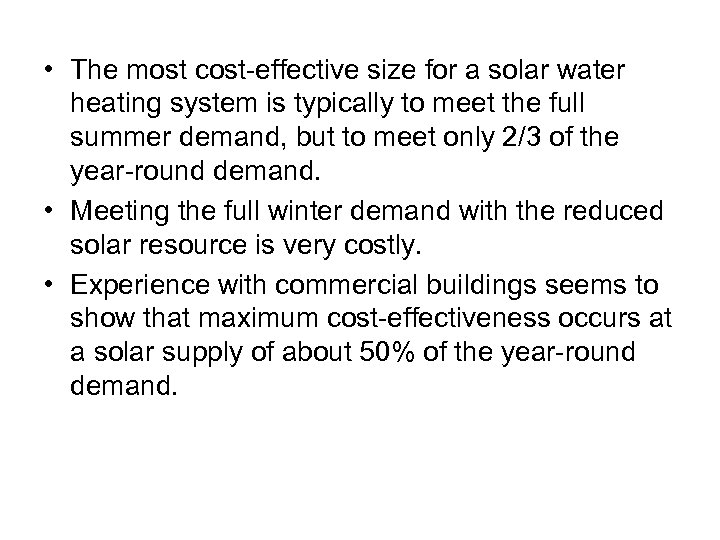

• The most cost-effective size for a solar water heating system is typically to meet the full summer demand, but to meet only 2/3 of the year-round demand. • Meeting the full winter demand with the reduced solar resource is very costly. • Experience with commercial buildings seems to show that maximum cost-effectiveness occurs at a solar supply of about 50% of the year-round demand.

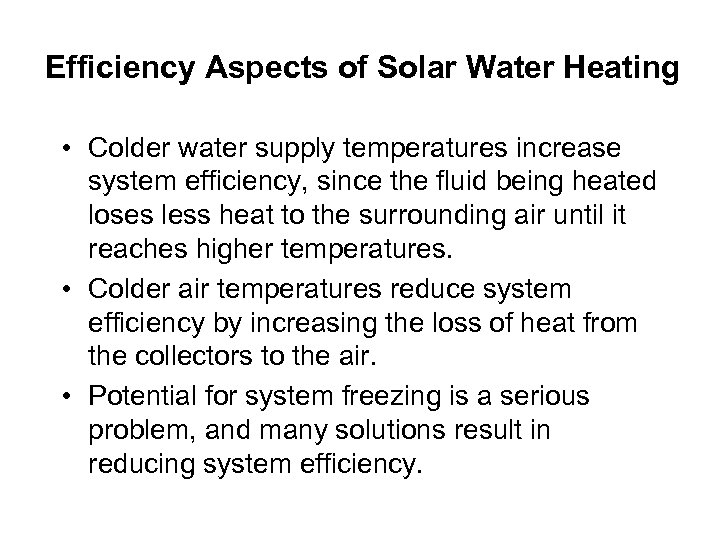

Efficiency Aspects of Solar Water Heating • Colder water supply temperatures increase system efficiency, since the fluid being heated loses less heat to the surrounding air until it reaches higher temperatures. • Colder air temperatures reduce system efficiency by increasing the loss of heat from the collectors to the air. • Potential for system freezing is a serious problem, and many solutions result in reducing system efficiency.

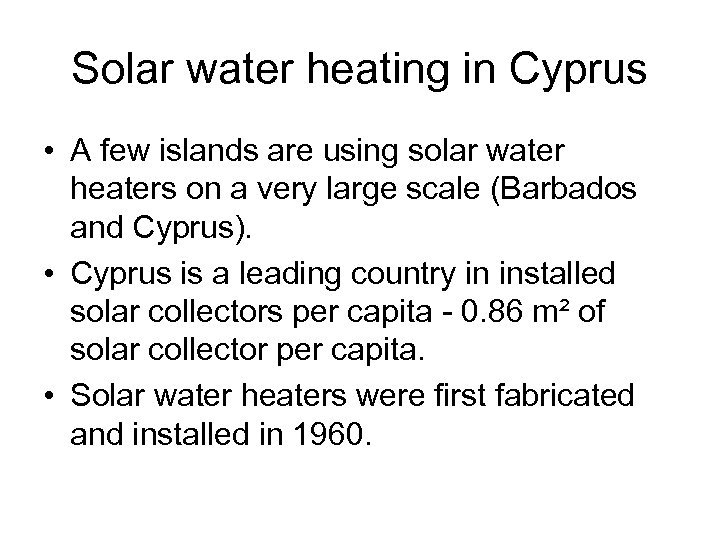

Solar water heating in Cyprus • A few islands are using solar water heaters on a very large scale (Barbados and Cyprus). • Cyprus is a leading country in installed solar collectors per capita - 0. 86 m² of solar collector per capita. • Solar water heaters were first fabricated and installed in 1960.

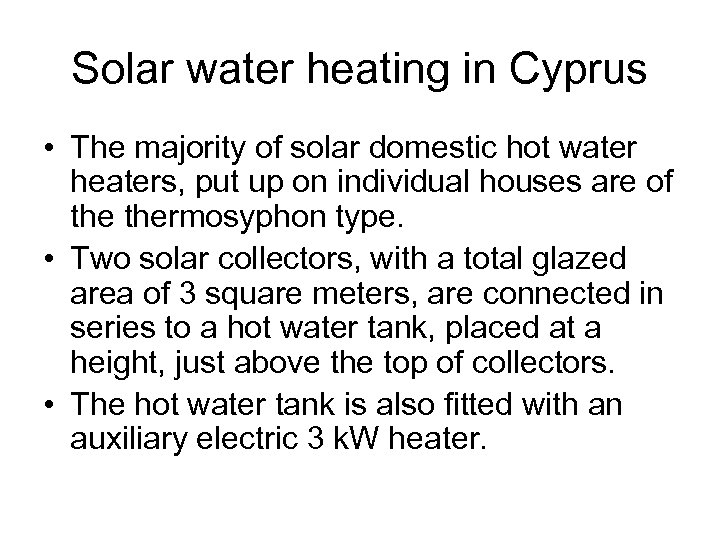

Solar water heating in Cyprus • The majority of solar domestic hot water heaters, put up on individual houses are of thermosyphon type. • Two solar collectors, with a total glazed area of 3 square meters, are connected in series to a hot water tank, placed at a height, just above the top of collectors. • The hot water tank is also fitted with an auxiliary electric 3 k. W heater.

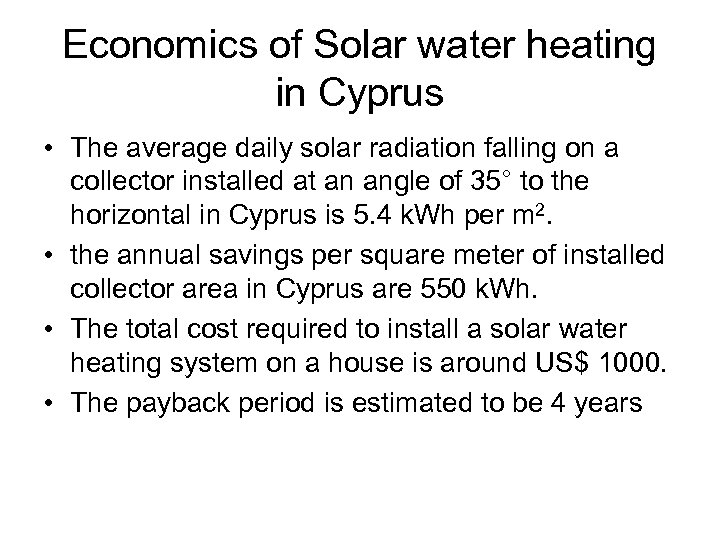

Economics of Solar water heating in Cyprus • The average daily solar radiation falling on a collector installed at an angle of 35° to the horizontal in Cyprus is 5. 4 k. Wh per m 2. • the annual savings per square meter of installed collector area in Cyprus are 550 k. Wh. • The total cost required to install a solar water heating system on a house is around US$ 1000. • The payback period is estimated to be 4 years

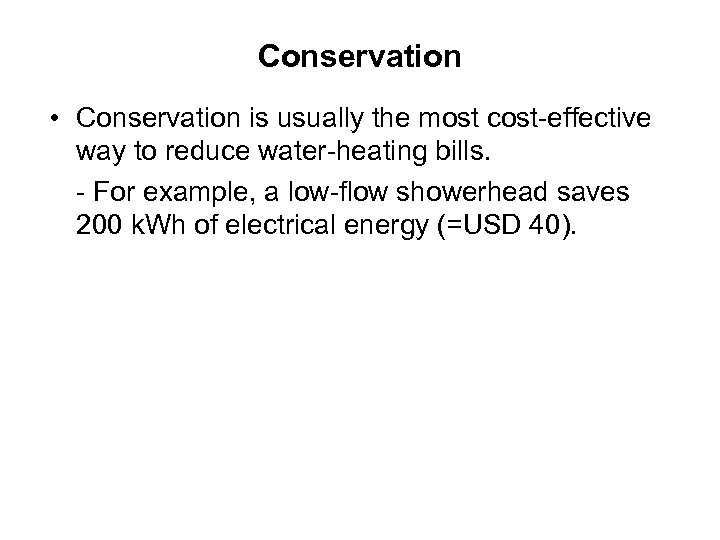

Conservation • Conservation is usually the most cost-effective way to reduce water-heating bills. - For example, a low-flow showerhead saves 200 k. Wh of electrical energy (=USD 40).

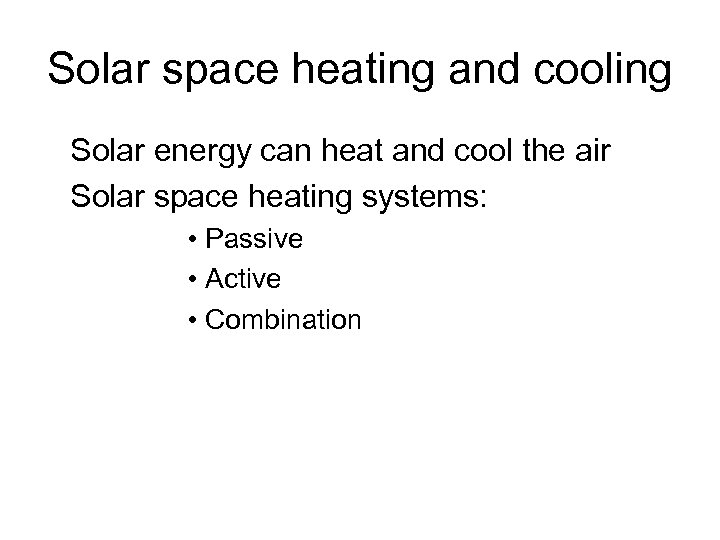

Solar space heating and cooling Solar energy can heat and cool the air Solar space heating systems: • Passive • Active • Combination
Air Heating • Air or other gases can be heated with FPC • The principal requirement is a large contact area between plate and air • Extended surfaces are used to counteract the low heat transfer coefficients between metal and air. • Metal or fabric matrices or corrugated metal sheets improve performance
Solar air collector Air flat-plate collectors are used for space heating. http: //www 1. eere. energy. gov/solar/printable_versions/sh_basics_collectors. html

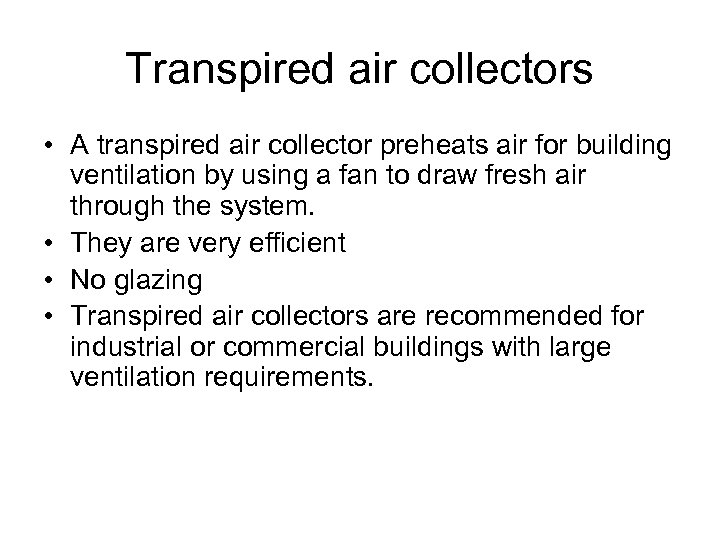

Transpired air collectors • A transpired air collector preheats air for building ventilation by using a fan to draw fresh air through the system. • They are very efficient • No glazing • Transpired air collectors are recommended for industrial or commercial buildings with large ventilation requirements.
Air heating Transpired air collectors http: //www. eere. energy. gov/de/transpired_air. html

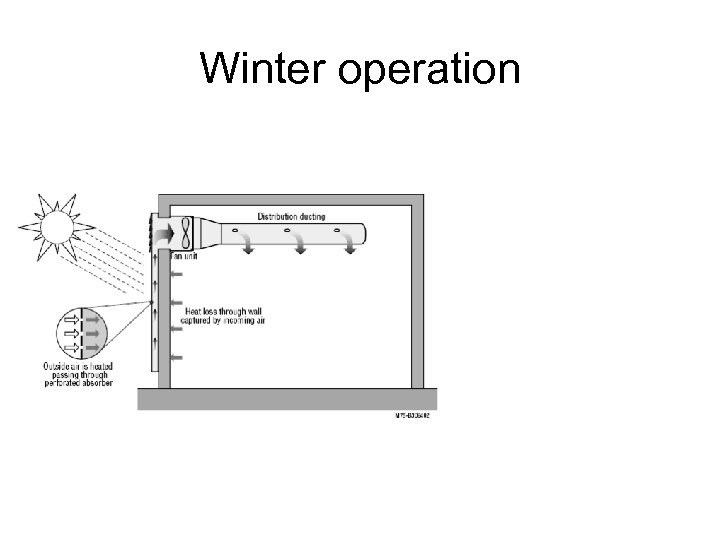

Winter operation

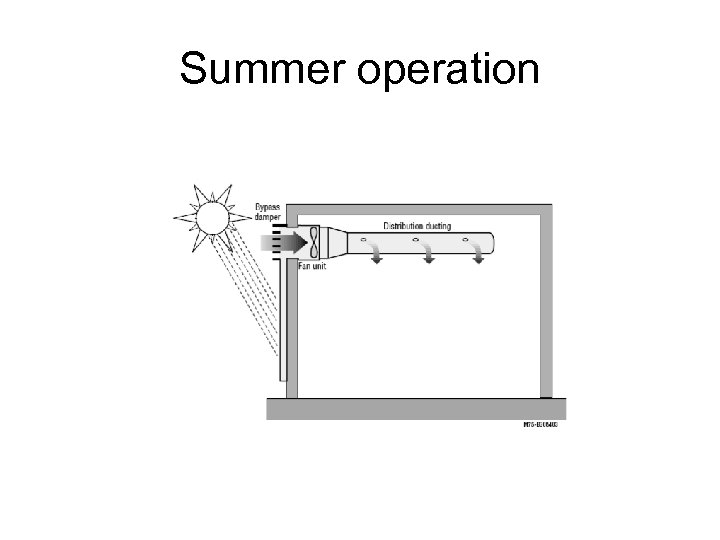

Summer operation
