Software test automation with UML 2 0 Testing

Software test automation with UML 2. 0 Testing. Profile & TTCN-3 Maili Markvardt

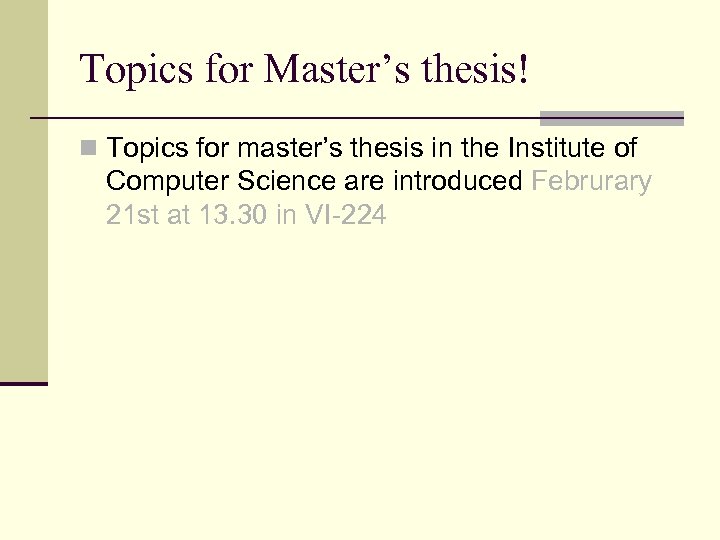

Topics for Master’s thesis! n Topics for master’s thesis in the Institute of Computer Science are introduced Februrary 21 st at 13. 30 in VI-224

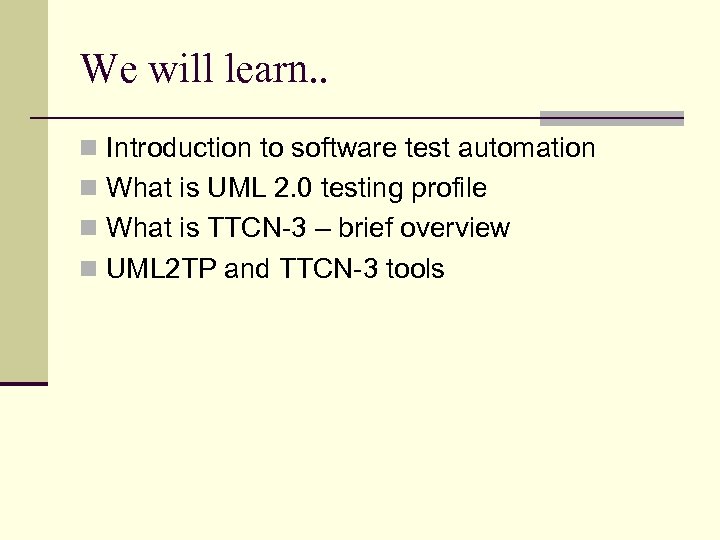

We will learn. . n Introduction to software test automation n What is UML 2. 0 testing profile n What is TTCN-3 – brief overview n UML 2 TP and TTCN-3 tools

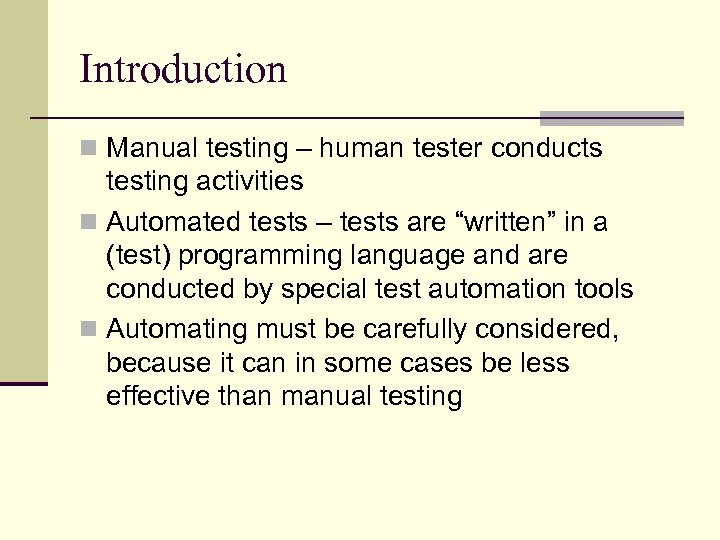

Introduction n Manual testing – human tester conducts testing activities n Automated tests – tests are “written” in a (test) programming language and are conducted by special test automation tools n Automating must be carefully considered, because it can in some cases be less effective than manual testing

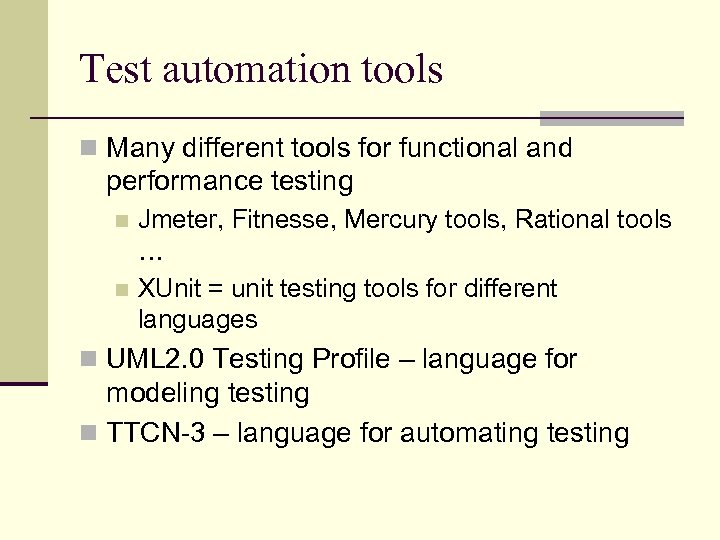

Test automation tools n Many different tools for functional and performance testing Jmeter, Fitnesse, Mercury tools, Rational tools … n XUnit = unit testing tools for different languages n n UML 2. 0 Testing Profile – language for modeling testing n TTCN-3 – language for automating testing

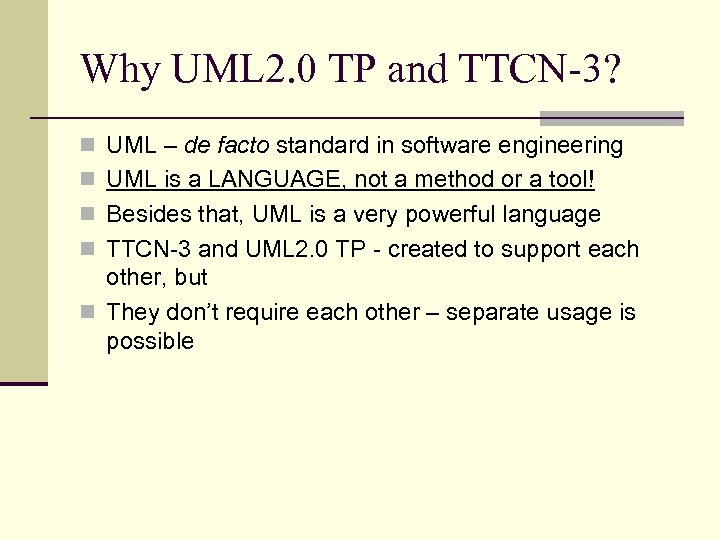

Why UML 2. 0 TP and TTCN-3? n UML – de facto standard in software engineering n UML is a LANGUAGE, not a method or a tool! n Besides that, UML is a very powerful language n TTCN-3 and UML 2. 0 TP - created to support each other, but n They don’t require each other – separate usage is possible

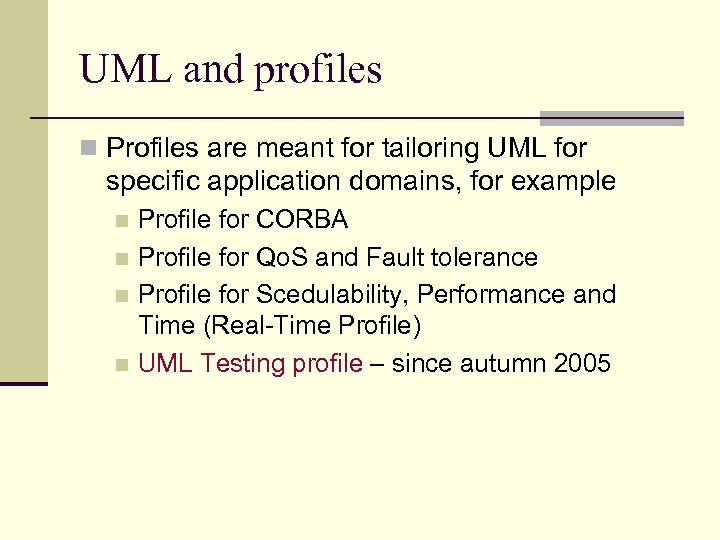

UML and profiles n Profiles are meant for tailoring UML for specific application domains, for example Profile for CORBA n Profile for Qo. S and Fault tolerance n Profile for Scedulability, Performance and Time (Real-Time Profile) n UML Testing profile – since autumn 2005 n

UML 2. 0 Testing Profile n A language for designing, visualising, specifying, analysing and documenting artifacts concernging testing systems Test architecture n Test dynamics n Test data n Test timing n Once more: UML TP is a language, not an method. It provides a notation rather than specifying the usage! n

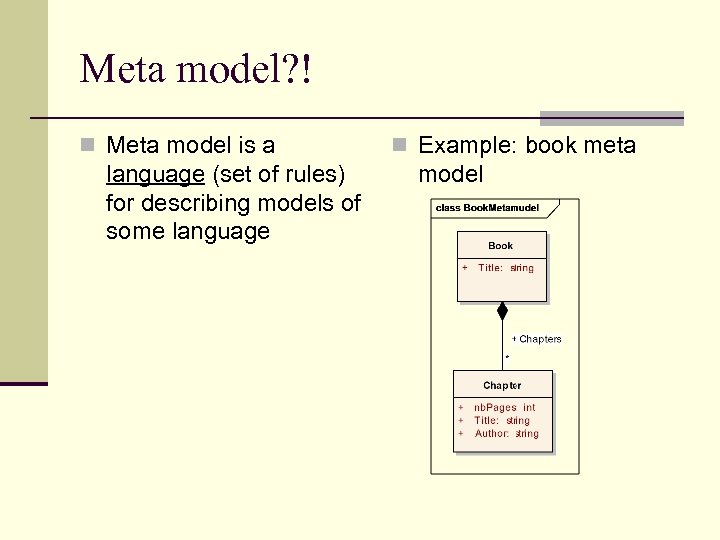

Meta model? ! n Meta model is a language (set of rules) for describing models of some language n Example: book meta model

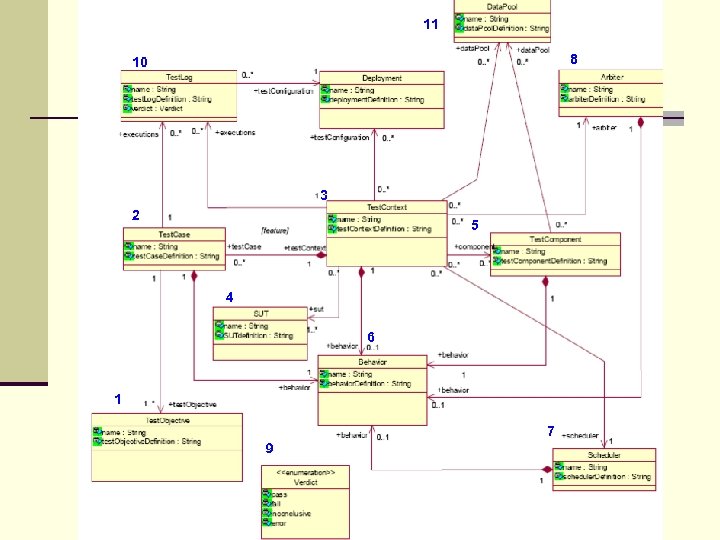

11 8 10 3 2 5 4 6 1 7 9

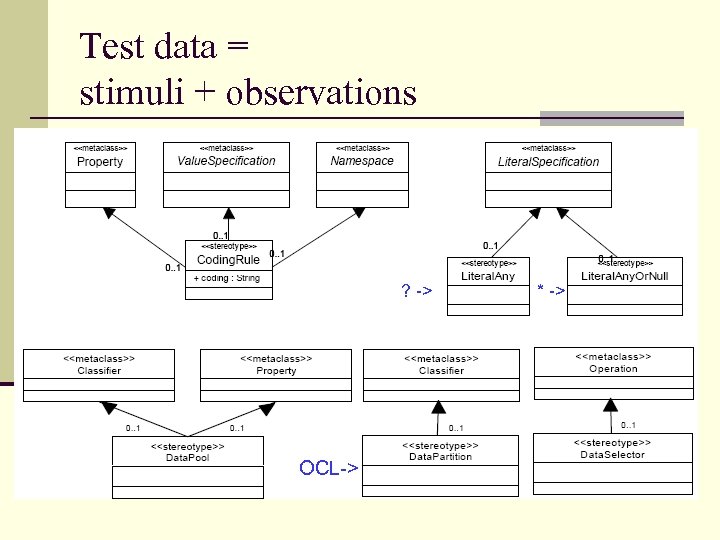

Test data = stimuli + observations ? -> OCL-> * ->

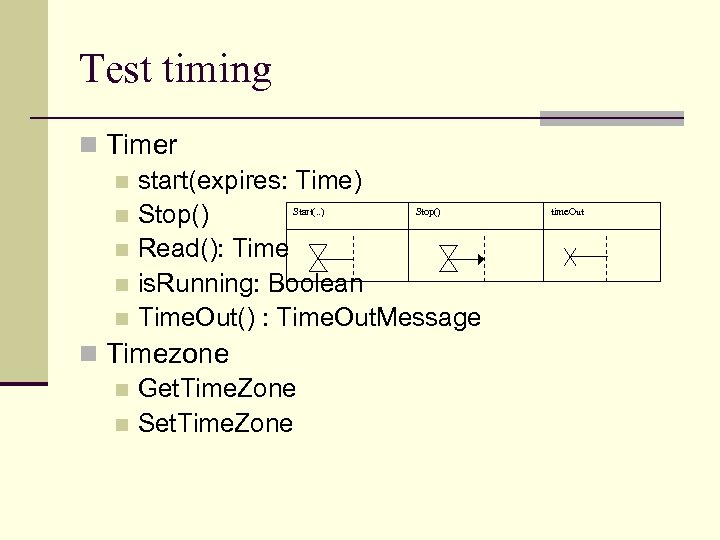

Test timing n Timer n start(expires: Time) n Stop() n Read(): Time n is. Running: Boolean n Time. Out() : Time. Out. Message n Timezone n Get. Time. Zone n Set. Time. Zone Start(. . ) Stop() time. Out

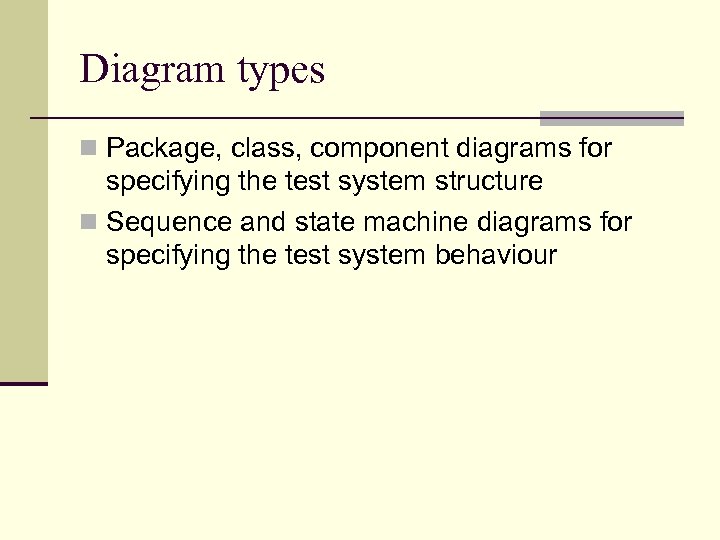

Diagram types n Package, class, component diagrams for specifying the test system structure n Sequence and state machine diagrams for specifying the test system behaviour

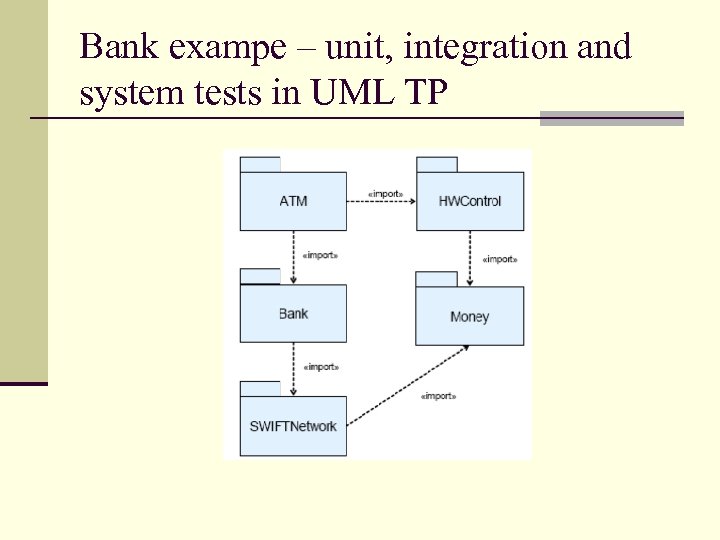

Bank exampe – unit, integration and system tests in UML TP

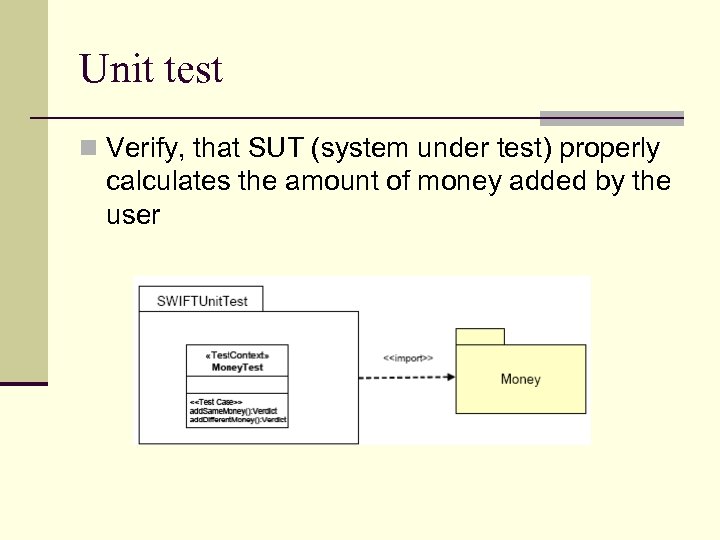

Unit test n Verify, that SUT (system under test) properly calculates the amount of money added by the user

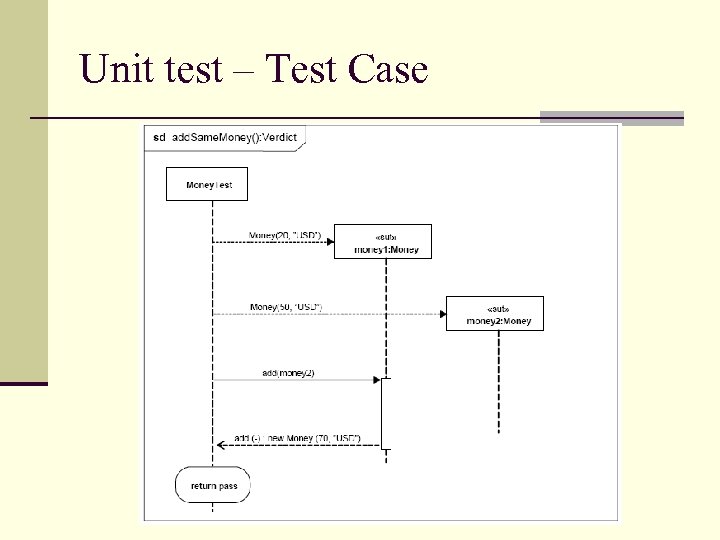

Unit test – Test Case

The same unit test in JUnit public class Money. Test extends Test. Case { public void add. Same. Money { Money money 1 = new Money(20, “USD”)); Money money 2 = new Money(50, “USD”)); money 1. add(money 2); } assert. True(money 1. equals(new Money(70, “USD”)) }

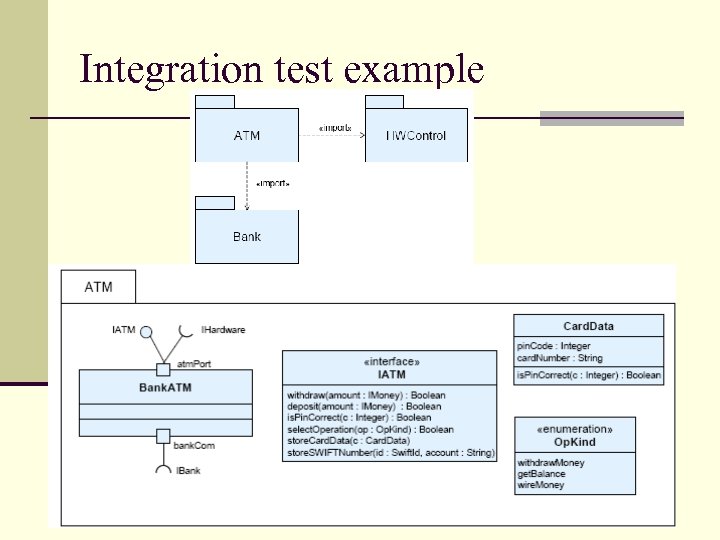

Integration test example

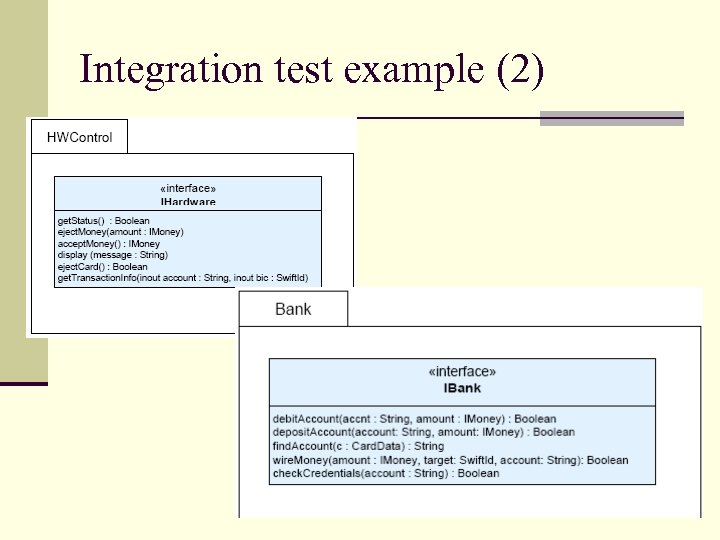

Integration test example (2)

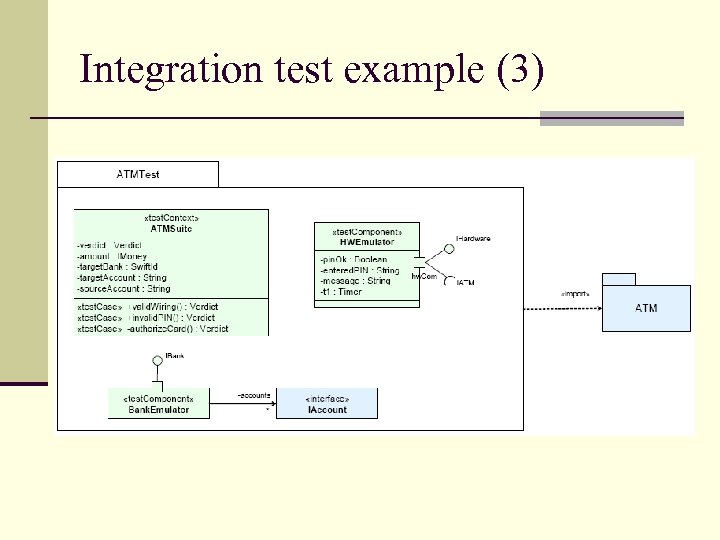

Integration test example (3)

Integration test example (4) n Testi konfiguratsioon

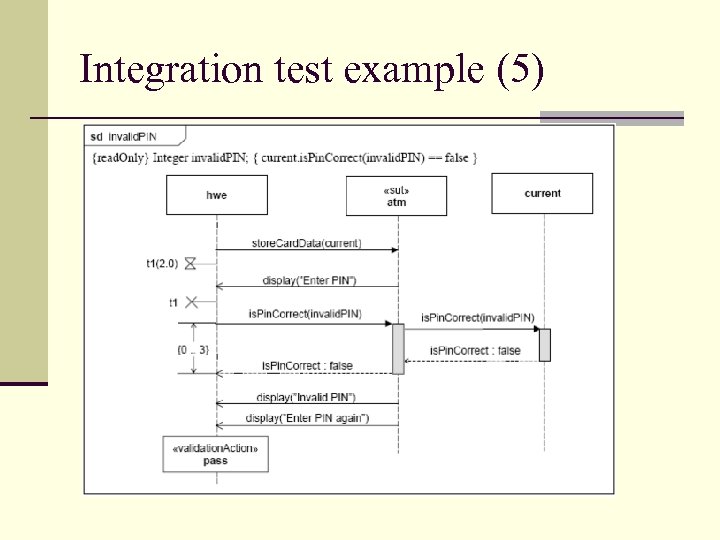

Integration test example (5)

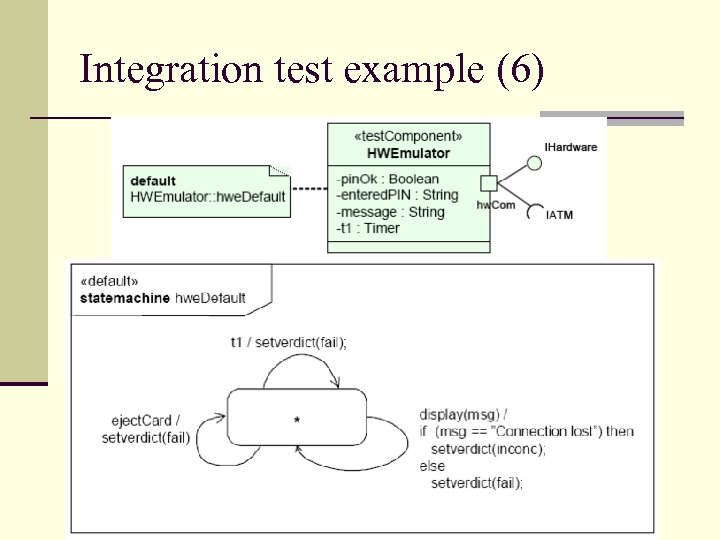

Integration test example (6)

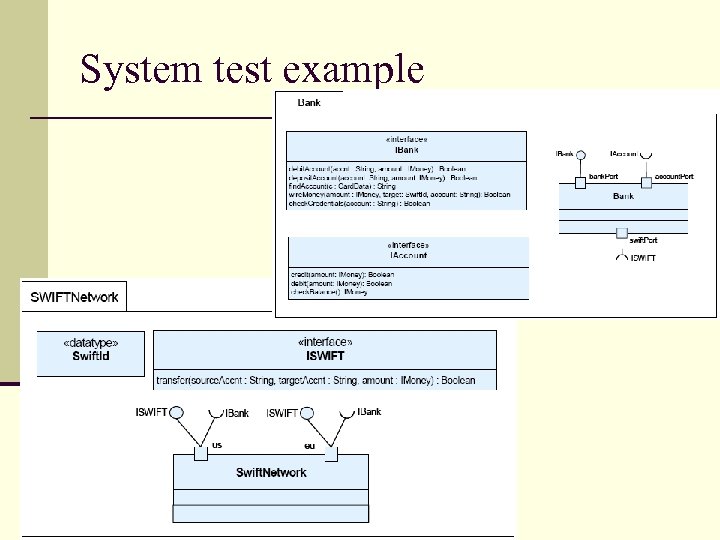

System test example

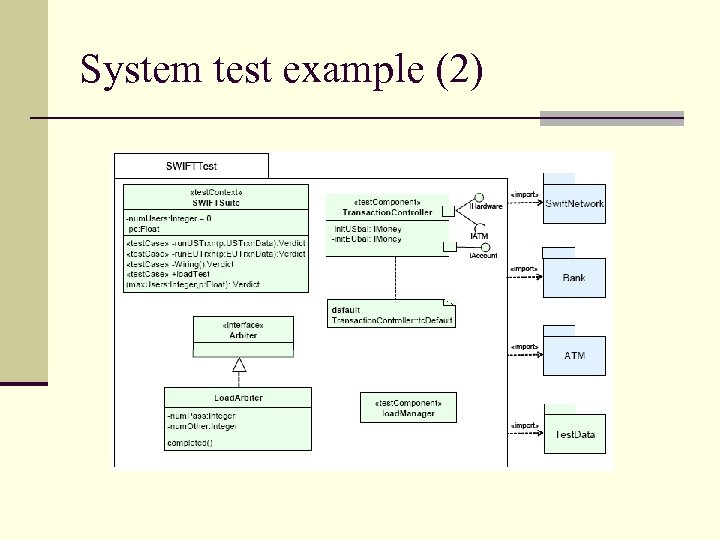

System test example (2)

System test example (3)

System test example (4)

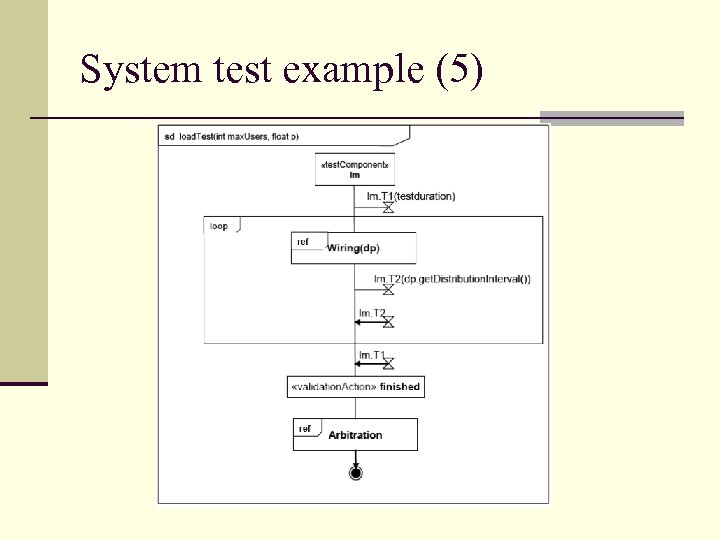

System test example (5)

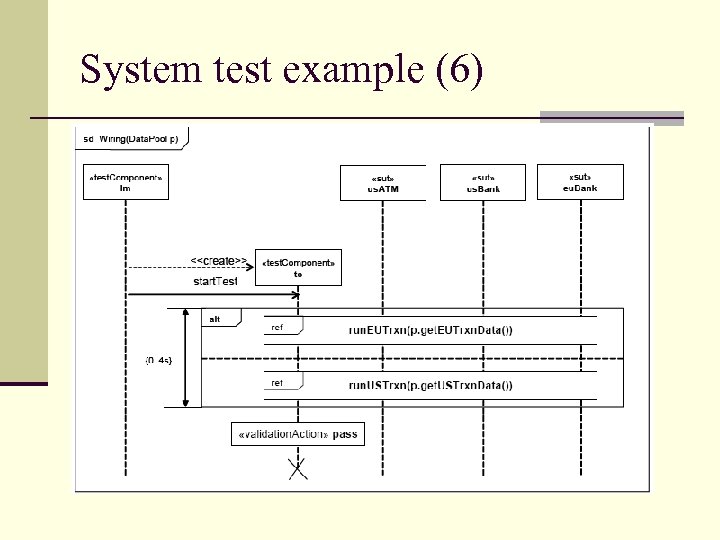

System test example (6)

System test example (7)

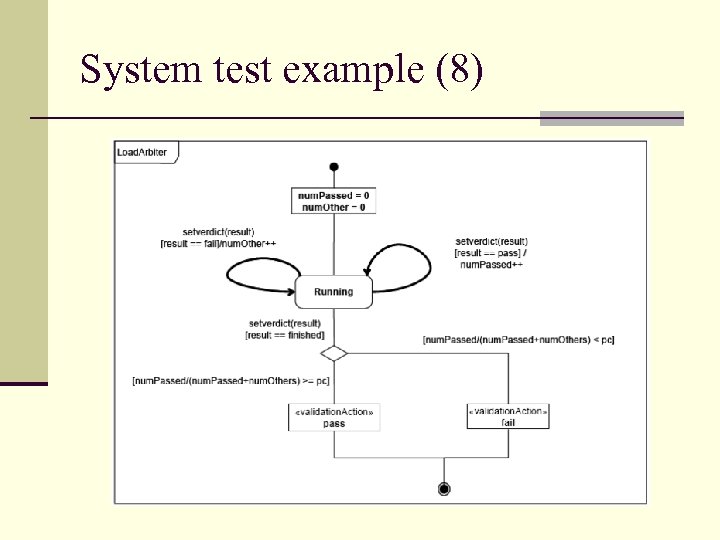

System test example (8)

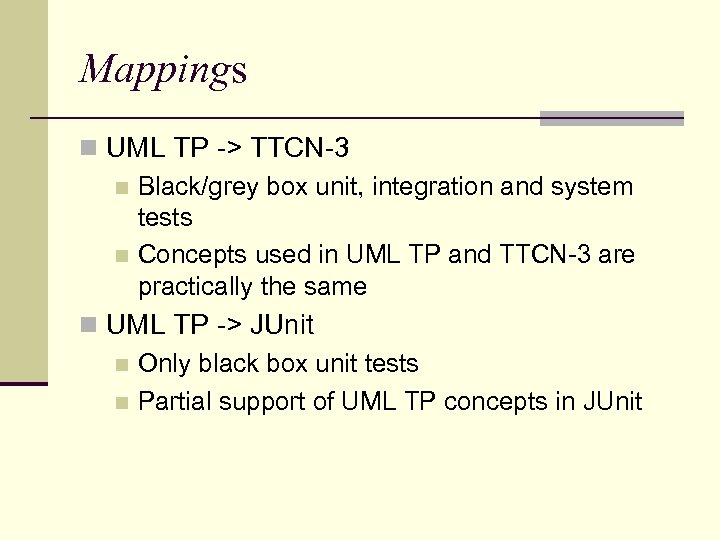

Mappings n UML TP -> TTCN-3 n Black/grey box unit, integration and system tests n Concepts used in UML TP and TTCN-3 are practically the same n UML TP -> JUnit n Only black box unit tests n Partial support of UML TP concepts in JUnit

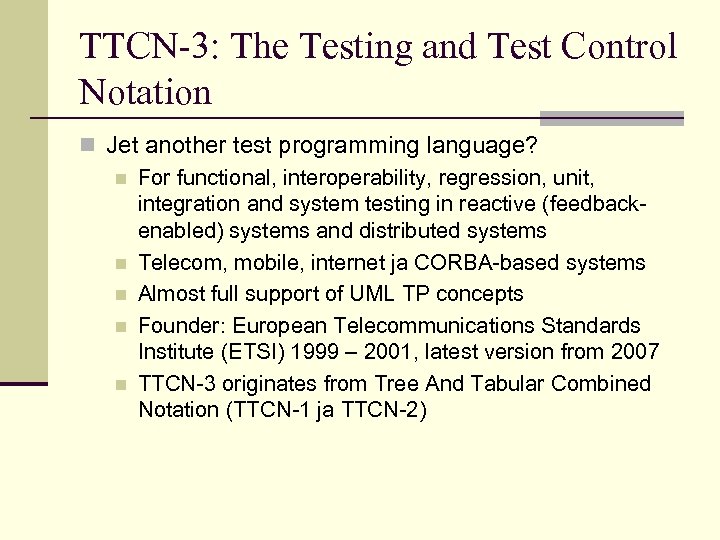

TTCN-3: The Testing and Test Control Notation n Jet another test programming language? n For functional, interoperability, regression, unit, integration and system testing in reactive (feedbackenabled) systems and distributed systems n Telecom, mobile, internet ja CORBA-based systems n Almost full support of UML TP concepts n Founder: European Telecommunications Standards Institute (ETSI) 1999 – 2001, latest version from 2007 n TTCN-3 originates from Tree And Tabular Combined Notation (TTCN-1 ja TTCN-2)

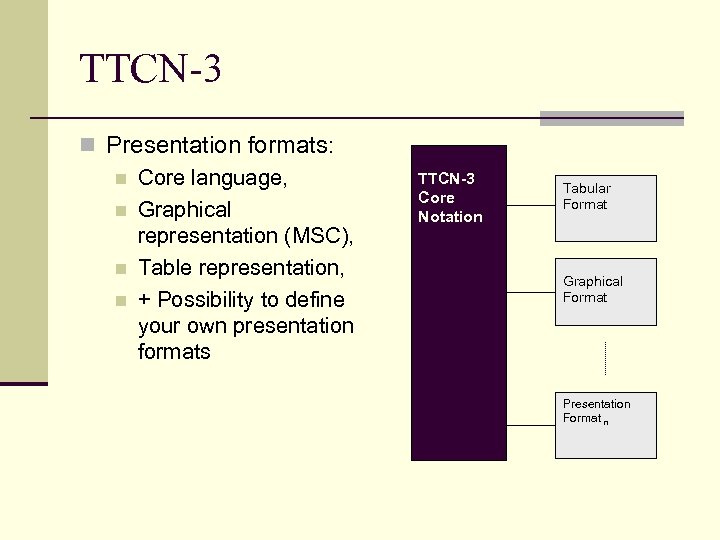

TTCN-3 n Presentation formats: n Core language, n Graphical representation (MSC), n Table representation, n + Possibility to define your own presentation formats TTCN-3 Core Notation Tabular Format Graphical Format Presentation Format n

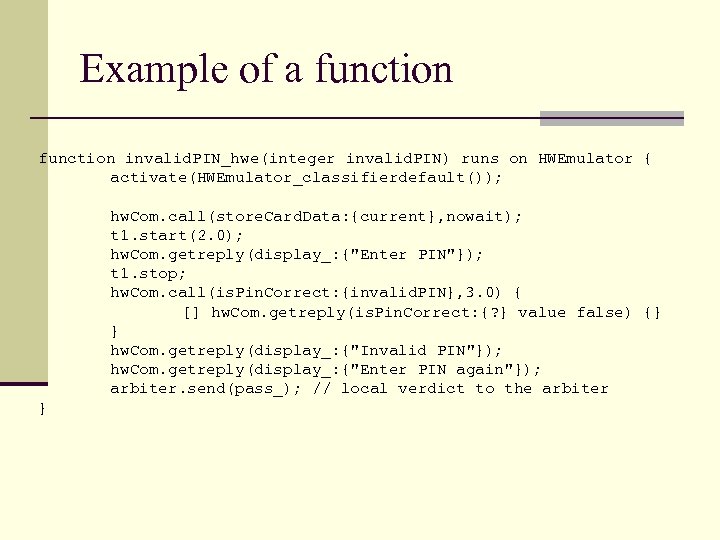

Example of a function invalid. PIN_hwe(integer invalid. PIN) runs on HWEmulator { activate(HWEmulator_classifierdefault()); hw. Com. call(store. Card. Data: {current}, nowait); t 1. start(2. 0); hw. Com. getreply(display_: {"Enter PIN"}); t 1. stop; hw. Com. call(is. Pin. Correct: {invalid. PIN}, 3. 0) { [] hw. Com. getreply(is. Pin. Correct: {? } value false) {} } hw. Com. getreply(display_: {"Invalid PIN"}); hw. Com. getreply(display_: {"Enter PIN again"}); arbiter. send(pass_); // local verdict to the arbiter }

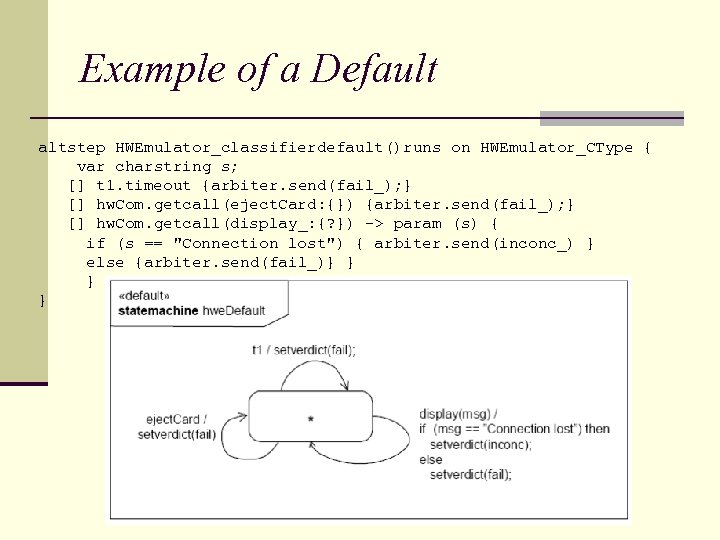

Example of a Default altstep HWEmulator_classifierdefault()runs on HWEmulator_CType { var charstring s; [] t 1. timeout {arbiter. send(fail_); } [] hw. Com. getcall(eject. Card: {}) {arbiter. send(fail_); } [] hw. Com. getcall(display_: {? }) -> param (s) { if (s == "Connection lost") { arbiter. send(inconc_) } else {arbiter. send(fail_)} }

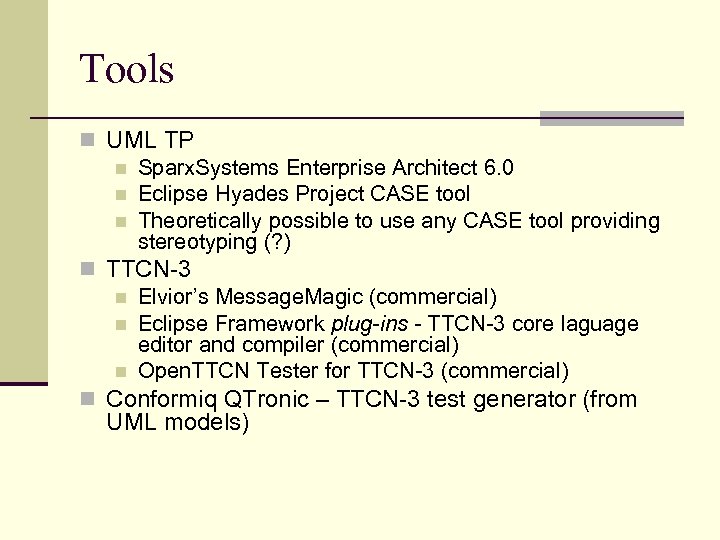

Tools n UML TP n Sparx. Systems Enterprise Architect 6. 0 n Eclipse Hyades Project CASE tool n Theoretically possible to use any CASE tool providing stereotyping (? ) n TTCN-3 n Elvior’s Message. Magic (commercial) n Eclipse Framework plug-ins - TTCN-3 core laguage editor and compiler (commercial) n Open. TTCN Tester for TTCN-3 (commercial) n Conformiq QTronic – TTCN-3 test generator (from UML models)

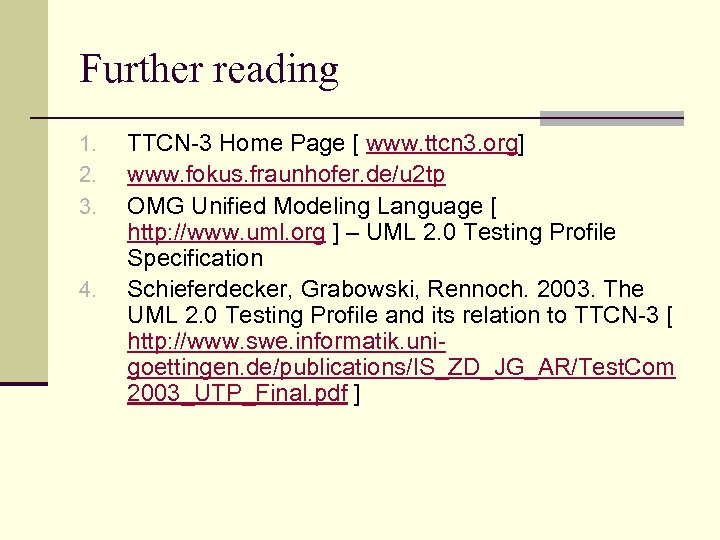

Further reading 1. 2. 3. 4. TTCN-3 Home Page [ www. ttcn 3. org] www. fokus. fraunhofer. de/u 2 tp OMG Unified Modeling Language [ http: //www. uml. org ] – UML 2. 0 Testing Profile Specification Schieferdecker, Grabowski, Rennoch. 2003. The UML 2. 0 Testing Profile and its relation to TTCN-3 [ http: //www. swe. informatik. unigoettingen. de/publications/IS_ZD_JG_AR/Test. Com 2003_UTP_Final. pdf ]
