Software House i STAR Edge August 2009

Software House i. STAR Edge August 2009

i. STAR Edge “Bringing the Power of C CURE to the Edge” n A full-featured, two-reader IP device based on the i. STAR code base and feature set l l Offering all of Software House’s advanced features – AES encryption, extended formats, occupancy control, anti-passback, multiple cards, advanced clustering - for a competitive price No compromise on features when moving to the edge

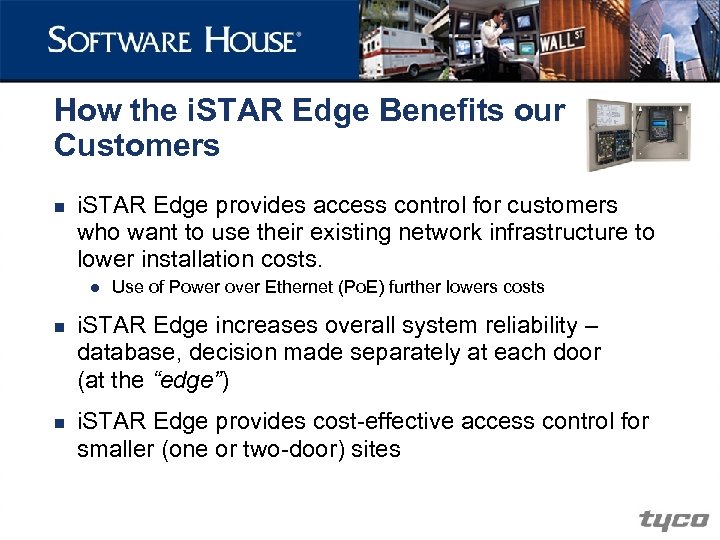

How the i. STAR Edge Benefits our Customers n i. STAR Edge provides access control for customers who want to use their existing network infrastructure to lower installation costs. l n n Use of Power over Ethernet (Po. E) further lowers costs i. STAR Edge increases overall system reliability – database, decision made separately at each door (at the “edge”) i. STAR Edge provides cost-effective access control for smaller (one or two-door) sites

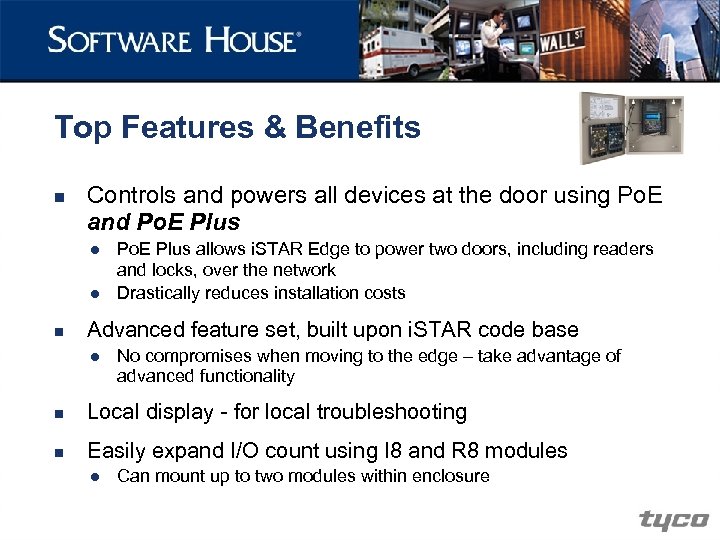

Top Features & Benefits n Controls and powers all devices at the door using Po. E and Po. E Plus l l n Po. E Plus allows i. STAR Edge to power two doors, including readers and locks, over the network Drastically reduces installation costs Advanced feature set, built upon i. STAR code base l No compromises when moving to the edge – take advantage of advanced functionality n Local display - for local troubleshooting n Easily expand I/O count using I 8 and R 8 modules l Can mount up to two modules within enclosure

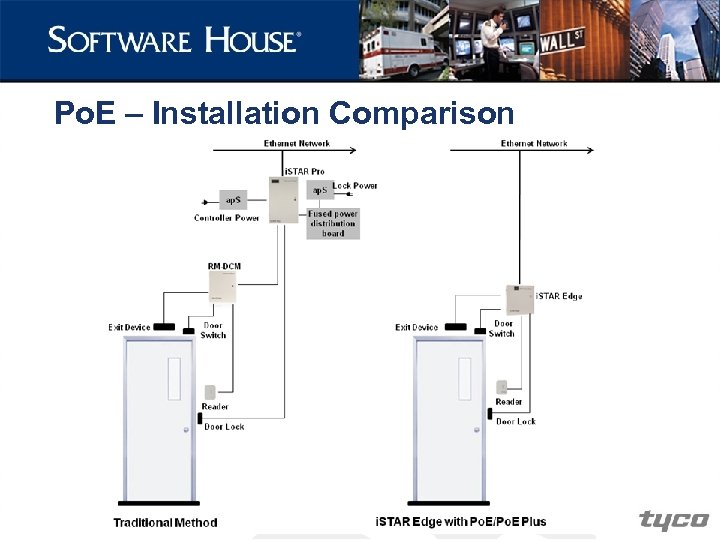

Po. E – Installation Comparison

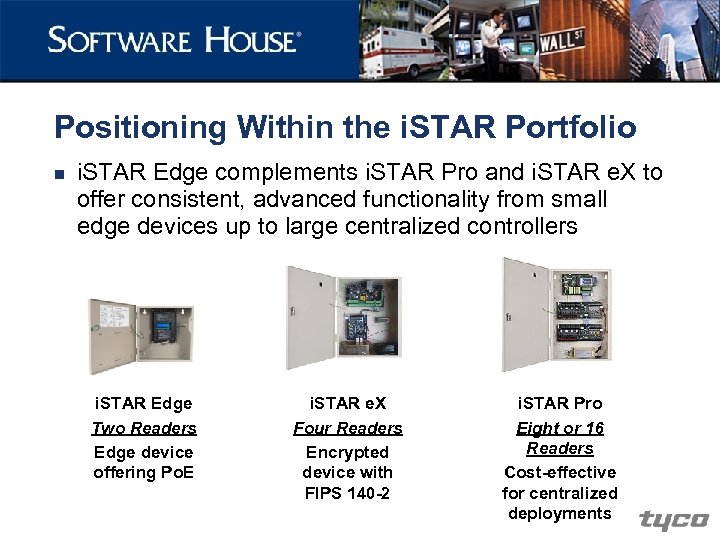

Positioning Within the i. STAR Portfolio n i. STAR Edge complements i. STAR Pro and i. STAR e. X to offer consistent, advanced functionality from small edge devices up to large centralized controllers i. STAR Edge Two Readers Edge device offering Po. E i. STAR e. X Four Readers Encrypted device with FIPS 140 -2 i. STAR Pro Eight or 16 Readers Cost-effective for centralized deployments

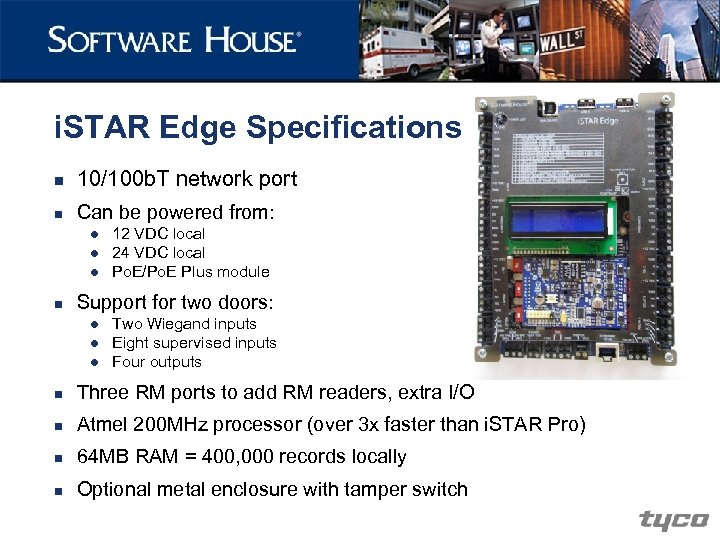

i. STAR Edge Specifications n 10/100 b. T network port n Can be powered from: l l l n 12 VDC local 24 VDC local Po. E/Po. E Plus module Support for two doors: l l l Two Wiegand inputs Eight supervised inputs Four outputs n Three RM ports to add RM readers, extra I/O n Atmel 200 MHz processor (over 3 x faster than i. STAR Pro) n 64 MB RAM = 400, 000 records locally n Optional metal enclosure with tamper switch

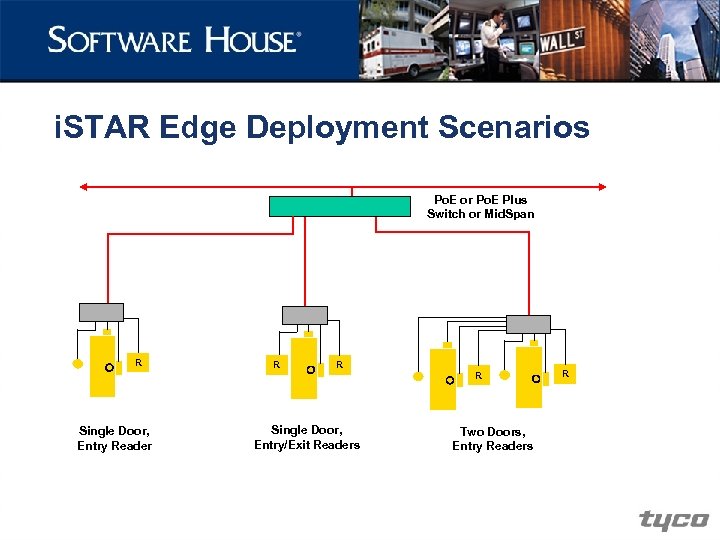

i. STAR Edge Deployment Scenarios Po. E or Po. E Plus Switch or Mid. Span R Single Door, Entry Reader R R Single Door, Entry/Exit Readers R Two Doors, Entry Readers R

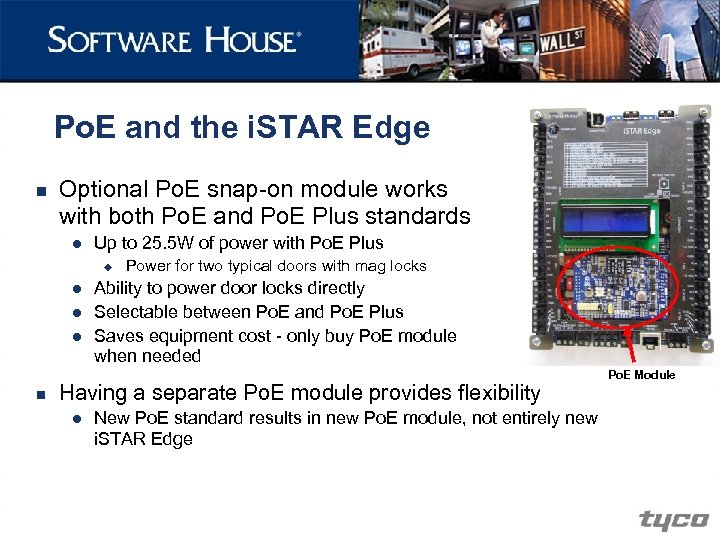

Po. E and the i. STAR Edge n Optional Po. E snap-on module works with both Po. E and Po. E Plus standards l Up to 25. 5 W of power with Po. E Plus u l l l n Power for two typical doors with mag locks Ability to power door locks directly Selectable between Po. E and Po. E Plus Saves equipment cost - only buy Po. E module when needed Having a separate Po. E module provides flexibility l New Po. E standard results in new Po. E module, not entirely new i. STAR Edge Po. E Module

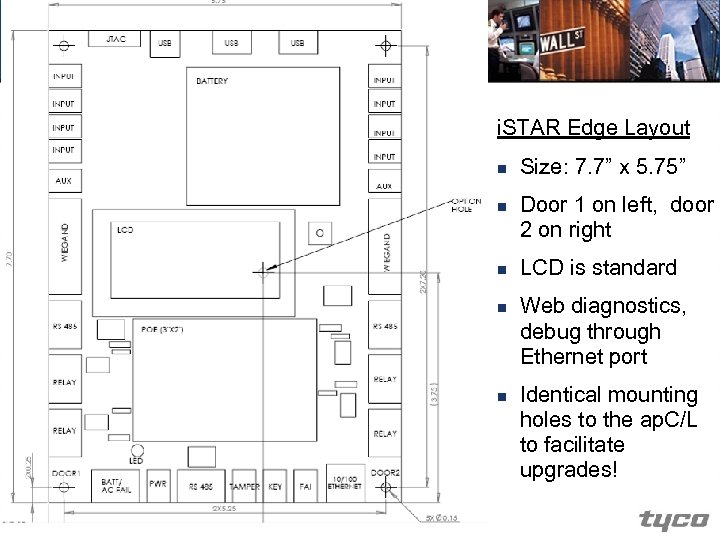

edge. STAR Details i. STAR Edge Layout n n n Size: 7. 7” x 5. 75” Door 1 on left, door 2 on right LCD is standard Web diagnostics, debug through Ethernet port Identical mounting holes to the ap. C/L to facilitate upgrades!

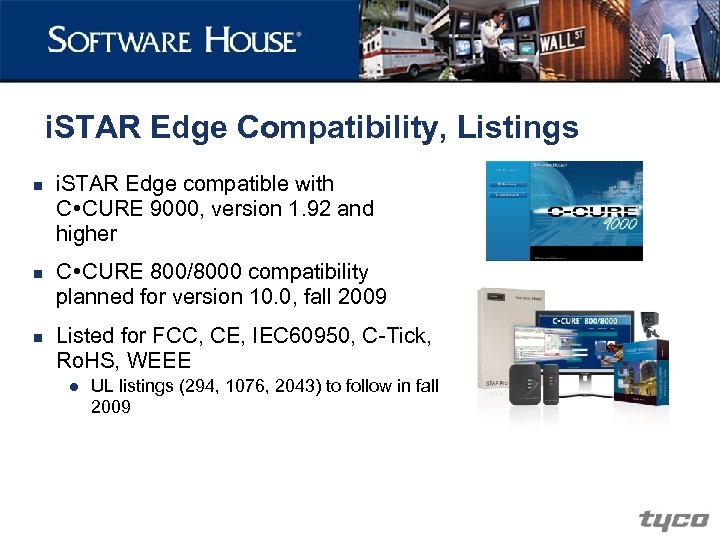

i. STAR Edge Compatibility, Listings n n n i. STAR Edge compatible with C CURE 9000, version 1. 92 and higher C CURE 800/8000 compatibility planned for version 10. 0, fall 2009 Listed for FCC, CE, IEC 60950, C-Tick, Ro. HS, WEEE l UL listings (294, 1076, 2043) to follow in fall 2009
