Software Development Tools COMP 220 COMP 285 Sebastian Coope

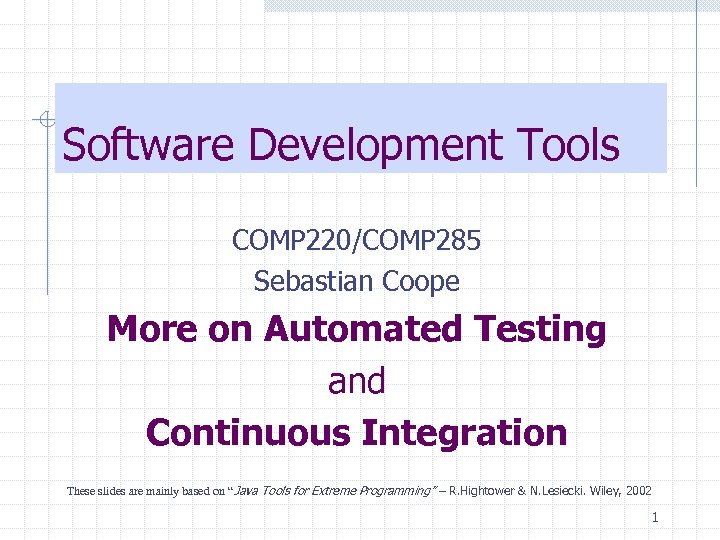

Software Development Tools COMP 220/COMP 285 Sebastian Coope More on Automated Testing and Continuous Integration These slides are mainly based on “ Java Tools for Extreme Programming” – R. Hightower & N. Lesiecki. Wiley, 2002 1

Automated Testing • Testing software continuously validates that - the software works and - meets the customer’s requirements • Automating the tests ensures that - testing will in fact be continuous • Without testing, a team is just guessing that its software meets those requirements. 2

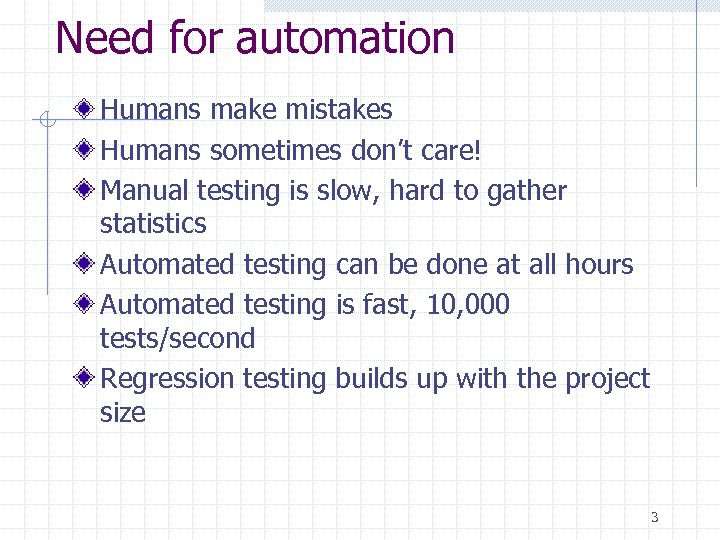

Need for automation Humans make mistakes Humans sometimes don’t care! Manual testing is slow, hard to gather statistics Automated testing can be done at all hours Automated testing is fast, 10, 000 tests/second Regression testing builds up with the project size 3

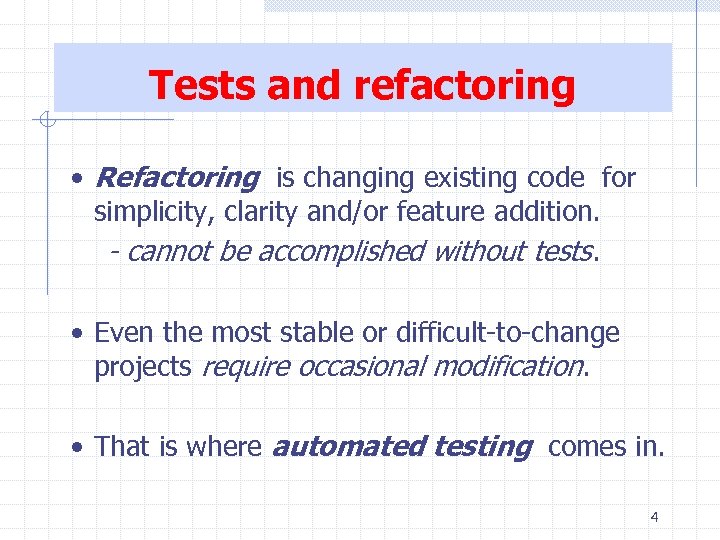

Tests and refactoring • Refactoring is changing existing code for simplicity, clarity and/or feature addition. - cannot be accomplished without tests. • Even the most stable or difficult-to-change projects require occasional modification. • That is where automated testing comes in. 4

Tests and refactoring • Comprehensive tests (running frequently) - verify how the system should work, - allow the underlying behaviour to change freely. • Any problems introduced during a change are - automatically caught by the tests. • With testing, programmers - refactor with confidence, - the code works, and - the tests prove it 5

Types of Automated Testing 1. Unit Testing • testing of a unit of a code - everything that could possibly break • usually exercises all the methods in public interface of a class • verifies that - the unit of code behaves as expected • with this verification - the public interface gains meaning 6

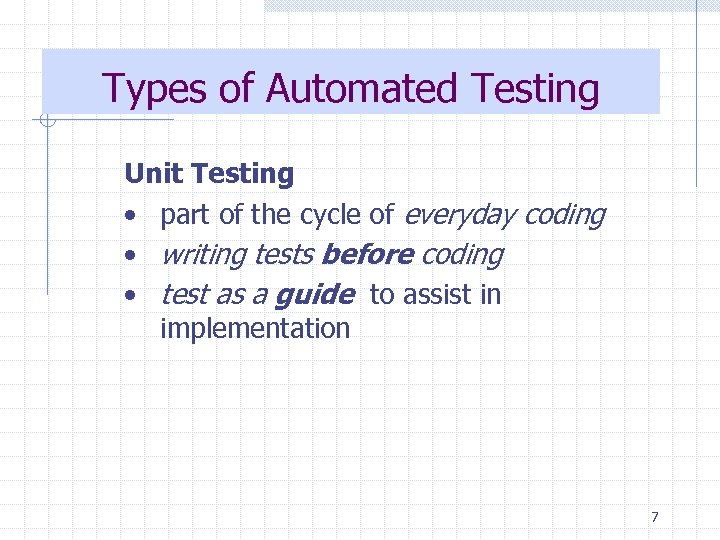

Types of Automated Testing Unit Testing • part of the cycle of everyday coding • writing tests before coding • test as a guide to assist in implementation 7

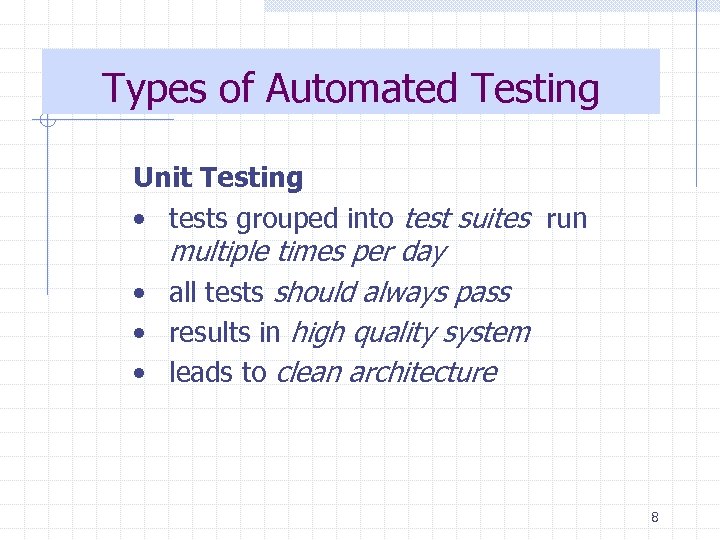

Types of Automated Testing Unit Testing • tests grouped into test suites run multiple times per day • all tests should always pass • results in high quality system • leads to clean architecture 8

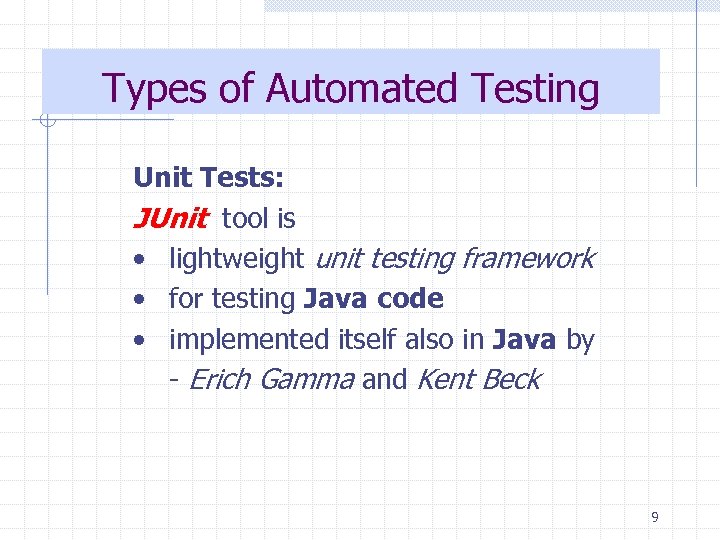

Types of Automated Testing Unit Tests: JUnit tool is • lightweight unit testing framework • for testing Java code • implemented itself also in Java by - Erich Gamma and Kent Beck 9

Types of Automated Testing 2. Integration Tests • Unit tests are deliberately supposed to be - isolated and - as independent as possible, • Integration testing ensures that - all the code cooperates, and - differences between expectation and reality are precisely localized. 10

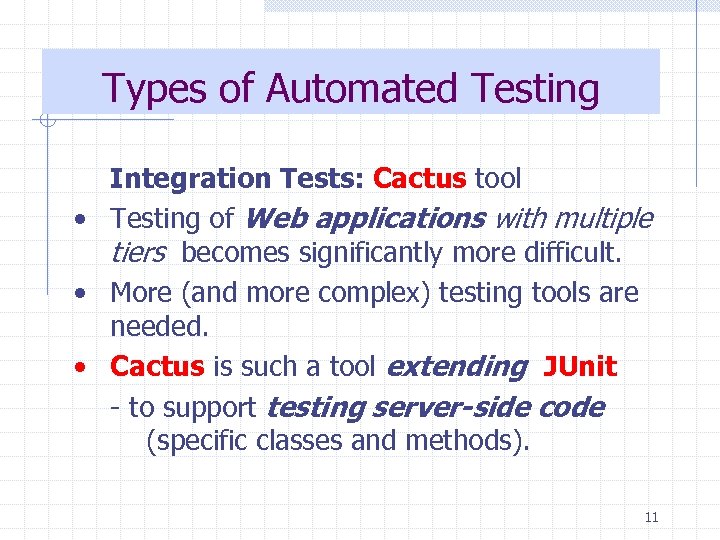

Types of Automated Testing Integration Tests: Cactus tool • Testing of Web applications with multiple tiers becomes significantly more difficult. • More (and more complex) testing tools are needed. • Cactus is such a tool extending JUnit - to support testing server-side code (specific classes and methods). 11

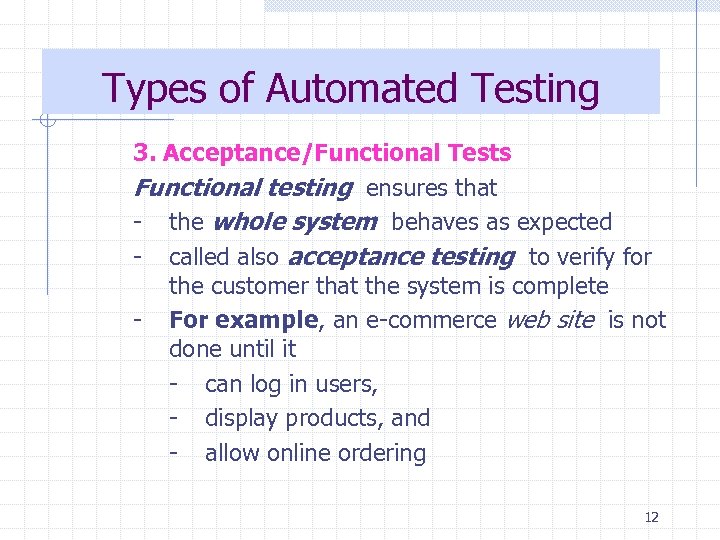

Types of Automated Testing 3. Acceptance/Functional Tests Functional testing ensures that - the whole system behaves as expected - called also acceptance testing to verify for the customer that the system is complete - For example, an e-commerce web site is not done until it - can log in users, - display products, and - allow online ordering 12

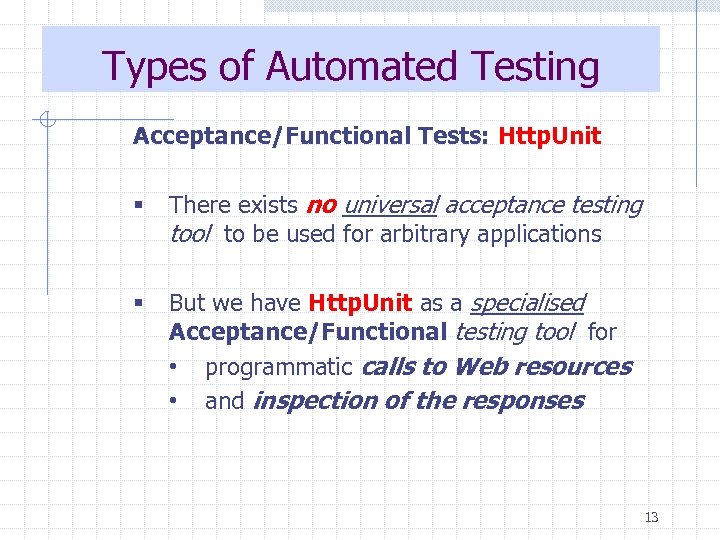

Types of Automated Testing Acceptance/Functional Tests: Http. Unit § There exists no universal acceptance testing tool to be used for arbitrary applications § But we have Http. Unit as a specialised Acceptance/Functional testing tool for • programmatic calls to Web resources • and inspection of the responses 13

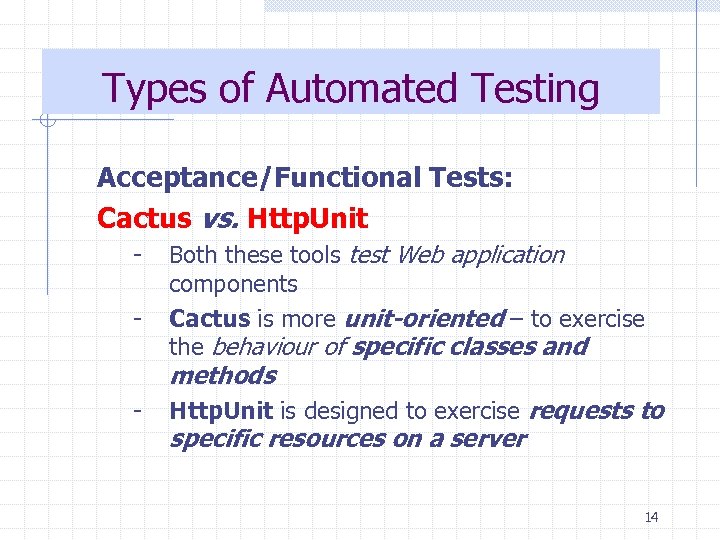

Types of Automated Testing Acceptance/Functional Tests: Cactus vs. Http. Unit - Both these tools test Web application components Cactus is more unit-oriented – to exercise the behaviour of specific classes and methods - Http. Unit is designed to exercise requests to specific resources on a server 14

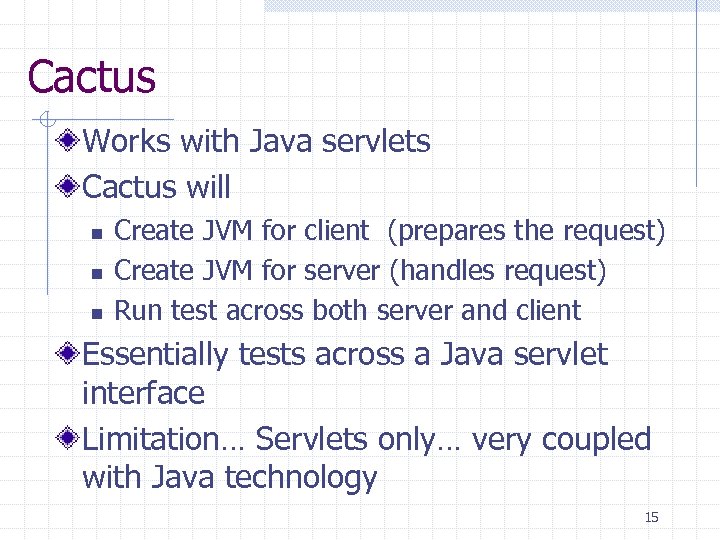

Cactus Works with Java servlets Cactus will n n n Create JVM for client (prepares the request) Create JVM for server (handles request) Run test across both server and client Essentially tests across a Java servlet interface Limitation… Servlets only… very coupled with Java technology 15

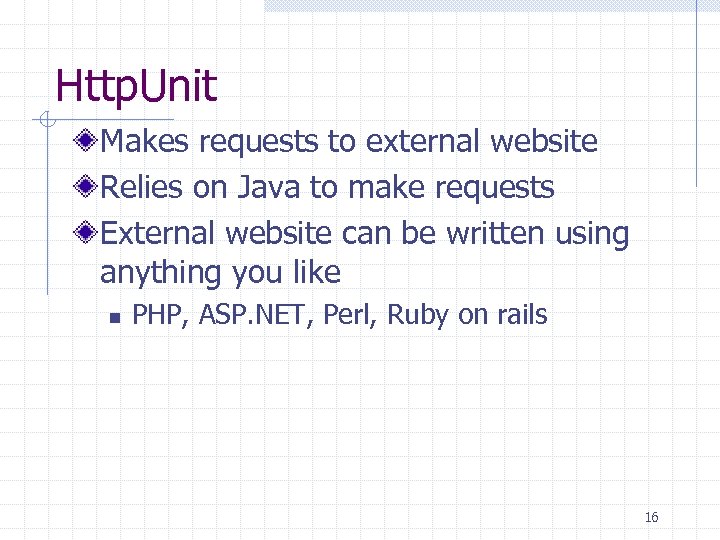

Http. Unit Makes requests to external website Relies on Java to make requests External website can be written using anything you like n PHP, ASP. NET, Perl, Ruby on rails 16

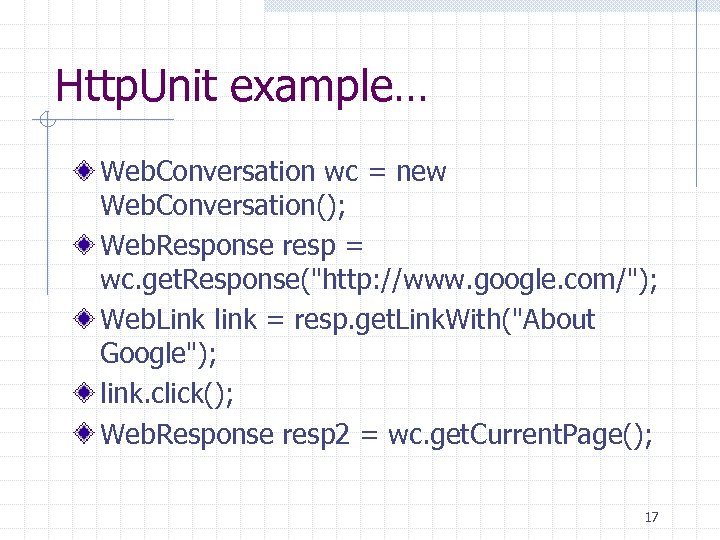

Http. Unit example… Web. Conversation wc = new Web. Conversation(); Web. Response resp = wc. get. Response("http: //www. google. com/"); Web. Link link = resp. get. Link. With("About Google"); link. click(); Web. Response resp 2 = wc. get. Current. Page(); 17

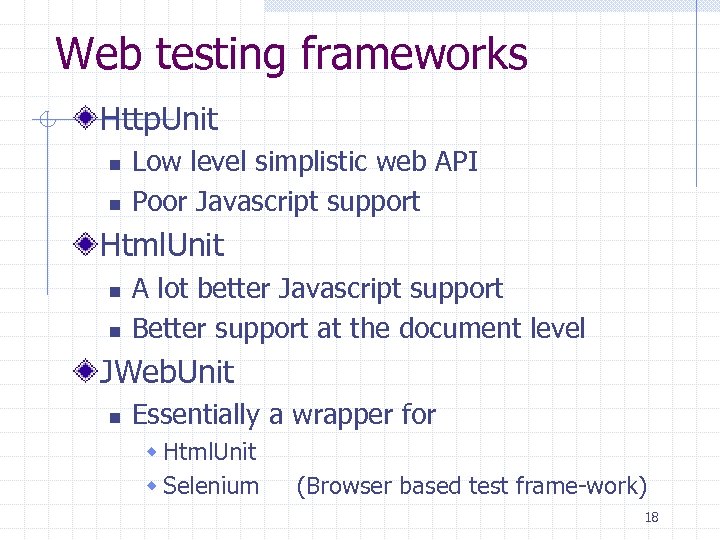

Web testing frameworks Http. Unit n n Low level simplistic web API Poor Javascript support Html. Unit n n A lot better Javascript support Better support at the document level JWeb. Unit n Essentially a wrapper for w Html. Unit w Selenium (Browser based test frame-work) 18

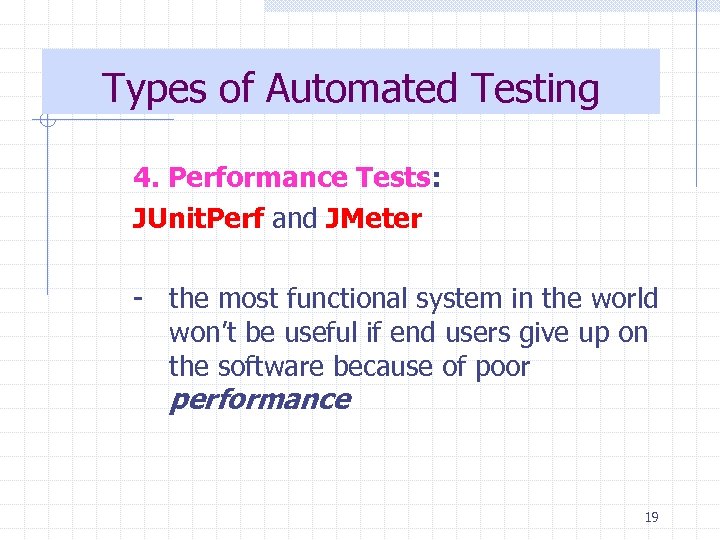

Types of Automated Testing 4. Performance Tests: JUnit. Perf and JMeter - the most functional system in the world won’t be useful if end users give up on the software because of poor performance 19

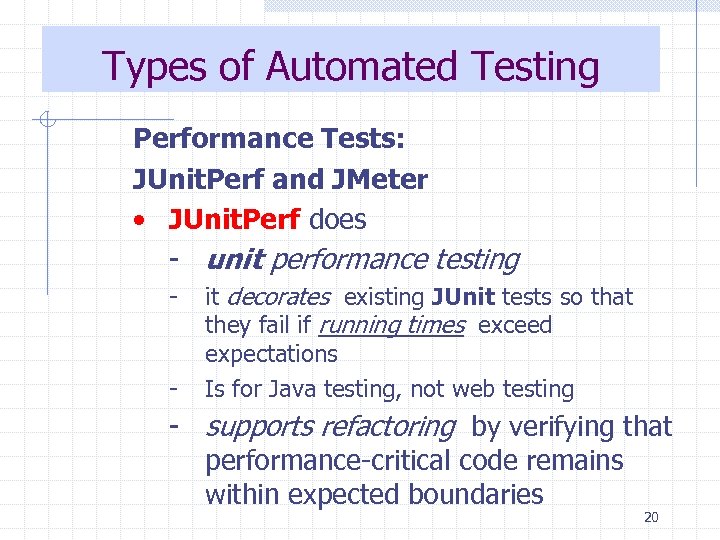

Types of Automated Testing Performance Tests: JUnit. Perf and JMeter • JUnit. Perf does - unit performance testing - - it decorates existing JUnit tests so that they fail if running times exceed expectations Is for Java testing, not web testing - supports refactoring by verifying that performance-critical code remains within expected boundaries 20

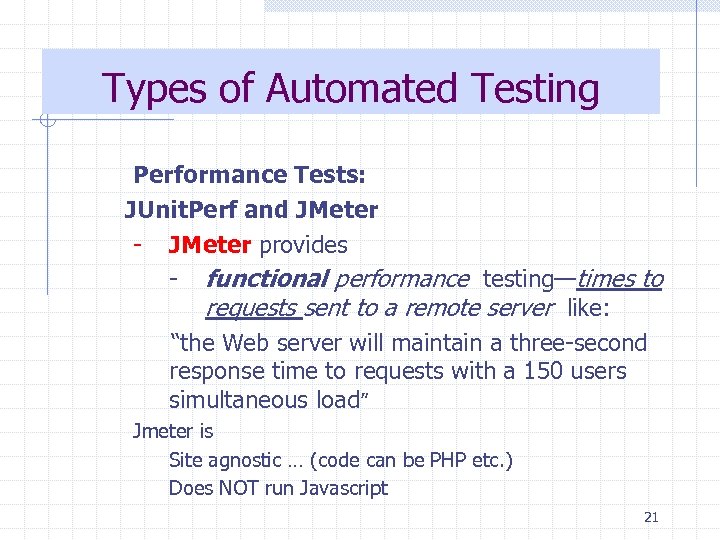

Types of Automated Testing Performance Tests: JUnit. Perf and JMeter - JMeter provides - functional performance testing—times to requests sent to a remote server like: “the Web server will maintain a three-second response time to requests with a 150 users simultaneous load” Jmeter is Site agnostic … (code can be PHP etc. ) Does NOT run Javascript 21

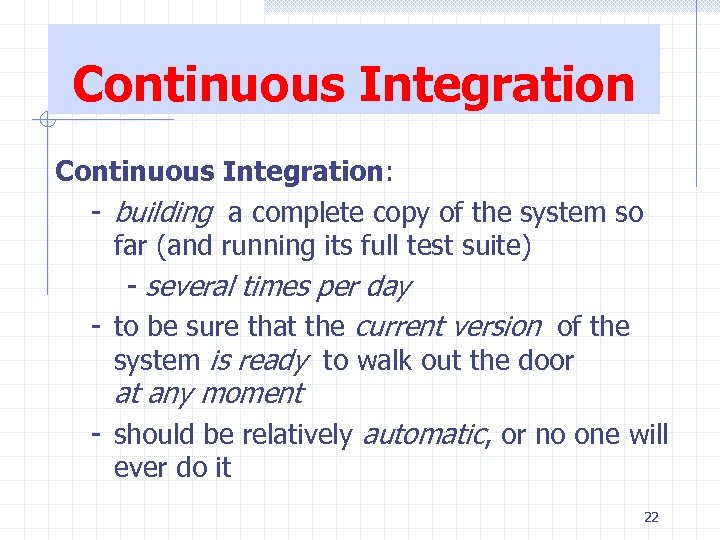

Continuous Integration: - building a complete copy of the system so far (and running its full test suite) - several times per day - to be sure that the current version of the system is ready to walk out the door at any moment - should be relatively automatic, or no one will ever do it 22

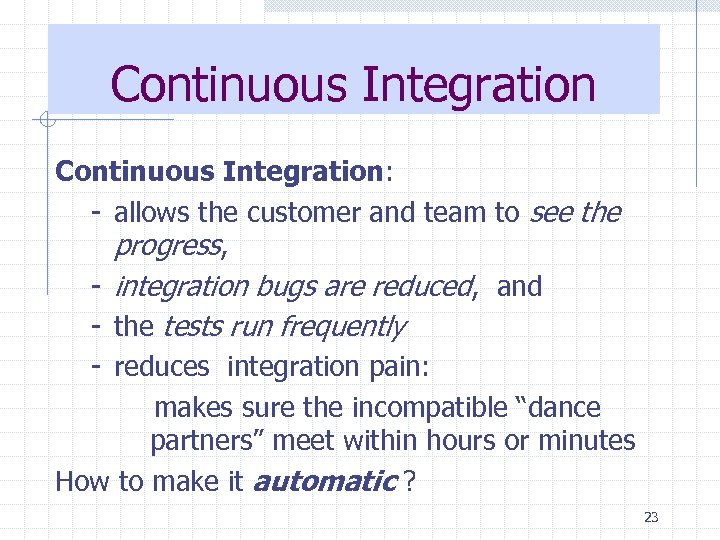

Continuous Integration: - allows the customer and team to see the progress, - integration bugs are reduced, and - the tests run frequently - reduces integration pain: makes sure the incompatible “dance partners” meet within hours or minutes How to make it automatic ? 23

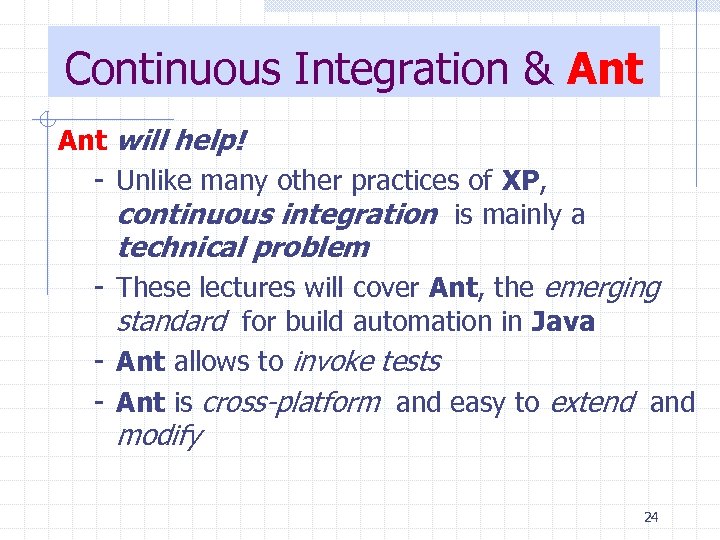

Continuous Integration & Ant will help! - Unlike many other practices of XP, continuous integration is mainly a technical problem - These lectures will cover Ant, the emerging standard for build automation in Java - Ant allows to invoke tests - Ant is cross-platform and easy to extend and modify 24

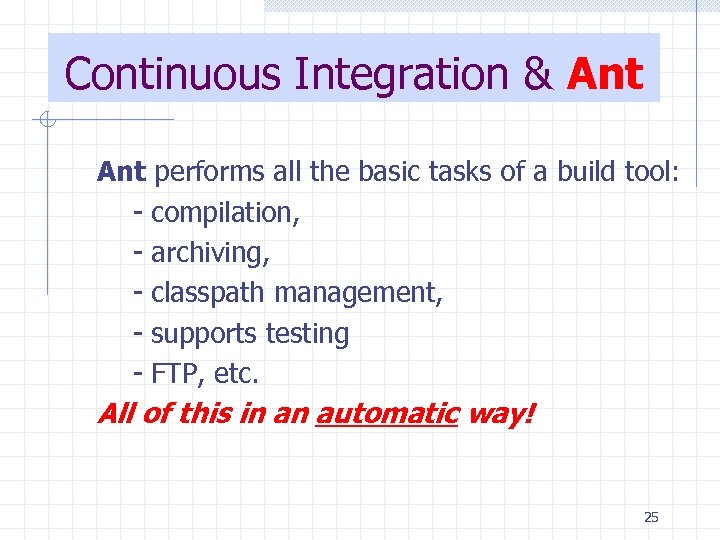

Continuous Integration & Ant performs all the basic tasks of a build tool: - compilation, - archiving, - classpath management, - supports testing - FTP, etc. All of this in an automatic way! 25

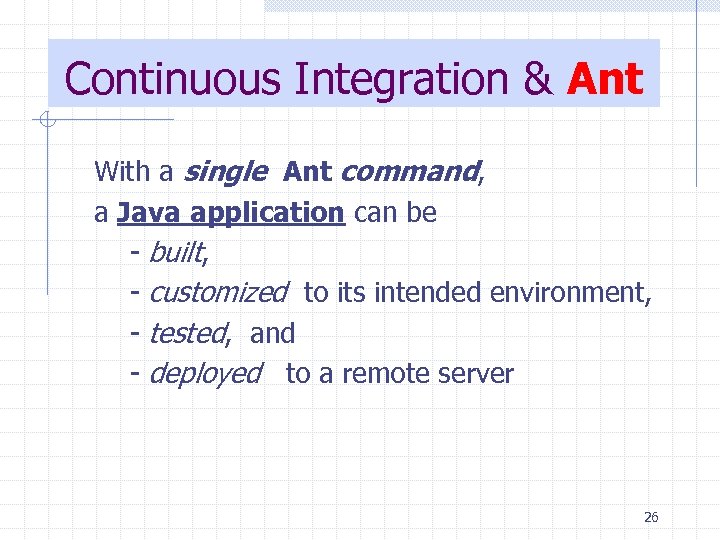

Continuous Integration & Ant With a single Ant command, a Java application can be - built, - customized to its intended environment, - tested, and - deployed to a remote server 26

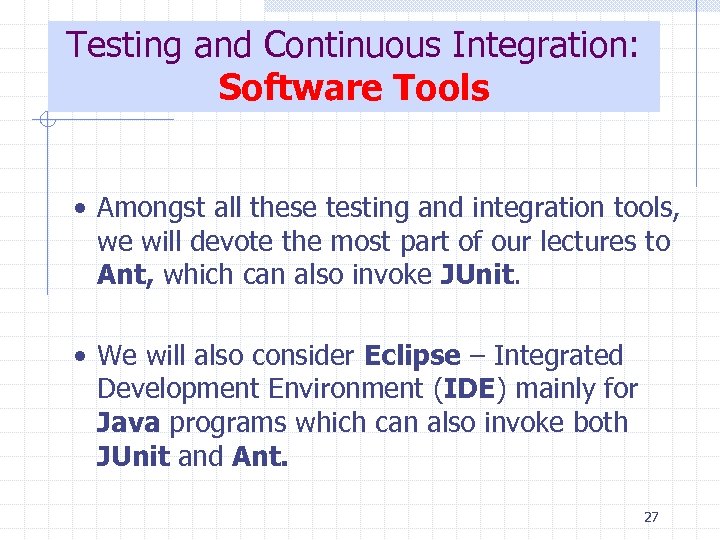

Testing and Continuous Integration: Software Tools • Amongst all these testing and integration tools, we will devote the most part of our lectures to Ant, which can also invoke JUnit. • We will also consider Eclipse – Integrated Development Environment (IDE) mainly for Java programs which can also invoke both JUnit and Ant. 27
