Smart. Meter Program Overview and Impacts for ESPs April 2007 Smart. Meter Program Overview and Impacts for ESPs April 2007

Welcome ► Please dial in for the audio, enter the “Identify yourself” code at Welcome ► Please dial in for the audio, enter the “Identify yourself” code at the bottom of your screen, then minimize the audio instructions ► Close all other applications you have running on your PC to ensure a smooth delivery ► Maximize your webcast viewing window ► For technical assistance during this session, please dial *10* OR directly call the Genesys Support Desk at 1 -866 -GENESYS 2 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 2

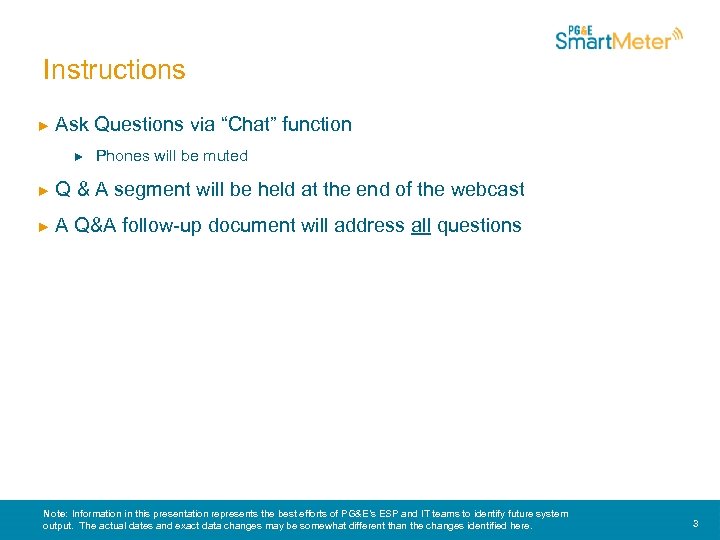

Instructions ► Ask Questions via “Chat” function ► Phones will be muted ► Q Instructions ► Ask Questions via “Chat” function ► Phones will be muted ► Q & A segment will be held at the end of the webcast ► A Q&A follow-up document will address all questions 3 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 3

Our Discussion Today ► Overview of PG&E’s Smart. Meter™ Program ► Scope ► Architecture Our Discussion Today ► Overview of PG&E’s Smart. Meter™ Program ► Scope ► Architecture ► Deployment Plan and Schedule ► General Implications for ESPs ► EDI Changes for ESPs ► When Smart. Meter equipment installed ► In Current EDI Files ► New Daily EDI Files 4 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 4

Highlights ► The PG&E Smart. Meter program: ► will deploy a system for automated Highlights ► The PG&E Smart. Meter program: ► will deploy a system for automated meter reading – hourly meter reads for electric, and daily meter reads for gas ► includes two separate systems: a power line carrier system for electric and a radio frequency system for gas ► involves an upgrade to both gas and electric meters – approximately 10 Million meters will be upgraded ► will be deployed over a five year period. An initial, paced deployment began in Bakersfield in November, 2006. Mass deployment is targeted for September 2007. Deployment efforts are scheduled to conclude in late 2011 ► will introduce additional capabilities over time, including outage management and remote connect/disconnect (for a subset of electric customers) ► will enable the introduction of demand-response rates for residential and small business customers as early as summer, 2007 5 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 5

Smart. Meter Dual-Network Architecture Electric powerline carrier network Web Server PG & E Substation Smart. Meter Dual-Network Architecture Electric powerline carrier network Web Server PG & E Substation Meter Data Management & Storage PUBLIC WIRELESS NETWORK PLC System Controller Substation Communication Equipment LOAD RESEARCH AMI Interface System Fixed Wireless Network System Data Collector Unit CONSUMER PUBLIC WIRELESS NETWORK OUTAGE MANAGEMENT RF Network System Controller Customer Information System 6 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. EDI 6

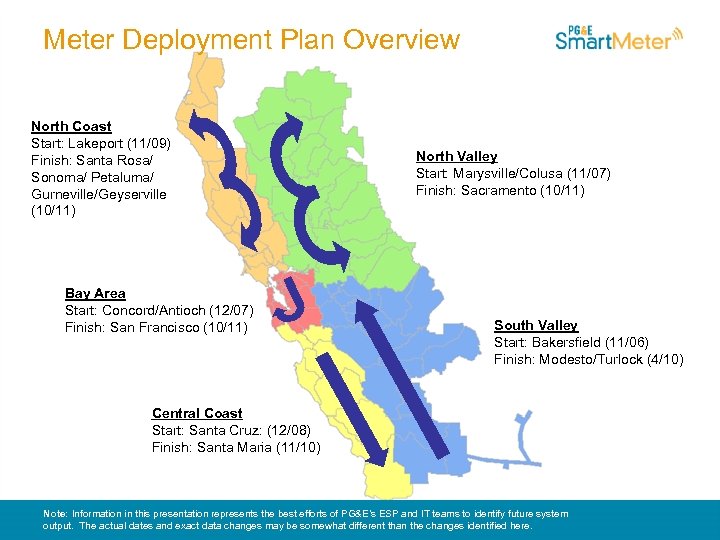

Meter Deployment Plan Overview North Coast Start: Lakeport (11/09) Finish: Santa Rosa/ Sonoma/ Petaluma/ Meter Deployment Plan Overview North Coast Start: Lakeport (11/09) Finish: Santa Rosa/ Sonoma/ Petaluma/ Gurneville/Geyserville (10/11) Bay Area Start: Concord/Antioch (12/07) Finish: San Francisco (10/11) North Valley Start: Marysville/Colusa (11/07) Finish: Sacramento (10/11) South Valley Start: Bakersfield (11/06) Finish: Modesto/Turlock (4/10) Central Coast Start: Santa Cruz: (12/08) Finish: Santa Maria (11/10) 7 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 7

High Level Smart. Meter Project Timeline (2) Initial Deployment (1) System Test SAT 1 High Level Smart. Meter Project Timeline (2) Initial Deployment (1) System Test SAT 1 Network Meter CPUC (Vacaville) Install Deployment complete Decision Begins June July 20 Sept Nov 6 IT Functionality Available Target begin mass deployment 242 K Meters Installed Meter Installations Complete May 28 Sept 1 Dec Oct. 2011 (3) Mass Deployment 2006 2007 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 8 2011 8

Implications for ESPs ► ESPs will not be able to read Smart. Meter gas Implications for ESPs ► ESPs will not be able to read Smart. Meter gas or electric meters ► Some meters are initially excluded from Smart. Meter deployment: ► Current electric DA interval meters (PG&E and 3 rd party) will not be impacted until 2009 ► DA metering rules will not change for electric accounts. Electric ESPs will still have the option to replace a Smart. Meter electric meter with a 3 rd party owned meter for accounts >50 k. W ► Account switching will occur on the bill date, not the meter read date ► EDI file content changes for both gas & electric (814, 867 and 810) ► The largest implication for ESPs at this point and the reason for today’s webcast 9 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 9

DES/MADS Login Screen showing EDI 814 and 867 Transactions ► ► This is what DES/MADS Login Screen showing EDI 814 and 867 Transactions ► ► This is what you see today – the look and feel will not change For Smart. Meter customers ► ► New daily files will appear Content will change slightly Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 10 10

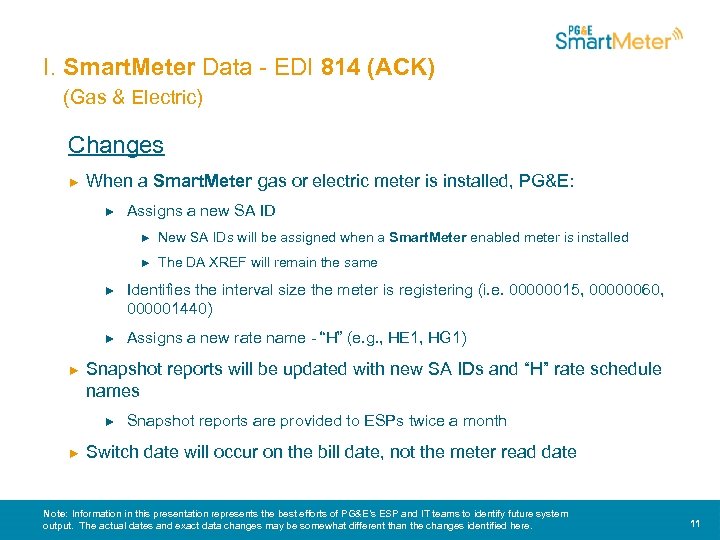

I. Smart. Meter Data - EDI 814 (ACK) (Gas & Electric) Changes ► When I. Smart. Meter Data - EDI 814 (ACK) (Gas & Electric) Changes ► When a Smart. Meter gas or electric meter is installed, PG&E: ► Assigns a new SA ID ► New SA IDs will be assigned when a Smart. Meter enabled meter is installed ► The DA XREF will remain the same ► ► ► Identifies the interval size the meter is registering (i. e. 00000015, 00000060, 000001440) Assigns a new rate name - “H” (e. g. , HE 1, HG 1) Snapshot reports will be updated with new SA IDs and “H” rate schedule names ► ► Snapshot reports are provided to ESPs twice a month Switch date will occur on the bill date, not the meter read date 11 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 11

New Data Elements - EDI 814 (ACK) (Gas & Electric) CONNECT DASR: UDC to New Data Elements - EDI 814 (ACK) (Gas & Electric) CONNECT DASR: UDC to ESP: Response to Connect – Accept (SP-ACK-CONNECT) 1. 8. 1) Accepted Connect, meter investigation not required, pending switch date provided – SA is Smart. Meter 15 minute Interval Read/Billed Switch Date Interval Rate Name 12 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 12

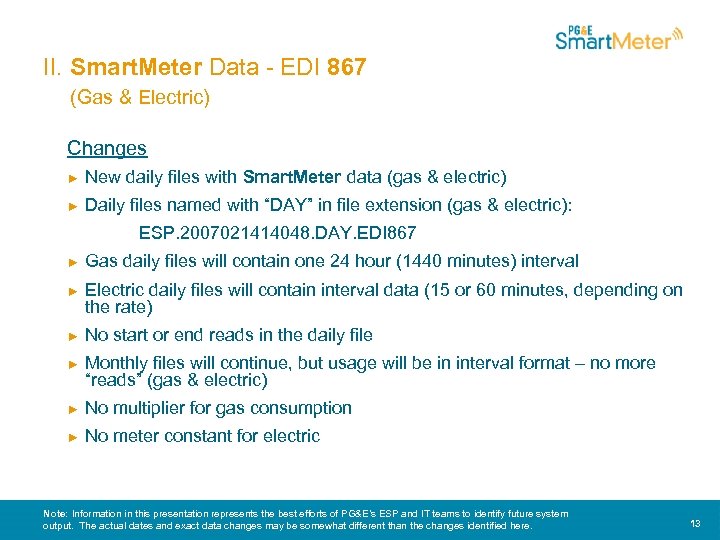

II. Smart. Meter Data - EDI 867 (Gas & Electric) Changes ► New daily II. Smart. Meter Data - EDI 867 (Gas & Electric) Changes ► New daily files with Smart. Meter data (gas & electric) ► Daily files named with “DAY” in file extension (gas & electric): ESP. 2007021414048. DAY. EDI 867 ► Gas daily files will contain one 24 hour (1440 minutes) interval ► Electric daily files will contain interval data (15 or 60 minutes, depending on the rate) ► No start or end reads in the daily file ► Monthly files will continue, but usage will be in interval format – no more “reads” (gas & electric) ► No multiplier for gas consumption ► No meter constant for electric 13 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 13

New Data Elements EDI 867 (Electric - Daily) Start Date & Time End Date New Data Elements EDI 867 (Electric - Daily) Start Date & Time End Date & Time Interval Size 14 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 14

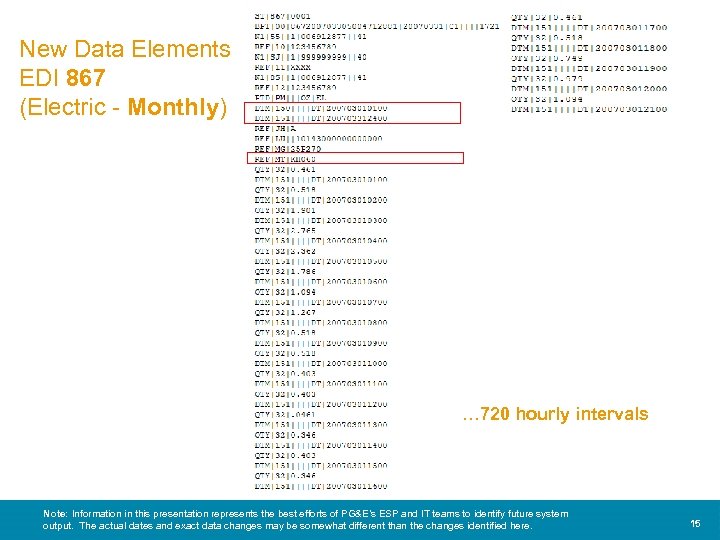

New Data Elements EDI 867 (Electric - Monthly) … 720 hourly intervals 15 Note: New Data Elements EDI 867 (Electric - Monthly) … 720 hourly intervals 15 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 15

New Data Elements EDI 867 - Gas - Monthly Gas - Daily 16 Note: New Data Elements EDI 867 - Gas - Monthly Gas - Daily 16 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 16

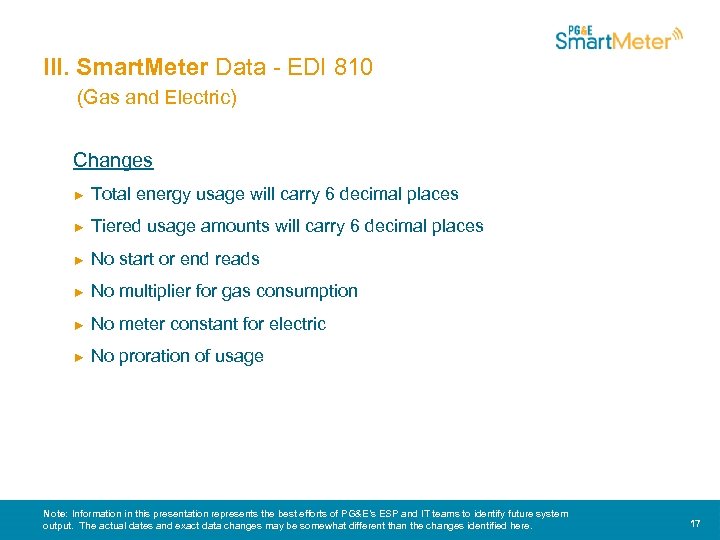

III. Smart. Meter Data - EDI 810 (Gas and Electric) Changes ► Total energy III. Smart. Meter Data - EDI 810 (Gas and Electric) Changes ► Total energy usage will carry 6 decimal places ► Tiered usage amounts will carry 6 decimal places ► No start or end reads ► No multiplier for gas consumption ► No meter constant for electric ► No proration of usage 17 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 17

New Data Elements - EDI 810, E 1 Residential (Electric) Total Usage (6 decimal New Data Elements - EDI 810, E 1 Residential (Electric) Total Usage (6 decimal places; no beginning or end reads; no multiplier/constant) 18 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 18

New Data Elements - EDI 810, G 1 Residential (Gas) Total Usage (6 decimal New Data Elements - EDI 810, G 1 Residential (Gas) Total Usage (6 decimal places; no beginning or end reads; no multiplier/constant) 19 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 19

Electric Account Detail – E 1 Residential Service SAMPLE BILL For accounts with “Smart. Electric Account Detail – E 1 Residential Service SAMPLE BILL For accounts with “Smart. Meter billed” status there will be no meter reads displayed on the bill. Usage is calculated to six decimal points vs. five in the current system. 20 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 20

Gas Account Detail – G 1 Residential Service SAMPLE BILL This is an example Gas Account Detail – G 1 Residential Service SAMPLE BILL This is an example of a gas only bill. Again, no reads, nor is therm factor displayed, and the usage is carried out to six decimals. EMR accounts will continue to show the reads. 21 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 21

Question & Answer We will provide you updates as further information becomes available. Should Question & Answer We will provide you updates as further information becomes available. Should you have additional questions, please contact [email protected] com, or your PG&E representative. 22 Note: Information in this presentation represents the best efforts of PG&E’s ESP and IT teams to identify future system output. The actual dates and exact data changes may be somewhat different than the changes identified here. 22
