SMALL MOLECULE COMPUTATIONAL CHEMISTRY for COMPUTATIONAL BIOLOGY and MACROMOLECULAR MODELING Stay connected to the internet through out this presentation http: //www. ugc-inno-nehu. com/ http: //aravamudhan-s. ucoz. com/ http: //www. youtube. com/user/aram 1121944/ http: //saravamudhan. tripod. com/ Organizer’s acceptance for participation Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 1

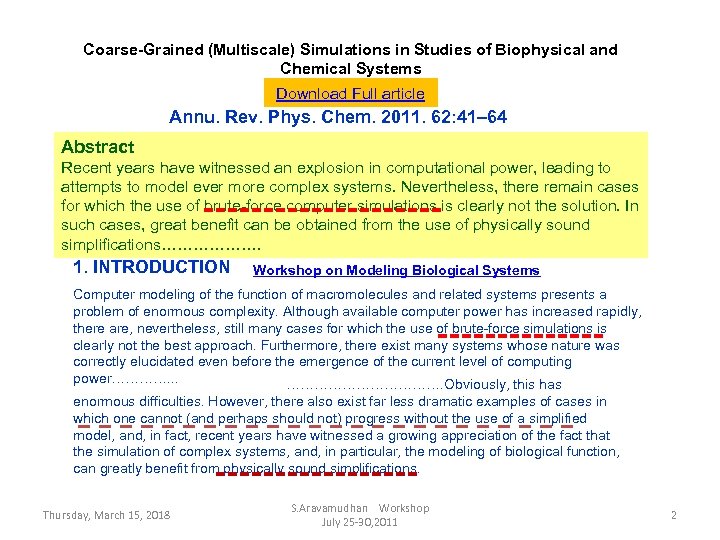

Coarse-Grained (Multiscale) Simulations in Studies of Biophysical and Chemical Systems Download Full article Annu. Rev. Phys. Chem. 2011. 62: 41– 64 Abstract Recent years have witnessed an explosion in computational power, leading to attempts to model ever more complex systems. Nevertheless, there remain cases for which the use of brute-force computer simulations is clearly not the solution. In such cases, great benefit can be obtained from the use of physically sound simplifications………………. 1. INTRODUCTION Workshop on Modeling Biological Systems Computer modeling of the function of macromolecules and related systems presents a problem of enormous complexity. Although available computer power has increased rapidly, there are, nevertheless, still many cases for which the use of brute-force simulations is clearly not the best approach. Furthermore, there exist many systems whose nature was correctly elucidated even before the emergence of the current level of computing power…………. . . ………………. Obviously, this has enormous difficulties. However, there also exist far less dramatic examples of cases in which one cannot (and perhaps should not) progress without the use of a simplified model, and, in fact, recent years have witnessed a growing appreciation of the fact that the simulation of complex systems, and, in particular, the modeling of biological function, can greatly benefit from physically sound simplifications. Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 2

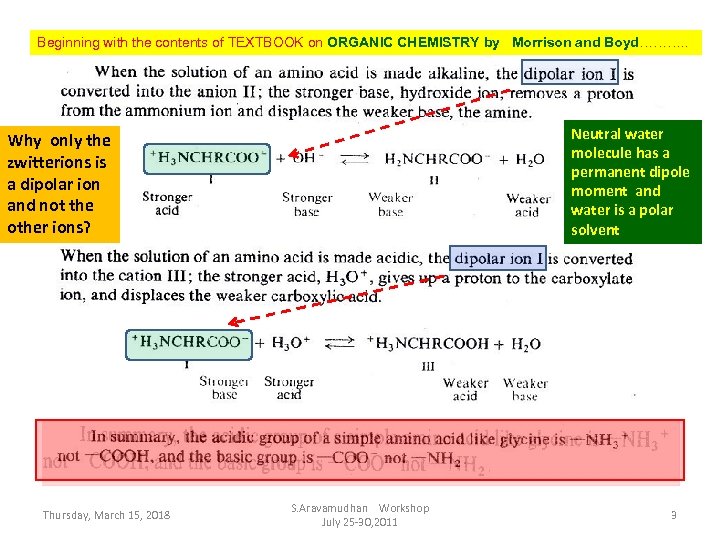

Beginning with the contents of TEXTBOOK on ORGANIC CHEMISTRY by Morrison and Boyd………. . Neutral water molecule has a permanent dipole moment and water is a polar Acidicsolvent Why only the zwitterions is a dipolar ion and not the other ions? Alkaline H 2 N CHR COOH, the nonionic neutral form does not find much mention: Can there be equilibrium between zwitterion and the nonionic form at neutral p. H? Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 3

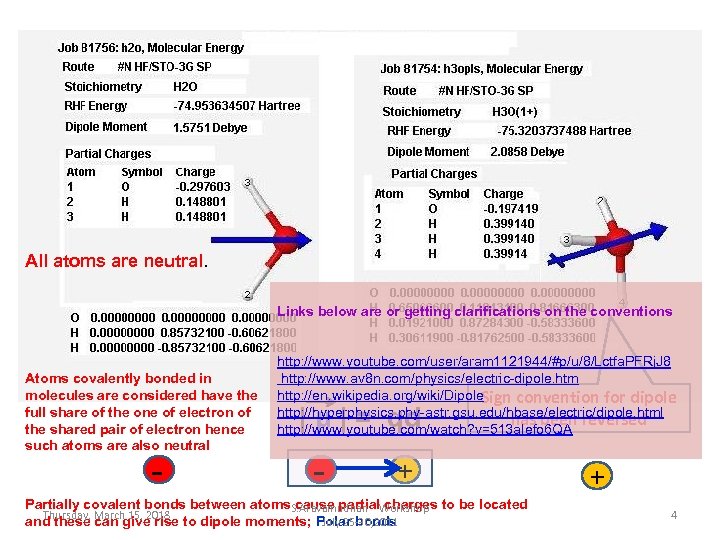

All atoms are neutral. Links below are or getting clarifications on the conventions Atoms covalently bonded in molecules are considered have the full share of the one of electron of the shared pair of electron hence such atoms are also neutral - http: //www. youtube. com/user/aram 1121944/#p/u/8/Lctfa. PFRj. J 8 http: //www. av 8 n. com/physics/electric-dipole. htm http: //en. wikipedia. org/wiki/Dipole Sign convention for dipole http: //hyperphysics. phy-astr. gsu. edu/hbase/electric/dipole. html has been reversed http: //www. youtube. com/watch? v=513 a. Iefo 6 QA | μ | = qd - + Partially covalent bonds between atoms. S. Aravamudhan Workshop to be located cause partial charges Thursday, March 15, 2018 and these can give rise to dipole moments; Polar bonds July 25 -30, 2011 + 4
Nearly same energetic structures but widely varying dipole moment characteristics. Does this have a significance at any stage in modeling systems? Thursday, March 15, 2018 Maximum difference of 6. 5 Kcals mole-1 S. Aravamudhan Workshop July 25 -30, 2011 To know the orientation of dipole moment of water molecule is simple enough but as the glycine molecule finds itself in varying environments it would not be all that simple to estimate its dipole moment. 5

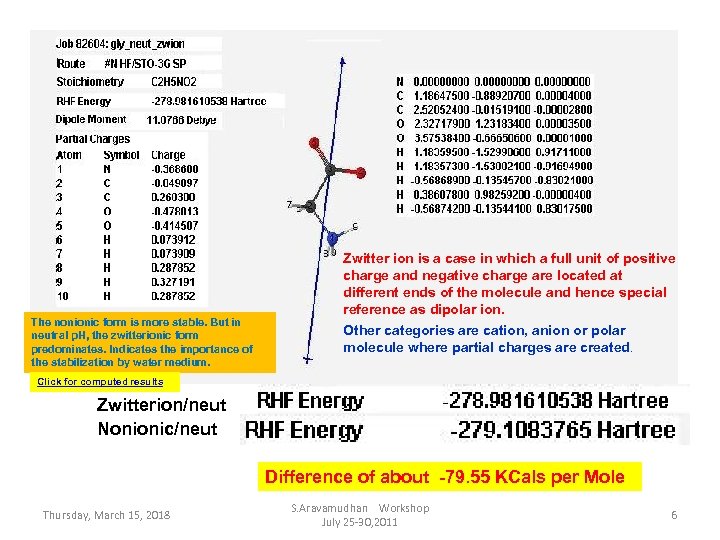

The nonionic form is more stable. But in neutral p. H, the zwitterionic form predominates. Indicates the importance of the stabilization by water medium. Zwitter ion is a case in which a full unit of positive charge and negative charge are located at different ends of the molecule and hence special reference as dipolar ion. Other categories are cation, anion or polar molecule where partial charges are created. Click for computed results Zwitterion/neut Nonionic/neut Difference of about -79. 55 KCals per Mole Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 6

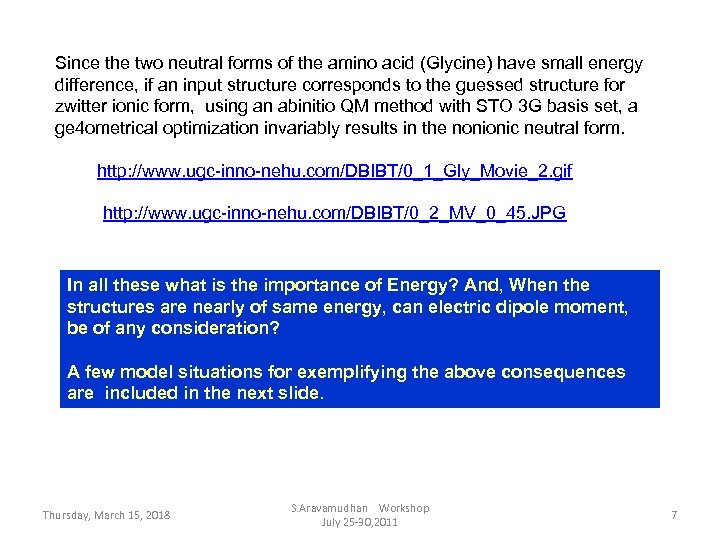

Since the two neutral forms of the amino acid (Glycine) have small energy difference, if an input structure corresponds to the guessed structure for zwitter ionic form, using an abinitio QM method with STO 3 G basis set, a ge 4 ometrical optimization invariably results in the nonionic neutral form. http: //www. ugc-inno-nehu. com/DBIBT/0_1_Gly_Movie_2. gif http: //www. ugc-inno-nehu. com/DBIBT/0_2_MV_0_45. JPG In all these what is the importance of Energy? And, When the structures are nearly of same energy, can electric dipole moment, be of any consideration? A few model situations for exemplifying the above consequences are included in the next slide. Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 7
Water dipole rotated by 180 degrees. Glycine neutral nonionic str-3 & Water Note the dipole moment characteristics of these two molecules. When these two molecules are placed juxtaposed and subjected to optimization, what would be the consequence? http: //www. ugc-inno-nehu. com/DBIBT/0_3_glyw_opt_movie. gif Hydrophilic? During this process how would have the energy varied? http: //www. ugc-inno-nehu. com/DBIBT/0_3_glyw_opt_movie. jpg The above optimization structure sequence displayed at a faster time scale http: //www. ugc-innonehu. com/DBIBT/0_3_glyw_opt_movie_faster. gif Hydrophobic? http: //www. ugc-inno-nehu. com/DBIBT/0_3_glyw_opt_movie_Wrotated. gif Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 8

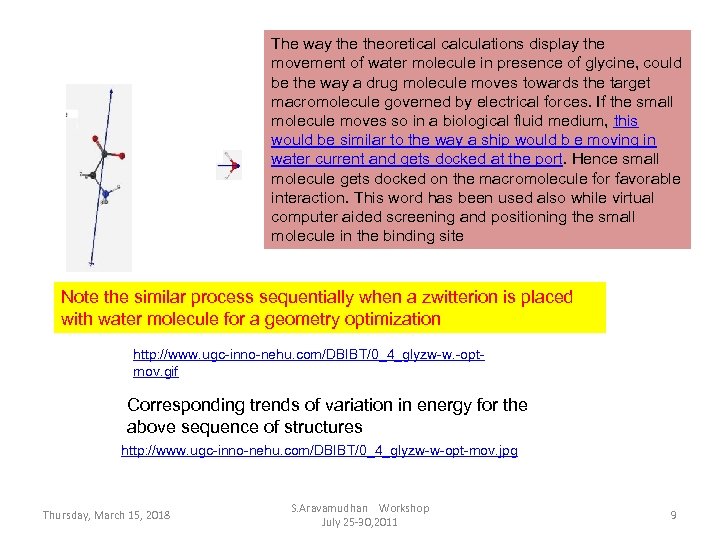

The way theoretical calculations display the movement of water molecule in presence of glycine, could be the way a drug molecule moves towards the target macromolecule governed by electrical forces. If the small molecule moves so in a biological fluid medium, this would be similar to the way a ship would b e moving in water current and gets docked at the port. Hence small molecule gets docked on the macromolecule for favorable interaction. This word has been used also while virtual computer aided screening and positioning the small molecule in the binding site Note the similar process sequentially when a zwitterion is placed with water molecule for a geometry optimization http: //www. ugc-inno-nehu. com/DBIBT/0_4_glyzw-w. -optmov. gif Corresponding trends of variation in energy for the above sequence of structures http: //www. ugc-inno-nehu. com/DBIBT/0_4_glyzw-w-opt-mov. jpg Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 9

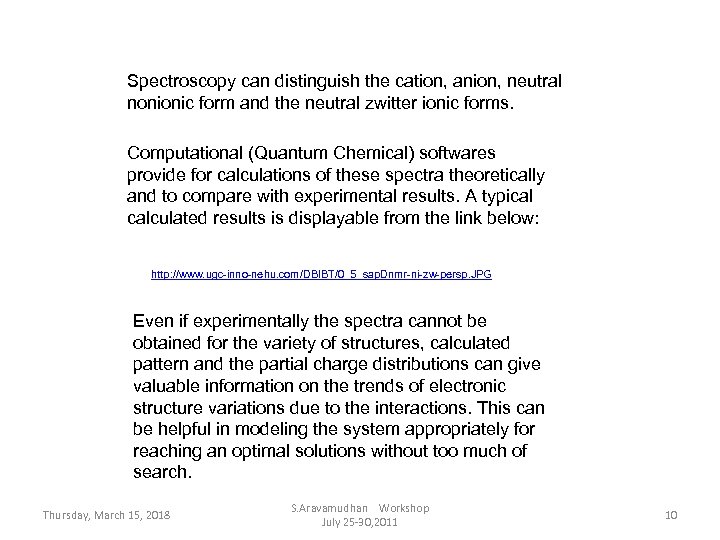

Spectroscopy can distinguish the cation, anion, neutral nonionic form and the neutral zwitter ionic forms. Computational (Quantum Chemical) softwares provide for calculations of these spectra theoretically and to compare with experimental results. A typical calculated results is displayable from the link below: http: //www. ugc-inno-nehu. com/DBIBT/0_5_sap. Dnmr-ni-zw-persp. JPG Even if experimentally the spectra cannot be obtained for the variety of structures, calculated pattern and the partial charge distributions can give valuable information on the trends of electronic structure variations due to the interactions. This can be helpful in modeling the system appropriately for reaching an optimal solutions without too much of search. Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 10

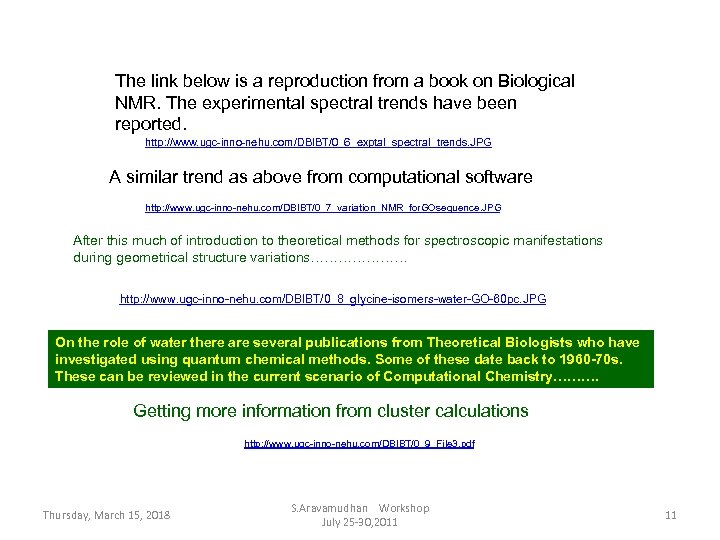

The link below is a reproduction from a book on Biological NMR. The experimental spectral trends have been reported. http: //www. ugc-inno-nehu. com/DBIBT/0_6_exptal_spectral_trends. JPG A similar trend as above from computational software http: //www. ugc-inno-nehu. com/DBIBT/0_7_variation_NMR_for. GOsequence. JPG After this much of introduction to theoretical methods for spectroscopic manifestations during geometrical structure variations………………… http: //www. ugc-inno-nehu. com/DBIBT/0_8_glycine-isomers-water-GO-60 pc. JPG On the role of water there are several publications from Theoretical Biologists who have investigated using quantum chemical methods. Some of these date back to 1960 -70 s. These can be reviewed in the current scenario of Computational Chemistry………. Getting more information from cluster calculations http: //www. ugc-inno-nehu. com/DBIBT/0_9_File 3. pdf Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 11

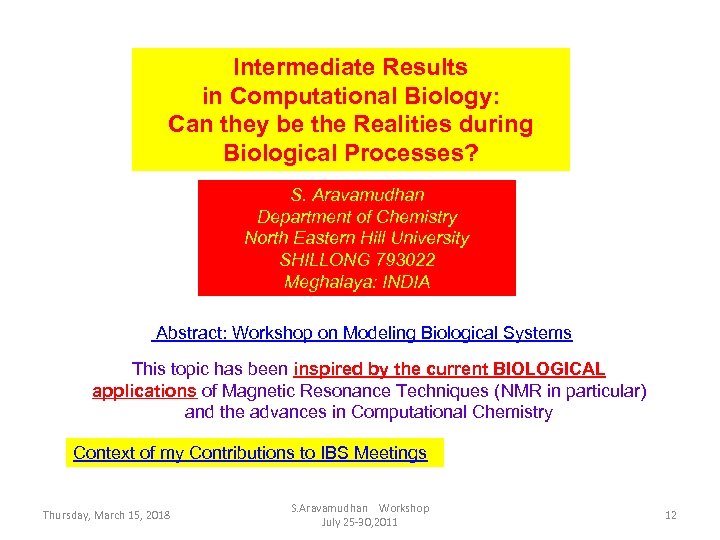

Intermediate Results in Computational Biology: Can they be the Realities during Biological Processes? S. Aravamudhan Department of Chemistry North Eastern Hill University SHILLONG 793022 Meghalaya: INDIA Abstract: Workshop on Modeling Biological Systems This topic has been inspired by the current BIOLOGICAL applications of Magnetic Resonance Techniques (NMR in particular) and the advances in Computational Chemistry Context of my Contributions to IBS Meetings Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 12

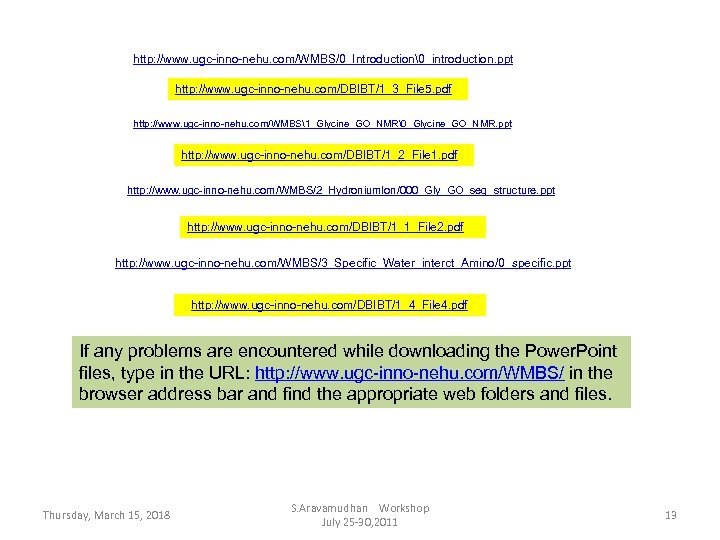

http: //www. ugc-inno-nehu. com/WMBS/0_Introduction _introduction. ppt http: //www. ugc-inno-nehu. com/DBIBT/1_3_File 5. pdf http: //www. ugc-inno-nehu. com/WMBS1_Glycine_GO_NMR _Glycine_GO_NMR. ppt http: //www. ugc-inno-nehu. com/DBIBT/1_2_File 1. pdf http: //www. ugc-inno-nehu. com/WMBS/2_Hydronium. Ion/000_Gly_GO_seq_structure. ppt http: //www. ugc-inno-nehu. com/DBIBT/1_1_File 2. pdf http: //www. ugc-inno-nehu. com/WMBS/3_Specific_Water_interct_Amino/0_specific. ppt http: //www. ugc-inno-nehu. com/DBIBT/1_4_File 4. pdf If any problems are encountered while downloading the Power. Point files, type in the URL: http: //www. ugc-inno-nehu. com/WMBS/ in the browser address bar and find the appropriate web folders and files. Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 13
Questions ; Comments ; Remarks Prof. S. Aravamudhan Department of Chemistry North Eastern Hill University Shillong 793003 Meghalaya Phone: 0364 272 2615 Mobile: 9862053872 Email: inboxnehu_sa@yahoo. com URL: http: //aravamudhan-s. ucoz. com A link to the facsimile of the participation certificate Thursday, March 15, 2018 S. Aravamudhan Workshop July 25 -30, 2011 14
