& SL 523 SL 525 The ‘All-in-One’ Combination Locks
SL 523 & SL 525 – ‘All-in-One’ Combination Locks ‘All-in-One’ Concept • Lock & input unit, no additional components • Lock includes – locking function – code management – time delays – time lock functions – in/outputs, e. g. to alarm centre 3

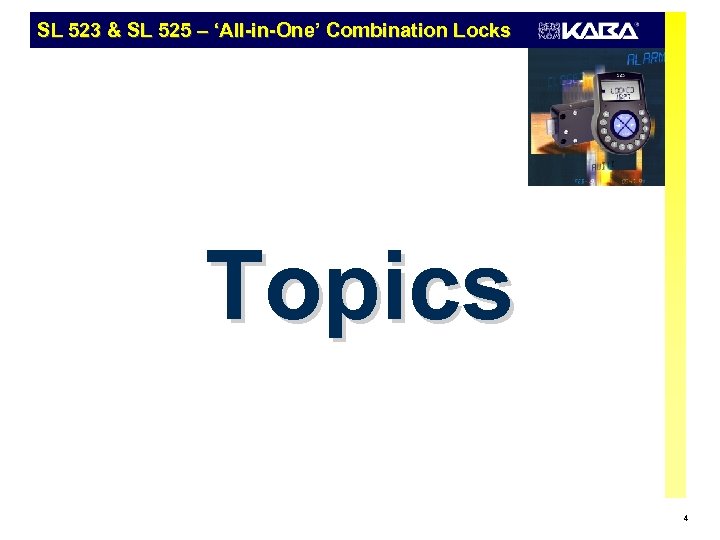

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Topics 4
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Easy to Use • • Selectable display language Comfortable navigation Info key Self-explaining operation 5

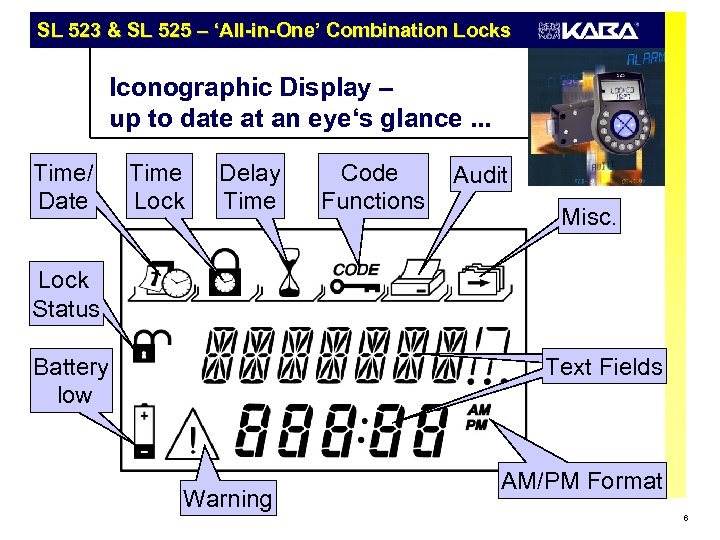

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Iconographic Display – up to date at an eye‘s glance. . . Time/ Date Time Lock Delay Time Code Functions Audit Misc. Lock Status Battery low Text Fields Warning AM/PM Format 6

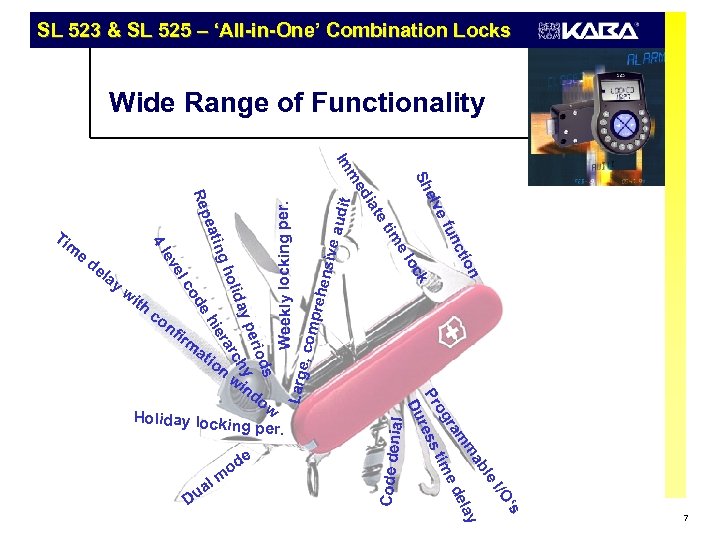

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Wide Range of Functionality Weekly locking per. e, co mpre hens ive a udit on Code den i al Larg cti un ef m elv D l ua ‘s I/O le ab y m ela m ra ed tim og Pr ress Du e od k nd ow Holiday lock ing per. oc wi el tim rc io n te ra at ds erio y h hie co nf irm ay p de th co wi olid gh el y dia in eat de la ev e Sh me Im Rep m 4 l Ti 7

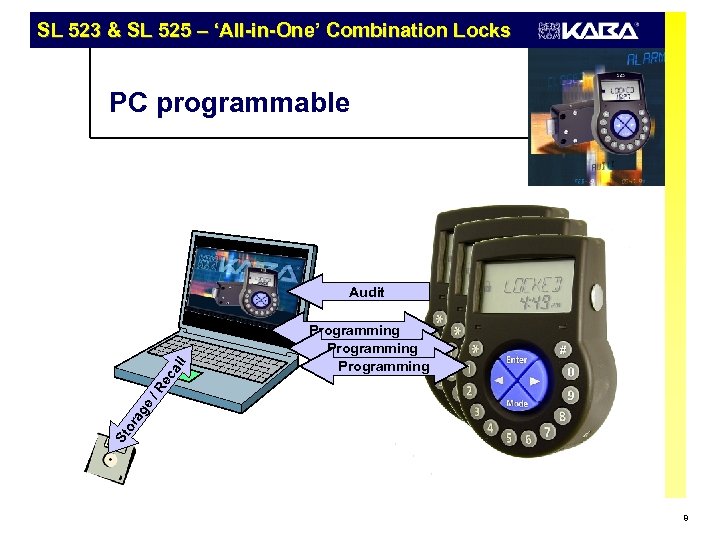

SL 523 & SL 525 – ‘All-in-One’ Combination Locks PC programmable Programming St or ag e /R ec al l Audit 8

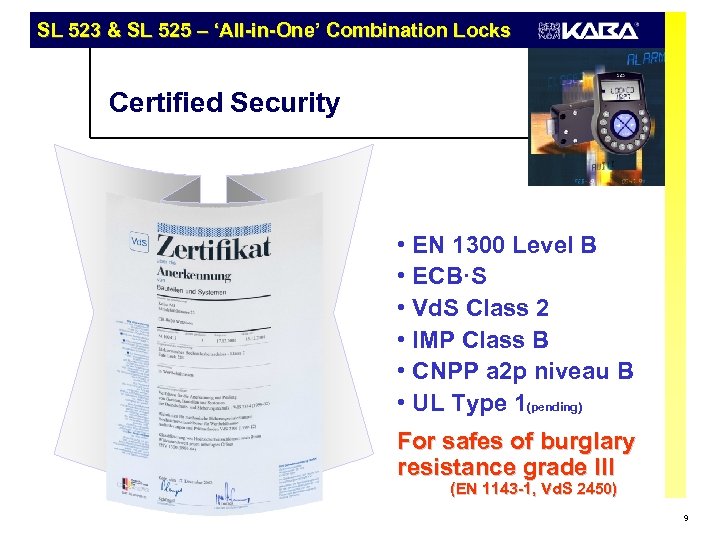

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Certified Security • EN 1300 Level B • ECB·S • Vd. S Class 2 • IMP Class B • CNPP a 2 p niveau B • UL Type 1(pending) For safes of burglary resistance grade III (EN 1143 -1, Vd. S 2450) 9
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Lock Features • Intelligent motor bolt lock • Magic module: fits all applications • Dead bolt / spring bolt setting • Spring-load supported bolt • IR bolt detection • Easy installation & connection • Integrated I/O terminals 10

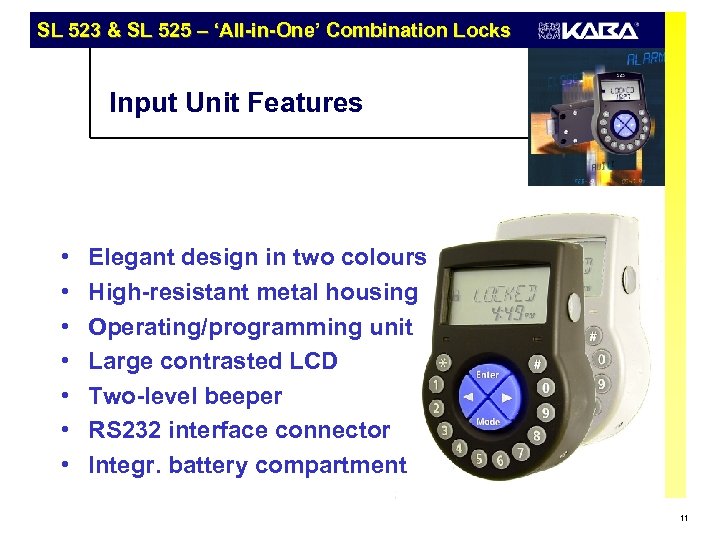

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Input Unit Features • • Elegant design in two colours High-resistant metal housing Operating/programming unit Large contrasted LCD Two-level beeper RS 232 interface connector Integr. battery compartment 11

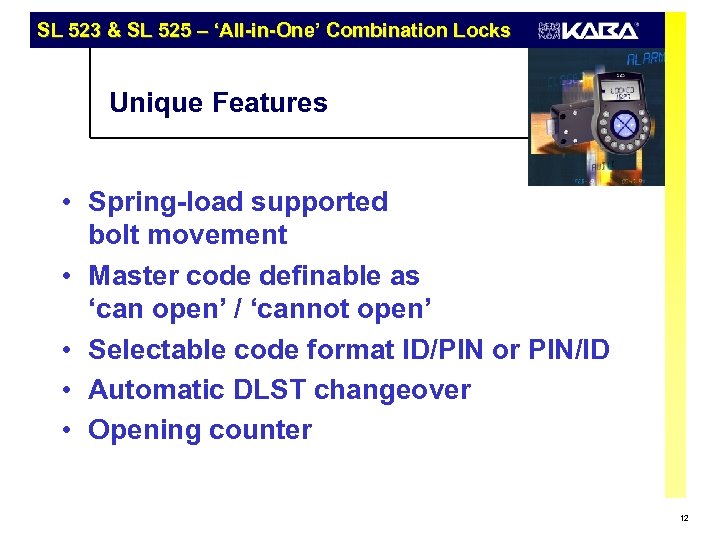

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Unique Features • Spring-load supported bolt movement • Master code definable as ‘can open’ / ‘cannot open’ • Selectable code format ID/PIN or PIN/ID • Automatic DLST changeover • Opening counter 12

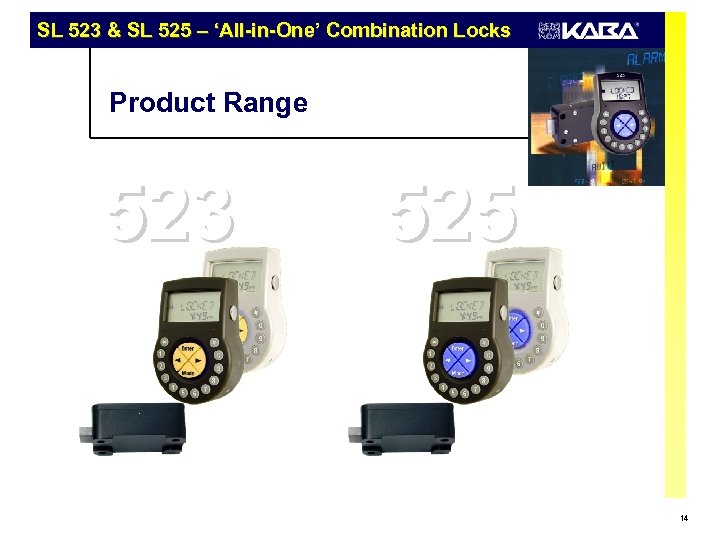

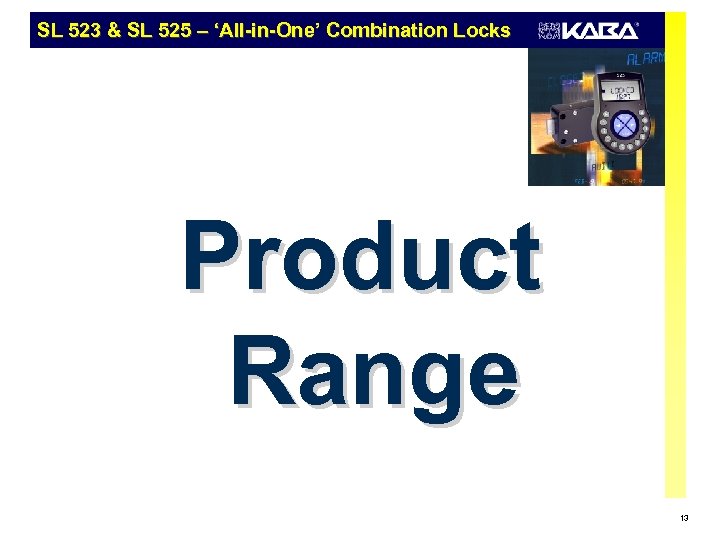

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Product Range 13
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Product Range 523 525 14

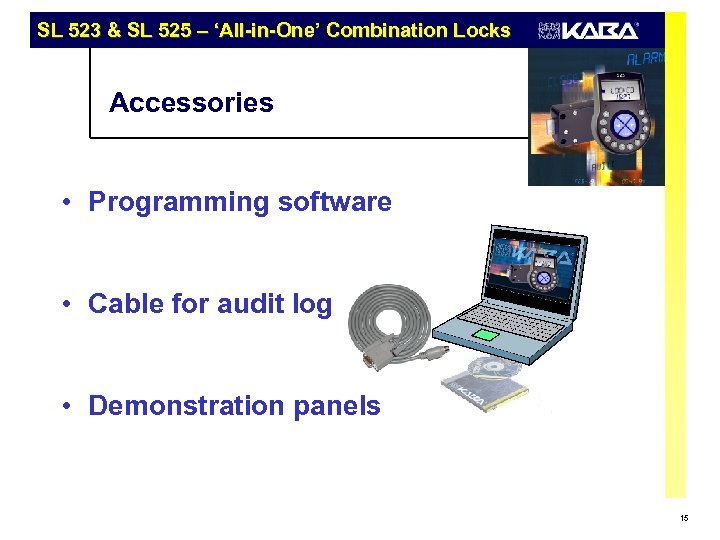

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Accessories • Programming software • Cable for audit log • Demonstration panels 15
SL 523 & SL 525 – ‘All-in-One’ Combination Locks 523 or 525 – Functionality Adapted to Your Needs 3 5 SL 52 Audit Programming yellow Audit Programming <<<< Control Keys >>>> blue 16

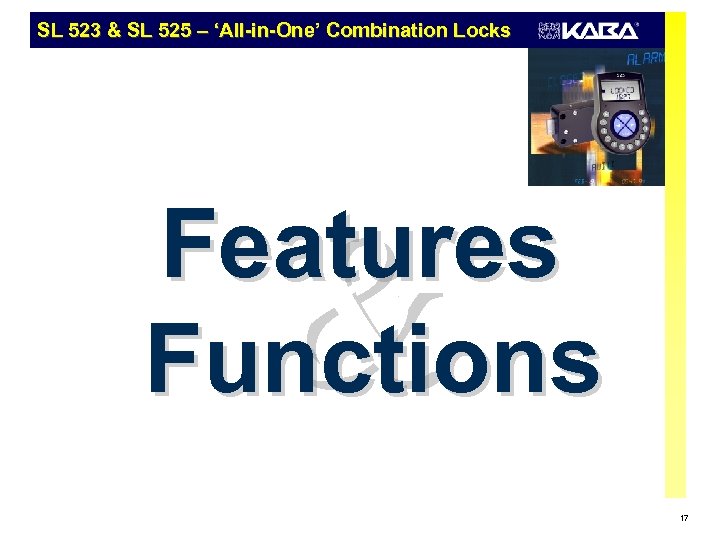

SL 523 & SL 525 – ‘All-in-One’ Combination Locks & Features Functions 17
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Go Global. . . Selectable display language French Dutch Hungarian Polish English Spanish Portuguese German Italian 18

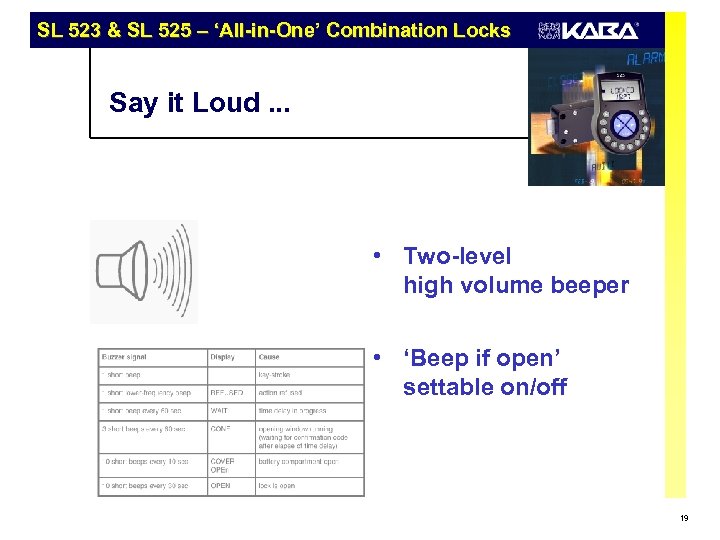

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Say it Loud. . . • Two-level high volume beeper • ‘Beep if open’ settable on/off 19

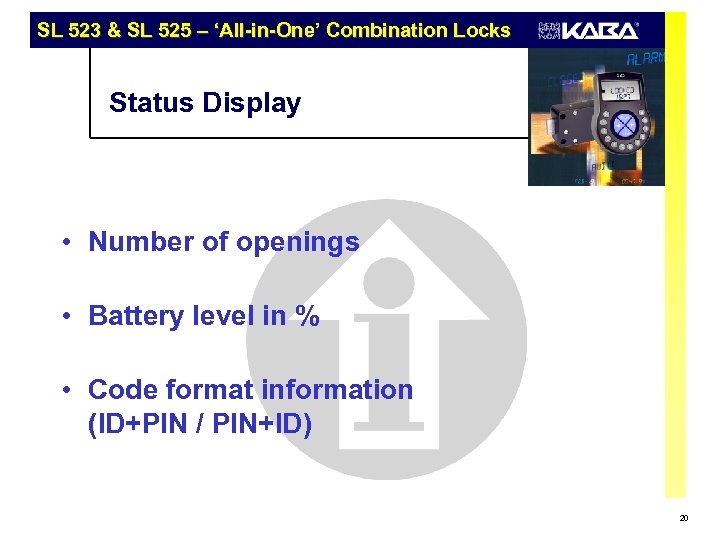

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Status Display • Number of openings • Battery level in % • Code format information (ID+PIN / PIN+ID) 20

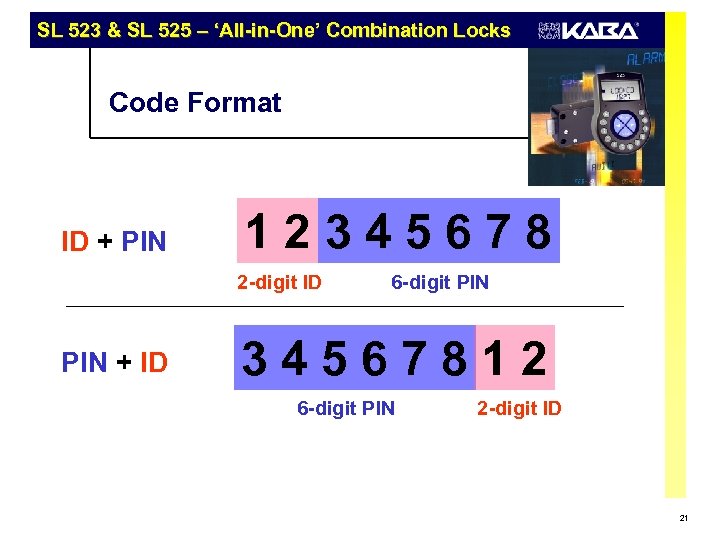

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Code Format ID + PIN 12345678 2 -digit ID PIN + ID 6 -digit PIN 34567812 6 -digit PIN 2 -digit ID 21

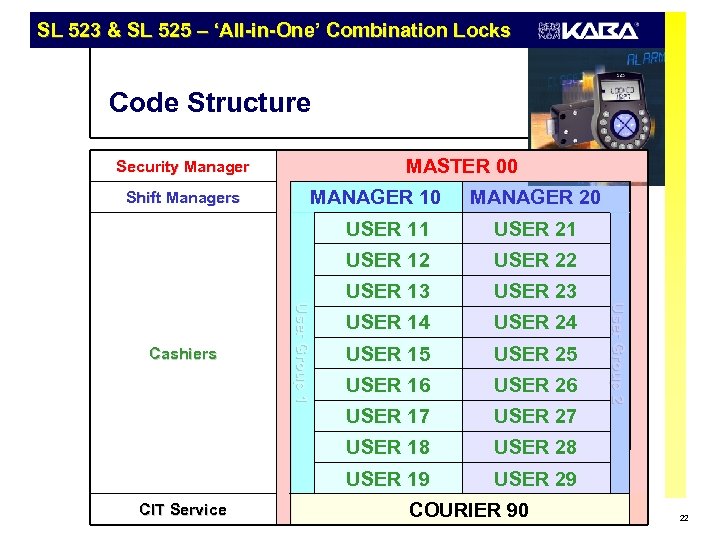

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Code Structure MASTER 00 Security Manager Shift Managers MANAGER 10 MANAGER 20 USER 14 USER 24 USER 15 USER 25 USER 16 USER 27 USER 18 USER 28 USER 19 USER 29 COURIER 90 User G ro u p 2 USER 23 USER 17 CIT Service USER 22 USER 13 Cashiers USER 21 USER 12 User G ro u p 1 USER 11 22
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Code Denial MASTER 00 MANAGER 10 MANAGER 20 : : : : USER 19 USER 29 User G ro u p 2 USER 21 : User G ro u p 1 USER 11 23

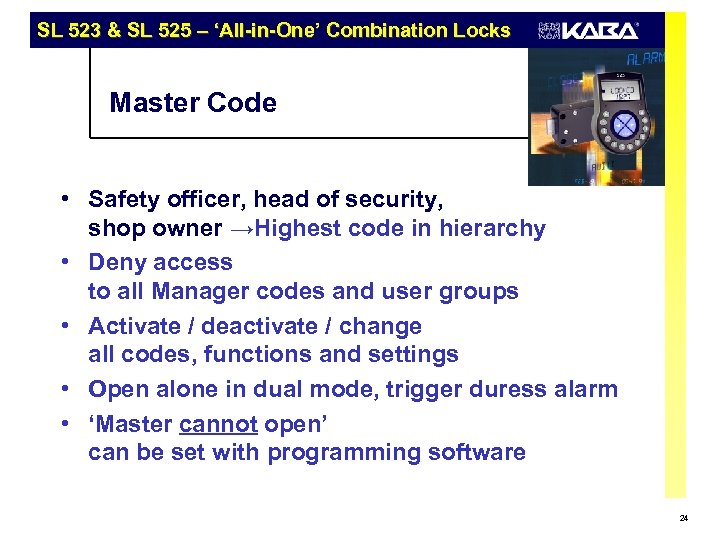

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Master Code • Safety officer, head of security, shop owner →Highest code in hierarchy • Deny access to all Manager codes and user groups • Activate / deactivate / change all codes, functions and settings • Open alone in dual mode, trigger duress alarm • ‘Master cannot open’ can be set with programming software 24

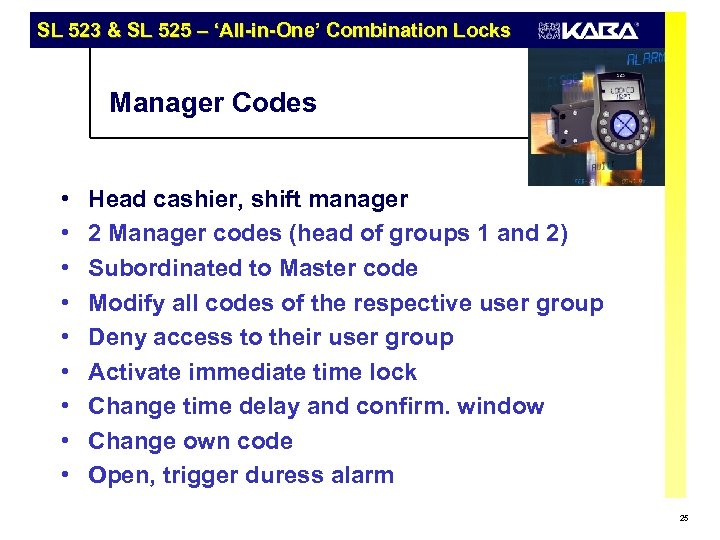

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Manager Codes • • • Head cashier, shift manager 2 Manager codes (head of groups 1 and 2) Subordinated to Master code Modify all codes of the respective user group Deny access to their user group Activate immediate time lock Change time delay and confirm. window Change own code Open, trigger duress alarm 25

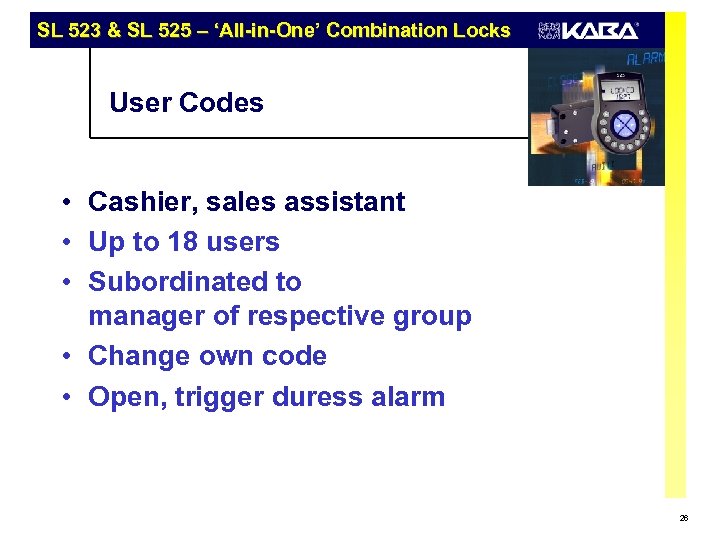

SL 523 & SL 525 – ‘All-in-One’ Combination Locks User Codes • Cashier, sales assistant • Up to 18 users • Subordinated to manager of respective group • Change own code • Open, trigger duress alarm 26

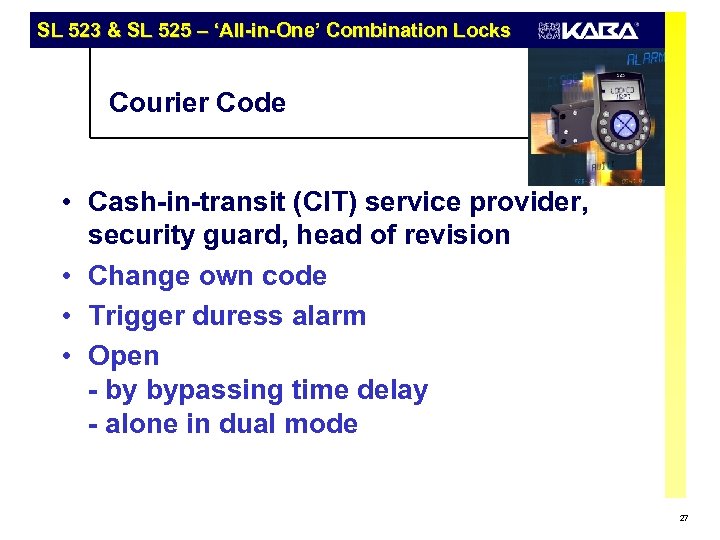

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Courier Code • Cash-in-transit (CIT) service provider, security guard, head of revision • Change own code • Trigger duress alarm • Open - by bypassing time delay - alone in dual mode 27

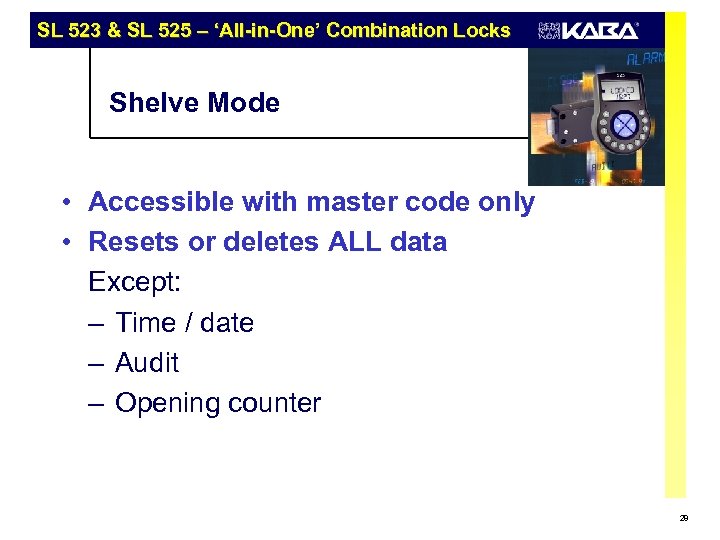

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Shelve Mode • Accessible with master code only • Resets or deletes ALL data Except: – Time / date – Audit – Opening counter 28

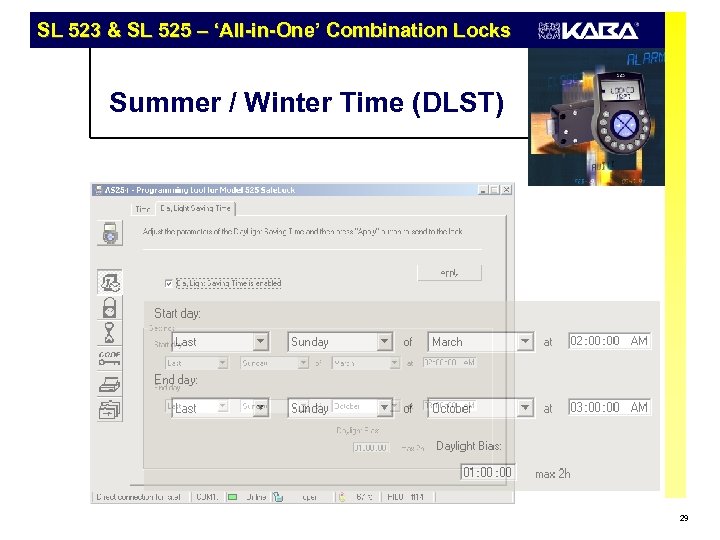

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Summer / Winter Time (DLST) 29
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Operating Functions 33

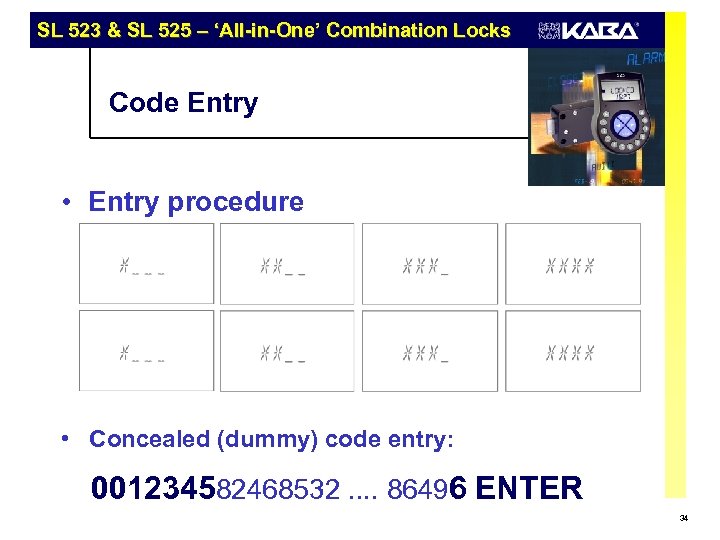

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Code Entry • Entry procedure • Concealed (dummy) code entry: 001234582468532. . 86496 ENTER 34

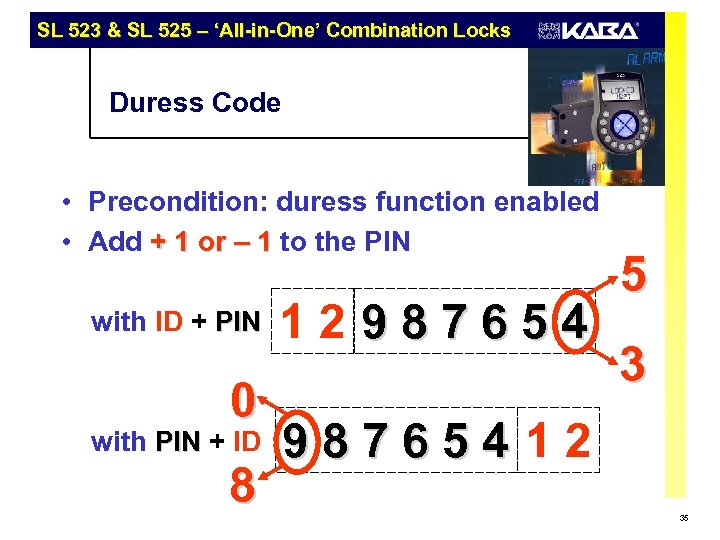

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Duress Code • Precondition: duress function enabled • Add + 1 or – 1 to the PIN with ID + PIN 0 with PIN + ID 8 12987654 5 3 98765412 35
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Closing the Lock with door contact: 1. upon door contact closing without door contact: 2. upon DEL key stroke 3. automatically after 6 sec 36

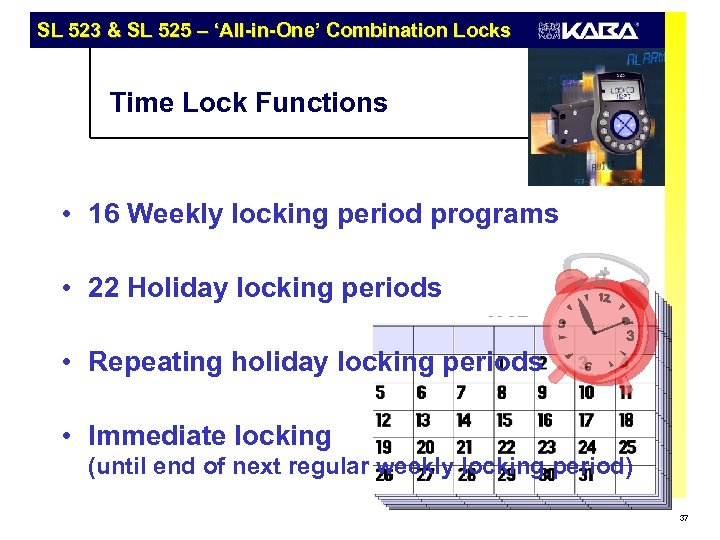

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Time Lock Functions • 16 Weekly locking period programs • 22 Holiday locking periods • Repeating holiday locking periods • Immediate locking (until end of next regular weekly locking period) 37
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Programming Software 38

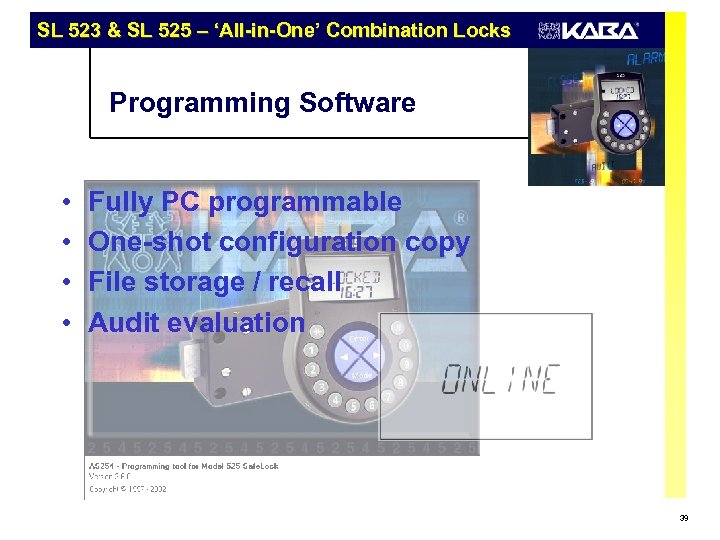

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Programming Software • • Fully PC programmable One-shot configuration copy File storage / recall Audit evaluation 39

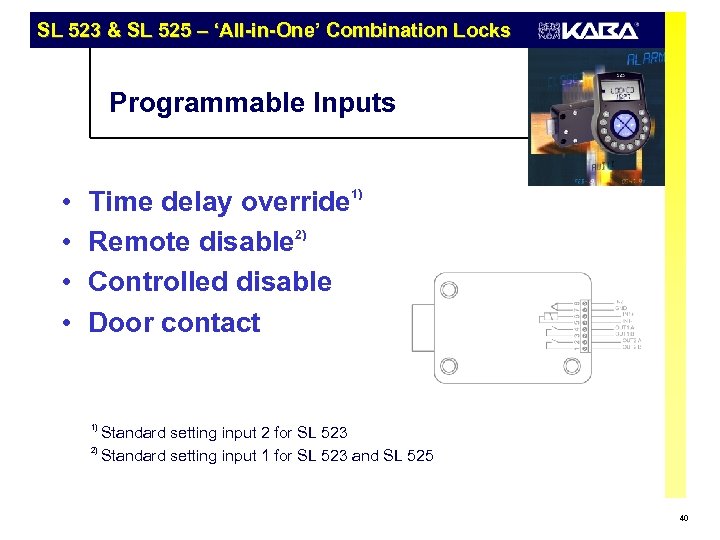

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Programmable Inputs • • Time delay override 1) Remote disable 2) Controlled disable Door contact 1) Standard setting input 2 for SL 523 2) Standard setting input 1 for SL 523 and SL 525 40

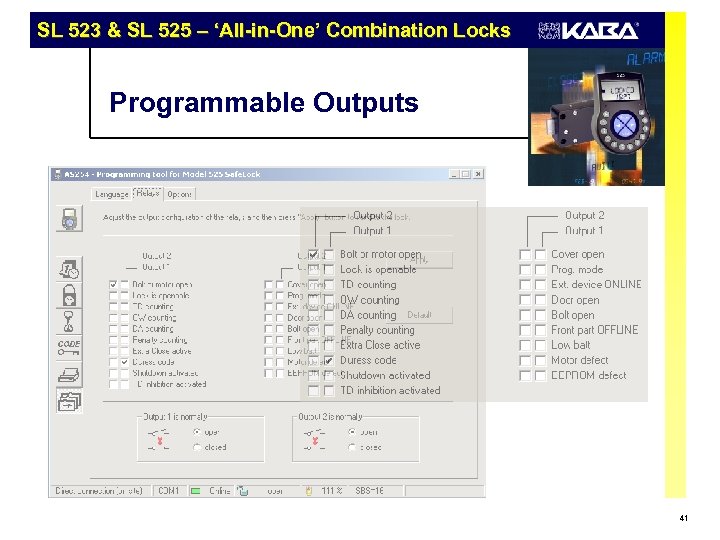

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Programmable Outputs 41

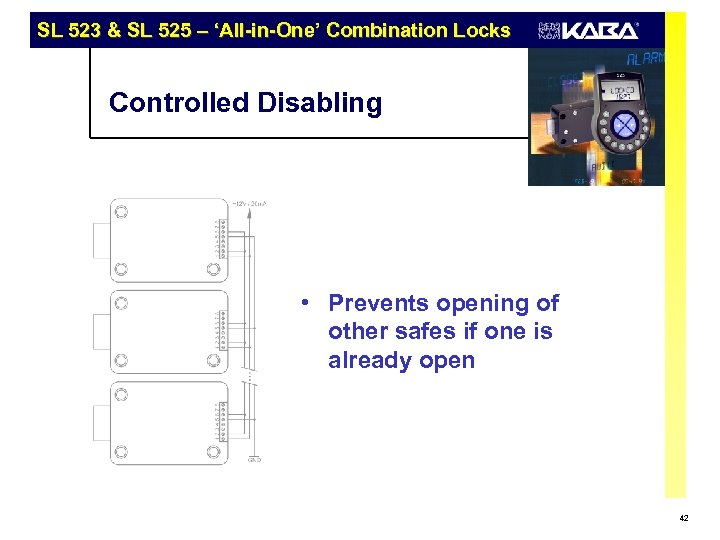

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Controlled Disabling • Prevents opening of other safes if one is already open 42
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Audit • Printer or • Programming terminal program software 43
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Fields of Application 44
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Application Fields 1 • ATMs, CIT services – Small lock dimensions – Contact-triggered time delay override – Special Courier code – Adaptable code format – One-shot configuration 45
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Application Fields 2 • Banks, exchange offices, post offices – Certified high-security lock – Simple retrofitting – Input / outputs to alarm centre – Extended code hierarchy – Master can / cannot open – Adaptable code format 46
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Application Fields 3 • Fast food chains – High-resistant metal input unit – Manager / user groups for shift operation – Large number of user codes – Easy operation 47

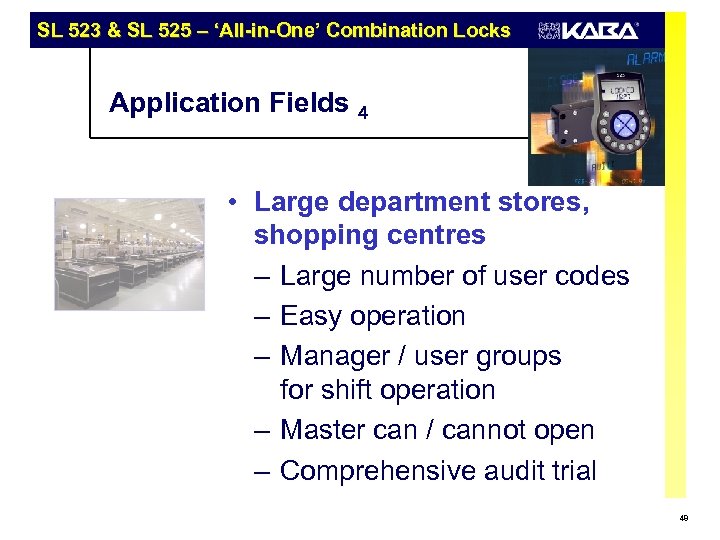

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Application Fields 4 • Large department stores, shopping centres – Large number of user codes – Easy operation – Manager / user groups for shift operation – Master can / cannot open – Comprehensive audit trial 48
SL 523 & SL 525 – ‘All-in-One’ Combination Locks Application Fields 5 • Museums, Embassies – Elegant design – Long battery life time – Easy operation – Opening counter 49

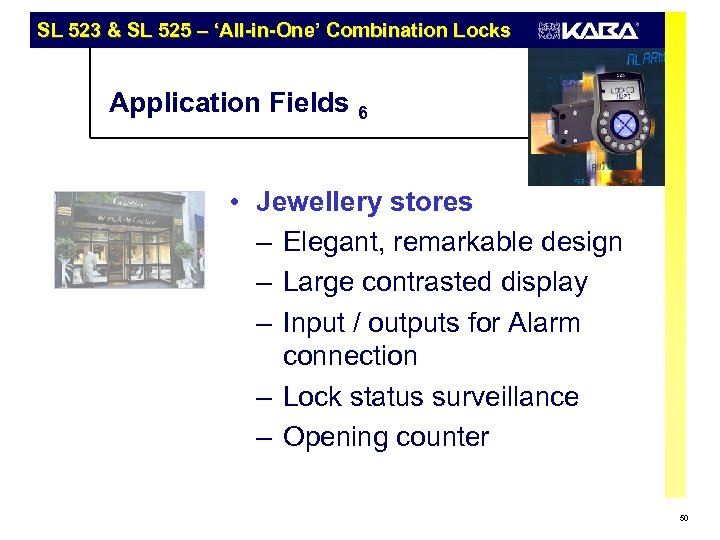

SL 523 & SL 525 – ‘All-in-One’ Combination Locks Application Fields 6 • Jewellery stores – Elegant, remarkable design – Large contrasted display – Input / outputs for Alarm connection – Lock status surveillance – Opening counter 50
