Simply Powerful, Simple Scalable, Simply Simple • Monitor System Reliability • email alarm on demand, sag/surge, and etc. • Perform Advanced Power Quality Analysis • provide real-time trending. • Centralized Ethernet Based SCADA system • Advanced Billing and Cost Allocation • monthly reports of individual or group of meters. • Scalable For Full Enterprise-wide Development • Windows 2008 and IIS with web clients • GUI for adding meter 1

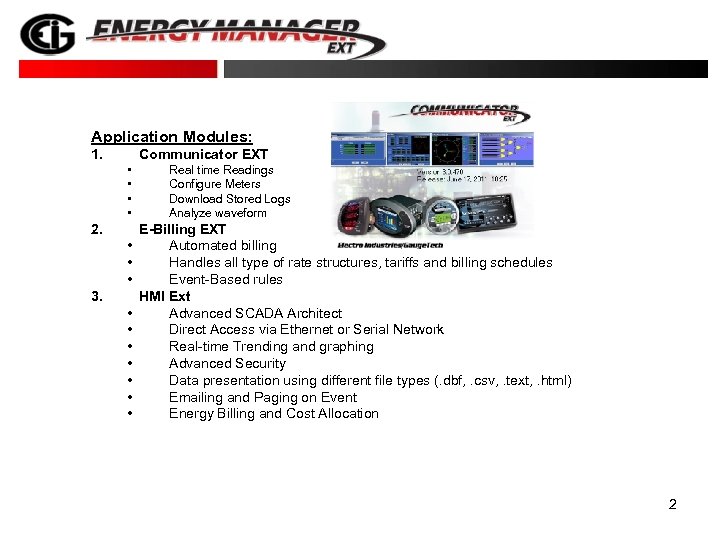

Application Modules: 1. Communicator EXT • • 2. • • • 3. • • Real time Readings Configure Meters Download Stored Logs Analyze waveform E-Billing EXT Automated billing Handles all type of rate structures, tariffs and billing schedules Event-Based rules HMI Ext Advanced SCADA Architect Direct Access via Ethernet or Serial Network Real-time Trending and graphing Advanced Security Data presentation using different file types (. dbf, . csv, . text, . html) Emailing and Paging on Event Energy Billing and Cost Allocation 2

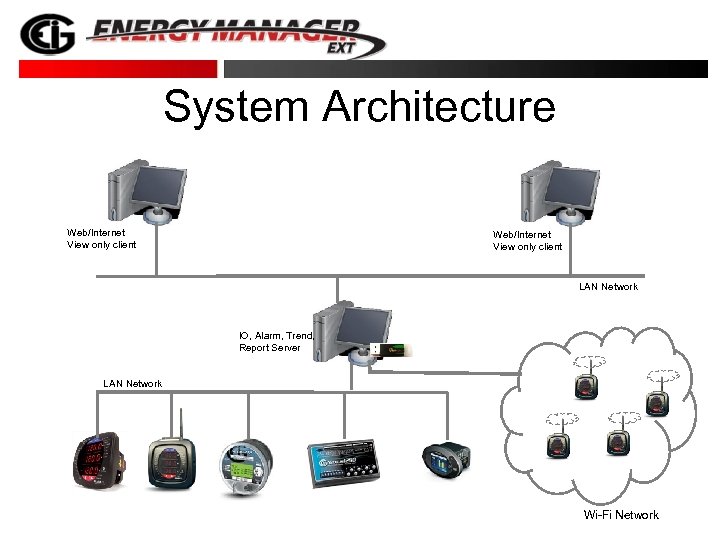

System Architecture Web/Internet View only client LAN Network IO, Alarm, Trend, Report Server LAN Network Wi-Fi Network
4

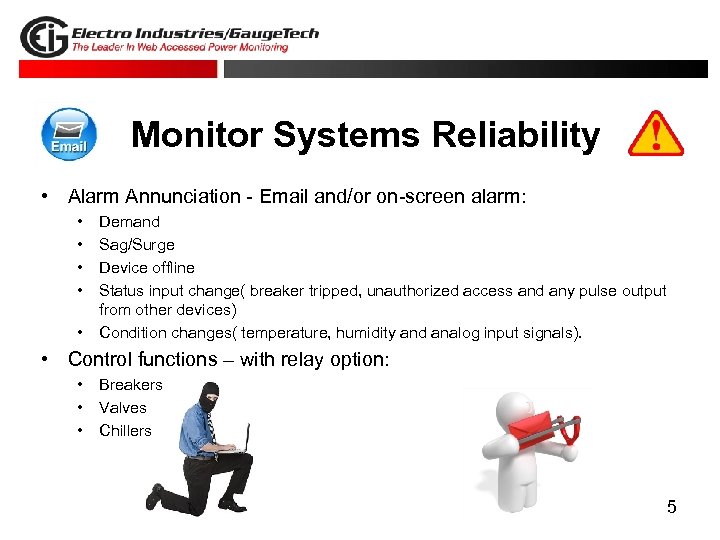

Monitor Systems Reliability • Alarm Annunciation - Email and/or on-screen alarm: • • • Demand Sag/Surge Device offline Status input change( breaker tripped, unauthorized access and any pulse output from other devices) Condition changes( temperature, humidity and analog input signals). • Control functions – with relay option: • • • Breakers Valves Chillers 5
HMI Software integrated with EIG software and can launch Comm. EXT and E-Billing Software by a click of an icon - Comm. EXT is a powerful real-time data polling and configuration software for the EIG’s products - E-Billing software combining multiple meter readings into a single bill for customer. 6
• Email Alarm 7

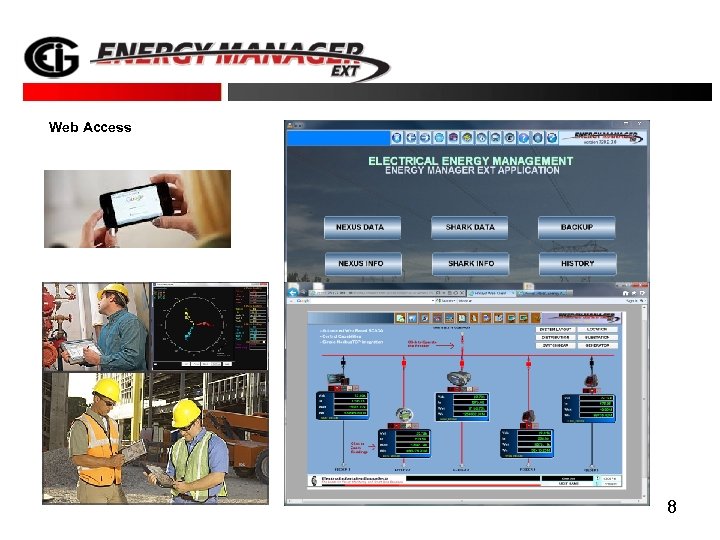

Web Access 8

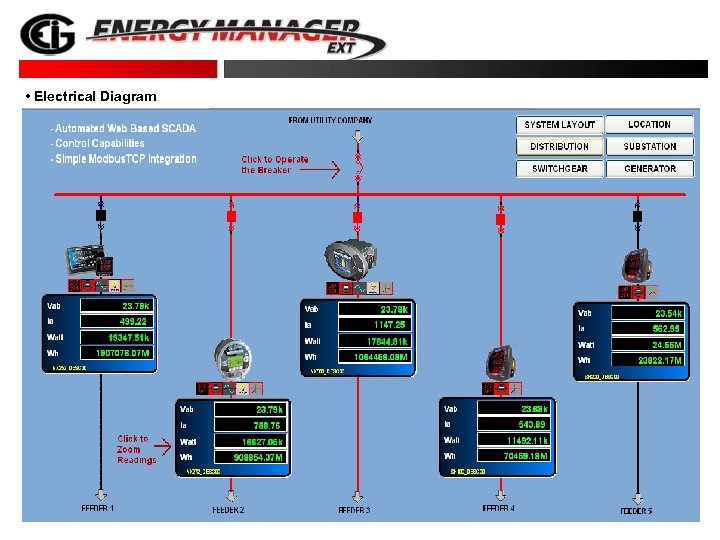

• Electrical Diagram 9

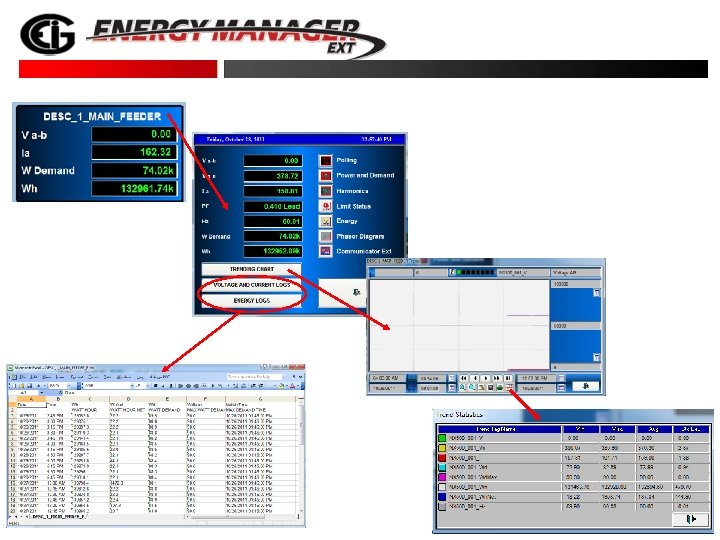

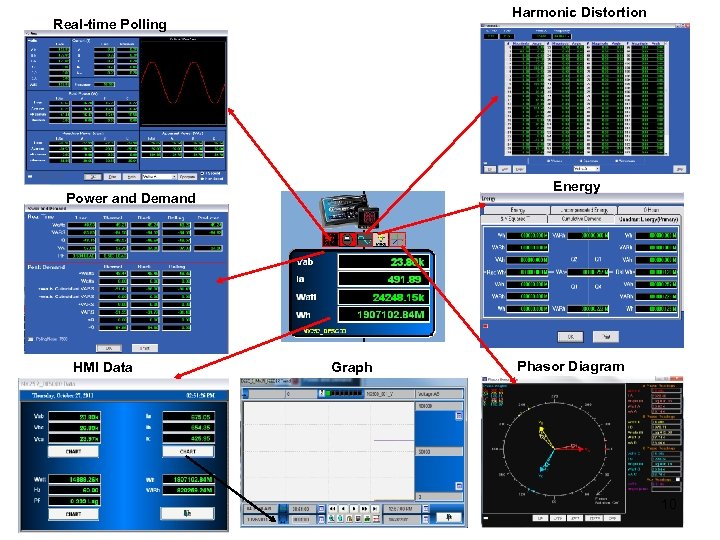

Harmonic Distortion Real-time Polling Energy Power and Demand HMI Data Graph Phasor Diagram 10
11

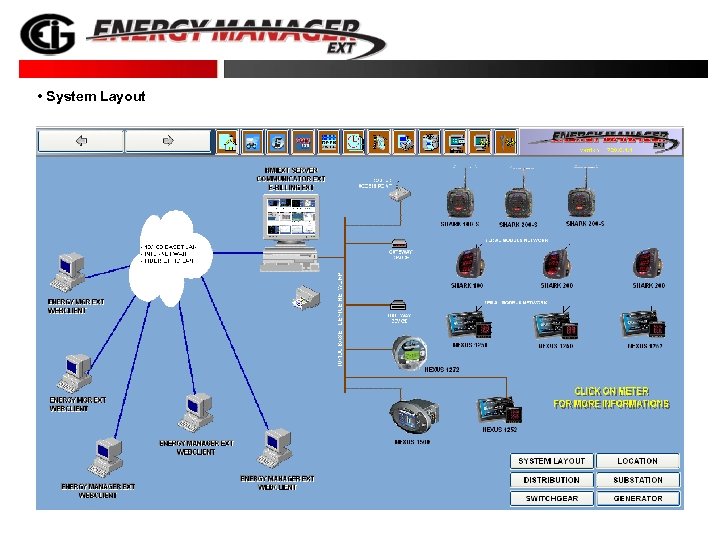

• System Layout 12

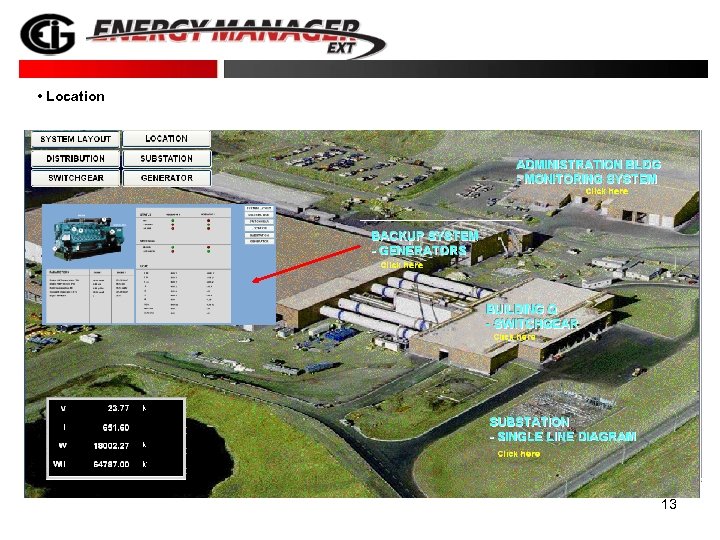

• Location 13

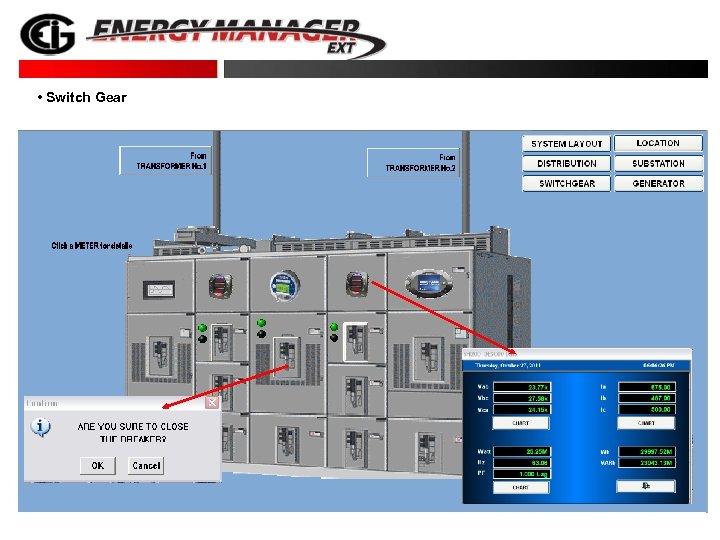

• Switch Gear 14

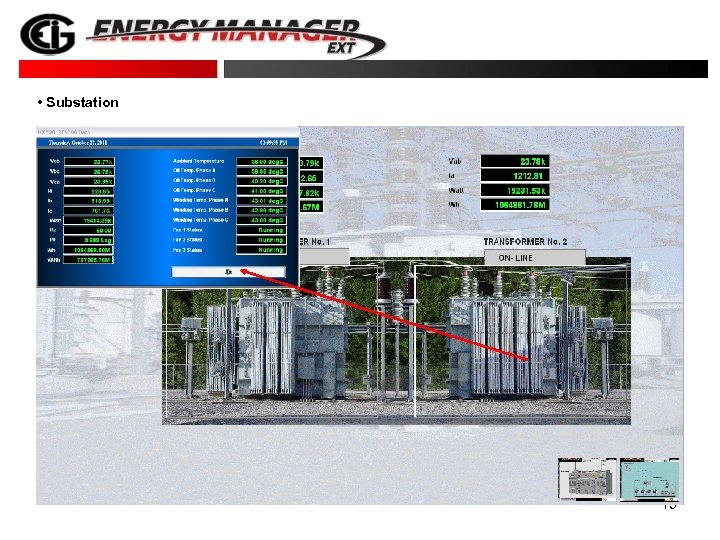

• Substation 15

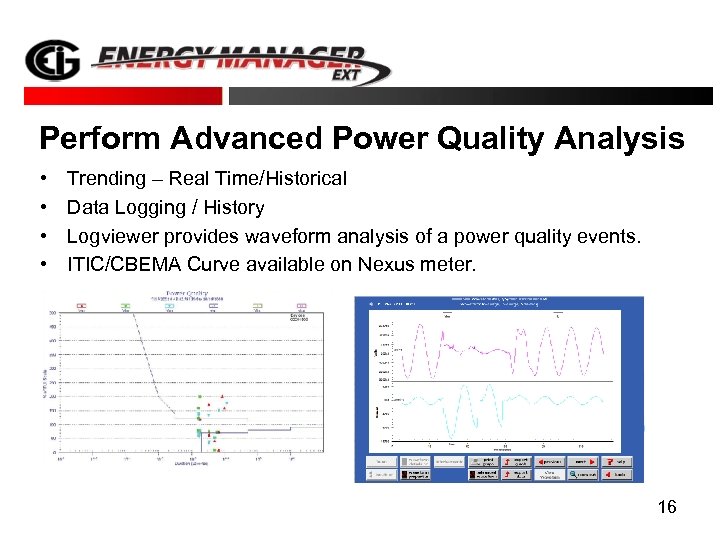

Perform Advanced Power Quality Analysis • • Trending – Real Time/Historical Data Logging / History Logviewer provides waveform analysis of a power quality events. ITIC/CBEMA Curve available on Nexus meter. 16

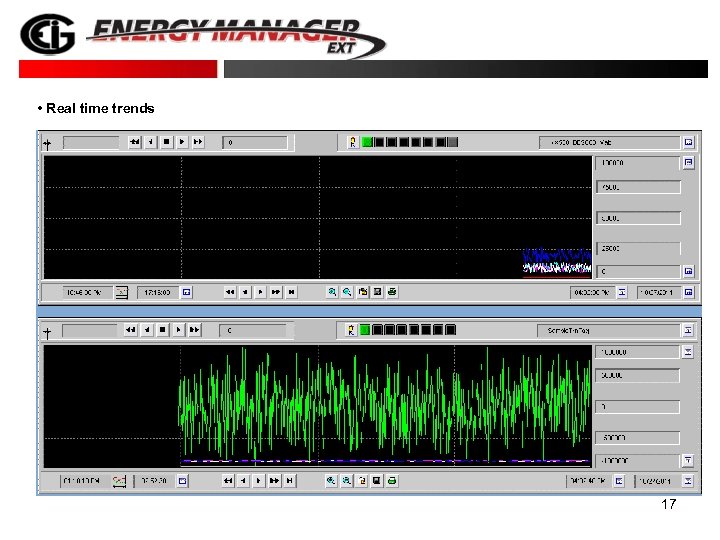

• Real time trends 17
• Energy Analysis Selectable variables For comparison 18
• Report 19
• Periodic Report Email 20

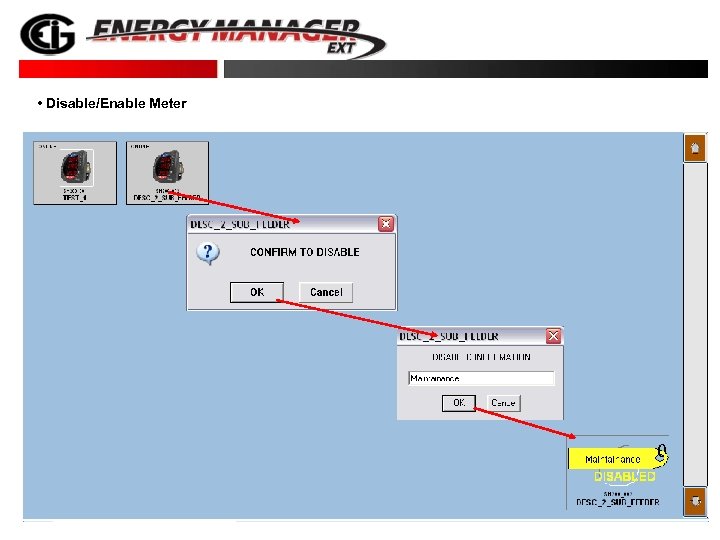

• Disable/Enable Meter 21

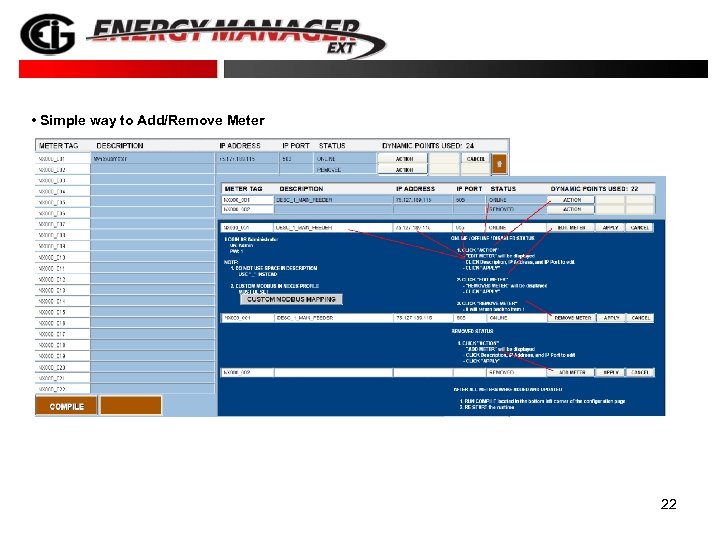

• Simple way to Add/Remove Meter 22
• Bill Viewer 23

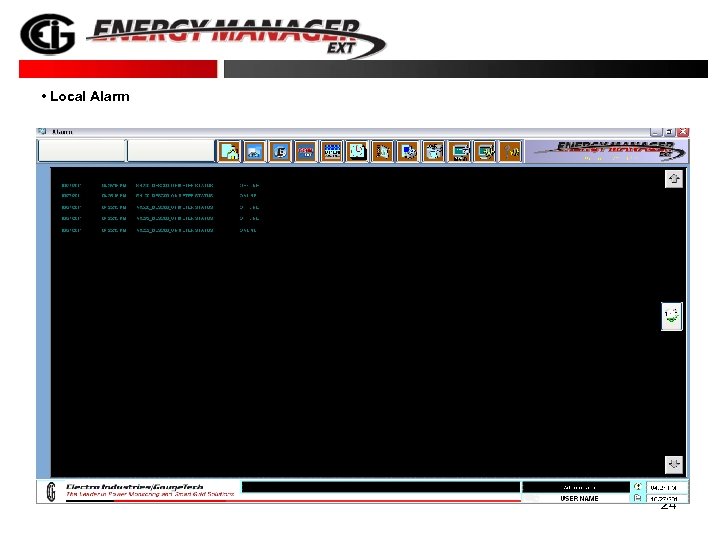

• Local Alarm 24

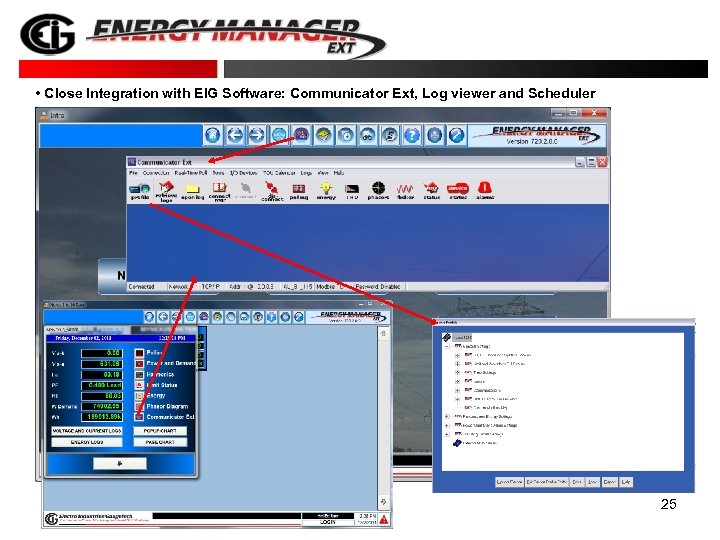

• Close Integration with EIG Software: Communicator Ext, Log viewer and Scheduler 25

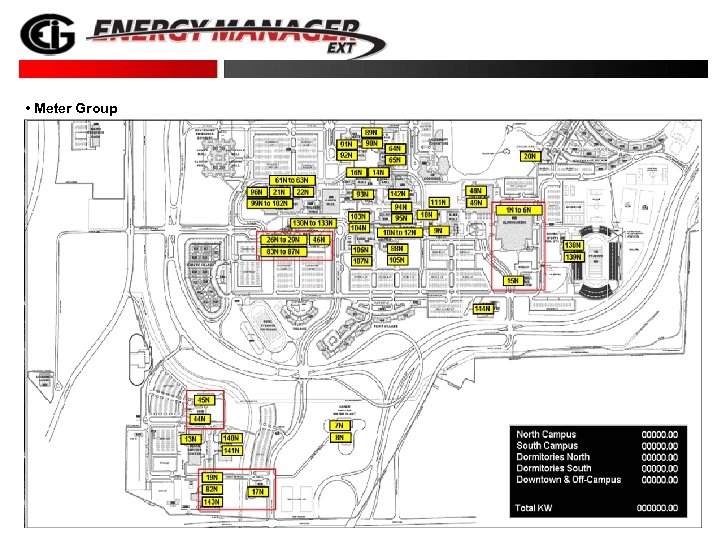

• Meter Group 26

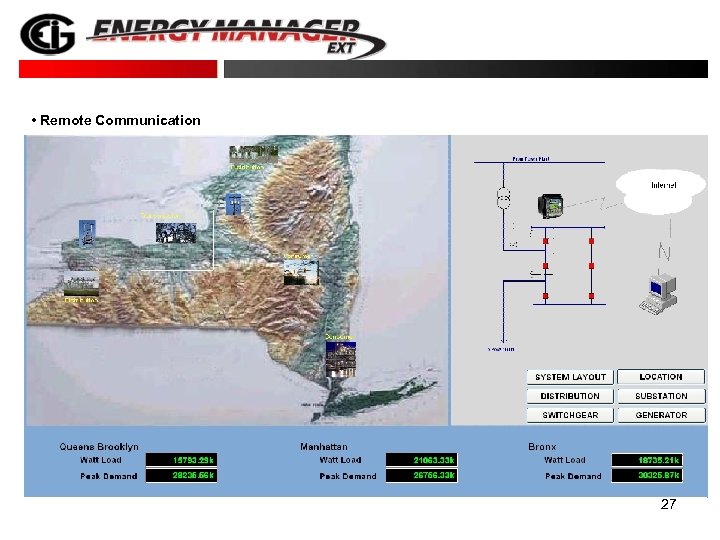

• Remote Communication 27

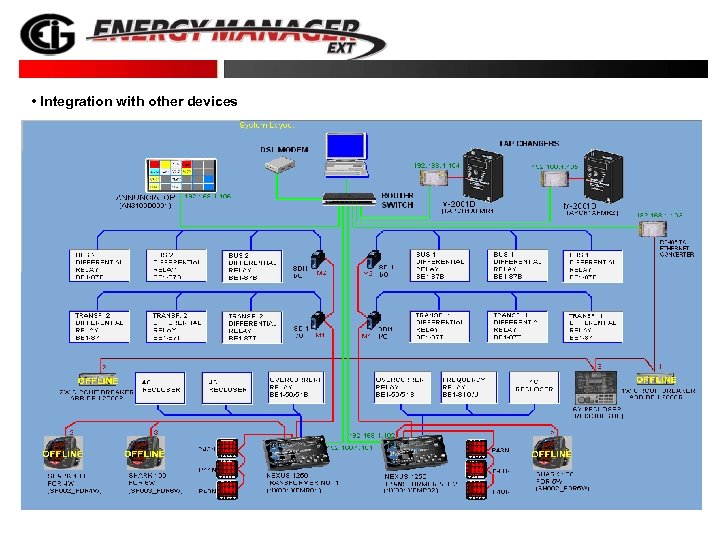

• Integration with other devices 28
• Integration with non EIG devices 29

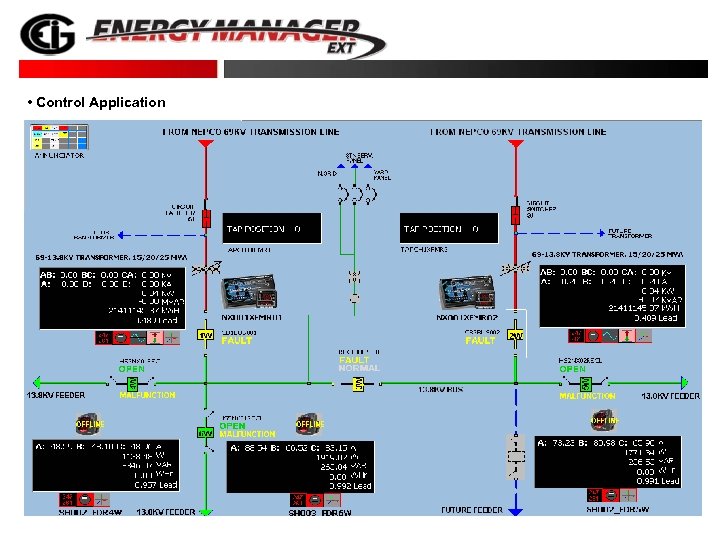

• Control Application 30

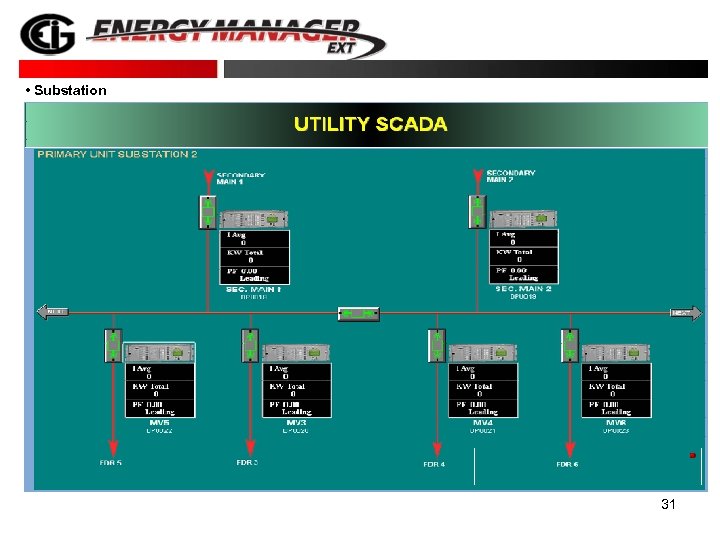

• Substation 31
• Ithaca College, NY 32

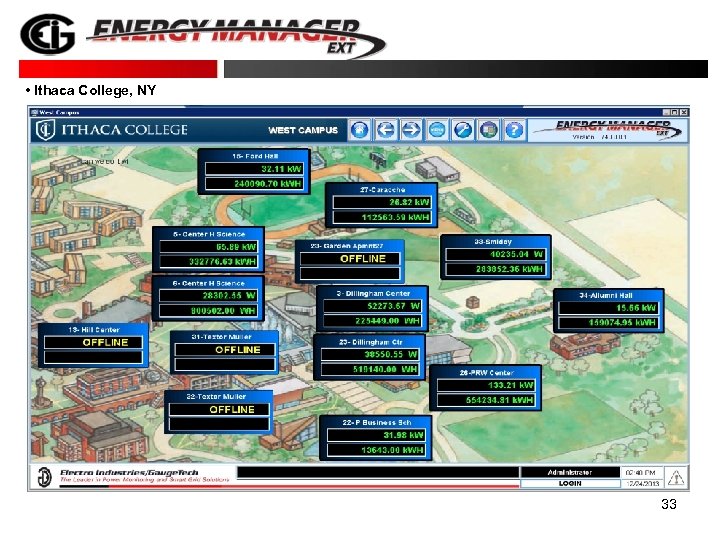

• Ithaca College, NY 33
• Ithaca College, NY 34
• Ithaca College, NY 35

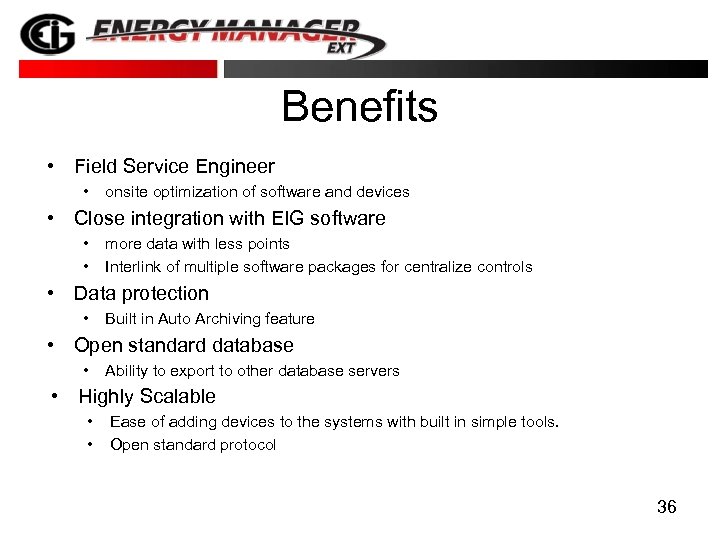

Benefits • Field Service Engineer • onsite optimization of software and devices • Close integration with EIG software • • more data with less points Interlink of multiple software packages for centralize controls • Data protection • Built in Auto Archiving feature • Open standard database • Ability to export to other database servers • Highly Scalable • • Ease of adding devices to the systems with built in simple tools. Open standard protocol 36
License • License Types • Full License • • • Required to run an IO / Alarm / Report / Trend Server Includes 1 license which can run on local server. Supported Protocol: Modbus RTU, Modbus ASCII, Modbus TCP, DNP Specify If BACnet support needed Client • Web / Internet View Only Client 37
Full License Required License key: • Reading following parameters per meter 1. 2. 3. 4. 5. 6. 7. Phase-Neutral Voltages AN, BN, CN (3 Point) Volt AB (1 Point) Current Ia, Ib and Ic (3 Point) Three Phase Total Watts (1 Point) Three Phase Vars (1 Point) Watt-Hours Received (1 Point) Additional information needed for data Calculation (5 Points) Note: Points needed for additional data calculation depends on complexity of project. Total Points: 15 Points/Meter Number of Meters : 10 Required License Key Points: 150 38
• Web Clients Uses Internet Explorer to connect to Server • 2 Simultaneous users connecting with server (View only/No control ability) Required license Key: 2 Web / Internet View Only Client 39

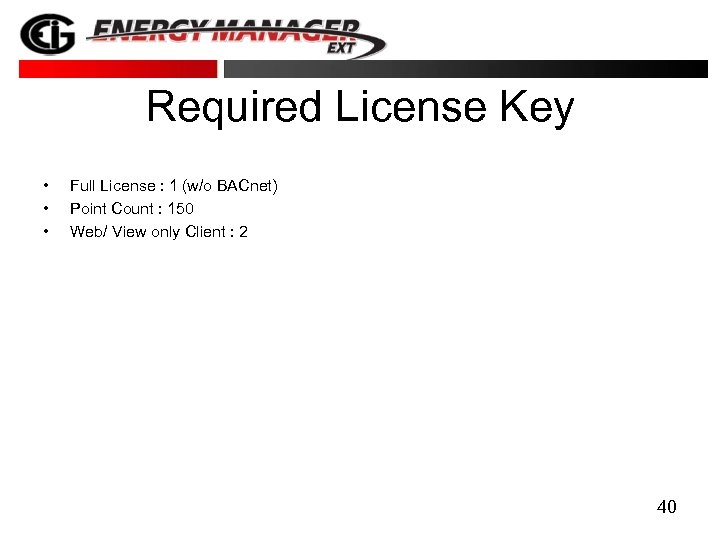

Required License Key • • • Full License : 1 (w/o BACnet) Point Count : 150 Web/ View only Client : 2 40
