Signal Committee Meeting February 5, 2013 3/15/2018 1

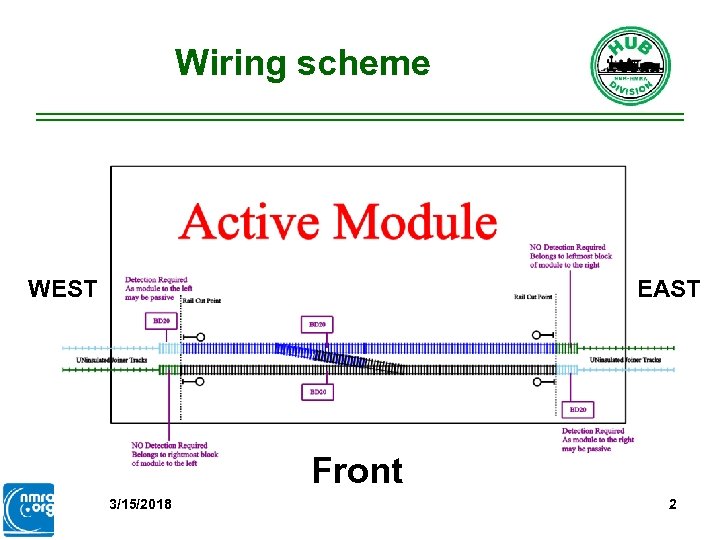

Wiring scheme WEST EAST Front 3/15/2018 2

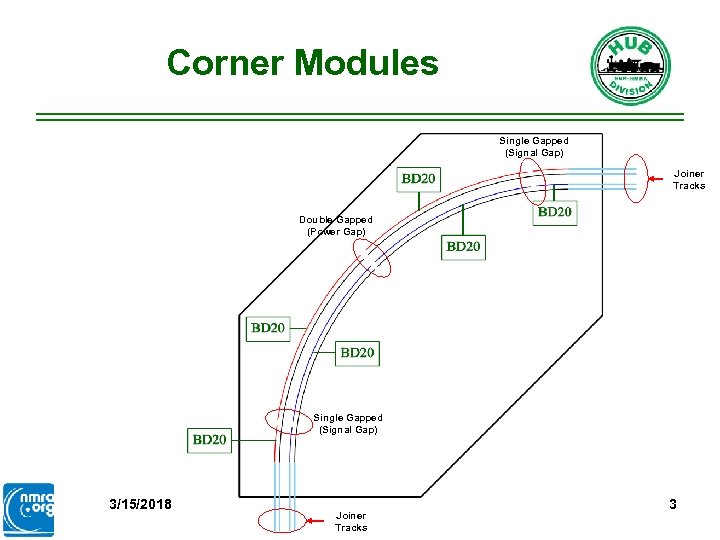

Corner Modules Single Gapped (Signal Gap) Joiner Tracks Double Gapped (Power Gap) Single Gapped (Signal Gap) 3/15/2018 Joiner Tracks 3

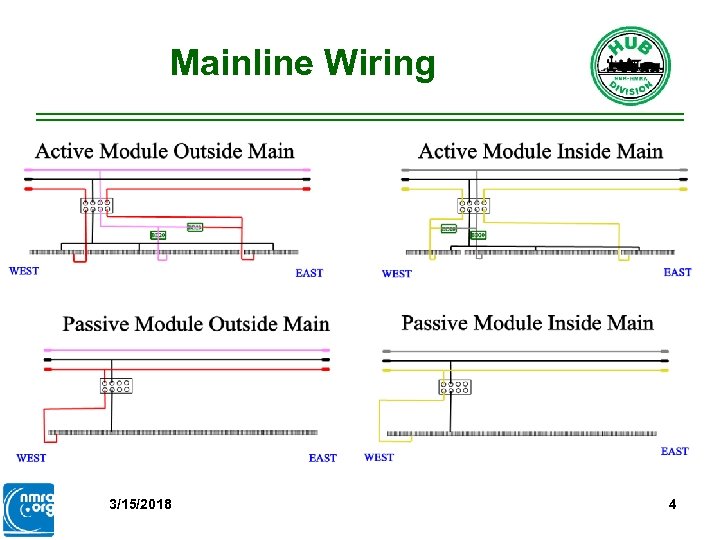

Mainline Wiring 3/15/2018 4

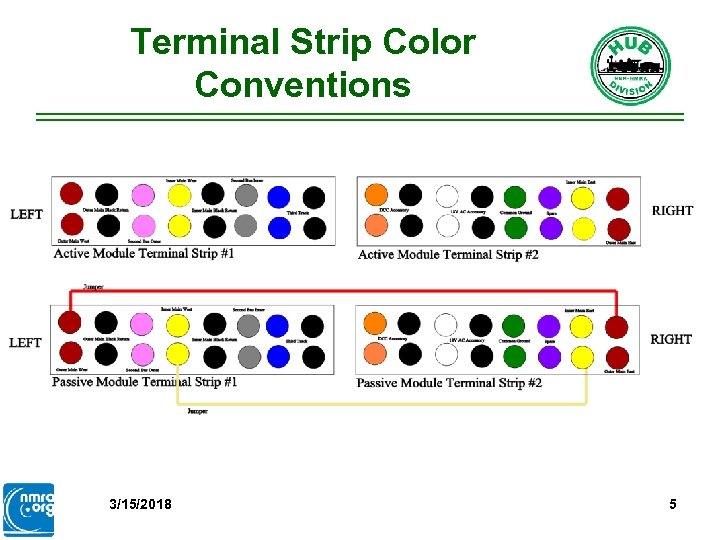

Terminal Strip Color Conventions 3/15/2018 5

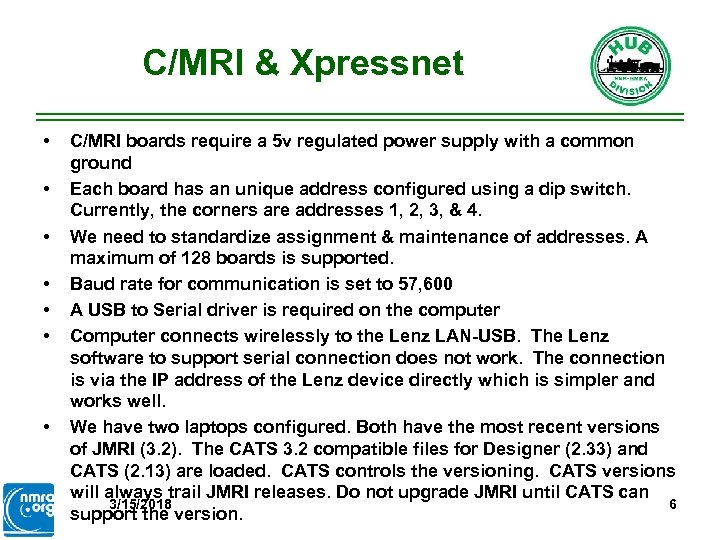

C/MRI & Xpressnet • • C/MRI boards require a 5 v regulated power supply with a common ground Each board has an unique address configured using a dip switch. Currently, the corners are addresses 1, 2, 3, & 4. We need to standardize assignment & maintenance of addresses. A maximum of 128 boards is supported. Baud rate for communication is set to 57, 600 A USB to Serial driver is required on the computer Computer connects wirelessly to the Lenz LAN-USB. The Lenz software to support serial connection does not work. The connection is via the IP address of the Lenz device directly which is simpler and works well. We have two laptops configured. Both have the most recent versions of JMRI (3. 2). The CATS 3. 2 compatible files for Designer (2. 33) and CATS (2. 13) are loaded. CATS controls the versioning. CATS versions will always trail JMRI releases. Do not upgrade JMRI until CATS can 6 3/15/2018 support the version.

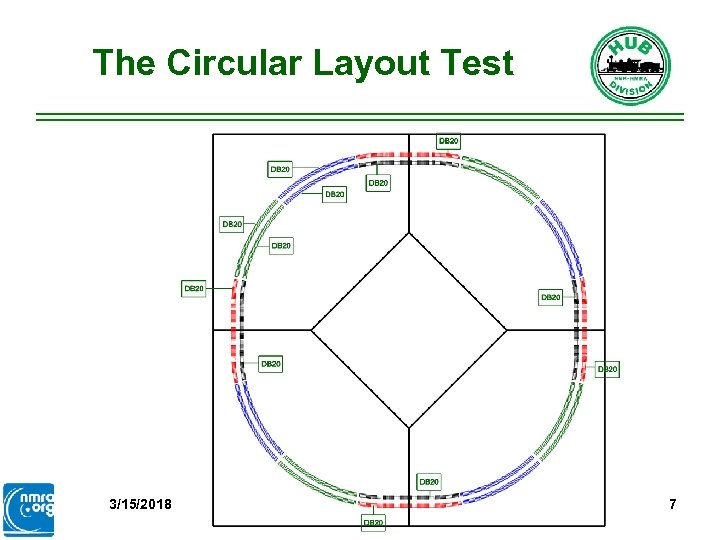

The Circular Layout Test 3/15/2018 7

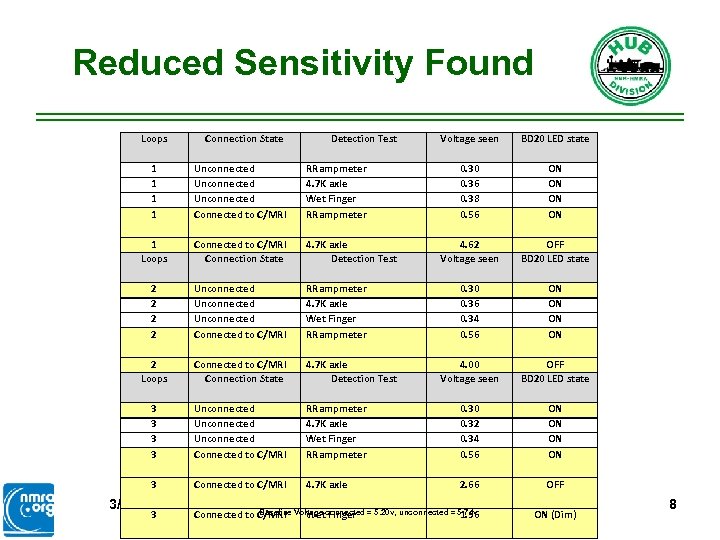

Reduced Sensitivity Found Loops Connection State Detection Test Voltage seen BD 20 LED state 0. 30 0. 36 0. 38 0. 56 ON ON 1 1 Unconnected Connected to C/MRI RRampmeter 4. 7 K axle Wet Finger RRampmeter 1 Loops 1 2 2 Connected to C/MRI Connection State Connected to C/MRI Unconnected Connected to C/MRI 4. 7 K axle Detection Test Wet Finger RRampmeter 4. 7 K axle Wet Finger RRampmeter 4. 62 Voltage seen 3. 64 0. 30 0. 36 0. 34 0. 56 OFF BD 20 LED state OFF ON ON 2 Loops 2 3 3 Connected to C/MRI Connection State Connected to C/MRI Unconnected Connected to C/MRI 4. 7 K axle Detection Test Wet Finger RRampmeter 4. 7 K axle Wet Finger RRampmeter 4. 00 Voltage seen 2. 80 0. 32 0. 34 0. 56 OFF BD 20 LED state OFF ON ON 3 Connected to C/MRI 4. 7 K axle 2. 66 OFF 3/15/2018 3 Baseline Connected to C/MRI Voltage connected = 5. 20 v, unconnected = 5. 74 v Wet Finger 1. 96 ON (Dim) 8

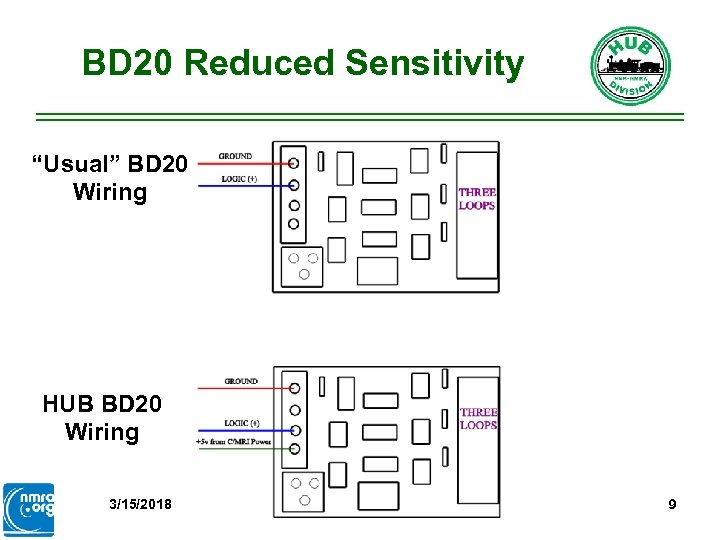

BD 20 Reduced Sensitivity “Usual” BD 20 Wiring HUB BD 20 Wiring 3/15/2018 9
Wenham 2013 Layout 3/15/2018 10

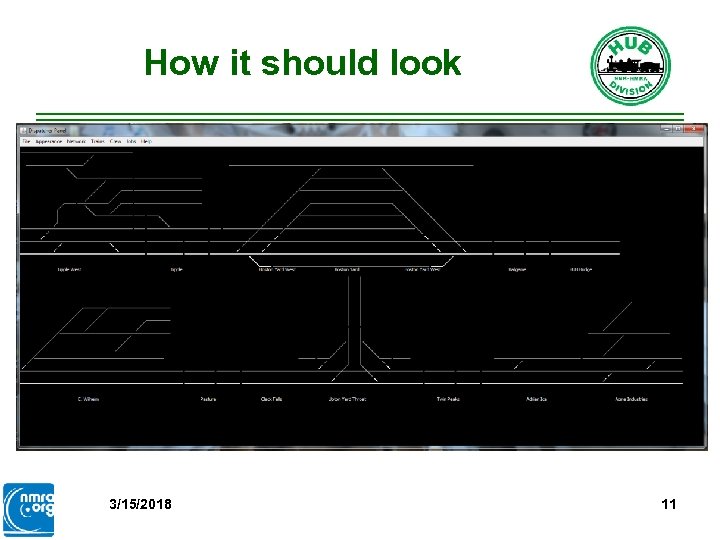

How it should look 3/15/2018 11

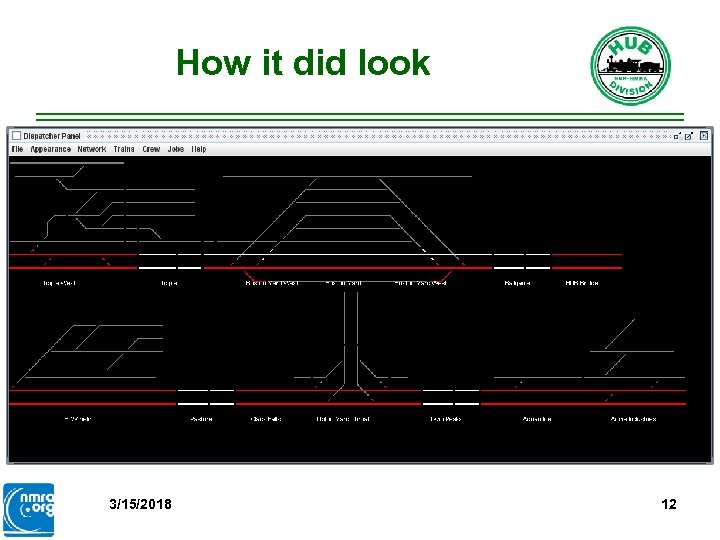

How it did look 3/15/2018 12

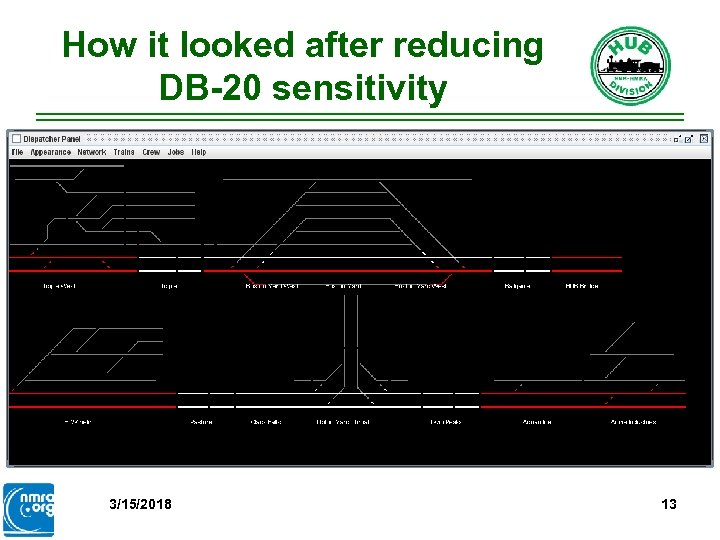

How it looked after reducing DB-20 sensitivity 3/15/2018 13

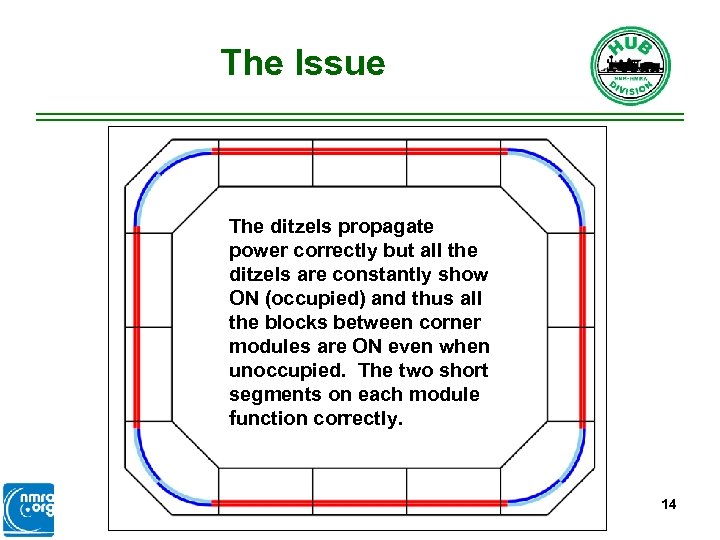

The Issue The ditzels propagate power correctly but all the ditzels are constantly show ON (occupied) and thus all the blocks between corner modules are ON even when unoccupied. The two short segments on each module function correctly. 3/15/2018 14

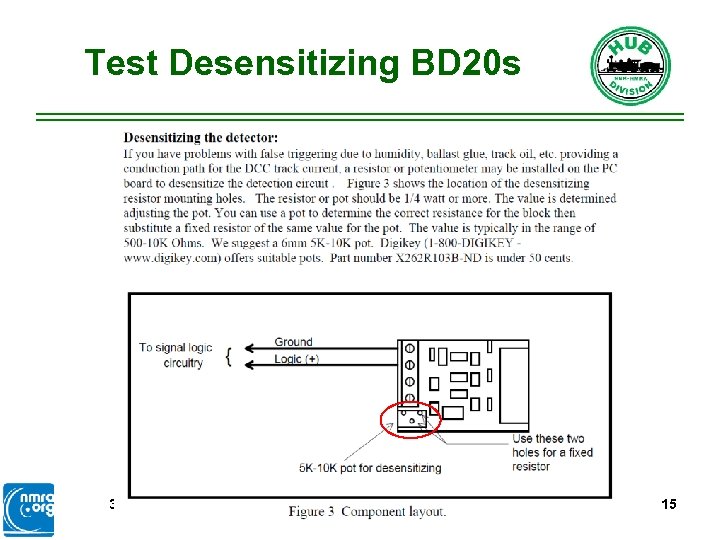

Test Desensitizing BD 20 s 3/15/2018 15

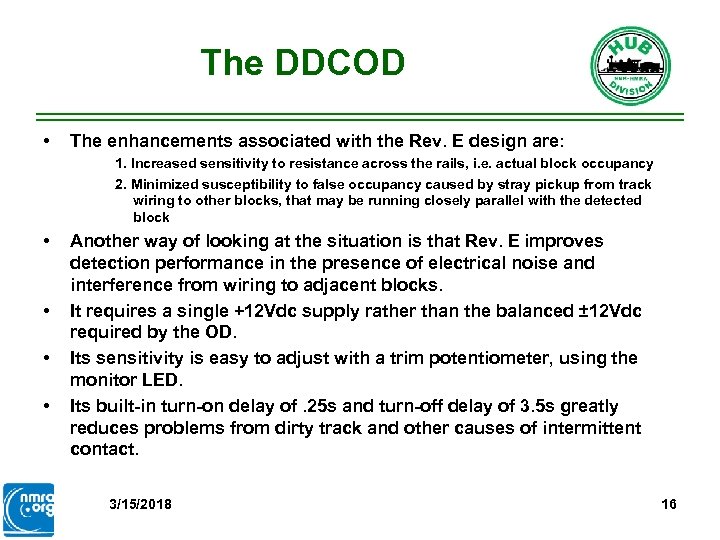

The DDCOD • The enhancements associated with the Rev. E design are: 1. Increased sensitivity to resistance across the rails, i. e. actual block occupancy 2. Minimized susceptibility to false occupancy caused by stray pickup from track wiring to other blocks, that may be running closely parallel with the detected block • • Another way of looking at the situation is that Rev. E improves detection performance in the presence of electrical noise and interference from wiring to adjacent blocks. It requires a single +12 Vdc supply rather than the balanced ± 12 Vdc required by the OD. Its sensitivity is easy to adjust with a trim potentiometer, using the monitor LED. Its built-in turn-on delay of. 25 s and turn-off delay of 3. 5 s greatly reduces problems from dirty track and other causes of intermittent contact. 3/15/2018 16
Comment at the Gartner Site 3/15/2018 http: //www. wiringfordcc. com 17
Detection: Next Steps • Link a long segment of flex track and test with a BD 20 to see if long track segments. • Link several (3 -5) passive modules and add a BD 20 to see if long module segments are a problem. These have ballast and multiple wire drops. • Test BD 20 desensitization with a 5 -10 k potentiometer • Repeat the same tests with DDCODs. • Build a sensitometer to determine minimum resistance for detection as described by Chubb. • Buy copies of the Chubb manuals. 3/15/2018 18
Wi. Throttle Issues • Router issues – New Router. Possible settings issues. Some routers require a connection with the internet. – May have corrupted security files on the PCs • Wi. Throttle Dropout – Has been reported in the listserve according to Ken Cameron. Not supposed to be an issue with the most recent version. • Ken Cameron suggested a test to do at each setup. Start a virtual throttle from the laptop and prove it’s stable prior to moving to Wi. Throttle. • The bottom line question is: Is this a JMRI issue or is this a communications issue? • Wi. Fi password: 0123456789 3/15/2018 19

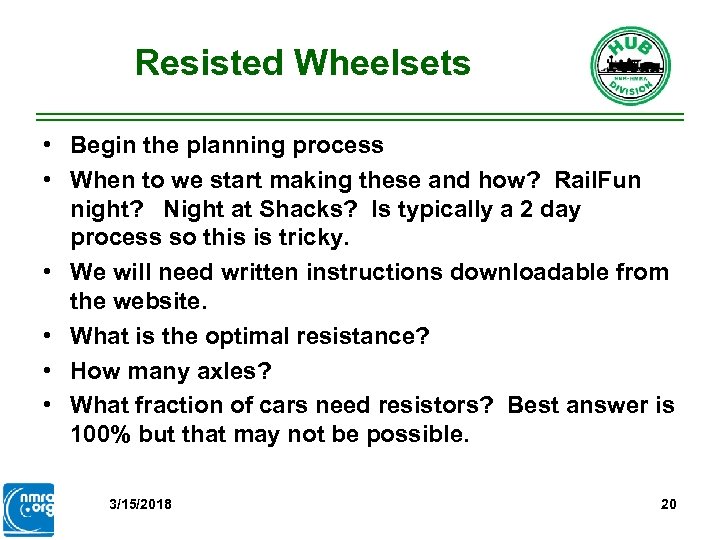

Resisted Wheelsets • Begin the planning process • When to we start making these and how? Rail. Fun night? Night at Shacks? Is typically a 2 day process so this is tricky. • We will need written instructions downloadable from the website. • What is the optimal resistance? • How many axles? • What fraction of cars need resistors? Best answer is 100% but that may not be possible. 3/15/2018 20

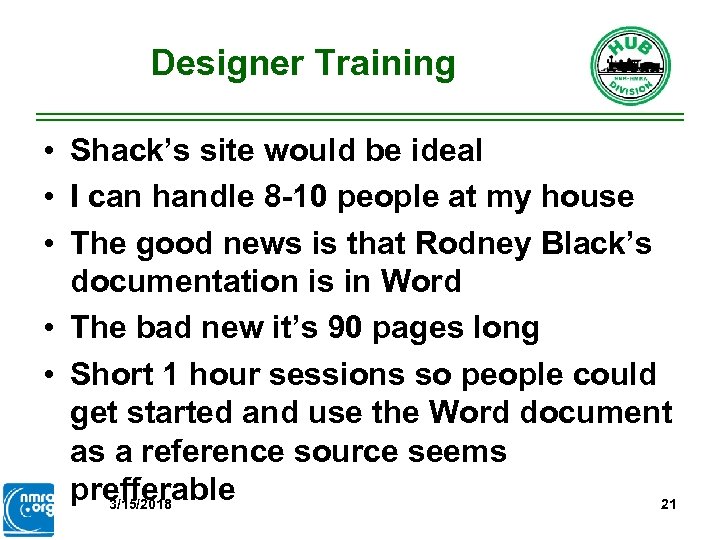

Designer Training • Shack’s site would be ideal • I can handle 8 -10 people at my house • The good news is that Rodney Black’s documentation is in Word • The bad new it’s 90 pages long • Short 1 hour sessions so people could get started and use the Word document as a reference source seems prefferable 21 3/15/2018

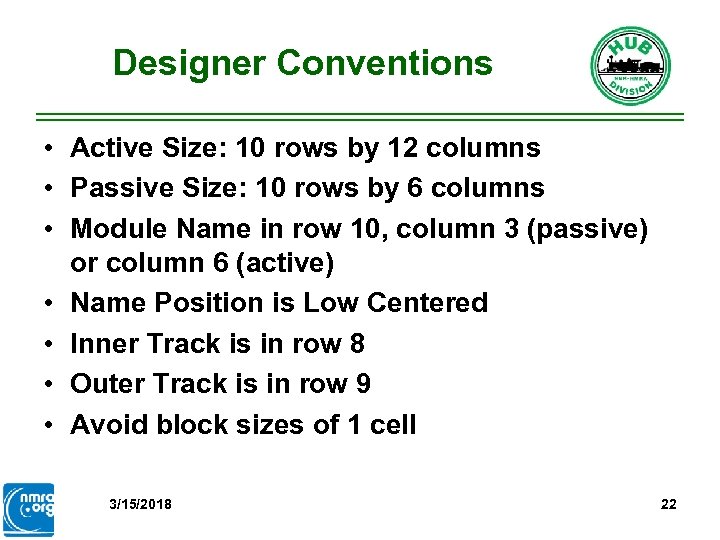

Designer Conventions • Active Size: 10 rows by 12 columns • Passive Size: 10 rows by 6 columns • Module Name in row 10, column 3 (passive) or column 6 (active) • Name Position is Low Centered • Inner Track is in row 8 • Outer Track is in row 9 • Avoid block sizes of 1 cell 3/15/2018 22

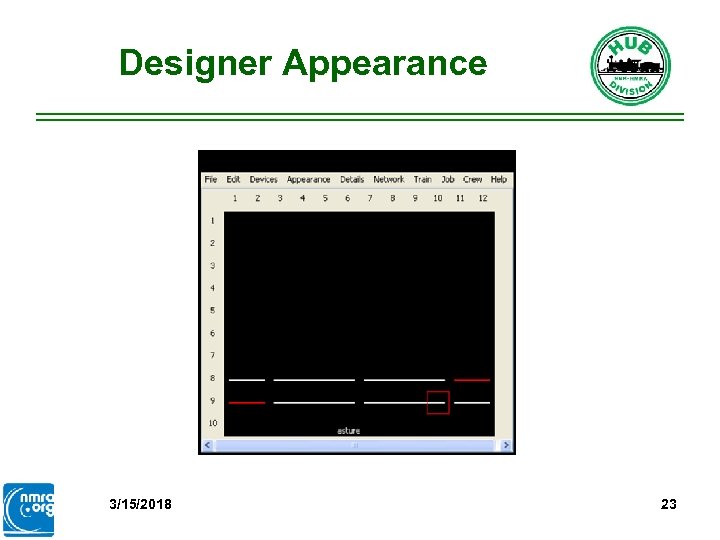

Designer Appearance 3/15/2018 23

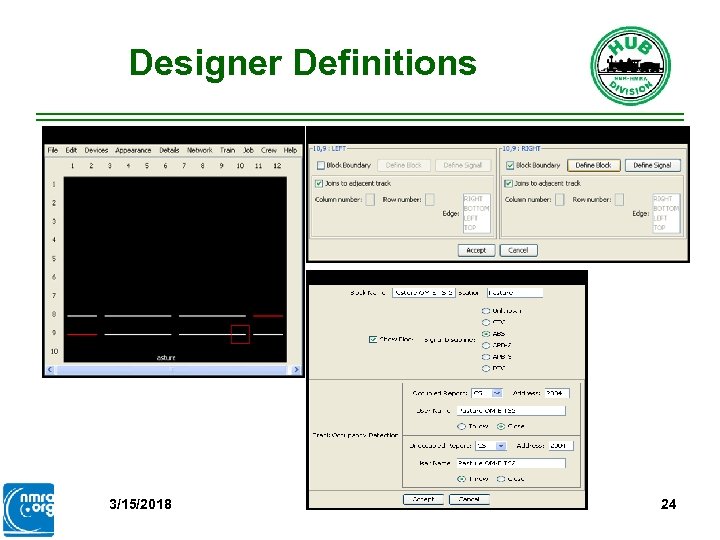

Designer Definitions 3/15/2018 24

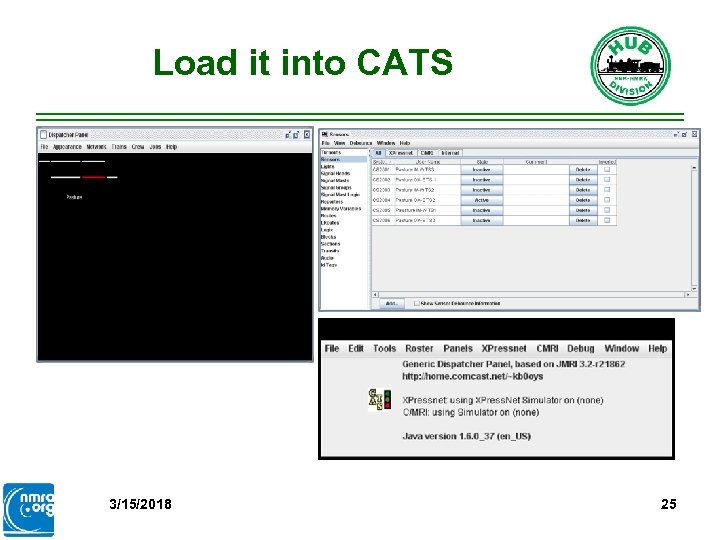

Load it into CATS 3/15/2018 25

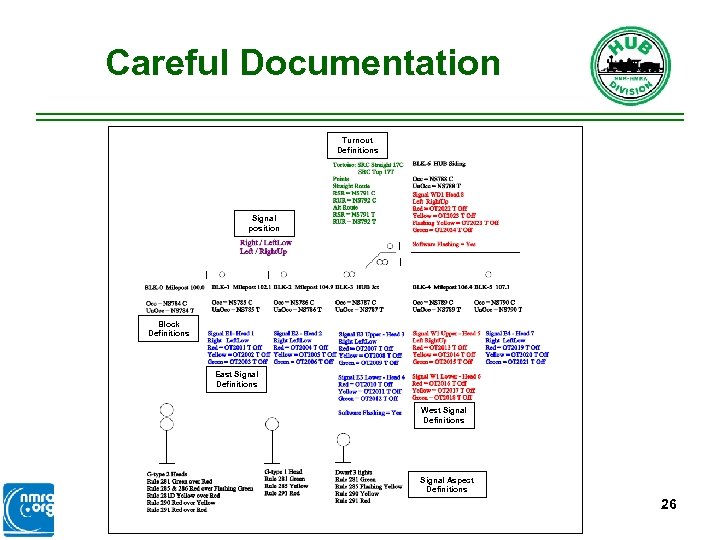

Careful Documentation Turnout Definitions Signal position Block Definitions East Signal Definitions West Signal Definitions Signal Aspect Definitions 3/15/2018 26

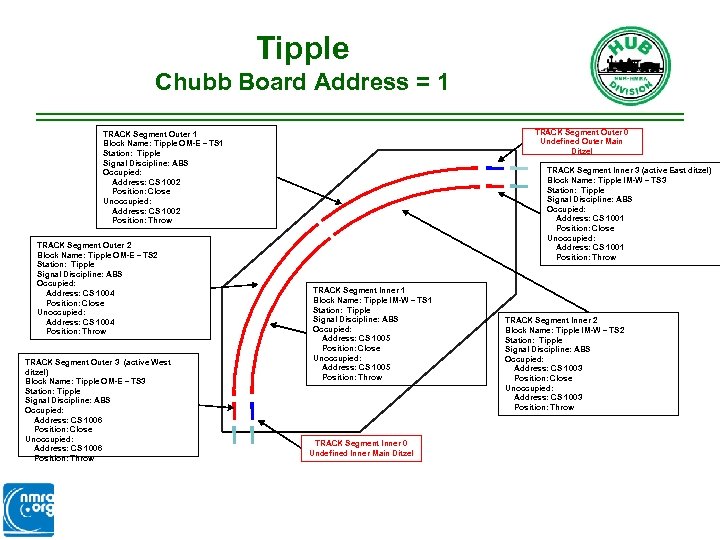

Tipple Chubb Board Address = 1 TRACK Segment Outer 0 Undefined Outer Main Ditzel TRACK Segment Outer 1 Block Name: Tipple OM-E – TS 1 Station: Tipple Signal Discipline: ABS Occupied: Address: CS 1002 Position: Close Unoccupied: Address: CS 1002 Position: Throw TRACK Segment Outer 2 Block Name: Tipple OM-E – TS 2 Station: Tipple Signal Discipline: ABS Occupied: Address: CS 1004 Position: Close Unoccupied: Address: CS 1004 Position: Throw TRACK Segment Outer 3 (active West ditzel) Block Name: Tipple OM-E – TS 3 Station: Tipple Signal Discipline: ABS Occupied: Address: CS 1006 Position: Close Unoccupied: Address: CS 1006 Position: Throw TRACK Segment Inner 3 (active East ditzel) Block Name: Tipple IM-W – TS 3 Station: Tipple Signal Discipline: ABS Occupied: Address: CS 1001 Position: Close Unoccupied: Address: CS 1001 Position: Throw TRACK Segment Inner 1 Block Name: Tipple IM-W – TS 1 Station: Tipple Signal Discipline: ABS Occupied: Address: CS 1005 Position: Close Unoccupied: Address: CS 1005 Position: Throw TRACK Segment Inner 0 Undefined Inner Main Ditzel TRACK Segment Inner 2 Block Name: Tipple IM-W – TS 2 Station: Tipple Signal Discipline: ABS Occupied: Address: CS 1003 Position: Close Unoccupied: Address: CS 1003 Position: Throw
Pasture Chubb Board Address = 2 TRACK Segment Outer 0 Undefined Outer Main Ditzel TRACK Segment Outer 1 Block Name: Pasture OM-E – TS 1 Station: Pasture Signal Discipline: ABS Occupied: Address: CS 2002 Position: Close Unoccupied: Address: CS 2002 Position: Throw TRACK Segment Outer 2 Block Name: Pasture OM-E – TS 2 Station: Pasture Signal Discipline: ABS Occupied: Address: CS 2004 Position: Close Unoccupied: Address: CS 2004 Position: Throw TRACK Segment Outer 3 (active West ditzel) Block Name: Pasture OM-E – TS 3 Station: Pasture Signal Discipline: ABS Occupied: Address: CS 2006 Position: Close Unoccupied: Address: CS 2006 Position: Throw TRACK Segment Inner 3 (active East ditzel) Block Name: Pasture IM-W – TS 3 Station: Pasture Signal Discipline: ABS Occupied: Address: CS 2001 Position: Close Unoccupied: Address: CS 2001 Position: Throw TRACK Segment Inner 1 Block Name: Pasture IM-W – TS 1 Station: Pasture Signal Discipline: ABS Occupied: Address: CS 2005 Position: Close Unoccupied: Address: CS 2005 Position: Throw TRACK Segment Inner 0 Undefined Inner Main Ditzel TRACK Segment Inner 2 Block Name: Pasture IM-W – TS 2 Station: Pasture Signal Discipline: ABS Occupied: Address: CS 2003 Position: Close Unoccupied: Address: CS 2003 Position: Throw

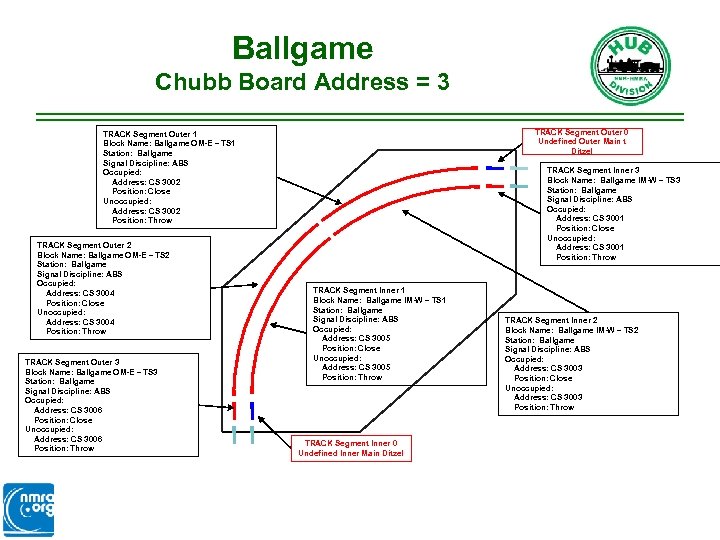

Ballgame Chubb Board Address = 3 TRACK Segment Outer 0 Undefined Outer Main t Ditzel TRACK Segment Outer 1 Block Name: Ballgame OM-E – TS 1 Station: Ballgame Signal Discipline: ABS Occupied: Address: CS 3002 Position: Close Unoccupied: Address: CS 3002 Position: Throw TRACK Segment Outer 2 Block Name: Ballgame OM-E – TS 2 Station: Ballgame Signal Discipline: ABS Occupied: Address: CS 3004 Position: Close Unoccupied: Address: CS 3004 Position: Throw TRACK Segment Outer 3 Block Name: Ballgame OM-E – TS 3 Station: Ballgame Signal Discipline: ABS Occupied: Address: CS 3006 Position: Close Unoccupied: Address: CS 3006 Position: Throw TRACK Segment Inner 3 Block Name: Ballgame IM-W – TS 3 Station: Ballgame Signal Discipline: ABS Occupied: Address: CS 3001 Position: Close Unoccupied: Address: CS 3001 Position: Throw TRACK Segment Inner 1 Block Name: Ballgame IM-W – TS 1 Station: Ballgame Signal Discipline: ABS Occupied: Address: CS 3005 Position: Close Unoccupied: Address: CS 3005 Position: Throw TRACK Segment Inner 0 Undefined Inner Main Ditzel TRACK Segment Inner 2 Block Name: Ballgame IM-W – TS 2 Station: Ballgame Signal Discipline: ABS Occupied: Address: CS 3003 Position: Close Unoccupied: Address: CS 3003 Position: Throw

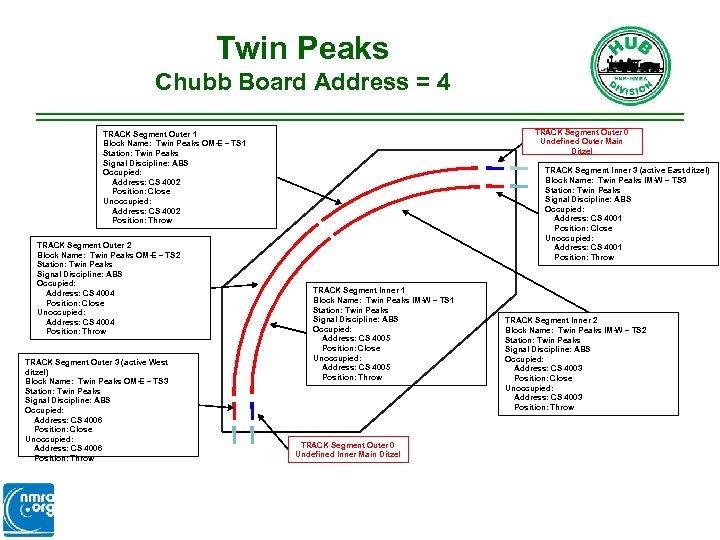

Twin Peaks Chubb Board Address = 4 TRACK Segment Outer 0 Undefined Outer Main Ditzel TRACK Segment Outer 1 Block Name: Twin Peaks OM-E – TS 1 Station: Twin Peaks Signal Discipline: ABS Occupied: Address: CS 4002 Position: Close Unoccupied: Address: CS 4002 Position: Throw TRACK Segment Outer 2 Block Name: Twin Peaks OM-E – TS 2 Station: Twin Peaks Signal Discipline: ABS Occupied: Address: CS 4004 Position: Close Unoccupied: Address: CS 4004 Position: Throw TRACK Segment Outer 3 (active West ditzel) Block Name: Twin Peaks OM-E – TS 3 Station: Twin Peaks Signal Discipline: ABS Occupied: Address: CS 4006 Position: Close Unoccupied: Address: CS 4006 Position: Throw TRACK Segment Inner 3 (active East ditzel) Block Name: Twin Peaks IM-W – TS 3 Station: Twin Peaks Signal Discipline: ABS Occupied: Address: CS 4001 Position: Close Unoccupied: Address: CS 4001 Position: Throw TRACK Segment Inner 1 Block Name: Twin Peaks IM-W – TS 1 Station: Twin Peaks Signal Discipline: ABS Occupied: Address: CS 4005 Position: Close Unoccupied: Address: CS 4005 Position: Throw TRACK Segment Outer 0 Undefined Inner Main Ditzel TRACK Segment Inner 2 Block Name: Twin Peaks IM-W – TS 2 Station: Twin Peaks Signal Discipline: ABS Occupied: Address: CS 4003 Position: Close Unoccupied: Address: CS 4003 Position: Throw

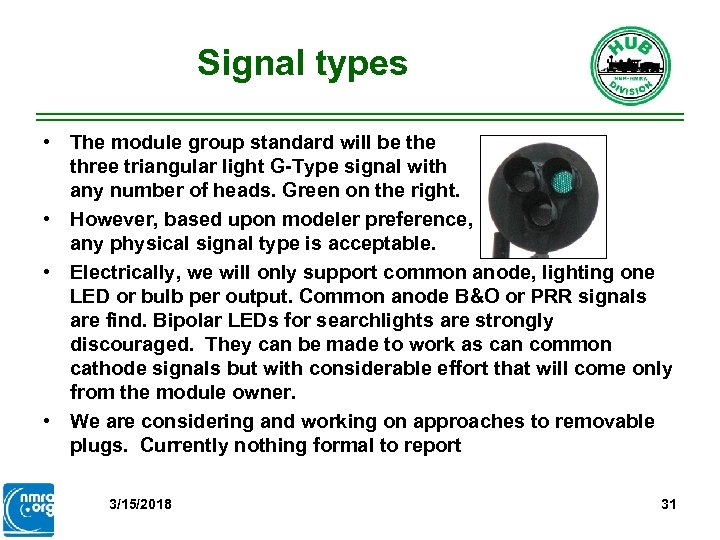

Signal types • The module group standard will be three triangular light G-Type signal with any number of heads. Green on the right. • However, based upon modeler preference, any physical signal type is acceptable. • Electrically, we will only support common anode, lighting one LED or bulb per output. Common anode B&O or PRR signals are find. Bipolar LEDs for searchlights are strongly discouraged. They can be made to work as can common cathode signals but with considerable effort that will come only from the module owner. • We are considering and working on approaches to removable plugs. Currently nothing formal to report 3/15/2018 31

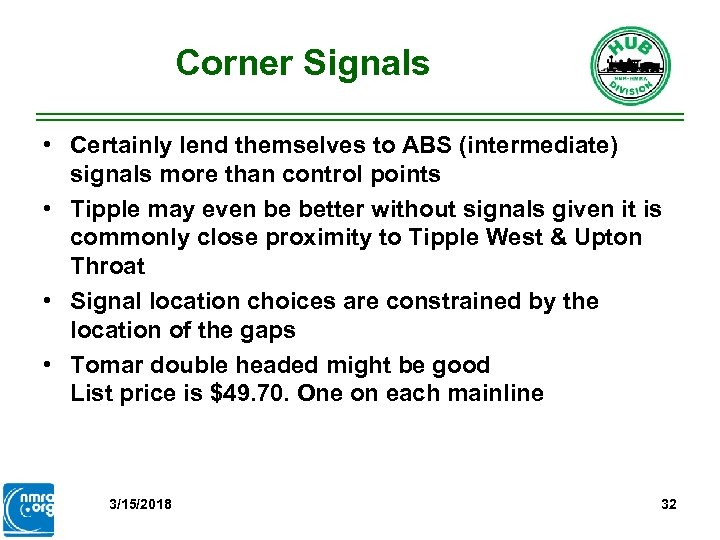

Corner Signals • Certainly lend themselves to ABS (intermediate) signals more than control points • Tipple may even be better without signals given it is commonly close proximity to Tipple West & Upton Throat • Signal location choices are constrained by the location of the gaps • Tomar double headed might be good List price is $49. 70. One on each mainline 3/15/2018 32

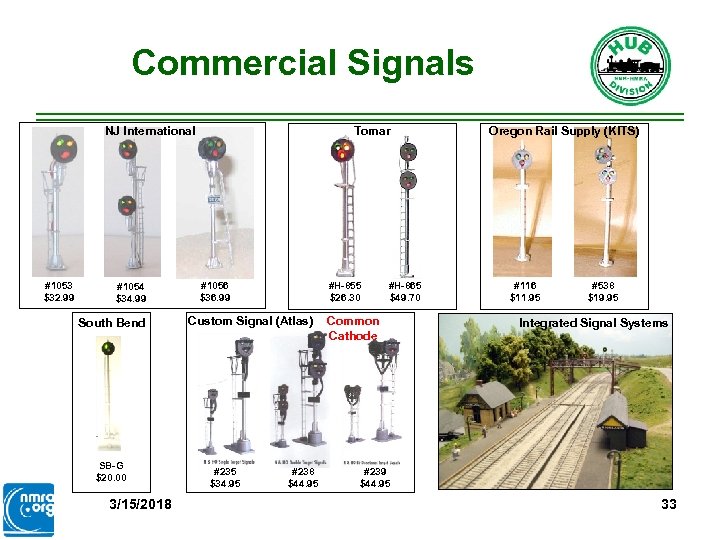

Commercial Signals NJ International #1053 $32. 99 #1054 $34. 99 South Bend SB-G $20. 00 3/15/2018 Tomar #1056 $36. 99 #H-855 $26. 30 Custom Signal (Atlas) #235 $34. 95 #238 $44. 95 #H-865 $49. 70 Common Cathode Oregon Rail Supply (KITS) #116 $11. 95 #538 $19. 95 Integrated Signal Systems #239 $44. 95 33

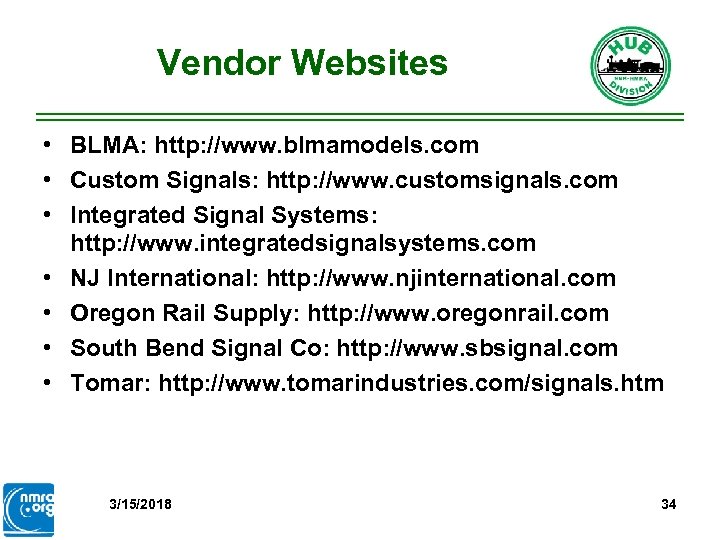

Vendor Websites • BLMA: http: //www. blmamodels. com • Custom Signals: http: //www. customsignals. com • Integrated Signal Systems: http: //www. integratedsignalsystems. com • NJ International: http: //www. njinternational. com • Oregon Rail Supply: http: //www. oregonrail. com • South Bend Signal Co: http: //www. sbsignal. com • Tomar: http: //www. tomarindustries. com/signals. htm 3/15/2018 34

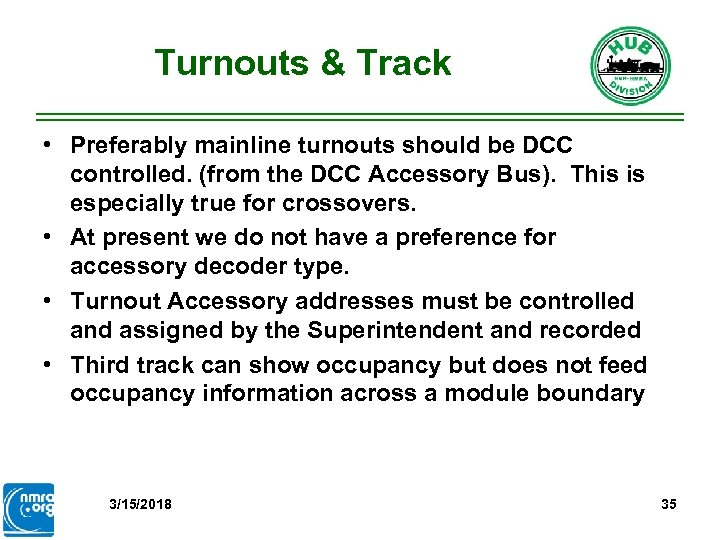

Turnouts & Track • Preferably mainline turnouts should be DCC controlled. (from the DCC Accessory Bus). This is especially true for crossovers. • At present we do not have a preference for accessory decoder type. • Turnout Accessory addresses must be controlled and assigned by the Superintendent and recorded • Third track can show occupancy but does not feed occupancy information across a module boundary 3/15/2018 35

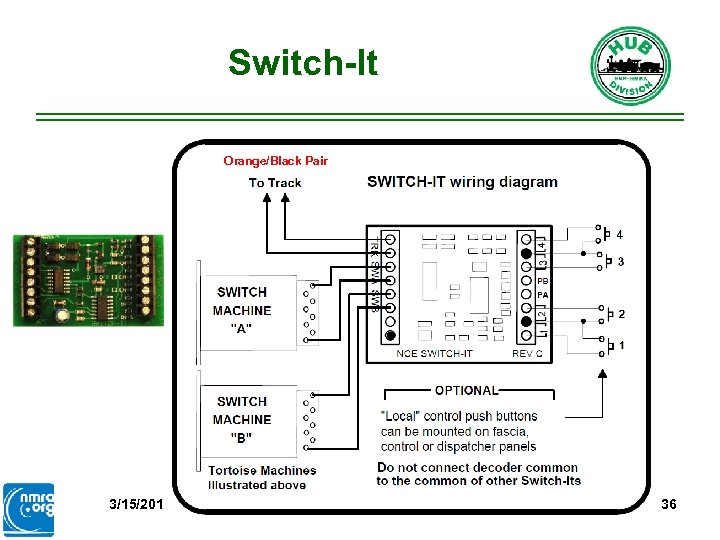

Switch-It Orange/Black Pair 3/15/2018 36
Thanks 3/15/2018 37
