Siemens Technik Akademie-Berlin presents How You Teach Matters: Integrating a Systems Approach in Engineering Technology Courses Copyright © Siemens AG 2011. Copyright-Vermerk Schutzvermerk / All rights reserved

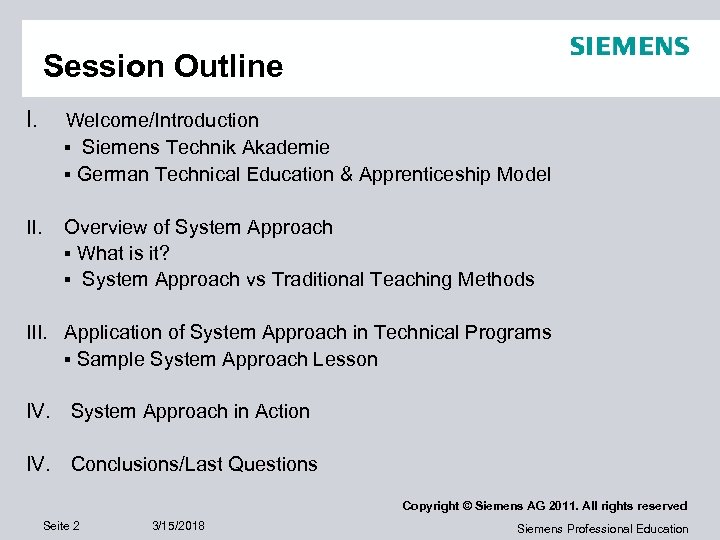

Session Outline I. Welcome/Introduction ▪ Siemens Technik Akademie ▪ German Technical Education & Apprenticeship Model II. Overview of System Approach ▪ What is it? ▪ System Approach vs Traditional Teaching Methods III. Application of System Approach in Technical Programs ▪ Sample System Approach Lesson IV. System Approach in Action IV. Conclusions/Last Questions Copyright © Siemens AG 2011. All rights reserved Seite 2 3/15/2018 Siemens Professional Education
What Is The Siemens Technik Akademie (STA)? • The only international higher level engineering and technology academy within the Siemens Professional Education System • Founded in 1998 to train students in engineering technology and applied mechatronics • Connected to the Werner von Siemens ‘Berufschule’ (technical college) –one of the last remaining private technical colleges in Germany Copyright © Siemens AG 2011. All rights reserved Seite 3 3/15/2018 Siemens Professional Education

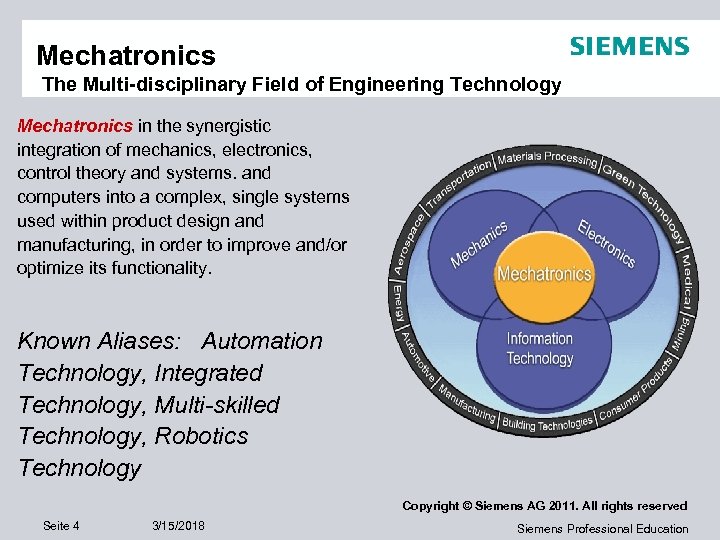

Mechatronics The Multi-disciplinary Field of Engineering Technology Mechatronics in the synergistic integration of mechanics, electronics, control theory and systems. and computers into a complex, single systems used within product design and manufacturing, in order to improve and/or optimize its functionality. Known Aliases: Automation Technology, Integrated Technology, Multi-skilled Technology, Robotics Technology Copyright © Siemens AG 2011. All rights reserved Seite 4 3/15/2018 Siemens Professional Education
German Dual Technical Education System High employability Employees: Highly productive Future oriented Highly qualified “Handlungskompetenz” State or private Vocational School Theory: administered by the state Company A Company B Company C • practical on job training • employed at the company Practical Training: administered by the Companies Copyright © Siemens AG 2011. All rights reserved Seite 5 3/15/2018 Siemens Professional Education
STA 2+2 Program Structure Associate Engineer + Bachelor of Engineering content Management Skills Employability Skills High School Teamwork Intercultural Experience Associate Engineer 1 st 2 nd 3 rd Bachelor of Engineering 4 th Master Semester Intern- Associate Engineer = „bridge“ ship between the production Associate Engineer floor/on- the- ground technicians and engineering team Fall 2011 launch of our integrated Smart. Grid technology curriculum- BS of Engineering- Electronic Systems Seite 6 3/15/2018 test 5 th 6 th 7 th 8 th Semester thesis Bachelor of Engineering Copyright © Siemens AG 2011. All rights reserved Siemens Professional Education

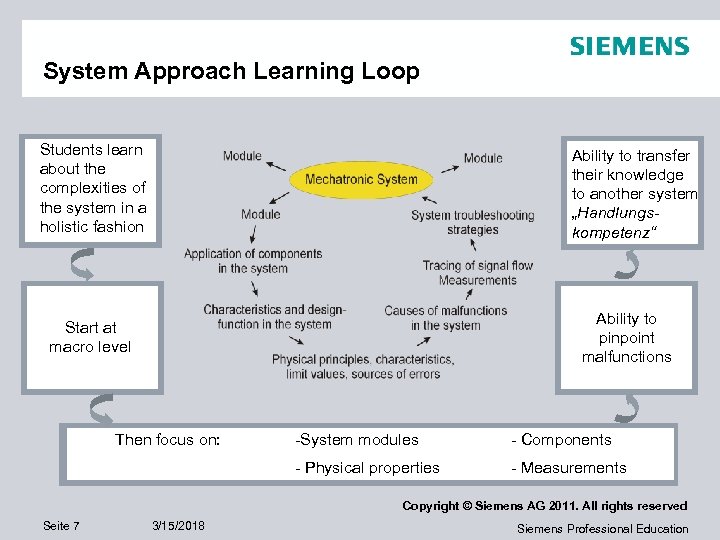

System Approach Learning Loop Students learn about the complexities of the system in a holistic fashion Ability to transfer their knowledge to another system „Handlungskompetenz“ Ability to pinpoint malfunctions Start at macro level Then focus on: -System modules - Components - Physical properties - Measurements Copyright © Siemens AG 2011. All rights reserved Seite 7 3/15/2018 Siemens Professional Education

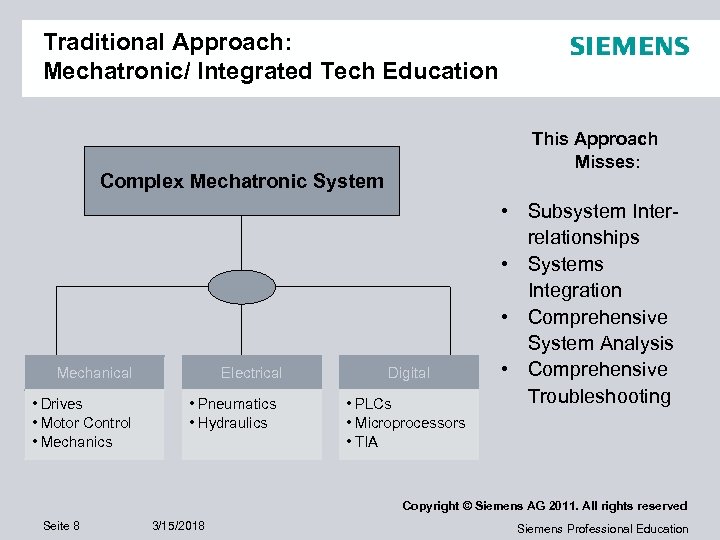

Traditional Approach: Mechatronic/ Integrated Tech Education This Approach Misses: Complex Mechatronic System Mechanical • Drives • Motor Control • Mechanics Electrical • Pneumatics • Hydraulics Digital • PLCs • Microprocessors • TIA • Subsystem Interrelationships • Systems Integration • Comprehensive System Analysis • Comprehensive Troubleshooting Copyright © Siemens AG 2011. All rights reserved Seite 8 3/15/2018 Siemens Professional Education

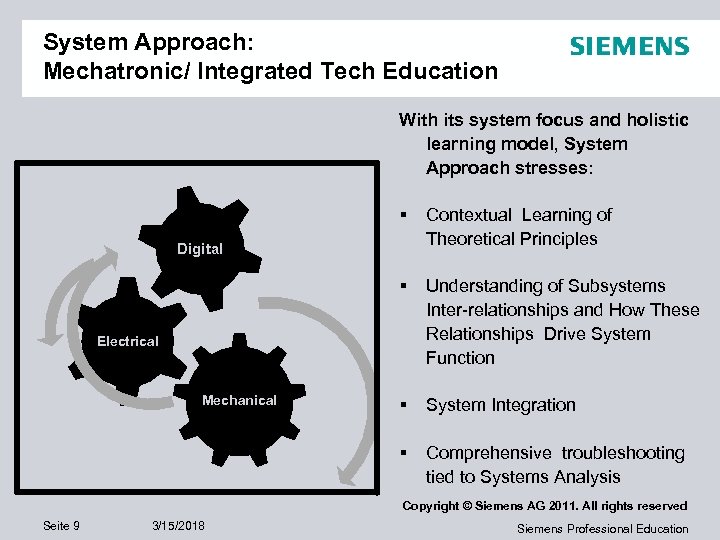

System Approach: Mechatronic/ Integrated Tech Education With its system focus and holistic learning model, System Approach stresses: § Contextual Learning of Theoretical Principles § Understanding of Subsystems Inter-relationships and How These Relationships Drive System Function § System Integration § Comprehensive troubleshooting tied to Systems Analysis Digital Electrical Mechanical Copyright © Siemens AG 2011. All rights reserved Seite 9 3/15/2018 Siemens Professional Education

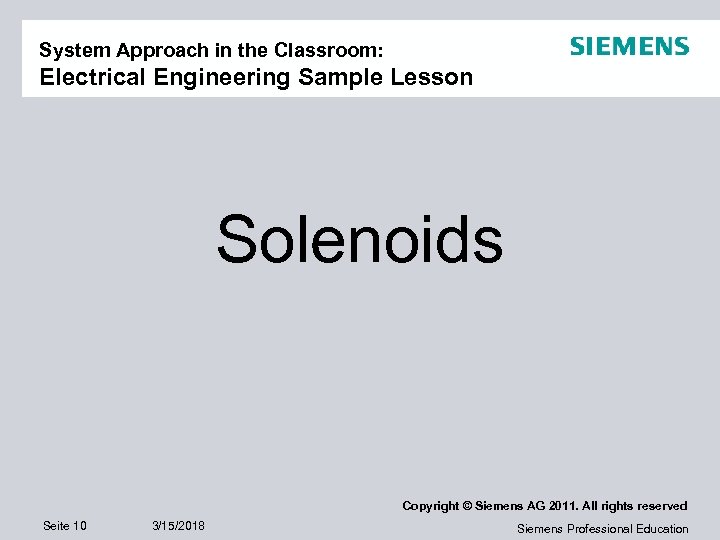

System Approach in the Classroom: Electrical Engineering Sample Lesson Solenoids Copyright © Siemens AG 2011. All rights reserved Seite 10 3/15/2018 Siemens Professional Education

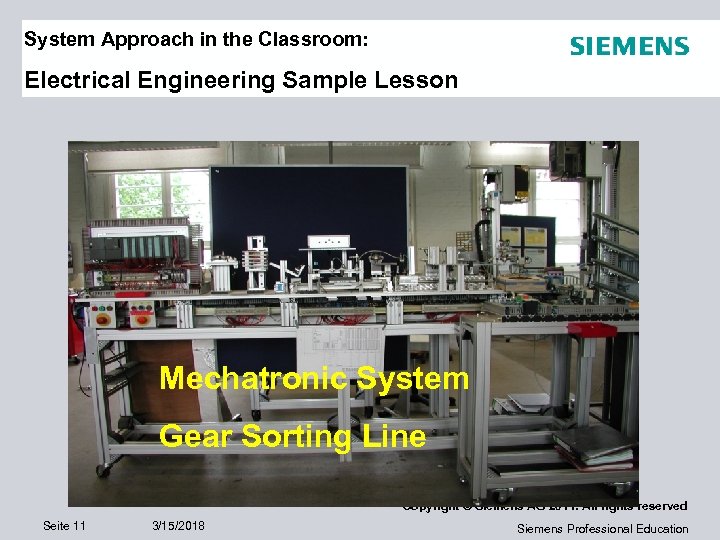

System Approach in the Classroom: Electrical Engineering Sample Lesson Mechatronic System Gear Sorting Line Copyright © Siemens AG 2011. All rights reserved Seite 11 3/15/2018 Siemens Professional Education

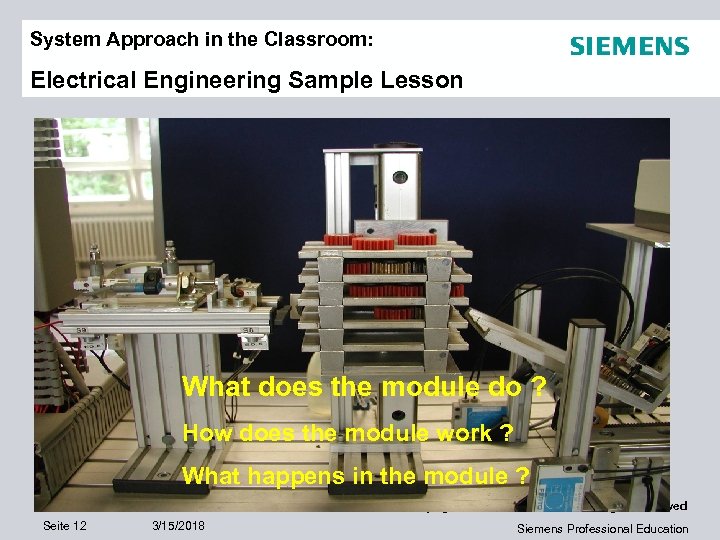

System Approach in the Classroom: Electrical Engineering Sample Lesson What does the module do ? How does the module work ? What happens in the module ? Copyright © Siemens AG 2011. All rights reserved Seite 12 3/15/2018 Siemens Professional Education

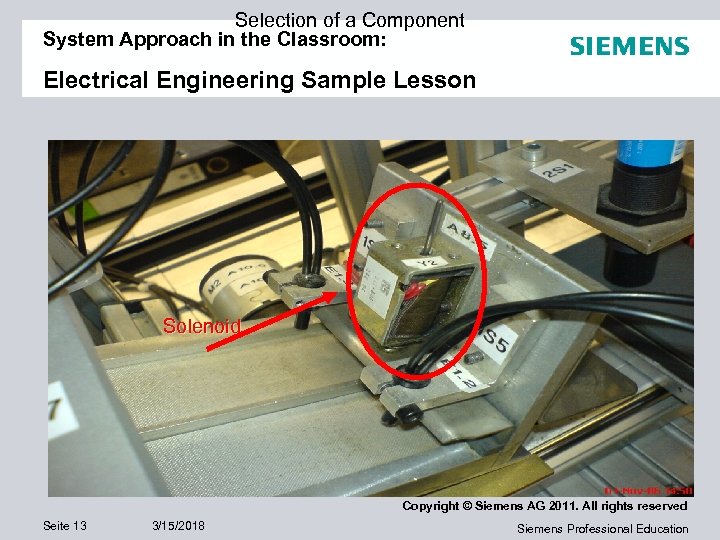

Selection of a Component System Approach in the Classroom: Electrical Engineering Sample Lesson Solenoid Copyright © Siemens AG 2011. All rights reserved Seite 13 3/15/2018 Siemens Professional Education
System Approach in the Classroom: Electrical Engineering Sample Lesson Solenoid: What does the component do in this module? Copyright © Siemens AG 2011. All rights reserved Siemens Professional Education

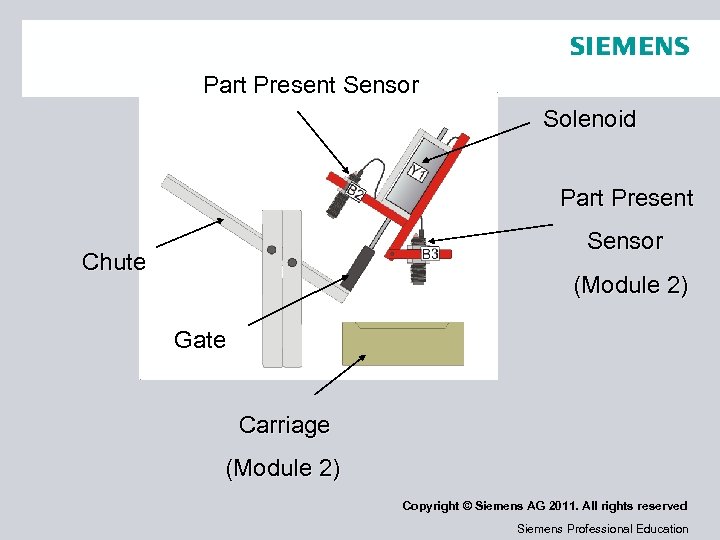

Part Present Sensor Solenoid Part Present Sensor Chute (Module 2) Gate Carriage (Module 2) Copyright © Siemens AG 2011. All rights reserved Siemens Professional Education

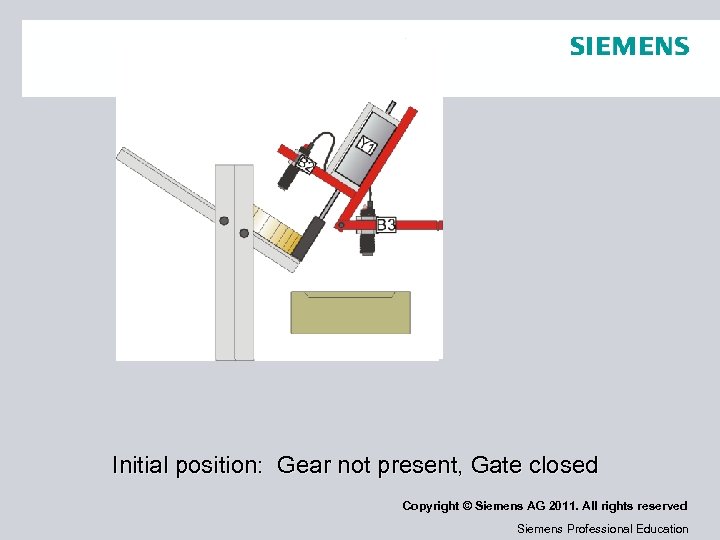

Initial position: Gear not present, Gate closed Copyright © Siemens AG 2011. All rights reserved Siemens Professional Education

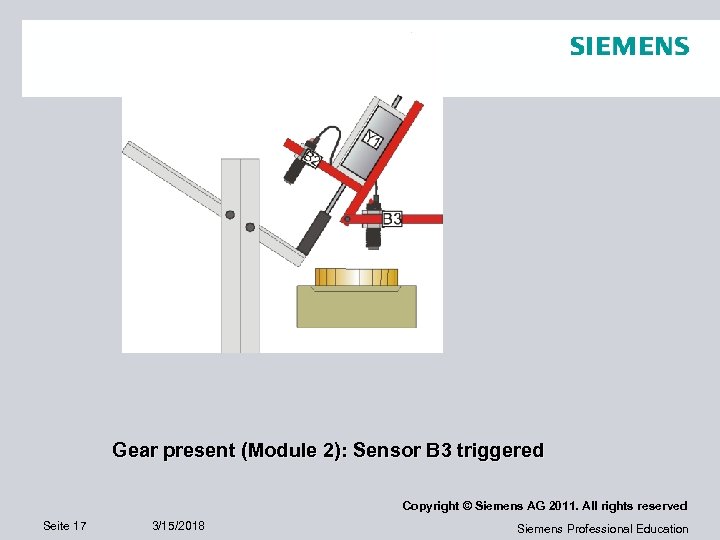

Gear present (Module 2): Sensor B 3 triggered Copyright © Siemens AG 2011. All rights reserved Seite 17 3/15/2018 Siemens Professional Education

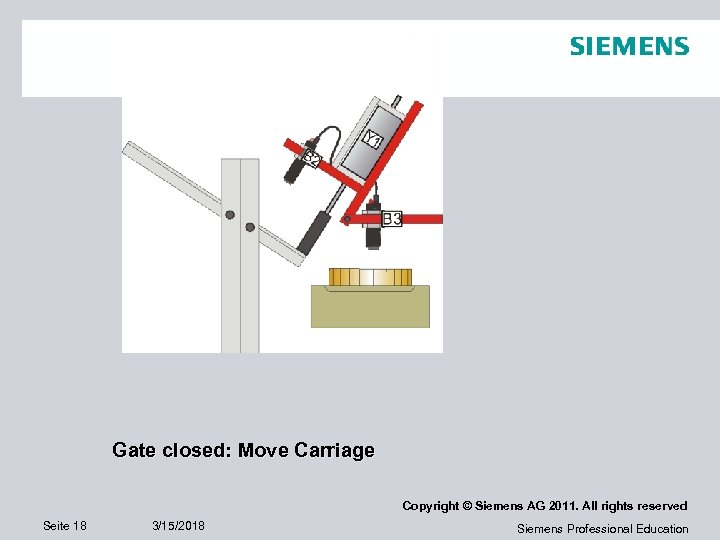

Gate closed: Move Carriage Copyright © Siemens AG 2011. All rights reserved Seite 18 3/15/2018 Siemens Professional Education

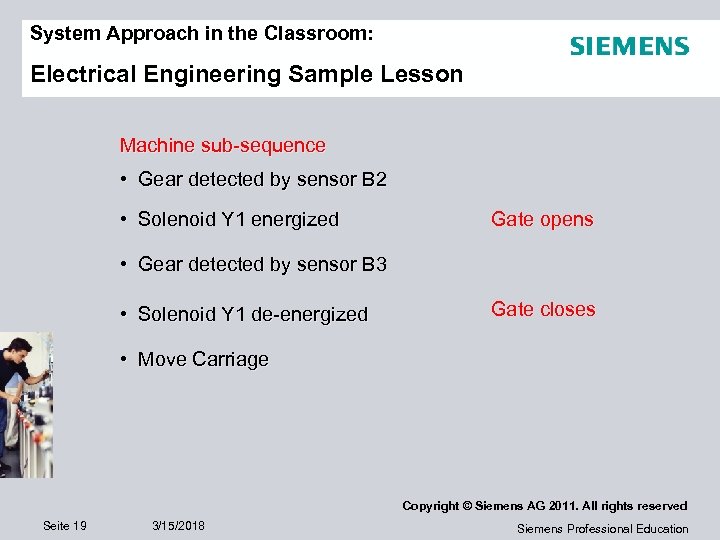

System Approach in the Classroom: Electrical Engineering Sample Lesson Machine sub-sequence • Gear detected by sensor B 2 • Solenoid Y 1 energized Gate opens • Gear detected by sensor B 3 • Solenoid Y 1 de-energized Gate closes • Move Carriage Copyright © Siemens AG 2011. All rights reserved Seite 19 3/15/2018 Siemens Professional Education

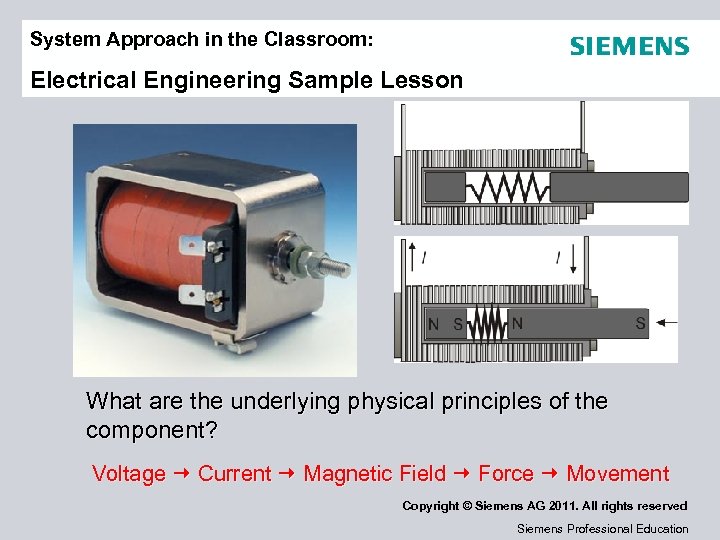

System Approach in the Classroom: Electrical Engineering Sample Lesson What are the underlying physical principles of the component? Voltage Current Magnetic Field Force Movement Copyright © Siemens AG 2011. All rights reserved Siemens Professional Education

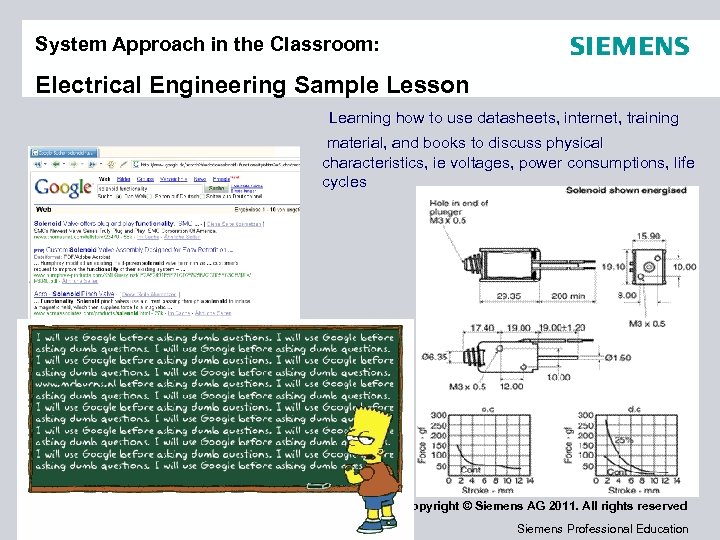

System Approach in the Classroom: Electrical Engineering Sample Lesson Learning how to use datasheets, internet, training material, and books to discuss physical characteristics, ie voltages, power consumptions, life cycles Copyright © Siemens AG 2011. All rights reserved Siemens Professional Education

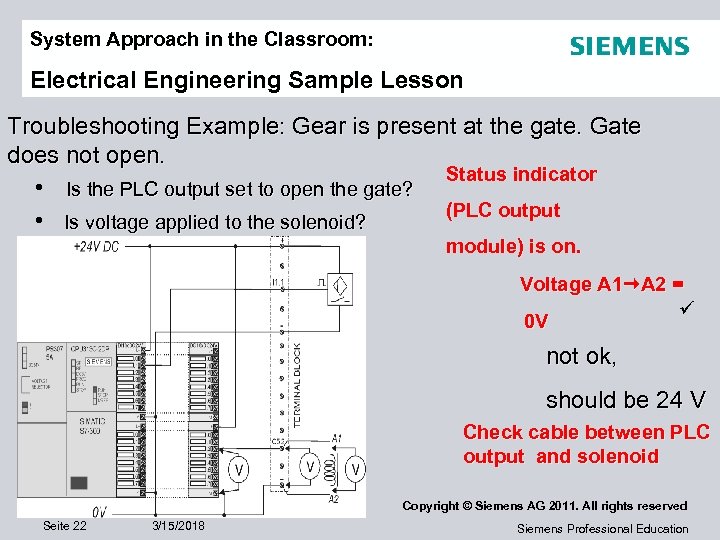

System Approach in the Classroom: Electrical Engineering Sample Lesson Troubleshooting Example: Gear is present at the gate. Gate does not open. Status indicator • Is the PLC output set to open the gate? (PLC output • Is voltage applied to the solenoid? module) is on. Voltage A 1 A 2 = 0 V not ok, should be 24 V Check cable between PLC output and solenoid Copyright © Siemens AG 2011. All rights reserved Seite 22 3/15/2018 Siemens Professional Education

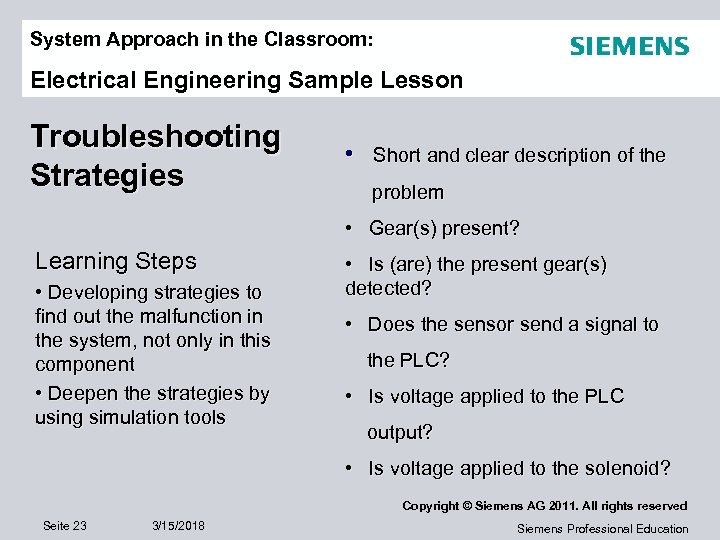

System Approach in the Classroom: Electrical Engineering Sample Lesson Troubleshooting Strategies • Short and clear description of the problem • Gear(s) present? Learning Steps • Developing strategies to find out the malfunction in the system, not only in this component • Deepen the strategies by using simulation tools • Is (are) the present gear(s) detected? • Does the sensor send a signal to the PLC? • Is voltage applied to the PLC output? • Is voltage applied to the solenoid? Copyright © Siemens AG 2011. All rights reserved Seite 23 3/15/2018 Siemens Professional Education

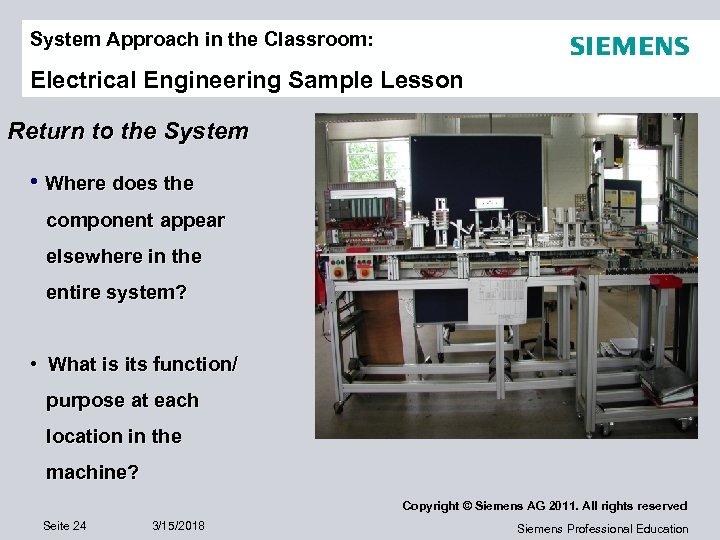

System Approach in the Classroom: Electrical Engineering Sample Lesson Return to the System • Where does the component appear elsewhere in the entire system? • What is its function/ purpose at each location in the machine? Copyright © Siemens AG 2011. All rights reserved Seite 24 3/15/2018 Siemens Professional Education

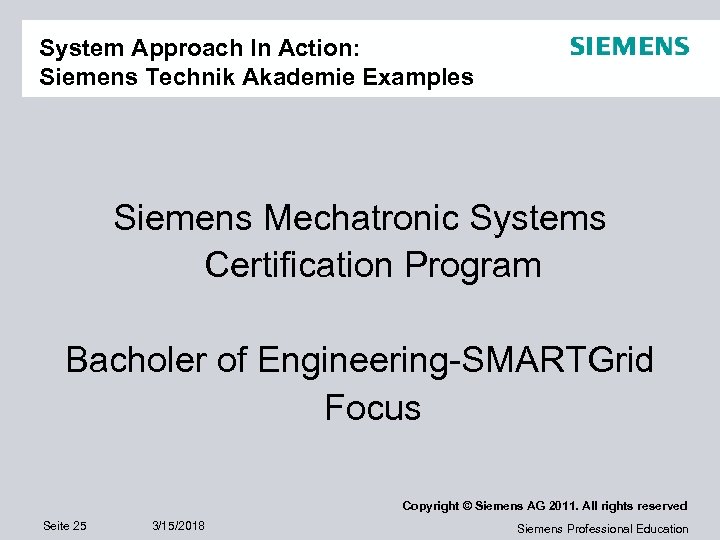

System Approach In Action: Siemens Technik Akademie Examples Siemens Mechatronic Systems Certification Program Bacholer of Engineering-SMARTGrid Focus Copyright © Siemens AG 2011. All rights reserved Seite 25 3/15/2018 Siemens Professional Education

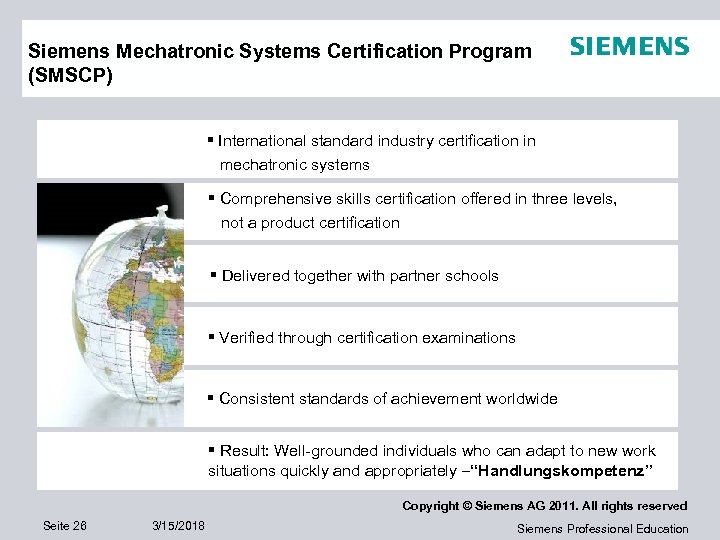

Siemens Mechatronic Systems Certification Program (SMSCP) § International standard industry certification in mechatronic systems § Comprehensive skills certification offered in three levels, not a product certification § Delivered together with partner schools § Verified through certification examinations § Consistent standards of achievement worldwide § Result: Well-grounded individuals who can adapt to new work situations quickly and appropriately “Handlungskompetenz” Copyright © Siemens AG 2011. All rights reserved Seite 26 3/15/2018 Siemens Professional Education

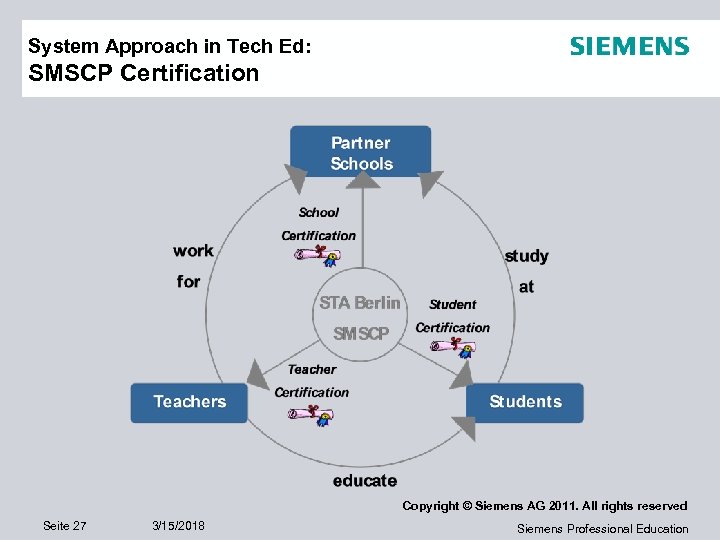

System Approach in Tech Ed: SMSCP Certification Copyright © Siemens AG 2011. All rights reserved Seite 27 3/15/2018 Siemens Professional Education

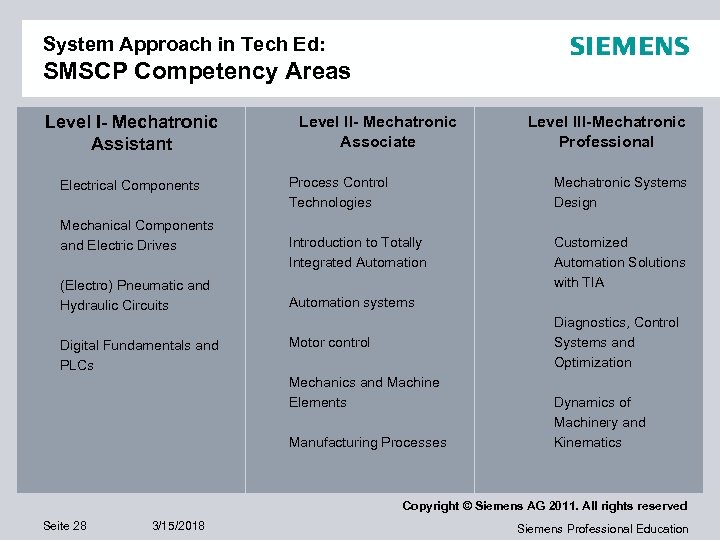

System Approach in Tech Ed: SMSCP Competency Areas Level I- Mechatronic Assistant Electrical Components Mechanical Components and Electric Drives (Electro) Pneumatic and Hydraulic Circuits Digital Fundamentals and PLCs Level II- Mechatronic Associate Level III-Mechatronic Professional Process Control Technologies Mechatronic Systems Design Introduction to Totally Integrated Automation Customized Automation Solutions with TIA Automation systems Diagnostics, Control Systems and Optimization Motor control Mechanics and Machine Elements Manufacturing Processes Dynamics of Machinery and Kinematics Copyright © Siemens AG 2011. All rights reserved Seite 28 3/15/2018 Siemens Professional Education

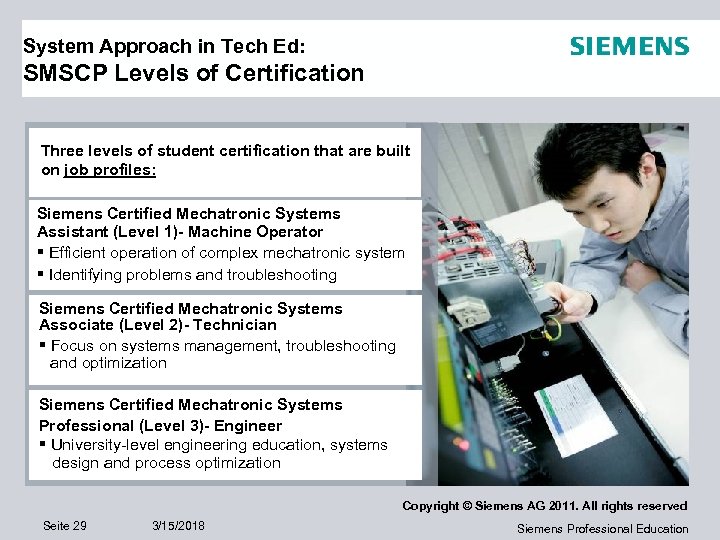

System Approach in Tech Ed: SMSCP Levels of Certification Three levels of student certification that are built on job profiles: Siemens Certified Mechatronic Systems Assistant (Level 1)- Machine Operator § Efficient operation of complex mechatronic system § Identifying problems and troubleshooting Siemens Certified Mechatronic Systems Associate (Level 2)- Technician § Focus on systems management, troubleshooting and optimization Siemens Certified Mechatronic Systems Professional (Level 3)- Engineer § University-level engineering education, systems design and process optimization Copyright © Siemens AG 2011. All rights reserved Seite 29 3/15/2018 Siemens Professional Education

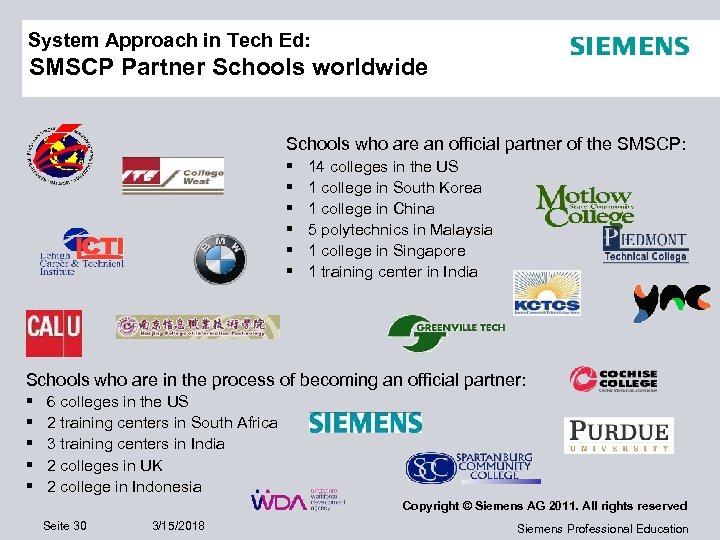

System Approach in Tech Ed: SMSCP Partner Schools worldwide Schools who are an official partner of the SMSCP: § § § 14 colleges in the US 1 college in South Korea 1 college in China 5 polytechnics in Malaysia 1 college in Singapore 1 training center in India Schools who are in the process of becoming an official partner: § § § 6 colleges in the US 2 training centers in South Africa 3 training centers in India 2 colleges in UK 2 college in Indonesia Copyright © Siemens AG 2011. All rights reserved Seite 30 3/15/2018 Siemens Professional Education

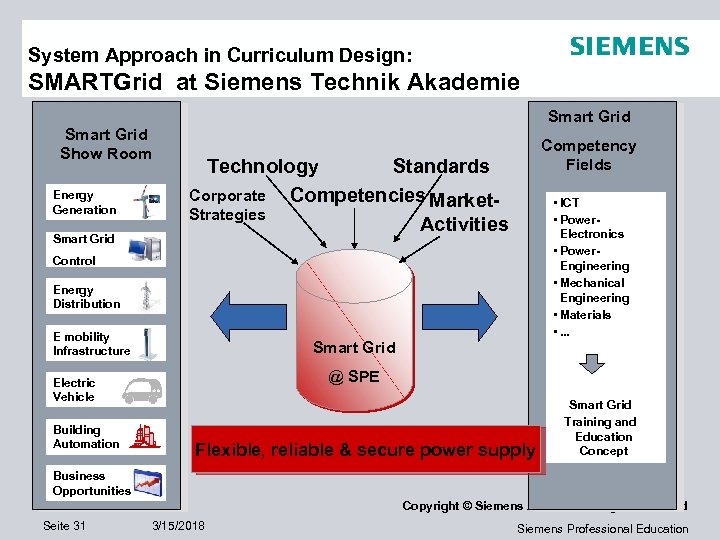

System Approach in Curriculum Design: SMARTGrid at Siemens Technik Akademie Smart Grid Show Room Energy Generation Smart Grid Competency Fields Technology Standards Corporate Competencies Market. Strategies Activities • ICT • Power. Electronics • Power. Engineering • Mechanical Engineering • Materials • . . . Control Energy Distribution E mobility Infrastructure Smart Grid @ SPE Electric Vehicle Building Automation Flexible, reliable & secure power supply Smart Grid Training and Education Concept Business Opportunities Copyright © Siemens AG 2011. All rights reserved Seite 31 3/15/2018 Siemens Professional Education
Show Room Smart Grid: Electric Vehicle / Charging Infrastucture Technische Umsetzung Energy Generation Computer Cloud: § Interaction § Switching Logic/Grid stabilizer Active Board § Simulated power input Computer Cloud: § Different views Computer Cloud: § Customer interface Siemens Wind Power (Denmark) Smart Grid Control § Switching Logic/Grid stabilizer -Smart Grid Control Smart Meter database § Company interface § Virtual Infrastructure: Siemens Wind Power (Denmark) § Simulated power input - Power § Simulated power input data collecting § Power plant interface § Virtual Infrastructure: § Current supply simulation - Smart Meter § Virtual database § Manual control - Power data collecting § Price calculation Infrastructure: § Customer database § Price calculation - Power § Customer database Building automation SM - Billing - Smart Meter database - Billing - Contracts - Preferences - Contracts Power data collecting inputs - Preferences User § Price calculation SM § Active Board SW Power data § Customer database § Active Board SW SM - Billing AP Building - Contracts Power data (all collected) automation - Preferences status Po AP rd § New services and business at Power data a (P (all collected) LC) models CS SM 230 V power net (PL L a control er w Po control t da (P C) § Charge-/discharge C) - DC->AC DC battery Power data (PLC) - DC->AC SM Power data (PLC) SM power grid SM SM UPS Legend: SM AP: Battery Point WLAN Access Legend: § Monitor § Switch CS battery - Switch 230 V power net Switch - Power data (PLC) CS ata rd § Charge-/discharge DC Power data (PLC) we § Identification SM DC Power data (all collected) Po § Rates AP we § DC->AC CS: Charging Station AP: Access Point WLAN CS: Charging Station DC: Data Concentrator PLC: Power Line Communication UPS: Uninterruptable Power Supply Copyright © Siemens AG SM: Smart Meter rights reserved 2011. All SM: Smart Meter Seite 32 3/15/2018 Siemens Professional Education

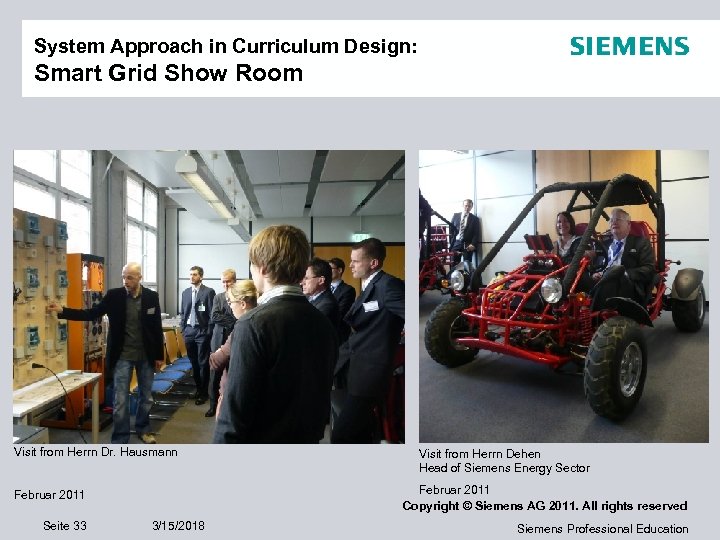

System Approach in Curriculum Design: Smart Grid Show Room Visit from Herrn Dr. Hausmann Februar 2011 Copyright © Siemens AG 2011. All rights reserved Februar 2011 Seite 33 Visit from Herrn Dehen Head of Siemens Energy Sector 3/15/2018 Siemens Professional Education

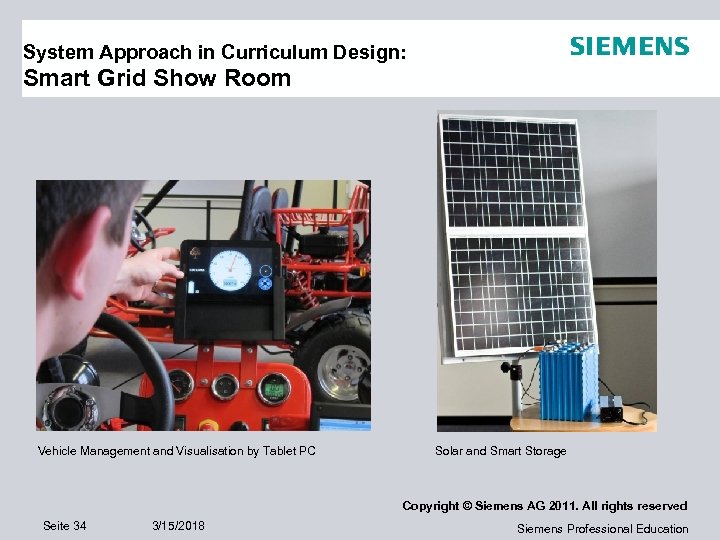

System Approach in Curriculum Design: Smart Grid Show Room Vehicle Management and Visualisation by Tablet PC Solar and Smart Storage Copyright © Siemens AG 2011. All rights reserved Seite 34 3/15/2018 Siemens Professional Education

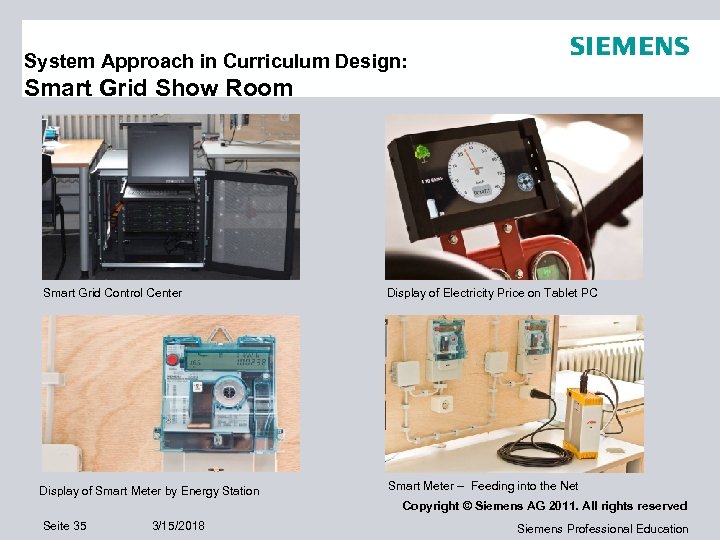

System Approach in Curriculum Design: Smart Grid Show Room Smart Grid Control Center Display of Smart Meter by Energy Station Display of Electricity Price on Tablet PC Smart Meter – Feeding into the Net Copyright © Siemens AG 2011. All rights reserved Seite 35 3/15/2018 Siemens Professional Education

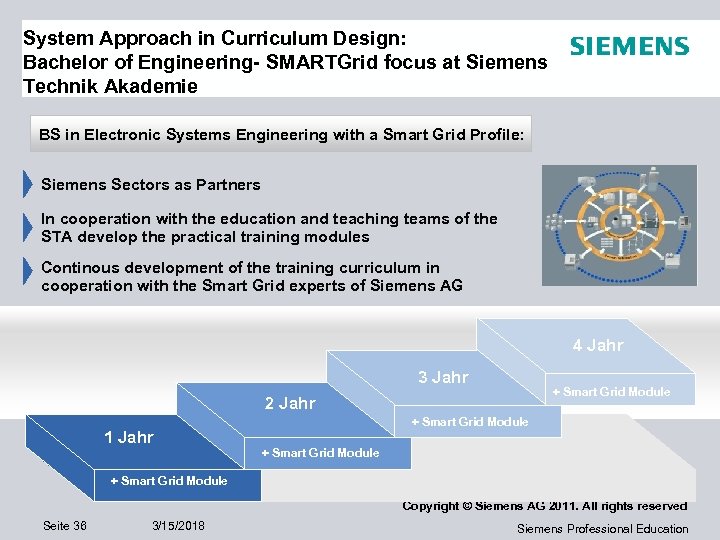

System Approach in Curriculum Design: Bachelor of Engineering- SMARTGrid focus at Siemens Technik Akademie BS in Electronic Systems Engineering with a Smart Grid Profile: Siemens Sectors as Partners In cooperation with the education and teaching teams of the STA develop the practical training modules Continous development of the training curriculum in cooperation with the Smart Grid experts of Siemens AG 4 Jahr 3 Jahr + Smart Grid Module 2 Jahr 1 Jahr + Smart Grid Module Copyright © Siemens AG 2011. All rights reserved Seite 36 3/15/2018 Siemens Professional Education
Contact Nakisha Evans International Partnerships and Marketing Siemens Technik Akademie Berlin E-mail: nakisha. evans. ext@siemens. com Web: www. siemens-certifications. com www. technik-akademie. de Copyright © Siemens AG 2011. All rights reserved Seite 37 3/15/2018 Siemens Professional Education
