Shine & Salt ADVANCED VALVE ENGINEERING Share & Satisfaction Self-Creativity & Sincerity Company Introduction http: //www. snsvalve. co. kr 1 M/V Sales Team May 2012

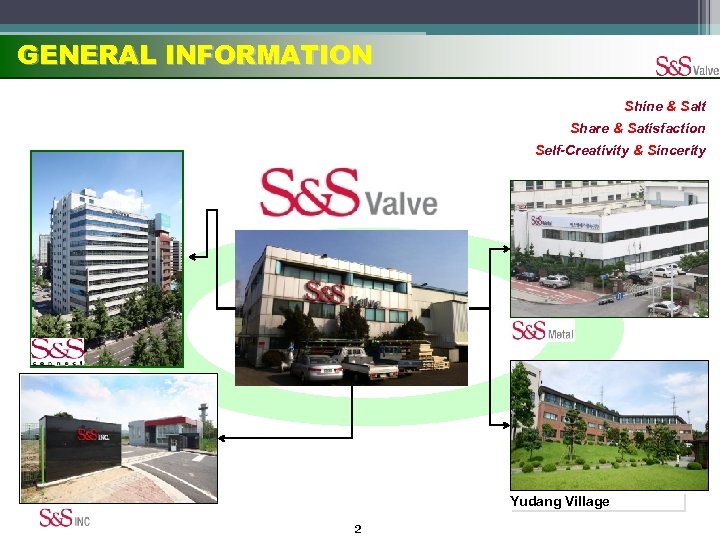

GENERAL INFORMATION Shine & Salt Share & Satisfaction Self-Creativity & Sincerity Yudang Village 2

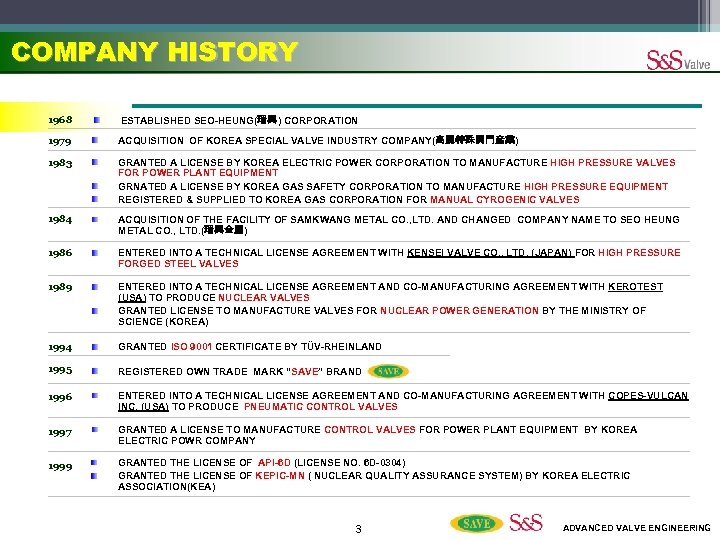

COMPANY HISTORY 1968 ESTABLISHED SEO-HEUNG(瑞興) CORPORATION 1979 ACQUISITION OF KOREA SPECIAL VALVE INDUSTRY COMPANY(高麗特殊閥門産業) 1983 GRANTED A LICENSE BY KOREA ELECTRIC POWER CORPORATION TO MANUFACTURE HIGH PRESSURE VALVES FOR POWER PLANT EQUIPMENT GRNATED A LICENSE BY KOREA GAS SAFETY CORPORATION TO MANUFACTURE HIGH PRESSURE EQUIPMENT REGISTERED & SUPPLIED TO KOREA GAS CORPORATION FOR MANUAL CYROGENIC VALVES 1984 ACQUISITION OF THE FACILITY OF SAMKWANG METAL CO. , LTD. AND CHANGED COMPANY NAME TO SEO HEUNG METAL CO. , LTD. (瑞興金屬) 1986 ENTERED INTO A TECHNICAL LICENSE AGREEMENT WITH KENSEI VALVE CO. , LTD. (JAPAN) FOR HIGH PRESSURE FORGED STEEL VALVES 1989 ENTERED INTO A TECHNICAL LICENSE AGREEMENT AND CO-MANUFACTURING AGREEMENT WITH KEROTEST (USA) TO PRODUCE NUCLEAR VALVES GRANTED LICENSE TO MANUFACTURE VALVES FOR NUCLEAR POWER GENERATION BY THE MINISTRY OF SCIENCE (KOREA) 1994 GRANTED ISO 9001 CERTIFICATE BY TÜV-RHEINLAND 1995 REGISTERED OWN TRADE MARK “SAVE” BRAND 1996 ENTERED INTO A TECHNICAL LICENSE AGREEMENT AND CO-MANUFACTURING AGREEMENT WITH COPES-VULCAN INC. (USA) TO PRODUCE PNEUMATIC CONTROL VALVES 1997 GRANTED A LICENSE TO MANUFACTURE CONTROL VALVES FOR POWER PLANT EQUIPMENT BY KOREA ELECTRIC POWR COMPANY 1999 GRANTED THE LICENSE OF API-6 D (LICENSE NO. 6 D-0304) GRANTED THE LICENSE OF KEPIC-MN ( NUCLEAR QUALITY ASSURANCE SYSTEM) BY KOREA ELECTRIC ASSOCIATION(KEA) 3 ADVANCED VALVE ENGINEERING
COMPANY HISTORY 2001 APPROVED BY CLASS LLOYD’S REGISTER TO MANUFACTURE VARIOUS RAW-MATERILAL APPROVED BY CLASS BV’S REGISTER AS THE PROVISIONS OF RULL NOTE CNR 320 TO MANUFACTURE FORGED, CASTED, AND CRYOGENIC VALVES 2002 APPROVED BY CLASS BV’S REGISTER AS THE PROVISIONS OF RULL NOTE CNR 320 TO MANUFACTURE VARIOUS RAW MATERIALS 2005 GRANTED A LICENSE BY TAIWAN POWER COMPANY TO MANUFACTURE NUCLEAR FORGED STEEL, CASTED BELLOWS SEAL & CHEVRON SEAL PACKING VALVES FOR LUNGMEN NPP PROJECT GRANTED A LICENSE BY CTCI-IHI CPC NORTHERN LNG TERNIMAL TO MANUFACTURE CRYOGENIC GLOBE, CHECK, NEEDLE, BALL & BUTTERFLY VALVES FOR CPC NORTHERN LNG TERNIMAL PROJECT 2007 REGISTERED AS AN APPROVED SUPPLIER AT JIANGSU NUCLEAR POWER CORPORATON(JNPC) FOR VARIOUS TYPES OF VALVES (QNC-CLASS) 2008 CI RENEWAL AND CHANGE OF COMPANY NAME TO S&S VALVE CO. , LTD OBTAINED ASME “N” & “NPT” STAMP 2010 GRANTED TWO AWARDS BY KOERA HYDRO & NUCLEAR POWER CO. OTD (KHNP) TO MANUFACTURE AND SUPPLY J 231(T, CONTROL VALVES FOR GENERAL SERVICE) & P 206 A(Q, ASEM III STEEL GATE, GLOBE VALVES WITH ACTUATOR) FOR SHINWULJIN #1~2 UNITS. ※ TOTAL REGISTERED VALVE PACKAGE AT KHNP : 10 PACKAGES - REGISTRATION NO. 201000065: P 240(Q), P 207(Q), J 231(T) - REGISTRATION NO. 200900589: P 206 A(Q), P 204(Q), P 209(T), P 206 B(T), J 232 A(T), - REGISTRATION NO. 201000066: P 208(Q), P 214(T) 2011 GRANTED A AWARDS BY CHINSE NATIONAL OCEAN OIL COOPERATION(CNOOC) TO MANUFACTURE AND SUPPLY CRYOGENIC GLOBE & CHECK VALVES FOR ZHEJIANG LINGBO LNG TERMINAL. 4 ADVANCED VALVE ENGINEERING

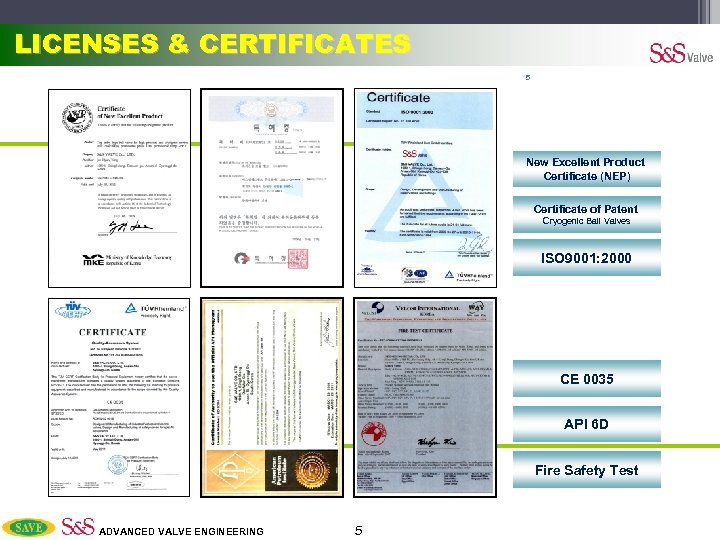

LICENSES & CERTIFICATES 5 New Excellent Product Certificate (NEP) Certificate of Patent Cryogenic Ball Valves ISO 9001: 2000 CE 0035 API 6 D Fire Safety Test ADVANCED VALVE ENGINEERING 5

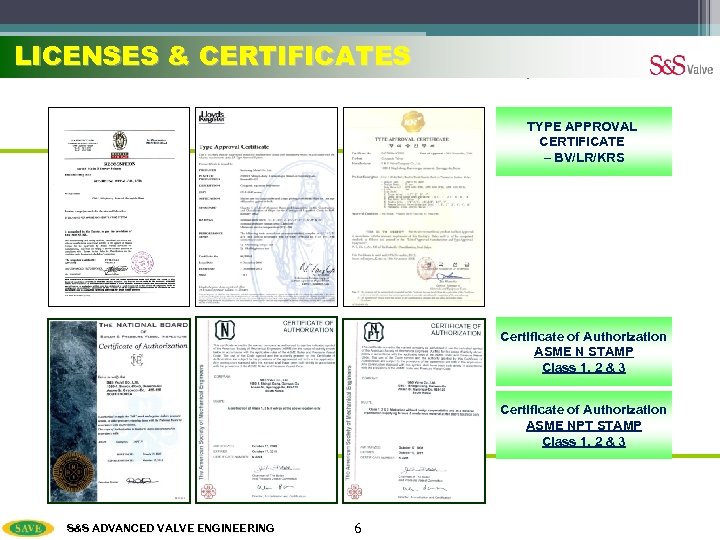

LICENSES & CERTIFICATES 6 TYPE APPROVAL CERTIFICATE – BV/LR/KRS Certificate of Authorization ASME N STAMP Class 1, 2 & 3 Certificate of Authorization ASME NPT STAMP Class 1, 2 & 3 S&S ADVANCED VALVE ENGINEERING 6

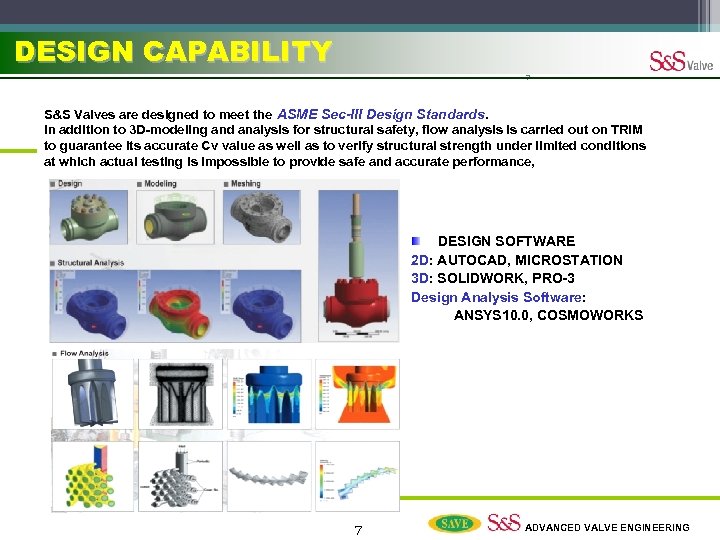

DESIGN CAPABILITY 7 S&S Valves are designed to meet the ASME Sec-III Design Standards. In addition to 3 D-modeling and analysis for structural safety, flow analysis is carried out on TRIM to guarantee its accurate Cv value as well as to verify structural strength under limited conditions at which actual testing is impossible to provide safe and accurate performance, DESIGN SOFTWARE 2 D: AUTOCAD, MICROSTATION 3 D: SOLIDWORK, PRO-3 Design Analysis Software: ANSYS 10. 0, COSMOWORKS 7 ADVANCED VALVE ENGINEERING

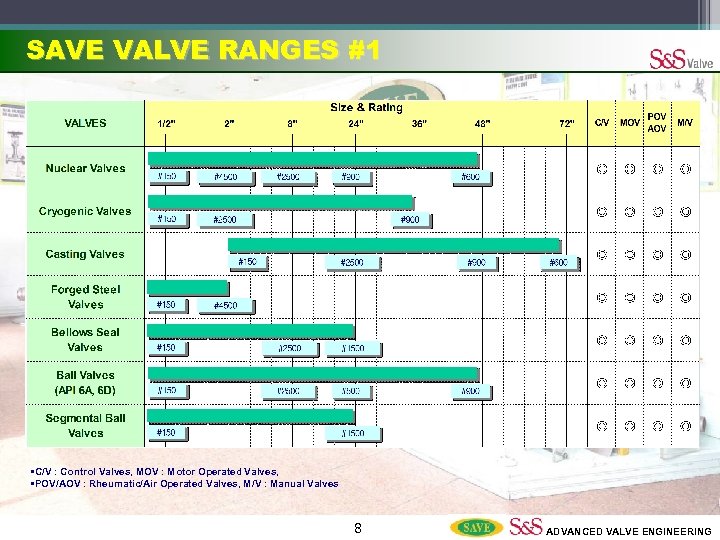

SAVE VALVE RANGES #1 • C/V : Control Valves, MOV : Motor Operated Valves, • POV/AOV : Rheumatic/Air Operated Valves, M/V : Manual Valves 8 ADVANCED VALVE ENGINEERING

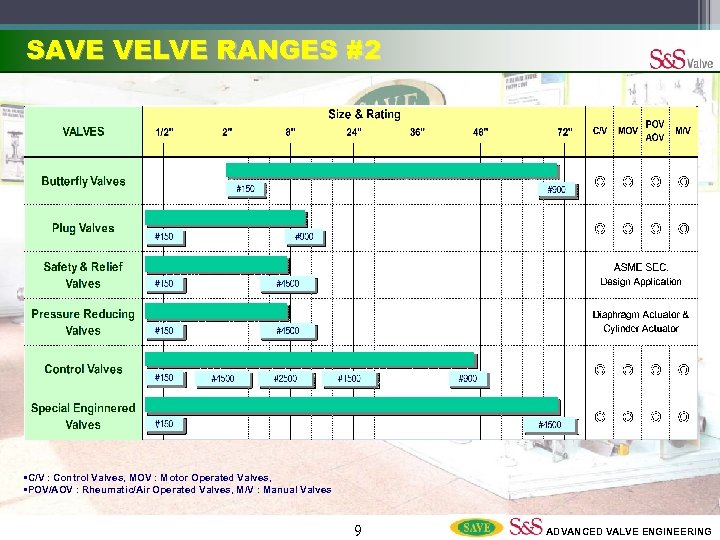

SAVE VELVE RANGES #2 • C/V : Control Valves, MOV : Motor Operated Valves, • POV/AOV : Rheumatic/Air Operated Valves, M/V : Manual Valves 9 ADVANCED VALVE ENGINEERING
MAIN PRODUCT #1 & #2 ü CASTING VALVES TYPE SIZE BONNET MAT’L RATING END TYPE GATE, GLOBE, CHECK, BALL, PLUG, ETC. 2” (50 A) ~ 72” (1800 A) (50 A) BB, PSB, EXT CARBON STEEL, ALLOY, HIGH ALLOY, STAINLESS STEEL, ETC. ANSI #150 ~ #2500 BW, FLANGED ü BELLOWS SEALED VALVES TYPE SIZE BODY MAT’L BELLOWS MAT’L RATING GATE, GLOBE, Y-GLOBE, POV & MOV ¼” ~ 2” (FORGED) 2” ~ 24” (CASTED) A 105, F 304(L), F 316(L), F 321, F 5, F 9, F 11, F 22, F 347, LF 2, , 316 L, 321, ETC INCONEL, HASTELLOY STEEL, ETC ANSI #150 ~ #2500 TEMP. -196℃ ~ 650℃ 10 ADVANCED VALVE ENGINEERING

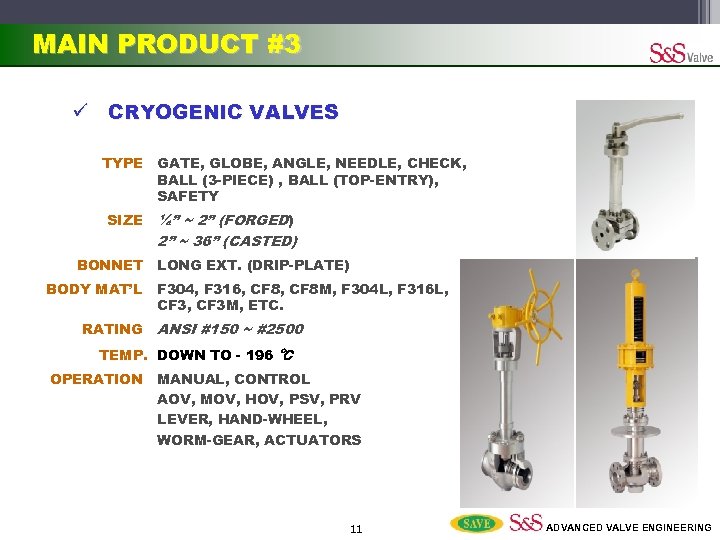

MAIN PRODUCT #3 ü CRYOGENIC VALVES TYPE SIZE BONNET BODY MAT’L RATING GATE, GLOBE, ANGLE, NEEDLE, CHECK, BALL (3 -PIECE) , BALL (TOP-ENTRY), SAFETY ¼” ~ 2” (FORGED) 2” ~ 36” (CASTED) LONG EXT. (DRIP-PLATE) F 304, F 316, CF 8 M, F 304 L, F 316 L, CF 3 M, ETC. ANSI #150 ~ #2500 TEMP. DOWN TO - 196 ℃ OPERATION MANUAL, CONTROL AOV, MOV, HOV, PSV, PRV LEVER, HAND-WHEEL, WORM-GEAR, ACTUATORS 11 ADVANCED VALVE ENGINEERING

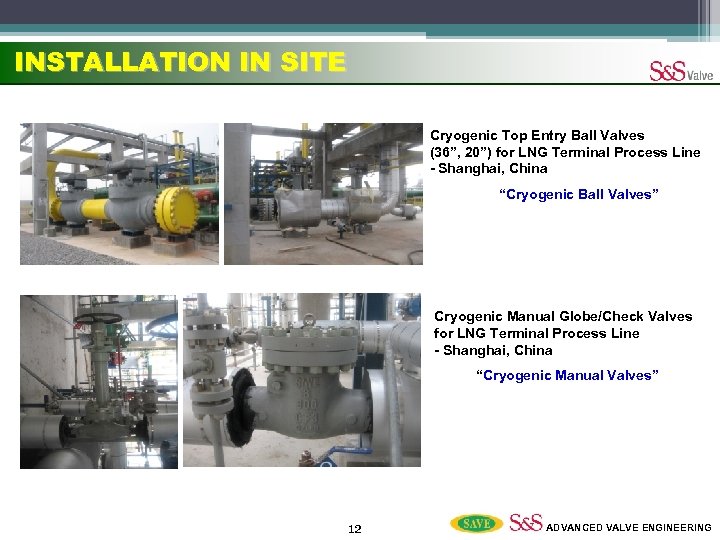

INSTALLATION IN SITE 12 Cryogenic Top Entry Ball Valves (36”, 20”) for LNG Terminal Process Line - Shanghai, China “Cryogenic Ball Valves” Cryogenic Manual Globe/Check Valves for LNG Terminal Process Line - Shanghai, China “Cryogenic Manual Valves” 12 ADVANCED VALVE ENGINEERING

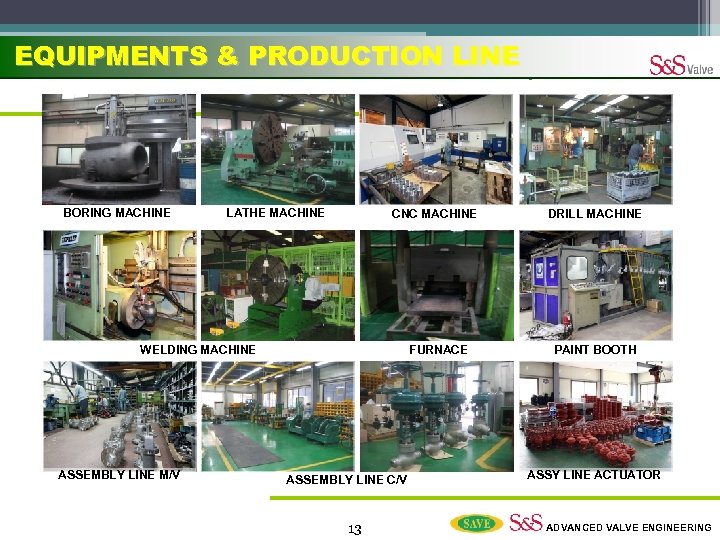

EQUIPMENTS & PRODUCTION LINE BORING MACHINE LATHE MACHINE CNC MACHINE WELDING MACHINE ASSEMBLY LINE M/V FURNACE ASSEMBLY LINE C/V 13 13 DRILL MACHINE PAINT BOOTH ASSY LINE ACTUATOR ADVANCED VALVE ENGINEERING

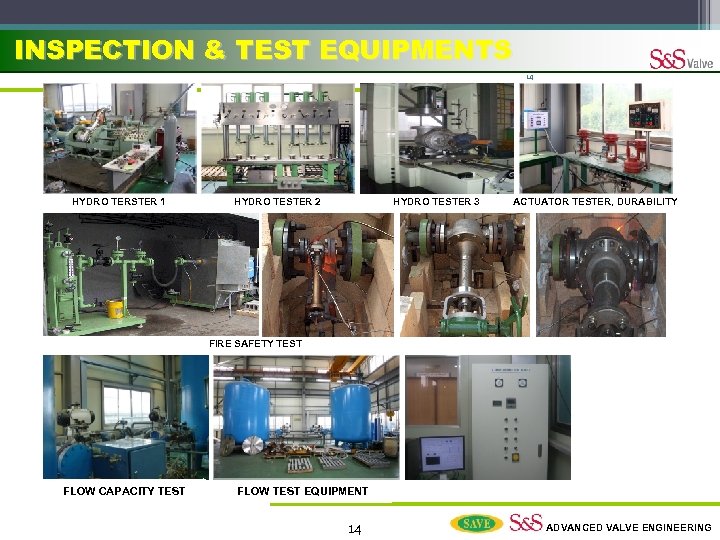

INSPECTION & TEST EQUIPMENTS 14 HYDRO TERSTER 1 HYDRO TESTER 2 HYDRO TESTER 3 ACTUATOR TESTER, DURABILITY FIRE SAFETY TEST FLOW CAPACITY TEST FLOW TEST EQUIPMENT 14 ADVANCED VALVE ENGINEERING
Shine & Salt Share & Satisfaction Self-Creativity & Sincerity SEOUL OFFICE 15 th FL. S&S BUILDING, #68 -5, GYEONJI-DONG JONGNO-GU, SEOUL, KOREA (TEL) +82 -2 -735 -6522 (FAX) +82 -2 -739 -1290 http: //www. snsvalve. co. kr HEAD & FACTORY #742, WONSI-DONG, DANWON-GU, ANSAN-SI GYEONGGI-DO, KOREA (TEL) +82 -31 -491 -1747 (FAX) +82 -31 -491 -0628 15 ADVANCED VALVE ENGINEERING
