eten ce 2 - Новейшая модель лифта без машинного помещения разработанная с учетом современных требований рынка - Уменьшены габариты, приямок и пространство под лебедку Lift System LEA Lift. Equip Serv ice a nd C omp LEA

3 3. 600 mm ice a . . . и новый LEA! Serv Обычный лифт без МП… nd C omp eten ce Highlight - 30 % headroom min. 2. 600 mm No one can do it smaller ! - 70 % pit min. 400 mm ca. 1. 400 mm Lift System LEA Lift. Equip

4 nd C omp 450 kg / 630 kg (DL) / 1. 000 kg (DL) ice a rated load eten ce Power spectrum Serv • • • rated speed 1, 0 m/s travel height bis 33 m number of stops up to 12 stops group up to a group of 3, in separate elevator shafts doors S 12 / ECD telescopic sliding doors (M 2 T), left/ right opening door width = 700 / 800 / 900 mm, door height = 2. 000 / 2. 100 / 2. 300 mm • lift car self-supporting sheet cabin, galvanized powder- coated colors, steinless steel 220, linen, different laminates, blade display, white-line well-defined scope of services & delivery • time of delivery only 10 weeks (ex factory) Lift System LEA Lift. Equip

headroom conventional pit Headroom reduced Serv reduced headroom pit shaft recess headroom conventional pit headroom conventional shaft recess NC 91 A 40 NC 91 A 10 NC 91 A 30 The acceptance of the version without headroom or pit has to be coordinated with the local Regulatory Authorities. Lift System LEA nd C omp reduced headroom shaft recess variants ice a Project development - 4 variants eten ce 5 Lift. Equip NC 91 A 00

6 TB KB SB ST TB KB SB TB Rated load 450 * 630 1000 CW 1000 1100 CD 1250 1400 2100 DW 800 / 900 800 / 900 SW 1500 1600 SD 1650 1770 2010 2470 2710 SD (recess) 1580 1700 1870 2400 2570 SD (level) 1540 1660 1790 2360 2490 * The version with rated load 450 kg is only permitted in countries, in which elevator type 1 gem. EN 81 -70, Punkt 5. 3. 1 has its availability. Lift System LEA Lift. Equip KB SB nd C omp Serv ST KT SB KT KT ST KB ST KT TB Door at level ice a Door in alcove Open through 1 entry eten ce design – view of shaft plan

7 perfect aligned system with type examination Lift System LEA Lift. Equip ice a Serv • Ropes system: - attachments 2: 1 - up to 10 steel ropes with d = 6, 0 mm - diameter of traction sheave D = 240 mm - diameter of counterweight pulley D = 150 mm • Drive system: - gearless-drives with frequency inverter, placed in headroom • Lift car: - self-supporting concept - 2 plastic deflexion pulleys under D = 240 mm - with sliding guide, optional roller guide • Doors: - door (S 12 / ECD) - controlled door drive nd C omp eten ce The System

8 • No components placed above the lift car, which leads to the revolutionary small headroom. • Overspeed governor fixed at the lift car guide rail for pretty space saving, easy to install and without structural measures as cut-outs supporter no vertical strain on walls Lift System LEA Lift. Equip Serv • Fixing points of the ropes in the drive supporter and obverse at the console, fixed at the lift car rail ice a nd C omp eten ce The technics of the headroom

9 Serv ice a nd C omp eten ce Control box Schutzart IP 20 Lift System LEA Lift. Equip

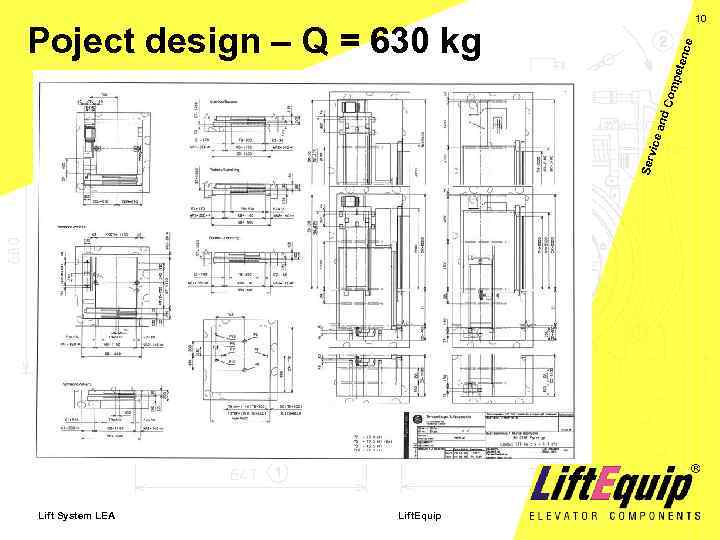

10 Serv ice a nd C omp eten ce Poject design – Q = 630 kg Lift System LEA Lift. Equip

Name plate and display “white line” Halogen Circular Diagonal Serv ice a nd C omp Cab lightning eten ce LEA – Design 11 Quadrat Walls’ surface Traffic-white (RAL 9016) Aluminiumwhite (RAL 9006) Korn 220, Linen Dark blue„ 2668“ stone Passion Douglas Ambiente douglas Silver-grey ALU-line Floor cover Dark grey „ 1582“ Cabin –supplementary equipment without 3, 5 mm lowering device Schäfer RT 42 sw (Braille & taktil) without 25 mm lowering device Schäfer RT 42 (taktil) Schäfer RT 42 sw Hand rail high grad steel D=40 mm (geraden Enden) mopboard Rear panel reflector Hand rail solution is handicapped accessible Check, if possible with panel (red. KB) Lift System LEA Hand rail high grad steel D=40 mm (curved endings) Lift. Equip

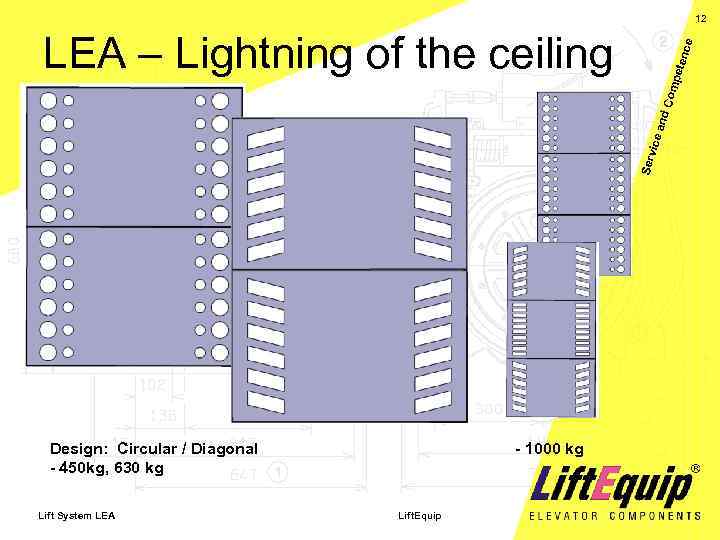

nd C omp Serv ice a LEA – Lightning of the ceiling eten ce 12 Design: Circular / Diagonal - 450 kg, 630 kg Lift System LEA - 1000 kg Lift. Equip

13 Serv ice a nd C omp eten ce LEA - Walldesign Design: passion douglas silver-grey Lift System LEA Design: ambiente douglas ALU-line Lift. Equip

14 Lift System LEA nd C omp Lift. Equip ice a glass door glass rear panel landing doors, facing wall of shaft tip-up seat …… Serv • • • eten ce Optional features

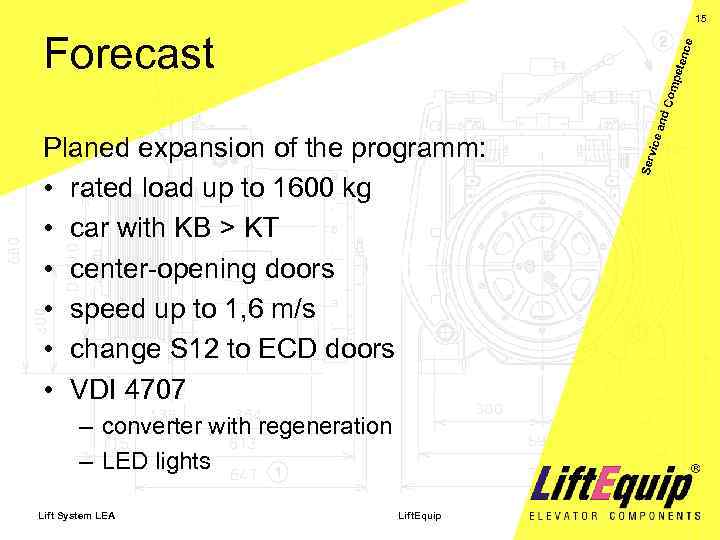

15 – converter with regeneration – LED lights Lift System LEA Lift. Equip Serv Planed expansion of the programm: • rated load up to 1600 kg • car with KB > KT • center-opening doors • speed up to 1, 6 m/s • change S 12 to ECD doors • VDI 4707 ice a nd C omp eten ce Forecast
