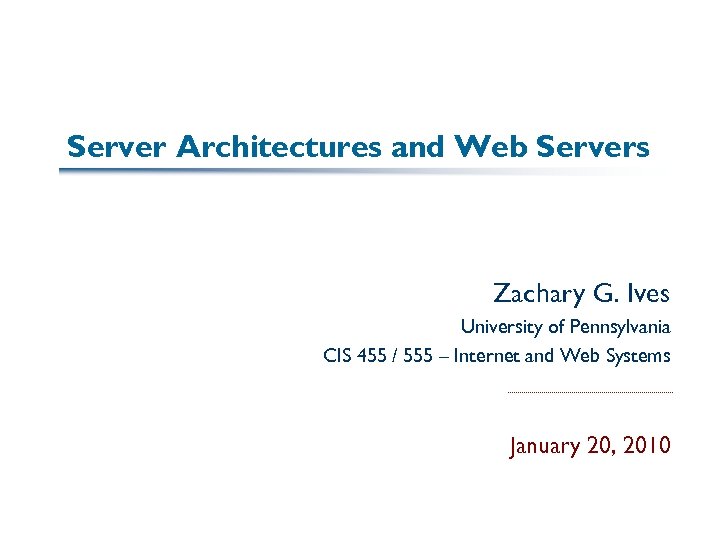

Server Architectures and Web Servers Zachary G. Ives University of Pennsylvania CIS 455 / 555 – Internet and Web Systems January 20, 2010
Today § Brief discussion of the Butler Lampson paper handed out on Monday § Server architecture (internal) § If time: Web (HTTP) servers § Read: § “HTTP Made Really Easy” link on the Schedule page § Krishnamurthy / Rexford Ch 4 (handed out) 2

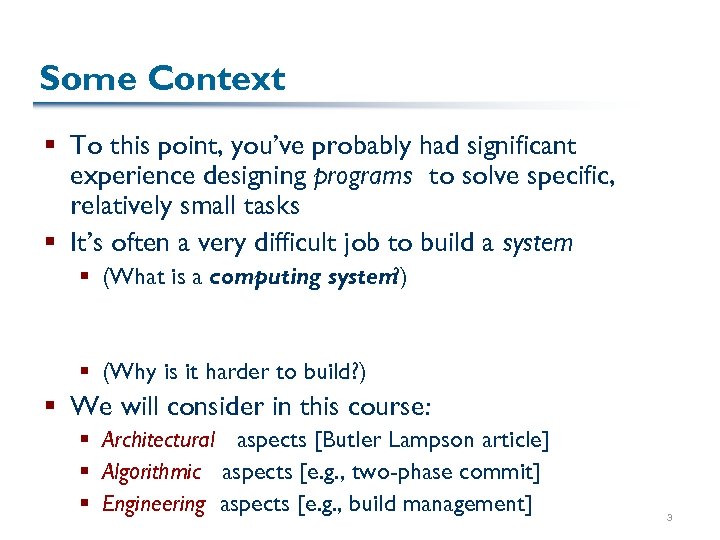

Some Context § To this point, you’ve probably had significant experience designing programs to solve specific, relatively small tasks § It’s often a very difficult job to build a system § (What is a computing system ? ) § (Why is it harder to build? ) § We will consider in this course: § Architectural aspects [Butler Lampson article] § Algorithmic aspects [e. g. , two-phase commit] § Engineering aspects [e. g. , build management] 3

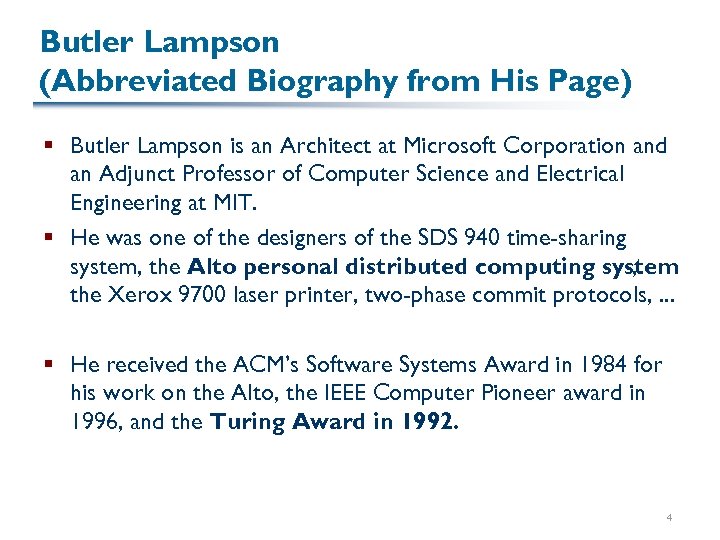

Butler Lampson (Abbreviated Biography from His Page) § Butler Lampson is an Architect at Microsoft Corporation and an Adjunct Professor of Computer Science and Electrical Engineering at MIT. § He was one of the designers of the SDS 940 time-sharing system, the Alto personal distributed computing system , the Xerox 9700 laser printer, two-phase commit protocols, . . . § He received the ACM’s Software Systems Award in 1984 for his work on the Alto, the IEEE Computer Pioneer award in 1996, and the Turing Award in 1992. 4

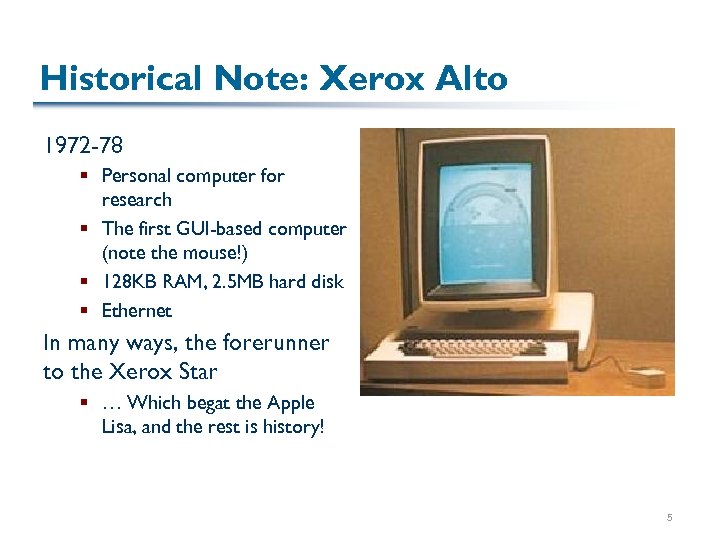

Historical Note: Xerox Alto 1972 -78 § Personal computer for research § The first GUI-based computer (note the mouse!) § 128 KB RAM, 2. 5 MB hard disk § Ethernet In many ways, the forerunner to the Xerox Star § … Which begat the Apple Lisa, and the rest is history! 5

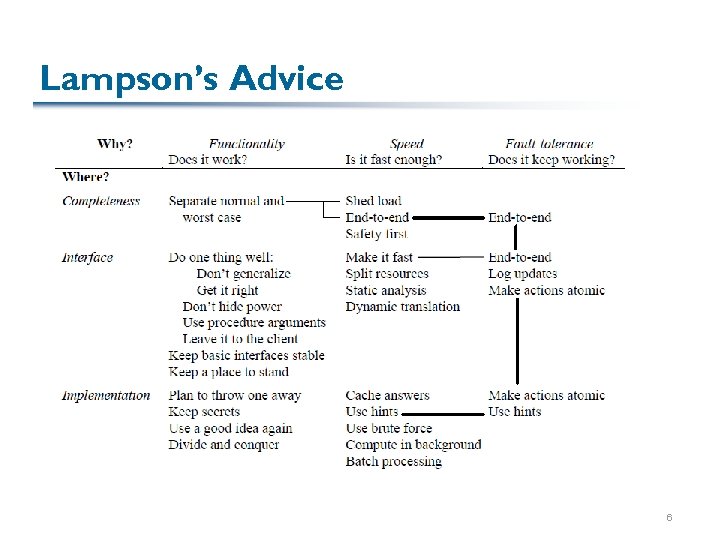

Lampson’s Advice 6

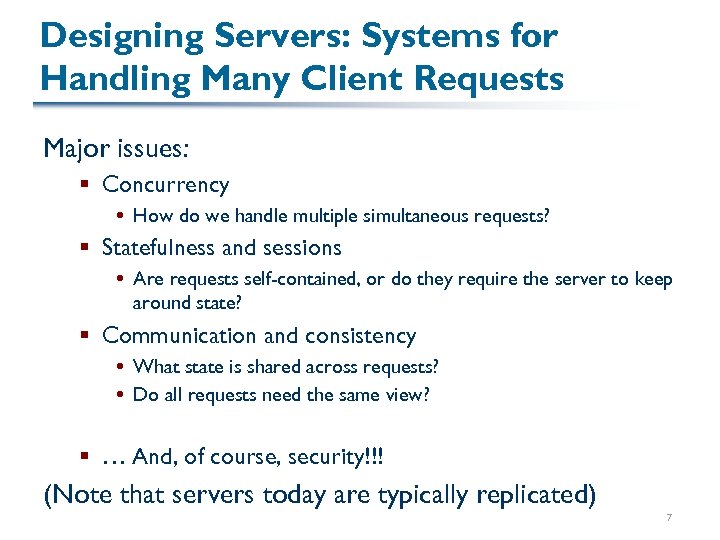

Designing Servers: Systems for Handling Many Client Requests Major issues: § Concurrency How do we handle multiple simultaneous requests? § Statefulness and sessions Are requests self-contained, or do they require the server to keep around state? § Communication and consistency What state is shared across requests? Do all requests need the same view? § … And, of course, security!!! (Note that servers today are typically replicated) 7

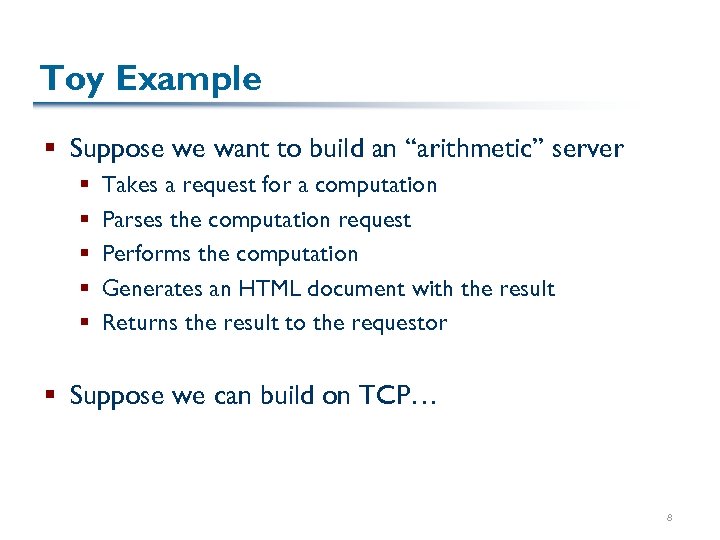

Toy Example § Suppose we want to build an “arithmetic” server § § § Takes a request for a computation Parses the computation request Performs the computation Generates an HTML document with the result Returns the result to the requestor § Suppose we can build on TCP… 8
Concurrency One approach: a separate server for each request § Obviously this doesn’t work Alternative: context-switching using shared resources One, or a few, CPUs/disks/etc. , multiplexing across jobs § § § Threads and processes Events Cooperative scheduling Thread pools Staged events 9

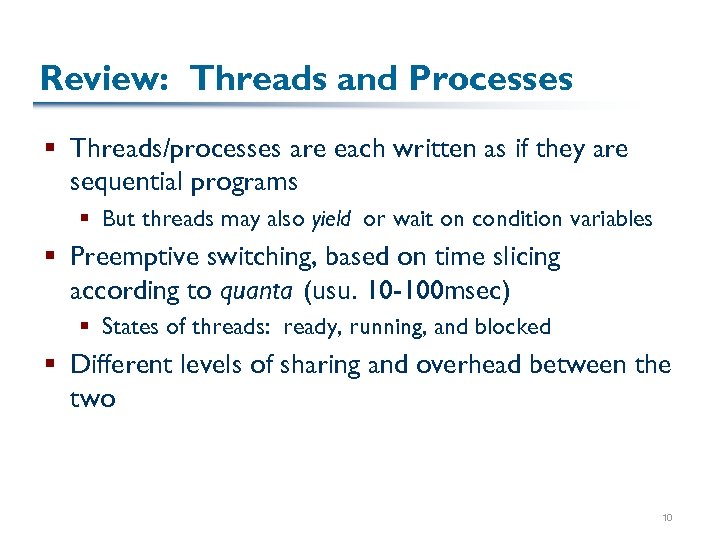

Review: Threads and Processes § Threads/processes are each written as if they are sequential programs § But threads may also yield or wait on condition variables § Preemptive switching, based on time slicing according to quanta (usu. 10 -100 msec) § States of threads: ready, running, and blocked § Different levels of sharing and overhead between the two 10

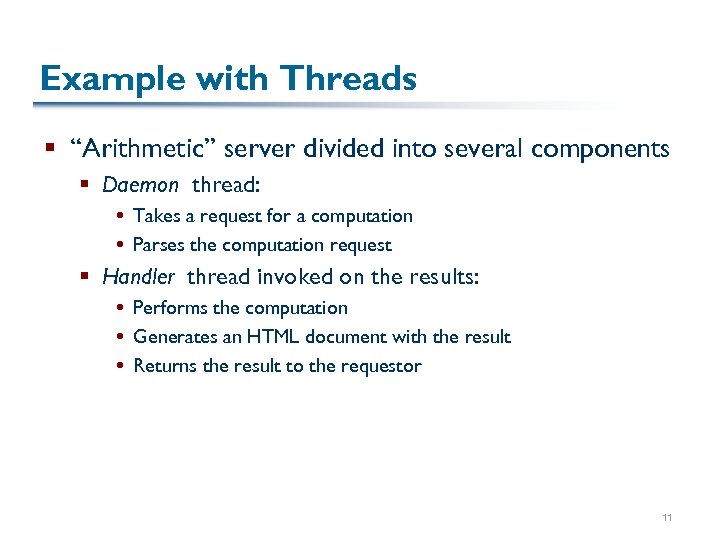

Example with Threads § “Arithmetic” server divided into several components § Daemon thread: Takes a request for a computation Parses the computation request § Handler thread invoked on the results: Performs the computation Generates an HTML document with the result Returns the result to the requestor 11

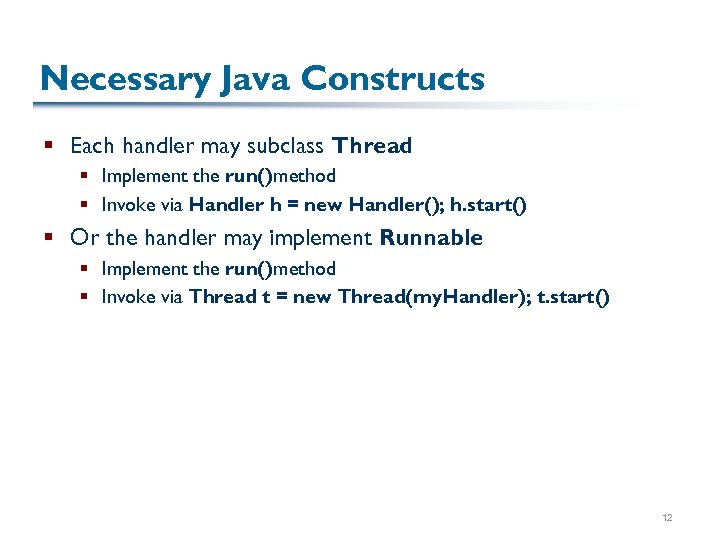

Necessary Java Constructs § Each handler may subclass Thread § Implement the run() method § Invoke via Handler h = new Handler(); h. start() § Or the handler may implement Runnable § Implement the run() method § Invoke via Thread t = new Thread(my. Handler); t. start() 12

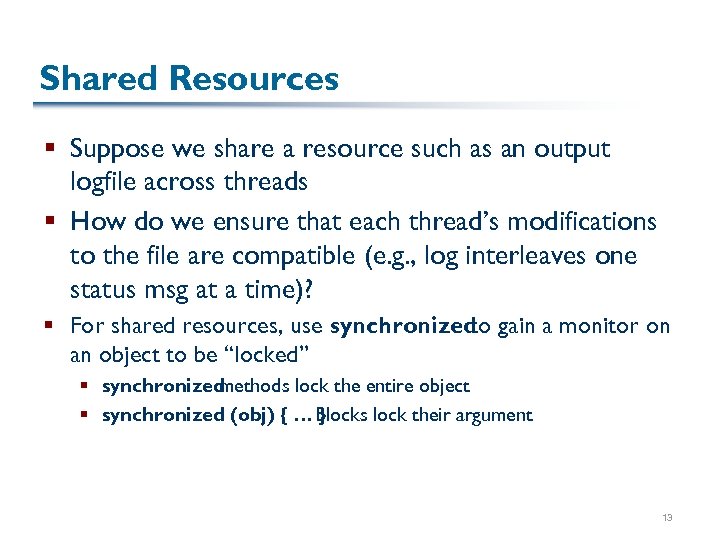

Shared Resources § Suppose we share a resource such as an output logfile across threads § How do we ensure that each thread’s modifications to the file are compatible (e. g. , log interleaves one status msg at a time)? § For shared resources, use synchronized gain a monitor on to an object to be “locked” § synchronized methods lock the entire object § synchronized (obj) { … blocks lock their argument } 13

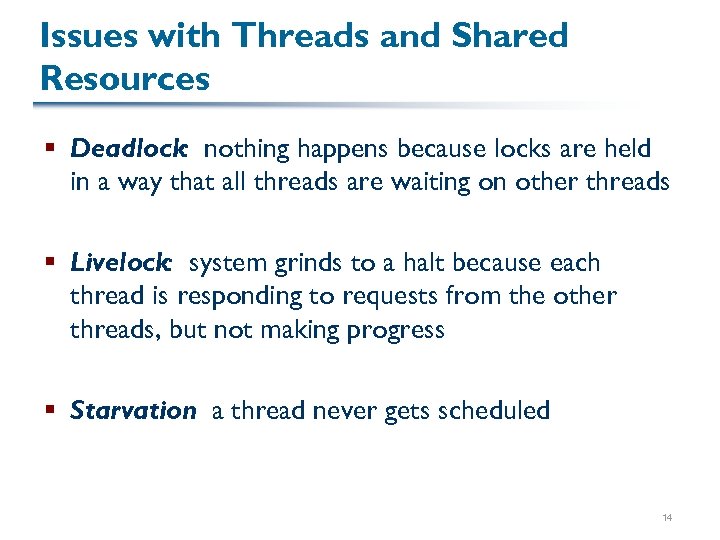

Issues with Threads and Shared Resources § Deadlock: nothing happens because locks are held in a way that all threads are waiting on other threads § Livelock: system grinds to a halt because each thread is responding to requests from the other threads, but not making progress § Starvation a thread never gets scheduled : 14
Event Handlers § Basically, a programmer-specified way of breaking up tasks § You’ve probably seen it if you’ve done any sort of GUI programming § But it’s also used to multitask § Based on an event queue and a notion of an event handler loop § Each task is broken into a series of events § Each event has a handler that does some work and potentially enqueues another event § “Local state” is generally kept in the event 15

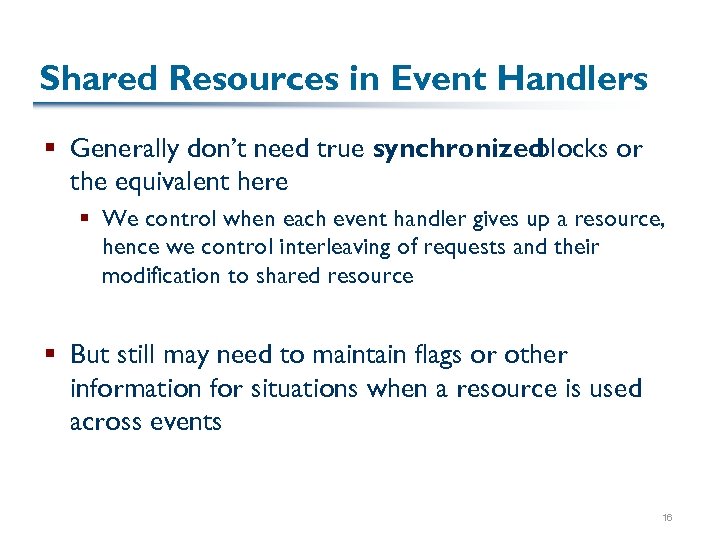

Shared Resources in Event Handlers § Generally don’t need true synchronized blocks or the equivalent here § We control when each event handler gives up a resource, hence we control interleaving of requests and their modification to shared resource § But still may need to maintain flags or other information for situations when a resource is used across events 16

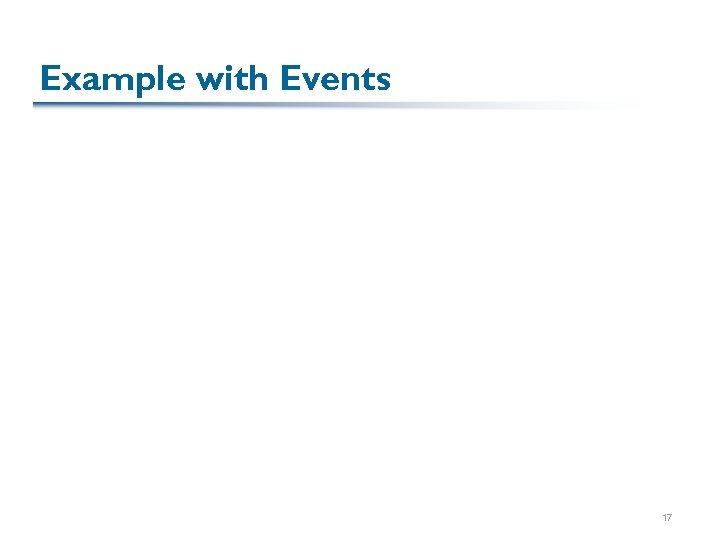

Example with Events 17

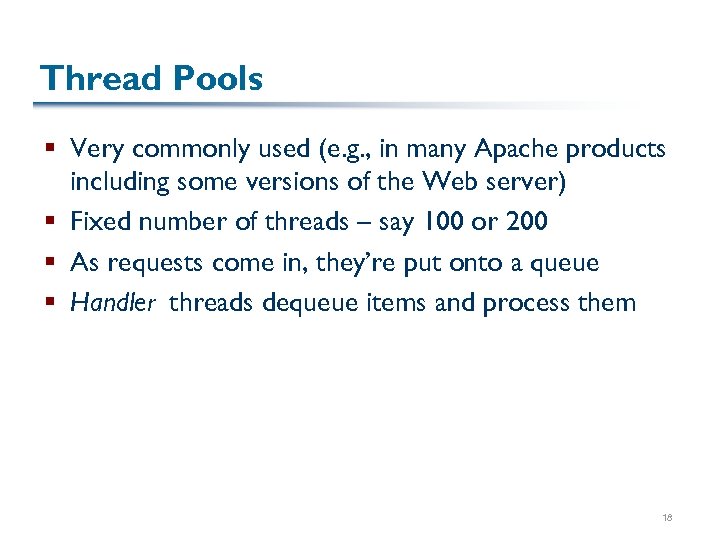

Thread Pools § Very commonly used (e. g. , in many Apache products including some versions of the Web server) § Fixed number of threads – say 100 or 200 § As requests come in, they’re put onto a queue § Handler threads dequeue items and process them 18
A Key Aspect of the Thread Pool: the Queue § The daemon thread doesn’t spawn threads: instead, it enqueues requests § The handler threads dequeue and handle requests § What to do when the system is not fully saturated, i. e. , some threads in the pool are idle? § object. wait(), notify. All() § MUST use these when a synchronized on the object! 19
Example with Thread Pools 20

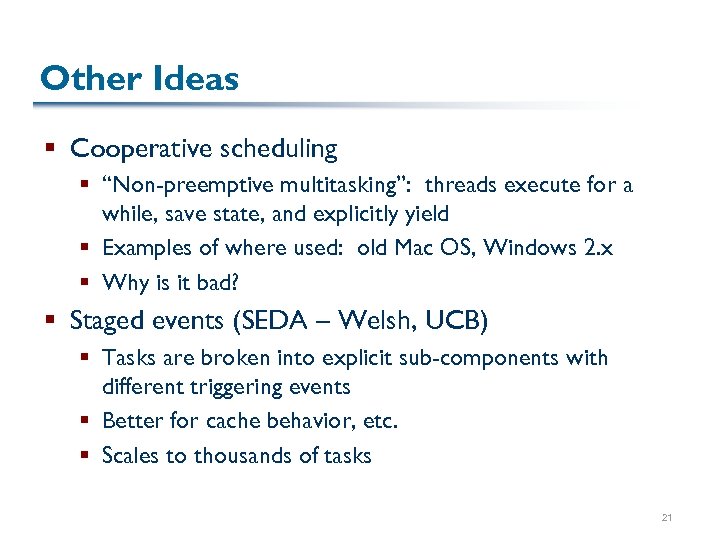

Other Ideas § Cooperative scheduling § “Non-preemptive multitasking”: threads execute for a while, save state, and explicitly yield § Examples of where used: old Mac OS, Windows 2. x § Why is it bad? § Staged events (SEDA – Welsh, UCB) § Tasks are broken into explicit sub-components with different triggering events § Better for cache behavior, etc. § Scales to thousands of tasks 21

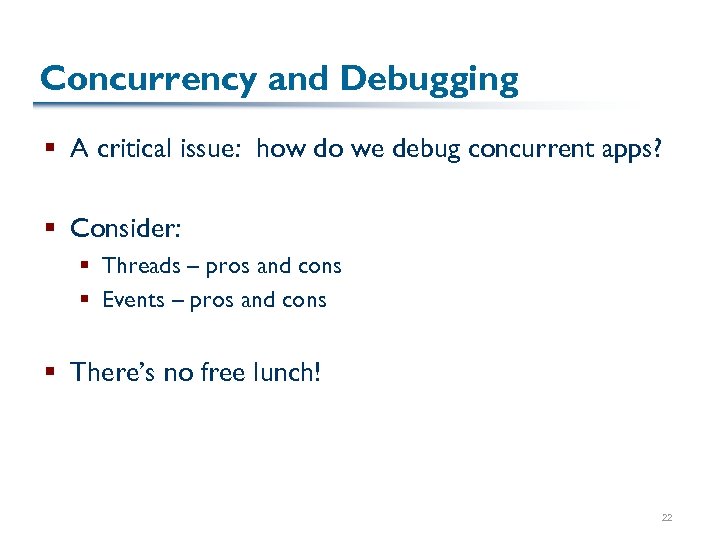

Concurrency and Debugging § A critical issue: how do we debug concurrent apps? § Consider: § Threads – pros and cons § Events – pros and cons § There’s no free lunch! 22

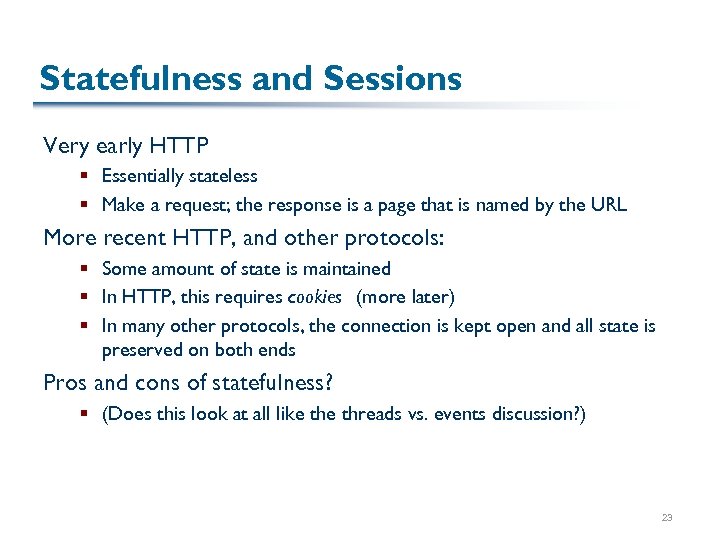

Statefulness and Sessions Very early HTTP § Essentially stateless § Make a request; the response is a page that is named by the URL More recent HTTP, and other protocols: § Some amount of state is maintained § In HTTP, this requires cookies (more later) § In many other protocols, the connection is kept open and all state is preserved on both ends Pros and cons of statefulness? § (Does this look at all like threads vs. events discussion? ) 23

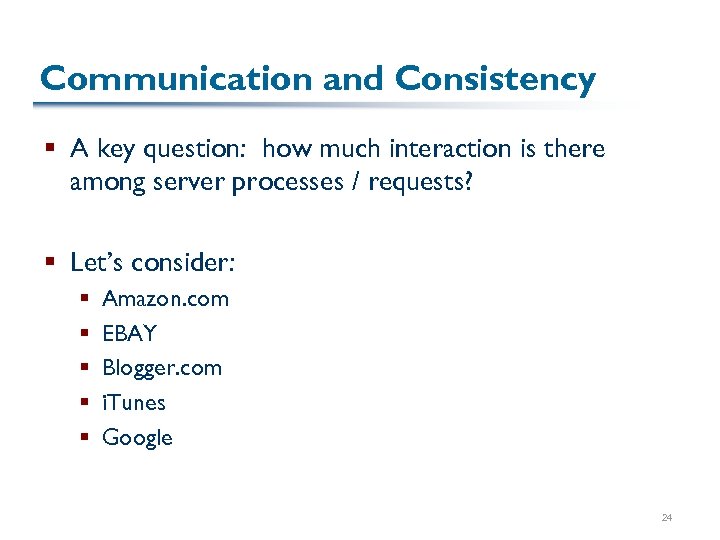

Communication and Consistency § A key question: how much interaction is there among server processes / requests? § Let’s consider: § § § Amazon. com EBAY Blogger. com i. Tunes Google 24

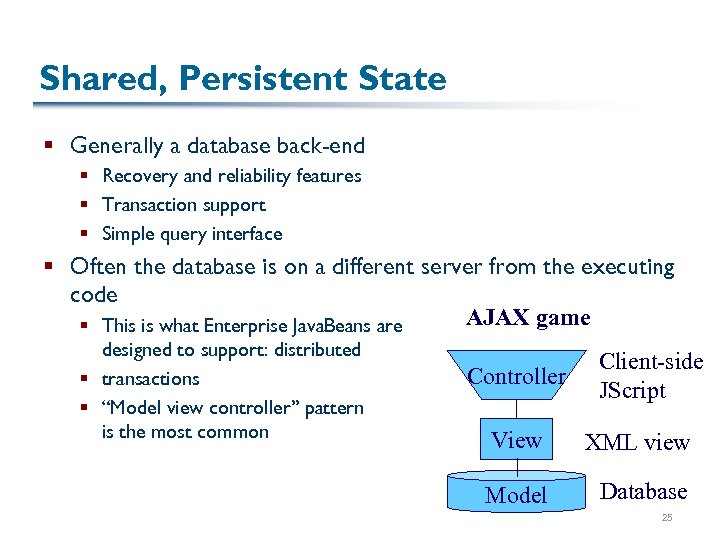

Shared, Persistent State § Generally a database back-end § Recovery and reliability features § Transaction support § Simple query interface § Often the database is on a different server from the executing code AJAX game § This is what Enterprise Java. Beans are designed to support: distributed § transactions § “Model view controller” pattern is the most common Controller Client-side JScript View XML view Model Database 25
Web (HTTP) Servers § Processes HTTP requests, generally over TCP Port 80 HTTP request § Response uses another port Port 80 Processing Response Other port § May involve: § Returning a document, with its (MIME) type info e. g. , HTML document, TXT document § Invoking a program or module, returning its output § Submitting form data to a program or module, returning its output § Resources are described using URLs 26
The URL: Uniform Resource Locator § A way of encoding protocol, login, DNS (or IP) address, path info in one string § Special case of Uniform Resource Identifer (URI) URL is a URI for a location from which something can be retrieved URN is a URI for a name General syntax: § § {partition/protocol }: //{userid }: {password }@{domain: port}/{path} http: //me: too@my. com/index. html news: //nntp. upenn. edu imap: //email: me@my. com/folder 1 27

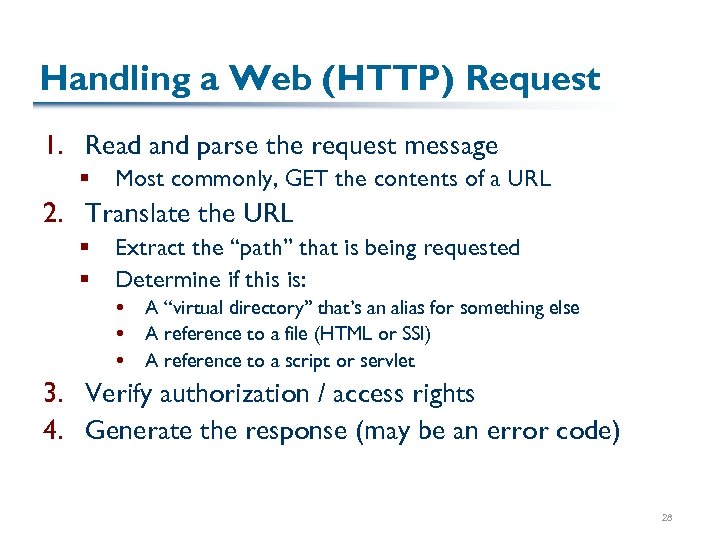

Handling a Web (HTTP) Request 1. Read and parse the request message § Most commonly, GET the contents of a URL 2. Translate the URL § § Extract the “path” that is being requested Determine if this is: A “virtual directory” that’s an alias for something else A reference to a file (HTML or SSI) A reference to a script or servlet 3. Verify authorization / access rights 4. Generate the response (may be an error code) 28

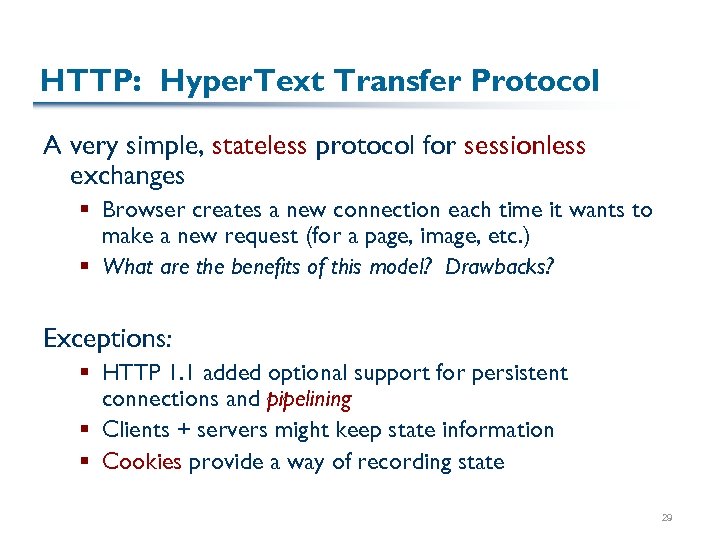

HTTP: Hyper. Text Transfer Protocol A very simple, stateless protocol for sessionless exchanges § Browser creates a new connection each time it wants to make a new request (for a page, image, etc. ) § What are the benefits of this model? Drawbacks? Exceptions: § HTTP 1. 1 added optional support for persistent connections and pipelining § Clients + servers might keep state information § Cookies provide a way of recording state 29

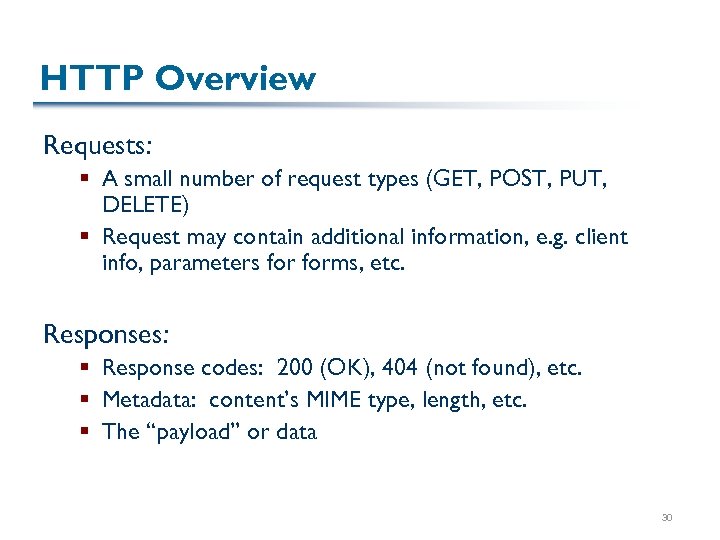

HTTP Overview Requests: § A small number of request types (GET, POST, PUT, DELETE) § Request may contain additional information, e. g. client info, parameters forms, etc. Responses: § Response codes: 200 (OK), 404 (not found), etc. § Metadata: content’s MIME type, length, etc. § The “payload” or data 30

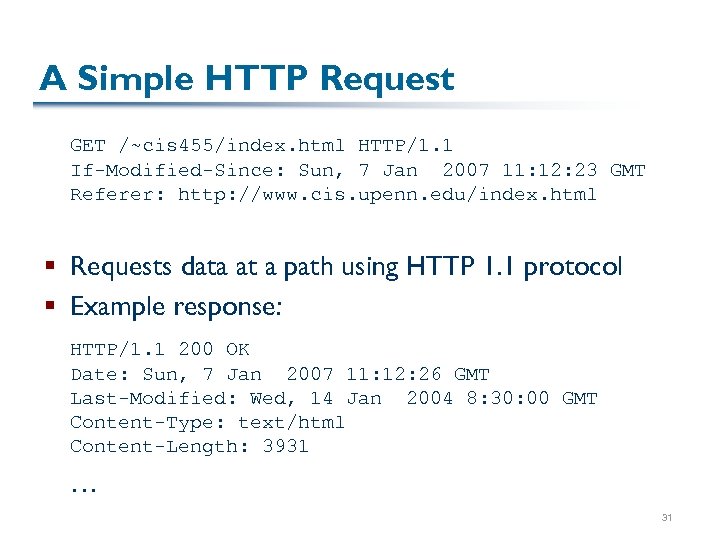

A Simple HTTP Request GET /~cis 455/index. html HTTP/1. 1 If-Modified-Since: Sun, 7 Jan 2007 11: 12: 23 GMT Referer: http: //www. cis. upenn. edu/index. html § Requests data at a path using HTTP 1. 1 protocol § Example response: HTTP/1. 1 200 OK Date: Sun, 7 Jan 2007 11: 12: 26 GMT Last-Modified: Wed, 14 Jan 2004 8: 30: 00 GMT Content-Type: text/html Content-Length: 3931 … 31

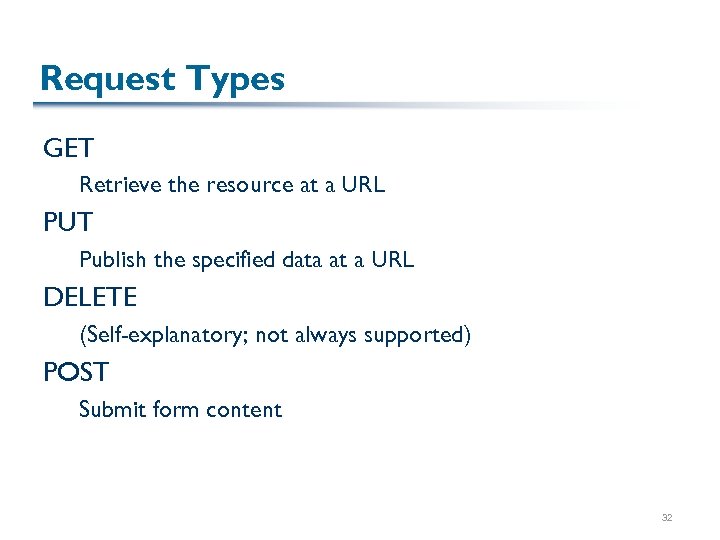

Request Types GET Retrieve the resource at a URL PUT Publish the specified data at a URL DELETE (Self-explanatory; not always supported) POST Submit form content 32
Forms: Returning Data to the Server § HTML forms allow assignments of values to variables § Two means of submitting forms to apps: § GET-style – within the URL: GET /home/my. cgi? param=val¶m 2=val 2 § POST-style – as the data: POST /home/second. cgi Content-Length: 34 search. Key Penn where www. google. com 33

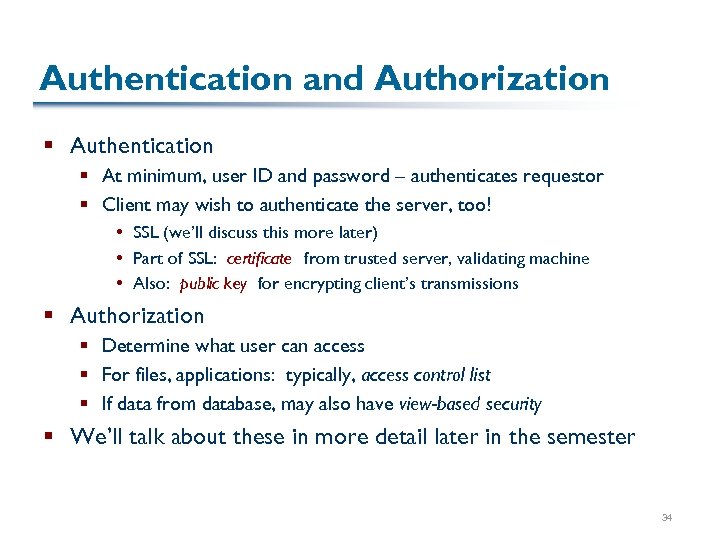

Authentication and Authorization § Authentication § At minimum, user ID and password – authenticates requestor § Client may wish to authenticate the server, too! SSL (we’ll discuss this more later) Part of SSL: certificate from trusted server, validating machine Also: public key for encrypting client’s transmissions § Authorization § Determine what user can access § For files, applications: typically, access control list § If data from database, may also have view-based security § We’ll talk about these in more detail later in the semester 34

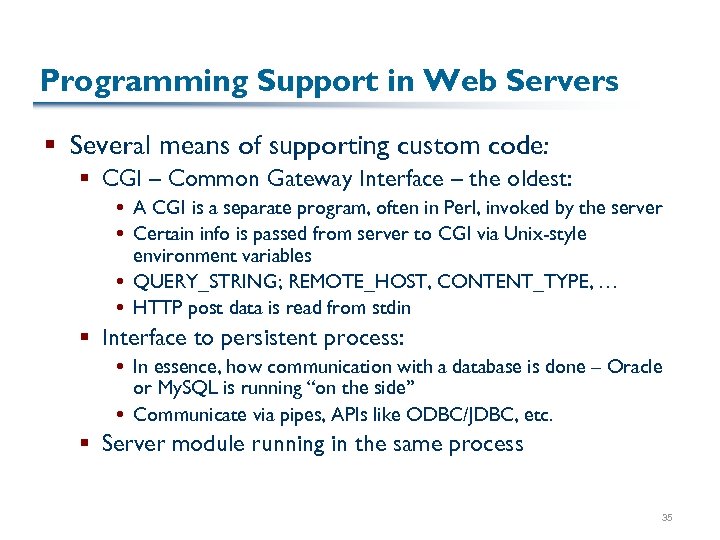

Programming Support in Web Servers § Several means of supporting custom code: § CGI – Common Gateway Interface – the oldest: A CGI is a separate program, often in Perl, invoked by the server Certain info is passed from server to CGI via Unix-style environment variables QUERY_STRING; REMOTE_HOST, CONTENT_TYPE, … HTTP post data is read from stdin § Interface to persistent process: In essence, how communication with a database is done – Oracle or My. SQL is running “on the side” Communicate via pipes, APIs like ODBC/JDBC, etc. § Server module running in the same process 35

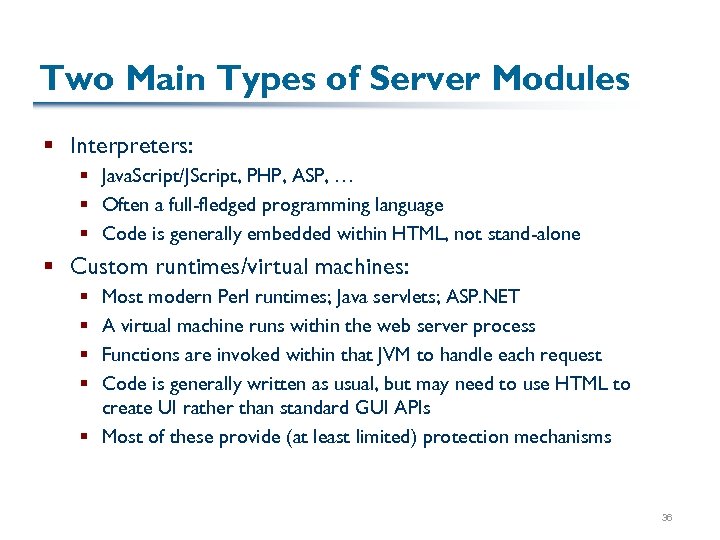

Two Main Types of Server Modules § Interpreters: § Java. Script/JScript, PHP, ASP, … § Often a full-fledged programming language § Code is generally embedded within HTML, not stand-alone § Custom runtimes/virtual machines: Most modern Perl runtimes; Java servlets; ASP. NET A virtual machine runs within the web server process Functions are invoked within that JVM to handle each request Code is generally written as usual, but may need to use HTML to create UI rather than standard GUI APIs § Most of these provide (at least limited) protection mechanisms § § 36

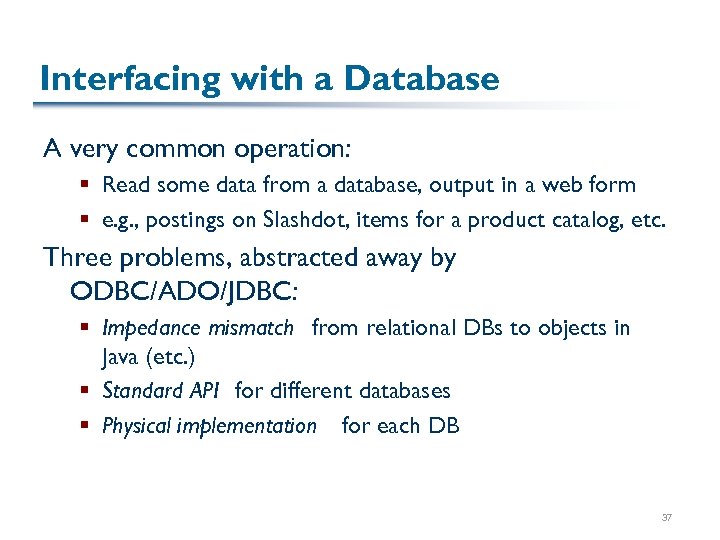

Interfacing with a Database A very common operation: § Read some data from a database, output in a web form § e. g. , postings on Slashdot, items for a product catalog, etc. Three problems, abstracted away by ODBC/ADO/JDBC: § Impedance mismatch from relational DBs to objects in Java (etc. ) § Standard API for different databases § Physical implementation for each DB 37

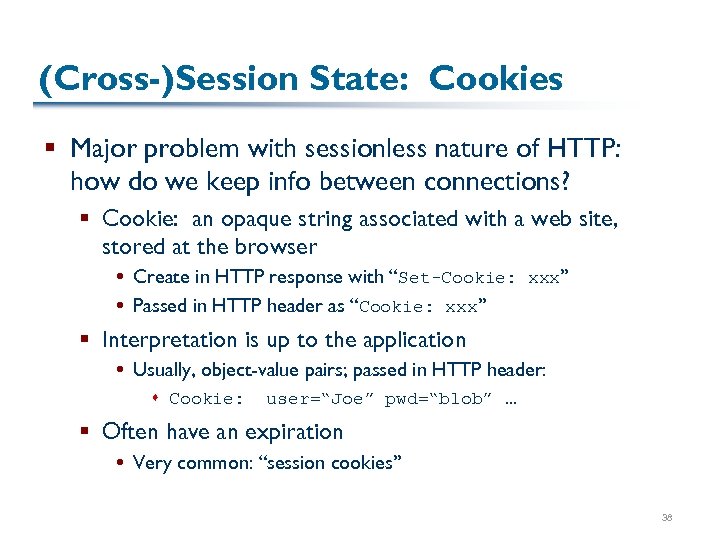

(Cross-)Session State: Cookies § Major problem with sessionless nature of HTTP: how do we keep info between connections? § Cookie: an opaque string associated with a web site, stored at the browser Create in HTTP response with “Set-Cookie: xxx” Passed in HTTP header as “Cookie: xxx” § Interpretation is up to the application Usually, object-value pairs; passed in HTTP header: s Cookie: user=“Joe” pwd=“blob” … § Often have an expiration Very common: “session cookies” 38

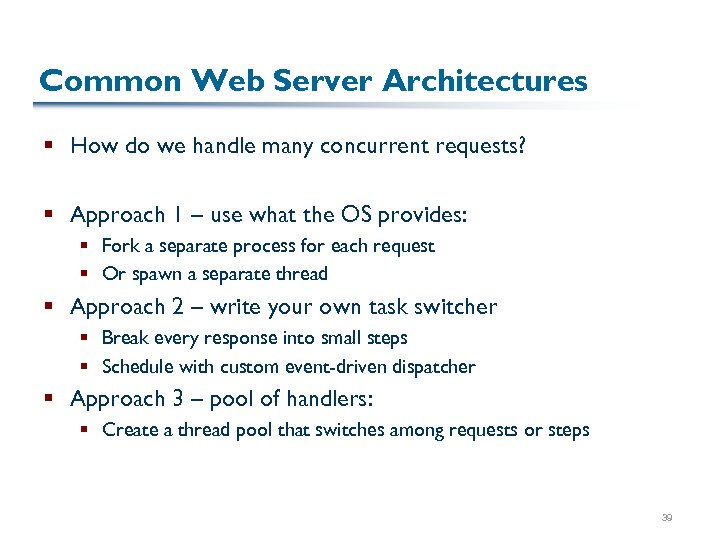

Common Web Server Architectures § How do we handle many concurrent requests? § Approach 1 – use what the OS provides: § Fork a separate process for each request § Or spawn a separate thread § Approach 2 – write your own task switcher § Break every response into small steps § Schedule with custom event-driven dispatcher § Approach 3 – pool of handlers: § Create a thread pool that switches among requests or steps 39
Content Management Systems § Generally, a “middleware” that runs under the web server (or provides its own) § Provides content integration from multiple sources Perhaps SQL or XML databases Perhaps text files, RSS feeds, etc. § Often provides content authoring & assembly tools § Typically, provides templates or other similar features for describing how to assemble the site § Common examples: § MS Content Management Server; Slash; Apache Cocoon 40
Ways of Handling Many Requests § Web server “listens” on port 80 – “daemon” task § Upon a request, it needs to invoke a response § How should that response task get executed? 41

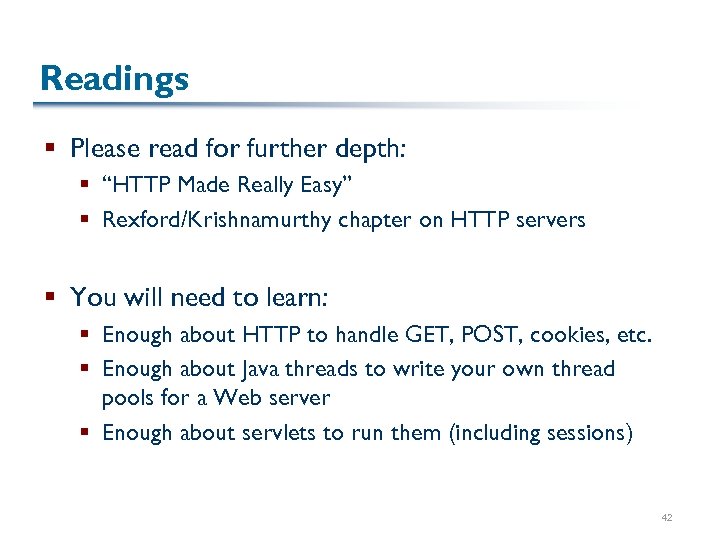

Readings § Please read for further depth: § “HTTP Made Really Easy” § Rexford/Krishnamurthy chapter on HTTP servers § You will need to learn: § Enough about HTTP to handle GET, POST, cookies, etc. § Enough about Java threads to write your own thread pools for a Web server § Enough about servlets to run them (including sessions) 42
