SERBA CEMERLANG ENGINEERING SDN BHD D 2 -8

SERBA CEMERLANG ENGINEERING SDN BHD D 2 -8, BLOCK DAISY, INDAH COURT, LIKAS 88400 KOTA KINABALU SABAH MALAYSIA sales@serbacemerlang. com +6016 833 1023 ( Whatapps , Wechat ) +6016 725 5300 ( Whatapps , Wechat ) PRE-FABRICATED HOUSES & CABINS

WHY CEMENT BOARD/PREFAB HOUSE? Cement Board (2’ X 8’) Sandwich Panels Conventional Brick and Cement Construction COST (based on 4” wall thickness) RM 13/sqft RM 15/sqft INSTALLATION (based on 100 sqft wall) 3 workers, 40 minutes 12 workers, 450 minutes NOISE INSULATION (Ability to reduce d. B) HIGH LOW BENDING STRENGTH 16 MPa 9 MPa FIRE RETARDENT √ X MOISTURE PROOF √ X OTHER PARAMETERS: • LESS PRONE TO CRACKS (SURFACE, JOINTS ETC) • HIGHER QUALITY; FACTORY CONTROLLED CURING

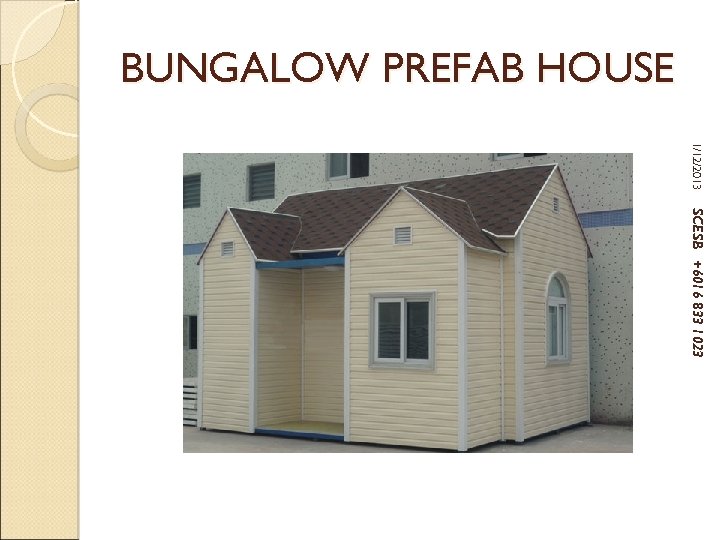

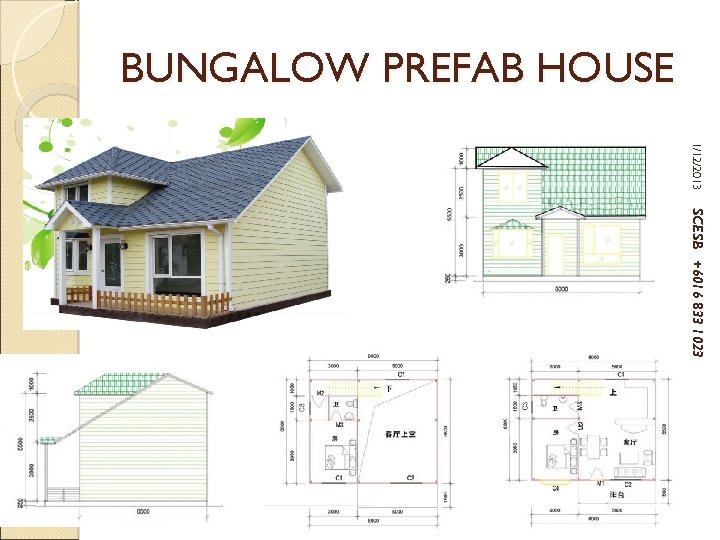

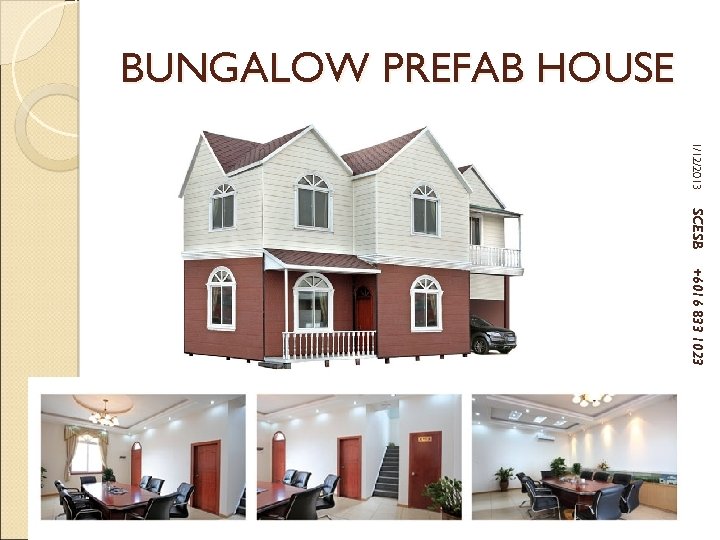

BUNGALOW PREFAB HOUSE 1/12/2013 SCESB +6016 833 1023

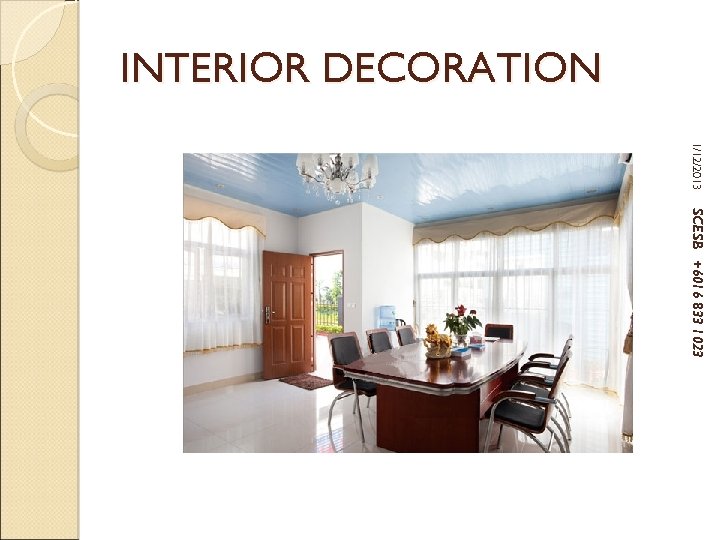

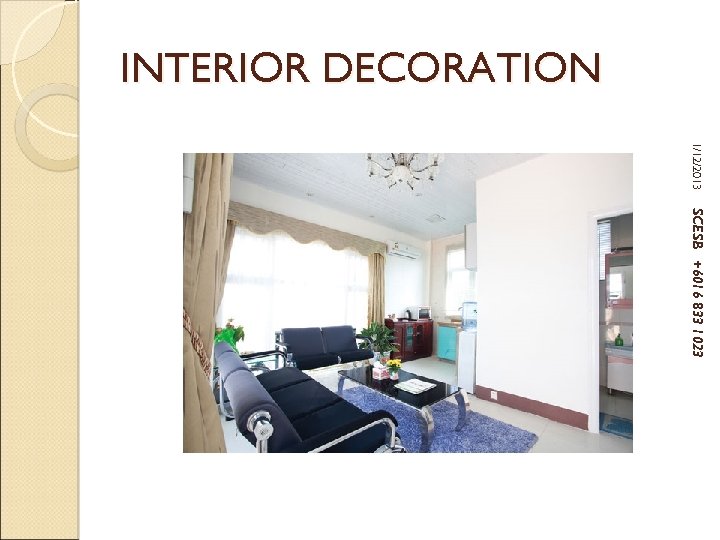

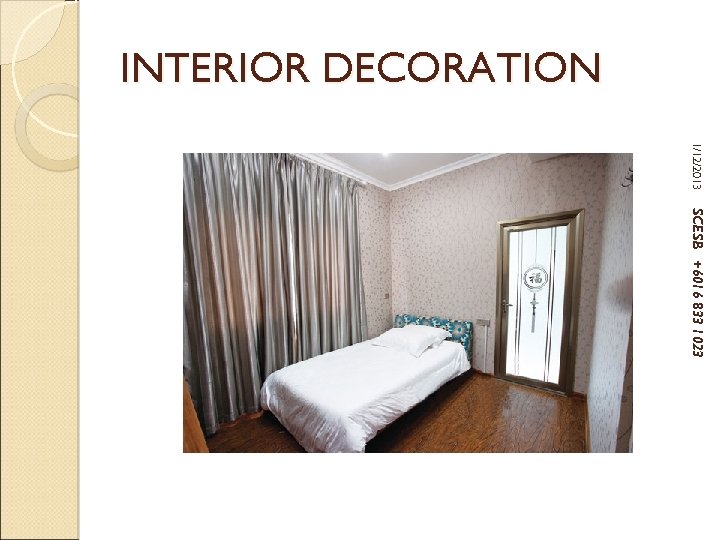

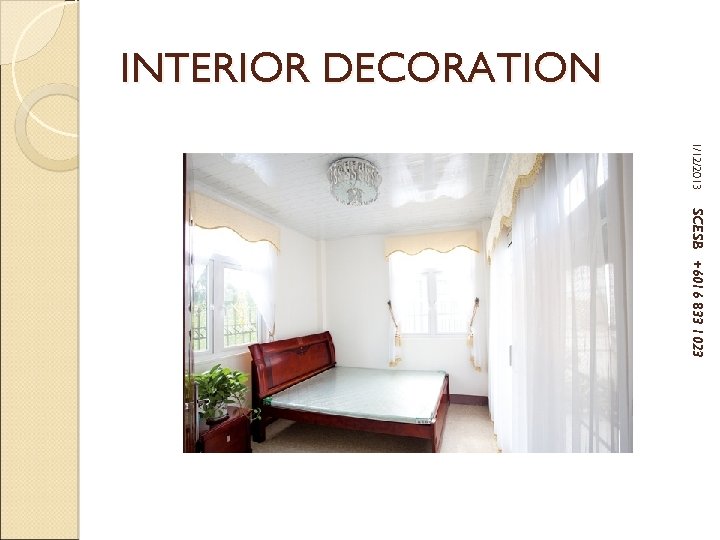

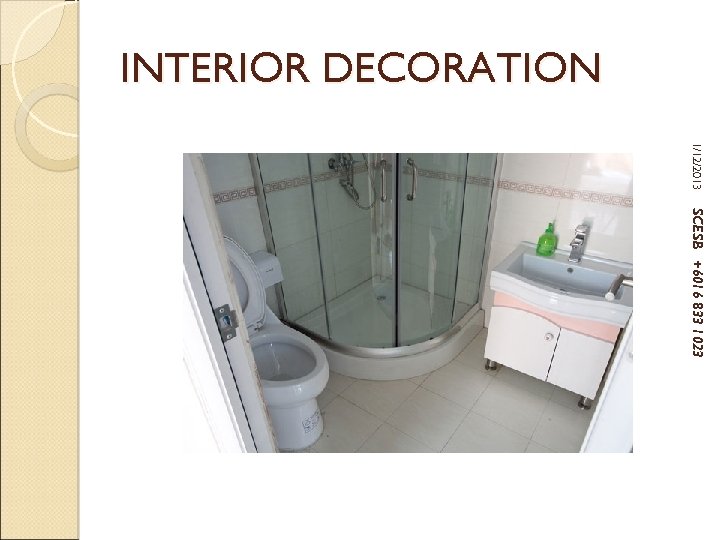

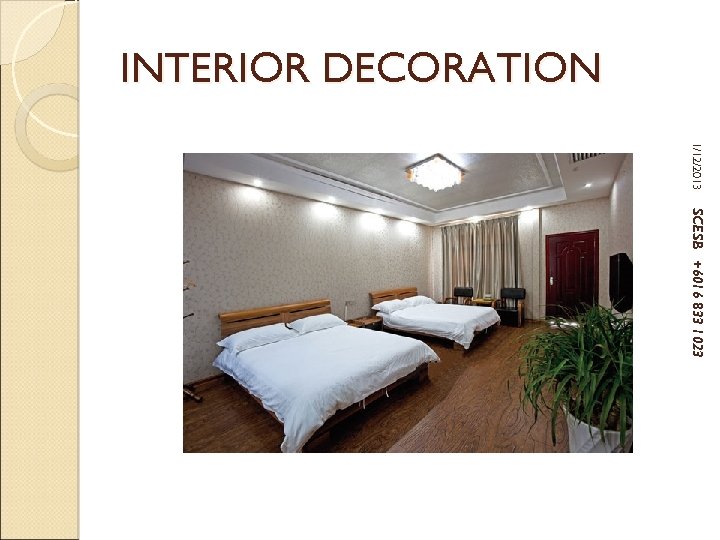

INTERIOR DECORATION 1/12/2013 SCESB +6016 833 1023

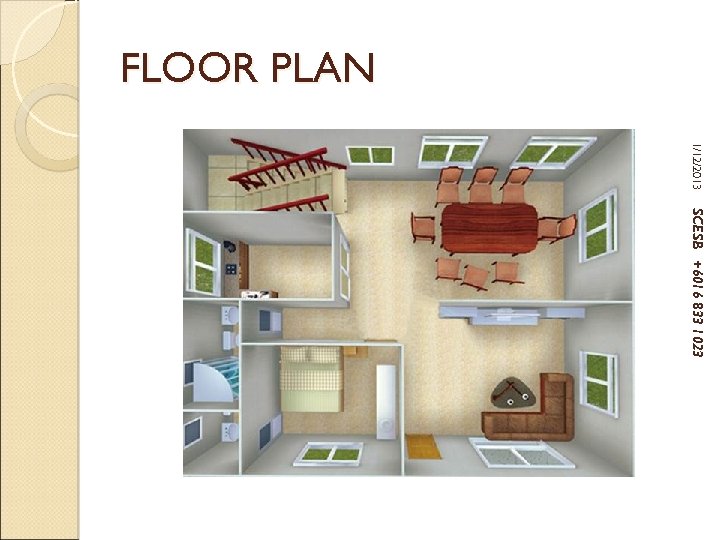

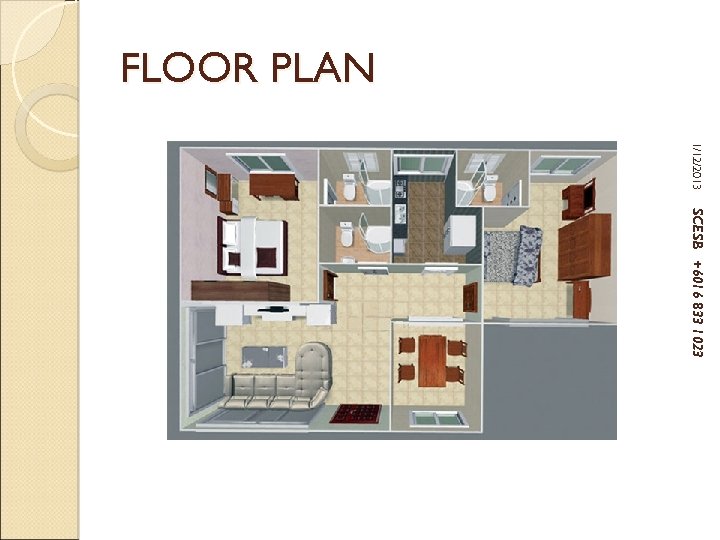

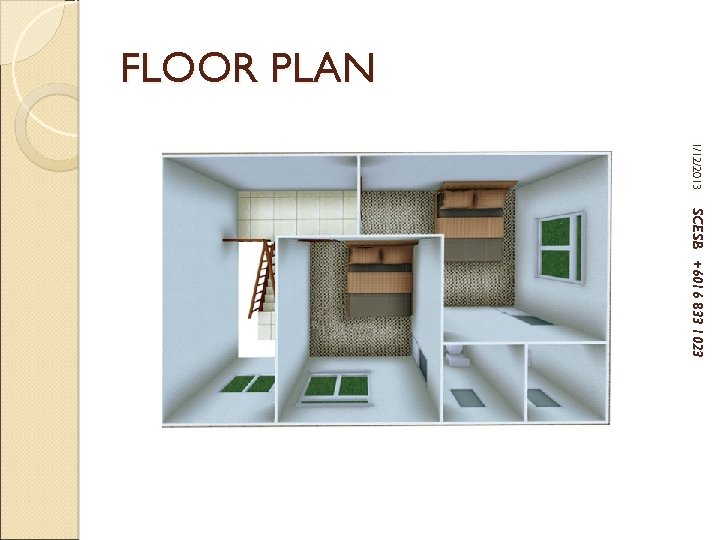

FLOOR PLAN 1/12/2013 SCESB +6016 833 1023

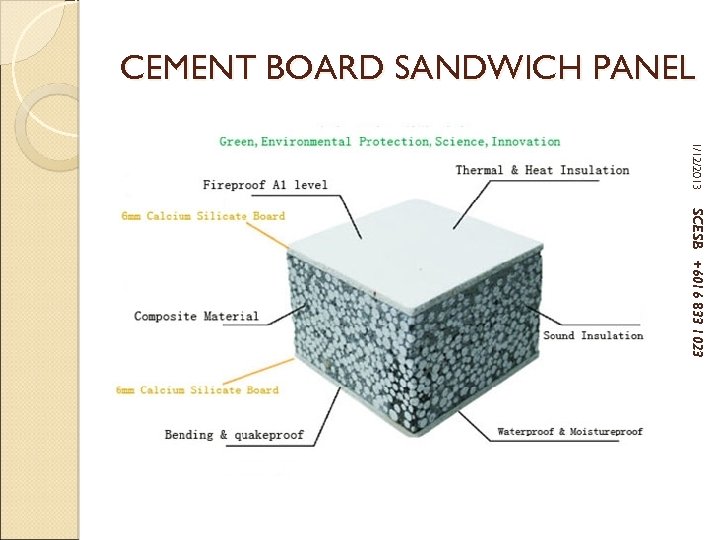

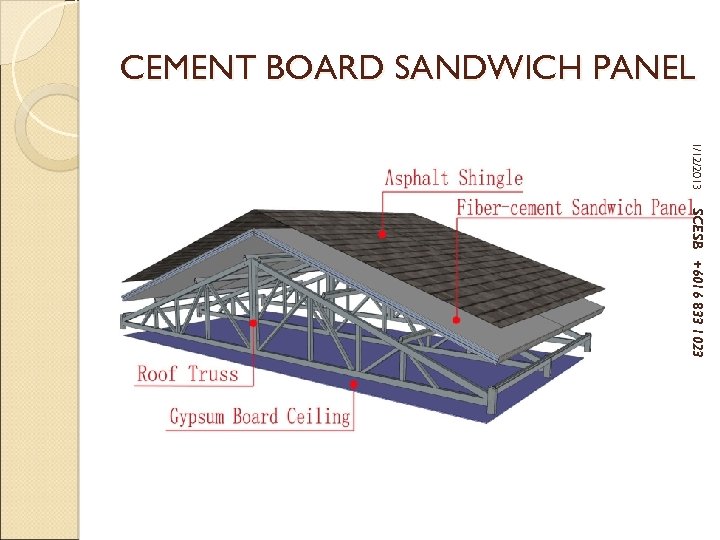

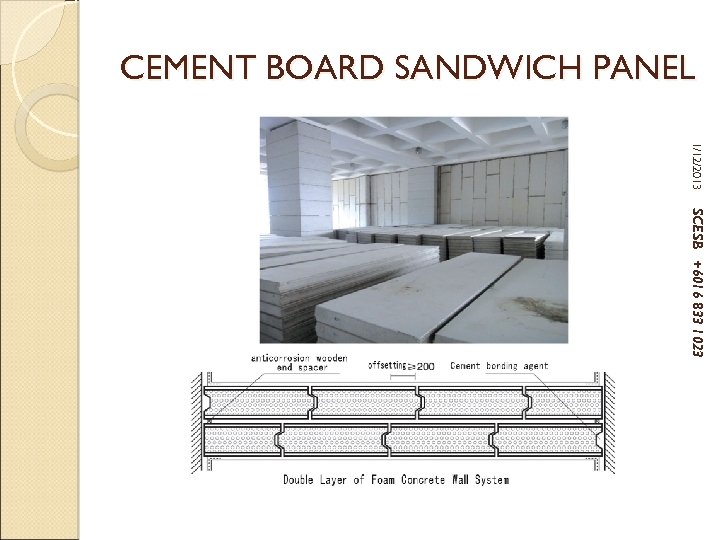

CEMENT BOARD SANDWICH PANEL 1/12/2013 SCESB +6016 833 1023

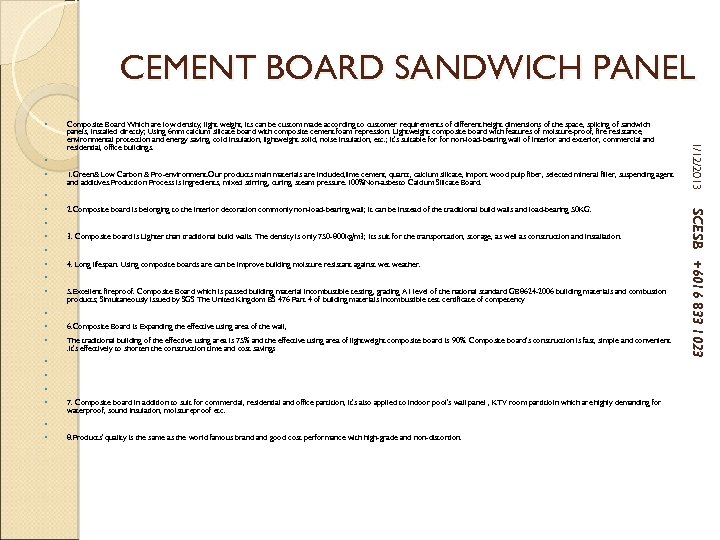

CEMENT BOARD SANDWICH PANEL • • 1. Green& Low Carbon & Pro-environment. Our products main materials are included, lime cement, quartz, calcium silicate, import wood pulp fiber, selected mineral filler, suspending agent and additives. Production Process is ingredients, mixed stirring, curing, steam pressure. 100%Non-asbesto Calcium Silicate Board. • • 2. Composite board is belonging to the interior decoration commonly non-load-bearing wall; It can be instead of the traditional build walls and load-bearing 50 KG. • • 3. Composite board is Lighter than traditional build walls. The density is only 750 -800 kg/m 3; Its suit for the transportation, storage, as well as construction and installation. • • 4. Long lifespan. Using composite boards are can be improve building moisture resistant against weather. • • 5. Excellent fireproof. Composite Board which is passed building material incombustible testing, grading A 1 level of the national standard GB 8624 -2006 building materials and combustion products; Simultaneously issued by SGS The United Kingdom BS 476 Part 4 of building materials incombustible test certificate of competency • • 6. Composite Board is Expanding the effective using area of the wall, • The traditional building of the effective using area is 75% and the effective using area of lightweight composite board is 90%. Composite board's construction is fast, simple and convenient. . It's effectively to shorten the construction time and cost savings • • 7. Composite board in addition to suit for commercial, residential and office partition, It's also applied to indoor pool's wall panel , KTV room partitioin which are. highly demanding for waterproof, sound insulation, moistureproof etc. • • 8. Products' quality is the same as the world famous brand good cost performance with high-grade and non-distortion. SCESB +6016 833 1023 Composite Board Which are low density, light weight, its can be custom made according to customer requirements of different height dimensions of the space, splicing of sandwich panels, installed directly; Using 6 mm calcium silicate board with composite cement foam repression. Lightweight composite board with features of moisture-proof, fire resistance, environmental protection and energy saving, cold insulation, lightweight solid, noise insulation, etc. ; It's suitable for non-load-bearing wall of interior and exterior, commercial and residential, office buildings. 1/12/2013 •

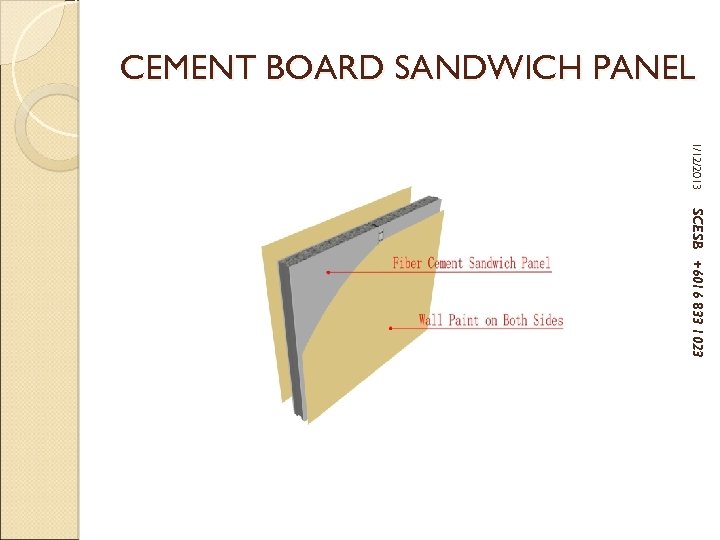

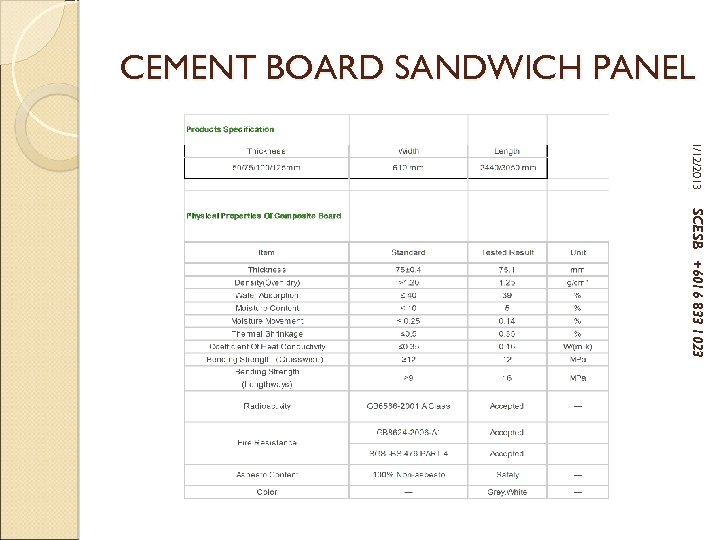

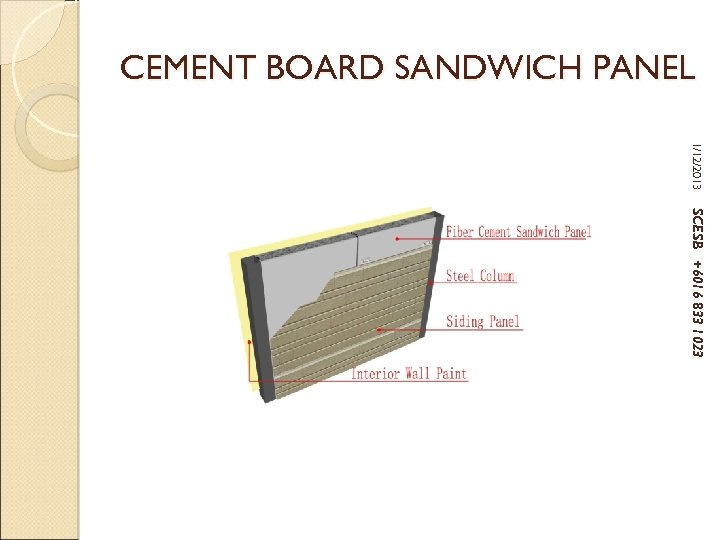

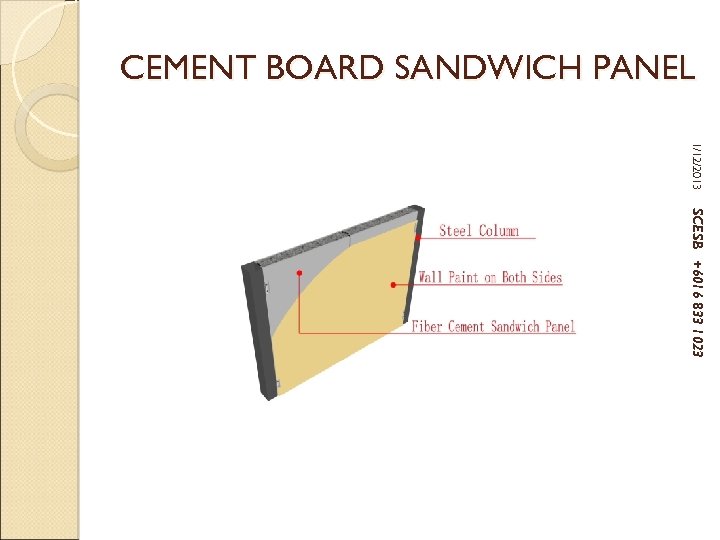

CEMENT BOARD SANDWICH PANEL 1/12/2013 SCESB +6016 833 1023

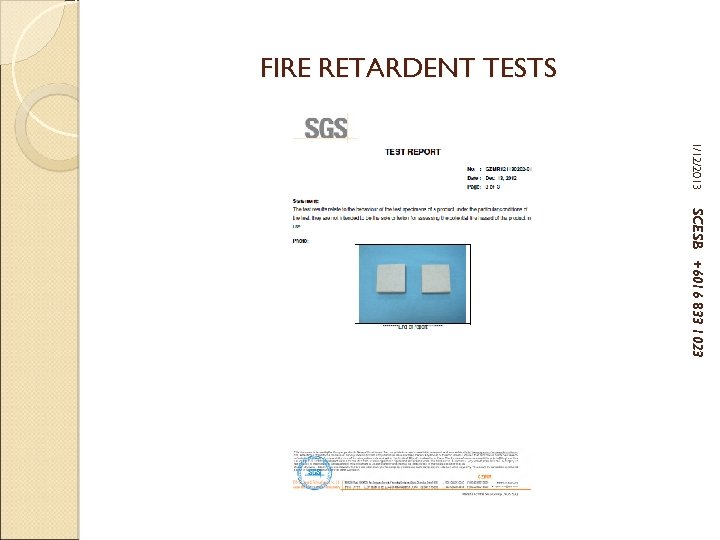

FIRE RETARDENT TESTS 1/12/2013 SCESB +6016 833 1023

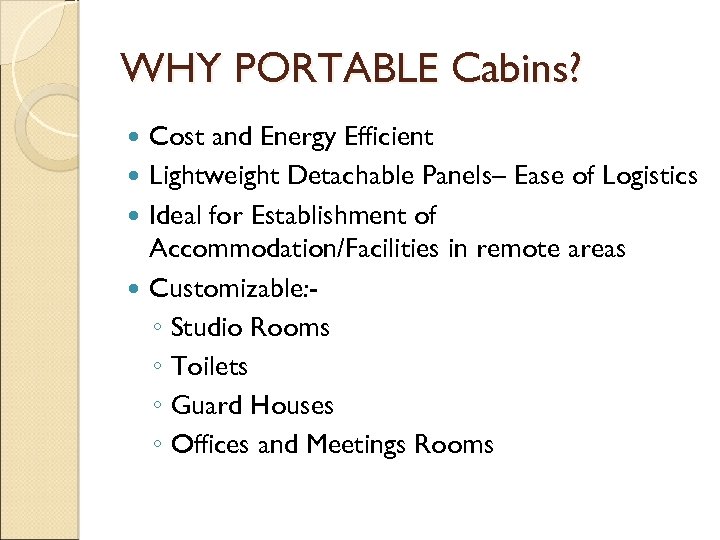

WHY PORTABLE Cabins? Cost and Energy Efficient Lightweight Detachable Panels– Ease of Logistics Ideal for Establishment of Accommodation/Facilities in remote areas Customizable: ◦ Studio Rooms ◦ Toilets ◦ Guard Houses ◦ Offices and Meetings Rooms

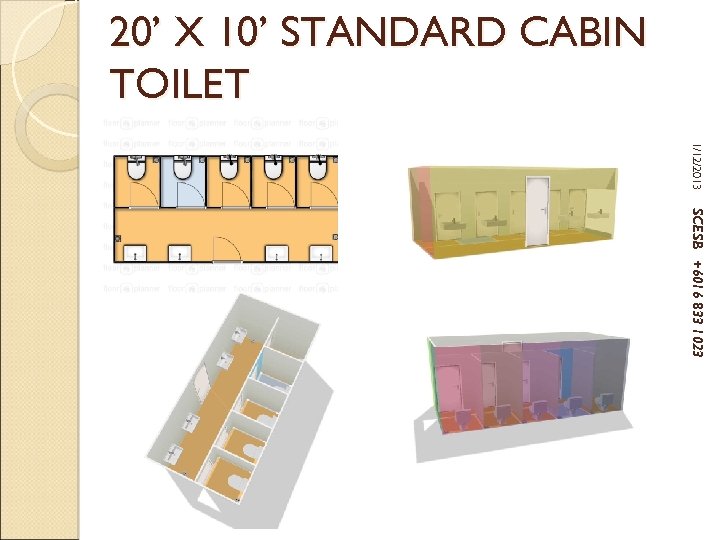

20’ X 10’ STANDARD CABIN TOILET 1/12/2013 SCESB +6016 833 1023

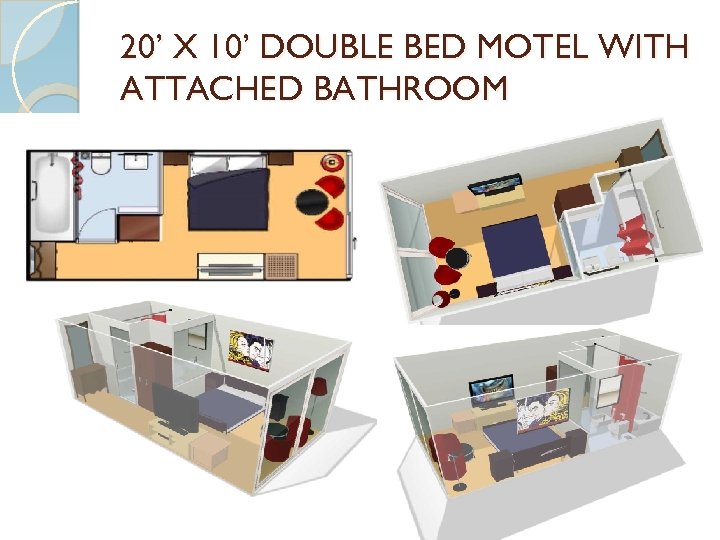

20’ X 10’ DOUBLE BED MOTEL WITH ATTACHED BATHROOM 1/12/2013 Az. Dra Enterprise

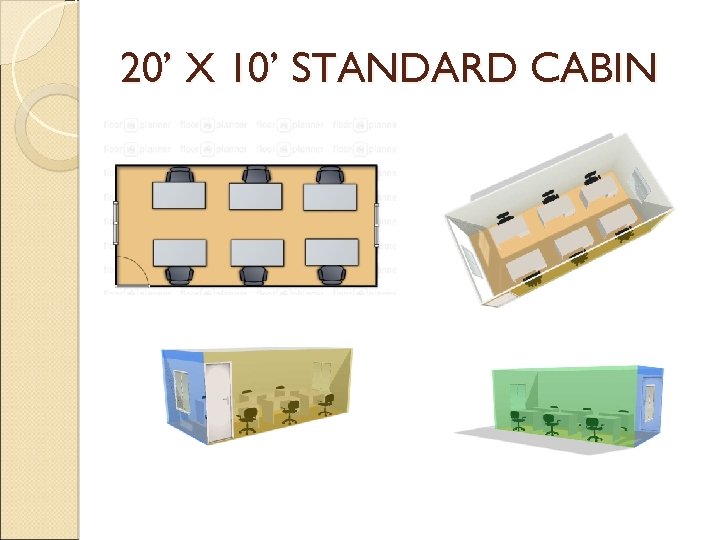

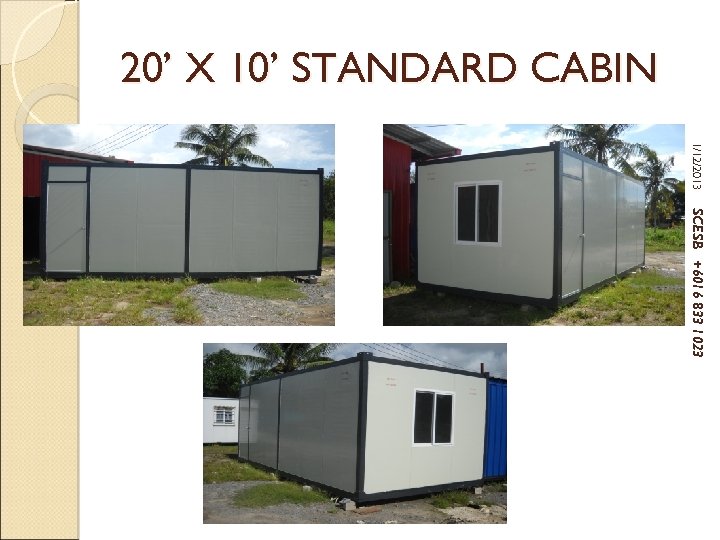

20’ X 10’ STANDARD CABIN 1/12/2013 Az. Dra Enterprise

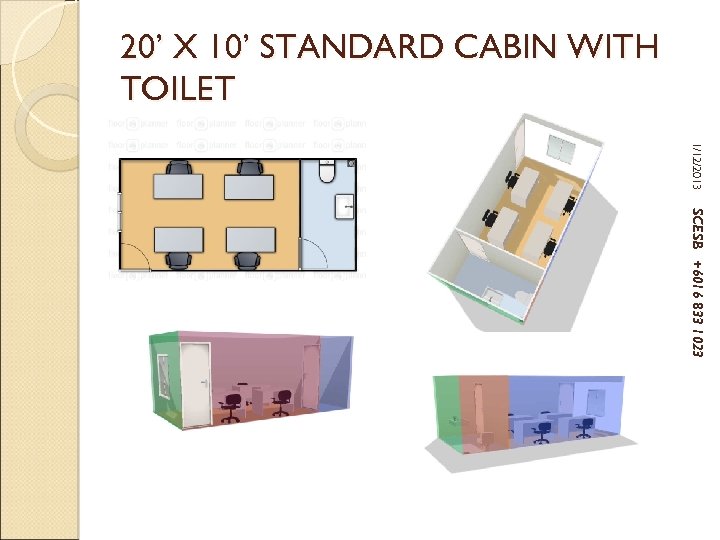

20’ X 10’ STANDARD CABIN WITH TOILET 1/12/2013 SCESB +6016 833 1023

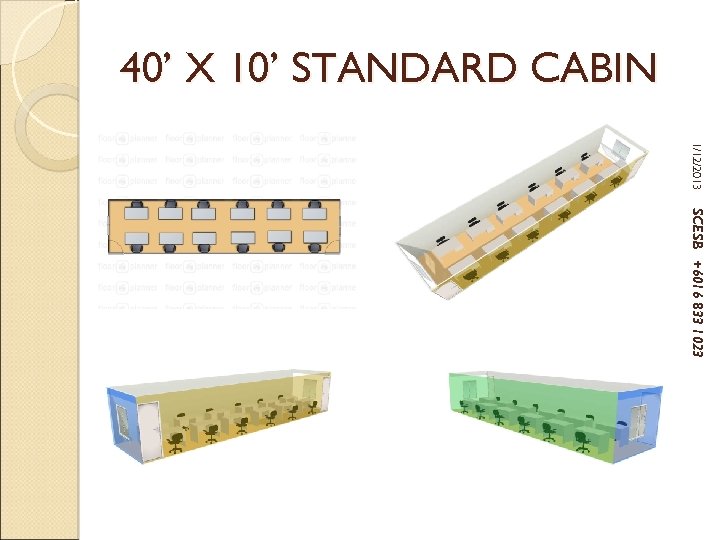

40’ X 10’ STANDARD CABIN 1/12/2013 SCESB +6016 833 1023

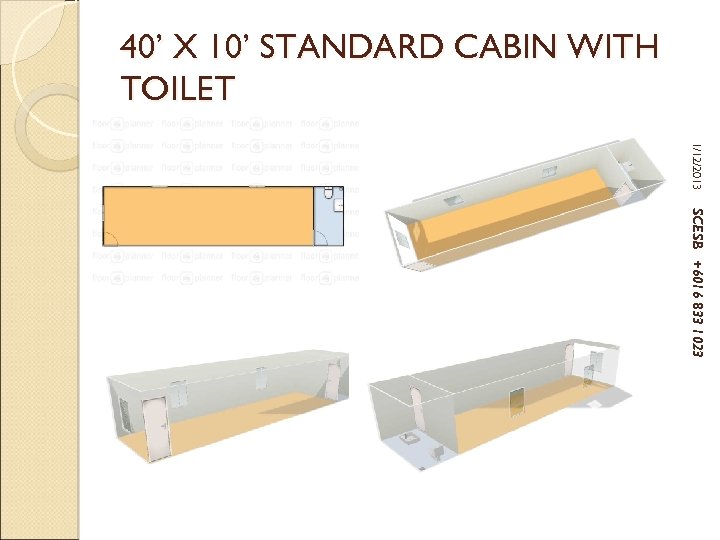

40’ X 10’ STANDARD CABIN WITH TOILET 1/12/2013 SCESB +6016 833 1023

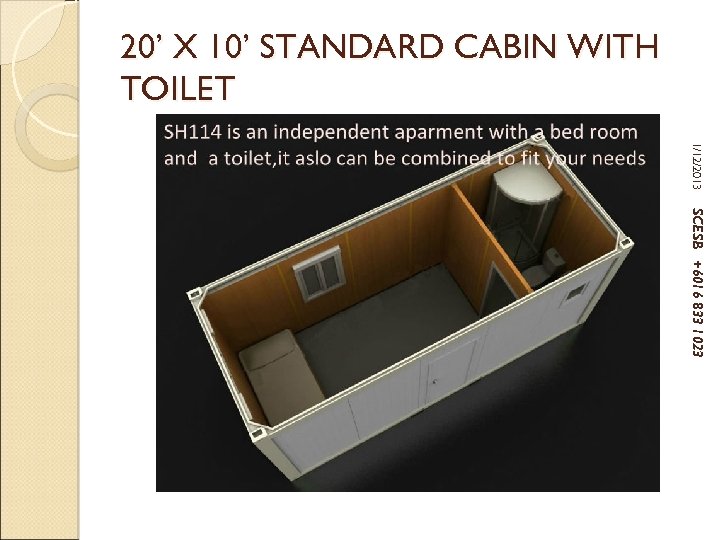

20’ X 10’ STANDARD CABIN WITH TOILET 1/12/2013 SCESB +6016 833 1023

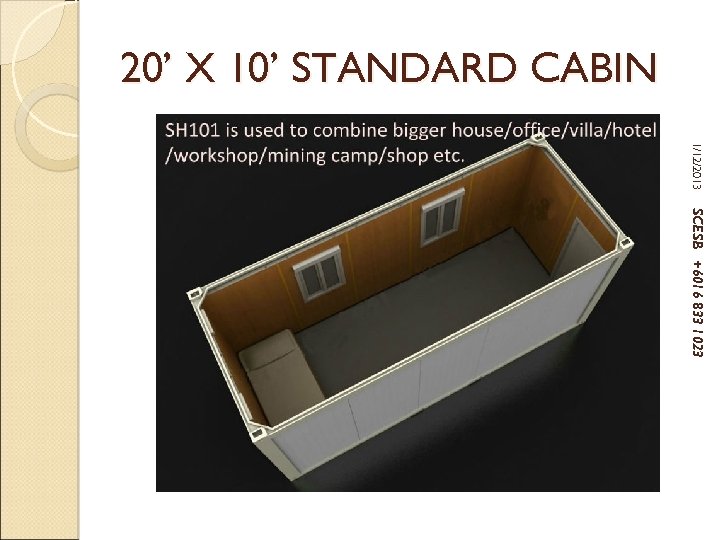

20’ X 10’ STANDARD CABIN 1/12/2013 SCESB +6016 833 1023

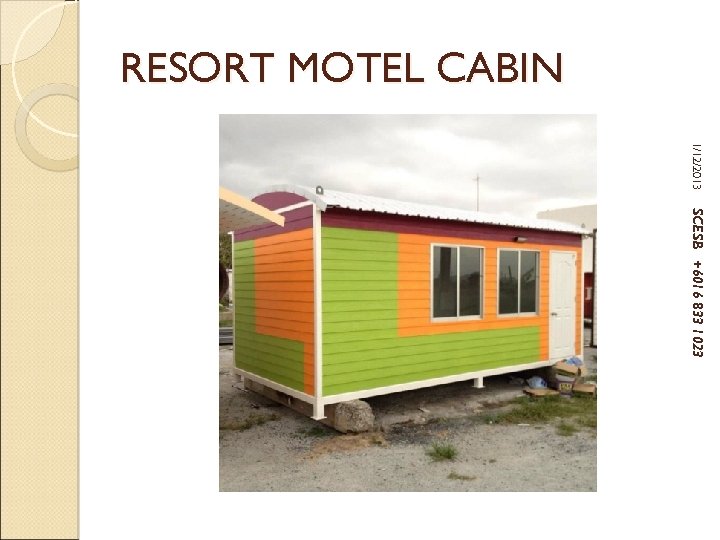

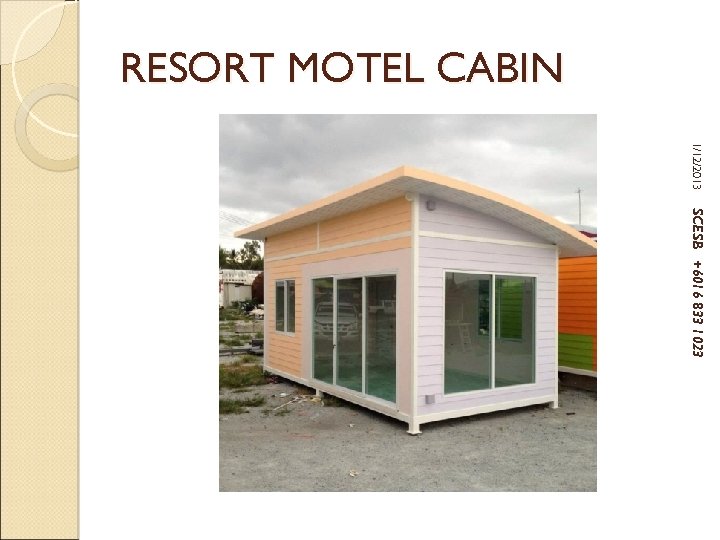

RESORT MOTEL CABIN 1/12/2013 SCESB +6016 833 1023

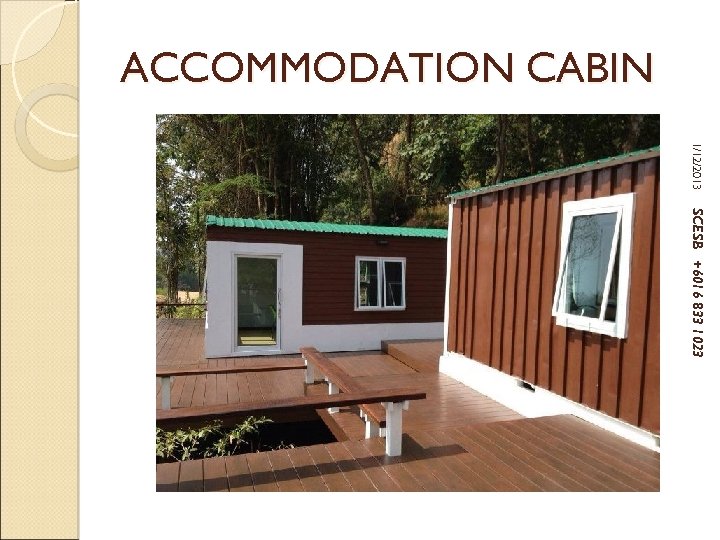

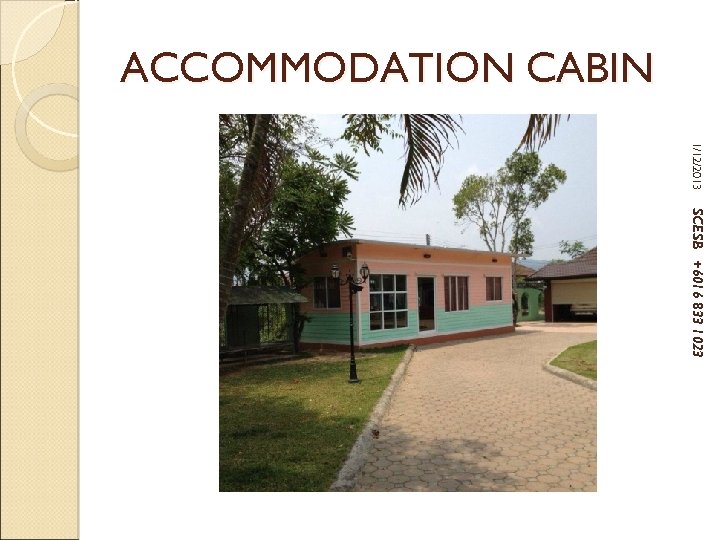

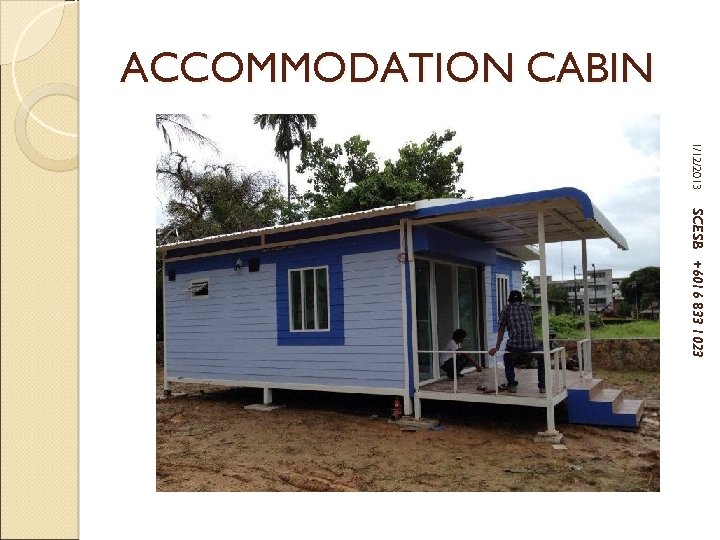

ACCOMMODATION CABIN 1/12/2013 SCESB +6016 833 1023

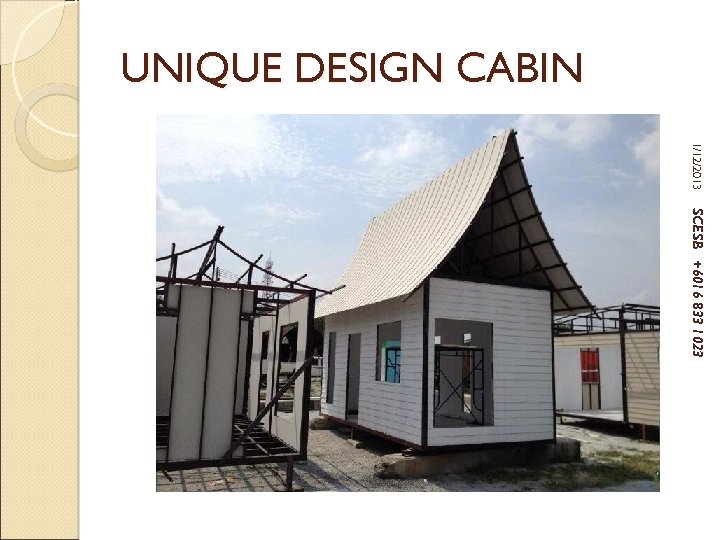

UNIQUE DESIGN CABIN 1/12/2013 SCESB +6016 833 1023

20’ X 10’ STANDARD CABIN 1/12/2013 SCESB +6016 833 1023

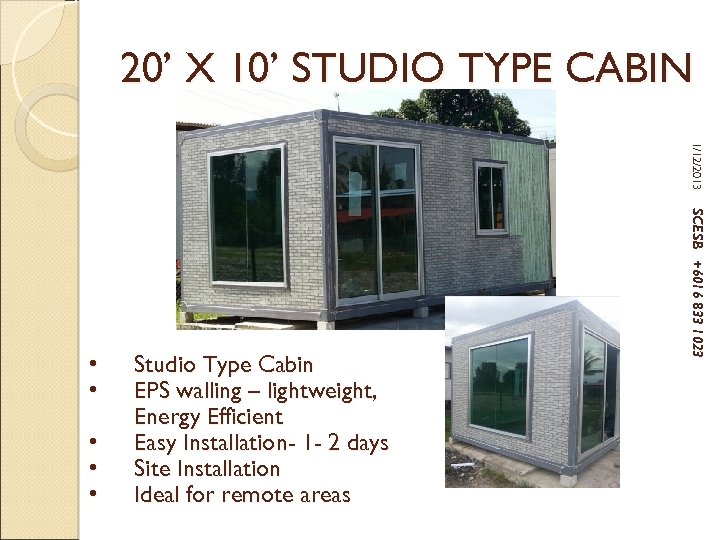

20’ X 10’ STUDIO TYPE CABIN 1/12/2013 • • • Studio Type Cabin EPS walling – lightweight, Energy Efficient Easy Installation- 1 - 2 days Site Installation Ideal for remote areas SCESB +6016 833 1023 • •

20’ X 10’ x 8 Office Cabins 1/12/2013 SCESB +6016 833 1023 Office Cabins at KPJ Damai - Installed and fully erected in 1 month

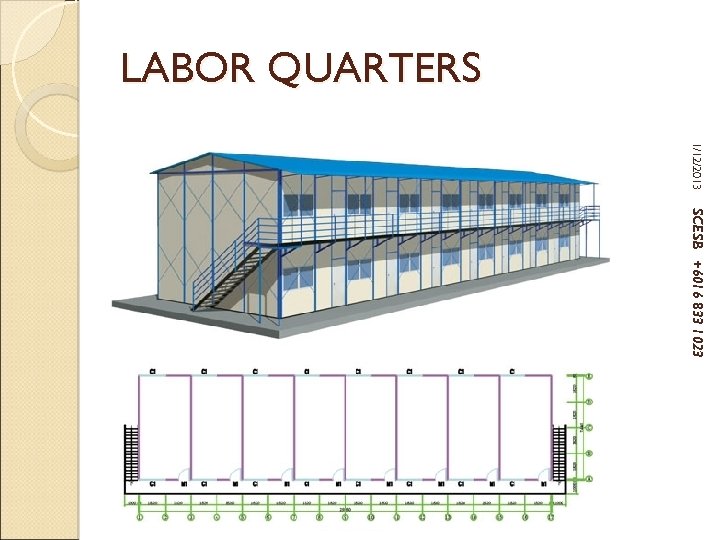

LABOR QUARTERS 1/12/2013 SCESB +6016 833 1023

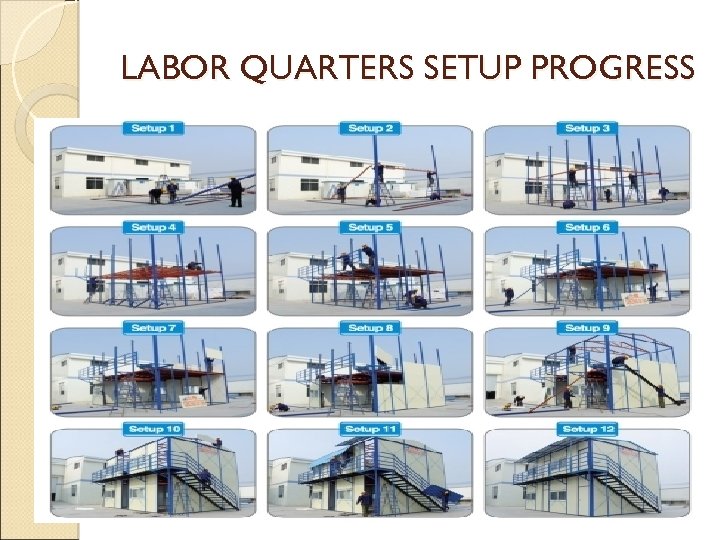

LABOR QUARTERS SETUP PROGRESS 1/12/2013 Az. Dra Enterprise

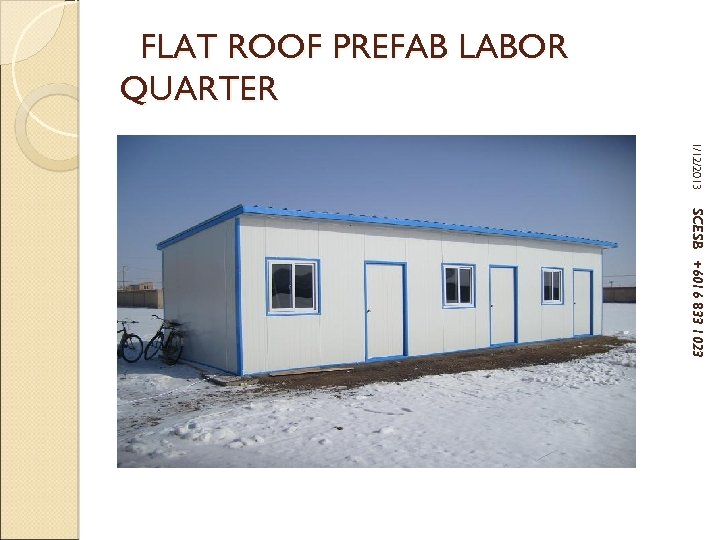

FLAT ROOF PREFAB LABOR QUARTER 1/12/2013 SCESB +6016 833 1023

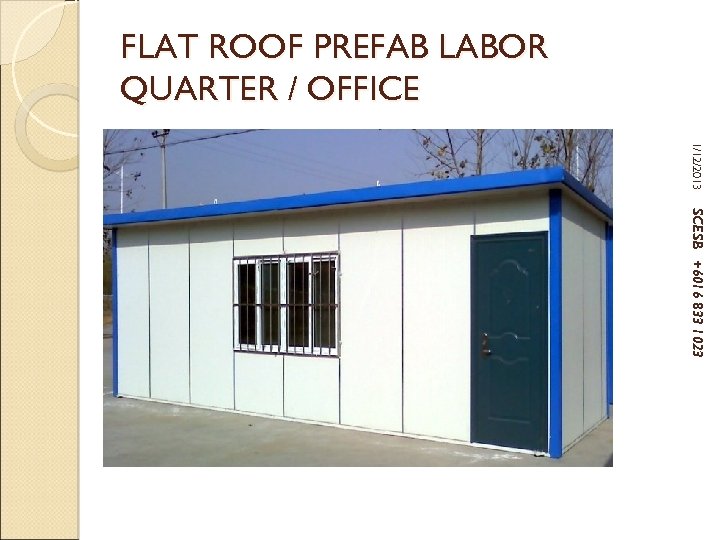

FLAT ROOF PREFAB LABOR QUARTER / OFFICE 1/12/2013 SCESB +6016 833 1023

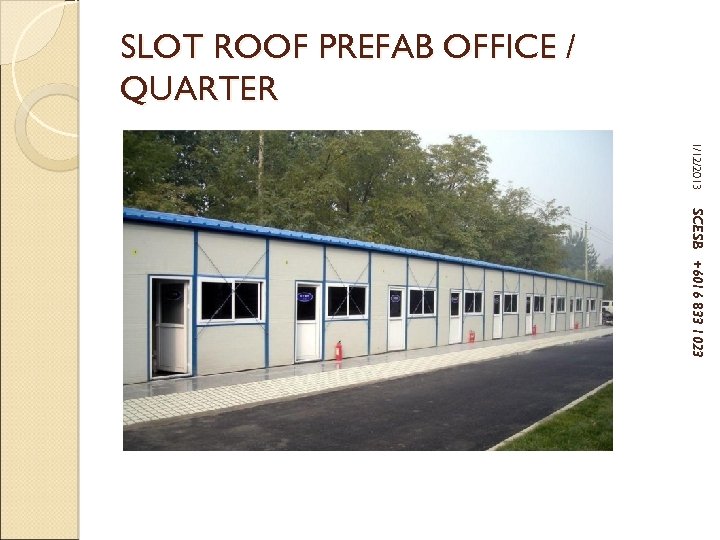

SLOT ROOF PREFAB OFFICE / QUARTER 1/12/2013 SCESB +6016 833 1023

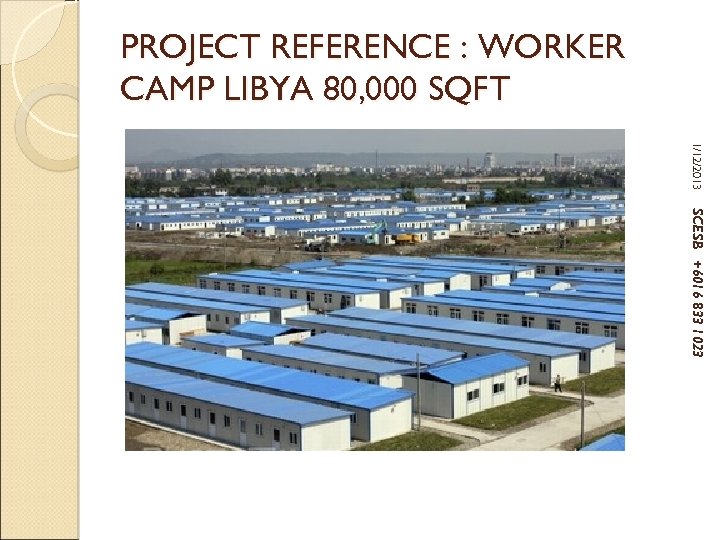

PROJECT REFERENCE : WORKER CAMP LIBYA 80, 000 SQFT 1/12/2013 SCESB +6016 833 1023

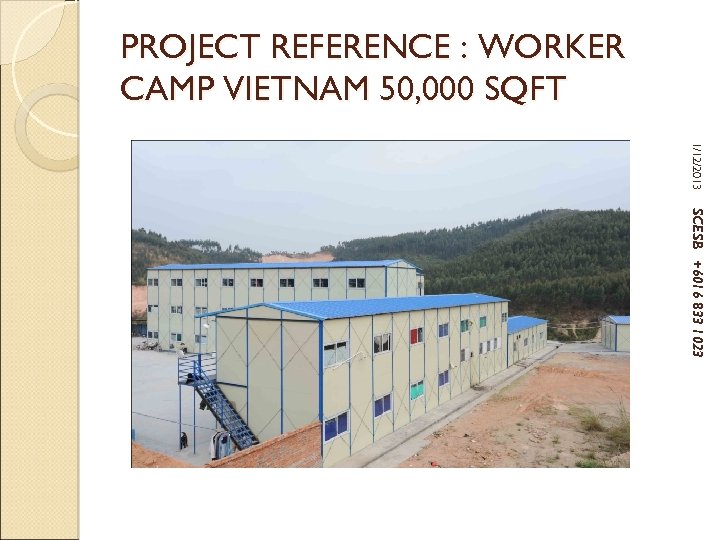

PROJECT REFERENCE : WORKER CAMP VIETNAM 50, 000 SQFT 1/12/2013 SCESB +6016 833 1023

. 1/12/2013 Structure : Upper and lower exterior sheets sandwich with the PU foamed. The exterior metal sheet can be color steel sheet, aluminium & zinc coated steel sheet, aluminium coated steel sheet and embossed color steel sheet, etc. PU sandwich panel is the best heat resisting & maintaining acknowledged in the world at present. Feature : Light weight : 10 – 14 kg/m 2 Good heat resisting : χ = 0. 0175 kcal/m. h. c Strong integrate stiffness and excellent strength. Reasonable and simple connection : For using the snap connection, the roof panel avoids the hidden trouble of roof leakage. The wall panel adopts coupling board connection, it has beautiful appearance and it is economic of spare parts and convenient for construction. Application range : Factory & work-shop, ware-house, public stadium and gymnasium, villa, cold storage and other buildings SCESB +6016 833 1023 PU Sandwich Panel

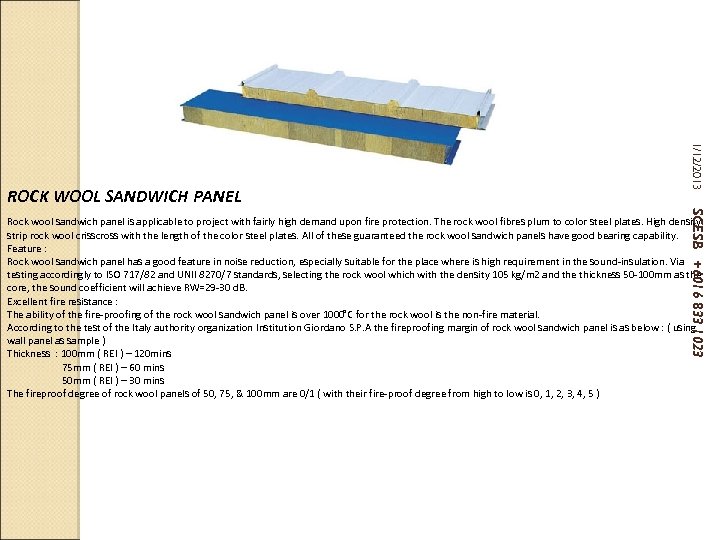

1/12/2013 ROCK WOOL SANDWICH PANEL SCESB +6016 833 1023 Rock wool sandwich panel is applicable to project with fairly high demand upon fire protection. The rock wool fibres plum to color steel plates. High density strip rock wool crisscross with the length of the color steel plates. All of these guaranteed the rock wool sandwich panels have good bearing capability. Feature : Rock wool sandwich panel has a good feature in noise reduction, especially suitable for the place where is high requirement in the sound-insulation. Via testing accordingly to ISO 717/82 and UNII 8270/7 standards, selecting the rock wool which with the density 105 kg/m 2 and the thickness 50 -100 mm as the core, the sound coefficient will achieve RW=29 -30 d. B. Excellent fire resistance : The ability of the fire-proofing of the rock wool sandwich panel is over 1000 C for the rock wool is the non-fire material. According to the test of the Italy authority organization Institution Giordano S. P. A the fireproofing margin of rock wool sandwich panel is as below : ( using wall panel as sample ) Thickness : 100 mm ( REI ) – 120 mins 75 mm ( REI ) – 60 mins 50 mm ( REI ) – 30 mins The fireproof degree of rock wool panels of 50, 75, & 100 mm are 0/1 ( with their fire-proof degree from high to low is 0, 1, 2, 3, 4, 5 )

1/12/2013 SCESB +6016 833 1023 EPS SANDWICH PANEL Polystyrene sandwich panel(EPS sandwich board ) is a new type of construction panel, which is made of layers both sides of pre-painted steel coil and inner layer of polystyrene. Processing by computer controlled color steel shaping machine and covered with high strength adhesive. Characteristic : light weight, 10 - 14 kg/m 2, easy to install, short work cycle, lower cost, high-capacity, high-stiffness and intensity. Flexible for using, the length of panel is according to the project requirement and term of installation and transportation. Heat preservation and heat insulation, prevented sound pollution, High performance characteristic of moisturizing, the average of thermal conductivity is 0. 032 kcal/mb.

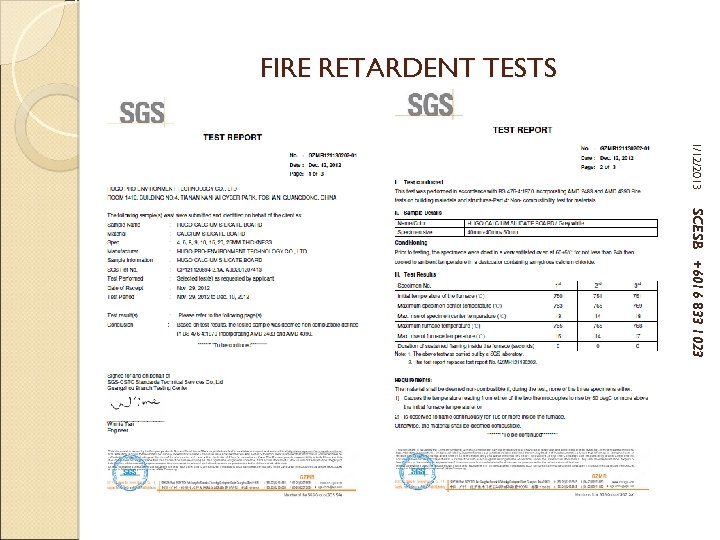

FIRE RETARDENT TESTS 1/12/2013 SCESB +6016 833 1023
