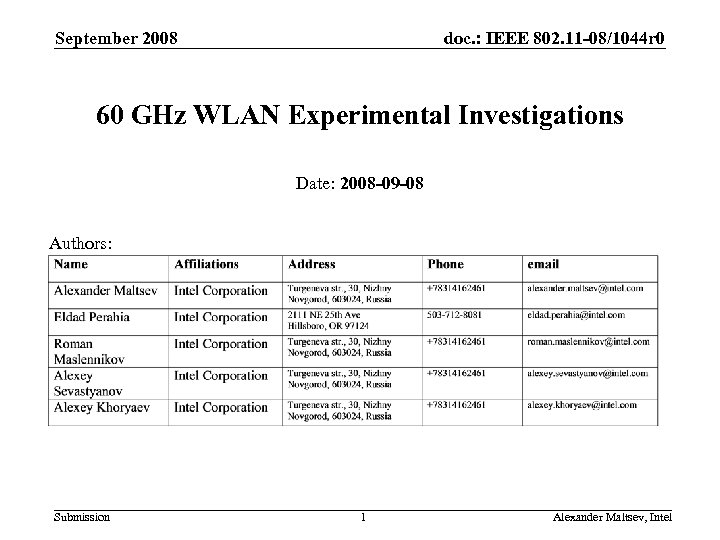

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN Experimental September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN Experimental Investigations Date: 2008 -09 -08 Authors: Submission 1 Alexander Maltsev, Intel

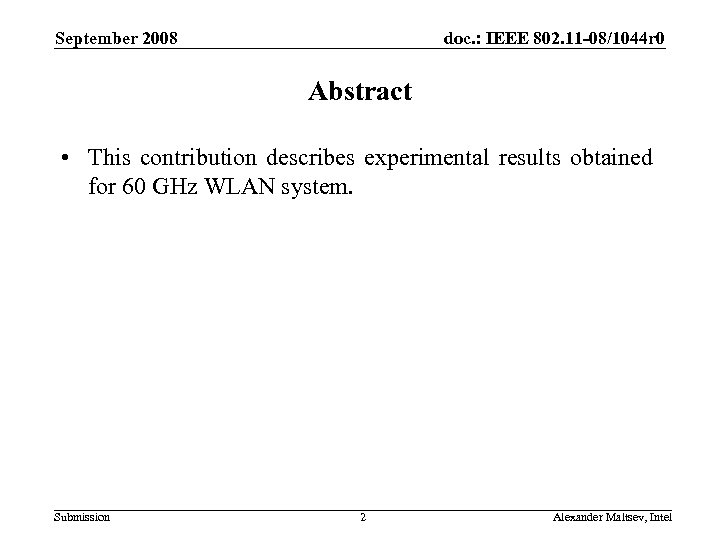

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Abstract • This contribution September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Abstract • This contribution describes experimental results obtained for 60 GHz WLAN system. Submission 2 Alexander Maltsev, Intel

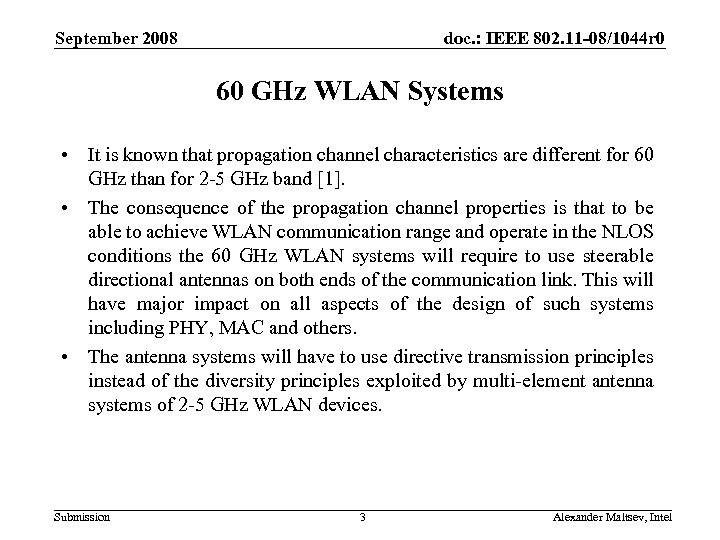

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN Systems September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN Systems • It is known that propagation channel characteristics are different for 60 GHz than for 2 -5 GHz band [1]. • The consequence of the propagation channel properties is that to be able to achieve WLAN communication range and operate in the NLOS conditions the 60 GHz WLAN systems will require to use steerable directional antennas on both ends of the communication link. This will have major impact on all aspects of the design of such systems including PHY, MAC and others. • The antenna systems will have to use directive transmission principles instead of the diversity principles exploited by multi-element antenna systems of 2 -5 GHz WLAN devices. Submission 3 Alexander Maltsev, Intel

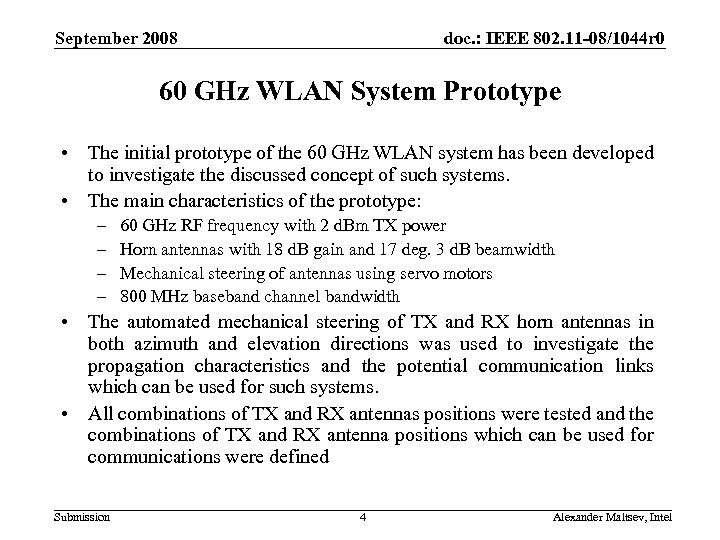

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN System September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN System Prototype • The initial prototype of the 60 GHz WLAN system has been developed to investigate the discussed concept of such systems. • The main characteristics of the prototype: – – 60 GHz RF frequency with 2 d. Bm TX power Horn antennas with 18 d. B gain and 17 deg. 3 d. B beamwidth Mechanical steering of antennas using servo motors 800 MHz baseband channel bandwidth • The automated mechanical steering of TX and RX horn antennas in both azimuth and elevation directions was used to investigate the propagation characteristics and the potential communication links which can be used for such systems. • All combinations of TX and RX antennas positions were tested and the combinations of TX and RX antenna positions which can be used for communications were defined Submission 4 Alexander Maltsev, Intel

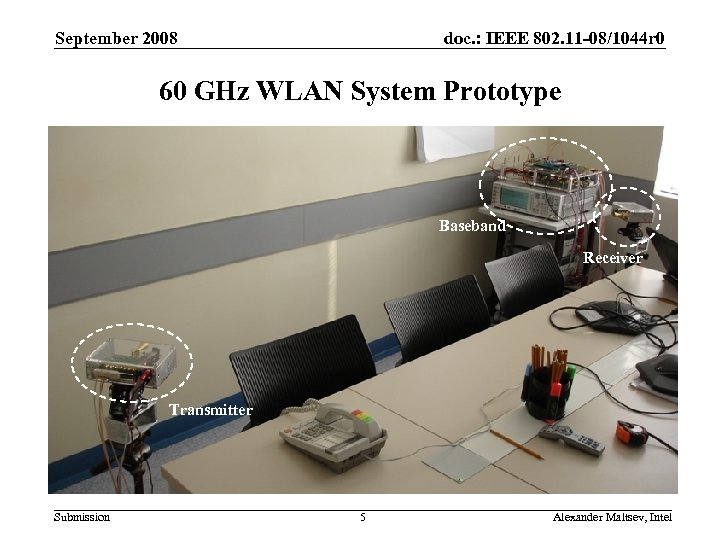

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN System September 2008 doc. : IEEE 802. 11 -08/1044 r 0 60 GHz WLAN System Prototype Baseband Receiver Transmitter Submission 5 Alexander Maltsev, Intel

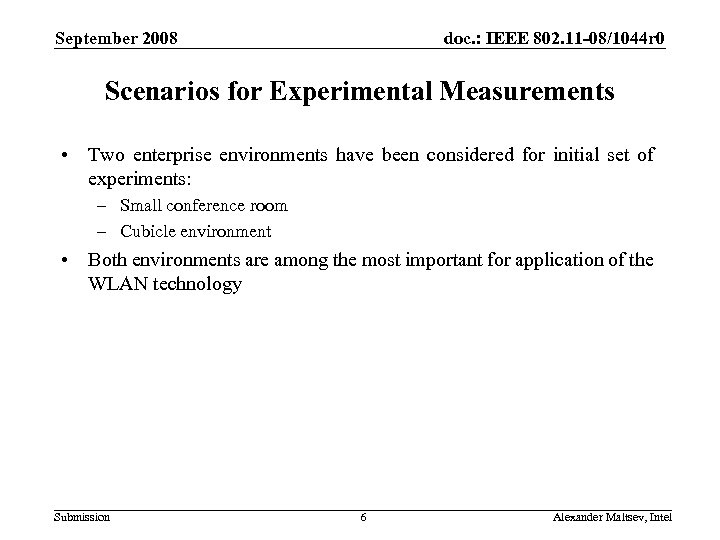

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Scenarios for Experimental Measurements September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Scenarios for Experimental Measurements • Two enterprise environments have been considered for initial set of experiments: – Small conference room – Cubicle environment • Both environments are among the most important for application of the WLAN technology Submission 6 Alexander Maltsev, Intel

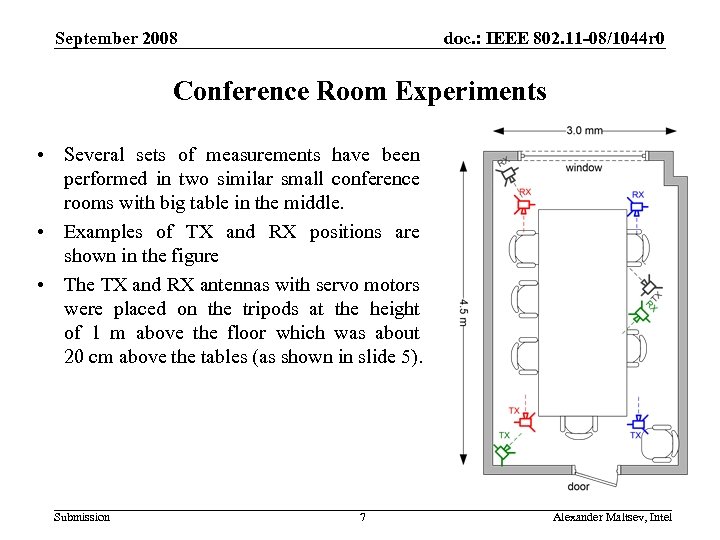

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Experiments • September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Experiments • Several sets of measurements have been performed in two similar small conference rooms with big table in the middle. • Examples of TX and RX positions are shown in the figure • The TX and RX antennas with servo motors were placed on the tripods at the height of 1 m above the floor which was about 20 cm above the tables (as shown in slide 5). Submission 7 Alexander Maltsev, Intel

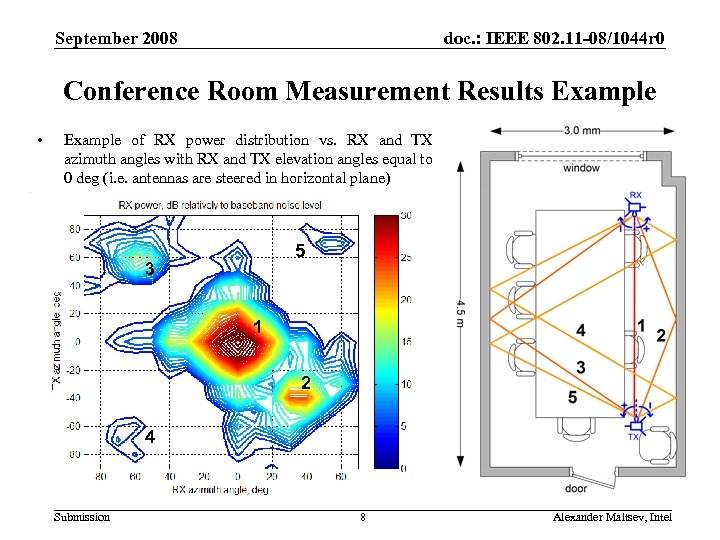

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Measurement Results September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Measurement Results Example • Example of RX power distribution vs. RX and TX azimuth angles with RX and TX elevation angles equal to 0 deg (i. e. antennas are steered in horizontal plane) 5 3 1 2 4 Submission 8 Alexander Maltsev, Intel

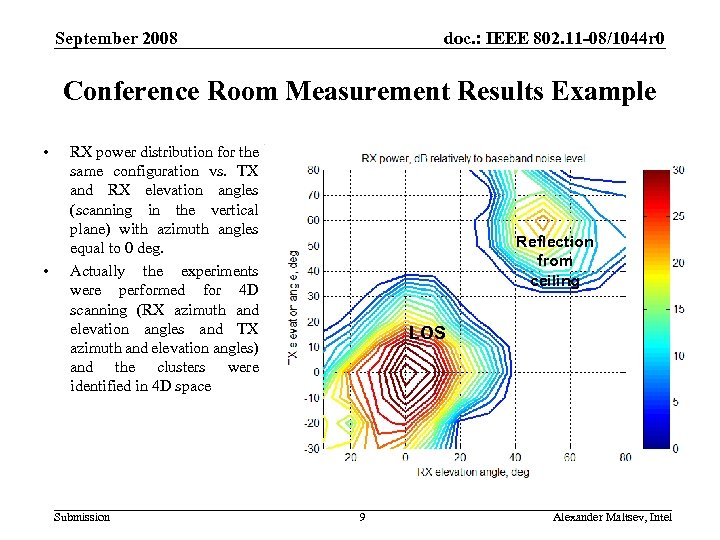

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Measurement Results September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Measurement Results Example • • RX power distribution for the same configuration vs. TX and RX elevation angles (scanning in the vertical plane) with azimuth angles equal to 0 deg. Actually the experiments were performed for 4 D scanning (RX azimuth and elevation angles and TX azimuth and elevation angles) and the clusters were identified in 4 D space Submission Reflection from ceiling LOS 9 Alexander Maltsev, Intel

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Measurement Results September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conference Room Measurement Results • • • The measurements results revealed that the positions of TX and RX antennas providing maximum power of the received signal correspond to the LOS and first- and second-order reflections from the walls, floor and ceiling. For each experiment all the clusters corresponding to LOS, first-order and second-order reflections were identified (when they were not blocked by other objects like table or chairs). The RMS deviation of the measured TX and RX azimuth and elevation angles from the ones predicted by the geometrical optics (GO) was found to be equal to 10 deg (with taking into account 17 deg 3 d. B antenna beamwidth and 10 deg angle measurement step). The reflection coefficient was from -4 to -18 d. B for first-order reflections and from -9 to -21 d. B for second-order reflections The clusters with the most deviation from GO were due to reflections from the specific objects like metal window jalousie or air-conditioning system at the ceiling. Submission 10 Alexander Maltsev, Intel

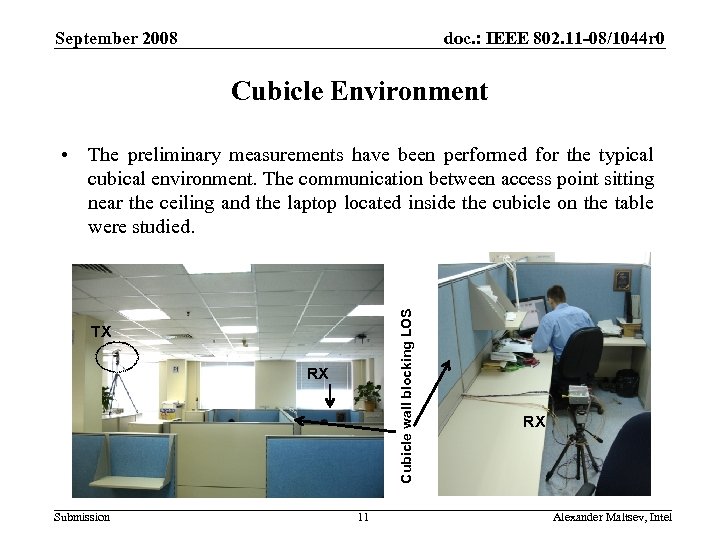

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Cubicle Environment Cubicle wall September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Cubicle Environment Cubicle wall blocking LOS • The preliminary measurements have been performed for the typical cubical environment. The communication between access point sitting near the ceiling and the laptop located inside the cubicle on the table were studied. TX RX Submission 11 RX Alexander Maltsev, Intel

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Experiment in Cubicle Environment September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Experiment in Cubicle Environment • • The block diagram of the performed experiment is shown in the figure below (vertical plane). In the horizontal plane the LOS direction is perpendicular to the cubicle wall Submission 12 Alexander Maltsev, Intel

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Example of Experiment in September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Example of Experiment in Cubicle Environment • • Obtained RX power distribution vs. RX and TX elevation angles with RX and TX azimuth angles equal to 0 deg All the clusters shown in the previous slide may be identified in the figure 3 2 1 4 Submission 13 Alexander Maltsev, Intel

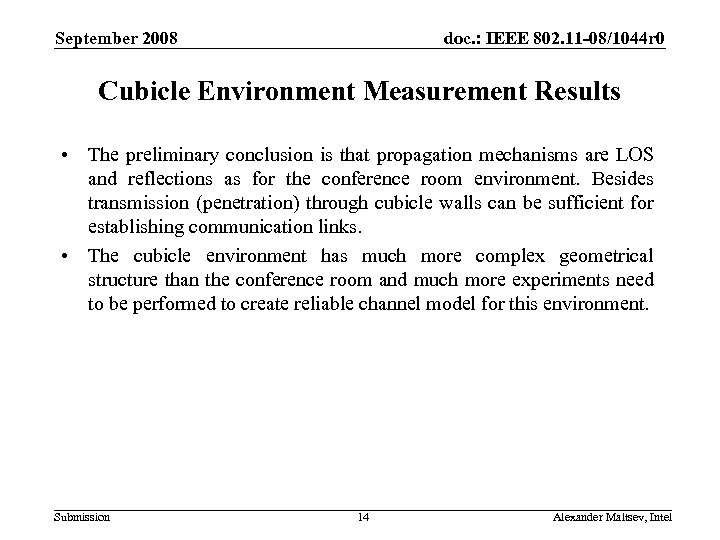

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Cubicle Environment Measurement Results September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Cubicle Environment Measurement Results • The preliminary conclusion is that propagation mechanisms are LOS and reflections as for the conference room environment. Besides transmission (penetration) through cubicle walls can be sufficient for establishing communication links. • The cubicle environment has much more complex geometrical structure than the conference room and much more experiments need to be performed to create reliable channel model for this environment. Submission 14 Alexander Maltsev, Intel

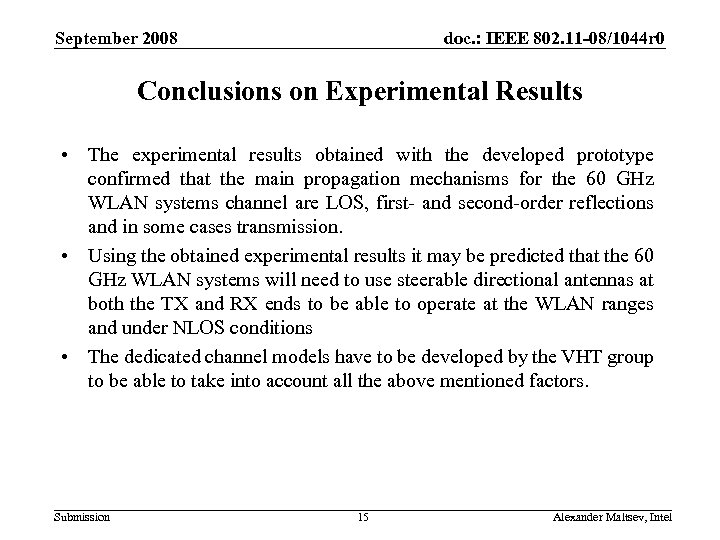

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conclusions on Experimental Results September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conclusions on Experimental Results • The experimental results obtained with the developed prototype confirmed that the main propagation mechanisms for the 60 GHz WLAN systems channel are LOS, first- and second-order reflections and in some cases transmission. • Using the obtained experimental results it may be predicted that the 60 GHz WLAN systems will need to use steerable directional antennas at both the TX and RX ends to be able to operate at the WLAN ranges and under NLOS conditions • The dedicated channel models have to be developed by the VHT group to be able to take into account all the above mentioned factors. Submission 15 Alexander Maltsev, Intel

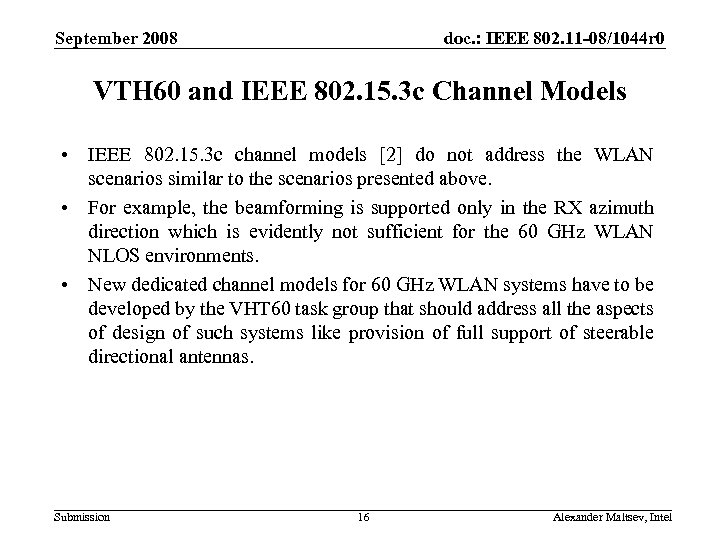

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 VTH 60 and IEEE September 2008 doc. : IEEE 802. 11 -08/1044 r 0 VTH 60 and IEEE 802. 15. 3 c Channel Models • IEEE 802. 15. 3 c channel models [2] do not address the WLAN scenarios similar to the scenarios presented above. • For example, the beamforming is supported only in the RX azimuth direction which is evidently not sufficient for the 60 GHz WLAN NLOS environments. • New dedicated channel models for 60 GHz WLAN systems have to be developed by the VHT 60 task group that should address all the aspects of design of such systems like provision of full support of steerable directional antennas. Submission 16 Alexander Maltsev, Intel

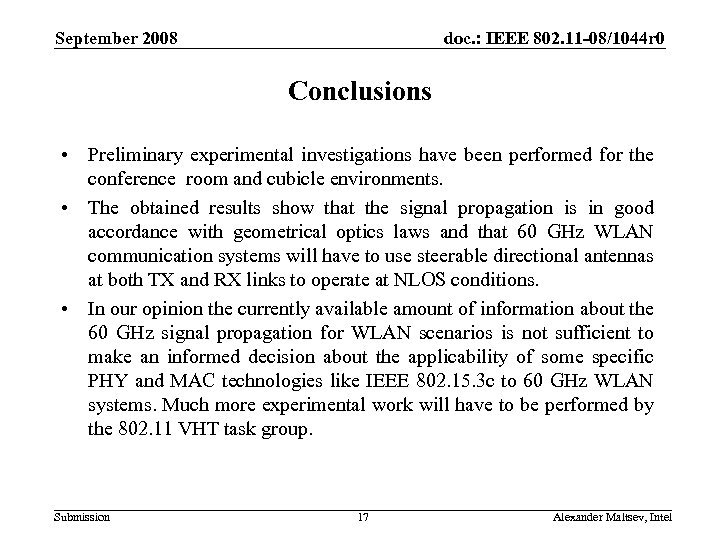

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conclusions • Preliminary experimental September 2008 doc. : IEEE 802. 11 -08/1044 r 0 Conclusions • Preliminary experimental investigations have been performed for the conference room and cubicle environments. • The obtained results show that the signal propagation is in good accordance with geometrical optics laws and that 60 GHz WLAN communication systems will have to use steerable directional antennas at both TX and RX links to operate at NLOS conditions. • In our opinion the currently available amount of information about the 60 GHz signal propagation for WLAN scenarios is not sufficient to make an informed decision about the applicability of some specific PHY and MAC technologies like IEEE 802. 15. 3 c to 60 GHz WLAN systems. Much more experimental work will have to be performed by the 802. 11 VHT task group. Submission 17 Alexander Maltsev, Intel

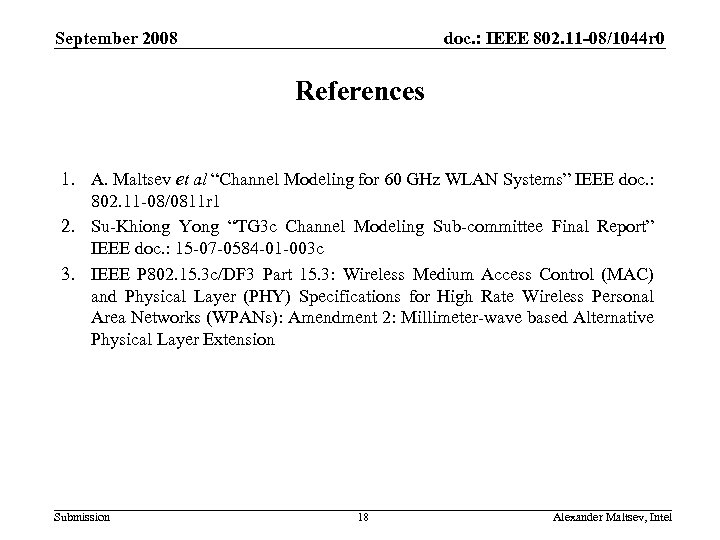

September 2008 doc. : IEEE 802. 11 -08/1044 r 0 References 1. A. Maltsev September 2008 doc. : IEEE 802. 11 -08/1044 r 0 References 1. A. Maltsev et al “Channel Modeling for 60 GHz WLAN Systems” IEEE doc. : 802. 11 -08/0811 r 1 2. Su-Khiong Yong “TG 3 c Channel Modeling Sub-committee Final Report” IEEE doc. : 15 -07 -0584 -01 -003 c 3. IEEE P 802. 15. 3 c/DF 3 Part 15. 3: Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for High Rate Wireless Personal Area Networks (WPANs): Amendment 2: Millimeter-wave based Alternative Physical Layer Extension Submission 18 Alexander Maltsev, Intel
