SEPABEADS FUNCTIONALISED POLYMERS FOR CHROMATOGRAPHY

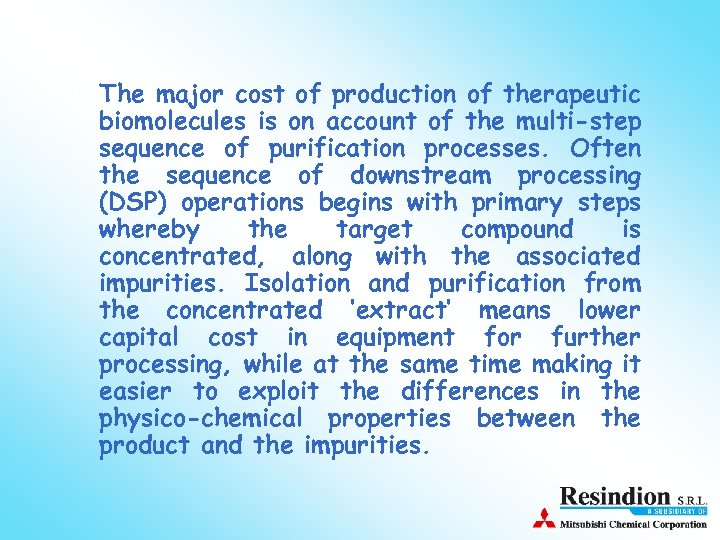

• The major cost of production of therapeutic biomolecules is on account of the multi-step sequence of purification processes. Often the sequence of downstream processing (DSP) operations begins with primary steps whereby the target compound is concentrated, along with the associated impurities. Isolation and purification from the concentrated ‘extract’ means lower capital cost in equipment for further processing, while at the same time making it easier to exploit the differences in the physico-chemical properties between the product and the impurities.

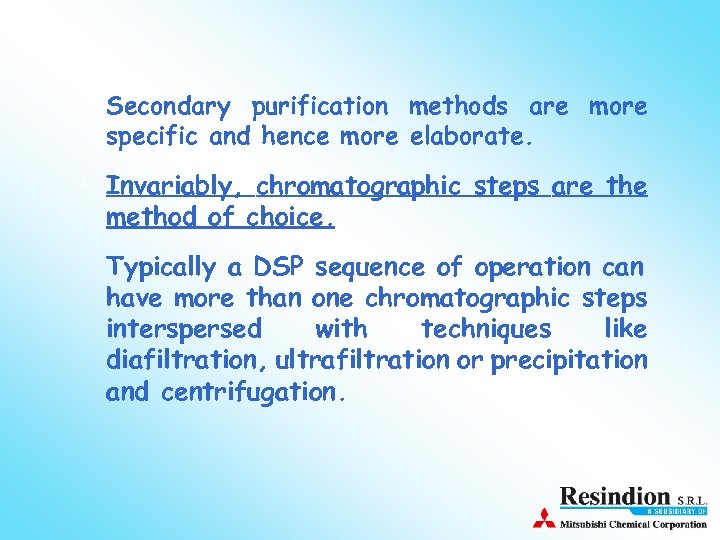

• Secondary purification methods are more specific and hence more elaborate. • Invariably, chromatographic steps are the method of choice. Typically a DSP sequence of operation can have more than one chromatographic steps interspersed with techniques like diafiltration, ultrafiltration or precipitation and centrifugation.

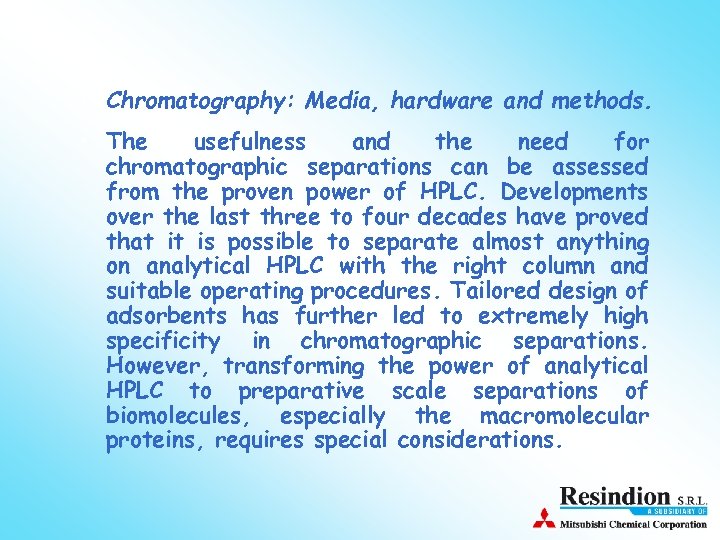

• Chromatography: Media, hardware and methods. • The usefulness and the need for chromatographic separations can be assessed from the proven power of HPLC. Developments over the last three to four decades have proved that it is possible to separate almost anything on analytical HPLC with the right column and suitable operating procedures. Tailored design of adsorbents has further led to extremely high specificity in chromatographic separations. However, transforming the power of analytical HPLC to preparative scale separations of biomolecules, especially the macromolecular proteins, requires special considerations.

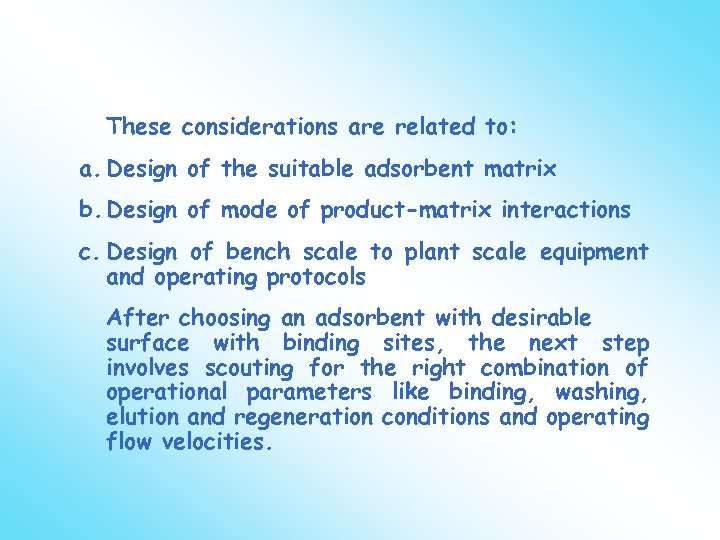

• These considerations are related to: a. Design of the suitable adsorbent matrix b. Design of mode of product-matrix interactions c. Design of bench scale to plant scale equipment and operating protocols After choosing an adsorbent with desirable surface with binding sites, the next step involves scouting for the right combination of operational parameters like binding, washing, elution and regeneration conditions and operating flow velocities.

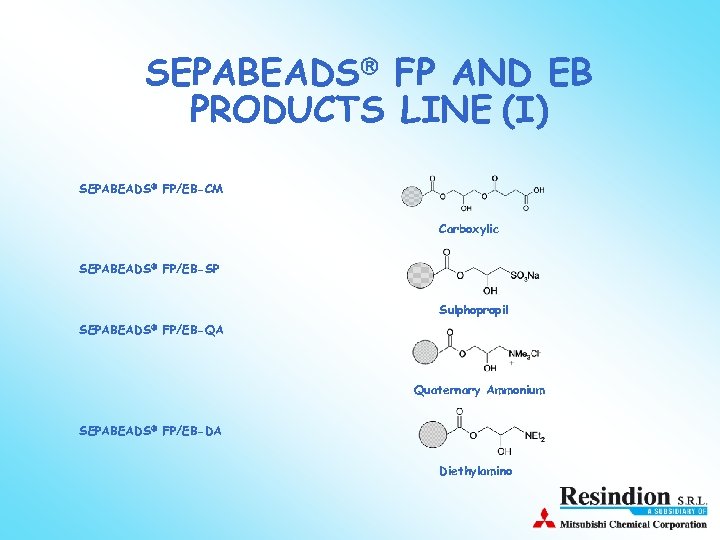

SEPABEADS FP AND EB PRODUCTS LINE (I) SEPABEADS FP/EB-CM Carboxylic SEPABEADS FP/EB-SP Sulphopropil SEPABEADS FP/EB-QA Quaternary Ammonium SEPABEADS FP/EB-DA Diethylamino

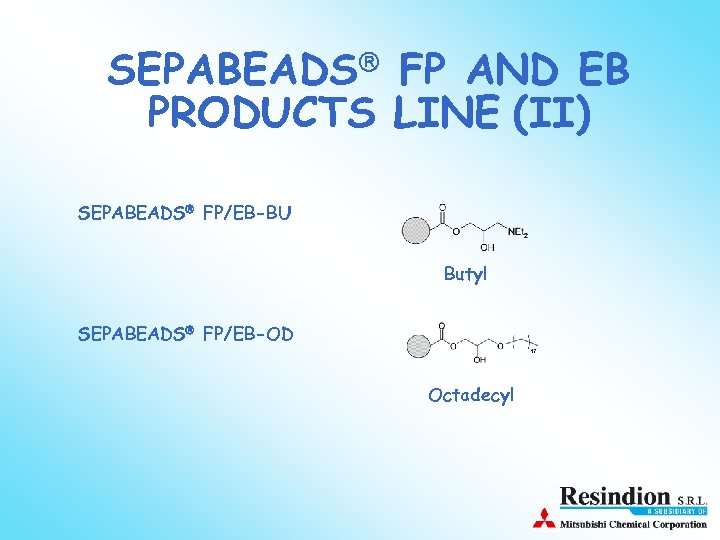

SEPABEADS FP AND EB PRODUCTS LINE (II) SEPABEADS FP/EB-BU Butyl SEPABEADS FP/EB-OD Octadecyl

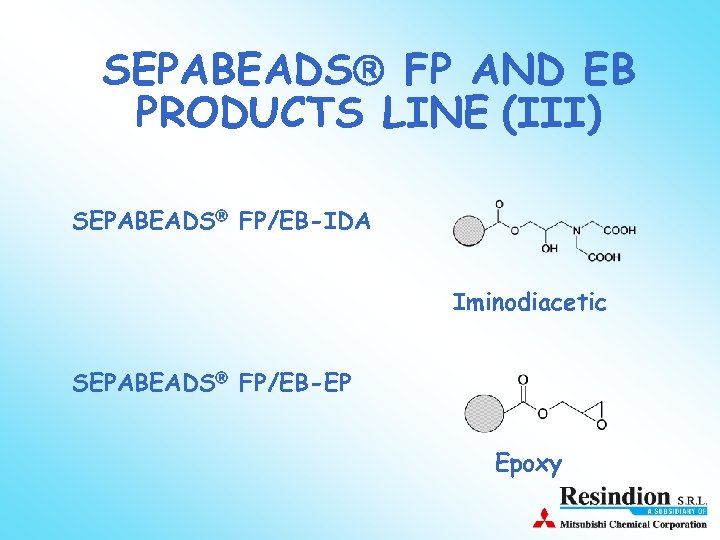

SEPABEADS FP AND EB PRODUCTS LINE (III) SEPABEADS FP/EB-IDA Iminodiacetic SEPABEADS FP/EB-EP Epoxy
SEPABEADS FP AND EB PRODUCTS LINE (IV) Particle size: Ø FP line: 90 – 250 µm Ø EB line: 150 – 300 µm Pore diameter: 80 – 150 nm Ø Also available with pore diameter > 500 nm

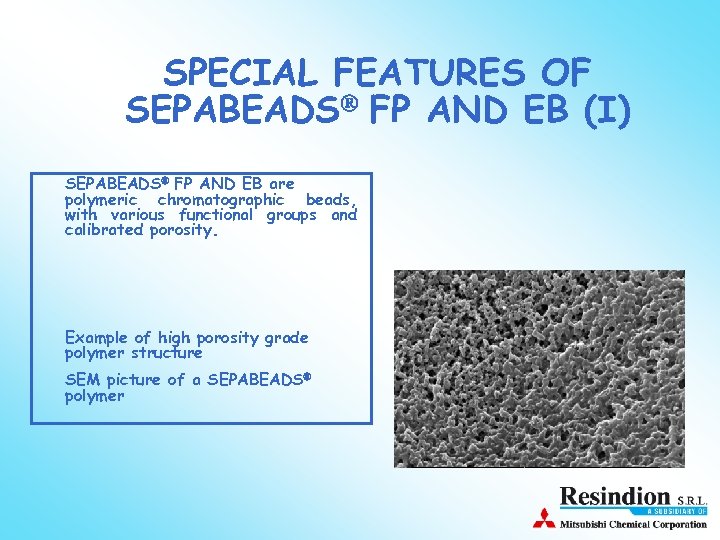

SPECIAL FEATURES OF SEPABEADS FP AND EB (I) SEPABEADS FP AND EB are polymeric chromatographic beads, with various functional groups and calibrated porosity. Example of high porosity grade polymer structure SEM picture of a SEPABEADS polymer
SPECIAL FEATURES OF SEPABEADS FP AND EB (II) Ø A rigid highly porous and hydrophilic acrylic matrix characterize the SEPABEADS line allowing to overcome many of the difficulties generally associated with use of soft gel media (i. e. dextrane, agarose, cellulose derivatives). Ø Stability, easy handling and economic advantages make SEPABEADS suitable for industrial use at various scale processing in fixed bed (FP series) and expanded bed (EB series) application mode. Ø The high specific gravity (> 1. 1) allows controlled bed expansion and easy settlement
SPECIAL FEATURES OF SEPABEADS FP AND EB (III)

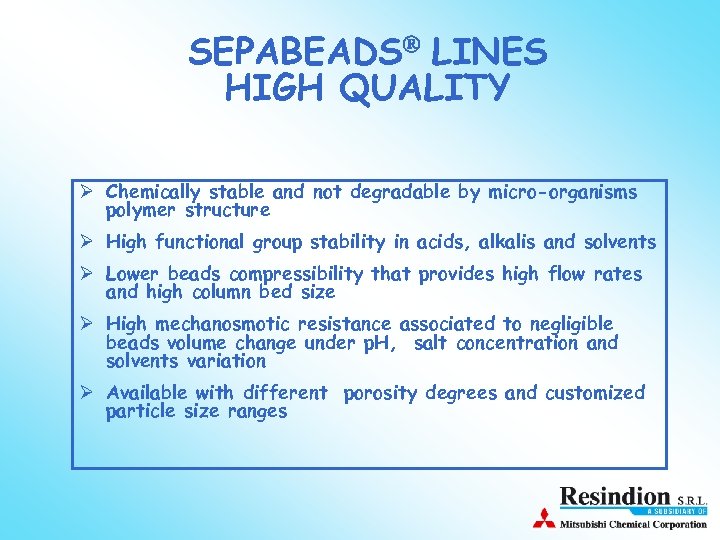

SEPABEADS LINES HIGH QUALITY Ø Chemically stable and not degradable by micro-organisms polymer structure Ø High functional group stability in acids, alkalis and solvents Ø Lower beads compressibility that provides high flow rates and high column bed size Ø High mechanosmotic resistance associated to negligible beads volume change under p. H, salt concentration and solvents variation Ø Available with different porosity degrees and customized particle size ranges

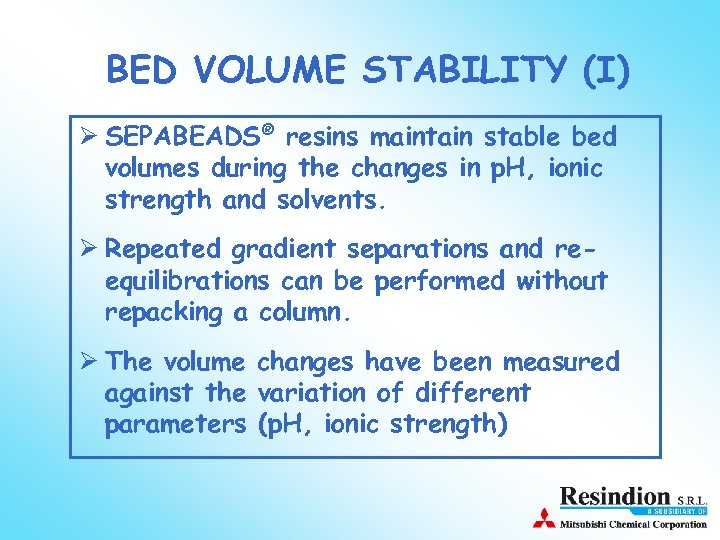

BED VOLUME STABILITY (I) Ø SEPABEADS® resins maintain stable bed volumes during the changes in p. H, ionic strength and solvents. Ø Repeated gradient separations and reequilibrations can be performed without repacking a column. Ø The volume changes have been measured against the variation of different parameters (p. H, ionic strength)

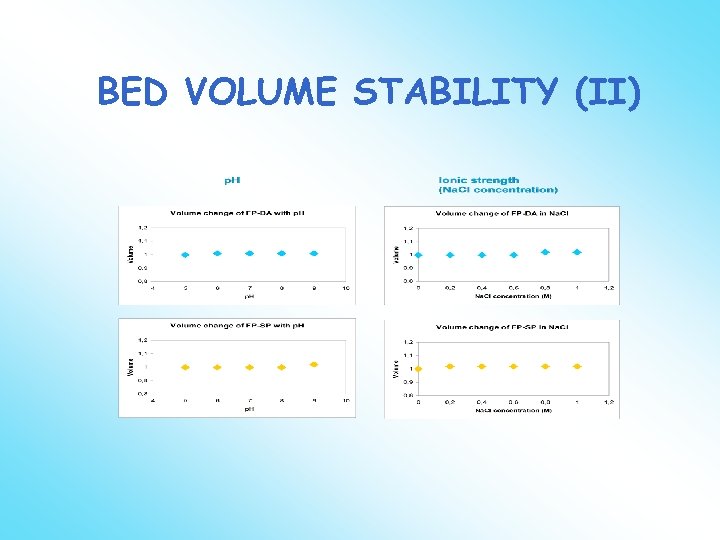

BED VOLUME STABILITY (II)

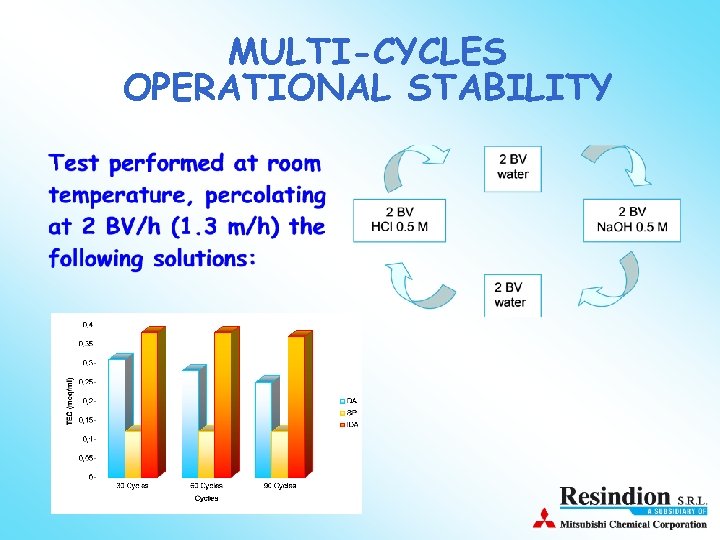

MULTI-CYCLES OPERATIONAL STABILITY

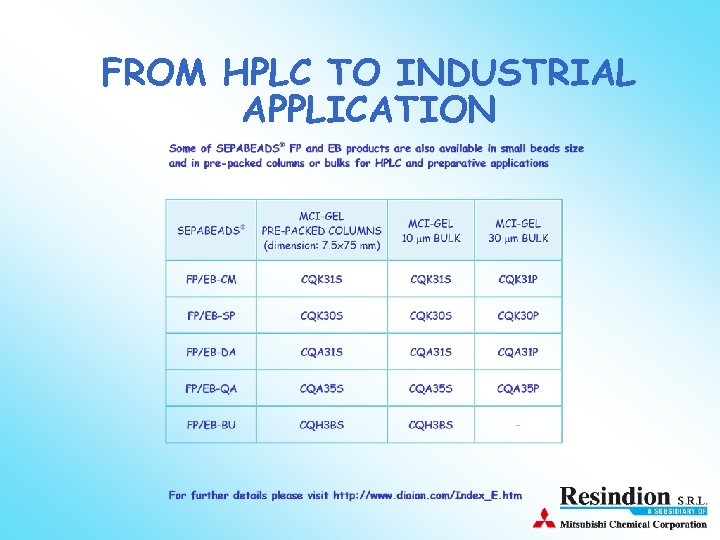

FROM HPLC TO INDUSTRIAL APPLICATION

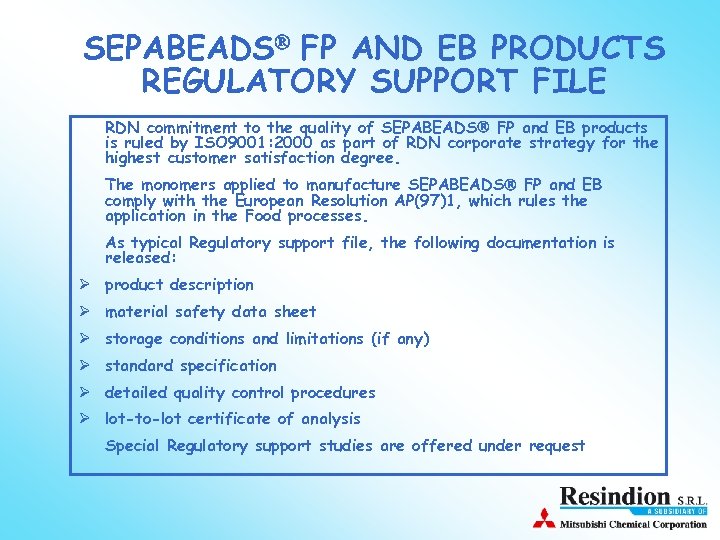

SEPABEADS FP AND EB PRODUCTS REGULATORY SUPPORT FILE RDN commitment to the quality of SEPABEADS FP and EB products is ruled by ISO 9001: 2000 as part of RDN corporate strategy for the highest customer satisfaction degree. The monomers applied to manufacture SEPABEADS FP and EB comply with the European Resolution AP(97)1, which rules the application in the Food processes. As typical Regulatory support file, the following documentation is released: Ø product description Ø material safety data sheet Ø storage conditions and limitations (if any) Ø standard specification Ø detailed quality control procedures Ø lot-to-lot certificate of analysis Special Regulatory support studies are offered under request
