“Selling” the concept of CHP and advanced metering – garnering stakeholder buy-in • Nag “Selling” the concept of CHP and advanced metering – garnering stakeholder buy-in • Nag Patibandla • New York State Energy Research and Development Authority • Albany, New York METCOGEN, 6 -8 October 2004, New York

New York’s DG (/CHP) Incentives • • • $15 Million SBC Funds through NYSERDA New York’s DG (/CHP) Incentives • • • $15 Million SBC Funds through NYSERDA Standby Service Rates: CHP Exemptions and Phase-ins Std. Interconnection Requirements (in Update) Electric Utility DG Pilot Program (Grid Upgrade vs. DG) DG Gas Distribution Prices + Gas Utility DG Programs State Education Dept Funding for K-12 Schools NYC EDC – Energy Cost Savings Program Elimination of flex-rate deterrent (in development) Air Emissions Standards (in development) Emissions Reduction Credits (in development)

NYSERDA’s DG-CHP Program • Develop & Demonstrate Innovative DG Technologies & CHP Applications • NYSERDA’s DG-CHP Program • Develop & Demonstrate Innovative DG Technologies & CHP Applications • Support site-specific and sector wide feasibility studies and replication • Monitor Performance and Reduce Hurdles through Shared Knowledge • Install Megawatts of Generation Capacity • Funding: Cost share of 30 – 60% of Project cost subject to a cap of $1 million per project

Where Does DG/CHP Make Sense On Customer Side • Capacity constrained. High electric demands Where Does DG/CHP Make Sense On Customer Side • Capacity constrained. High electric demands • High thermal (steam, hot water, or direct heat) demands • Coincident thermal and electric demands • • Extended operating hours Access to fuels (byproducts, natural gas) On Utility Side 30% CHP – On Peak Only Operation Grid Capacity Utilized at 60%

Cumulative CHP Market Penetration Projection by 2012 (MW) CHP System Size Business As Usual Cumulative CHP Market Penetration Projection by 2012 (MW) CHP System Size Business As Usual Accelerated 50 to 500 k. W 0 61 500 k. W to 1 MW 92 331 1 MW to 5 MW 204 699 5 MW to 20 MW 208 704 > 20 MW 260 374 Total 764 2, 169

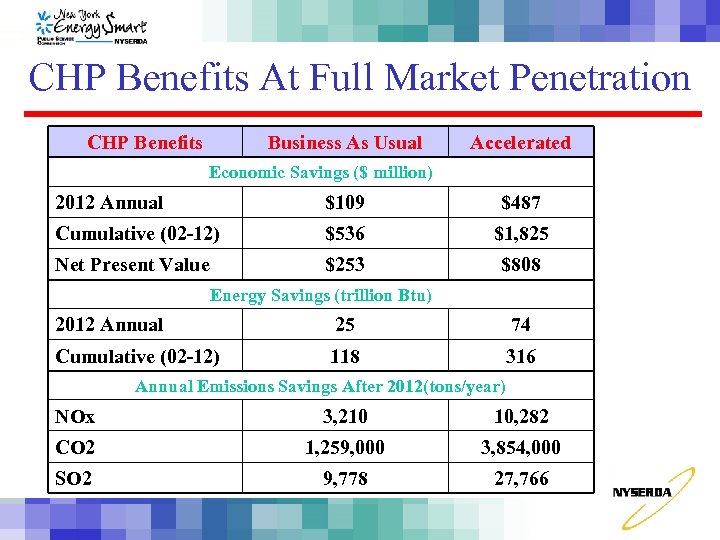

CHP Benefits At Full Market Penetration CHP Benefits Business As Usual Accelerated Economic Savings CHP Benefits At Full Market Penetration CHP Benefits Business As Usual Accelerated Economic Savings ($ million) 2012 Annual $109 $487 Cumulative (02 -12) $536 $1, 825 Net Present Value $253 $808 Energy Savings (trillion Btu) 2012 Annual 25 74 Cumulative (02 -12) 118 316 Annual Emissions Savings After 2012(tons/year) NOx 3, 210 10, 282 CO 2 1, 259, 000 3, 854, 000 SO 2 9, 778 27, 766

NYSERDA’s DG-CHP Demonstration Program Installations (k. W) Technology Total Capacity Typical Size Engines 60 NYSERDA’s DG-CHP Demonstration Program Installations (k. W) Technology Total Capacity Typical Size Engines 60 80, 214 500 -750 Gas Turbines 1 15, 500 N/A Microturbines 22 3, 428 60 -75 Steam Turbines 5 4, 398 300 -500 Fuel Cells 8 5450 200 -250 Totals No. of Projects 96 108, 990 1, 000

SUNY Buffalo/Grester Trane • • • Two 60 k. W Capstones • Funding: NYSERDA: SUNY Buffalo/Grester Trane • • • Two 60 k. W Capstones • Funding: NYSERDA: $310000 + SUNY & Grester Trane: $310, 000 • • Status: Currently Operational Peak Reduction: 300 k. W Application: Swimming Pool – Power to water pumps – Heat to electric water heaters Savings: 2000 MWh/yr, $73, 000 per year

Greater Rochester International Airport • • Two 750 k. W Natural gas Recip. engines Greater Rochester International Airport • • Two 750 k. W Natural gas Recip. engines Heat recovered for space and DHW heating and a 300 ton absorber NYSERDA: $500, 000; GRIA $2, 000 Status: Fully Operational.

Waldbaums Supermarket • • • Utilize one Capstone 60 k. W Microturbine. Integrated with Waldbaums Supermarket • • • Utilize one Capstone 60 k. W Microturbine. Integrated with Munters Dry. Cool Desiccant. Annual energy savings of over $50, 000 with a sixyear payback Good opportunity for technology transfer. Lessons in Interconnection.

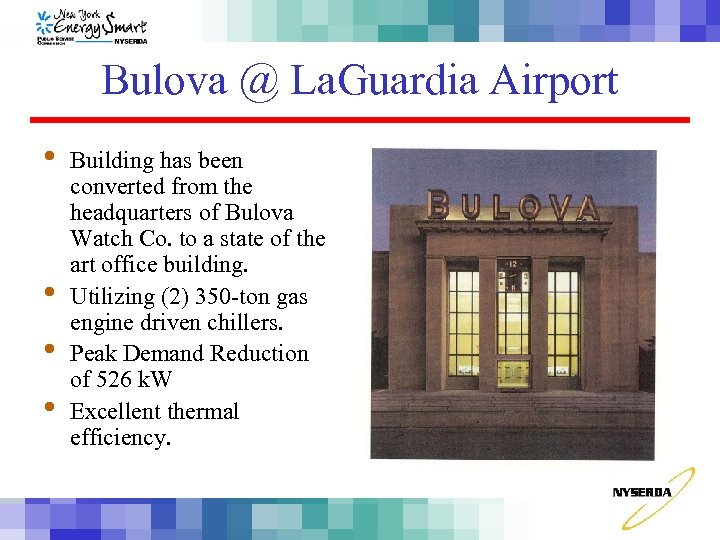

Bulova @ La. Guardia Airport • • Building has been converted from the headquarters Bulova @ La. Guardia Airport • • Building has been converted from the headquarters of Bulova Watch Co. to a state of the art office building. Utilizing (2) 350 -ton gas engine driven chillers. Peak Demand Reduction of 526 k. W Excellent thermal efficiency.

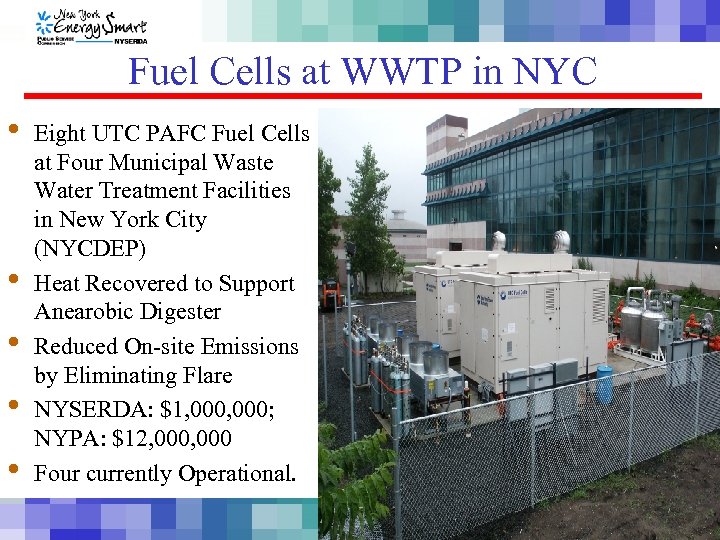

Fuel Cells at WWTP in NYC • • • Eight UTC PAFC Fuel Cells Fuel Cells at WWTP in NYC • • • Eight UTC PAFC Fuel Cells at Four Municipal Waste Water Treatment Facilities in New York City (NYCDEP) Heat Recovered to Support Anearobic Digester Reduced On-site Emissions by Eliminating Flare NYSERDA: $1, 000; NYPA: $12, 000 Four currently Operational.

DG-CHP Challenges • • • Regional CHP Activity - Lack of similar CHP (/DG) DG-CHP Challenges • • • Regional CHP Activity - Lack of similar CHP (/DG) interest among various states Standby Rates - NYS PSC developed standby tariffs with CHP exemptions and phase-ins, other states like MA are in the process of developing tariffs Emissions Standard - NYS DEC is in the process of developing air emissions standards. Others ? Interconnection – NYS is in the process of updating its SIR to 1 MW and to networks Utility Buy-In - Grid support, congestion mitigation, alternative to grid expansion/upgrade, utility ownership or access to excess capacity

Net Metering • Net metering turns the electric meter backwards when the DG is Net Metering • Net metering turns the electric meter backwards when the DG is producing energy in excess of the demand. • Enables the use DG to offset consumption over a billing period. • Customers receive retail prices for the electricity produced and used onsite. • Without net metering, a separate meter measures electricity that flows back to the utility typically at a wholesale price that is much lower than the retail rate.

Net Metering • In 2002, Governor Pataki signed a farm net metering law that Net Metering • In 2002, Governor Pataki signed a farm net metering law that required utilities to provide net metering to farms that generate electricity from methane wastes. – 400 k. VA or smaller, 80% methane waste, on farm-uses – typical farmer can save about $6, 000 a year in energy costs • Residential PV systems smaller than 10 k. W enjoy net metering benefits also.

 New York’s CHP Program Summary • Supporting 96 demo projects, 50+ feasibility/Tech Trans. New York’s CHP Program Summary • Supporting 96 demo projects, 50+ feasibility/Tech Trans. studies – – • NYSERDA funding of $47 million (in ~$220 M) Additional capacities of 40 MW and 48 MW in ’ 05 and ’ 06, respectively 27 Projects with a total installed capacity of 12 MW in operation Expect to reach 20 MW of capacity the end of 2004 (peak demand reduction of 26 MW) CHP applications in industrial, agricultural, municipal, institutional, commercial, and residential sectors • Field-Performance: Monitoring and Data Collection is Underway
