Security Systems BU Communication Systems Plena Voice Alarm System Commercial Presentation Slide 1
Security Systems BU Communication Systems Now Plena also brings “The ease of amplification” to the Voice Alarm market with the new Plena Voice Alarm System Slide 2

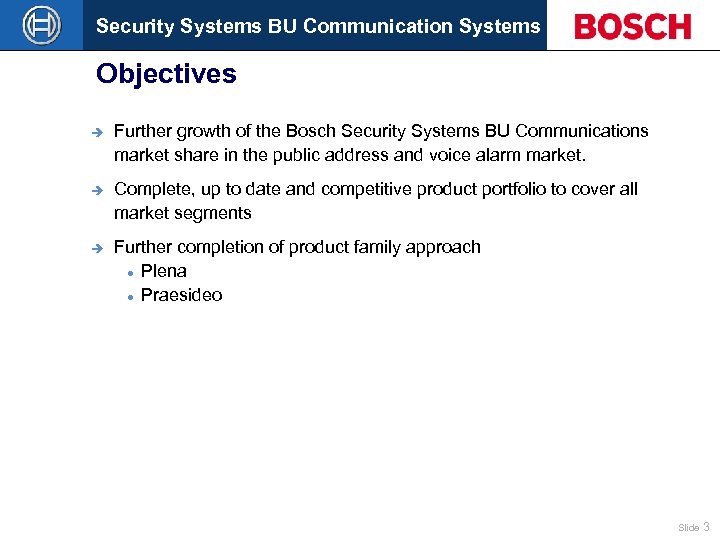

Security Systems BU Communication Systems Objectives è Further growth of the Bosch Security Systems BU Communications market share in the public address and voice alarm market. è Complete, up to date and competitive product portfolio to cover all market segments è Further completion of product family approach Plena Praesideo Slide 3

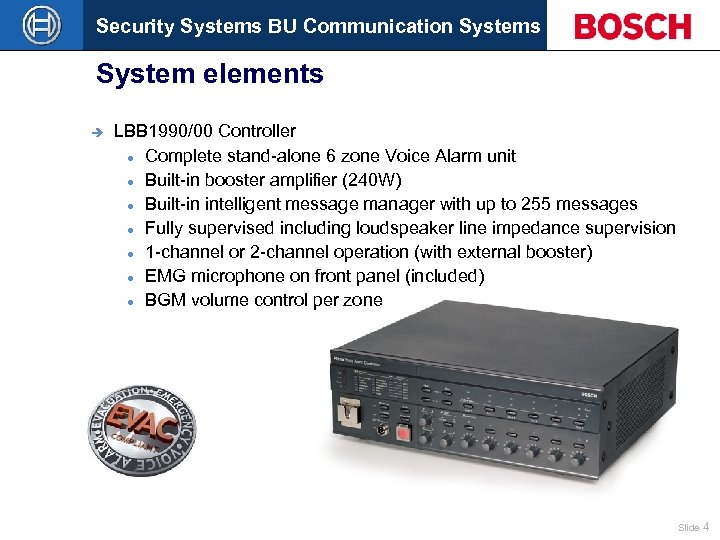

Security Systems BU Communication Systems System elements è LBB 1990/00 Controller Complete stand-alone 6 zone Voice Alarm unit Built-in booster amplifier (240 W) Built-in intelligent message manager with up to 255 messages Fully supervised including loudspeaker line impedance supervision 1 -channel or 2 -channel operation (with external booster) EMG microphone on front panel (included) BGM volume control per zone Slide 4

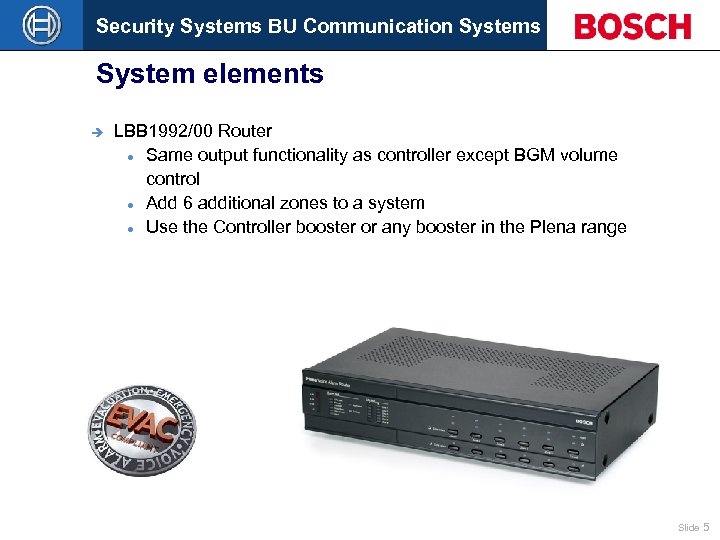

Security Systems BU Communication Systems System elements è LBB 1992/00 Router Same output functionality as controller except BGM volume control Add 6 additional zones to a system Use the Controller booster or any booster in the Plena range Slide 5
Security Systems BU Communication Systems System elements è LBB 1956/00 Call Station 6 Programmable keys and an all-call button Fault-, EMG-, power OK and Zone indication Built-in Limiter Business calls only (not supervised) è LBB 1957/00 Call Station keypad Add 7 programmable keys to Call Station è Up to 2 Remote Control Panels (RCP) can be connected (Phase 2) Same user interface as the Controller / Router (limited BGM control) Up to 9 RCP extensions can be connected Also available as a kit Slide 6
Security Systems BU Communication Systems Key features Complete Voice Alarm & Public Address solution è IEC 60849 Compliant è Easy to install è Easy to expand è Easy to operate è Economic solution for small to medium sized applications. Slide 7
Security Systems BU Communication Systems Key features IEC 60849 Compliant è Fully supervised including emergency microphone on front panel system interconnections loudspeaker line impedance supervision except call stations è Spare amplifier switching è Built-in supervised message manager with unique message merge functionality Slide 8

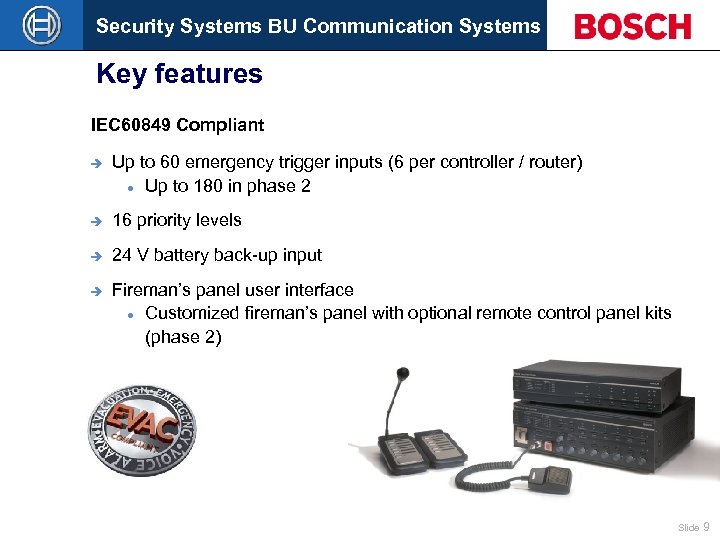

Security Systems BU Communication Systems Key features IEC 60849 Compliant è Up to 60 emergency trigger inputs (6 per controller / router) Up to 180 in phase 2 è 16 priority levels è 24 V battery back-up input è Fireman’s panel user interface Customized fireman’s panel with optional remote control panel kits (phase 2) Slide 9
Security Systems BU Communication Systems Key features Easy to expand è Out of the box supervised 6 zone Voice Alarm System è Expandable up to 60 zones using additional Routers è Additional power or 2 channel operation by adding Plena Booster Amplifiers Up to 480 Watt per 6 zones è Up to 8 call stations and 32 keypads è Up to 2 Remote Control Panels è Easily integrate with other systems like Praesideo (phase 2) Slide 10

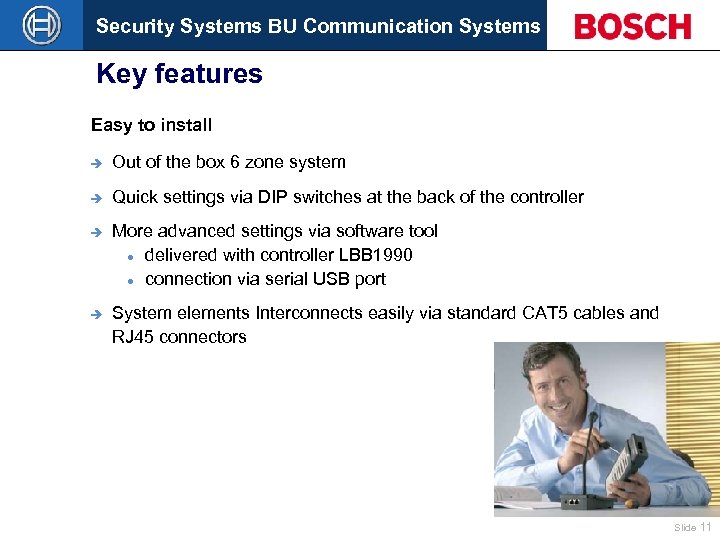

Security Systems BU Communication Systems Key features Easy to install è Out of the box 6 zone system è Quick settings via DIP switches at the back of the controller è More advanced settings via software tool delivered with controller LBB 1990 connection via serial USB port è System elements Interconnects easily via standard CAT 5 cables and RJ 45 connectors Slide 11
Security Systems BU Communication Systems Key features Easy to operate è Clear user interface on front panels è Customized label for EVAC button on Controller / Remote Control Panel è Emergency, Power, Call, Fault and Zone indication on call station è Call station key labeling as on the LBB 1946/00 Slide 12
Security Systems BU Communication Systems IEC 60849 Conformity è The Plena Voice Alarm System will be tested by the TUV to confirm IEC 60849 compliancy è Official TUV test report will be used in the market to proof compliancy è The Plena Voice Alarm System will not be IEC 60849 Certified like Praesideo Slide 13
Security Systems BU Communication Systems Product positioning (current) Praesideo System Integrators Installers/VAR’s SM 25 B SM 30 Plena Wholesalers Maximum Zones 6 12 18/36 240 > Slide 14

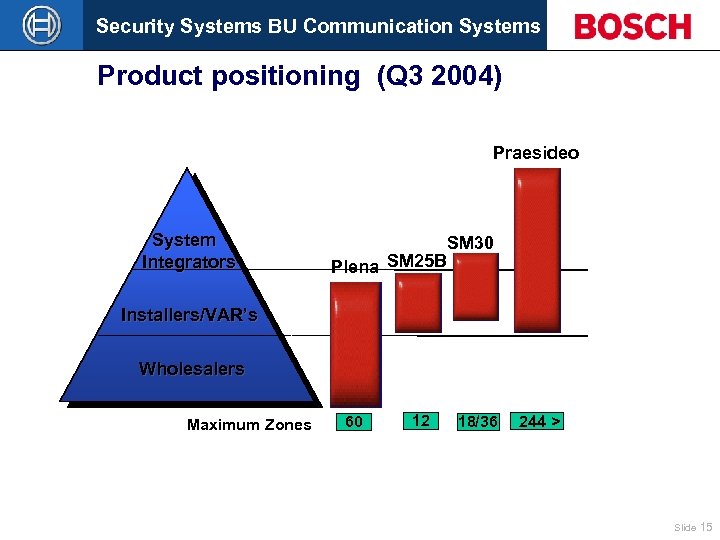

Security Systems BU Communication Systems Product positioning (Q 3 2004) Praesideo System Integrators Plena SM 25 B SM 30 Installers/VAR’s Wholesalers Maximum Zones 60 12 18/36 244 > Slide 15

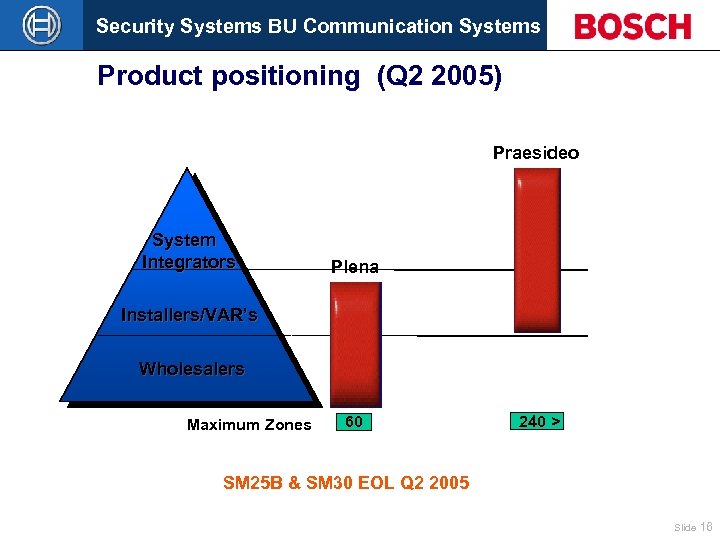

Security Systems BU Communication Systems Product positioning (Q 2 2005) Praesideo System Integrators Plena Installers/VAR’s Wholesalers Maximum Zones 60 240 > SM 25 B & SM 30 EOL Q 2 2005 Slide 16
Security Systems BU Communication Systems Product positioning vs Praesideo Main differences Analog system Fully digital system 100 V line switching Digital matrix switching 1 or 2 channel operation 28 audio channels Up to 60 zones Up to 240 zones per system Up to 480 Watt per 6 zones Unlimited power per zone Slide 17
Security Systems BU Communication Systems Product positioning vs Praesideo Main differences To be used with Plena Booster Ampl. Dedicated Praesideo amplifiers Loudspeaker impedance supervision WLS Loudspeaker line supervision Call stations not supervised Fully supervised Integrated fireman’s panel interface Custom made panels CAT 5 cable with RJ 45 connectors Optical fiber cable Alarm tones & chimes are WAV files Generated by Network Controller Slide 18
Security Systems BU Communication Systems Product positioning Correct positioning of the Plena Voice Alarm System is essential. Application types: è Small systems where compliance to IEC 60849 standard is required è Systems with many small zones (e. g. schools) è Medium-sized systems where 1 call channel is enough Slide 19
Security Systems BU Communication Systems Application Areas Recreation Facilities Typical Requirements: è Up to 6 zones è IEC 60849 compliant è High power requirement in noisy sport / recreation area è Call station in reception and office è Paging and BGM functionality Slide 20

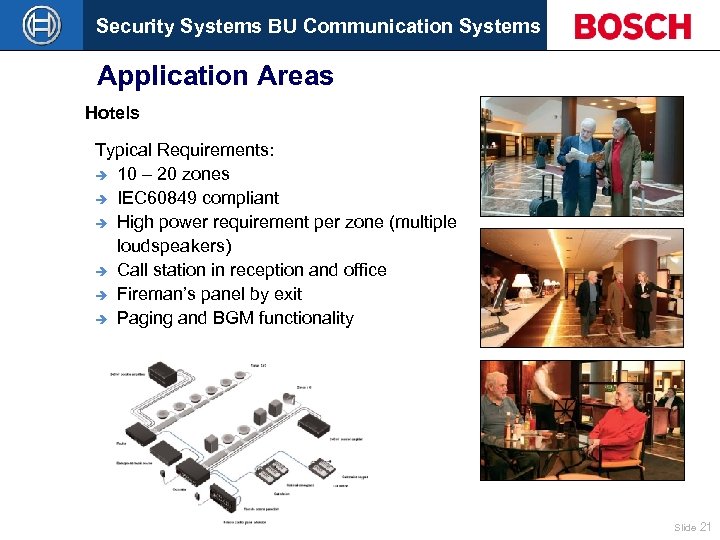

Security Systems BU Communication Systems Application Areas Hotels Typical Requirements: è 10 – 20 zones è IEC 60849 compliant è High power requirement per zone (multiple loudspeakers) è Call station in reception and office è Fireman’s panel by exit è Paging and BGM functionality Slide 21
Security Systems BU Communication Systems Application Areas Schools / Universities Typical Requirements: è 20 – 60 zones è IEC 60849 compliant è Low power requirement per zone (1 loudspeaker) è Call station in main office è Fireman’s panel by main entrance Slide 22
Security Systems BU Communication Systems Application Areas Shopping Malls Typical Requirements: è Up to 60 zones è IEC 60849 compliant è Low / medium power requirement per zone è Call station in security room è Fireman’s panel at exit è BGM in public areas and shops Slide 23
