Security Level 2018 3 18 Security Level Data Migration Service

Security Level: 2018/3/18 Security Level: Data Migration Service www. huawei. com HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

Introduction to Huawei Professional Service System for Storage and network security As a network security and information storage specialist, Huawei storage and network security product line develops professional service to meet customer requirements on one-stop product solutions and service solutions. It provides customers with fulldimensional and professional integrated value-added services. With multi-functional and customized service products, Huawei professionally escorts your service operation, helping you and your enterprise achieve success. We will fully focus on and solve the faced market and service challenges, and provide you with the customized and most valuable service solution. Let us seek our common success. IT Security Service Data and Storage Service HUAWEI TECHNOLOGIES CO. , LTD. • Security management Consulting • Security Evaluating • Security Hardening • Data Migration • Data Backup • Data Disaster Recovery Huawei Confidential

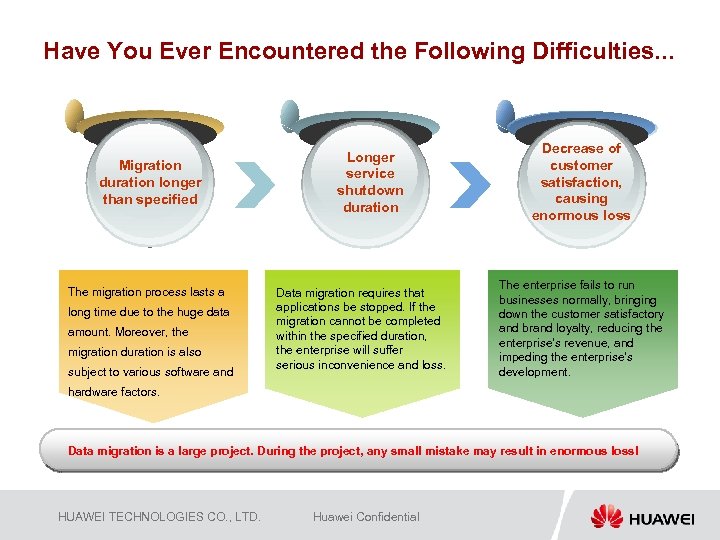

Have You Ever Encountered the Following Difficulties. . . Migration duration longer than specified The migration process lasts a long time due to the huge data amount. Moreover, the migration duration is also subject to various software and Longer service shutdown duration Data migration requires that applications be stopped. If the migration cannot be completed within the specified duration, the enterprise will suffer serious inconvenience and loss. Decrease of customer satisfaction, causing enormous loss The enterprise fails to run businesses normally, bringing down the customer satisfactory and brand loyalty, reducing the enterprise's revenue, and impeding the enterprise's development. hardware factors. Data migration is a large project. During the project, any small mistake may result in enormous loss! HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

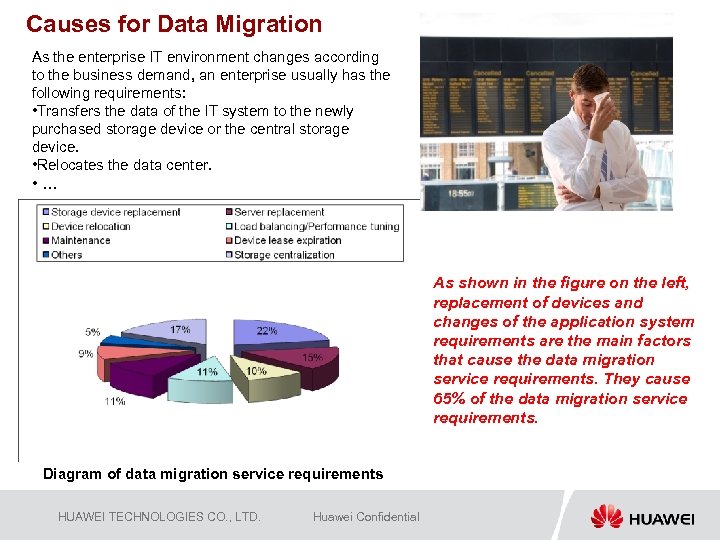

Causes for Data Migration As the enterprise IT environment changes according to the business demand, an enterprise usually has the following requirements: • Transfers the data of the IT system to the newly purchased storage device or the central storage device. • Relocates the data center. • … As shown in the figure on the left, replacement of devices and changes of the application system requirements are the main factors that cause the data migration service requirements. They cause 65% of the data migration service requirements. Diagram of data migration service requirements HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

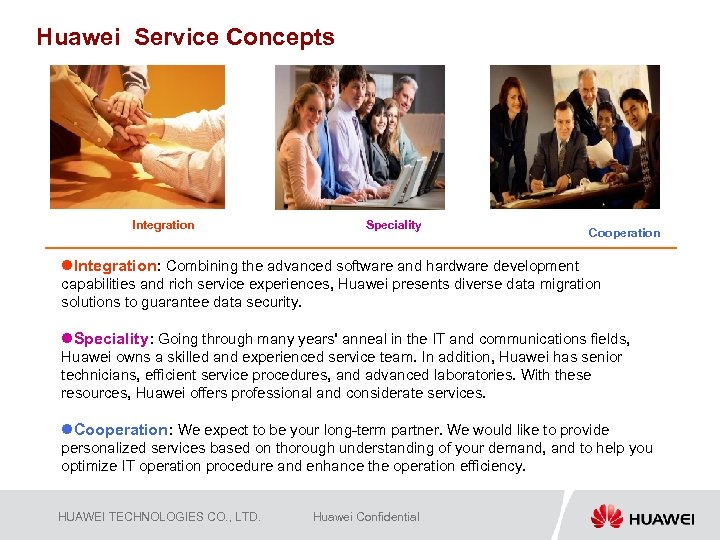

Huawei Service Concepts Integration Speciality Cooperation l. Integration: Combining the advanced software and hardware development capabilities and rich service experiences, Huawei presents diverse data migration solutions to guarantee data security. l. Speciality: Going through many years' anneal in the IT and communications fields, Huawei owns a skilled and experienced service team. In addition, Huawei has senior technicians, efficient service procedures, and advanced laboratories. With these resources, Huawei offers professional and considerate services. l. Cooperation: We expect to be your long-term partner. We would like to provide personalized services based on thorough understanding of your demand, and to help you optimize IT operation procedure and enhance the operation efficiency. HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

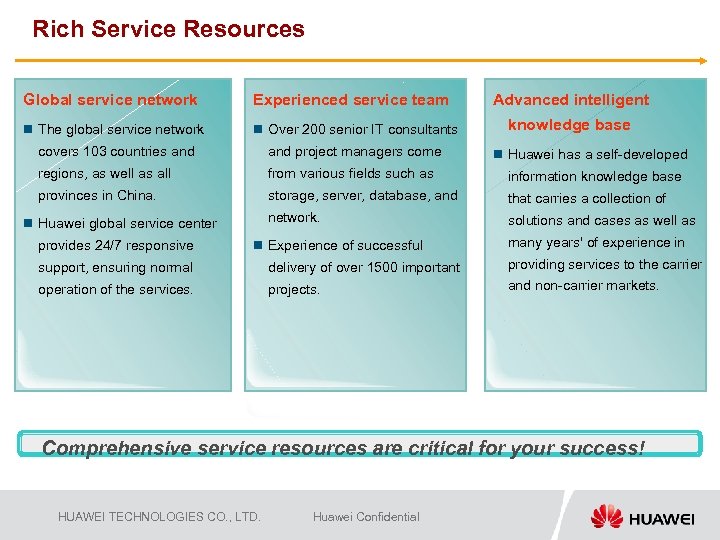

Rich Service Resources Global service network Experienced service team n The global service network n Over 200 senior IT consultants covers 103 countries and project managers come regions, as well as all from various fields such as information knowledge base provinces in China. storage, server, database, and that carries a collection of network. solutions and cases as well as n Huawei global service center provides 24/7 responsive n Experience of successful Advanced intelligent knowledge base n Huawei has a self-developed many years' of experience in support, ensuring normal delivery of over 1500 important providing services to the carrier operation of the services. projects. and non-carrier markets. Comprehensive service resources are critical for your success! HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

We Can… 1. Present you a tailored and complete migration solution. With a lot of practice and multiple data migration service packages, we provide you with tailored solutions. The service packages cover mainstream operating systems, databases, and NAS systems. 2. Provide diverse service methods to help you lower the TCO. We provide multiple service modes, such as special services, device leasing services, and customized services. You can choose one mode as required to reduce your total cost of ownership (TCO). ensuring data security; reduces the service shutdown duration and the impact of migration on services to ensure 3. Dispel your worries. Each implementation plan is delivered to the implementation team only after it has passed the lab verification. In addition, a lot of success cases, advanced project management methods, and an experienced implementation team ensure successful data migration, facilitating your business. HUAWEI TECHNOLOGIES CO. , LTD. Satisfies various kinds of data migration requirements while service continuity and to help you compete. Huawei Confidential

Overview of Data Migration Service Packages Overview Based on a platform, Huawei data migration service facilitates enterprise development with rich migration methods and flexible service modes! Service packages Data Migration Based on the Virtual Intelligent Storage (VIS) System n. Customers who buy the VIS product and the topology can change to connect into VIS n. Thanks to the server-free migration tool, the data migration process does not affect the work of the application system or occupy system resources. n. Supports smooth data migration between storage arrays from different vendors. Data Migration Based on LUN Copy on Third-Party Volume on Host OS for NAS n. No strict service downtime demand during data migration Management Software file system n. Does not change the topology of the application system. n. Does not require extra tools or resources. n. Have strict service downtime demand host OS support volume management software such as LVM, vxvm. n. Uses in the NAS topology environment n. Uses independent Fibre Channel or Ethernet connections, so does not occupy application system resources. HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential n. Support all main OS running file system. n. Multi-scheme to ensure little effect on service

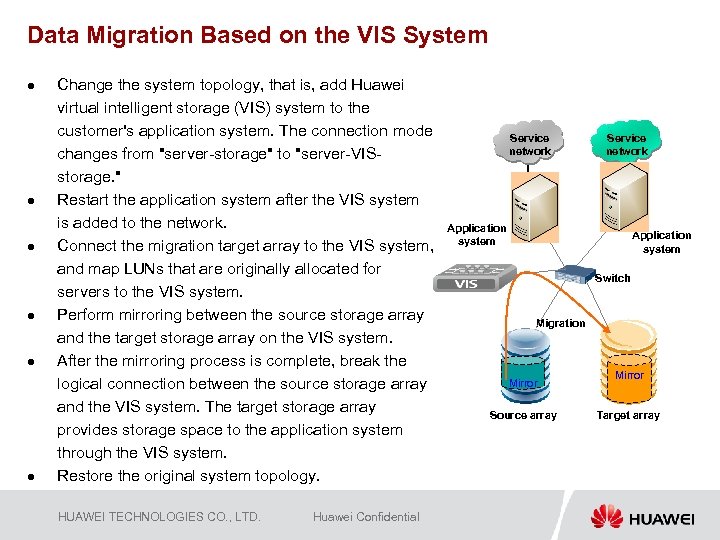

Data Migration Based on the VIS System l l l Change the system topology, that is, add Huawei virtual intelligent storage (VIS) system to the customer's application system. The connection mode changes from "server-storage" to "server-VISstorage. " Restart the application system after the VIS system is added to the network. Connect the migration target array to the VIS system, and map LUNs that are originally allocated for servers to the VIS system. Perform mirroring between the source storage array and the target storage array on the VIS system. After the mirroring process is complete, break the logical connection between the source storage array and the VIS system. The target storage array provides storage space to the application system through the VIS system. Restore the original system topology. HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Service network Application system Switch Migration Mirror Source array Mirror Target array

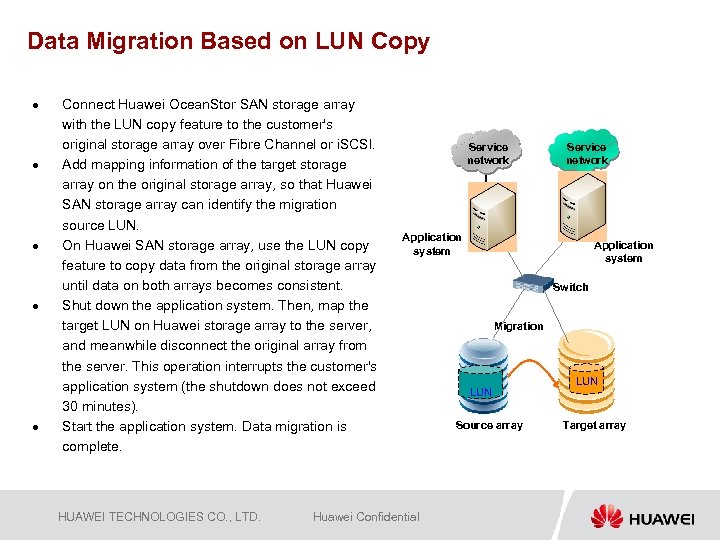

Data Migration Based on LUN Copy l l l Connect Huawei Ocean. Stor SAN storage array with the LUN copy feature to the customer's original storage array over Fibre Channel or i. SCSI. Add mapping information of the target storage array on the original storage array, so that Huawei SAN storage array can identify the migration source LUN. On Huawei SAN storage array, use the LUN copy feature to copy data from the original storage array until data on both arrays becomes consistent. Shut down the application system. Then, map the target LUN on Huawei storage array to the server, and meanwhile disconnect the original array from the server. This operation interrupts the customer's application system (the shutdown does not exceed 30 minutes). Start the application system. Data migration is complete. HUAWEI TECHNOLOGIES CO. , LTD. Service network Application system Huawei Confidential Application system Switch Migration LUN Source array LUN Target array

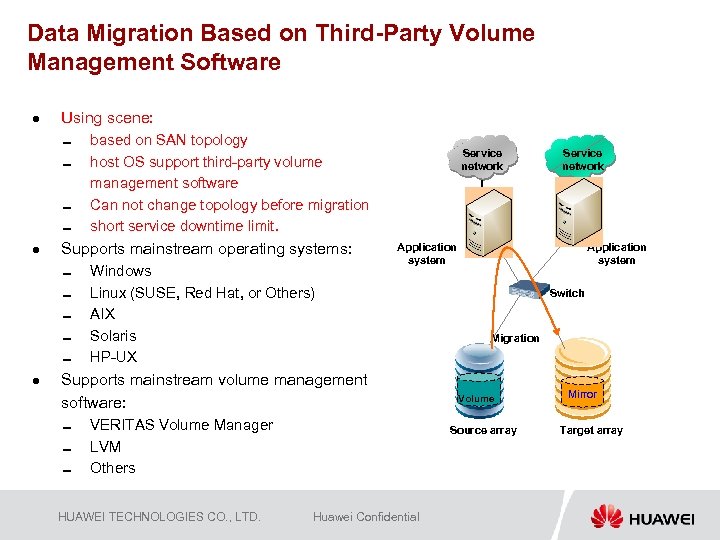

Data Migration Based on Third-Party Volume Management Software l Using scene: ▬ ▬ l Supports mainstream operating systems: ▬ ▬ ▬ l based on SAN topology host OS support third-party volume management software Can not change topology before migration short service downtime limit. Windows Linux (SUSE, Red Hat, or Others) AIX Solaris HP-UX Service network Application system Supports mainstream volume management software: ▬ ▬ ▬ VERITAS Volume Manager LVM Others HUAWEI TECHNOLOGIES CO. , LTD. Service network Application system Switch Migration Volume Source array Huawei Confidential Mirror Target array

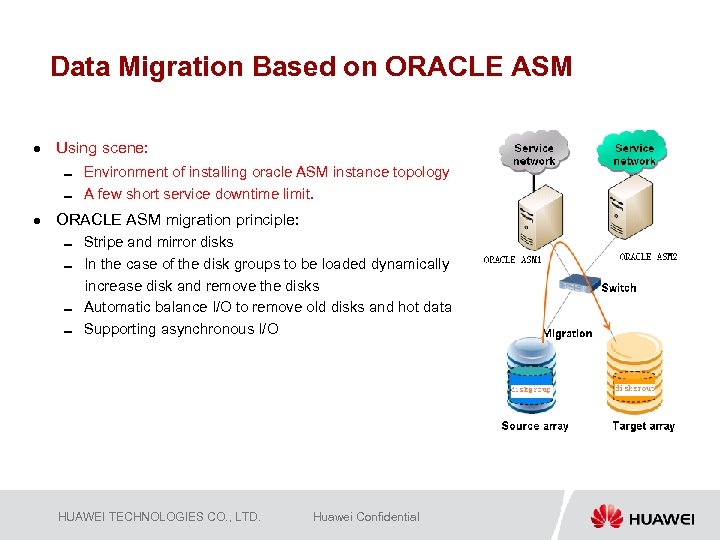

Data Migration Based on ORACLE ASM l Using scene: ▬ ▬ l Environment of installing oracle ASM instance topology A few short service downtime limit. ORACLE ASM migration principle: ▬ ▬ Stripe and mirror disks In the case of the disk groups to be loaded dynamically increase disk and remove the disks Automatic balance I/O to remove old disks and hot data Supporting asynchronous I/O HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

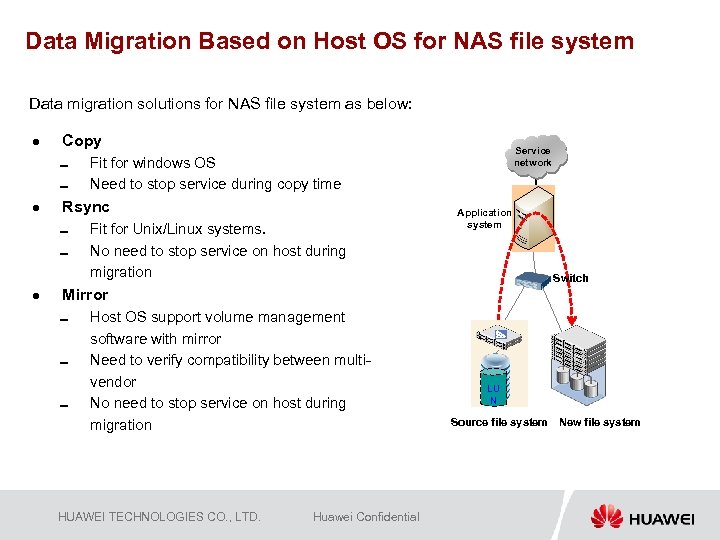

Data Migration Based on Host OS for NAS file system Data migration solutions for NAS file system as below: l Copy ▬ ▬ l Rsync ▬ ▬ l Service network Fit for windows OS Need to stop service during copy time Fit for Unix/Linux systems. No need to stop service on host during migration Application system Switch Mirror ▬ ▬ ▬ Host OS support volume management software with mirror Need to verify compatibility between multivendor No need to stop service on host during migration HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential LU N Source file system New file system

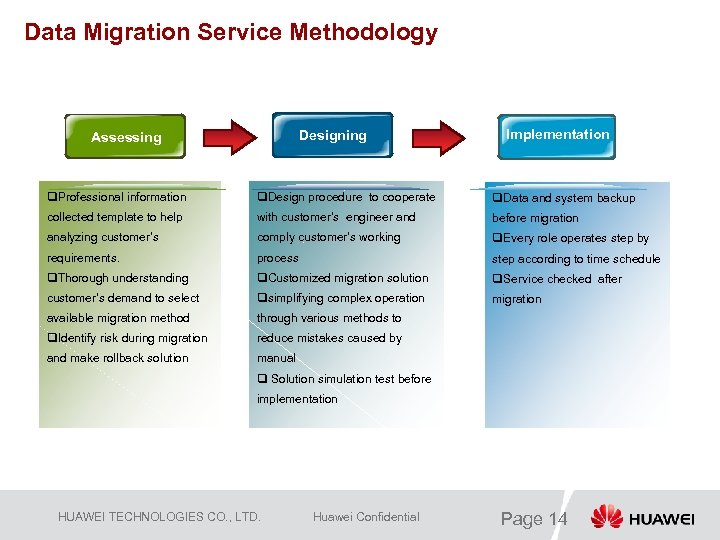

Data Migration Service Methodology Designing Assessing Implementation q. Professional information q. Design procedure to cooperate q. Data and system backup collected template to help with customer’s engineer and before migration analyzing customer’s comply customer’s working q. Every role operates step by requirements. process step according to time schedule q. Thorough understanding q. Customized migration solution q. Service checked after customer’s demand to select qsimplifying complex operation migration available migration method through various methods to q. Identify risk during migration reduce mistakes caused by and make rollback solution manual q Solution simulation test before implementation HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 14

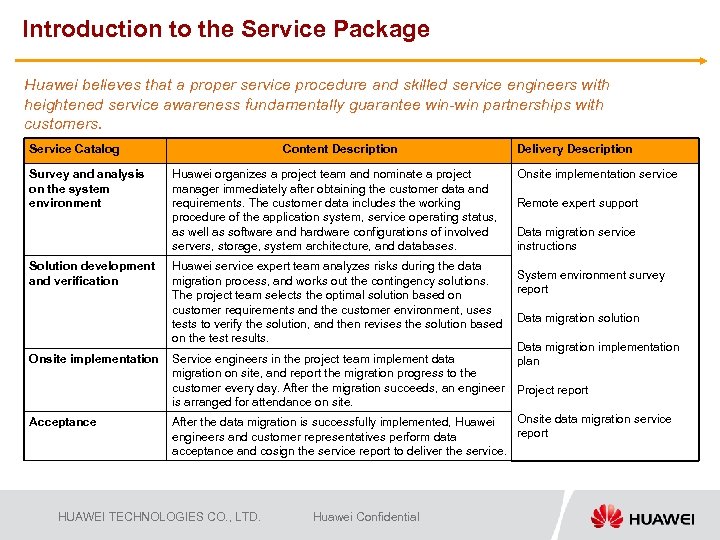

Introduction to the Service Package Huawei believes that a proper service procedure and skilled service engineers with heightened service awareness fundamentally guarantee win-win partnerships with customers. Service Catalog Survey and analysis on the system environment Solution development and verification Onsite implementation Acceptance Content Description Huawei organizes a project team and nominate a project manager immediately after obtaining the customer data and requirements. The customer data includes the working procedure of the application system, service operating status, as well as software and hardware configurations of involved servers, storage, system architecture, and databases. Huawei service expert team analyzes risks during the data migration process, and works out the contingency solutions. The project team selects the optimal solution based on customer requirements and the customer environment, uses tests to verify the solution, and then revises the solution based on the test results. Delivery Description Onsite implementation service Remote expert support Data migration service instructions System environment survey report Data migration solution Data migration implementation Service engineers in the project team implement data plan migration on site, and report the migration progress to the customer every day. After the migration succeeds, an engineer Project report is arranged for attendance on site. Onsite data migration service After the data migration is successfully implemented, Huawei report engineers and customer representatives perform data acceptance and cosign the service report to deliver the service. HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

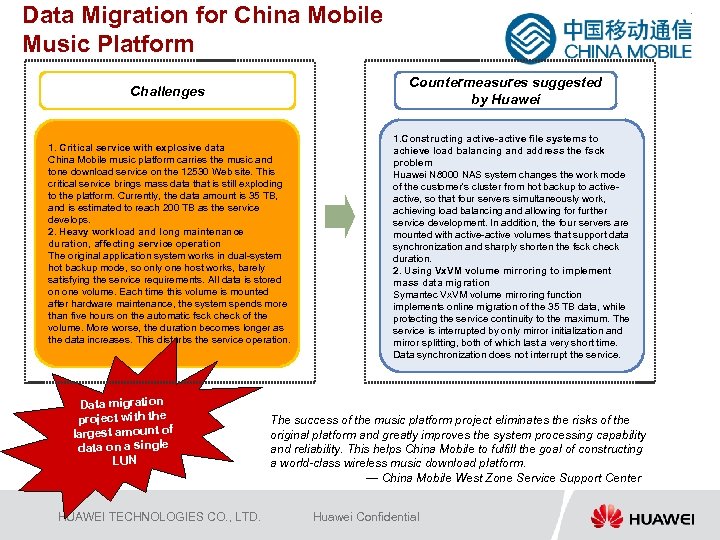

Data Migration for China Mobile Music Platform Countermeasures suggested by Huawei Challenges 1. Critical service with explosive data China Mobile music platform carries the music and tone download service on the 12530 Web site. This critical service brings mass data that is still exploding to the platform. Currently, the data amount is 35 TB, and is estimated to reach 200 TB as the service develops. 2. Heavy workload and long maintenance duration, affecting service operation The original application system works in dual-system hot backup mode, so only one host works, barely satisfying the service requirements. All data is stored on one volume. Each time this volume is mounted after hardware maintenance, the system spends more than five hours on the automatic fsck check of the volume. More worse, the duration becomes longer as the data increases. This disturbs the service operation. Data migration project with the largest amount of data on a single LUN HUAWEI TECHNOLOGIES CO. , LTD. 1. Constructing active-active file systems to achieve load balancing and address the fsck problem Huawei N 8000 NAS system changes the work mode of the customer's cluster from hot backup to active, so that four servers simultaneously work, achieving load balancing and allowing for further service development. In addition, the four servers are mounted with active-active volumes that support data synchronization and sharply shorten the fsck check duration. 2. Using Vx. VM volume mirroring to implement mass data migration Symantec Vx. VM volume mirroring function implements online migration of the 35 TB data, while protecting the service continuity to the maximum. The service is interrupted by only mirror initialization and mirror splitting, both of which last a very short time. Data synchronization does not interrupt the service. The success of the music platform project eliminates the risks of the original platform and greatly improves the system processing capability and reliability. This helps China Mobile to fulfill the goal of constructing a world-class wireless music download platform. 　　　　— China Mobile West Zone Service Support Center Huawei Confidential

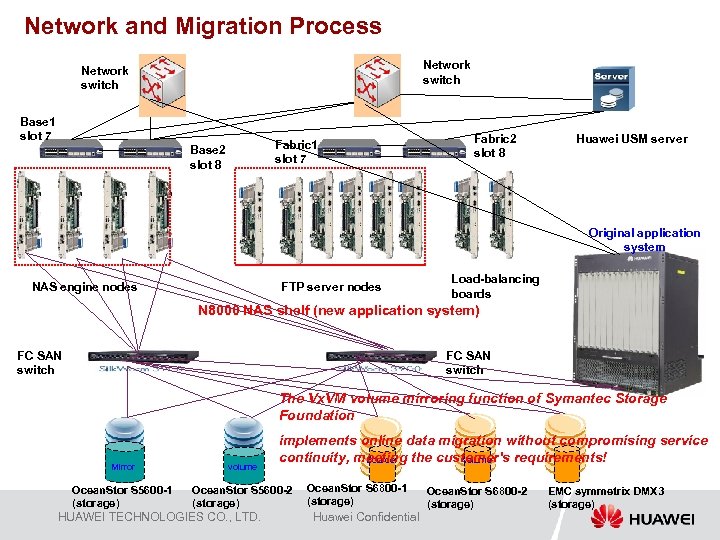

Network and Migration Process Network switch Base 1 slot 7 Fabric 1 slot 7 Base 2 slot 8 Fabric 2 slot 8 Huawei USM server Original application system NAS engine nodes FTP server nodes Load-balancing boards N 8000 NAS shelf (new application system) FC SAN switch The Vx. VM volume mirroring function of Symantec Storage Foundation implements online data migration without compromising service continuity, meeting the customer's requirements! Source volume Mirror volume Ocean. Stor S 5600 -1 (storage) Ocean. Stor S 5600 -2 (storage) HUAWEI TECHNOLOGIES CO. , LTD. Ocean. Stor S 6800 -1 (storage) Huawei Confidential Ocean. Stor S 6800 -2 (storage) EMC symmetrix DMX 3 (storage)

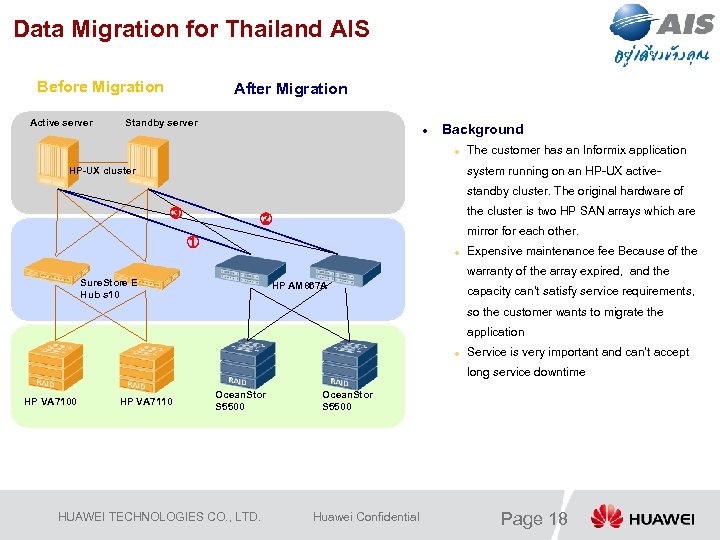

Data Migration for Thailand AIS Before Migration Active server After Migration Standby server l Background l The customer has an Informix application system running on an HP-UX active- HP-UX cluster standby cluster. The original hardware of ③ the cluster is two HP SAN arrays which are ② mirror for each other. ① l Expensive maintenance fee Because of the warranty of the array expired, and the Sure. Store E Hub s 10 HP AM 867 A capacity can’t satisfy service requirements, so the customer wants to migrate the application l Service is very important and can’t accept long service downtime HP VA 7100 HP VA 7110 Ocean. Stor S 5500 HUAWEI TECHNOLOGIES CO. , LTD. Ocean. Stor S 5500 Huawei Confidential Page 18

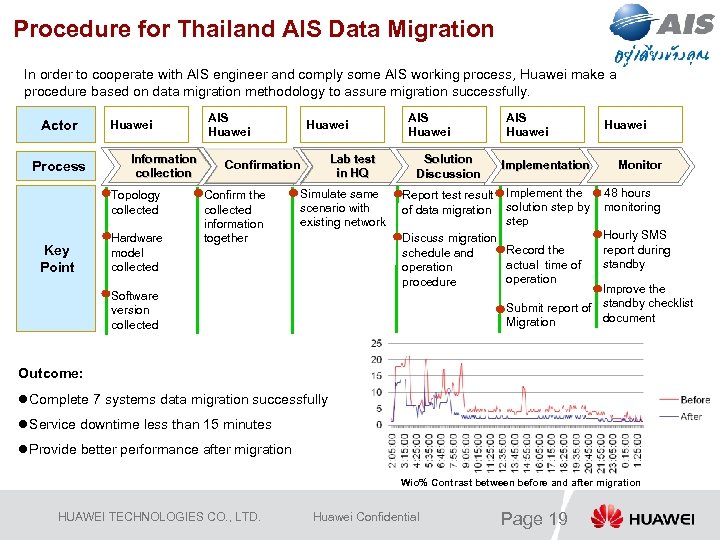

Procedure for Thailand AIS Data Migration In order to cooperate with AIS engineer and comply some AIS working process, Huawei make a procedure based on data migration methodology to assure migration successfully. Actor Process Huawei Information collection Topology collected Key Point Hardware model collected AIS Huawei Lab test in HQ Confirmation Confirm the collected information together Simulate same scenario with existing network AIS Huawei Solution Discussion Implementation Monitor Report test result of data migration Implement the solution step by step 48 hours monitoring Discuss migration Record the schedule and actual time of operation procedure Hourly SMS report during standby Improve the Submit report of standby checklist document Migration Software version collected Outcome: l. Complete 7 systems data migration successfully l. Service downtime less than 15 minutes l. Provide better performance after migration Wio% Contrast between before and after migration HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 19

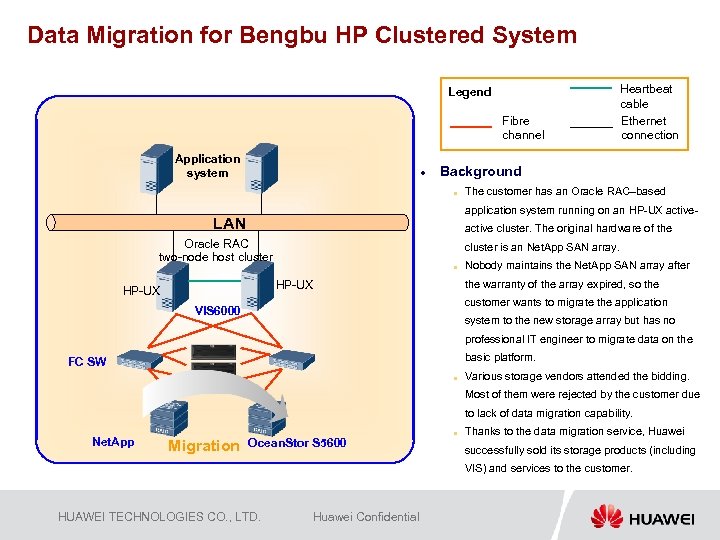

Data Migration for Bengbu HP Clustered System Legend Fibre channel Application … system l Heartbeat cable Ethernet connection Background l The customer has an Oracle RAC–based application system running on an HP-UX active- LAN active cluster. The original hardware of the Oracle RAC two-node host cluster is an Net. App SAN array. l the warranty of the array expired, so the HP-UX Nobody maintains the Net. App SAN array after customer wants to migrate the application VIS 6000 system to the new storage array but has no professional IT engineer to migrate data on the basic platform. FC SW l Various storage vendors attended the bidding. Most of them were rejected by the customer due to lack of data migration capability. Net. App Migration Ocean. Stor S 5600 l Thanks to the data migration service, Huawei successfully sold its storage products (including VIS) and services to the customer. HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

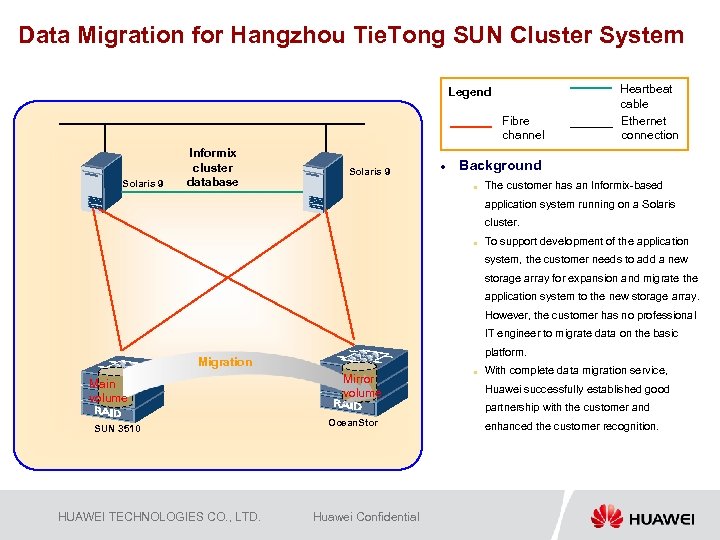

Data Migration for Hangzhou Tie. Tong SUN Cluster System Legend Fibre channel Solaris 9 Informix cluster database Solaris 9 l Heartbeat cable Ethernet connection Background l The customer has an Informix-based application system running on a Solaris cluster. l To support development of the application system, the customer needs to add a new storage array for expansion and migrate the application system to the new storage array. However, the customer has no professional IT engineer to migrate data on the basic platform. Migration Main volume SUN 3510 HUAWEI TECHNOLOGIES CO. , LTD. Mirror volume l With complete data migration service, Huawei successfully established good partnership with the customer and Ocean. Stor Huawei Confidential enhanced the customer recognition.

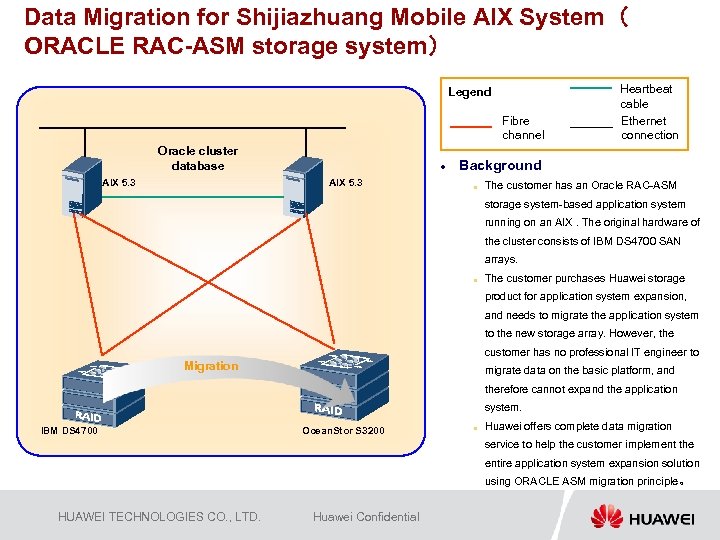

Data Migration for Shijiazhuang Mobile AIX System（ ORACLE RAC-ASM storage system） Legend Fibre channel Oracle cluster database AIX 5. 3 l AIX 5. 3 Heartbeat cable Ethernet connection Background l The customer has an Oracle RAC-ASM storage system-based application system running on an AIX. The original hardware of the cluster consists of IBM DS 4700 SAN arrays. l The customer purchases Huawei storage product for application system expansion, and needs to migrate the application system to the new storage array. However, the customer has no professional IT engineer to Migration migrate data on the basic platform, and therefore cannot expand the application system. IBM DS 4700 Ocean. Stor S 3200 l Huawei offers complete data migration service to help the customer implement the entire application system expansion solution using ORACLE ASM migration principle。 HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential

Thank you www. huawei. com Page 23
