Security in OPC Unified Architecture UA Dick Oyen

Security in OPC Unified Architecture (UA) Dick Oyen Industrial. Sys. Dev, Inc.

Introducing Myself Dick Oyen, Industrial. Sys. Dev, Inc. • Editor of the Security part of OPC UA • ISA SP 99 contributor • Developed control systems as a Sr R&D Engineer with ABB and Bailey Controls since 1977 • Started Industrial. Sys. Dev in Sept 2006

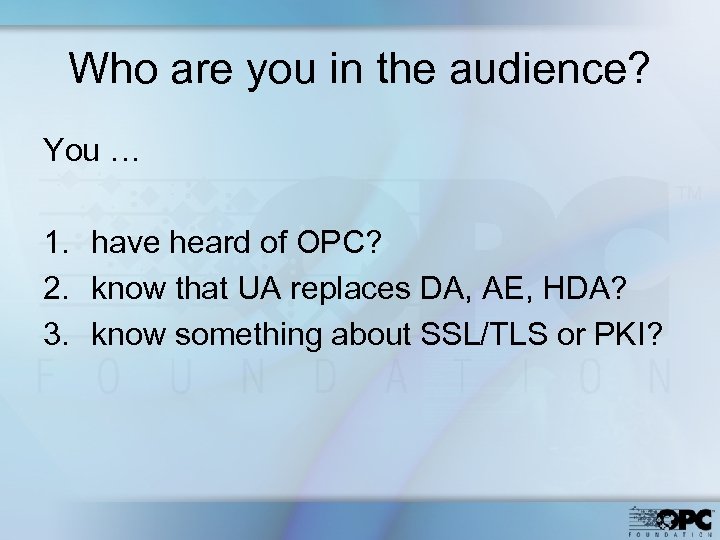

Who are you in the audience? You … 1. have heard of OPC? 2. know that UA replaces DA, AE, HDA? 3. know something about SSL/TLS or PKI?

Topics • • What OPC UA is Security objectives OPC UA security architecture UA meets the objectives

Topics ØWhat OPC UA is • Security objectives • OPC UA security architecture • UA meets the objectives

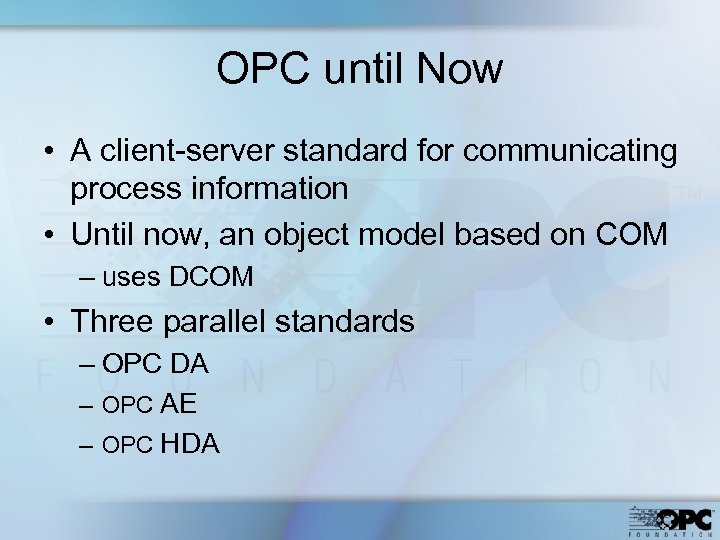

OPC until Now • A client-server standard for communicating process information • Until now, an object model based on COM – uses DCOM • Three parallel standards – OPC DA – OPC AE – OPC HDA

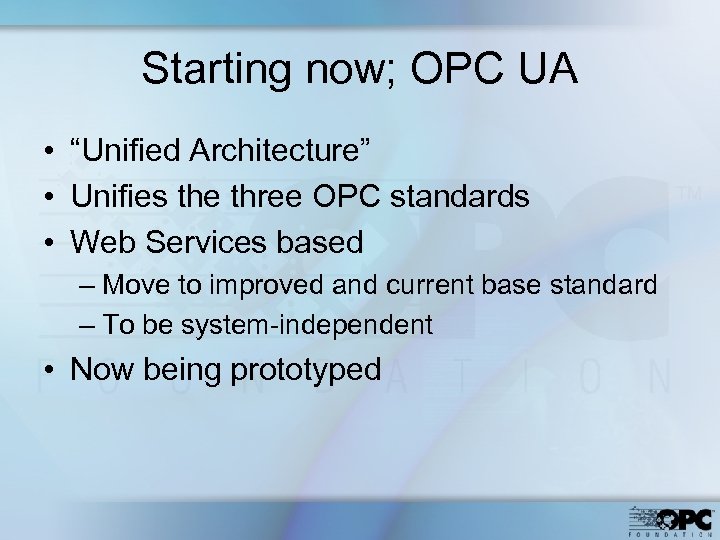

Starting now; OPC UA • “Unified Architecture” • Unifies the three OPC standards • Web Services based – Move to improved and current base standard – To be system-independent • Now being prototyped

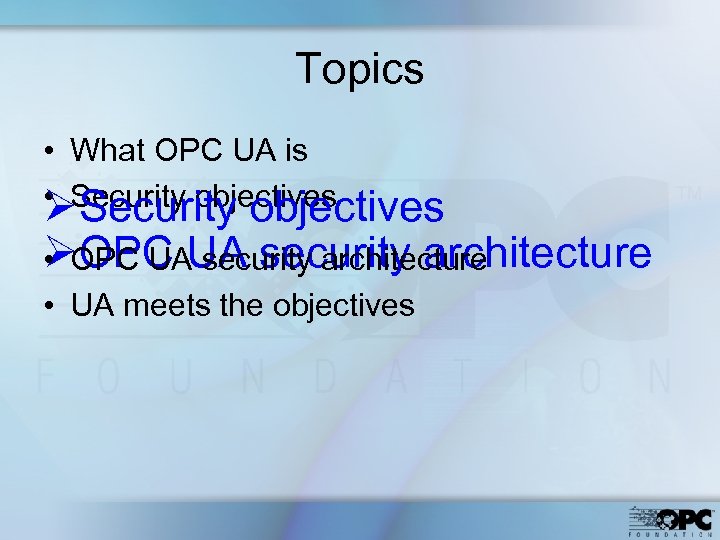

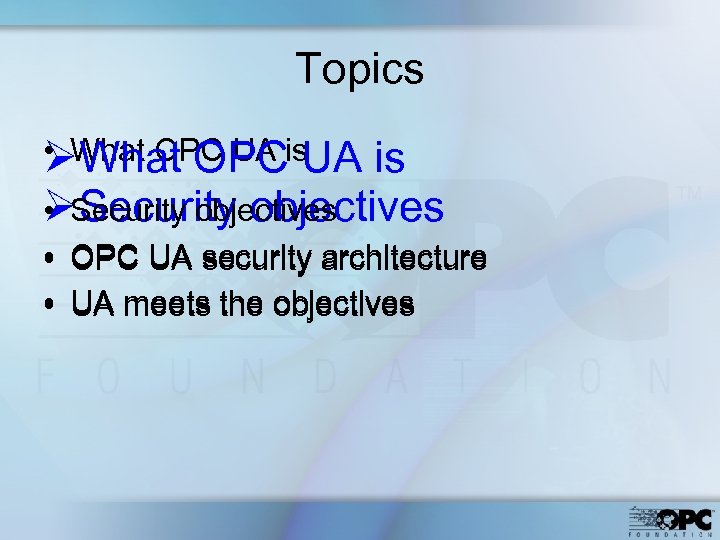

Topics • What OPC UA is ØWhat OPC UA is • Security objectives ØSecurity objectives • • OPC UA security architecture UA meets the objectives

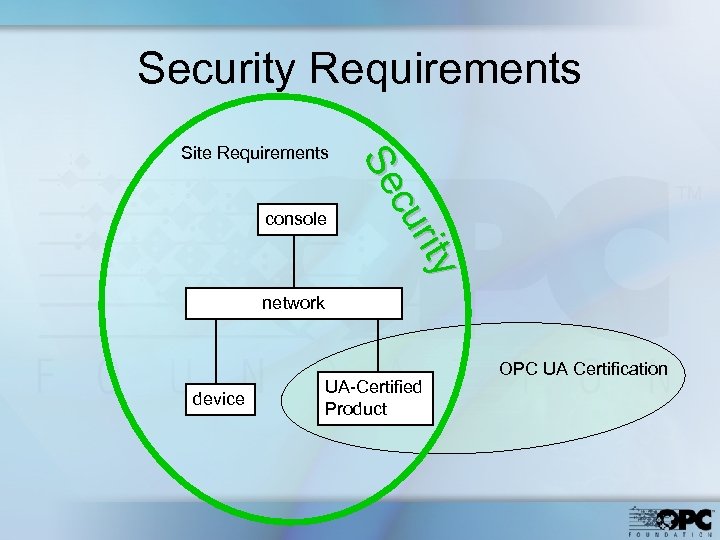

Security Requirements console r y riitty cu cu Se Se Site Requirements network device UA-Certified Product OPC UA Certification

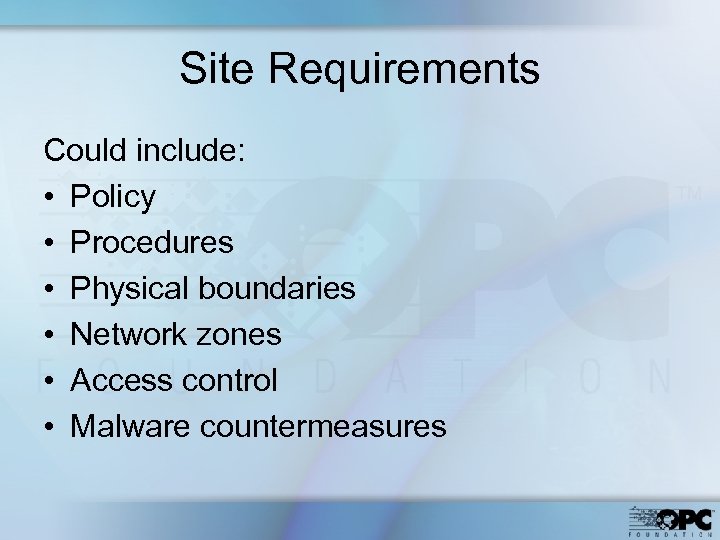

Site Requirements Could include: • Policy • Procedures • Physical boundaries • Network zones • Access control • Malware countermeasures

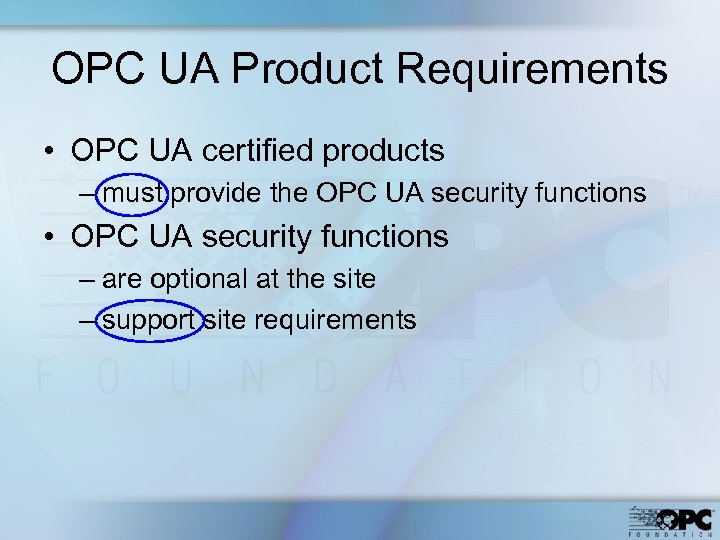

OPC UA Product Requirements • OPC UA certified products – must provide the OPC UA security functions • OPC UA security functions – are optional at the site – support site requirements

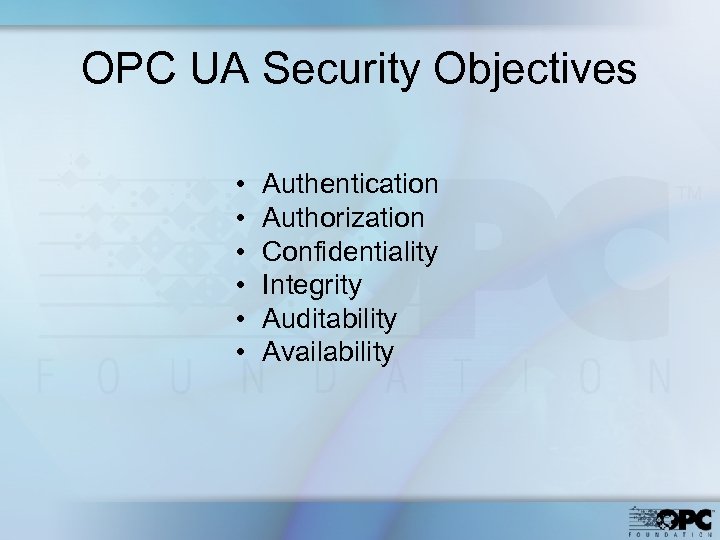

OPC UA Security Objectives • • • Authentication Authorization Confidentiality Integrity Auditability Availability

Authentication UPC UA Security. Objectives • Authentication • • • Authorization Confidentiality Integrity Auditability Availability Un. Auth N user Auth. N user console Un. Auth. N UA Client network UA Server

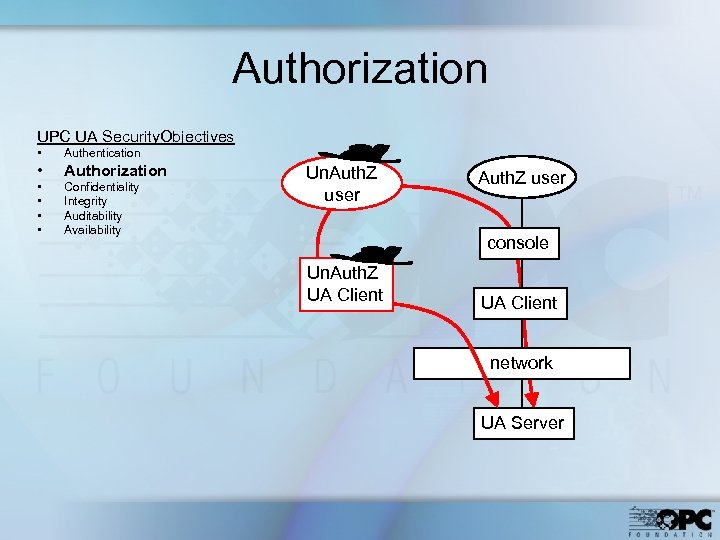

Authorization UPC UA Security. Objectives • Authentication • Authorization • • Confidentiality Integrity Auditability Availability Un. Auth. Z user console Un. Auth. Z UA Client network UA Server

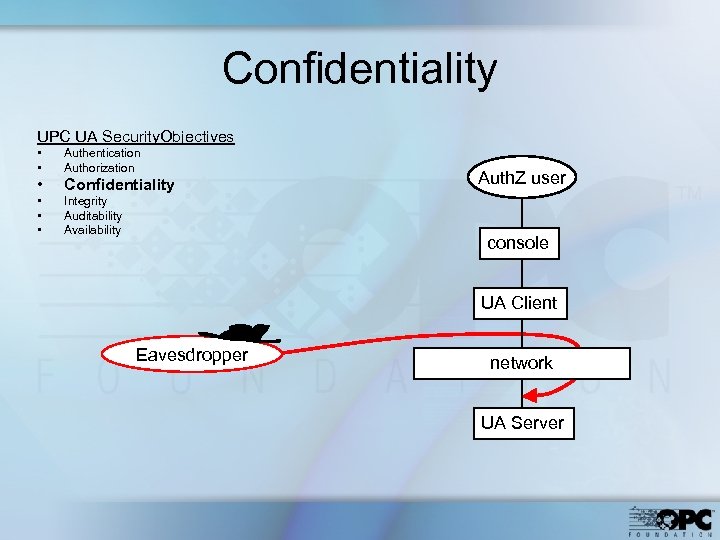

Confidentiality UPC UA Security. Objectives • • Authentication Authorization • Confidentiality • • • Integrity Auditability Availability Auth. Z user console UA Client Eavesdropper network UA Server

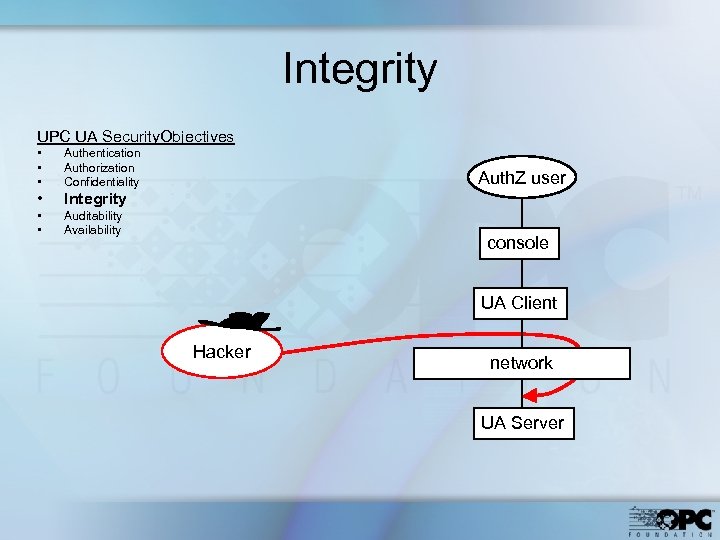

Integrity UPC UA Security. Objectives • • • Authentication Authorization Confidentiality • Integrity • • Auditability Availability Auth. Z user console UA Client Hacker network UA Server

Auditability Ugly UPC UA Security. Objectives • • Authentication Authorization Confidentiality Integrity • Auditability • Availability Un. Auth N user Un. Auth. Z user console UA Client Hacker network UA Server

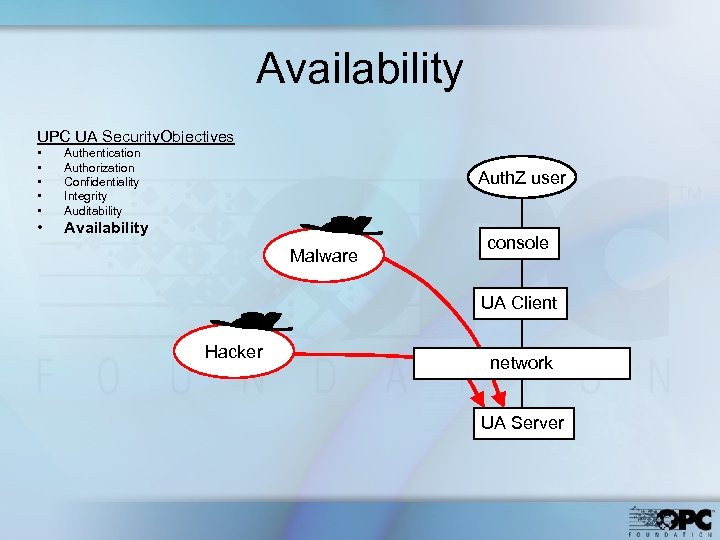

Availability UPC UA Security. Objectives • • • Authentication Authorization Confidentiality Integrity Auditability • Availability Auth. Z user Malware console UA Client Hacker network UA Server

Topics • What OPC UA is • Security objectives ØOPC UAUA security architecture • OPC security architecture • UA meets the objectives

OPC UA Security Architecture

Objectives met by Layers App Confidentiality Integrity App Auth. N User Auth. N Authorization Auditability Availability x x Layer Comm Trans x x x

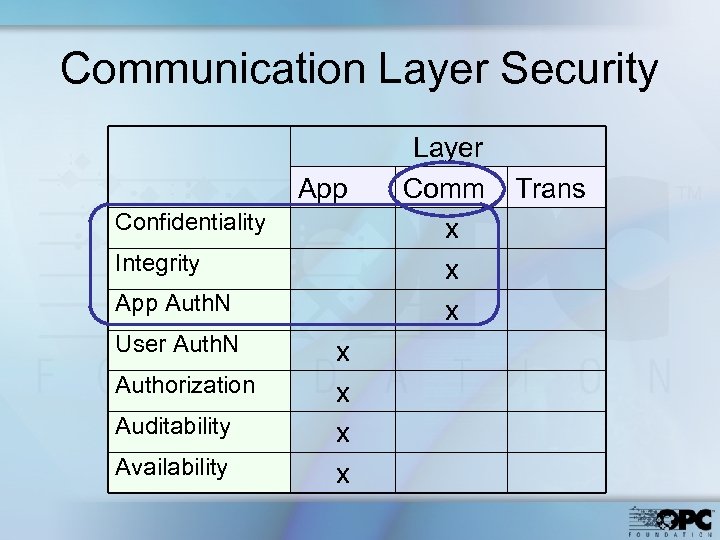

Communication Layer Security App Confidentiality Integrity App Auth. N User Auth. N Authorization Auditability Availability x x Layer Comm x x x Trans

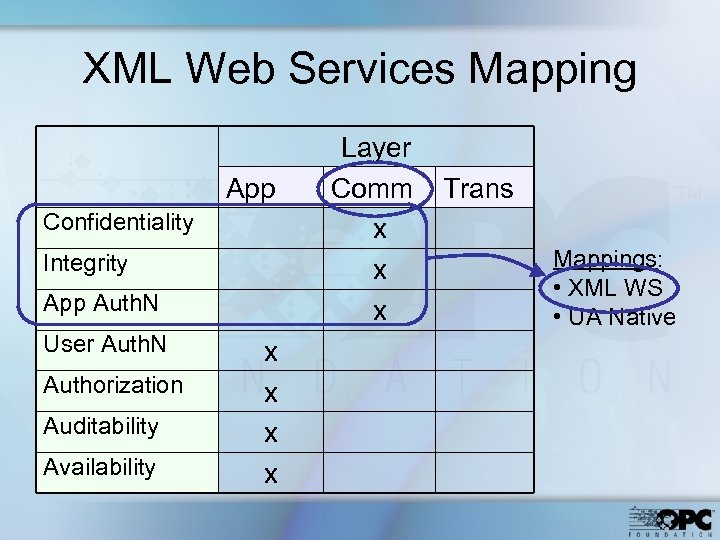

XML Web Services Mapping App Confidentiality Integrity App Auth. N User Auth. N Authorization Auditability Availability x x Layer Comm x x x Trans Mappings: • XML WS • UA Native

XML Web Services Stack

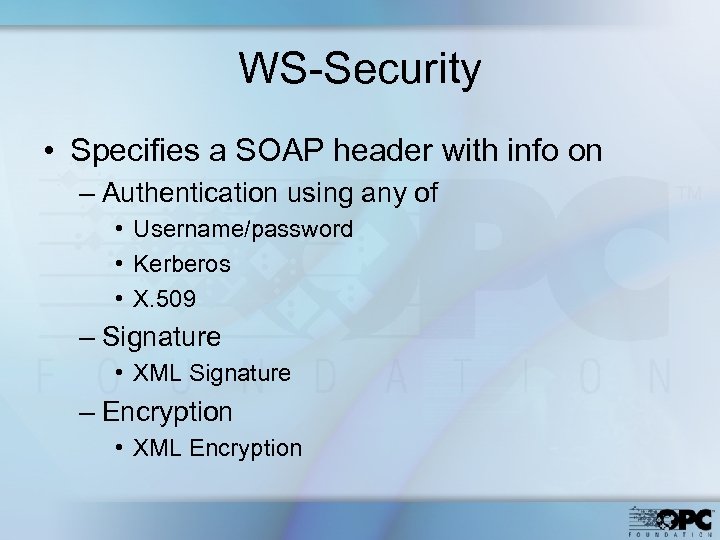

WS-Security • Specifies a SOAP header with info on – Authentication using any of • Username/password • Kerberos • X. 509 – Signature • XML Signature – Encryption • XML Encryption

WS-Trust • Validate credentials • Request and issue security tokens

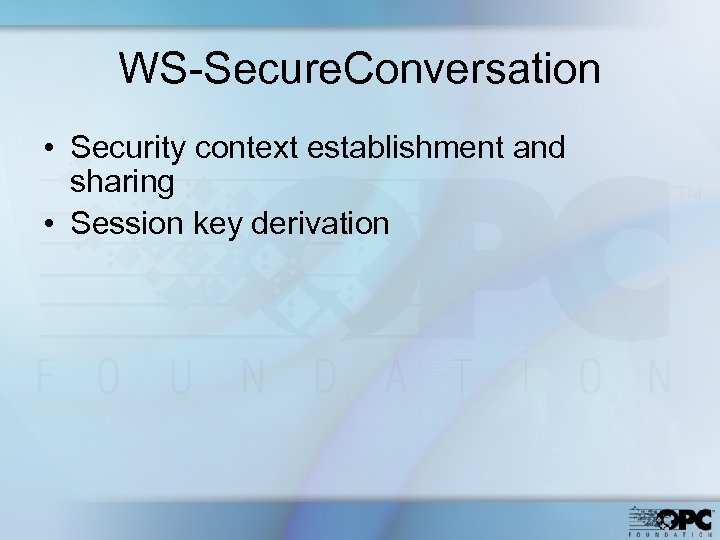

WS-Secure. Conversation • Security context establishment and sharing • Session key derivation

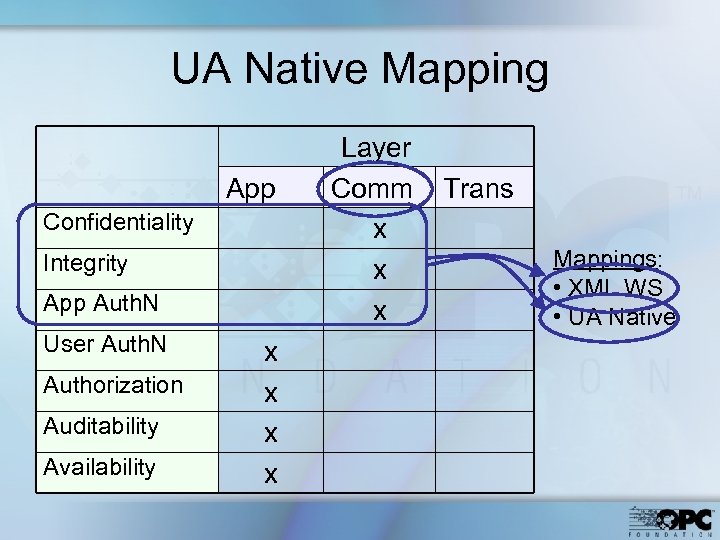

UA Native Mapping App Confidentiality Integrity App Auth. N User Auth. N Authorization Auditability Availability x x Layer Comm x x x Trans Mappings: • XML WS • UA Native

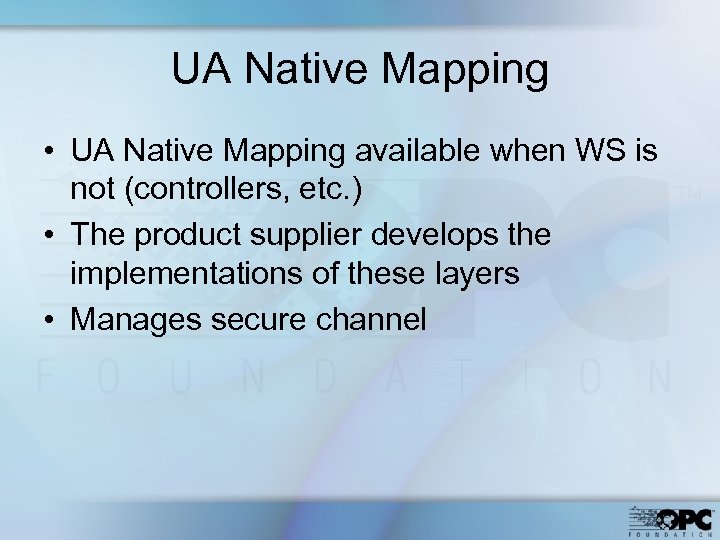

UA Native Mapping • UA Native Mapping available when WS is not (controllers, etc. ) • The product supplier develops the implementations of these layers • Manages secure channel

App Authentication – UA Native • Application X. 509 Certificates are exchanged when the secure channel is established

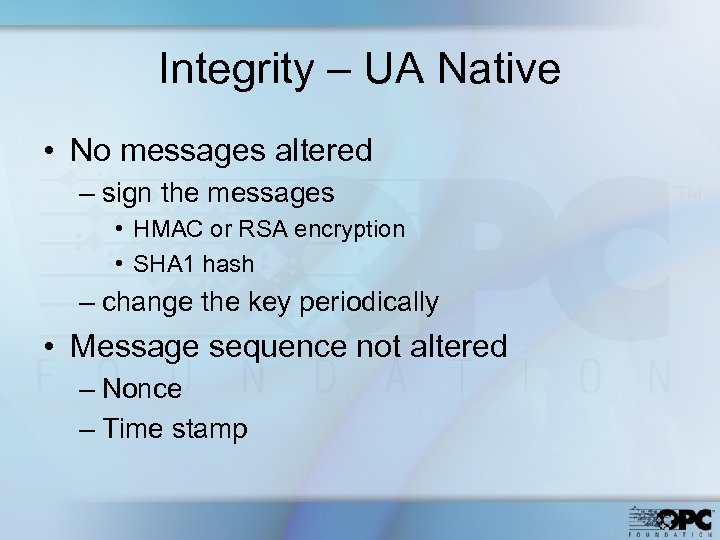

Integrity – UA Native • No messages altered – sign the messages • HMAC or RSA encryption • SHA 1 hash – change the key periodically • Message sequence not altered – Nonce – Time stamp

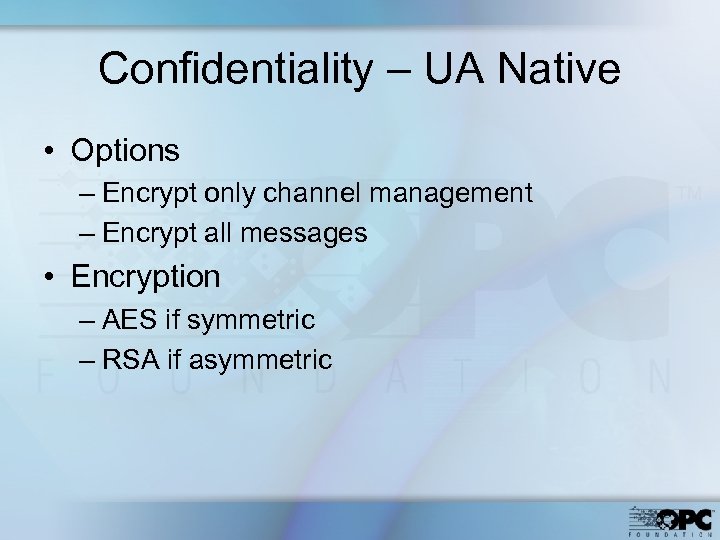

Confidentiality – UA Native • Options – Encrypt only channel management – Encrypt all messages • Encryption – AES if symmetric – RSA if asymmetric

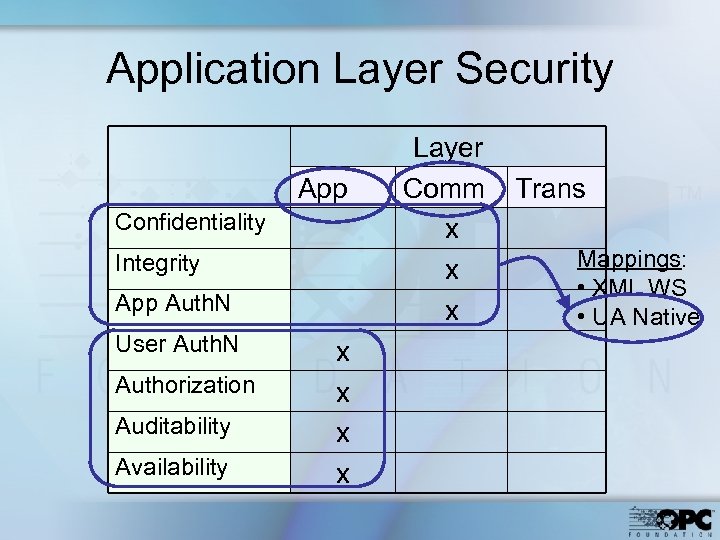

Application Layer Security App Confidentiality Integrity App Auth. N User Auth. N Authorization Auditability Availability x x Layer Comm x x x Trans Mappings: • XML WS • UA Native

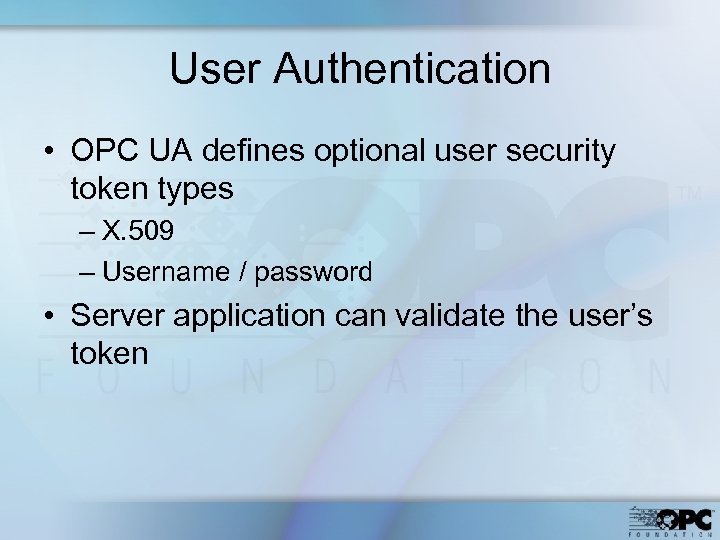

User Authentication • OPC UA defines optional user security token types – X. 509 – Username / password • Server application can validate the user’s token

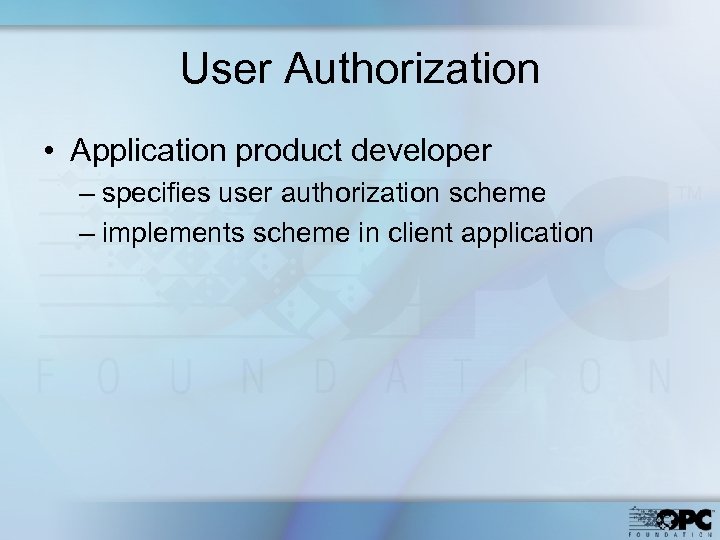

User Authorization • Application product developer – specifies user authorization scheme – implements scheme in client application

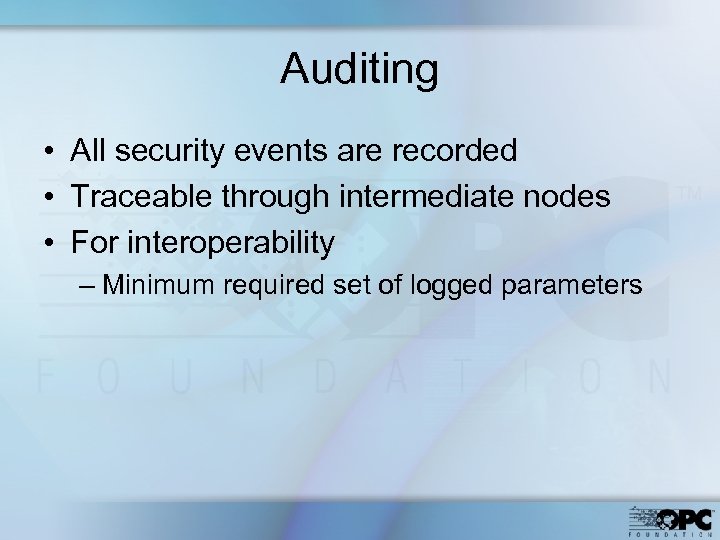

Auditing • All security events are recorded • Traceable through intermediate nodes • For interoperability – Minimum required set of logged parameters

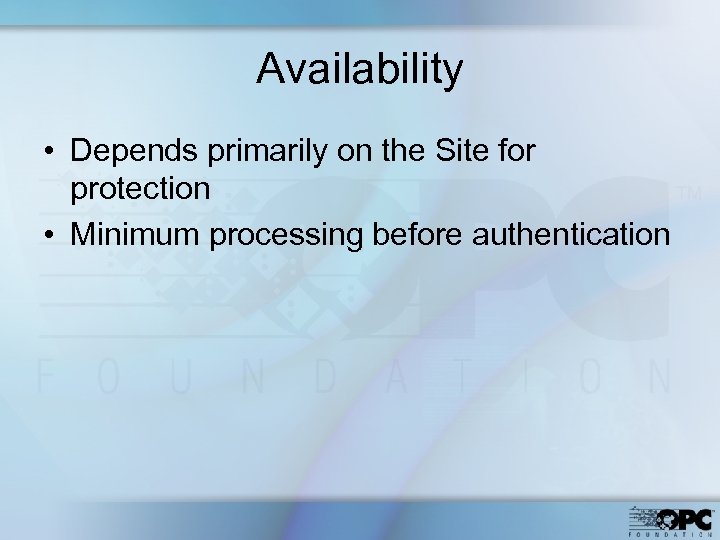

Availability • Depends primarily on the Site for protection • Minimum processing before authentication

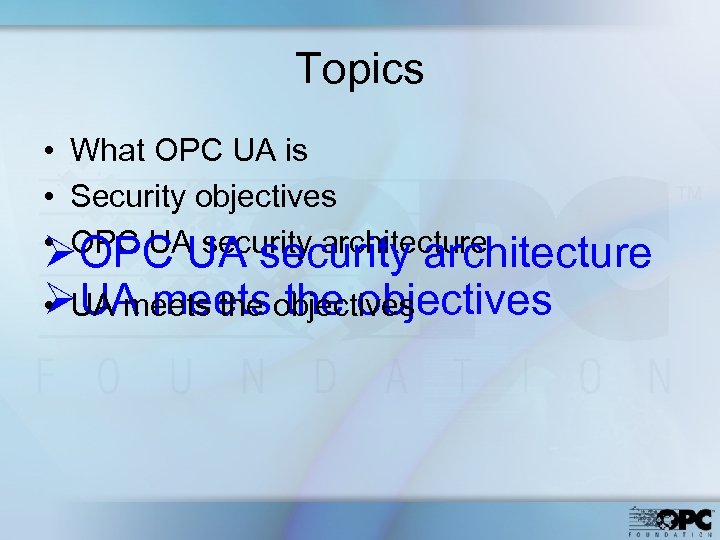

Topics • What OPC UA is • Security objectives • OPC UA security architecture ØUA meets the objectives • UA meets the objectives

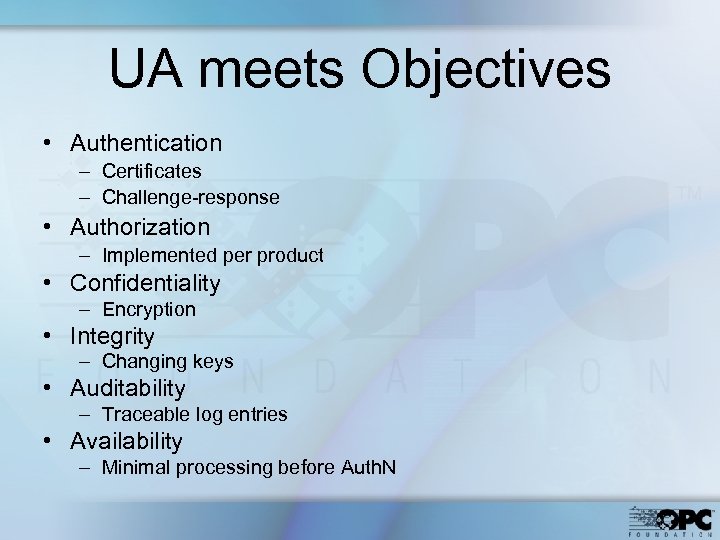

UA meets Objectives • Authentication – Certificates – Challenge-response • Authorization – Implemented per product • Confidentiality – Encryption • Integrity – Changing keys • Auditability – Traceable log entries • Availability – Minimal processing before Auth. N

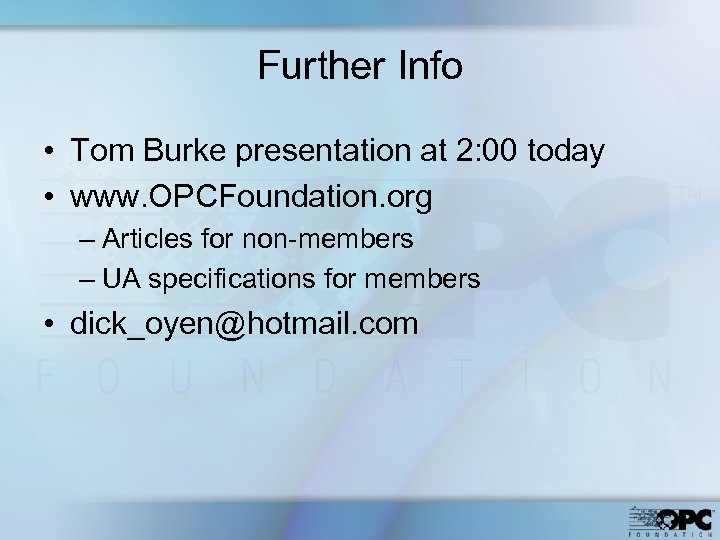

Further Info • Tom Burke presentation at 2: 00 today • www. OPCFoundation. org – Articles for non-members – UA specifications for members • dick_oyen@hotmail. com
