SEC 407 ISA Server Internals and Infrastructure Design Zachary Gutt and Steve Riley Product SEC 407 ISA Server Internals and Infrastructure Design Zachary Gutt and Steve Riley Product Managers Security Business Unit Microsoft Corporation

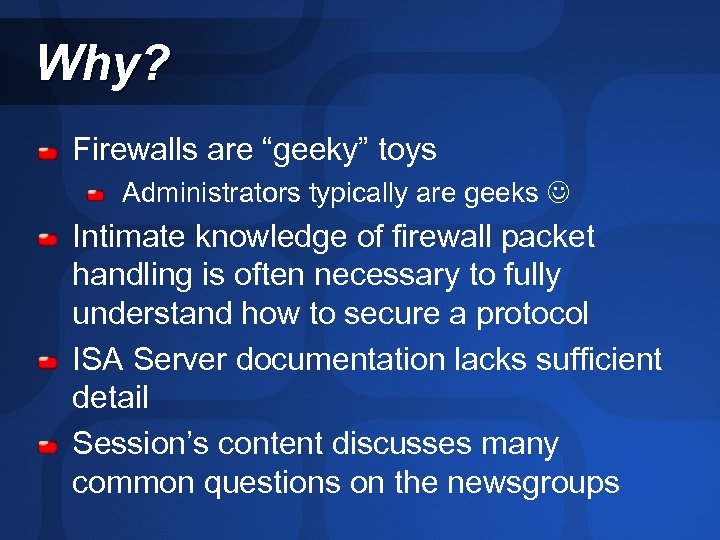

Why? Firewalls are “geeky” toys Administrators typically are geeks Intimate knowledge of firewall packet Why? Firewalls are “geeky” toys Administrators typically are geeks Intimate knowledge of firewall packet handling is often necessary to fully understand how to secure a protocol ISA Server documentation lacks sufficient detail Session’s content discusses many common questions on the newsgroups

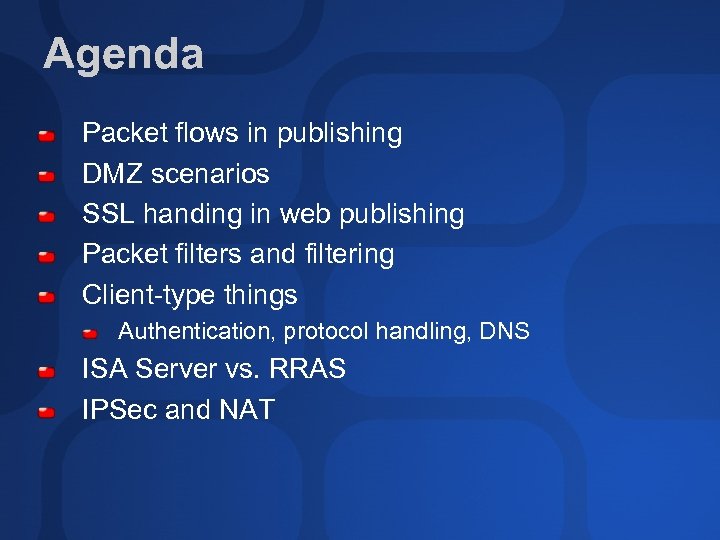

Agenda Packet flows in publishing DMZ scenarios SSL handing in web publishing Packet filters Agenda Packet flows in publishing DMZ scenarios SSL handing in web publishing Packet filters and filtering Client-type things Authentication, protocol handling, DNS ISA Server vs. RRAS IPSec and NAT

Credits DNS Jim Harrison, Microsoft ISA Server vs. RRAS and Q 310888 Craig Nelson, Credits DNS Jim Harrison, Microsoft ISA Server vs. RRAS and Q 310888 Craig Nelson, Avanade Some extensibility info Ronald Beekelaar, Beekelaar Consultancy Interesting design alternative Tom Schinder

Packet flows and publishing Packet flows and publishing

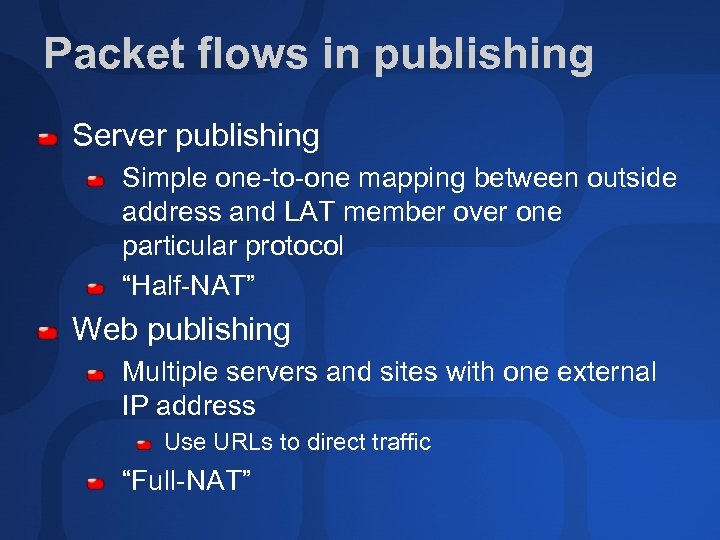

Packet flows in publishing Server publishing Simple one-to-one mapping between outside address and LAT Packet flows in publishing Server publishing Simple one-to-one mapping between outside address and LAT member over one particular protocol “Half-NAT” Web publishing Multiple servers and sites with one external IP address Use URLs to direct traffic “Full-NAT”

Server publishing Rule creates socket on external i/f IP np Internet payld 1. ISA Server publishing Rule creates socket on external i/f IP np Internet payld 1. ISA Server published computer IP np payld IP Packet arrives on external interface SADR = client 2. 3. Payload is extracted (and inspected, if there’s an application filter) New packet created on inside interface Different sequence number 4. New IP header added; packet is delivered SADR = client

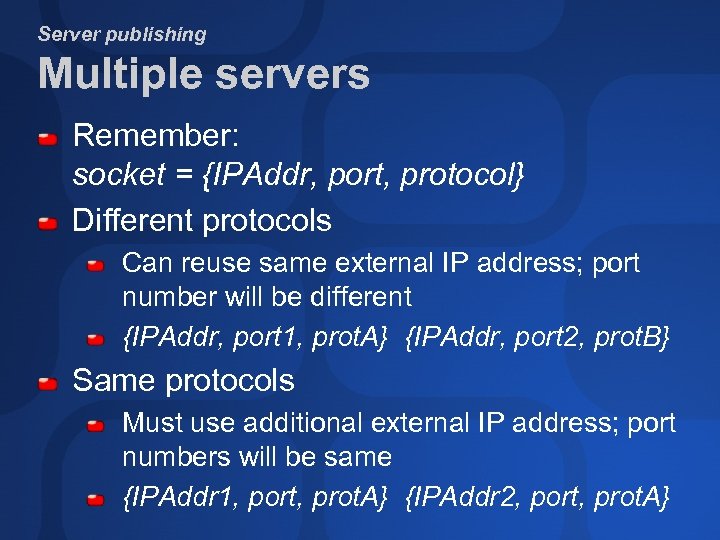

Server publishing Multiple servers Remember: socket = {IPAddr, port, protocol} Different protocols Can reuse Server publishing Multiple servers Remember: socket = {IPAddr, port, protocol} Different protocols Can reuse same external IP address; port number will be different {IPAddr, port 1, prot. A} {IPAddr, port 2, prot. B} Same protocols Must use additional external IP address; port numbers will be same {IPAddr 1, port, prot. A} {IPAddr 2, port, prot. A}

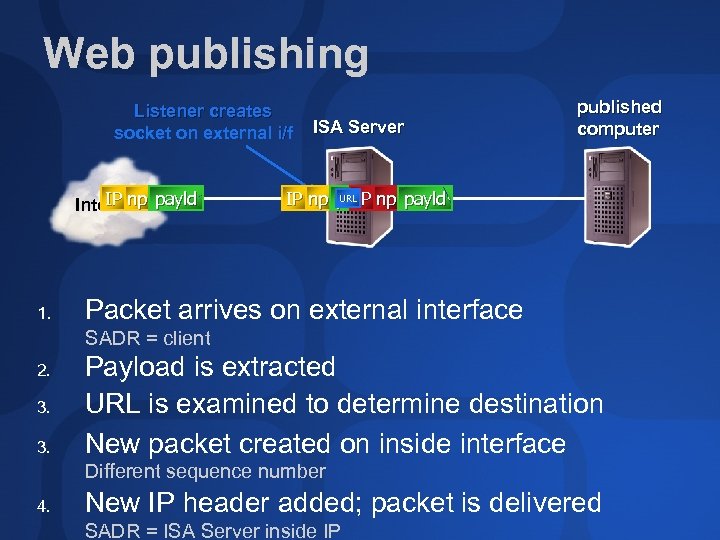

Web publishing Listener creates socket on external i/f IP np Internet payld 1. ISA Web publishing Listener creates socket on external i/f IP np Internet payld 1. ISA Server published computer URL IP np payld IP Packet arrives on external interface SADR = client 2. 3. 3. Payload is extracted URL is examined to determine destination New packet created on inside interface Different sequence number 4. New IP header added; packet is delivered SADR = ISA Server inside IP

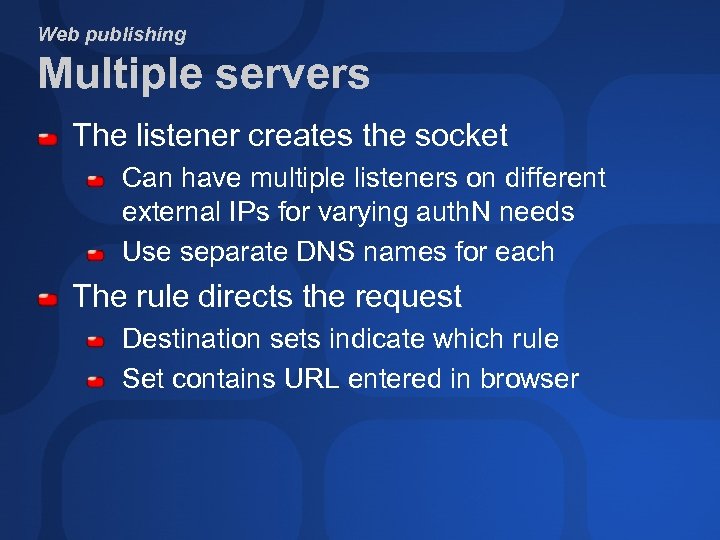

Web publishing Multiple servers The listener creates the socket Can have multiple listeners on Web publishing Multiple servers The listener creates the socket Can have multiple listeners on different external IPs for varying auth. N needs Use separate DNS names for each The rule directs the request Destination sets indicate which rule Set contains URL entered in browser

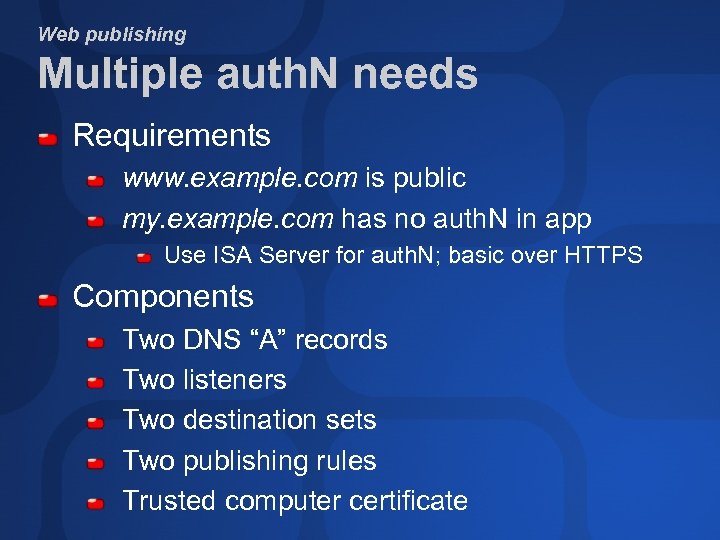

Web publishing Multiple auth. N needs Requirements www. example. com is public my. example. Web publishing Multiple auth. N needs Requirements www. example. com is public my. example. com has no auth. N in app Use ISA Server for auth. N; basic over HTTPS Components Two DNS “A” records Two listeners Two destination sets Two publishing rules Trusted computer certificate

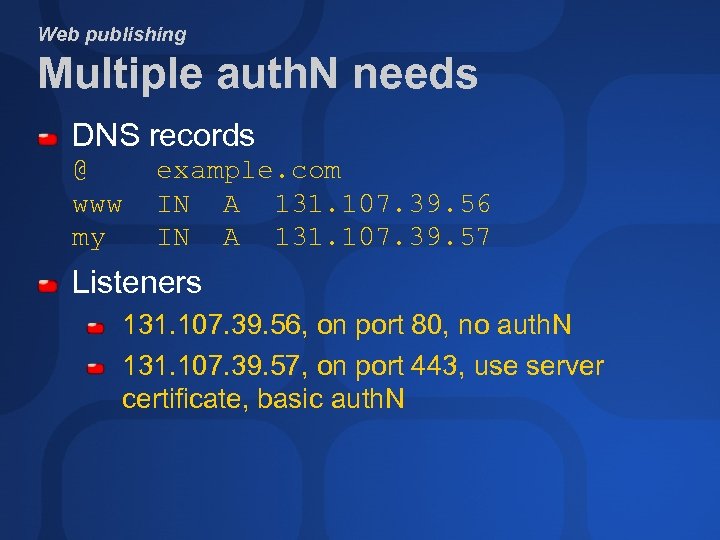

Web publishing Multiple auth. N needs DNS records @ www my example. com IN Web publishing Multiple auth. N needs DNS records @ www my example. com IN A 131. 107. 39. 56 IN A 131. 107. 39. 57 Listeners 131. 107. 39. 56, on port 80, no auth. N 131. 107. 39. 57, on port 443, use server certificate, basic auth. N

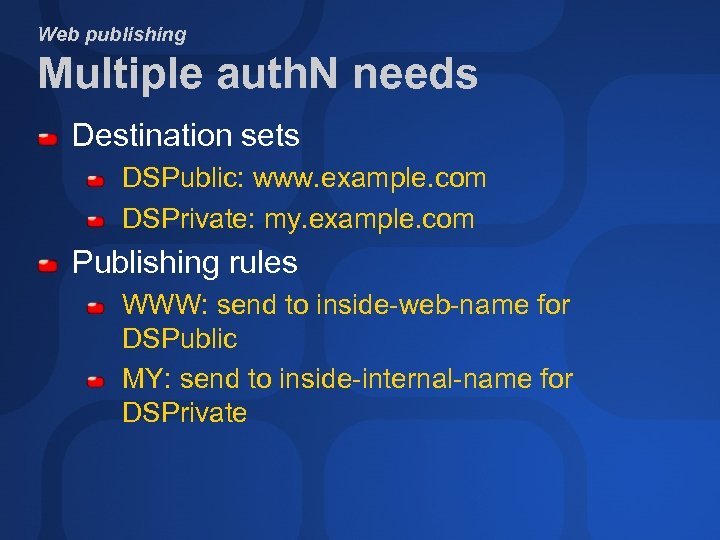

Web publishing Multiple auth. N needs Destination sets DSPublic: www. example. com DSPrivate: my. Web publishing Multiple auth. N needs Destination sets DSPublic: www. example. com DSPrivate: my. example. com Publishing rules WWW: send to inside-web-name for DSPublic MY: send to inside-internal-name for DSPrivate

Web publishing Multiple auth. N needs Browser resends request IP hdr request Browser creates Web publishing Multiple auth. N needs Browser resends request IP hdr request Browser creates = 131. 107. 39. 57 HTTP hdr = IP hdr = 131. 107. 39. 57 HTTP hdr my. example. com = Listener requires HTTP-auth = credentials my. example. com URL? authentication Browser requests error 401 DNS returns HTTP address answer unauthorized who is 131. 107. 39. 57 80 “my. example. com”? creds good? AD DC yes rule? wwwint 443 ISA Server DNS Server my. example. com → dest-set: WSPrivate → send to myint ISAS sends request myint

DMZ scenarios DMZ scenarios

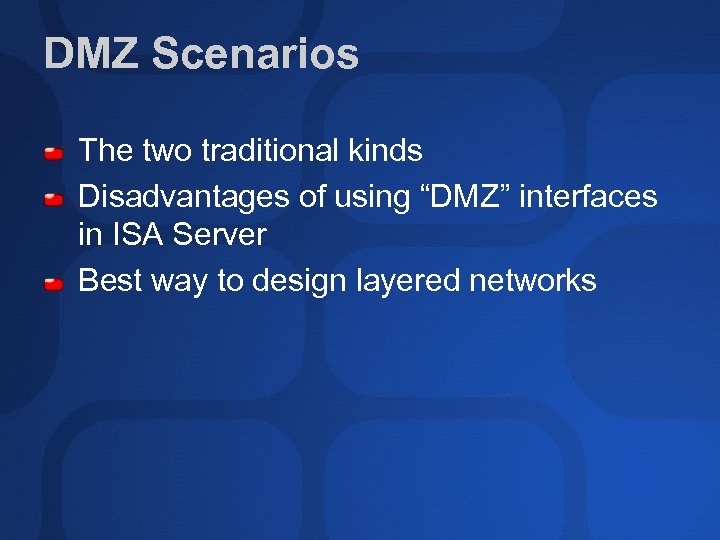

DMZ Scenarios The two traditional kinds Disadvantages of using “DMZ” interfaces in ISA Server DMZ Scenarios The two traditional kinds Disadvantages of using “DMZ” interfaces in ISA Server Best way to design layered networks

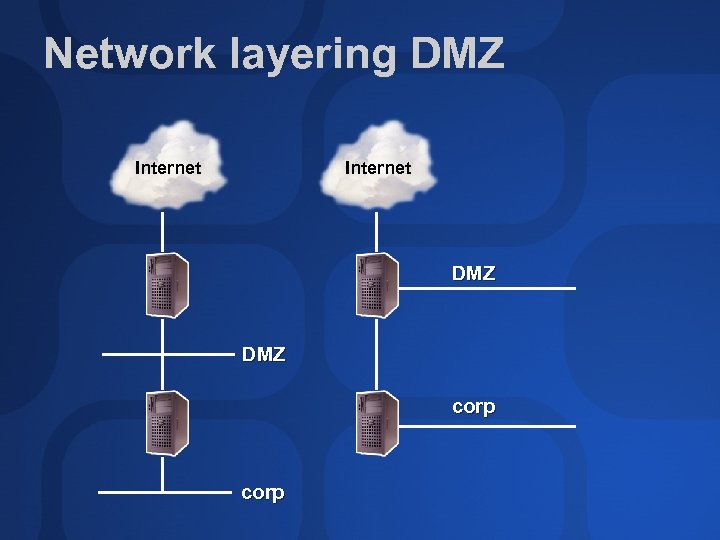

Network layering DMZ Internet DMZ corp Network layering DMZ Internet DMZ corp

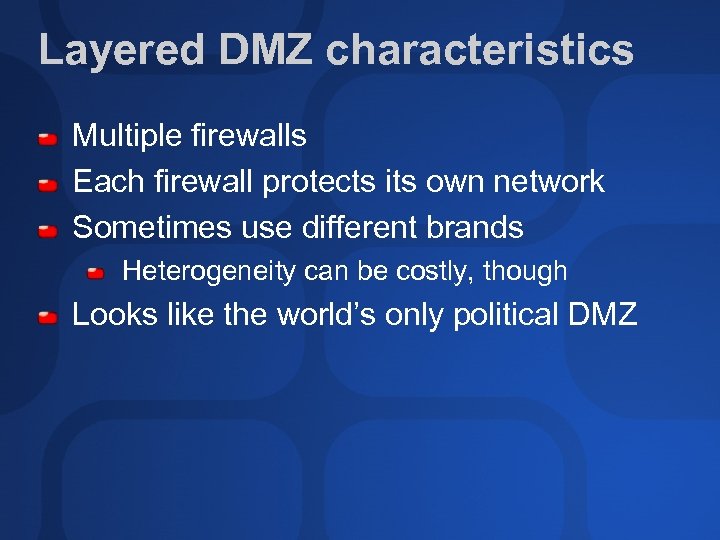

Layered DMZ characteristics Multiple firewalls Each firewall protects its own network Sometimes use different Layered DMZ characteristics Multiple firewalls Each firewall protects its own network Sometimes use different brands Heterogeneity can be costly, though Looks like the world’s only political DMZ

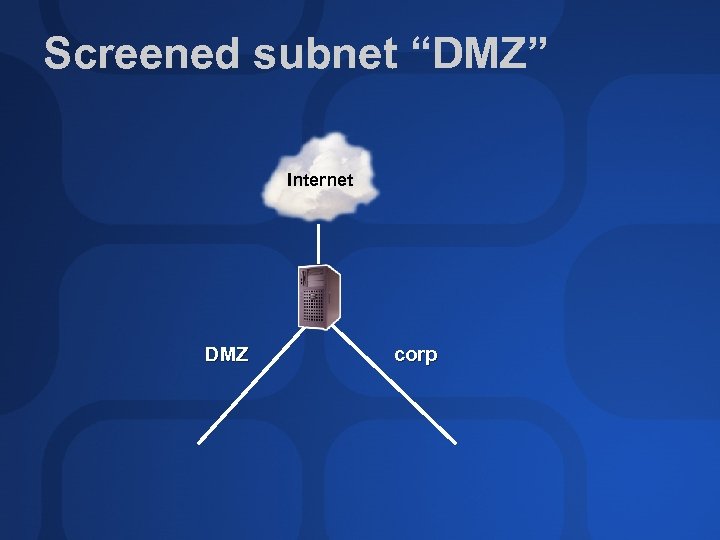

Screened subnet “DMZ” Internet DMZ corp Screened subnet “DMZ” Internet DMZ corp

Screened subnet characteristics Not really a DMZ More complex to build Too many rules Screened subnet characteristics Not really a DMZ More complex to build Too many rules to wrap your brain around Opportunities for misconfiguration Performance problems

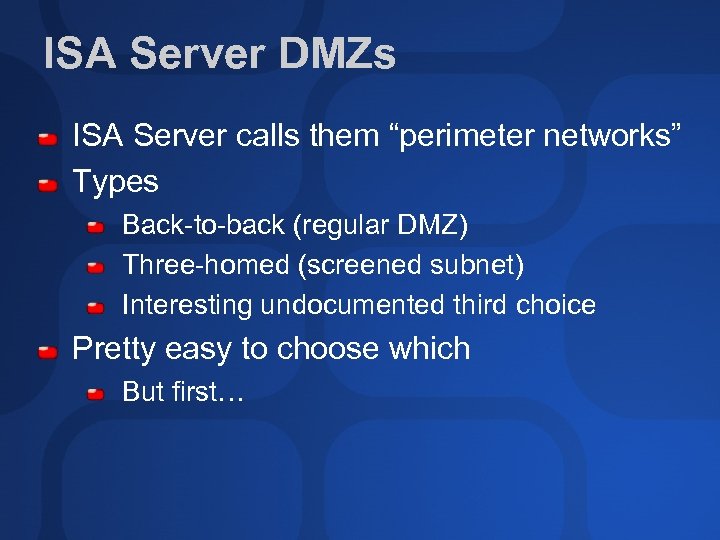

ISA Server DMZs ISA Server calls them “perimeter networks” Types Back-to-back (regular DMZ) Three-homed ISA Server DMZs ISA Server calls them “perimeter networks” Types Back-to-back (regular DMZ) Three-homed (screened subnet) Interesting undocumented third choice Pretty easy to choose which But first…

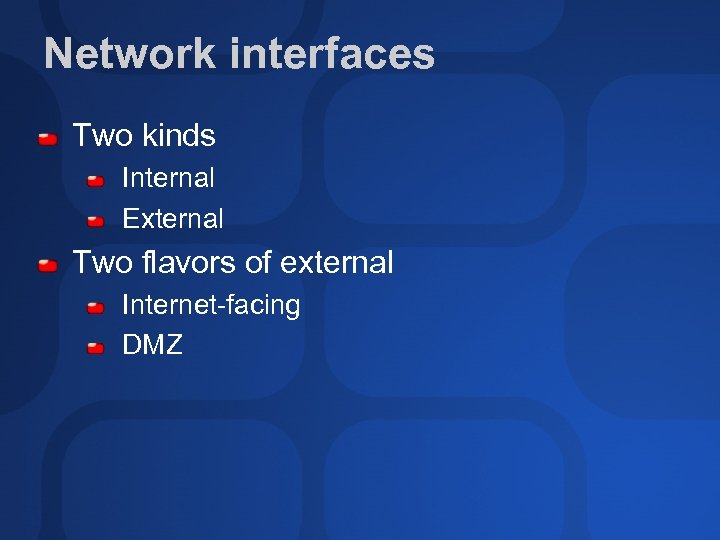

Network interfaces Two kinds Internal External Two flavors of external Internet-facing DMZ Network interfaces Two kinds Internal External Two flavors of external Internet-facing DMZ

Internal interfaces Can have more than one Defined by the LAT Any interface whose Internal interfaces Can have more than one Defined by the LAT Any interface whose IP address is in LAT is an internal interface

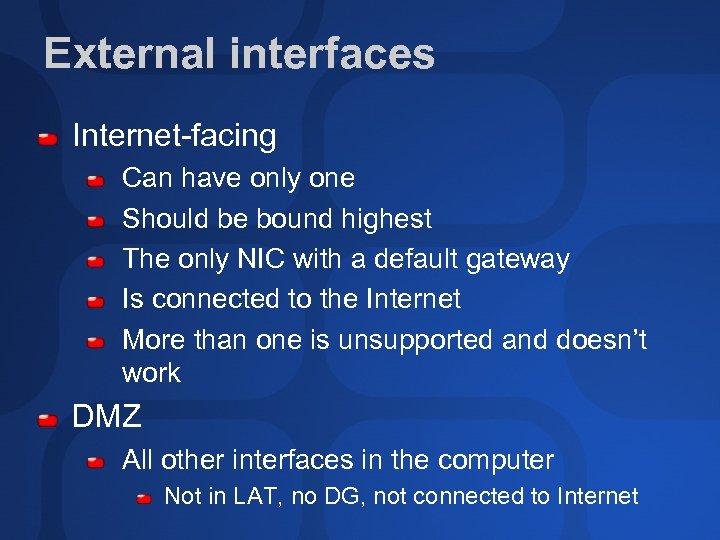

External interfaces Internet-facing Can have only one Should be bound highest The only NIC External interfaces Internet-facing Can have only one Should be bound highest The only NIC with a default gateway Is connected to the Internet More than one is unsupported and doesn’t work DMZ All other interfaces in the computer Not in LAT, no DG, not connected to Internet

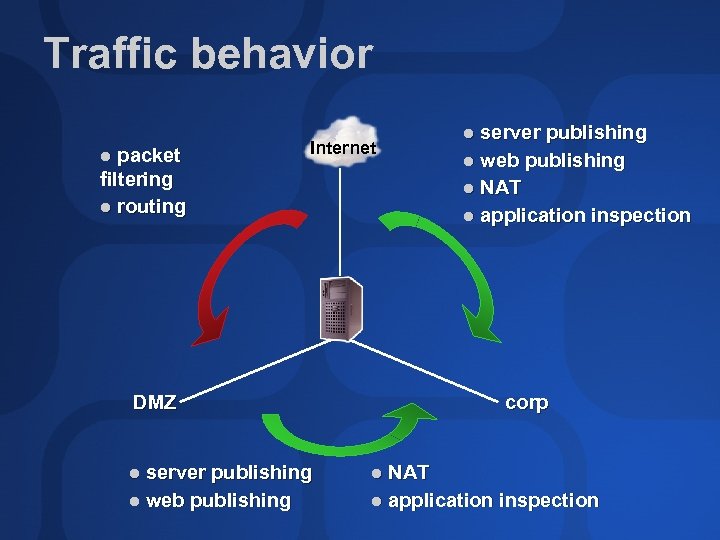

Traffic behavior packet filtering routing Internet DMZ server publishing web publishing NAT application inspection Traffic behavior packet filtering routing Internet DMZ server publishing web publishing NAT application inspection corp NAT application inspection

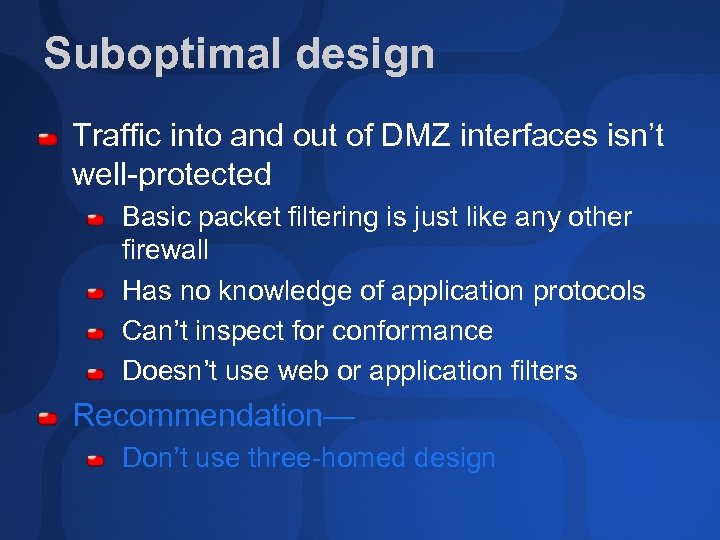

Suboptimal design Traffic into and out of DMZ interfaces isn’t well-protected Basic packet filtering Suboptimal design Traffic into and out of DMZ interfaces isn’t well-protected Basic packet filtering is just like any other firewall Has no knowledge of application protocols Can’t inspect for conformance Doesn’t use web or application filters Recommendation— Don’t use three-homed design

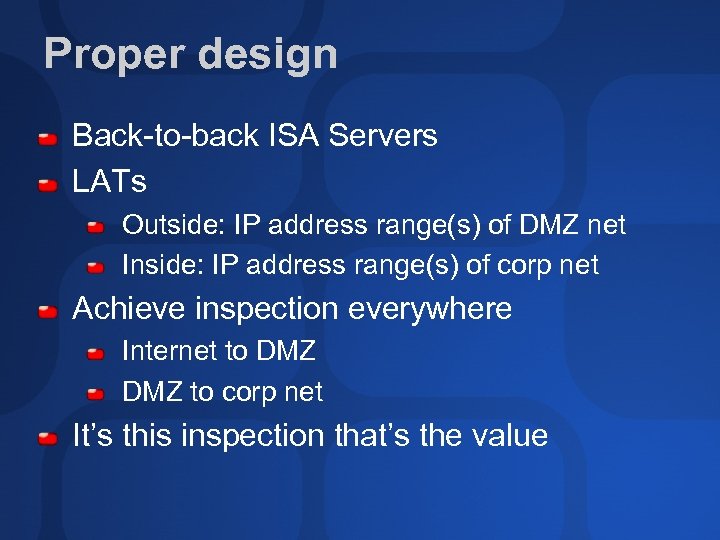

Proper design Back-to-back ISA Servers LATs Outside: IP address range(s) of DMZ net Inside: Proper design Back-to-back ISA Servers LATs Outside: IP address range(s) of DMZ net Inside: IP address range(s) of corp net Achieve inspection everywhere Internet to DMZ to corp net It’s this inspection that’s the value

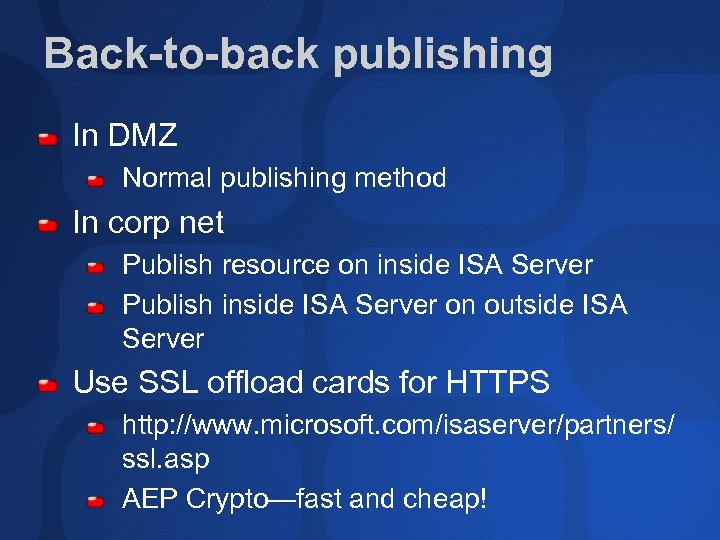

Back-to-back publishing In DMZ Normal publishing method In corp net Publish resource on inside Back-to-back publishing In DMZ Normal publishing method In corp net Publish resource on inside ISA Server Publish inside ISA Server on outside ISA Server Use SSL offload cards for HTTPS http: //www. microsoft. com/isaserver/partners/ ssl. asp AEP Crypto—fast and cheap!

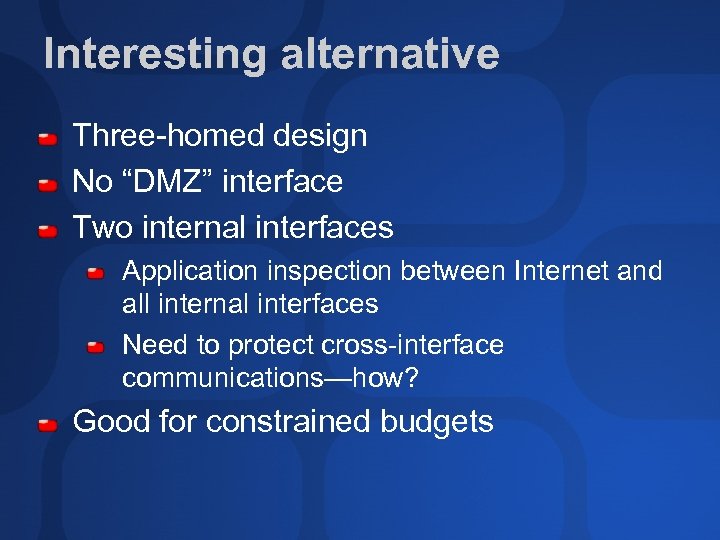

Interesting alternative Three-homed design No “DMZ” interface Two internal interfaces Application inspection between Internet Interesting alternative Three-homed design No “DMZ” interface Two internal interfaces Application inspection between Internet and all internal interfaces Need to protect cross-interface communications—how? Good for constrained budgets

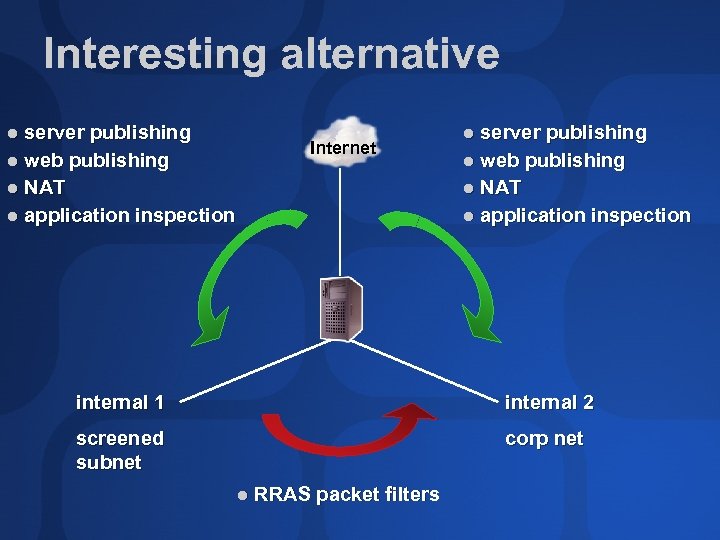

Interesting alternative server publishing web publishing NAT application inspection Internet server publishing web publishing Interesting alternative server publishing web publishing NAT application inspection Internet server publishing web publishing NAT application inspection internal 1 internal 2 screened subnet corp net RRAS packet filters

RRAS filters Use RRAS filtering to control communications between nets Think securely! Block all RRAS filters Use RRAS filtering to control communications between nets Think securely! Block all from 1 to 2… …except that which is necessary Block all from 2 to 1… …except that which is necessary Don’t allow everything from corp to screened Not concerned with VPN protocols here RRAS is just providing the filtering

SSL handling and certificates SSL handling and certificates

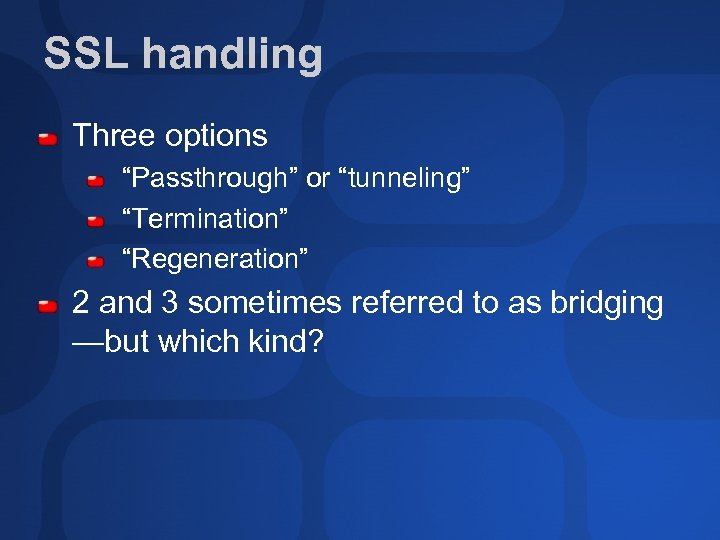

SSL handling Three options “Passthrough” or “tunneling” “Termination” “Regeneration” 2 and 3 sometimes referred SSL handling Three options “Passthrough” or “tunneling” “Termination” “Regeneration” 2 and 3 sometimes referred to as bridging —but which kind?

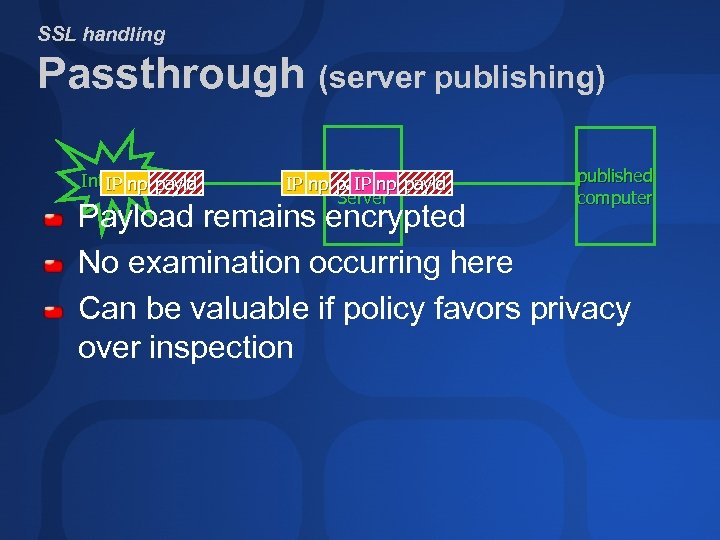

SSL handling Passthrough (server publishing) Internet payld IP np ISA IP np payld IP SSL handling Passthrough (server publishing) Internet payld IP np ISA IP np payld IP Server published computer Payload remains encrypted No examination occurring here Can be valuable if policy favors privacy over inspection

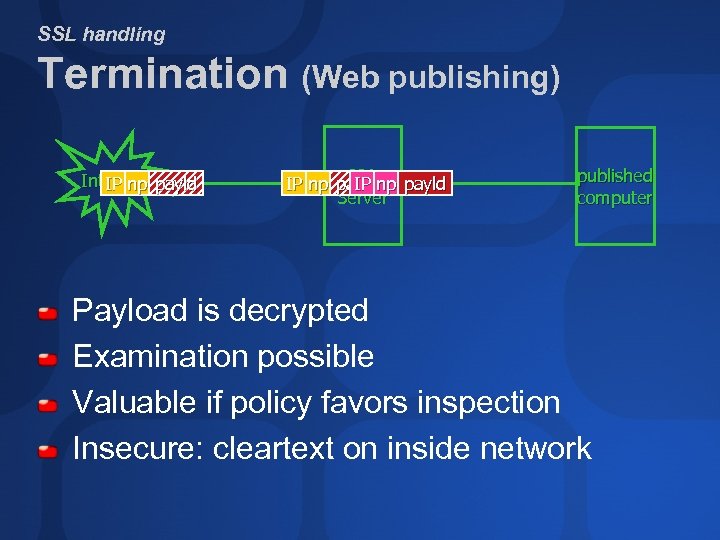

SSL handling Termination (Web publishing) Internet payld IP np ISA IP np payld IP SSL handling Termination (Web publishing) Internet payld IP np ISA IP np payld IP Server published computer Payload is decrypted Examination possible Valuable if policy favors inspection Insecure: cleartext on inside network

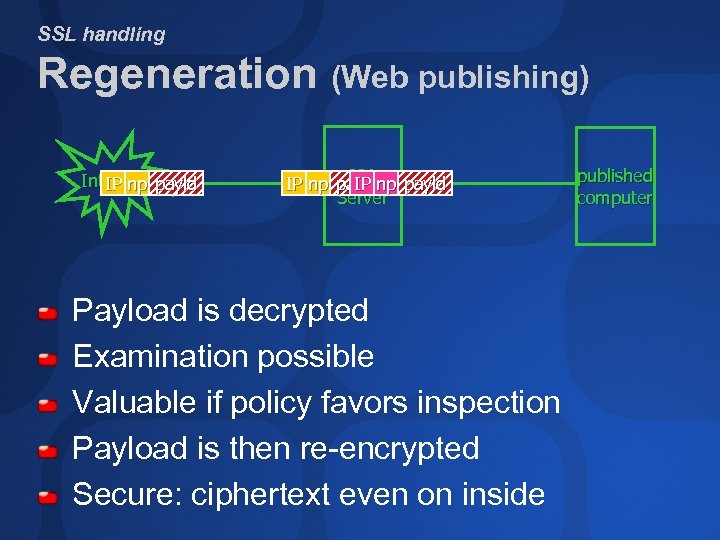

SSL handling Regeneration (Web publishing) Internet payld IP np ISA IP np payld IP SSL handling Regeneration (Web publishing) Internet payld IP np ISA IP np payld IP Server Payload is decrypted Examination possible Valuable if policy favors inspection Payload is then re-encrypted Secure: ciphertext even on inside published computer

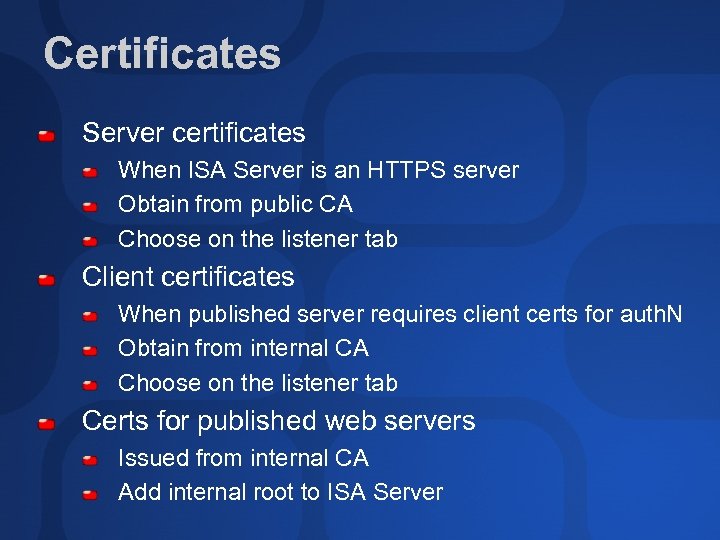

Certificates Server certificates When ISA Server is an HTTPS server Obtain from public CA Certificates Server certificates When ISA Server is an HTTPS server Obtain from public CA Choose on the listener tab Client certificates When published server requires client certs for auth. N Obtain from internal CA Choose on the listener tab Certs for published web servers Issued from internal CA Add internal root to ISA Server

Packet filters, packet filtering and IP routing Packet filters, packet filtering and IP routing

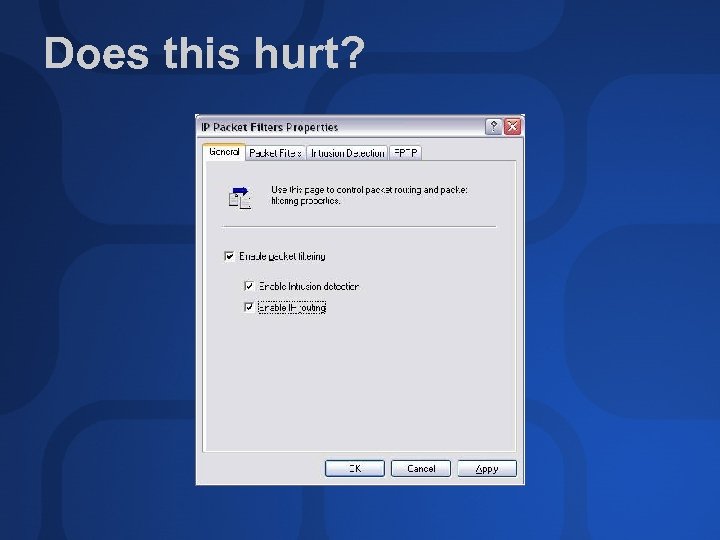

Does this hurt? Does this hurt?

Traffic passing LAT ↔ external is well-understood Protocol rules: getting out Publishing rules: getting Traffic passing LAT ↔ external is well-understood Protocol rules: getting out Publishing rules: getting in But… What are packet filters? What happens when you turn on packet filtering? What is IP routing?

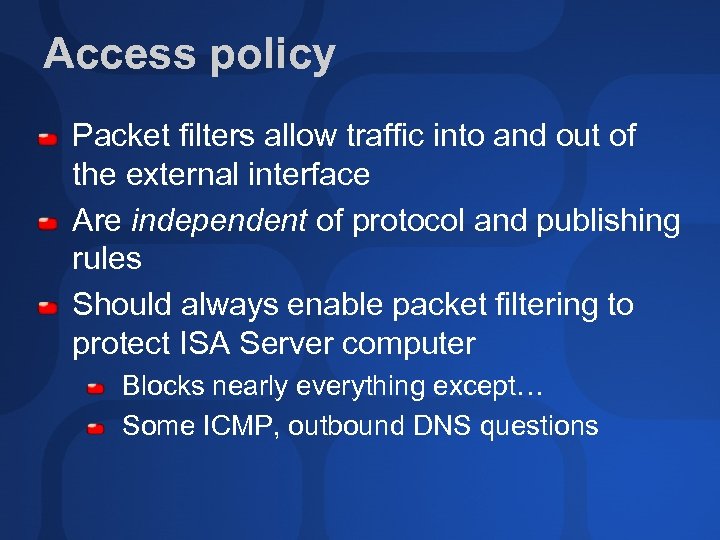

Access policy Packet filters allow traffic into and out of the external interface Are Access policy Packet filters allow traffic into and out of the external interface Are independent of protocol and publishing rules Should always enable packet filtering to protect ISA Server computer Blocks nearly everything except… Some ICMP, outbound DNS questions

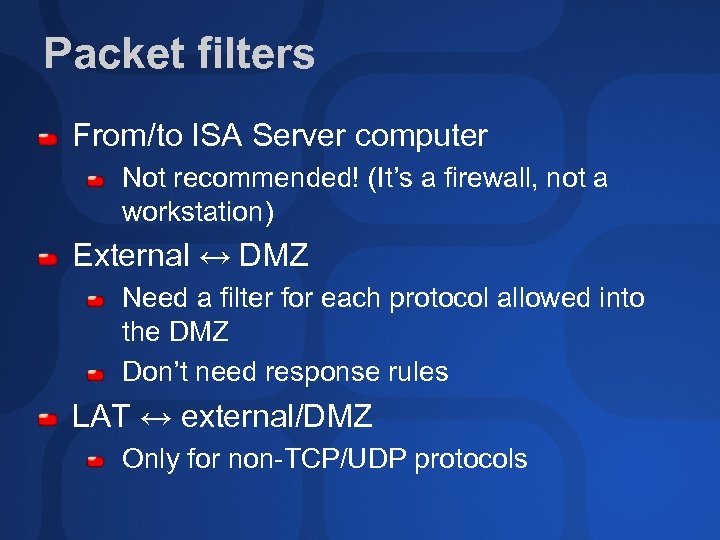

Packet filters From/to ISA Server computer Not recommended! (It’s a firewall, not a workstation) Packet filters From/to ISA Server computer Not recommended! (It’s a firewall, not a workstation) External ↔ DMZ Need a filter for each protocol allowed into the DMZ Don’t need response rules LAT ↔ external/DMZ Only for non-TCP/UDP protocols

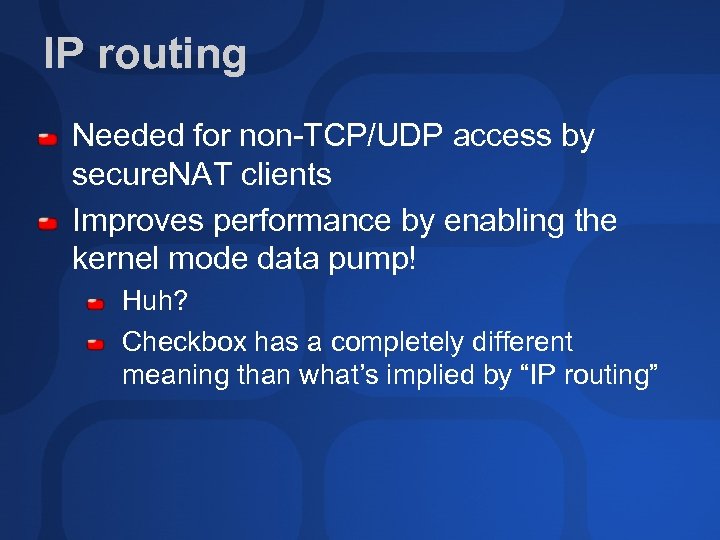

IP routing Needed for non-TCP/UDP access by secure. NAT clients Improves performance by enabling IP routing Needed for non-TCP/UDP access by secure. NAT clients Improves performance by enabling the kernel mode data pump! Huh? Checkbox has a completely different meaning than what’s implied by “IP routing”

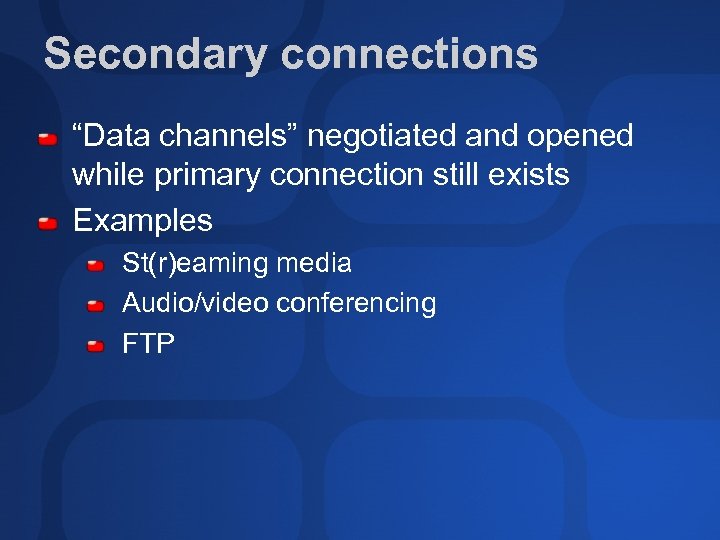

Secondary connections “Data channels” negotiated and opened while primary connection still exists Examples St(r)eaming Secondary connections “Data channels” negotiated and opened while primary connection still exists Examples St(r)eaming media Audio/video conferencing FTP

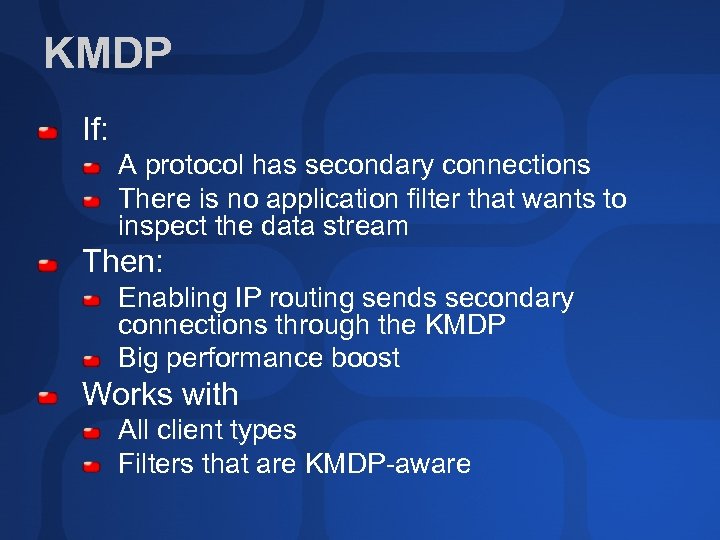

KMDP If: A protocol has secondary connections There is no application filter that wants KMDP If: A protocol has secondary connections There is no application filter that wants to inspect the data stream Then: Enabling IP routing sends secondary connections through the KMDP Big performance boost Works with All client types Filters that are KMDP-aware

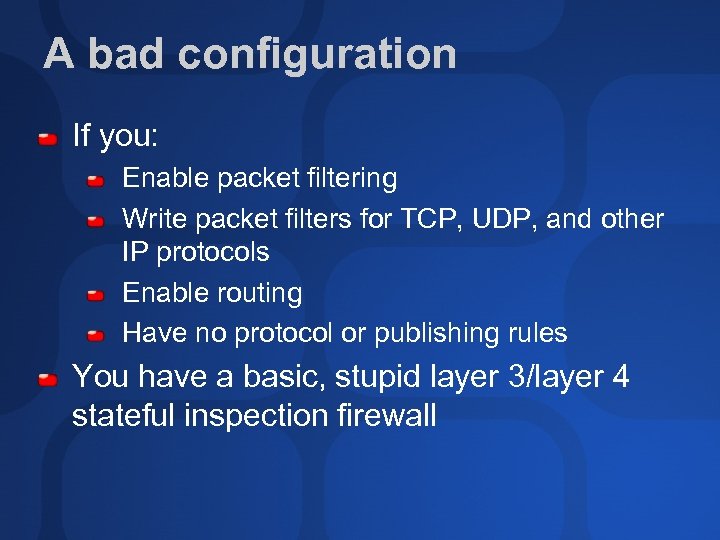

A bad configuration If you: Enable packet filtering Write packet filters for TCP, UDP, A bad configuration If you: Enable packet filtering Write packet filters for TCP, UDP, and other IP protocols Enable routing Have no protocol or publishing rules You have a basic, stupid layer 3/layer 4 stateful inspection firewall

Clients Clients

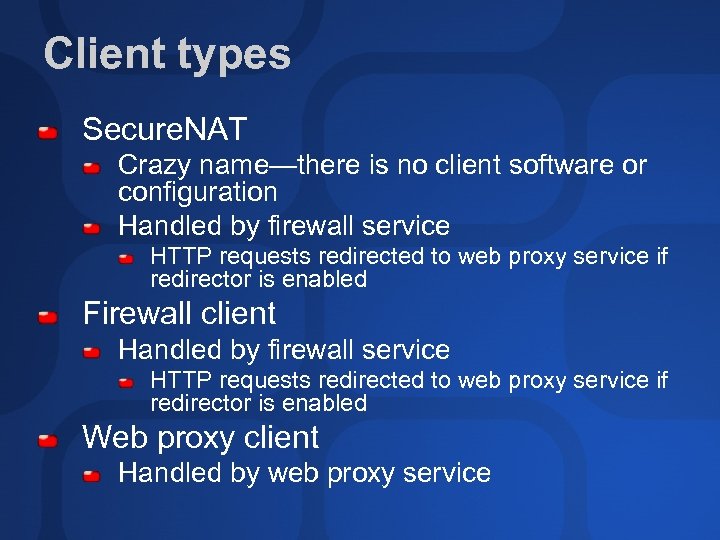

Client types Secure. NAT Crazy name—there is no client software or configuration Handled by Client types Secure. NAT Crazy name—there is no client software or configuration Handled by firewall service HTTP requests redirected to web proxy service if redirector is enabled Firewall client Handled by firewall service HTTP requests redirected to web proxy service if redirector is enabled Web proxy client Handled by web proxy service

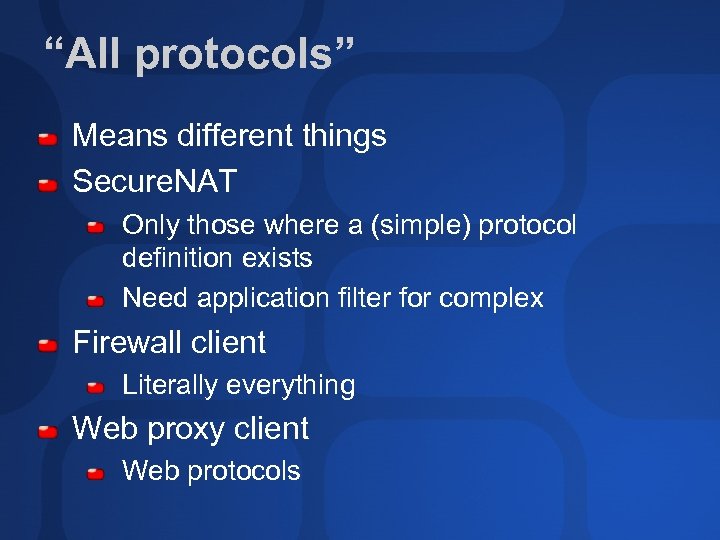

“All protocols” Means different things Secure. NAT Only those where a (simple) protocol definition “All protocols” Means different things Secure. NAT Only those where a (simple) protocol definition exists Need application filter for complex Firewall client Literally everything Web proxy client Web protocols

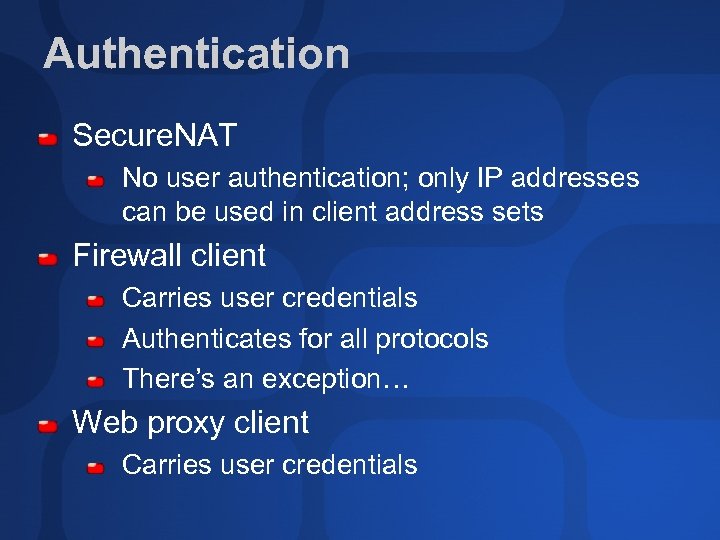

Authentication Secure. NAT No user authentication; only IP addresses can be used in client Authentication Secure. NAT No user authentication; only IP addresses can be used in client address sets Firewall client Carries user credentials Authenticates for all protocols There’s an exception… Web proxy client Carries user credentials

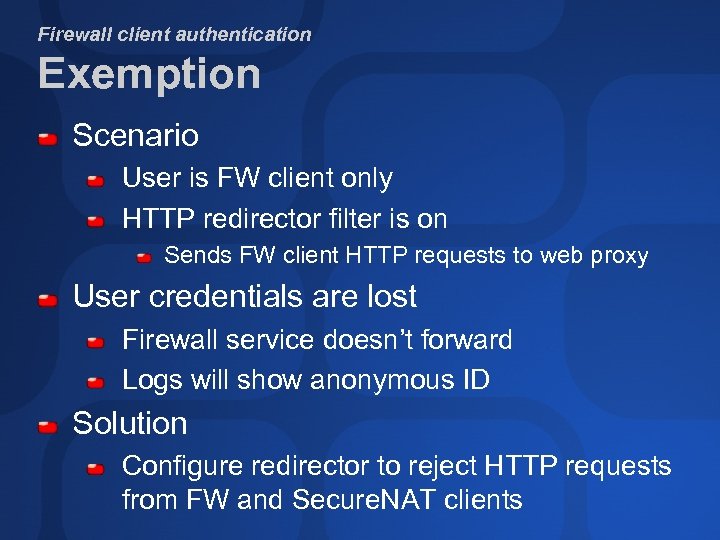

Firewall client authentication Exemption Scenario User is FW client only HTTP redirector filter is Firewall client authentication Exemption Scenario User is FW client only HTTP redirector filter is on Sends FW client HTTP requests to web proxy User credentials are lost Firewall service doesn’t forward Logs will show anonymous ID Solution Configure redirector to reject HTTP requests from FW and Secure. NAT clients

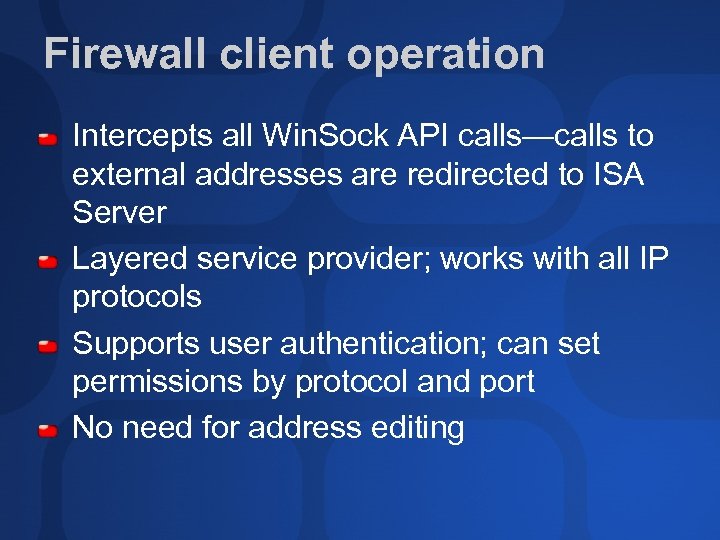

Firewall client operation Intercepts all Win. Sock API calls—calls to external addresses are redirected Firewall client operation Intercepts all Win. Sock API calls—calls to external addresses are redirected to ISA Server Layered service provider; works with all IP protocols Supports user authentication; can set permissions by protocol and port No need for address editing

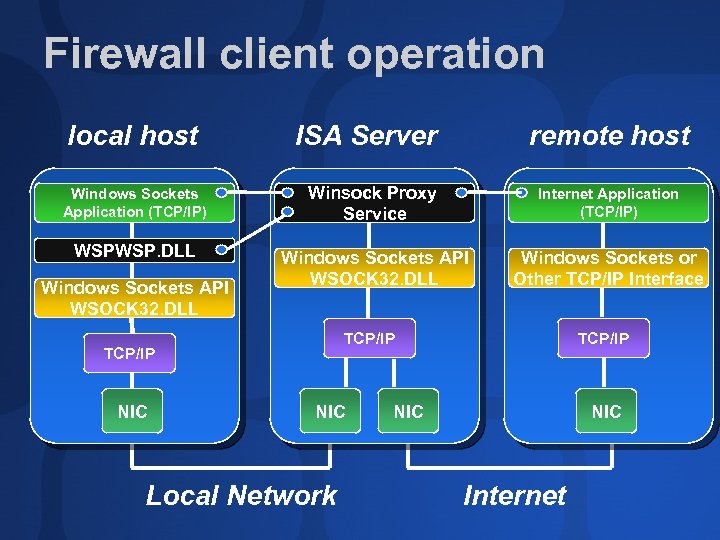

Firewall client operation local host ISA Server remote host Windows Sockets Application (TCP/IP) Winsock Firewall client operation local host ISA Server remote host Windows Sockets Application (TCP/IP) Winsock Proxy Service Internet Application (TCP/IP) WSPWSP. DLL Windows Sockets API WSOCK 32. DLL Windows Sockets or Other TCP/IP Interface Windows Sockets API WSOCK 32. DLL TCP/IP NIC Local Network TCP/IP NIC Internet

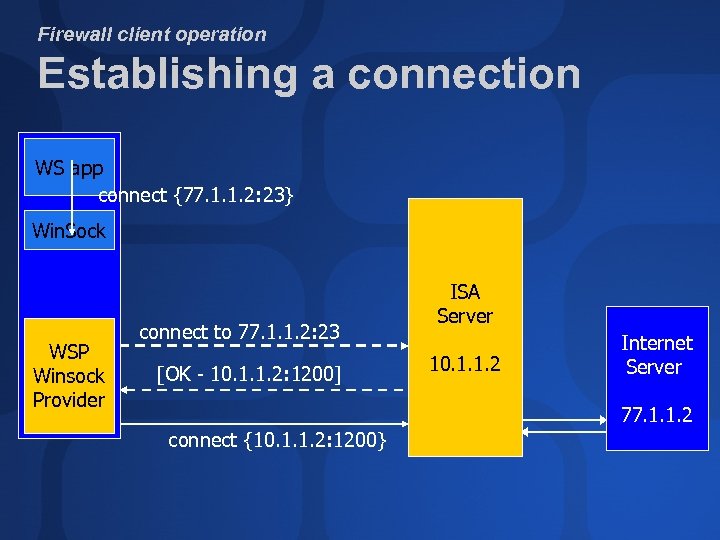

Firewall client operation Establishing a connection WS app connect {77. 1. 1. 2: 23} Firewall client operation Establishing a connection WS app connect {77. 1. 1. 2: 23} Win. Sock WSP Winsock Provider connect to 77. 1. 1. 2: 23 [OK - 10. 1. 1. 2: 1200] ISA Server 10. 1. 1. 2 Internet Server 77. 1. 1. 2 connect {10. 1. 1. 2: 1200}

Firewall client operation Port usage 1745/TCP: configuration refreshes MSPCLNT. INI and MSPLAT. TXT 1745/UDP: Firewall client operation Port usage 1745/TCP: configuration refreshes MSPCLNT. INI and MSPLAT. TXT 1745/UDP: control connection Negotiation of data channel Ephemeral: data connection

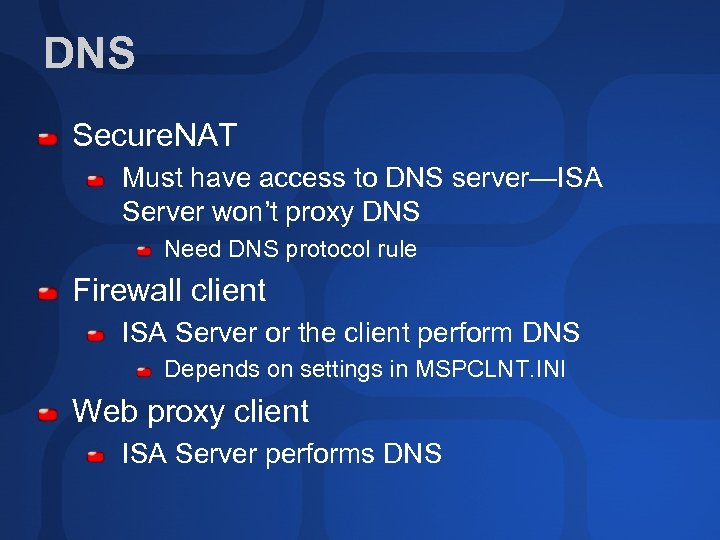

DNS Secure. NAT Must have access to DNS server—ISA Server won’t proxy DNS Need DNS Secure. NAT Must have access to DNS server—ISA Server won’t proxy DNS Need DNS protocol rule Firewall client ISA Server or the client perform DNS Depends on settings in MSPCLNT. INI Web proxy client ISA Server performs DNS

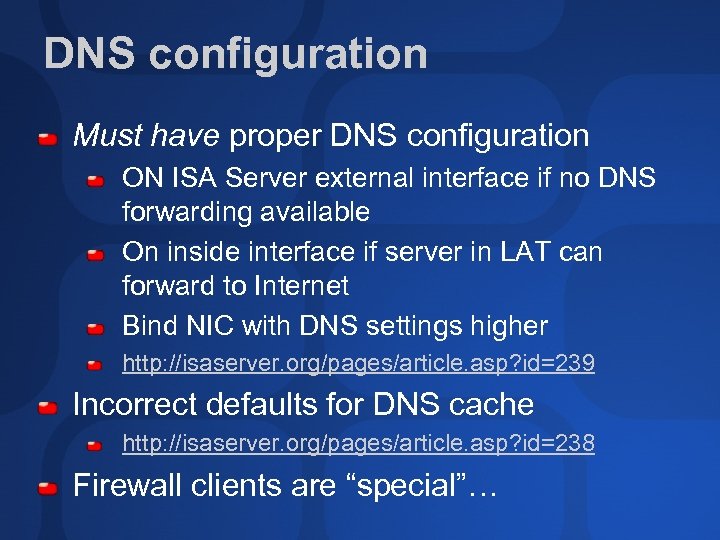

DNS configuration Must have proper DNS configuration ON ISA Server external interface if no DNS configuration Must have proper DNS configuration ON ISA Server external interface if no DNS forwarding available On inside interface if server in LAT can forward to Internet Bind NIC with DNS settings higher http: //isaserver. org/pages/article. asp? id=239 Incorrect defaults for DNS cache http: //isaserver. org/pages/article. asp? id=238 Firewall clients are “special”…

DNS configuration Firewall client Resolution obeys setting for each application in MSPCLNT. INI Local DNS configuration Firewall client Resolution obeys setting for each application in MSPCLNT. INI Local or proxied “Common configuration” is local Just like Secure. NAT Error 14120 Occurs if FW client is accessing a published server Traffic leaves then re-enters ISA Server http: //isaserver. org/pages/article. asp? id=236 http: //isaserver. org/pages/article. asp? id=353

ISA Server vs. RRAS ISA Server vs. RRAS

Terminology Remote access VPN Client on Internet connects to VPN server Network VPN Two Terminology Remote access VPN Client on Internet connects to VPN server Network VPN Two networks create VPN over Internet Gateway server on each network Often called “site-to-site VPN” IPSec Transport mode: used in L 2 TP+IPSec remote access and network VPNs Tunnel mode: designed for network VPNs

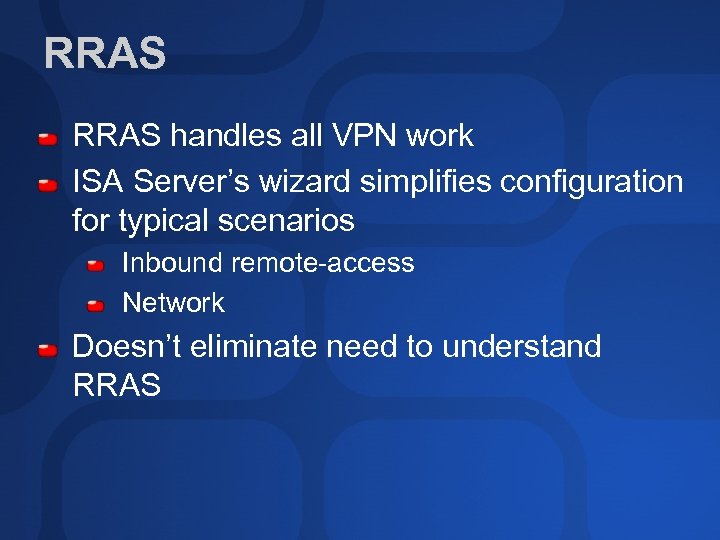

RRAS handles all VPN work ISA Server’s wizard simplifies configuration for typical scenarios Inbound RRAS handles all VPN work ISA Server’s wizard simplifies configuration for typical scenarios Inbound remote-access Network Doesn’t eliminate need to understand RRAS

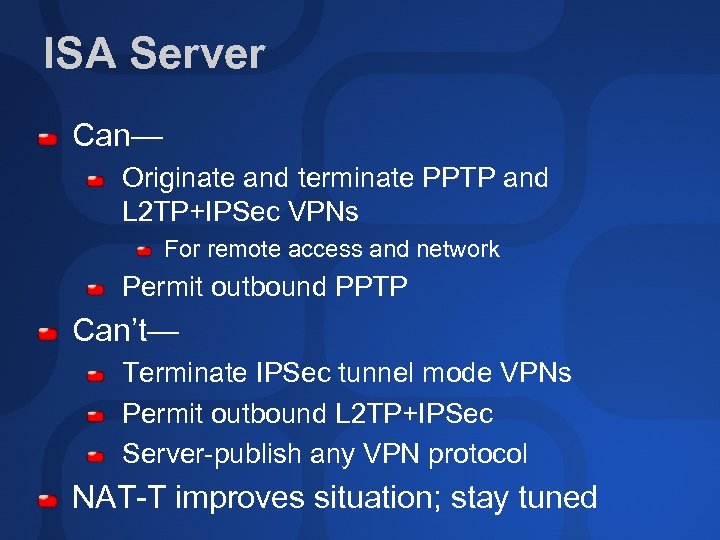

ISA Server Can— Originate and terminate PPTP and L 2 TP+IPSec VPNs For remote ISA Server Can— Originate and terminate PPTP and L 2 TP+IPSec VPNs For remote access and network Permit outbound PPTP Can’t— Terminate IPSec tunnel mode VPNs Permit outbound L 2 TP+IPSec Server-publish any VPN protocol NAT-T improves situation; stay tuned

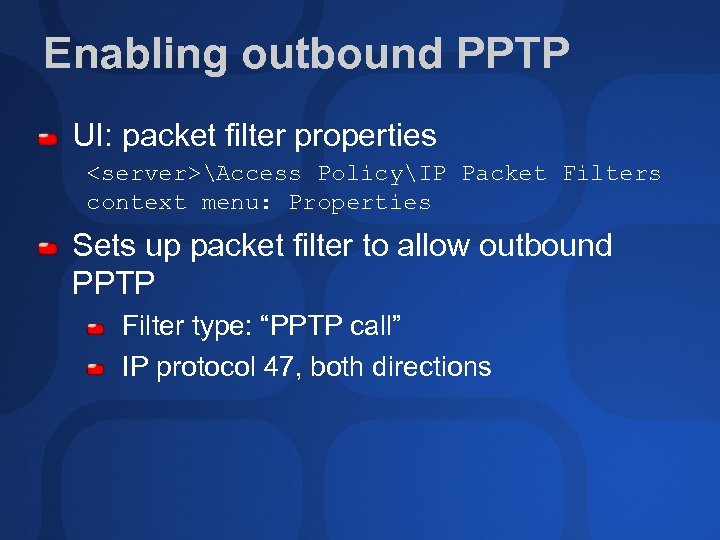

Enabling outbound PPTP UI: packet filter properties <server>Access PolicyIP Packet Filters context menu: Properties Enabling outbound PPTP UI: packet filter properties Access PolicyIP Packet Filters context menu: Properties Sets up packet filter to allow outbound PPTP Filter type: “PPTP call” IP protocol 47, both directions

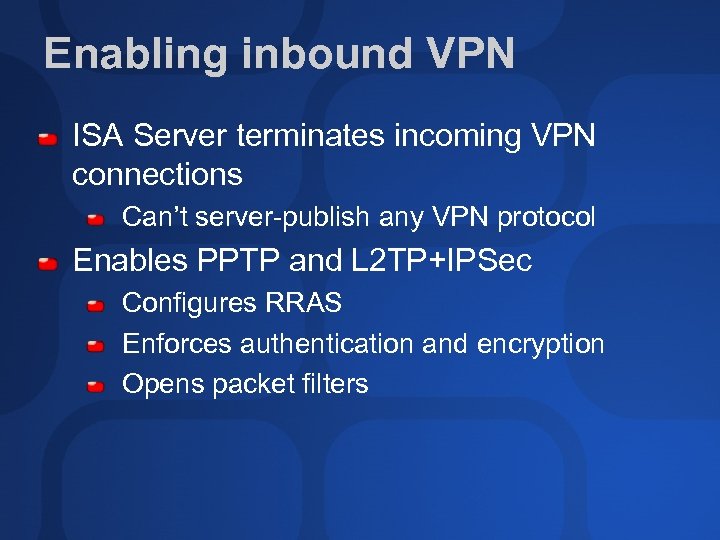

Enabling inbound VPN ISA Server terminates incoming VPN connections Can’t server-publish any VPN protocol Enabling inbound VPN ISA Server terminates incoming VPN connections Can’t server-publish any VPN protocol Enables PPTP and L 2 TP+IPSec Configures RRAS Enforces authentication and encryption Opens packet filters

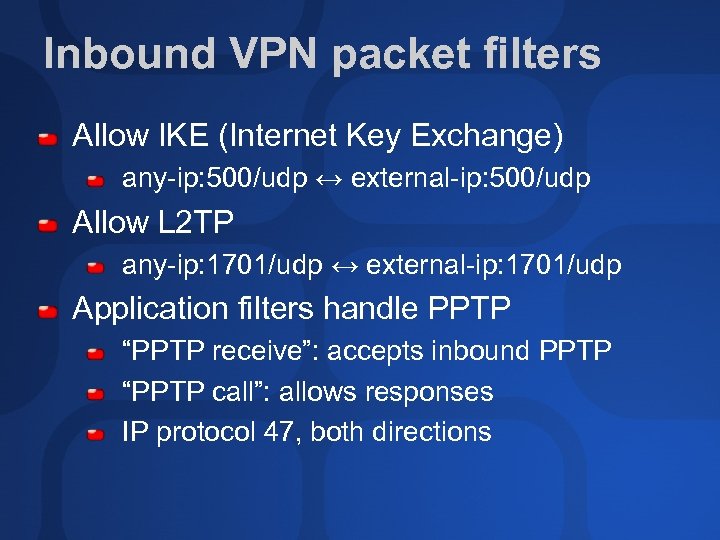

Inbound VPN packet filters Allow IKE (Internet Key Exchange) any-ip: 500/udp ↔ external-ip: 500/udp Inbound VPN packet filters Allow IKE (Internet Key Exchange) any-ip: 500/udp ↔ external-ip: 500/udp Allow L 2 TP any-ip: 1701/udp ↔ external-ip: 1701/udp Application filters handle PPTP “PPTP receive”: accepts inbound PPTP “PPTP call”: allows responses IP protocol 47, both directions

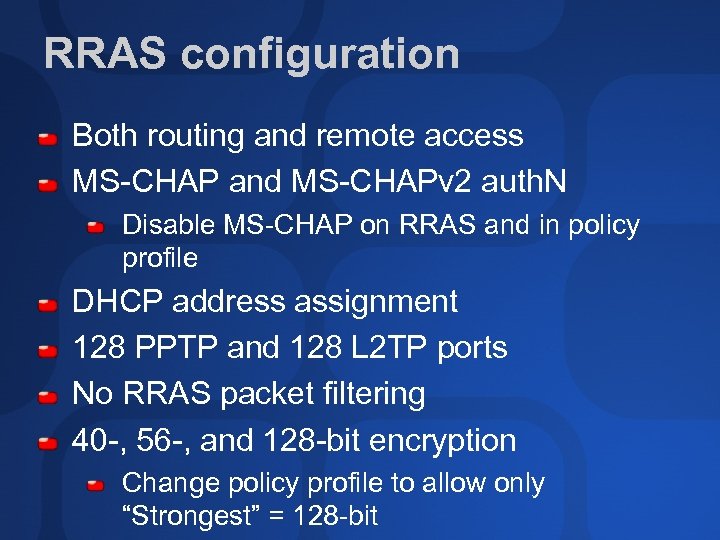

RRAS configuration Both routing and remote access MS-CHAP and MS-CHAPv 2 auth. N Disable RRAS configuration Both routing and remote access MS-CHAP and MS-CHAPv 2 auth. N Disable MS-CHAP on RRAS and in policy profile DHCP address assignment 128 PPTP and 128 L 2 TP ports No RRAS packet filtering 40 -, 56 -, and 128 -bit encryption Change policy profile to allow only “Strongest” = 128 -bit

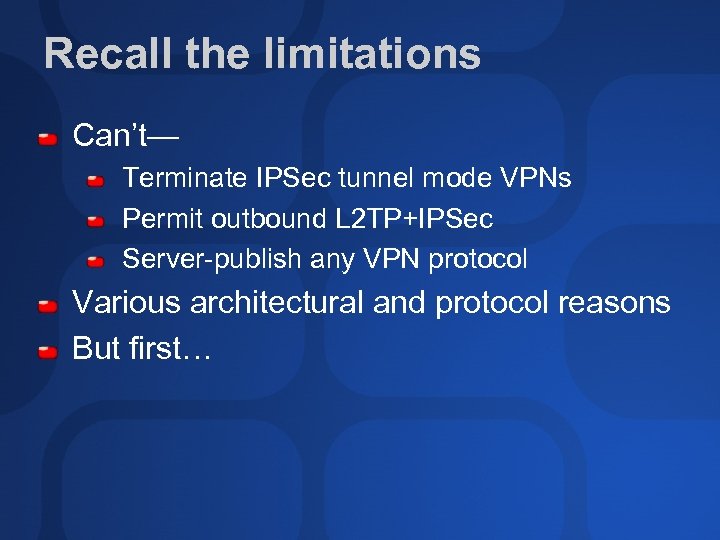

Recall the limitations Can’t— Terminate IPSec tunnel mode VPNs Permit outbound L 2 TP+IPSec Recall the limitations Can’t— Terminate IPSec tunnel mode VPNs Permit outbound L 2 TP+IPSec Server-publish any VPN protocol Various architectural and protocol reasons But first…

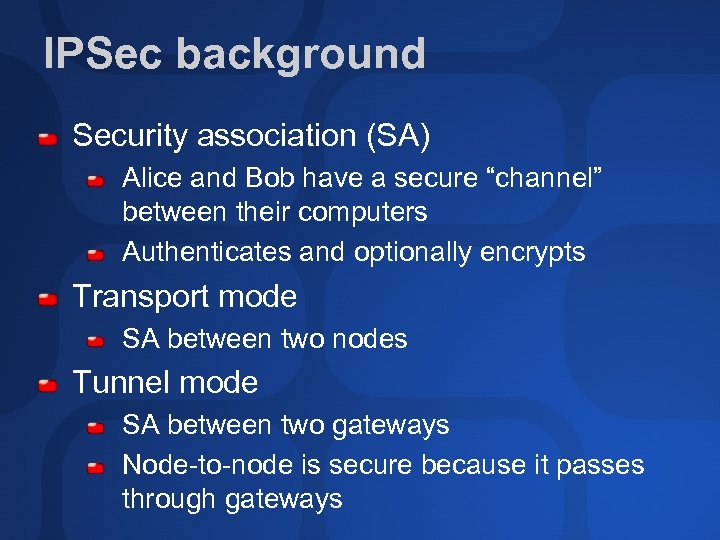

IPSec background Security association (SA) Alice and Bob have a secure “channel” between their IPSec background Security association (SA) Alice and Bob have a secure “channel” between their computers Authenticates and optionally encrypts Transport mode SA between two nodes Tunnel mode SA between two gateways Node-to-node is secure because it passes through gateways

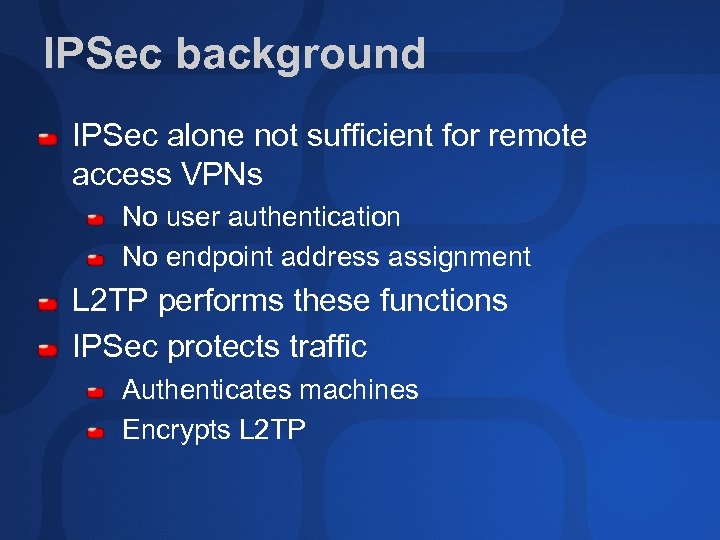

IPSec background IPSec alone not sufficient for remote access VPNs No user authentication No IPSec background IPSec alone not sufficient for remote access VPNs No user authentication No endpoint address assignment L 2 TP performs these functions IPSec protects traffic Authenticates machines Encrypts L 2 TP

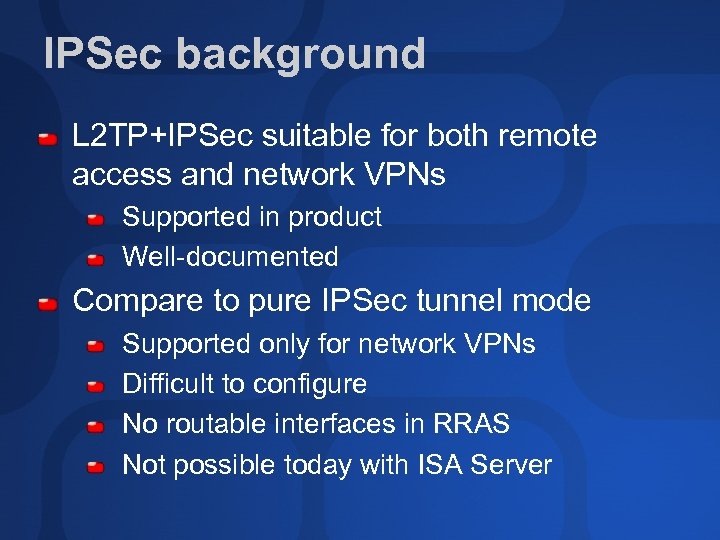

IPSec background L 2 TP+IPSec suitable for both remote access and network VPNs Supported IPSec background L 2 TP+IPSec suitable for both remote access and network VPNs Supported in product Well-documented Compare to pure IPSec tunnel mode Supported only for network VPNs Difficult to configure No routable interfaces in RRAS Not possible today with ISA Server

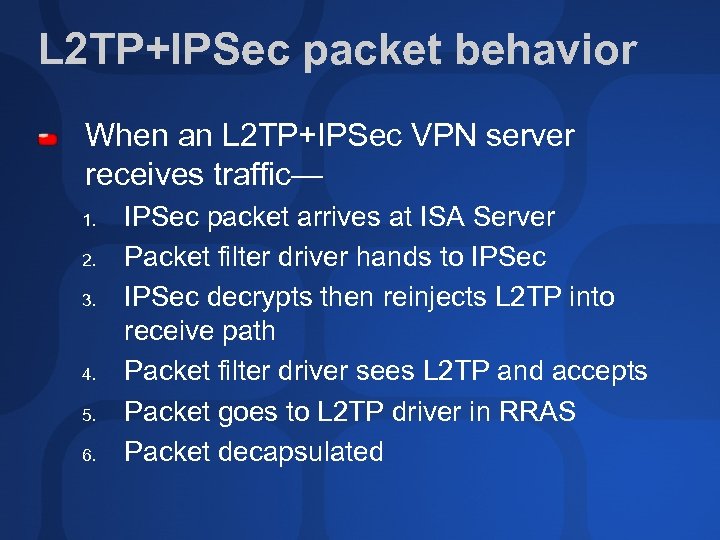

L 2 TP+IPSec packet behavior When an L 2 TP+IPSec VPN server receives traffic— L 2 TP+IPSec packet behavior When an L 2 TP+IPSec VPN server receives traffic— 1. 2. 3. 4. 5. 6. IPSec packet arrives at ISA Server Packet filter driver hands to IPSec decrypts then reinjects L 2 TP into receive path Packet filter driver sees L 2 TP and accepts Packet goes to L 2 TP driver in RRAS Packet decapsulated

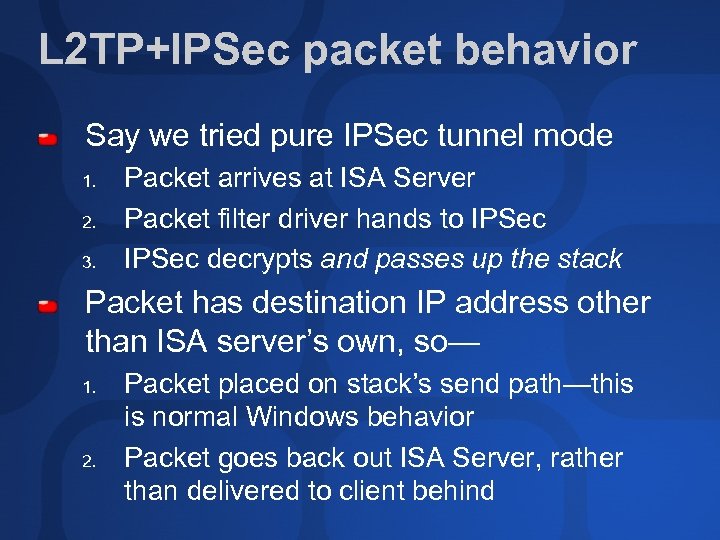

L 2 TP+IPSec packet behavior Say we tried pure IPSec tunnel mode 1. 2. L 2 TP+IPSec packet behavior Say we tried pure IPSec tunnel mode 1. 2. 3. Packet arrives at ISA Server Packet filter driver hands to IPSec decrypts and passes up the stack Packet has destination IP address other than ISA server’s own, so— 1. 2. Packet placed on stack’s send path—this is normal Windows behavior Packet goes back out ISA Server, rather than delivered to client behind

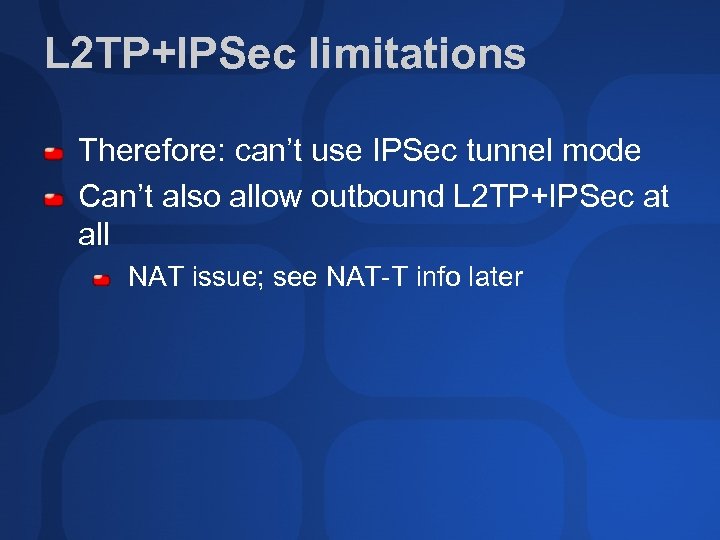

L 2 TP+IPSec limitations Therefore: can’t use IPSec tunnel mode Can’t also allow outbound L 2 TP+IPSec limitations Therefore: can’t use IPSec tunnel mode Can’t also allow outbound L 2 TP+IPSec at all NAT issue; see NAT-T info later

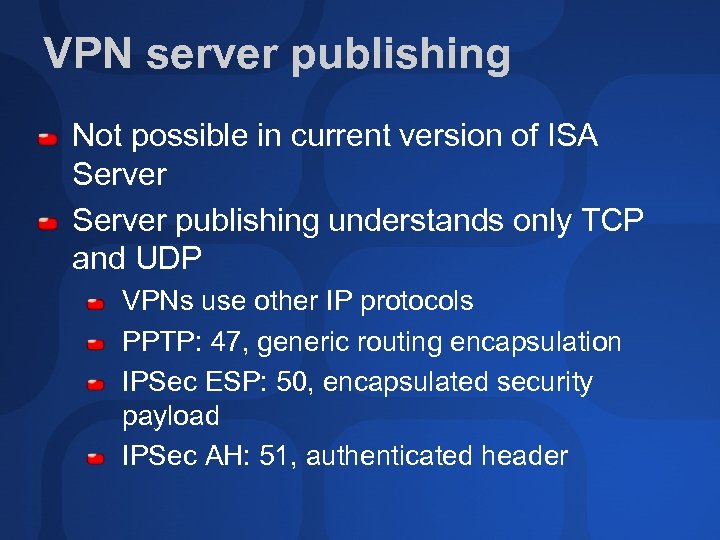

VPN server publishing Not possible in current version of ISA Server publishing understands only VPN server publishing Not possible in current version of ISA Server publishing understands only TCP and UDP VPNs use other IP protocols PPTP: 47, generic routing encapsulation IPSec ESP: 50, encapsulated security payload IPSec AH: 51, authenticated header

Q 310888 RRAS “Internal” interface is server-side tunnel termination point Can NAT this interface Q 310888 RRAS “Internal” interface is server-side tunnel termination point Can NAT this interface to treat incoming tunnels as private interfaces NATing them allows easy outbound access either back through RRAS or through some other firewall Also allows NATing between RRAS sites Article explains how to set this up

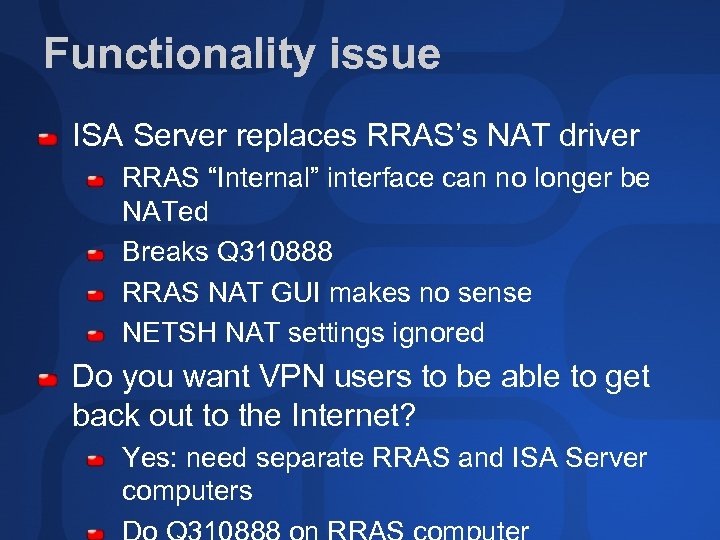

Functionality issue ISA Server replaces RRAS’s NAT driver RRAS “Internal” interface can no longer Functionality issue ISA Server replaces RRAS’s NAT driver RRAS “Internal” interface can no longer be NATed Breaks Q 310888 RRAS NAT GUI makes no sense NETSH NAT settings ignored Do you want VPN users to be able to get back out to the Internet? Yes: need separate RRAS and ISA Server computers

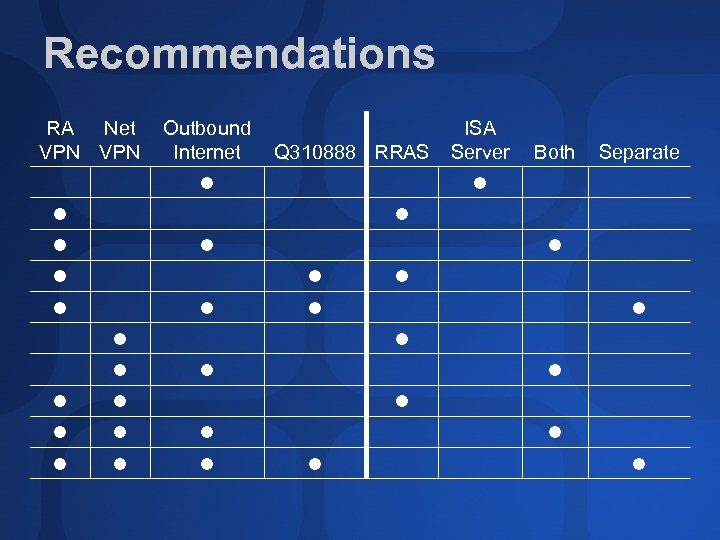

Recommendations RA Net VPN Outbound Internet Q 310888 RRAS ISA Server Both Separate Recommendations RA Net VPN Outbound Internet Q 310888 RRAS ISA Server Both Separate

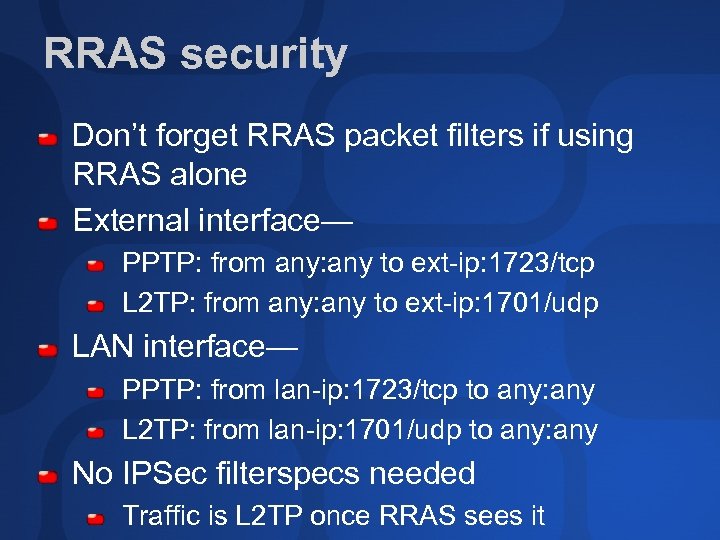

RRAS security Don’t forget RRAS packet filters if using RRAS alone External interface— PPTP: RRAS security Don’t forget RRAS packet filters if using RRAS alone External interface— PPTP: from any: any to ext-ip: 1723/tcp L 2 TP: from any: any to ext-ip: 1701/udp LAN interface— PPTP: from lan-ip: 1723/tcp to any: any L 2 TP: from lan-ip: 1701/udp to any: any No IPSec filterspecs needed Traffic is L 2 TP once RRAS sees it

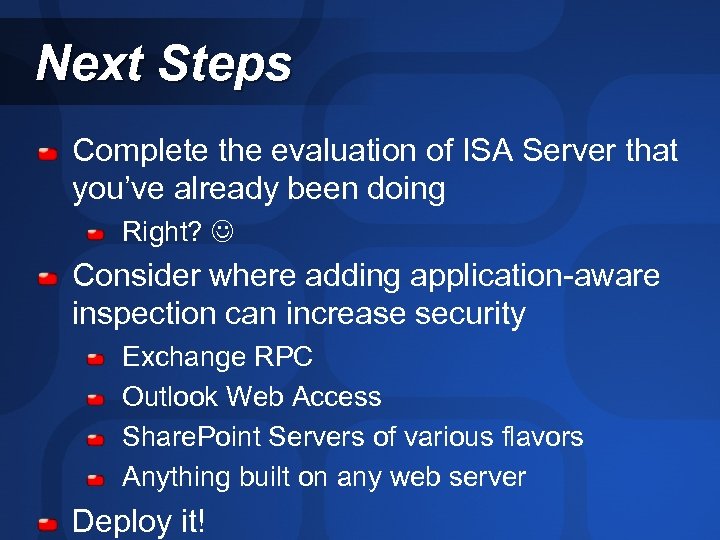

Next Steps Complete the evaluation of ISA Server that you’ve already been doing Right? Next Steps Complete the evaluation of ISA Server that you’ve already been doing Right? Consider where adding application-aware inspection can increase security Exchange RPC Outlook Web Access Share. Point Servers of various flavors Anything built on any web server Deploy it!

Suggested Reading And Resources The tools you need to put technology to work! TITLE Suggested Reading And Resources The tools you need to put technology to work! TITLE Microsoft® Internet Security and Acceleration (ISA) Server 2000 Administrator's Pocket Consultant: 0 -7356 -1442 -3 Writing Secure Code, Second Edition: 0 -7356 -1722 -8 Available Today Microsoft Press books are 20% off at the Tech. Ed Bookstore Also buy any TWO Microsoft Press books and get a FREE T-Shirt

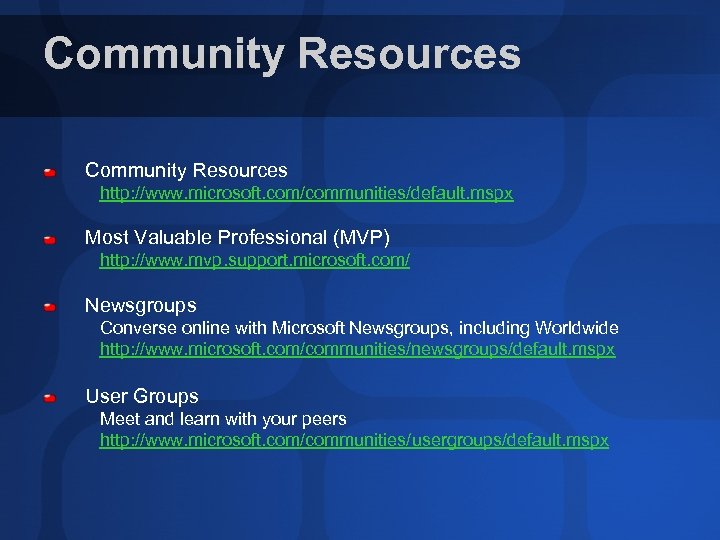

Community Resources http: //www. microsoft. com/communities/default. mspx Most Valuable Professional (MVP) http: //www. mvp. Community Resources http: //www. microsoft. com/communities/default. mspx Most Valuable Professional (MVP) http: //www. mvp. support. microsoft. com/ Newsgroups Converse online with Microsoft Newsgroups, including Worldwide http: //www. microsoft. com/communities/newsgroups/default. mspx User Groups Meet and learn with your peers http: //www. microsoft. com/communities/usergroups/default. mspx
