Scope and Project Plan of IFMIF/EVEDA Presented by Masayoshi SUGIMOTO (IFMIF/EVEDA Project Team, Deputy Leader/ JAEA) IAEA’s Technical Meeting on Nuclear Data Libraries for Advanced Systems: Fusion Devices (Nu. DL: FD) 31 October – 2 November 2007, Vienna

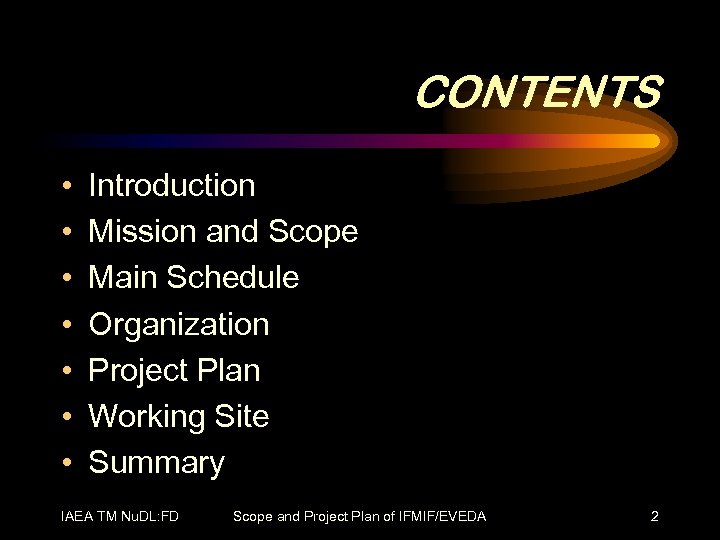

CONTENTS • • Introduction Mission and Scope Main Schedule Organization Project Plan Working Site Summary IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 2

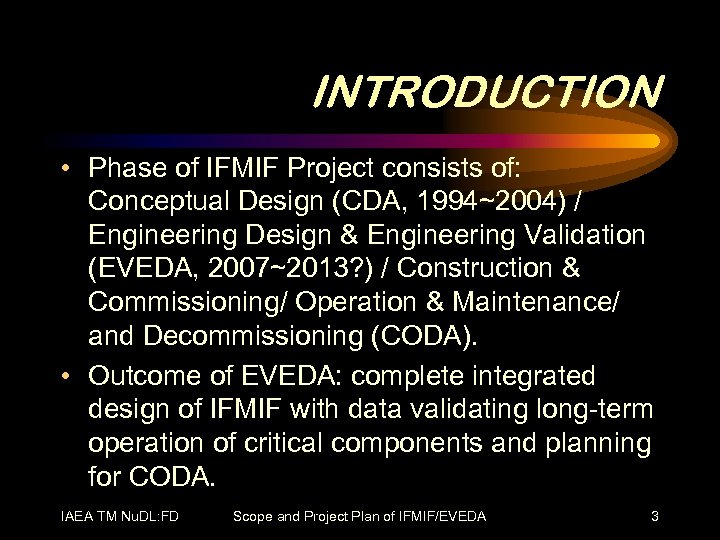

INTRODUCTION • Phase of IFMIF Project consists of: Conceptual Design (CDA, 1994~2004) / Engineering Design & Engineering Validation (EVEDA, 2007~2013? ) / Construction & Commissioning/ Operation & Maintenance/ and Decommissioning (CODA). • Outcome of EVEDA: complete integrated design of IFMIF with data validating long-term operation of critical components and planning for CODA. IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 3

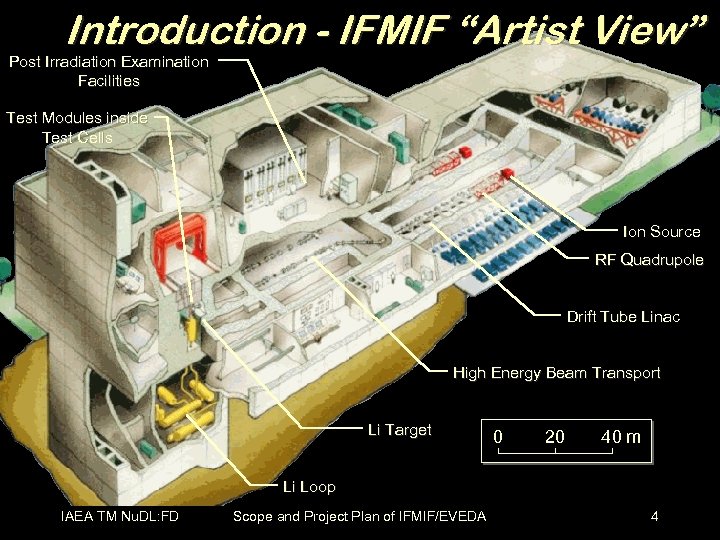

Introduction - IFMIF “Artist View” Post Irradiation Examination Facilities Test Modules inside Test Cells Ion Source RF Quadrupole Drift Tube Linac High Energy Beam Transport Li Target 0 20 40 m Li Loop IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 4

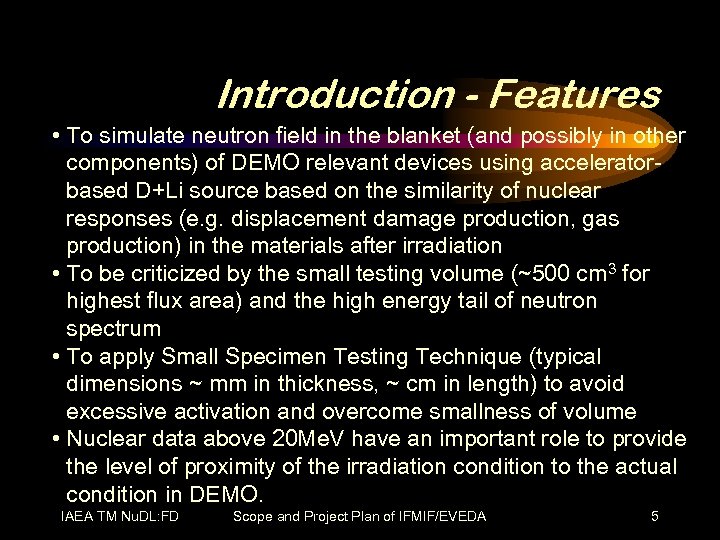

Introduction - Features • To simulate neutron field in the blanket (and possibly in other components) of DEMO relevant devices using acceleratorbased D+Li source based on the similarity of nuclear responses (e. g. displacement damage production, gas production) in the materials after irradiation • To be criticized by the small testing volume (~500 cm 3 for highest flux area) and the high energy tail of neutron spectrum • To apply Small Specimen Testing Technique (typical dimensions ~ mm in thickness, ~ cm in length) to avoid excessive activation and overcome smallness of volume • Nuclear data above 20 Me. V have an important role to provide the level of proximity of the irradiation condition to the actual condition in DEMO. IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 5

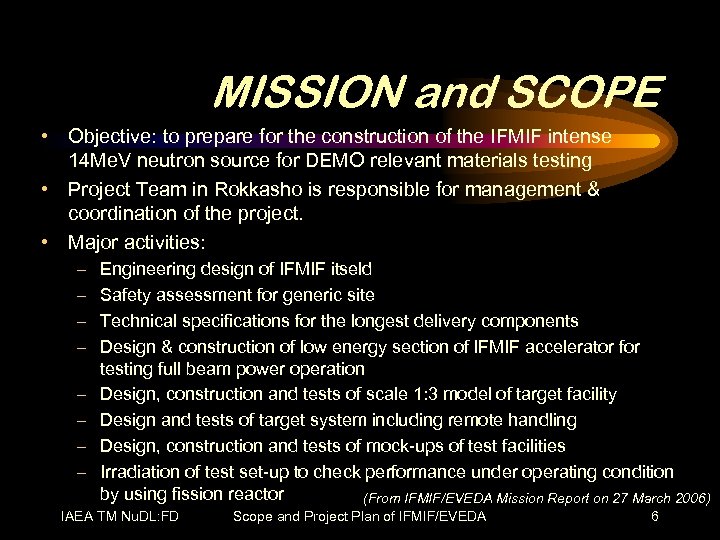

MISSION and SCOPE • Objective: to prepare for the construction of the IFMIF intense 14 Me. V neutron source for DEMO relevant materials testing • Project Team in Rokkasho is responsible for management & coordination of the project. • Major activities: – – – – Engineering design of IFMIF itseld Safety assessment for generic site Technical specifications for the longest delivery components Design & construction of low energy section of IFMIF accelerator for testing full beam power operation Design, construction and tests of scale 1: 3 model of target facility Design and tests of target system including remote handling Design, construction and tests of mock-ups of test facilities Irradiation of test set-up to check performance under operating condition by using fission reactor (From IFMIF/EVEDA Mission Report on 27 March 2006) IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 6

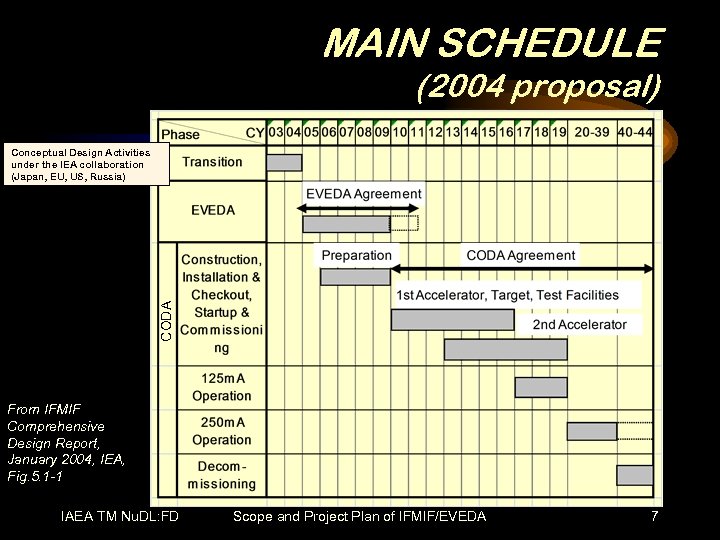

MAIN SCHEDULE (2004 proposal) CODA Conceptual Design Activities under the IEA collaboration (Japan, EU, US, Russia) From IFMIF Comprehensive Design Report, January 2004, IEA, Fig. 5. 1 -1 IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 7

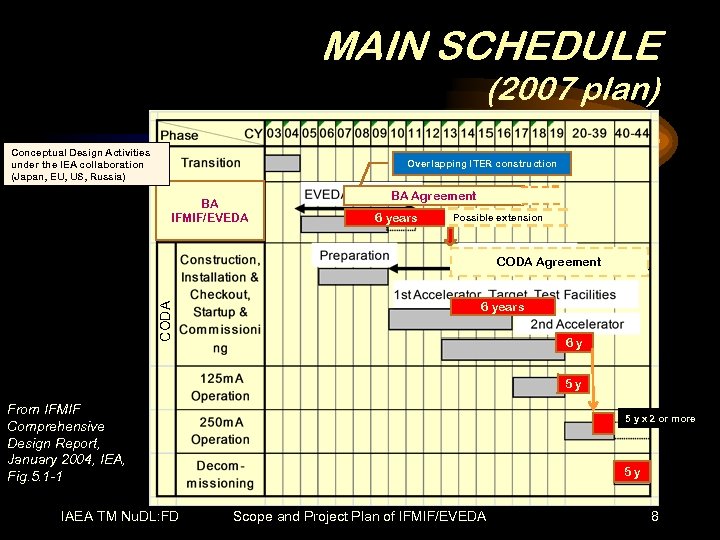

MAIN SCHEDULE (2007 plan) Conceptual Design Activities under the IEA collaboration (Japan, EU, US, Russia) Overlapping ITER construction BA IFMIF/EVEDA BA Agreement 6 years … Possible extension CODA Agreement 6 years 6 y 5 y From IFMIF Comprehensive Design Report, January 2004, IEA, Fig. 5. 1 -1 IAEA TM Nu. DL: FD 5 y x 2 or more 5 y Scope and Project Plan of IFMIF/EVEDA 8

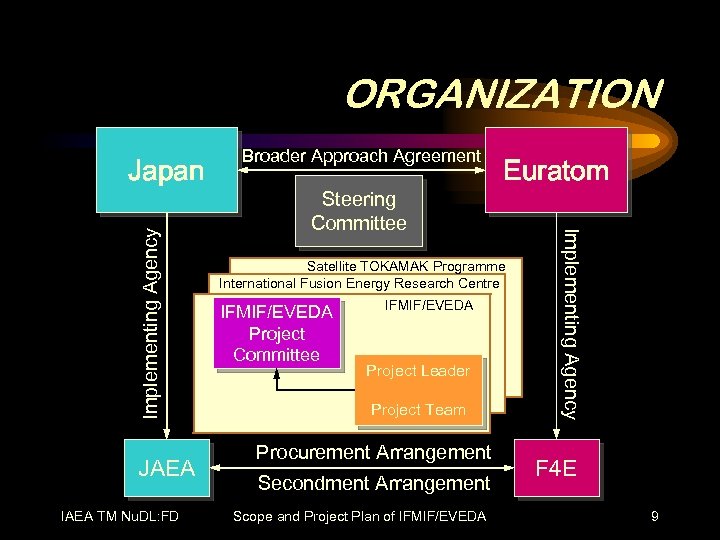

ORGANIZATION JAEA IAEA TM Nu. DL: FD Steering Committee Euratom Satellite TOKAMAK Programme International Fusion Energy Research Centre IFMIF/EVEDA Project Committee IFMIF/EVEDA Project Leader Project Team Procurement Arrangement Secondment Arrangement Scope and Project Plan of IFMIF/EVEDA Implementing Agency Japan Broader Approach Agreement F 4 E 9

Organization (IFMIF/EVEDA Project) Broader Approach Steering Committee IFMIF EVEDA Project Committee System Groups Implementing Agencies Project Leader (EU) (Japan) SG SG Accelerator Management, QA SG SG Target Engineering Design and Integration, Safety SG SG IAEA TM Nu. DL: FD Test Facilities CAD Rokkasho and Conventional Facilities (infrastructure, licensing, tests…) Scope and Project Plan of IFMIF/EVEDA 10

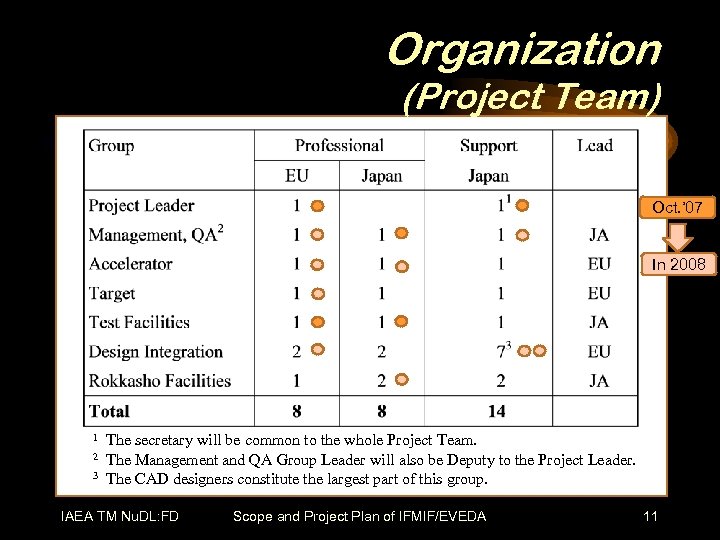

Organization (Project Team) Oct. ’ 07 In 2008 1 2 3 The secretary will be common to the whole Project Team. The Management and QA Group Leader will also be Deputy to the Project Leader. The CAD designers constitute the largest part of this group. IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 11

Organization (Main Current Contributors) BA Agreement, Article 25: Participation of other ITER Parties -----------------------In the event that any party to the ITER Agreement expresses its intention to participate in a project of the Broader Approach Activities, … The Steering Committee shall decide on the participation of that party upon the proposal of the Project Leader, and subject to the approval of the Parties following their internal procedures, may conclude agreements and arrangements with that party on such participation. IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 12

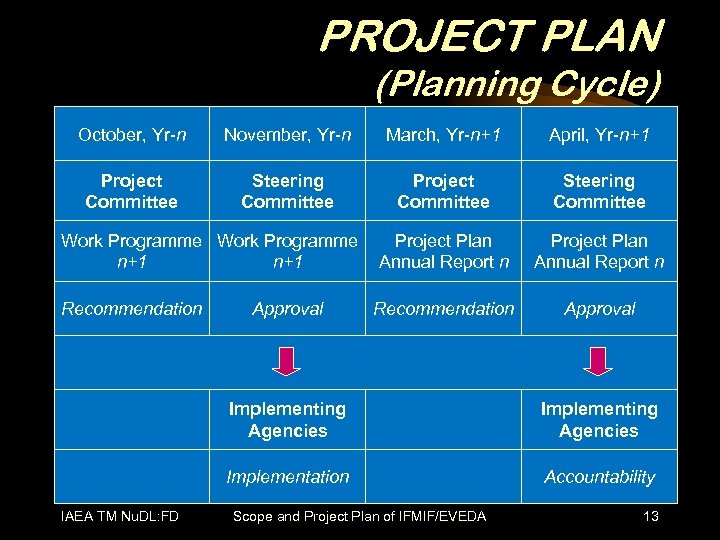

PROJECT PLAN (Planning Cycle) October, Yr-n November, Yr-n March, Yr-n+1 April, Yr-n+1 Project Committee Steering Committee Project Plan Annual Report n Recommendation Approval Work Programme n+1 Recommendation Approval Implementing Agencies Implementation IAEA TM Nu. DL: FD Implementing Agencies Accountability Scope and Project Plan of IFMIF/EVEDA 13

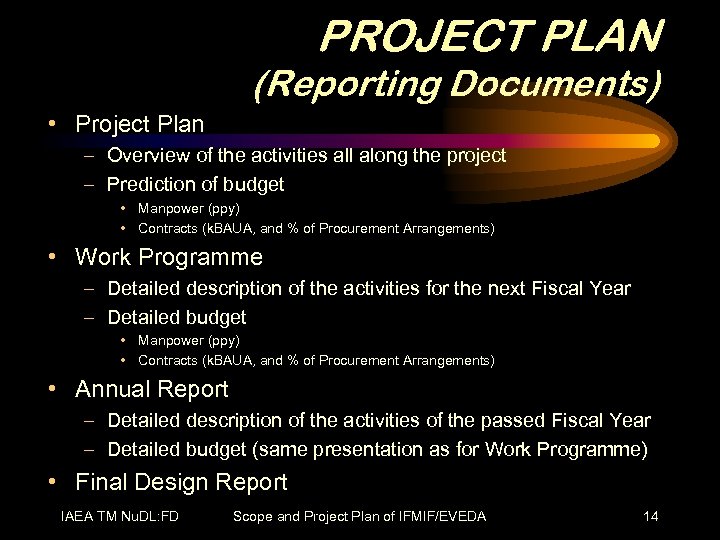

PROJECT PLAN (Reporting Documents) • Project Plan – Overview of the activities all along the project – Prediction of budget • Manpower (ppy) • Contracts (k. BAUA, and % of Procurement Arrangements) • Work Programme – Detailed description of the activities for the next Fiscal Year – Detailed budget • Manpower (ppy) • Contracts (k. BAUA, and % of Procurement Arrangements) • Annual Report – Detailed description of the activities of the passed Fiscal Year – Detailed budget (same presentation as for Work Programme) • Final Design Report IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 14

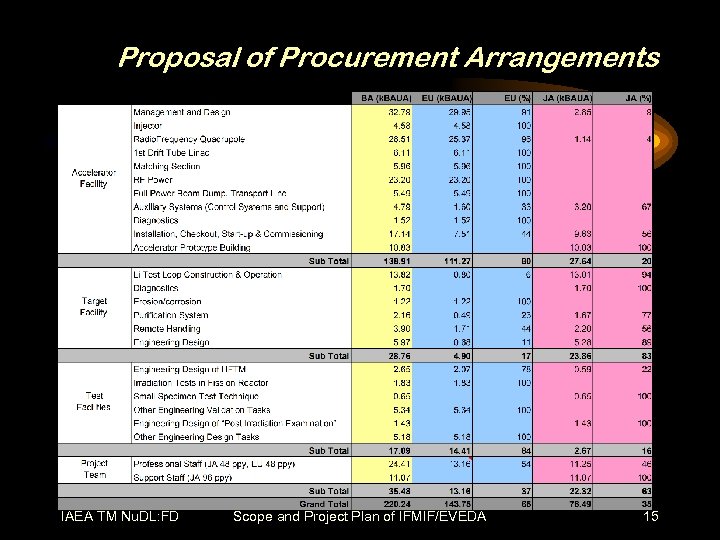

Proposal of Procurement Arrangements IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 15

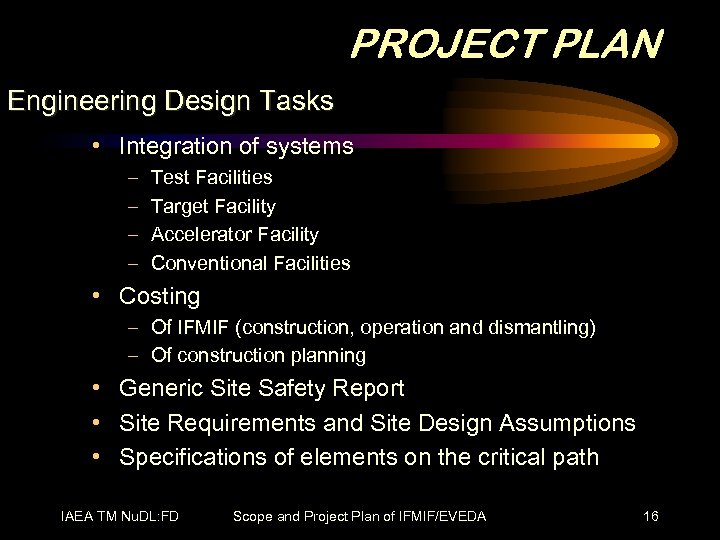

PROJECT PLAN Engineering Design Tasks • Integration of systems – – Test Facilities Target Facility Accelerator Facility Conventional Facilities • Costing – Of IFMIF (construction, operation and dismantling) – Of construction planning • Generic Site Safety Report • Site Requirements and Site Design Assumptions • Specifications of elements on the critical path IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 16

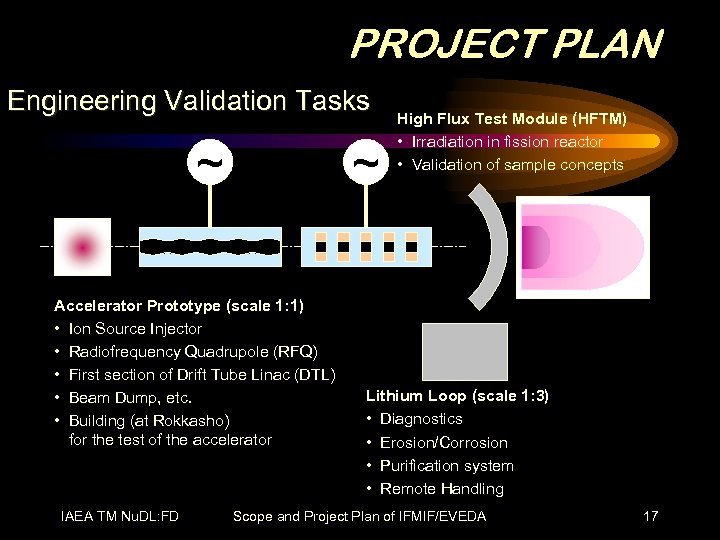

PROJECT PLAN Engineering Validation Tasks ~ ~ Accelerator Prototype (scale 1: 1) • Ion Source Injector • Radiofrequency Quadrupole (RFQ) • First section of Drift Tube Linac (DTL) • Beam Dump, etc. • Building (at Rokkasho) for the test of the accelerator IAEA TM Nu. DL: FD High Flux Test Module (HFTM) • Irradiation in fission reactor • Validation of sample concepts Lithium Loop (scale 1: 3) • Diagnostics • Erosion/Corrosion • Purification system • Remote Handling Scope and Project Plan of IFMIF/EVEDA 17

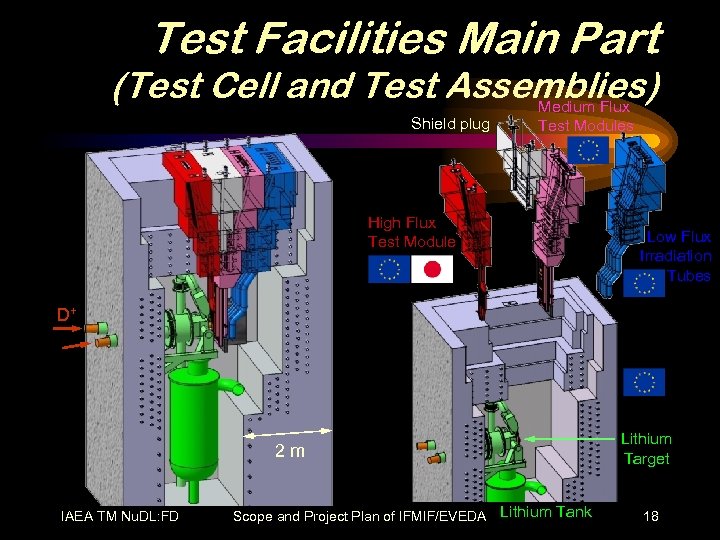

Test Facilities Main Part (Test Cell and Test Assemblies) Medium Flux Shield plug Test Modules High Flux Test Module Low Flux Irradiation Tubes D+ 2 m IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA Lithium Tank Lithium Target 18

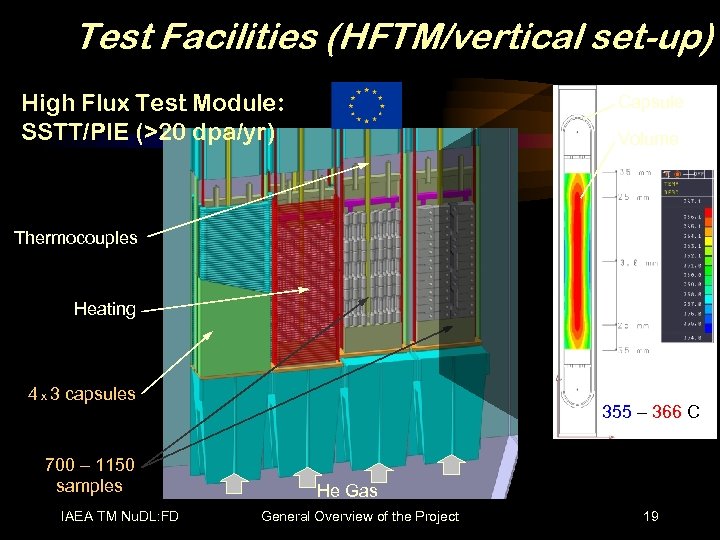

Test Facilities (HFTM/vertical set-up) High Flux Test Module: SSTT/PIE (>20 dpa/yr) Capsule Volume Thermocouples Heating 4 x 3 capsules 700 – 1150 samples IAEA TM Nu. DL: FD 355 – 366 C He Gas General Overview of the Project 19

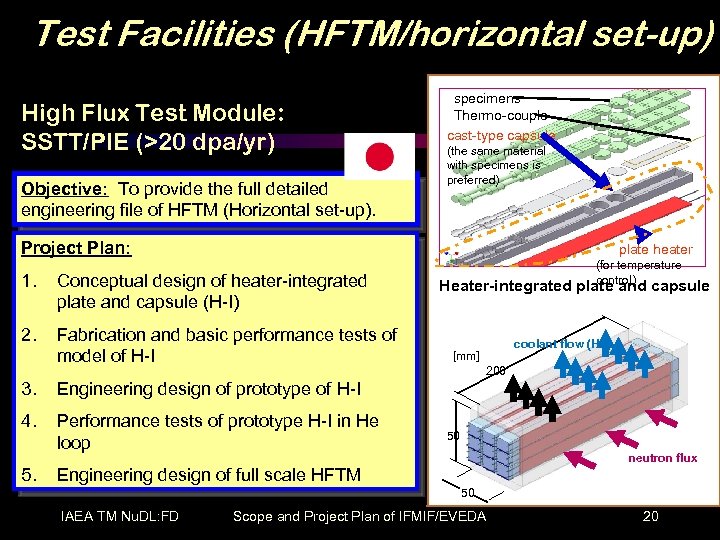

Test Facilities (HFTM/horizontal set-up) High Flux Test Module: SSTT/PIE (>20 dpa/yr) Objective: To provide the full detailed engineering file of HFTM (Horizontal set-up). specimens Thermo-couple cast-type capsule (the same material with specimens is preferred) Project Plan: plate heater 1. Conceptual design of heater-integrated plate and capsule (H-I) 2. Fabrication and basic performance tests of model of H-I 3. Performance tests of prototype H-I in He loop Heater-integrated plate and capsule coolant flow (He) [mm] 200 Engineering design of prototype of H-I 4. (for temperature control) 5. 50 neutron flux Engineering design of full scale HFTM 50 IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 20

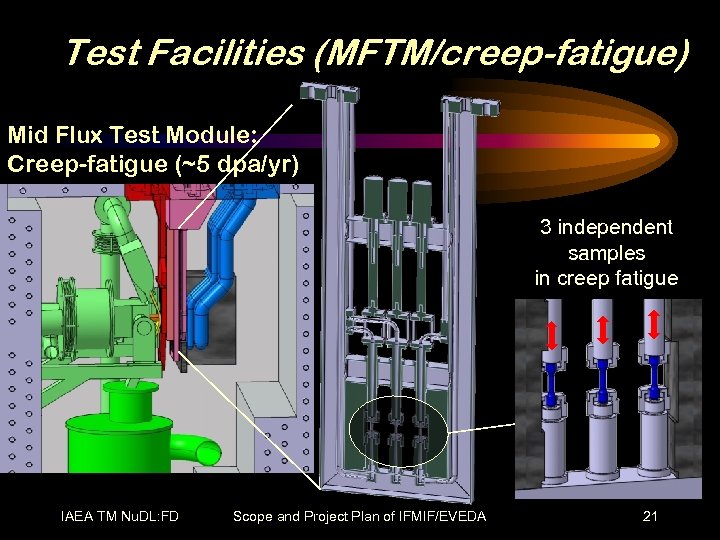

Test Facilities (MFTM/creep-fatigue) Mid Flux Test Module: Creep-fatigue (~5 dpa/yr) 3 independent samples in creep fatigue IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 21

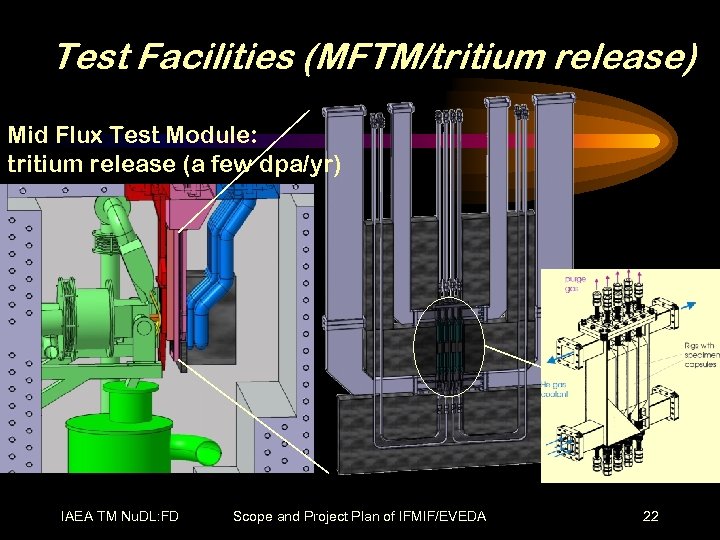

Test Facilities (MFTM/tritium release) Mid Flux Test Module: tritium release (a few dpa/yr) IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 22

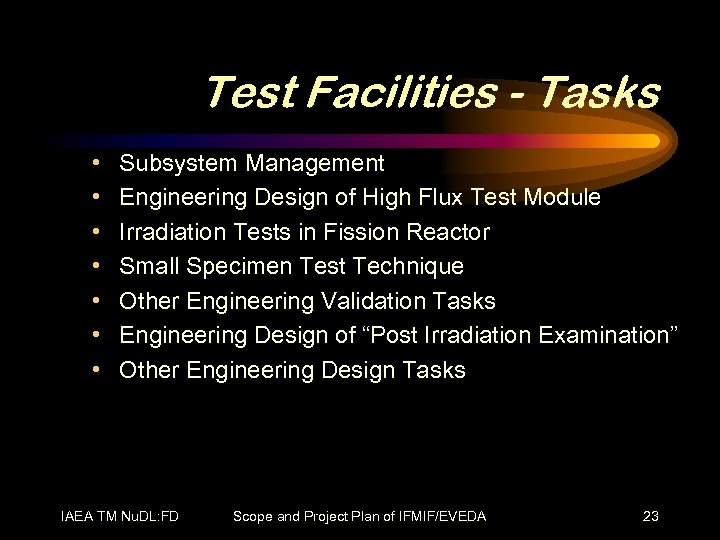

Test Facilities - Tasks • • Subsystem Management Engineering Design of High Flux Test Module Irradiation Tests in Fission Reactor Small Specimen Test Technique Other Engineering Validation Tasks Engineering Design of “Post Irradiation Examination” Other Engineering Design Tasks IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 23

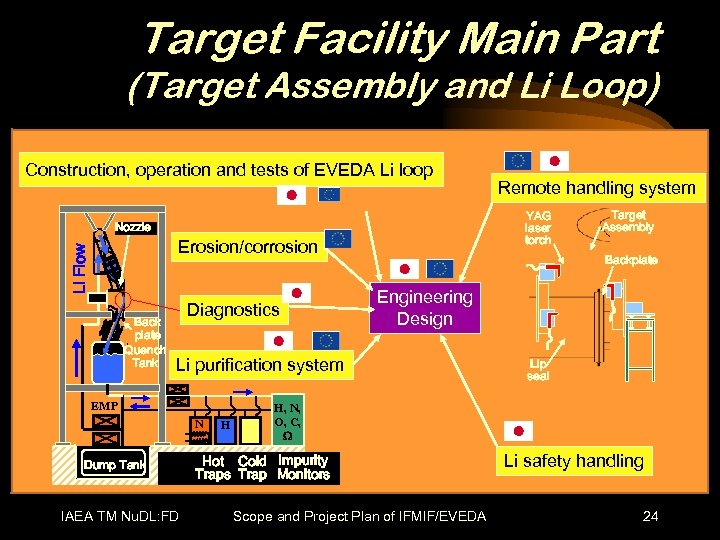

Target Facility Main Part (Target Assembly and Li Loop) Construction, operation and tests of EVEDA Li loop Li Flow Nozzle Back plate Quench Tank YAG laser torch Erosion/corrosion Diagnostics N Dump Tank IAEA TM Nu. DL: FD H Target Assembly Backplate Engineering Design Li purification system EMP Remote handling system Lip seal H, N, O, C, Hot Cold Impurity Traps Trap Monitors Scope and Project Plan of IFMIF/EVEDA Li safety handling 24

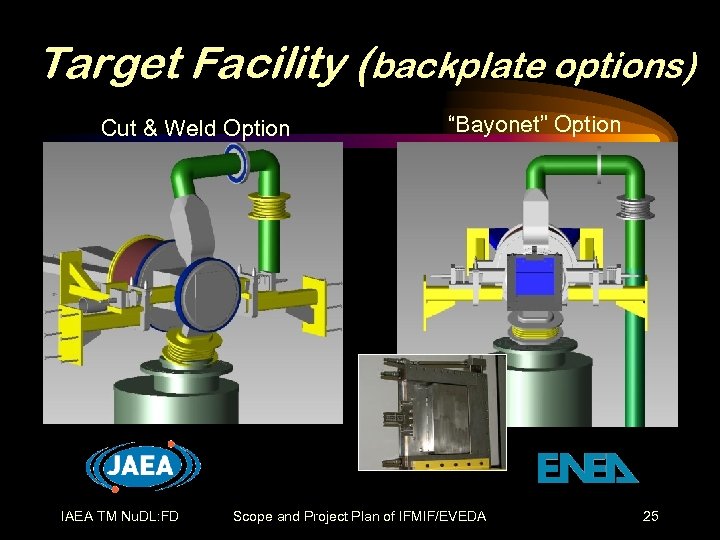

Target Facility (backplate options) Cut & Weld Option IAEA TM Nu. DL: FD “Bayonet” Option Scope and Project Plan of IFMIF/EVEDA 25

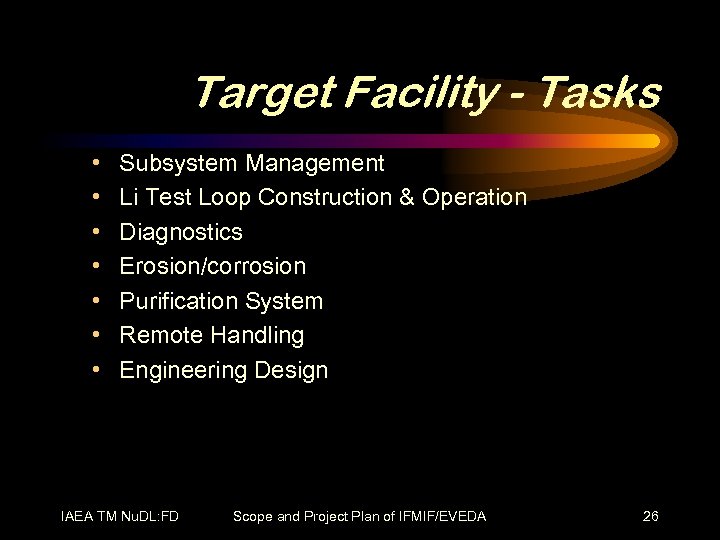

Target Facility - Tasks • • Subsystem Management Li Test Loop Construction & Operation Diagnostics Erosion/corrosion Purification System Remote Handling Engineering Design IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 26

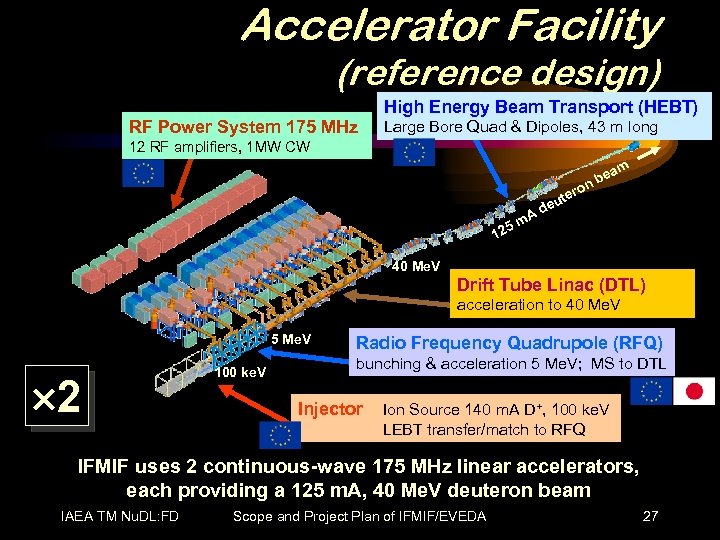

Accelerator Facility (reference design) High Energy Beam Transport (HEBT) RF Power System 175 MHz Large Bore Quad & Dipoles, 43 m long 12 RF amplifiers, 1 MW CW am A 5 m te eu e nb ro d 12 40 Me. V Drift Tube Linac (DTL) acceleration to 40 Me. V 5 Me. V 2 100 ke. V Radio Frequency Quadrupole (RFQ) bunching & acceleration 5 Me. V; MS to DTL Injector Ion Source 140 m. A D+, 100 ke. V LEBT transfer/match to RFQ IFMIF uses 2 continuous-wave 175 MHz linear accelerators, each providing a 125 m. A, 40 Me. V deuteron beam IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 27

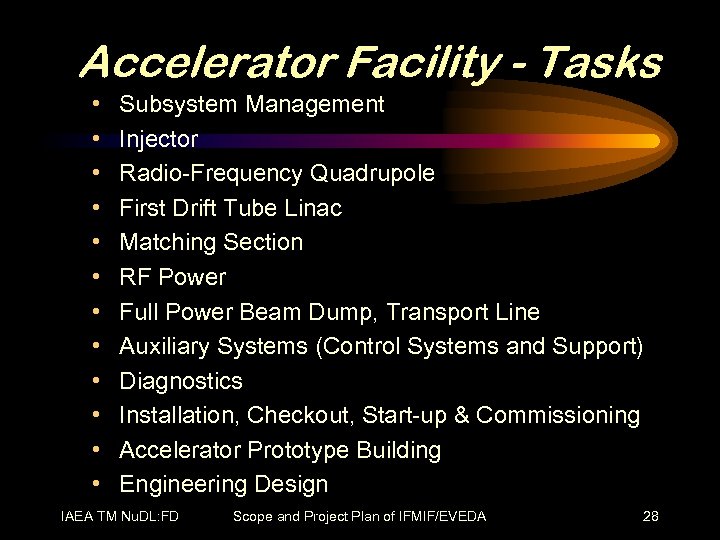

Accelerator Facility - Tasks • • • Subsystem Management Injector Radio-Frequency Quadrupole First Drift Tube Linac Matching Section RF Power Full Power Beam Dump, Transport Line Auxiliary Systems (Control Systems and Support) Diagnostics Installation, Checkout, Start-up & Commissioning Accelerator Prototype Building Engineering Design IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 28

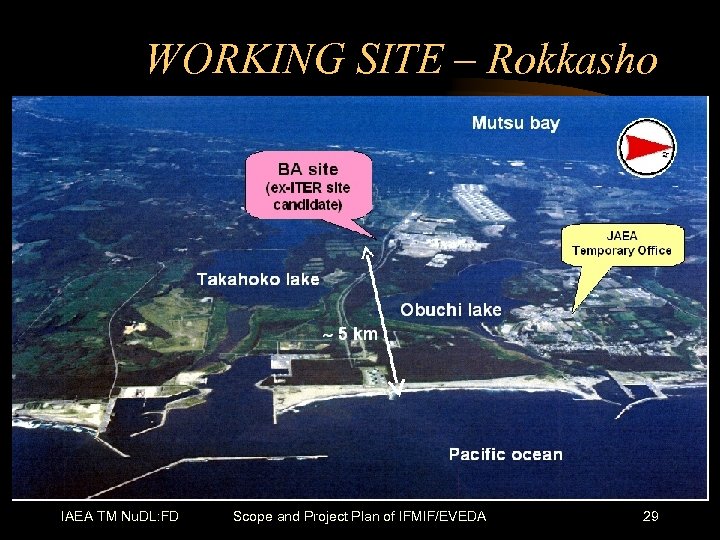

WORKING SITE – Rokkasho IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 29

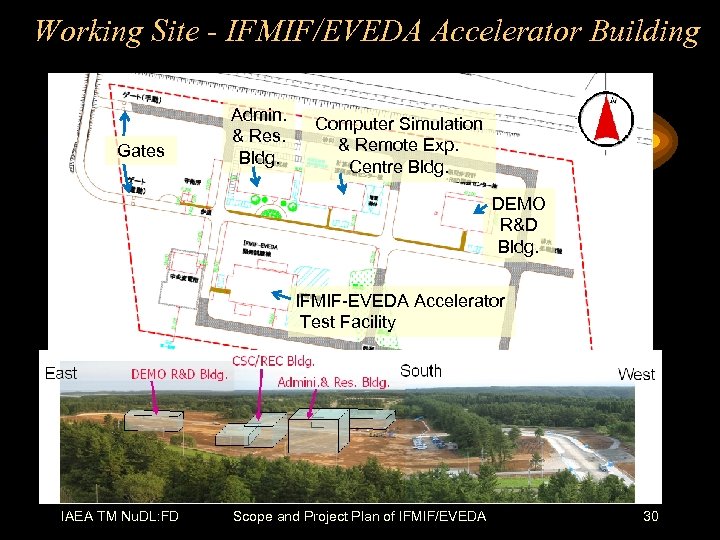

Working Site - IFMIF/EVEDA Accelerator Building Gates Admin. & Res. Bldg. Computer Simulation & Remote Exp. Centre Bldg. DEMO R&D Bldg. IFMIF-EVEDA Accelerator Test Facility IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 30

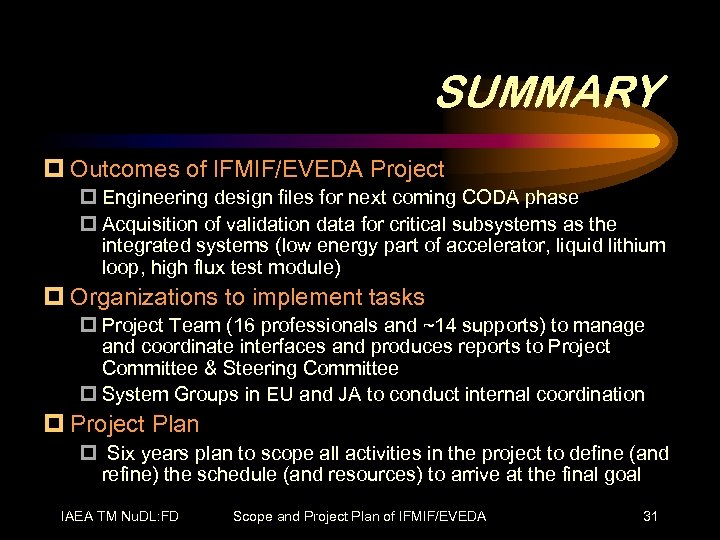

SUMMARY p Outcomes of IFMIF/EVEDA Project p Engineering design files for next coming CODA phase p Acquisition of validation data for critical subsystems as the integrated systems (low energy part of accelerator, liquid lithium loop, high flux test module) p Organizations to implement tasks p Project Team (16 professionals and ~14 supports) to manage and coordinate interfaces and produces reports to Project Committee & Steering Committee p System Groups in EU and JA to conduct internal coordination p Project Plan p Six years plan to scope all activities in the project to define (and refine) the schedule (and resources) to arrive at the final goal IAEA TM Nu. DL: FD Scope and Project Plan of IFMIF/EVEDA 31
