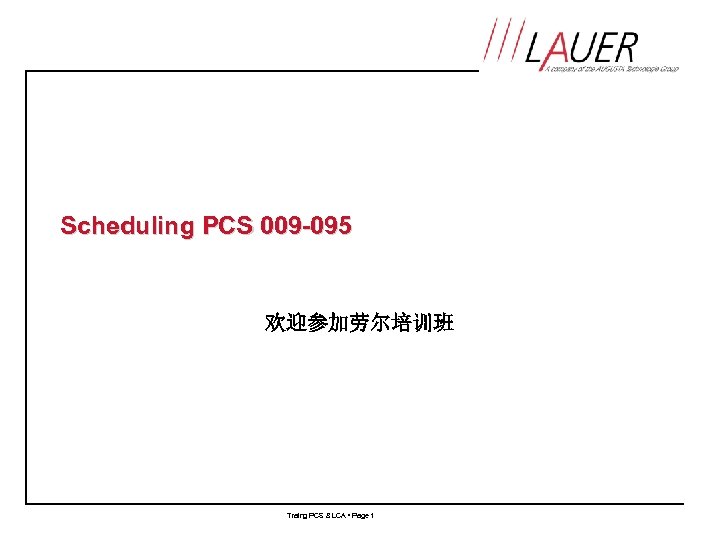

Scheduling PCS 009 -095 欢迎参加劳尔培训班 Traing PCS & LCA • Page 1

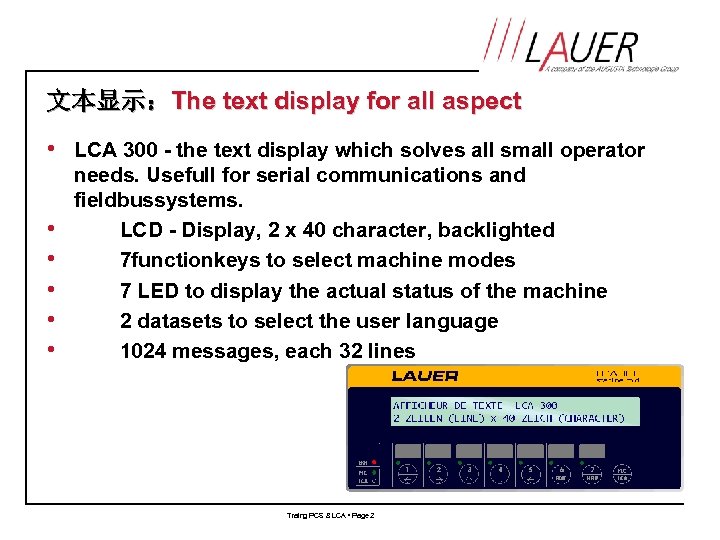

文本显示：The text display for all aspect • LCA 300 - the text display which solves all small operator • • • needs. Usefull for serial communications and fieldbussystems. LCD - Display, 2 x 40 character, backlighted 7 functionkeys to select machine modes 7 LED to display the actual status of the machine 2 datasets to select the user language 1024 messages, each 32 lines Traing PCS & LCA • Page 2

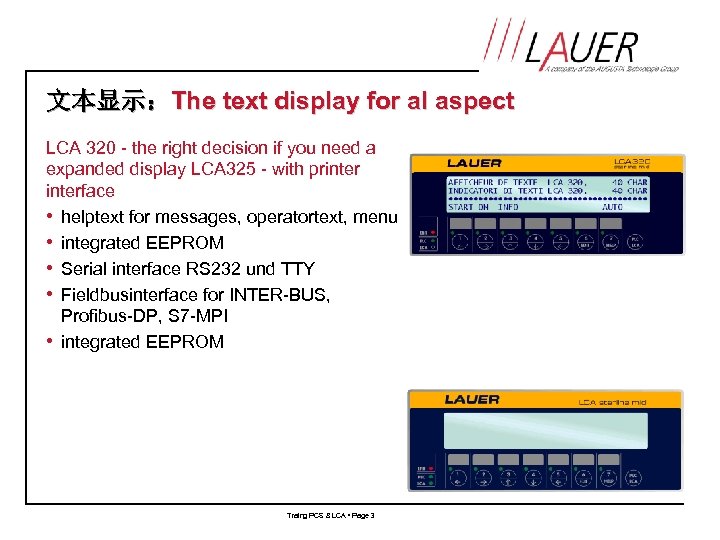

文本显示：The text display for al aspect LCA 320 - the right decision if you need a expanded display LCA 325 - with printerface • helptext for messages, operatortext, menu • integrated EEPROM • Serial interface RS 232 und TTY • Fieldbusinterface for INTER-BUS, Profibus-DP, S 7 -MPI • integrated EEPROM Traing PCS & LCA • Page 3

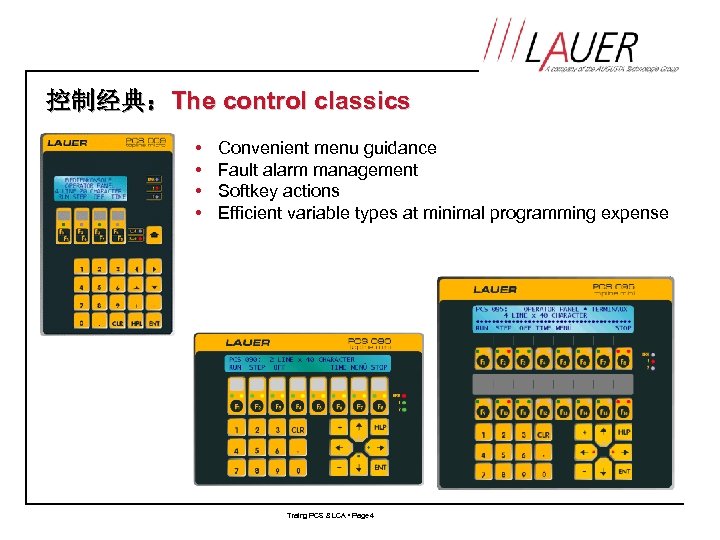

控制经典：The control classics • • Convenient menu guidance Fault alarm management Softkey actions Efficient variable types at minimal programming expense Traing PCS & LCA • Page 4

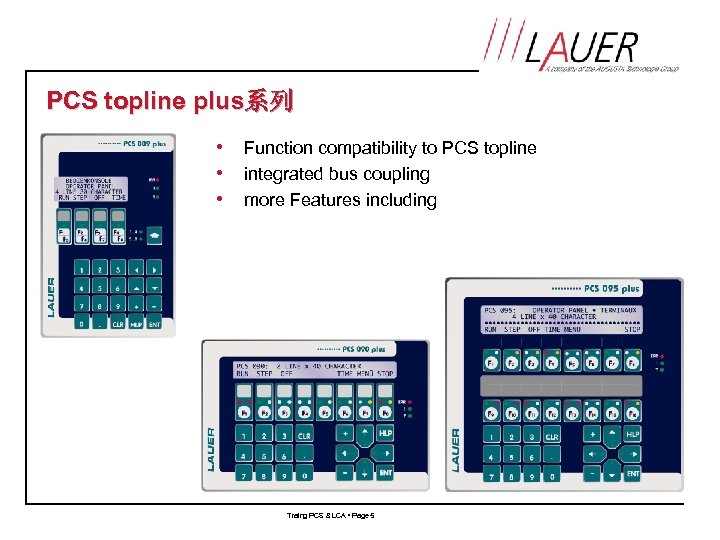

PCS topline plus系列 • Function compatibility to PCS topline • integrated bus coupling • more Features including Traing PCS & LCA • Page 5

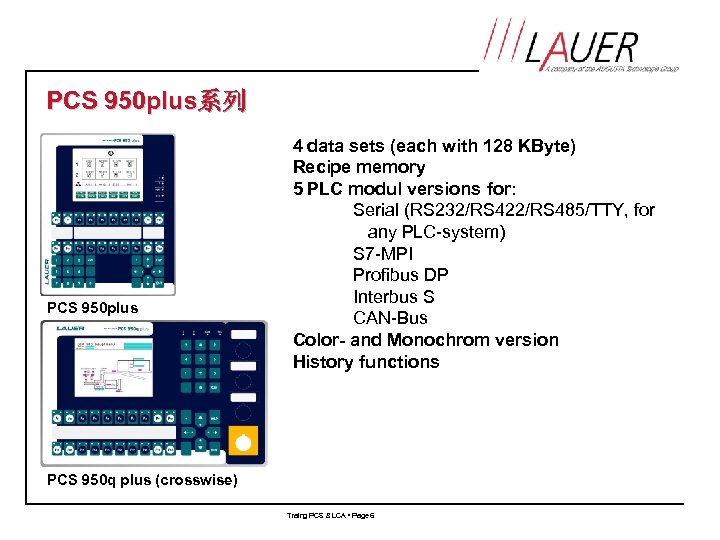

PCS 950 plus系列 PCS 950 plus 4 data sets (each with 128 KByte) Recipe memory 5 PLC modul versions for: Serial (RS 232/RS 422/RS 485/TTY, for any PLC-system) S 7 -MPI Profibus DP Interbus S CAN-Bus Color- and Monochrom version History functions PCS 950 q plus (crosswise) Traing PCS & LCA • Page 6

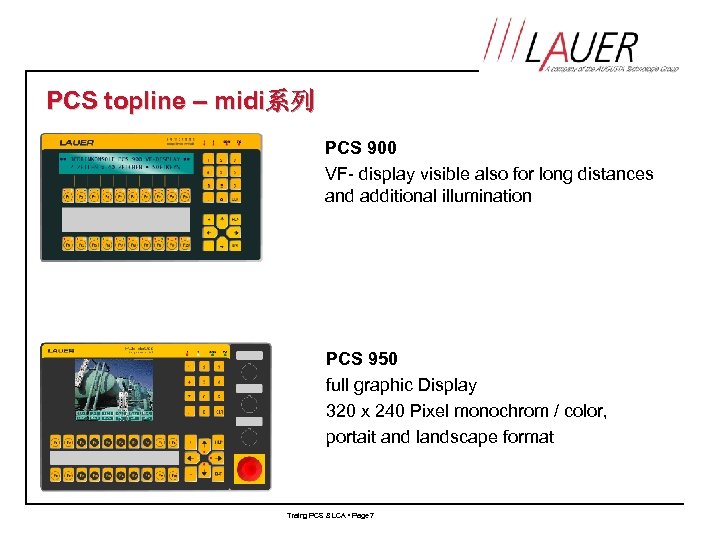

PCS topline – midi系列 PCS 900 VF- display visible also for long distances and additional illumination PCS 950 full graphic Display 320 x 240 Pixel monochrom / color, portait and landscape format Traing PCS & LCA • Page 7

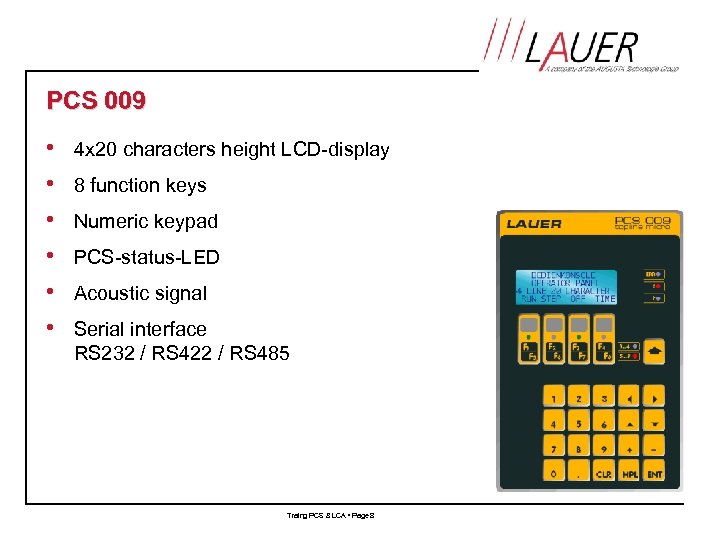

PCS 009 • • • 4 x 20 characters height LCD-display 8 function keys Numeric keypad PCS-status-LED Acoustic signal Serial interface RS 232 / RS 422 / RS 485 Traing PCS & LCA • Page 8

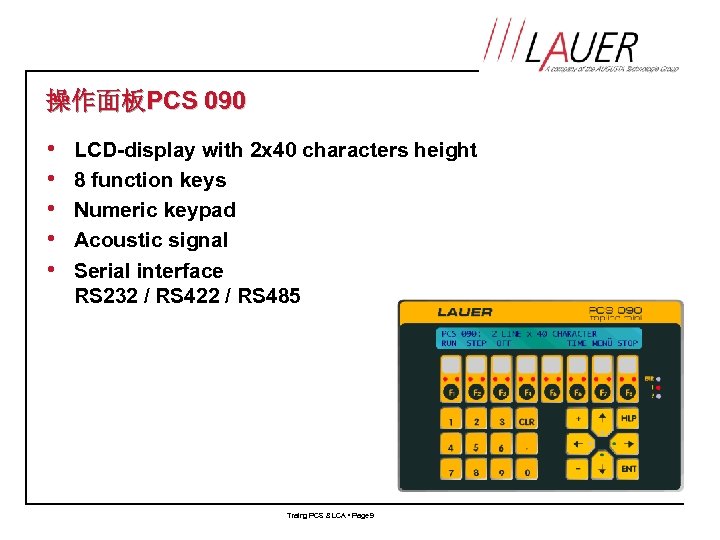

操作面板PCS 090 • • • LCD-display with 2 x 40 characters height 8 function keys Numeric keypad Acoustic signal Serial interface RS 232 / RS 422 / RS 485 Traing PCS & LCA • Page 9
操作面板PCS 095 • • • LCD-display with 4 x 40 characters height 16 function keys Printerface PCS 095. 2 with international character set Serial interfaces RS 232 / RS 422 / RS 485 Traing PCS & LCA • Page 10

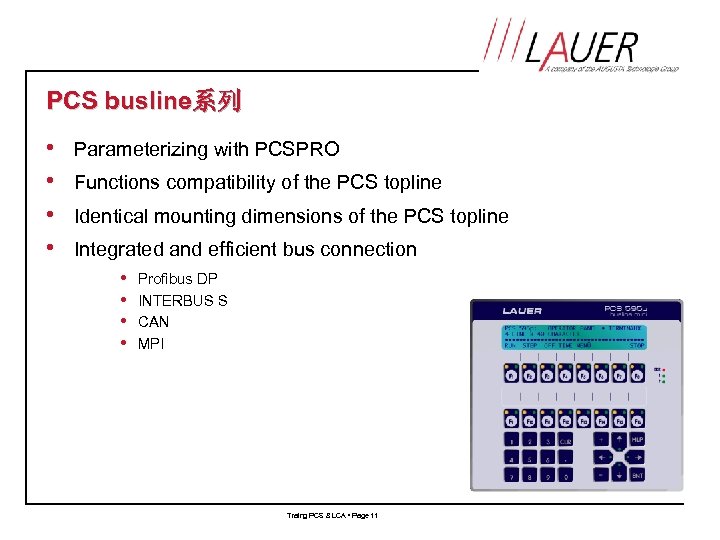

PCS busline系列 • • Parameterizing with PCSPRO Functions compatibility of the PCS topline Identical mounting dimensions of the PCS topline Integrated and efficient bus connection • • Profibus DP INTERBUS S CAN MPI Traing PCS & LCA • Page 11

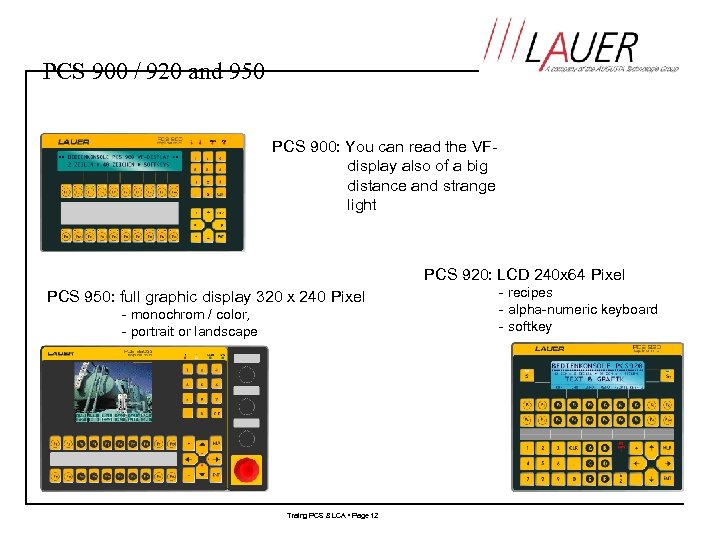

PCS 900 / 920 and 950 PCS 900: You can read the VFdisplay also of a big distance and strange light PCS 920: LCD 240 x 64 Pixel PCS 950: full graphic display 320 x 240 Pixel - monochrom / color, - portrait or landscape Traing PCS & LCA • Page 12 - recipes - alpha-numeric keyboard - softkey

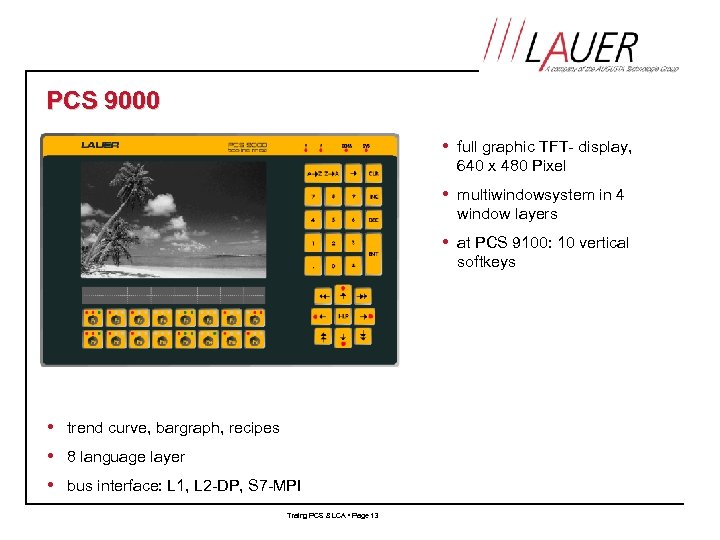

PCS 9000 • full graphic TFT- display, 640 x 480 Pixel • multiwindowsystem in 4 window layers • at PCS 9100: 10 vertical softkeys • trend curve, bargraph, recipes • 8 language layer • bus interface: L 1, L 2 -DP, S 7 -MPI Traing PCS & LCA • Page 13

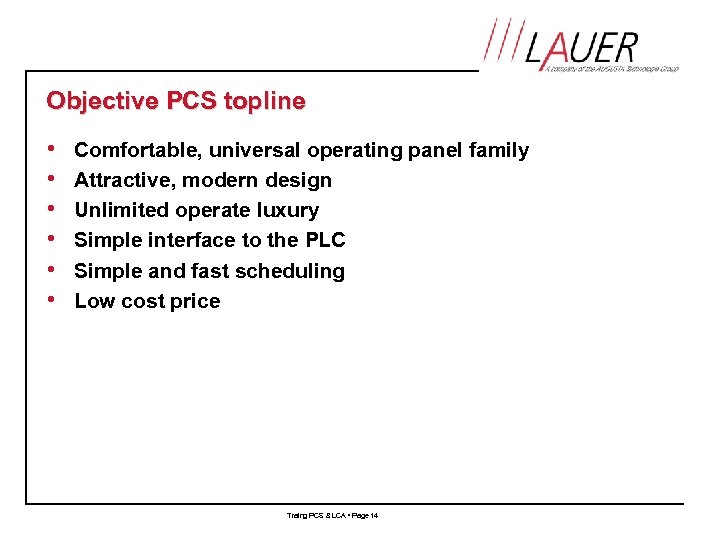

Objective PCS topline • • • Comfortable, universal operating panel family Attractive, modern design Unlimited operate luxury Simple interface to the PLC Simple and fast scheduling Low cost price Traing PCS & LCA • Page 14
Scheduling with PCSPRO编程软件 Traing PCS & LCA • Page 15
PCSPRO文本组：PCSPRO text group • 128 operating texts • 128 message texts • For one help text each • • • Menu Quit side Note Warning Interference Traing PCS & LCA • Page 16

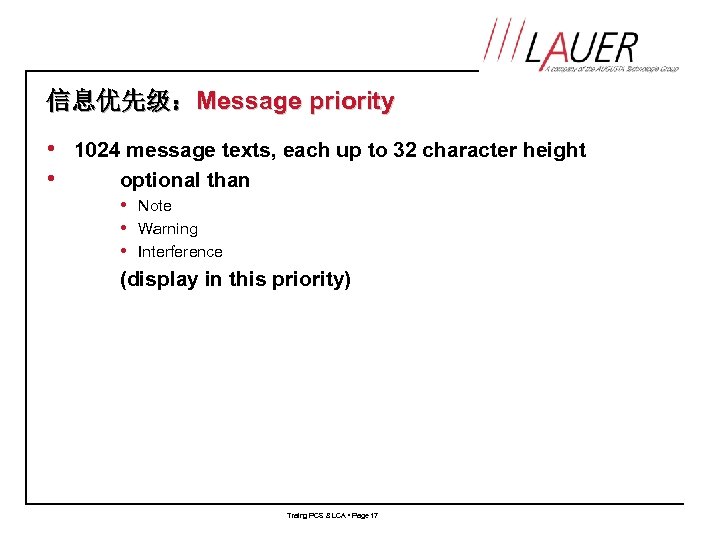

信息优先级：Message priority • 1024 message texts, each up to 32 character height • optional than • Note • Warning • Interference (display in this priority) Traing PCS & LCA • Page 17

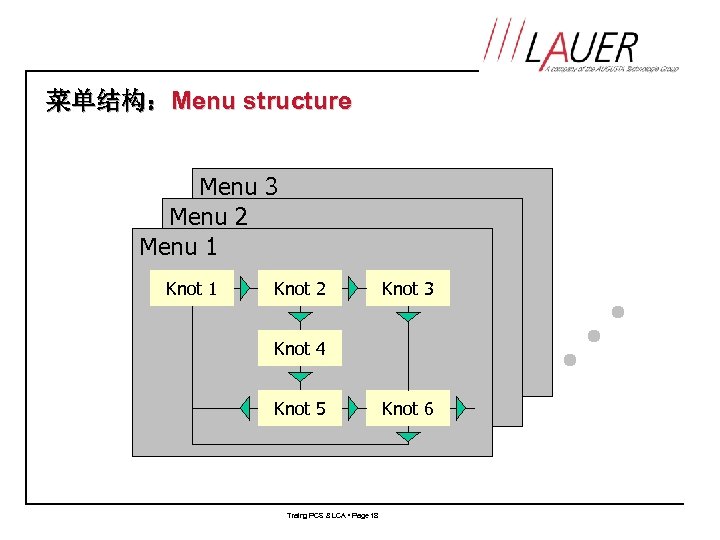

菜单结构：Menu structure Menu 3 Menu 2 Menu 1 Knot 2 Knot 3 Knot 4 Knot 5 Traing PCS & LCA • Page 18 Knot 6

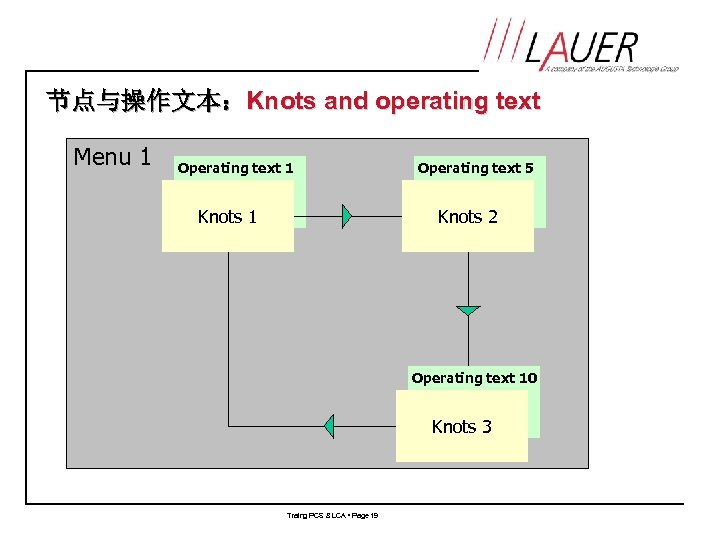

节点与操作文本：Knots and operating text Menu 1 Operating text 1 Knots 1 Operating text 5 Knots 2 Operating text 10 Knots 3 Traing PCS & LCA • Page 19

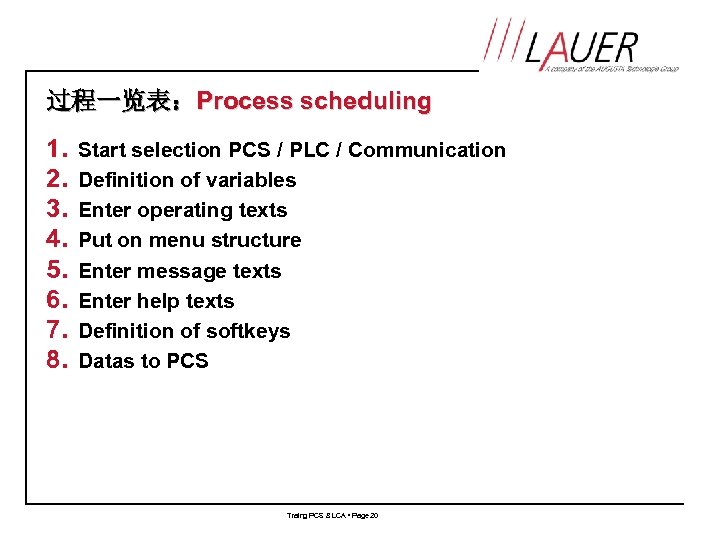

过程一览表：Process scheduling 1. 2. 3. 4. 5. 6. 7. 8. Start selection PCS / PLC / Communication Definition of variables Enter operating texts Put on menu structure Enter message texts Enter help texts Definition of softkeys Datas to PCS Traing PCS & LCA • Page 20

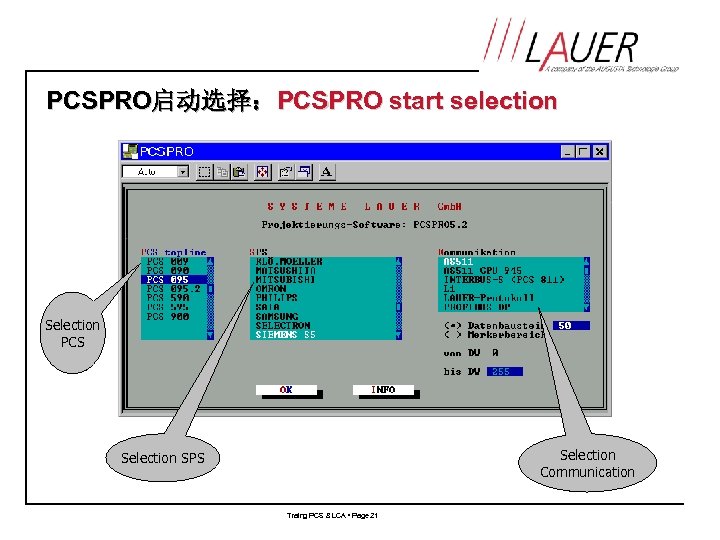

PCSPRO启动选择：PCSPRO start selection Selection PCS Selection Communication Selection SPS Traing PCS & LCA • Page 21

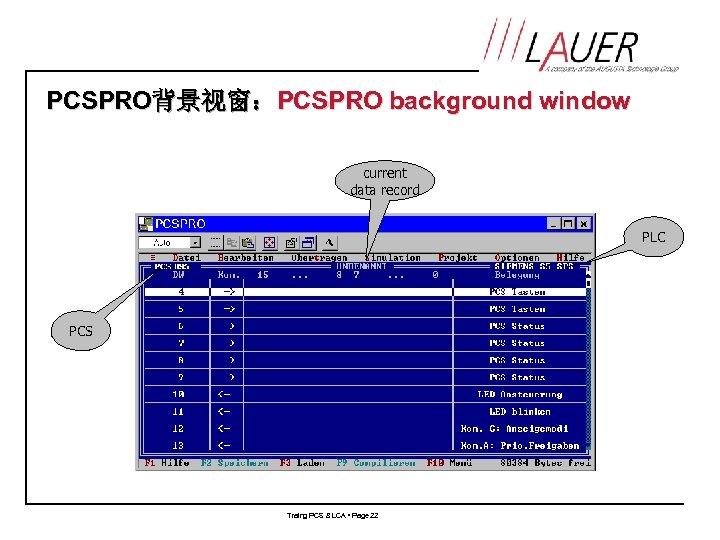

PCSPRO背景视窗：PCSPRO background window current data record PLC PCS Traing PCS & LCA • Page 22
PCSPRO变量定义：PCSPRO variable definition open variable editor Variable name Traing PCS & LCA • Page 23

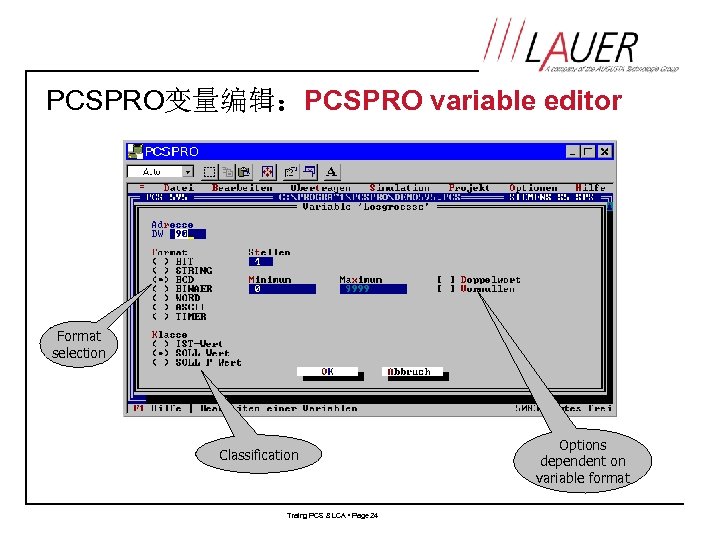

PCSPRO变量编辑：PCSPRO variable editor Format selection Classification Traing PCS & LCA • Page 24 Options dependent on variable format

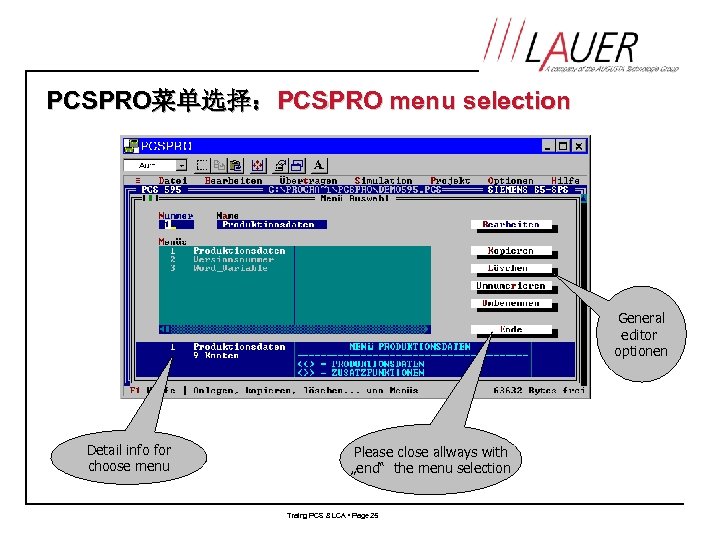

PCSPRO菜单选择：PCSPRO menu selection General editor optionen Detail info for choose menu Please close allways with „end“ the menu selection Traing PCS & LCA • Page 25

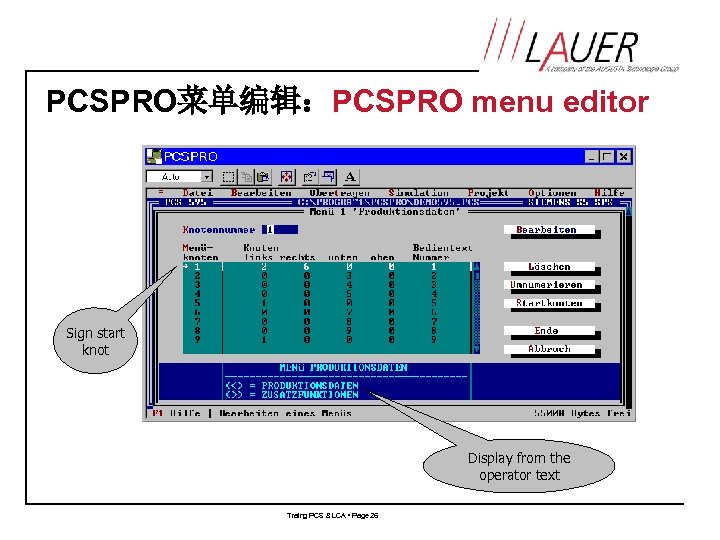

PCSPRO菜单编辑：PCSPRO menu editor Sign start knot Display from the operator text Traing PCS & LCA • Page 26

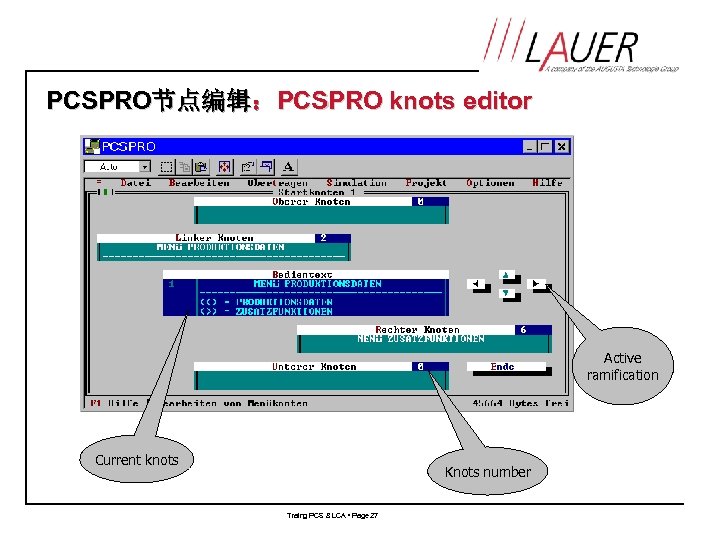

PCSPRO节点编辑：PCSPRO knots editor Active ramification Current knots Knots number Traing PCS & LCA • Page 27

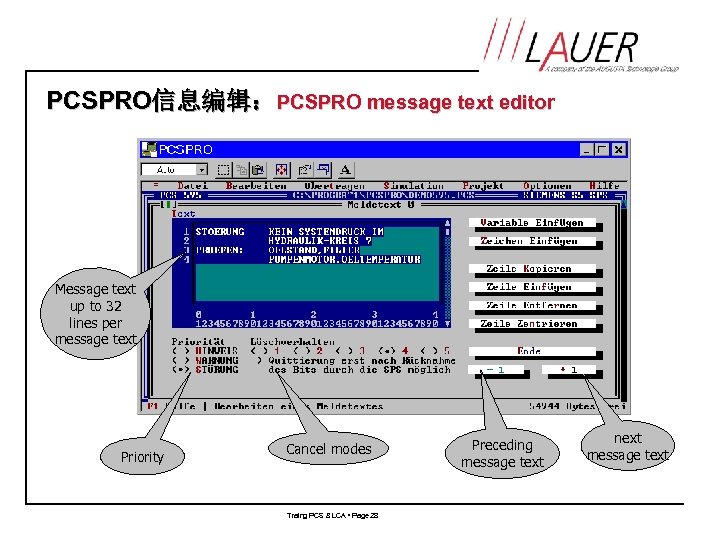

PCSPRO信息编辑：PCSPRO message text editor Message text up to 32 lines per message text Priority Cancel modes Traing PCS & LCA • Page 28 Preceding message text next message text

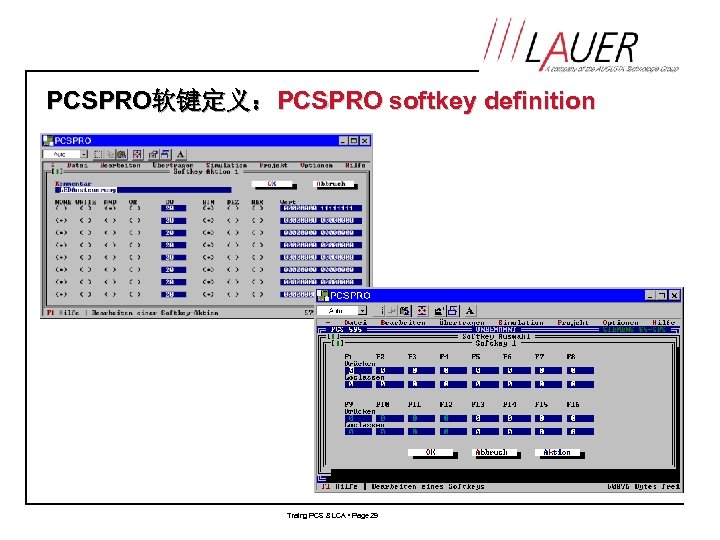

PCSPRO软键定义：PCSPRO softkey definition Traing PCS & LCA • Page 29
