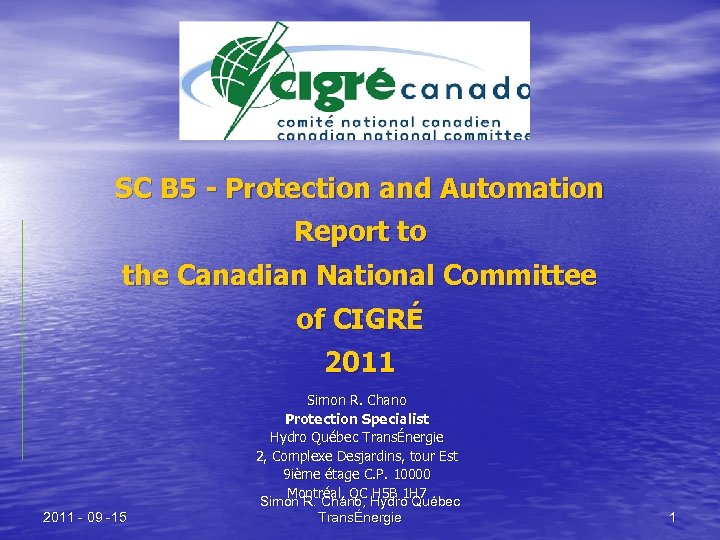

SC B 5 - Protection and Automation Report to the Canadian National Committee of CIGRÉ 2011 - 09 -15 Simon R. Chano Protection Specialist Hydro Québec TransÉnergie 2, Complexe Desjardins, tour Est 9 ième étage C. P. 10000 Montréal, QC H 5 B 1 H 7 Simon R. Chano, Hydro Québec TransÉnergie 1

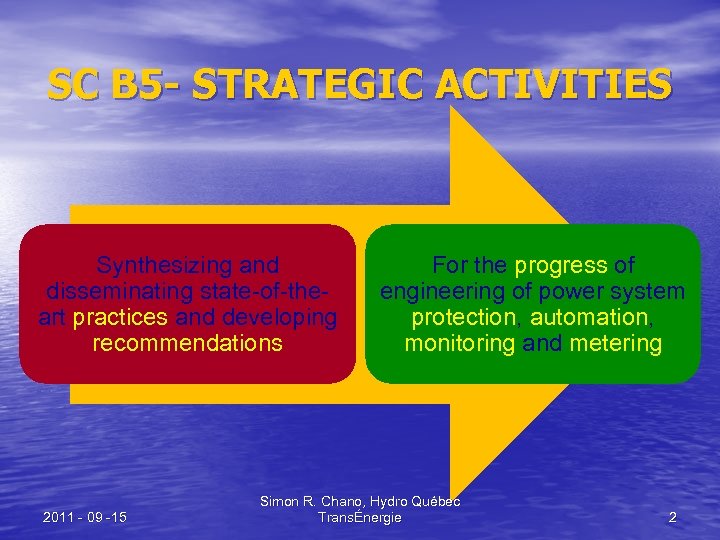

SC B 5 - STRATEGIC ACTIVITIES Synthesizing and disseminating state-of-theart practices and developing recommendations 2011 - 09 -15 For the progress of engineering of power system protection, automation, monitoring and metering Simon R. Chano, Hydro Québec TransÉnergie 2

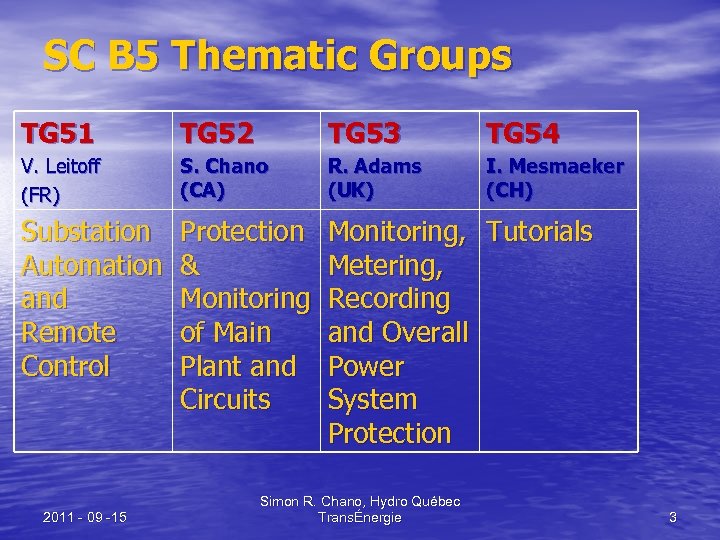

SC B 5 Thematic Groups TG 51 TG 52 TG 53 TG 54 V. Leitoff (FR) S. Chano (CA) R. Adams (UK) I. Mesmaeker (CH) Substation Automation and Remote Control Protection & Monitoring of Main Plant and Circuits Monitoring, Tutorials Metering, Recording and Overall Power System Protection 2011 - 09 -15 Simon R. Chano, Hydro Québec TransÉnergie 3

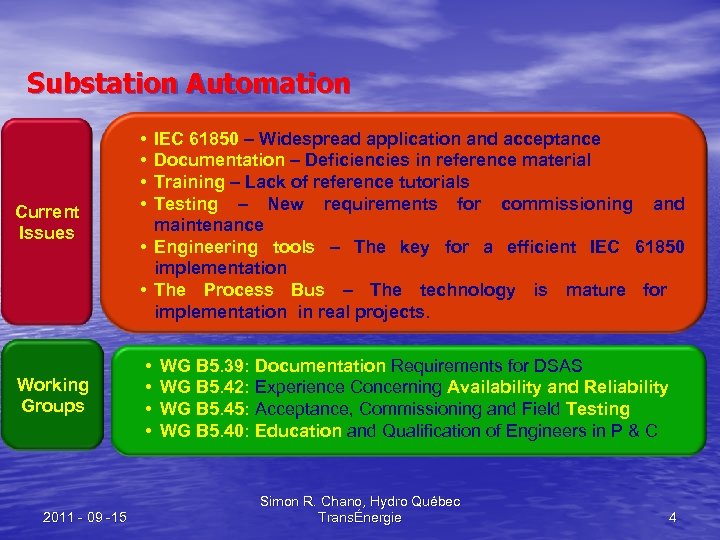

Substation Automation Current Issues Working Groups 2011 - 09 -15 • • IEC 61850 – Widespread application and acceptance Documentation – Deficiencies in reference material Training – Lack of reference tutorials Testing – New requirements for commissioning and maintenance • Engineering tools – The key for a efficient IEC 61850 implementation • The Process Bus – The technology is mature for implementation in real projects. • • WG B 5. 39: Documentation Requirements for DSAS WG B 5. 42: Experience Concerning Availability and Reliability WG B 5. 45: Acceptance, Commissioning and Field Testing WG B 5. 40: Education and Qualification of Engineers in P & C Simon R. Chano, Hydro Québec TransÉnergie 4

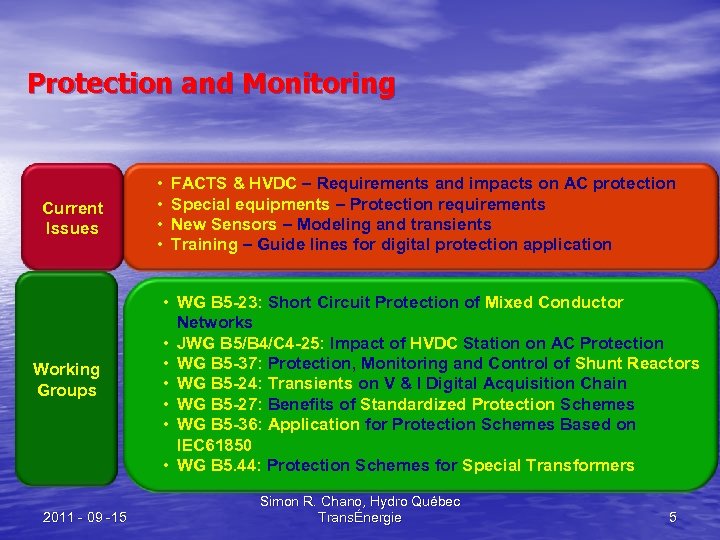

Protection and Monitoring Current Issues Working Groups 2011 - 09 -15 • • FACTS & HVDC – Requirements and impacts on AC protection Special equipments – Protection requirements New Sensors – Modeling and transients Training – Guide lines for digital protection application • WG B 5 -23: Short Circuit Protection of Mixed Conductor Networks • JWG B 5/B 4/C 4 -25: Impact of HVDC Station on AC Protection • WG B 5 -37: Protection, Monitoring and Control of Shunt Reactors • WG B 5 -24: Transients on V & I Digital Acquisition Chain • WG B 5 -27: Benefits of Standardized Protection Schemes • WG B 5 -36: Application for Protection Schemes Based on IEC 61850 • WG B 5. 44: Protection Schemes for Special Transformers Simon R. Chano, Hydro Québec TransÉnergie 5

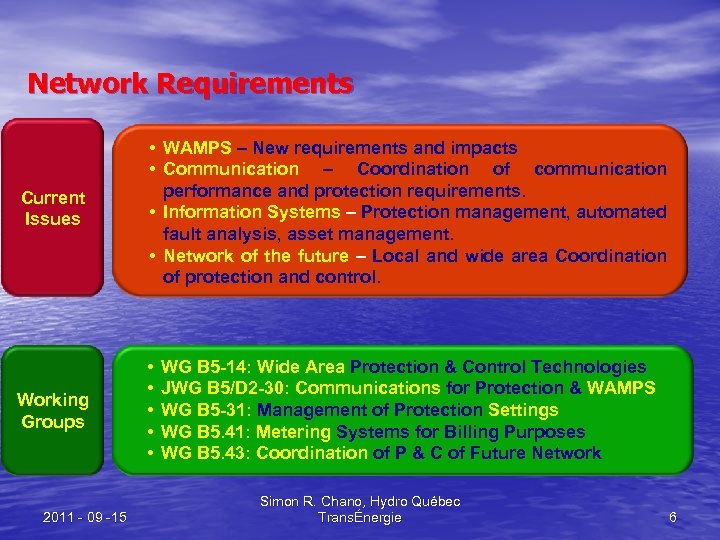

Network Requirements Current Issues • WAMPS – New requirements and impacts • Communication – Coordination of communication performance and protection requirements. • Information Systems – Protection management, automated fault analysis, asset management. • Network of the future – Local and wide area Coordination of protection and control. Working Groups • • • 2011 - 09 -15 WG B 5 -14: Wide Area Protection & Control Technologies JWG B 5/D 2 -30: Communications for Protection & WAMPS WG B 5 -31: Management of Protection Settings WG B 5. 41: Metering Systems for Billing Purposes WG B 5. 43: Coordination of P & C of Future Network Simon R. Chano, Hydro Québec TransÉnergie 6

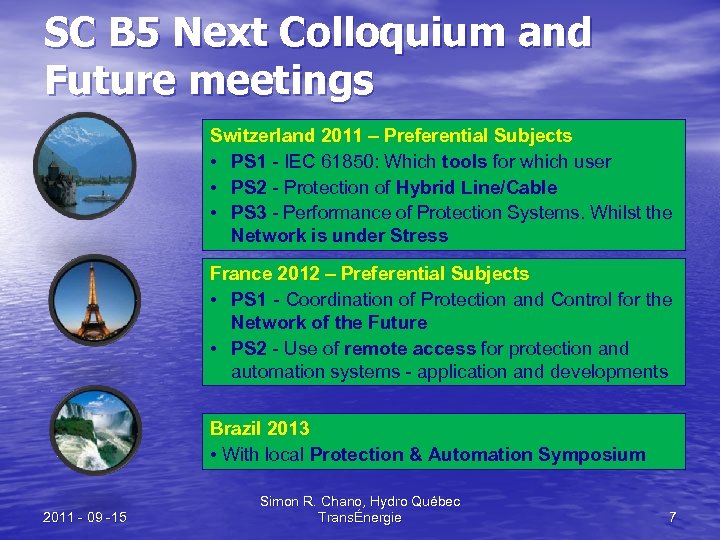

SC B 5 Next Colloquium and Future meetings Switzerland 2011 – Preferential Subjects • PS 1 - IEC 61850: Which tools for which user • PS 2 - Protection of Hybrid Line/Cable • PS 3 - Performance of Protection Systems. Whilst the Network is under Stress France 2012 – Preferential Subjects • PS 1 - Coordination of Protection and Control for the Network of the Future • PS 2 - Use of remote access for protection and automation systems - application and developments Brazil 2013 • With local Protection & Automation Symposium 2011 - 09 -15 Simon R. Chano, Hydro Québec TransÉnergie 7

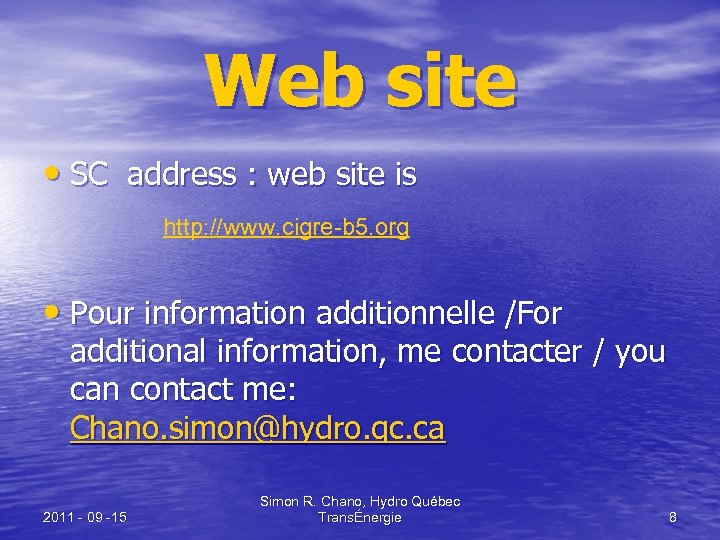

Web site • SC address : web site is http: //www. cigre-b 5. org • Pour information additionnelle /For additional information, me contacter / you can contact me: Chano. simon@hydro. qc. ca 2011 - 09 -15 Simon R. Chano, Hydro Québec TransÉnergie 8
