SBDX PRI Coral Telecom Ltd. 1

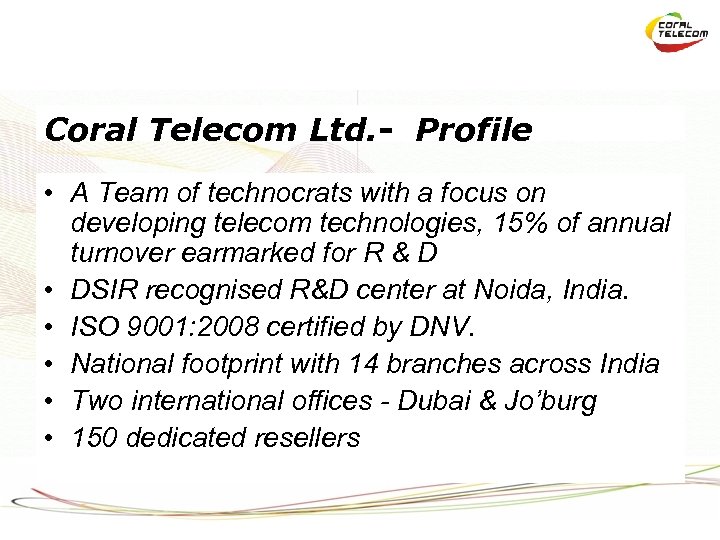

Coral Telecom Ltd. - Profile • A Team of technocrats with a focus on developing telecom technologies, 15% of annual turnover earmarked for R & D • DSIR recognised R&D center at Noida, India. • ISO 9001: 2008 certified by DNV. • National footprint with 14 branches across India • Two international offices - Dubai & Jo’burg • 150 dedicated resellers

Coral Telecom Ltd. – Profile…. • Specific focus on Defence Market – customisation to meet the unique requirements • Team of ex-Army officers/defence personnel to understand meet the requirements of the defence. • Large deployments in critical installations of the Govt. of India – ISRO, Western Naval Command, Prestigious Gorchakov Project of the Indian Navy, Assam Rifles, CRPF, Indian Army, Indian Railways • Strategic alliance with BSNL & MTNL for rental & revenue share model • A completely indigenous effort with total control on technology elements- Hardware & Software • Products lines include Switching, Transmission and Wireless equipments with a focus on IP.

Introduction • Lighter & Compact version of DX PLUS • Cards structure 8 port same as DX • Port capacity- 8 Analog Ext & One PRI on Board & 4 Additional Slots • Built-in Tone card • Built-in Unlimited Conference • PRI card can be defined only as slave • Built –in Modem port (remote configuration) Coral Telecom Ltd. 4

Various Cards • SBDX-PRI supports following cards: ALC card PRI on board VSN card DLC card DTD card ATC card BRI card DDVT card ATD card GSM/CDMA card TEC card Coral Telecom Ltd. 5

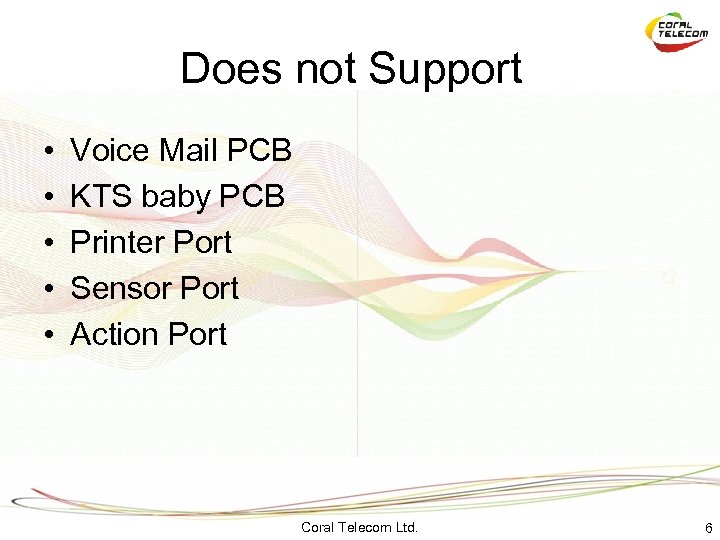

Does not Support • • • Voice Mail PCB KTS baby PCB Printer Port Sensor Port Action Port Coral Telecom Ltd. 6

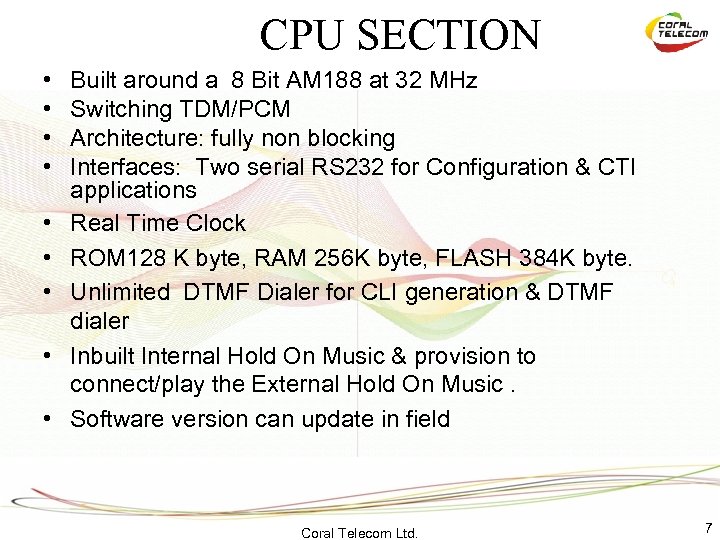

CPU SECTION • • • Built around a 8 Bit AM 188 at 32 MHz Switching TDM/PCM Architecture: fully non blocking Interfaces: Two serial RS 232 for Configuration & CTI applications Real Time Clock ROM 128 K byte, RAM 256 K byte, FLASH 384 K byte. Unlimited DTMF Dialer for CLI generation & DTMF dialer Inbuilt Internal Hold On Music & provision to connect/play the External Hold On Music. Software version can update in field Coral Telecom Ltd. 7

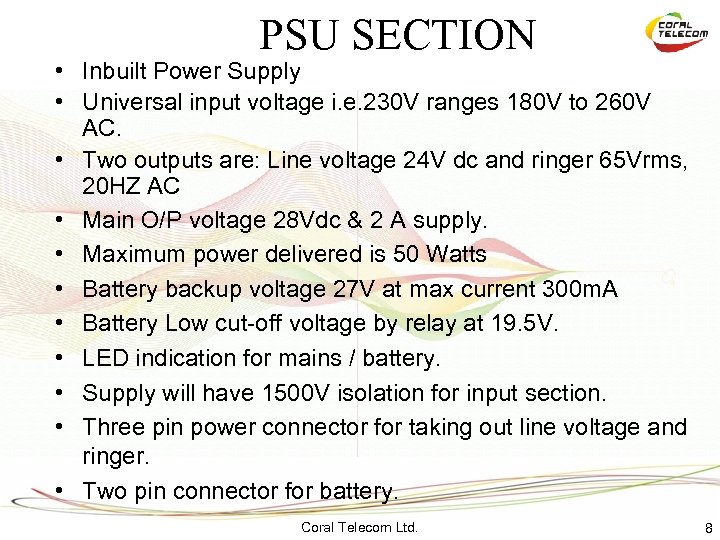

PSU SECTION • Inbuilt Power Supply • Universal input voltage i. e. 230 V ranges 180 V to 260 V AC. • Two outputs are: Line voltage 24 V dc and ringer 65 Vrms, 20 HZ AC • Main O/P voltage 28 Vdc & 2 A supply. • Maximum power delivered is 50 Watts • Battery backup voltage 27 V at max current 300 m. A • Battery Low cut-off voltage by relay at 19. 5 V. • LED indication for mains / battery. • Supply will have 1500 V isolation for input section. • Three pin power connector for taking out line voltage and ringer. • Two pin connector for battery. Coral Telecom Ltd. 8

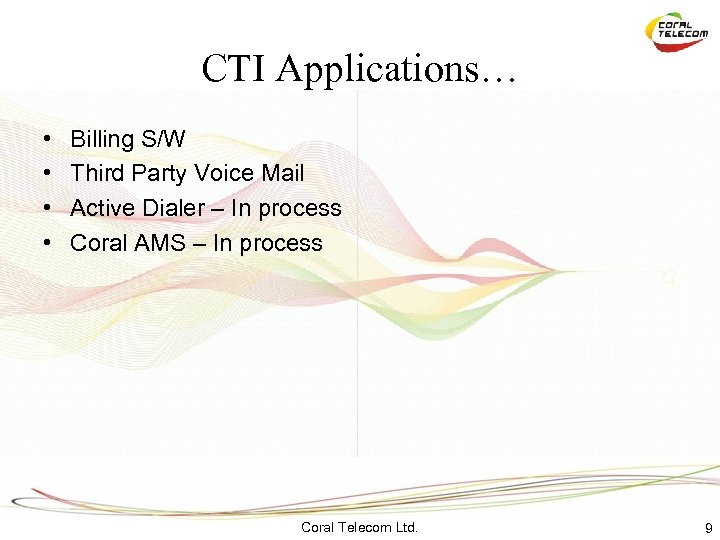

CTI Applications… • • Billing S/W Third Party Voice Mail Active Dialer – In process Coral AMS – In process Coral Telecom Ltd. 9

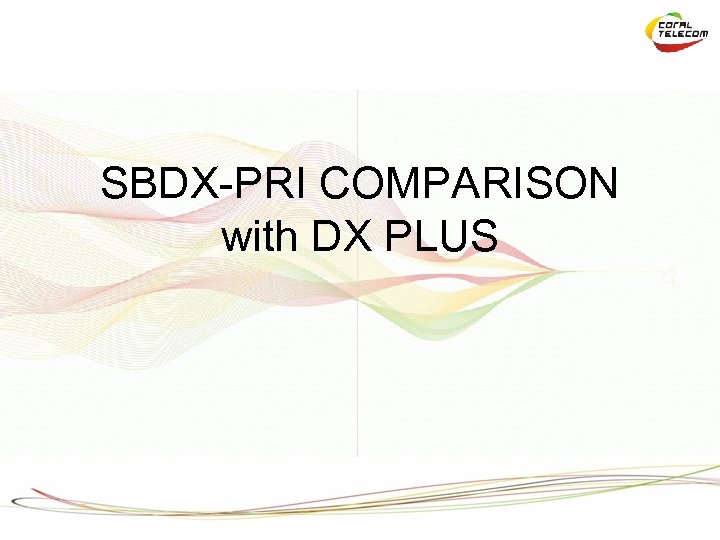

SBDX-PRI COMPARISON with DX PLUS

Coral Telecom Ltd. 11

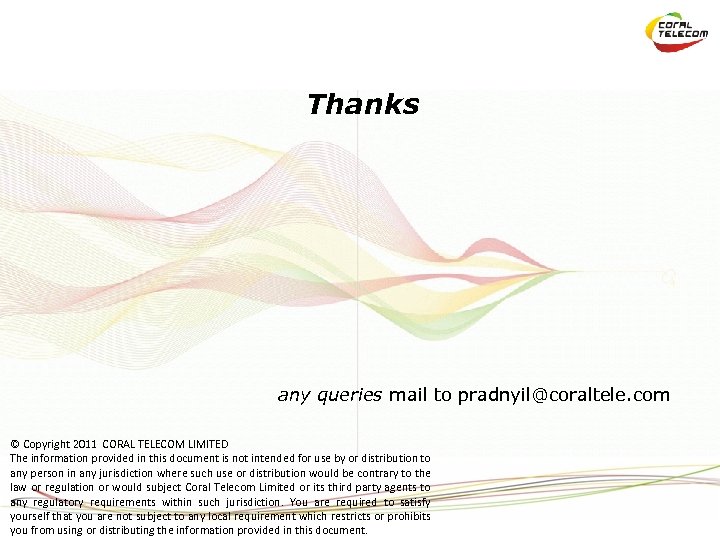

Thanks any queries mail to pradnyil@coraltele. com © Copyright 2011 CORAL TELECOM LIMITED The information provided in this document is not intended for use by or distribution to any person in any jurisdiction where such use or distribution would be contrary to the law or regulation or would subject Coral Telecom Limited or its third party agents to any regulatory requirements within such jurisdiction. You are required to satisfy yourself that you are not subject to any local requirement which restricts or prohibits you from using or distributing the information provided in this document.
