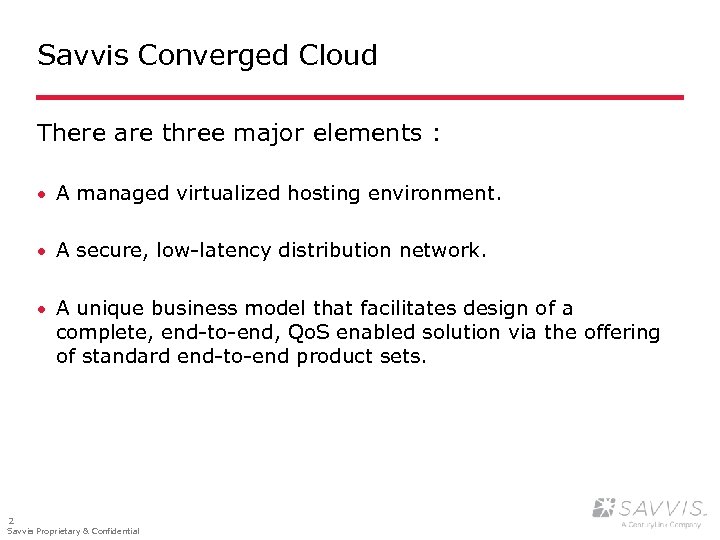

Savvis Converged Cloud There are three major elements : · A managed virtualized hosting environment. · A secure, low-latency distribution network. · A unique business model that facilitates design of a complete, end-to-end, Qo. S enabled solution via the offering of standard end-to-end product sets. 2 Savvis Proprietary & Confidential

Who is Savvis? · One of the world’s premier IT infrastructure services providers – Acquired by Century. Link in July 2011 · Portfolio built to support real-time commercial / enterprise requirements – Highly Available – Highly Secure – Mission Critical · Financially strong – Over $1 B annual revenues – Net positive cash flow · 2300 employees worldwide · Serving Financial , Media , Federal, Consumer Brands / E-Commerce, Software 3 Savvis Proprietary & Confidential

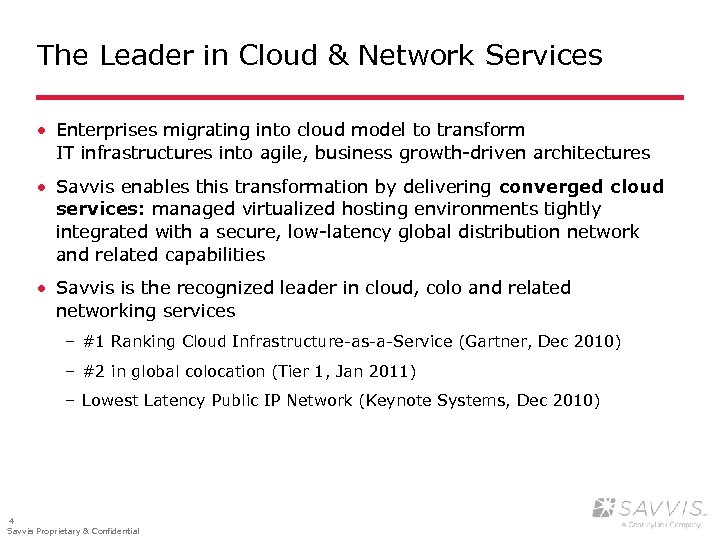

The Leader in Cloud & Network Services · Enterprises migrating into cloud model to transform IT infrastructures into agile, business growth-driven architectures · Savvis enables this transformation by delivering converged cloud services: managed virtualized hosting environments tightly integrated with a secure, low-latency global distribution network and related capabilities · Savvis is the recognized leader in cloud, colo and related networking services – #1 Ranking Cloud Infrastructure-as-a-Service (Gartner, Dec 2010) – #2 in global colocation (Tier 1, Jan 2011) – Lowest Latency Public IP Network (Keynote Systems, Dec 2010) 4 Savvis Proprietary & Confidential

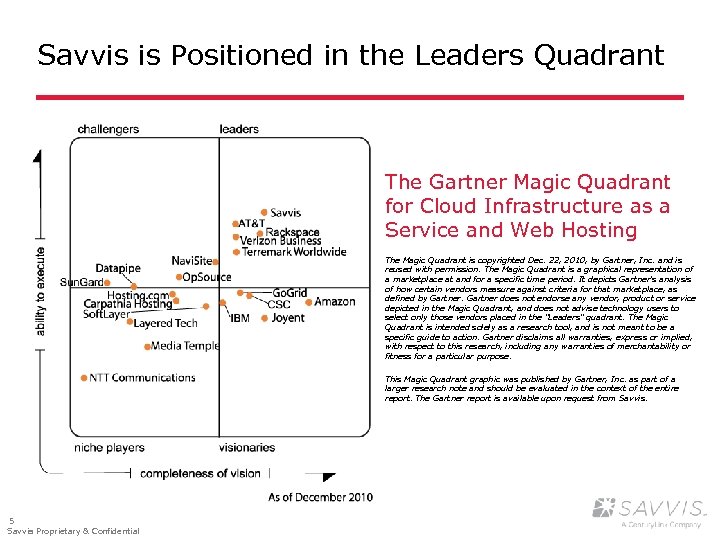

Savvis is Positioned in the Leaders Quadrant The Gartner Magic Quadrant for Cloud Infrastructure as a Service and Web Hosting The Magic Quadrant is copyrighted Dec. 22, 2010, by Gartner, Inc. and is reused with permission. The Magic Quadrant is a graphical representation of a marketplace at and for a specific time period. It depicts Gartner's analysis of how certain vendors measure against criteria for that marketplace, as defined by Gartner does not endorse any vendor, product or service depicted in the Magic Quadrant, and does not advise technology users to select only those vendors placed in the "Leaders" quadrant. The Magic Quadrant is intended solely as a research tool, and is not meant to be a specific guide to action. Gartner disclaims all warranties, express or implied, with respect to this research, including any warranties of merchantability or fitness for a particular purpose. This Magic Quadrant graphic was published by Gartner, Inc. as part of a larger research note and should be evaluated in the context of the entire report. The Gartner report is available upon request from Savvis. 5 Savvis Proprietary & Confidential

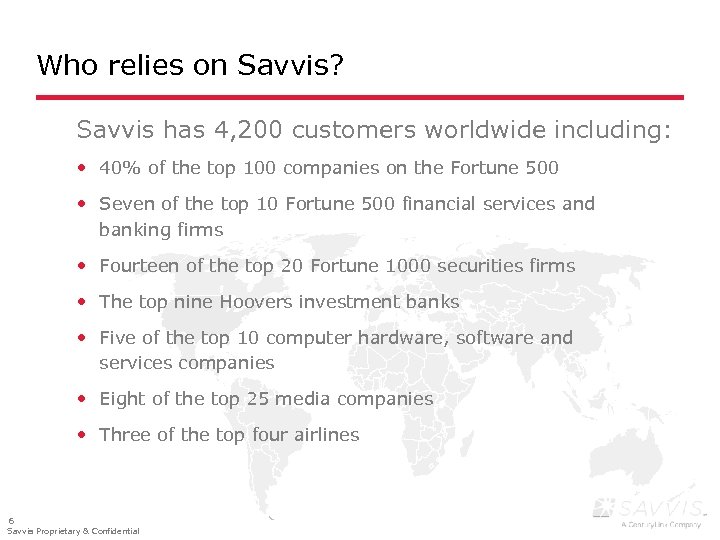

Who relies on Savvis? Savvis has 4, 200 customers worldwide including: • 40% of the top 100 companies on the Fortune 500 • Seven of the top 10 Fortune 500 financial services and banking firms • Fourteen of the top 20 Fortune 1000 securities firms • The top nine Hoovers investment banks • Five of the top 10 computer hardware, software and services companies • Eight of the top 25 media companies • Three of the top four airlines 6 Savvis Proprietary & Confidential

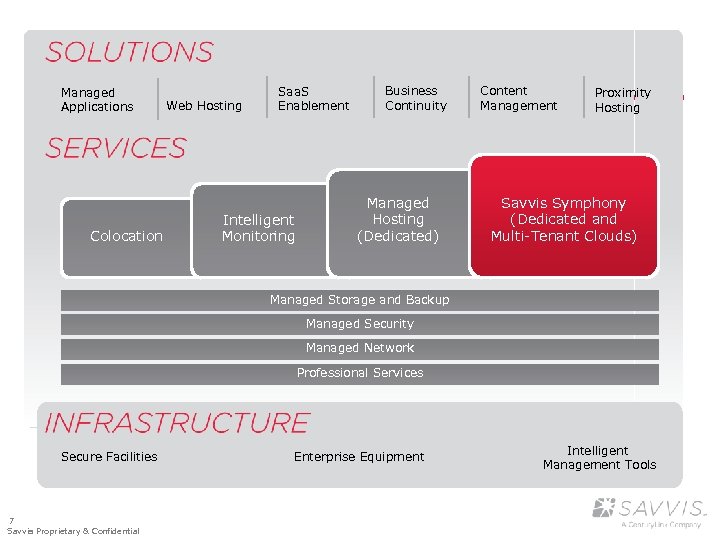

Managed Applications Colocation Web Hosting Saa. S Enablement Intelligent Monitoring Business Continuity Managed Hosting (Dedicated) Content Management Proximity Hosting Savvis Symphony (Dedicated and Multi-Tenant Clouds) Managed Storage and Backup Managed Security Managed Network Professional Services Secure Facilities 7 Savvis Proprietary & Confidential Enterprise Equipment Intelligent Management Tools

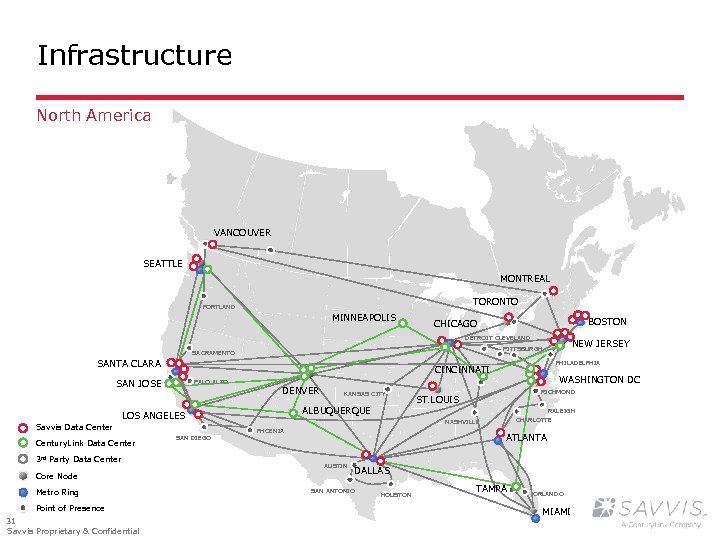

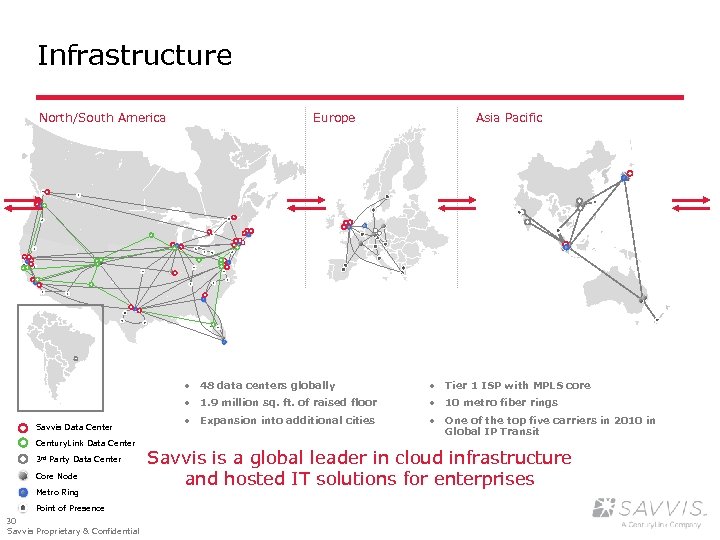

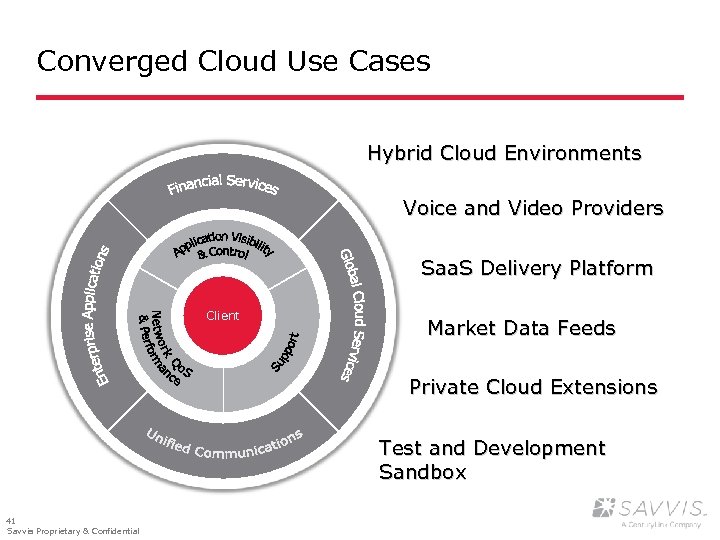

The Savvis Converged Cloud Unique Business Model · Fully integrated infrastructure design · Global reach · Consultative approach Clients · Leading cloud architecture · 48 data centers · Tier 1 public IP connectivity Virtualized Application Hosting Low-latency Distribution Networks · Specialization in financial and media verticals · Optimized for Vo. IP and video · Focus on application experience Enabling our clients by serving as the trusted, neutral provider of tightly integrated cloud services 8 Savvis Proprietary & Confidential

Savvis Symphony Virtual Private Data Center (VPDC) Managed Virtualized Hosting Environment

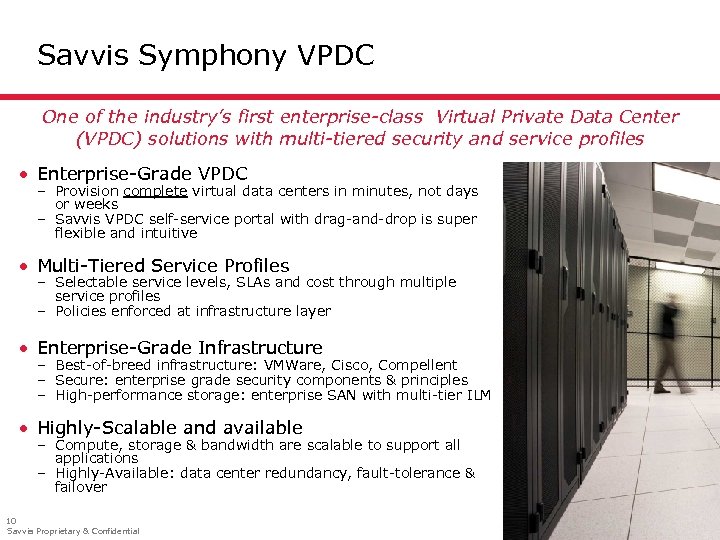

Savvis Symphony VPDC One of the industry’s first enterprise-class Virtual Private Data Center (VPDC) solutions with multi-tiered security and service profiles · Enterprise-Grade VPDC – Provision complete virtual data centers in minutes, not days or weeks – Savvis VPDC self-service portal with drag-and-drop is super flexible and intuitive · Multi-Tiered Service Profiles – Selectable service levels, SLAs and cost through multiple service profiles – Policies enforced at infrastructure layer · Enterprise-Grade Infrastructure – Best-of-breed infrastructure: VMWare, Cisco, Compellent – Secure: enterprise grade security components & principles – High-performance storage: enterprise SAN with multi-tier ILM · Highly-Scalable and available – Compute, storage & bandwidth are scalable to support all applications – Highly-Available: data center redundancy, fault-tolerance & failover 10 Savvis Proprietary & Confidential

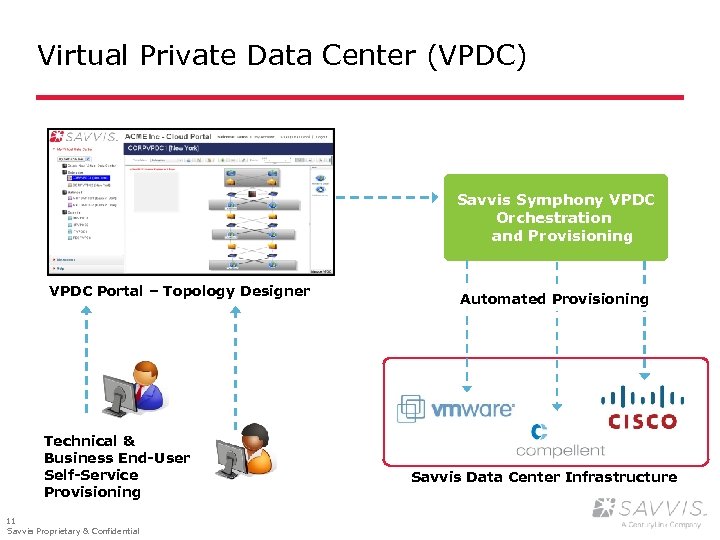

Virtual Private Data Center (VPDC) Savvis Symphony VPDC Orchestration and Provisioning VPDC Portal – Topology Designer Technical & Business End-User Self-Service Provisioning 11 Savvis Proprietary & Confidential Automated Provisioning Savvis Data Center Infrastructure

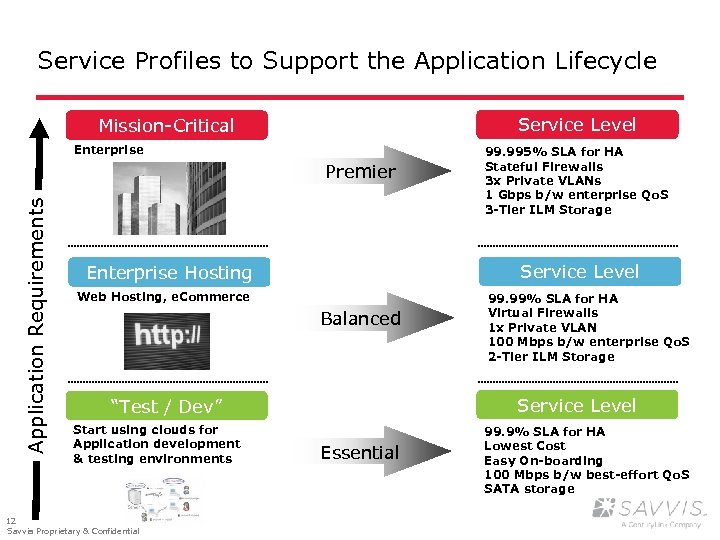

Service Profiles to Support the Application Lifecycle Service Level Mission-Critical Enterprise Application Requirements Premier Service Level Enterprise Hosting Web Hosting, e. Commerce Balanced 12 Savvis Proprietary & Confidential 99. 99% SLA for HA Virtual Firewalls 1 x Private VLAN 100 Mbps b/w enterprise Qo. S 2 -Tier ILM Storage Service Level “Test / Dev” Start using clouds for Application development & testing environments 99. 995% SLA for HA Stateful Firewalls 3 x Private VLANs 1 Gbps b/w enterprise Qo. S 3 -Tier ILM Storage Essential 99. 9% SLA for HA Lowest Cost Easy On-boarding 100 Mbps b/w best-effort Qo. S SATA storage

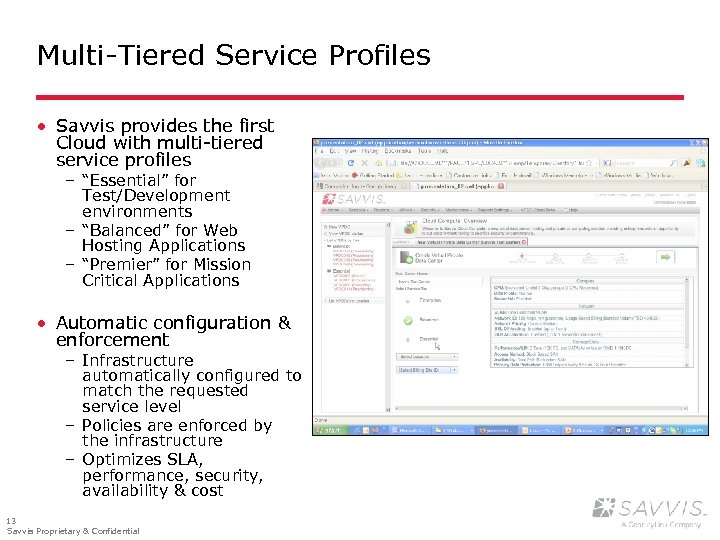

Multi-Tiered Service Profiles · Savvis provides the first Cloud with multi-tiered service profiles – “Essential” for Test/Development environments – “Balanced” for Web Hosting Applications – “Premier” for Mission Critical Applications · Automatic configuration & enforcement – Infrastructure automatically configured to match the requested service level – Policies are enforced by the infrastructure – Optimizes SLA, performance, security, availability & cost 13 Savvis Proprietary & Confidential

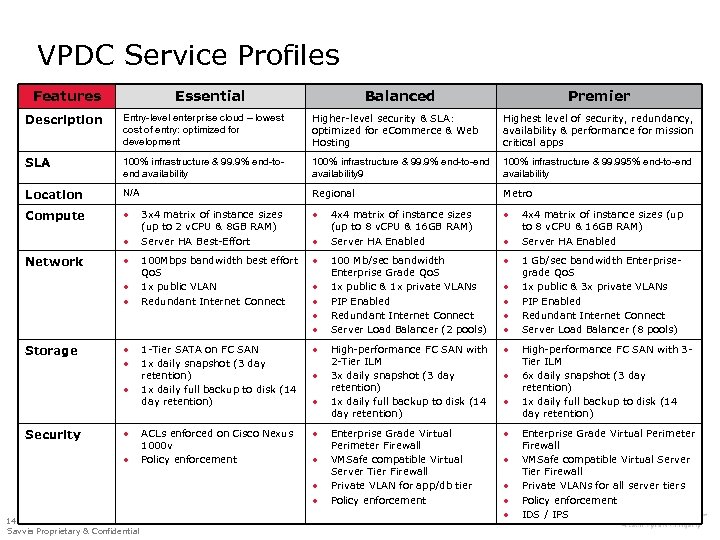

VPDC Service Profiles Features Essential Balanced Premier Description Entry-level enterprise cloud – lowest cost of entry: optimized for development Higher-level security & SLA: optimized for e. Commerce & Web Hosting Highest level of security, redundancy, availability & performance for mission critical apps SLA 100% infrastructure & 99. 9% end-toend availability 100% infrastructure & 99. 9% end-to-end availability 9 100% infrastructure & 99. 995% end-to-end availability Location N/A Regional Metro Compute • 3 x 4 matrix of instance sizes (up to 2 v. CPU & 8 GB RAM) Server HA Best-Effort • 4 x 4 matrix of instance sizes (up to 8 v. CPU & 16 GB RAM) Server HA Enabled • 100 Mbps bandwidth best effort Qo. S 1 x public VLAN Redundant Internet Connect • 100 Mb/sec bandwidth Enterprise Grade Qo. S 1 x public & 1 x private VLANs PIP Enabled Redundant Internet Connect Server Load Balancer (2 pools) • 1 -Tier SATA on FC SAN 1 x daily snapshot (3 day retention) 1 x daily full backup to disk (14 day retention) • High-performance FC SAN with 2 -Tier ILM 3 x daily snapshot (3 day retention) 1 x daily full backup to disk (14 day retention) • ACLs enforced on Cisco Nexus 1000 v Policy enforcement • Enterprise Grade Virtual Perimeter Firewall VMSafe compatible Virtual Server Tier Firewall Private VLAN for app/db tier Policy enforcement • • Network • • • Storage • • • Security • • • 14 Savvis Proprietary & Confidential • • • 4 x 4 matrix of instance sizes (up to 8 v. CPU & 16 GB RAM) Server HA Enabled 1 Gb/sec bandwidth Enterprisegrade Qo. S 1 x public & 3 x private VLANs PIP Enabled Redundant Internet Connect Server Load Balancer (8 pools) High-performance FC SAN with 3 Tier ILM 6 x daily snapshot (3 day retention) 1 x daily full backup to disk (14 day retention) Enterprise Grade Virtual Perimeter Firewall VMSafe compatible Virtual Server Tier Firewall Private VLANs for all server tiers Policy enforcement IDS / IPS

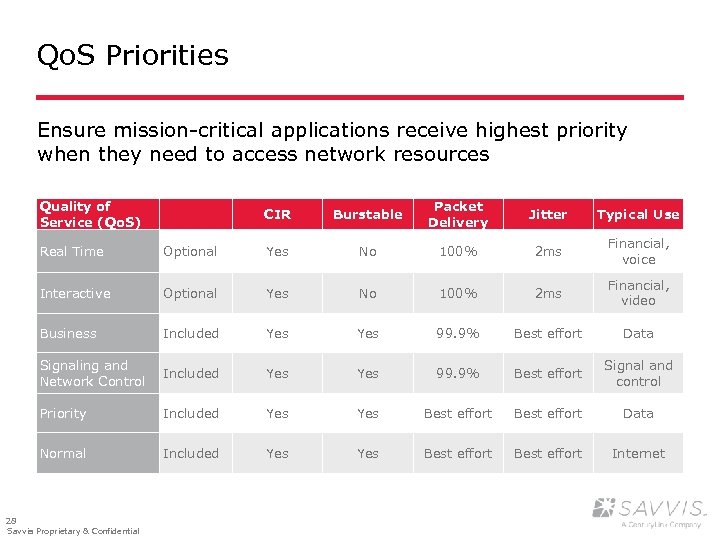

Service Profiles and Resource Guarantees · Service Profiles – Selectable for each VPDC – Automatically configures infrastructure, security, storage and resource reservations for optimal cost/performance tradeoff – Matched to lifecycle from test/dev to mission-critical production · Compute Instance Sizing – 12 or 16 choices of compute instance size per Qo. S profile – Instances range from 0. 5 v. CPU/1 GB RAM to 8 v. CPU/16 GB RAM – Instances are dynamically resizable · High Performance Network I/O – Essential profile provides 100 Mbps with best-effort Qo. S – Balanced profile provides 100 Mbps with enterprise-grade Qo. S – Premier profile provides 1 Gbps with enterprise-grade Qo. S 15 Savvis Proprietary & Confidential

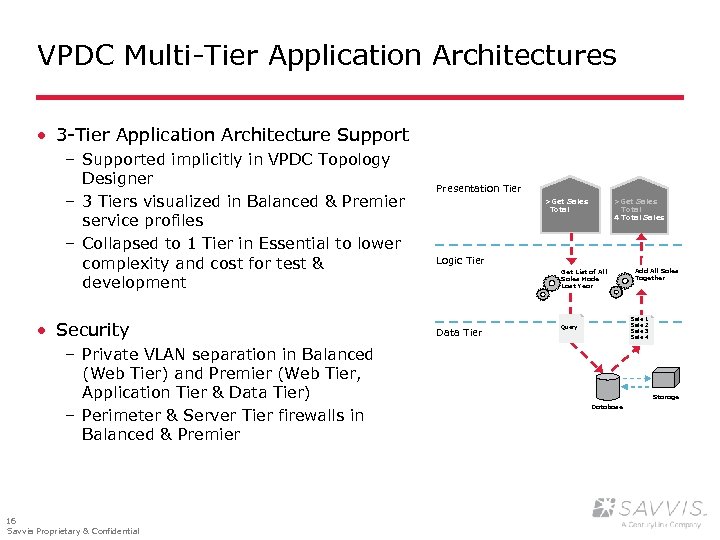

VPDC Multi-Tier Application Architectures · 3 -Tier Application Architecture Support – Supported implicitly in VPDC Topology Designer – 3 Tiers visualized in Balanced & Premier service profiles – Collapsed to 1 Tier in Essential to lower complexity and cost for test & development · Security – Private VLAN separation in Balanced (Web Tier) and Premier (Web Tier, Application Tier & Data Tier) – Perimeter & Server Tier firewalls in Balanced & Premier 16 Savvis Proprietary & Confidential Presentation Tier >Get Sales Total 4 Total Sales Logic Tier Get List of All Sales Made Last Year Data Tier Add All Sales Together Sale Query 1 2 3 4 Storage Database

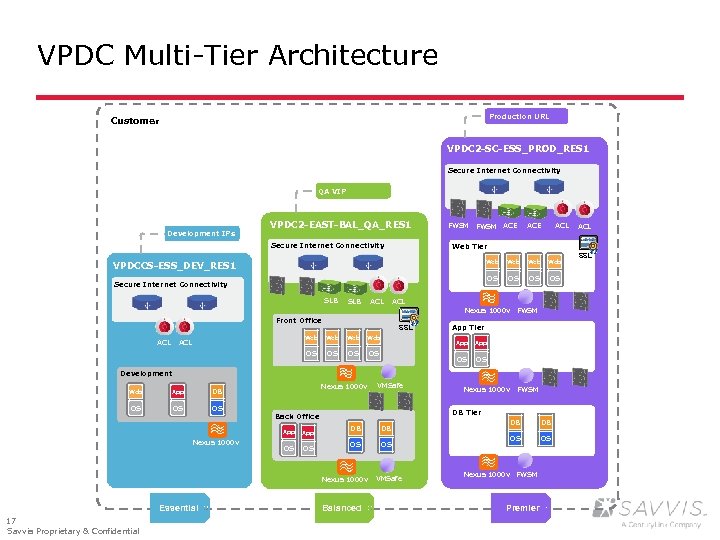

VPDC Multi-Tier Architecture Production URL Customer VPDC 2 -SC-ESS_PROD_RES 1 Secure Internet Connectivity QA VIP Development IPs VPDC 2 -EAST-BAL_QA_RES 1 Secure Internet Connectivity FWSM ACE ACL Web Tier Web Web OS VPDCCS-ESS_DEV_RES 1 OS OS OS Secure Internet Connectivity SLB ACL Nexus 1000 v FWSM Front Office SSL ACL Web Web OS ACL Web OS OS OS App Tier App OS OS Development Web App OS OS OS Nexus 1000 v DB Nexus 1000 v App OS OS Essential Nexus 1000 v FWSM DB Tier DB DB OS OS Nexus 1000 v 17 Savvis Proprietary & Confidential VMSafe Back Office App Balanced ACL VMSafe DB DB OS OS Nexus 1000 v FWSM Premier SSL

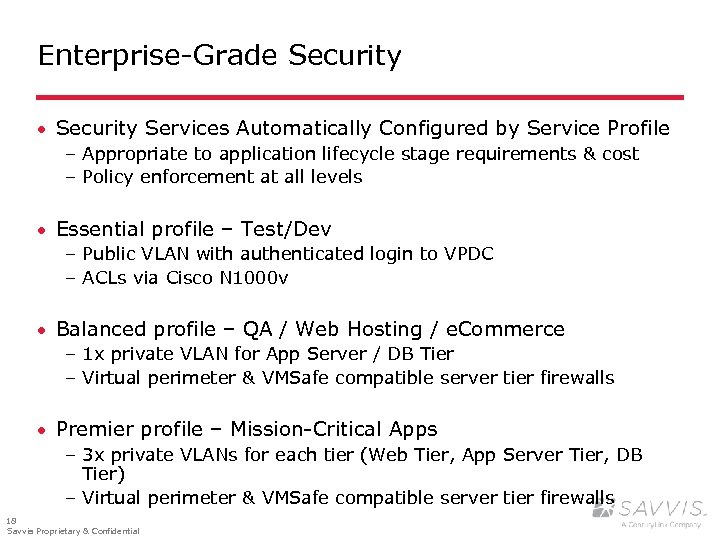

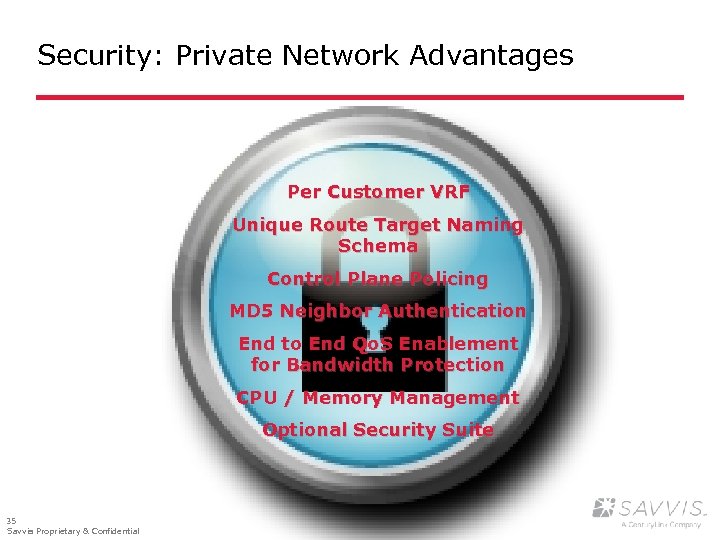

Enterprise-Grade Security · Security Services Automatically Configured by Service Profile – Appropriate to application lifecycle stage requirements & cost – Policy enforcement at all levels · Essential profile – Test/Dev – Public VLAN with authenticated login to VPDC – ACLs via Cisco N 1000 v · Balanced profile – QA / Web Hosting / e. Commerce – 1 x private VLAN for App Server / DB Tier – Virtual perimeter & VMSafe compatible server tier firewalls · Premier profile – Mission-Critical Apps – 3 x private VLANs for each tier (Web Tier, App Server Tier, DB Tier) – Virtual perimeter & VMSafe compatible server tier firewalls 18 Savvis Proprietary & Confidential

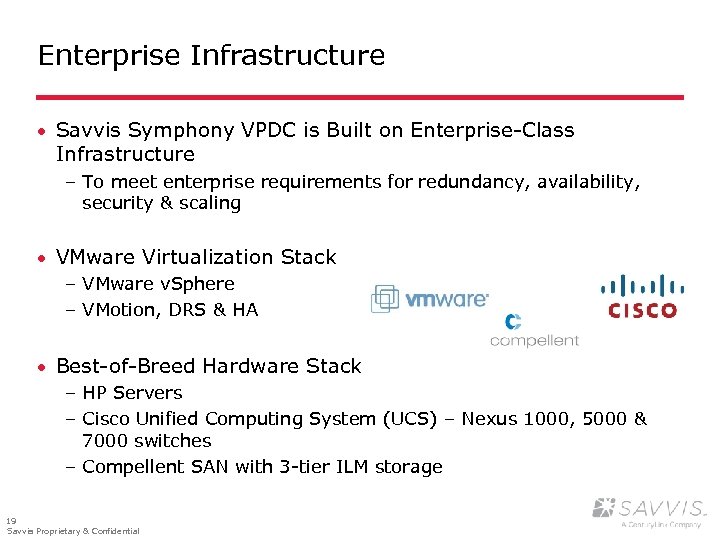

Enterprise Infrastructure · Savvis Symphony VPDC is Built on Enterprise-Class Infrastructure – To meet enterprise requirements for redundancy, availability, security & scaling · VMware Virtualization Stack – VMware v. Sphere – VMotion, DRS & HA · Best-of-Breed Hardware Stack – HP Servers – Cisco Unified Computing System (UCS) – Nexus 1000, 5000 & 7000 switches – Compellent SAN with 3 -tier ILM storage 19 Savvis Proprietary & Confidential

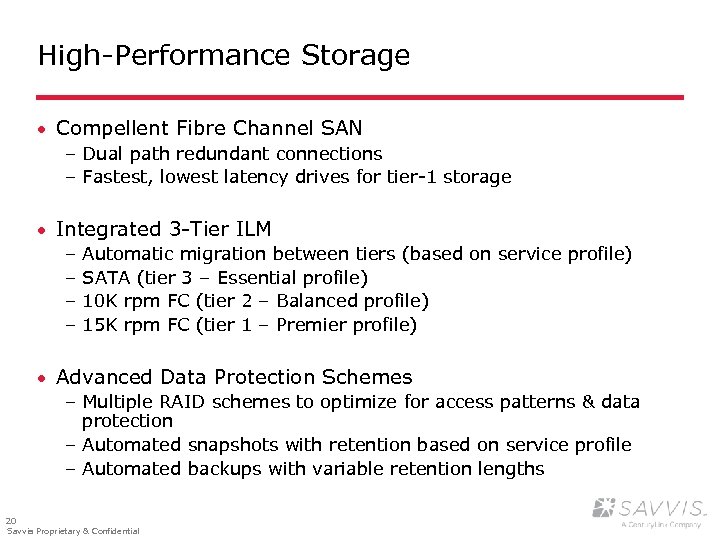

High-Performance Storage · Compellent Fibre Channel SAN – Dual path redundant connections – Fastest, lowest latency drives for tier-1 storage · Integrated 3 -Tier ILM – – Automatic migration between tiers (based on service profile) SATA (tier 3 – Essential profile) 10 K rpm FC (tier 2 – Balanced profile) 15 K rpm FC (tier 1 – Premier profile) · Advanced Data Protection Schemes – Multiple RAID schemes to optimize for access patterns & data protection – Automated snapshots with retention based on service profile – Automated backups with variable retention lengths 20 Savvis Proprietary & Confidential

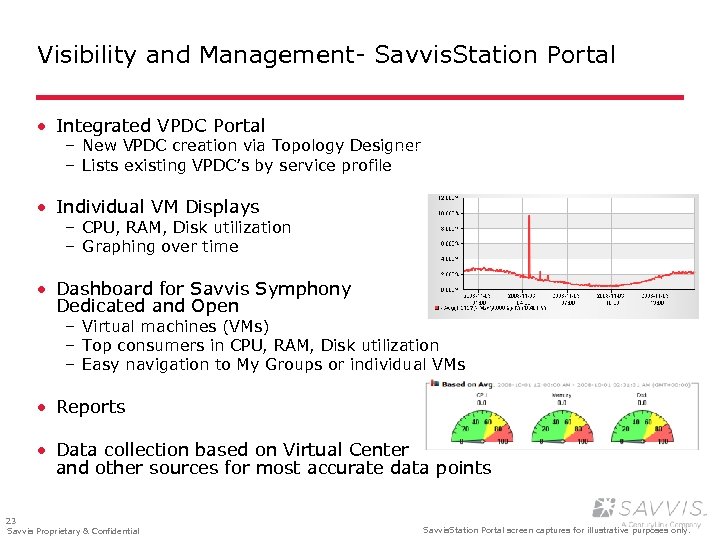

Access to VPDC Services · Web-Based VPDC Portal – Simple to use portal – Drag-and-drop designer – No programming knowledge required · v. Cloud Compatible API – Enables programmatic & scripted access
