SAN Migration on Net Ware 6 with the

SAN Migration on Net. Ware® 6 with the Compaq MSA 1000 www. novell. com Robert Moreland Product Manager Compaq Computer Corp Robert. Moreland@compaq. com

Agenda • Introduction • Dt. S Architecture overview • Product details • Positioning • Product roadmap • Questions and answers

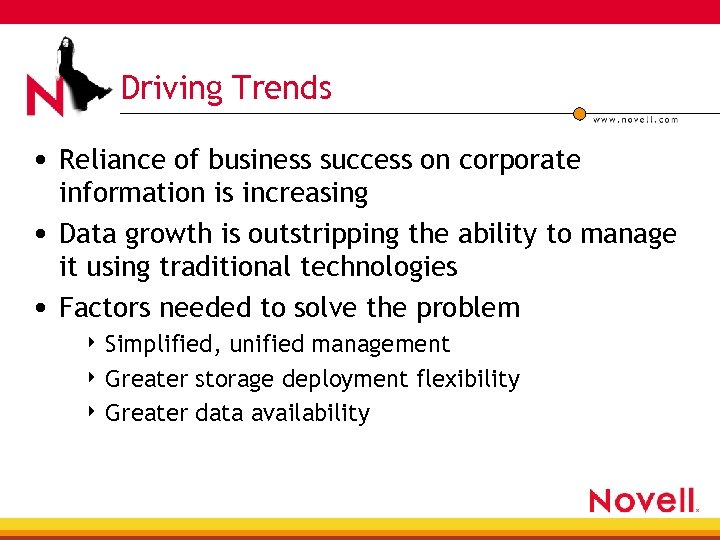

Driving Trends • Reliance of business success on corporate information is increasing • Data growth is outstripping the ability to manage it using traditional technologies • Factors needed to solve the problem 4 Simplified, unified management 4 Greater storage deployment flexibility 4 Greater data availability

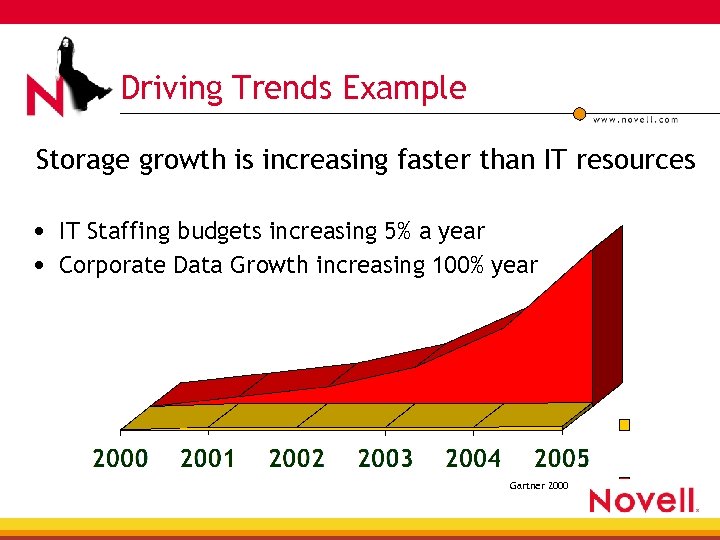

Driving Trends Example Storage growth is increasing faster than IT resources • IT Staffing budgets increasing 5% a year • Corporate Data Growth increasing 100% year Gartner 2000

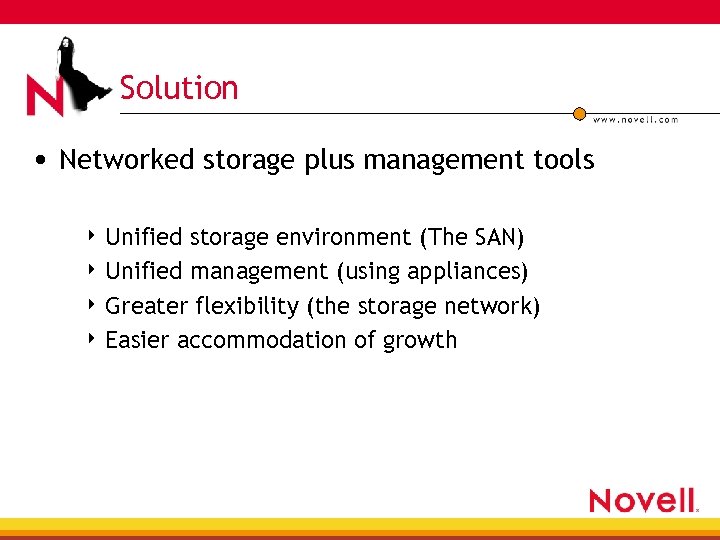

Solution • Networked storage plus management tools 4 Unified storage environment (The SAN) 4 Unified management (using appliances) 4 Greater flexibility (the storage network) 4 Easier accommodation of growth

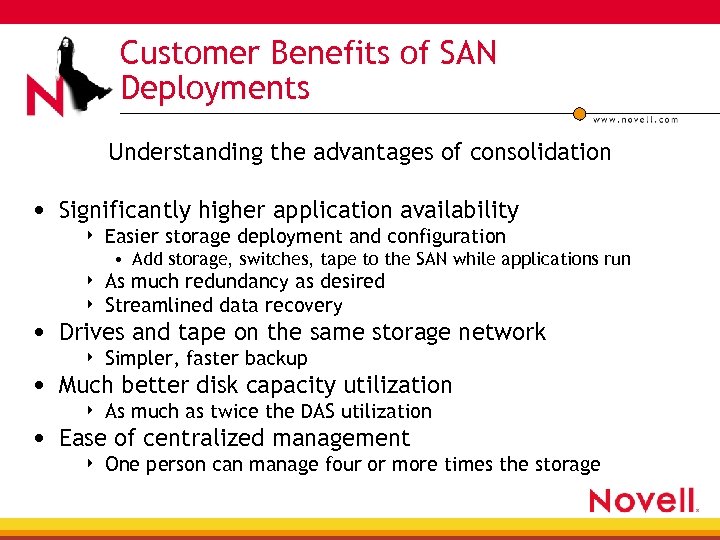

Customer Benefits of SAN Deployments Understanding the advantages of consolidation • Significantly higher application availability 4 Easier storage deployment and configuration 4 4 As much redundancy as desired Streamlined data recovery 4 Simpler, faster backup 4 As much as twice the DAS utilization 4 One person can manage four or more times the storage • Add storage, switches, tape to the SAN while applications run • Drives and tape on the same storage network • Much better disk capacity utilization • Ease of centralized management

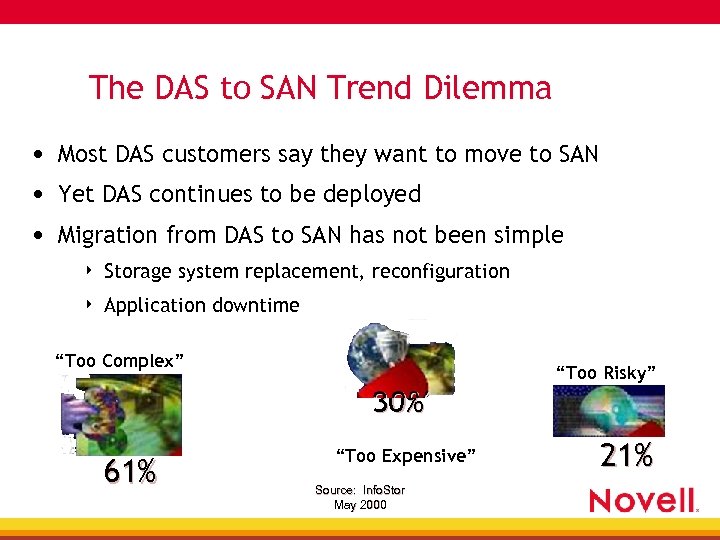

The DAS to SAN Trend Dilemma • Most DAS customers say they want to move to SAN • Yet DAS continues to be deployed • Migration from DAS to SAN has not been simple 4 Storage system replacement, reconfiguration 4 Application downtime “Too Complex” 30% 61% “Too Expensive” Source: Info. Stor May 2000 “Too Risky” 21%

Deploying More Servers To Increase Your Storage?

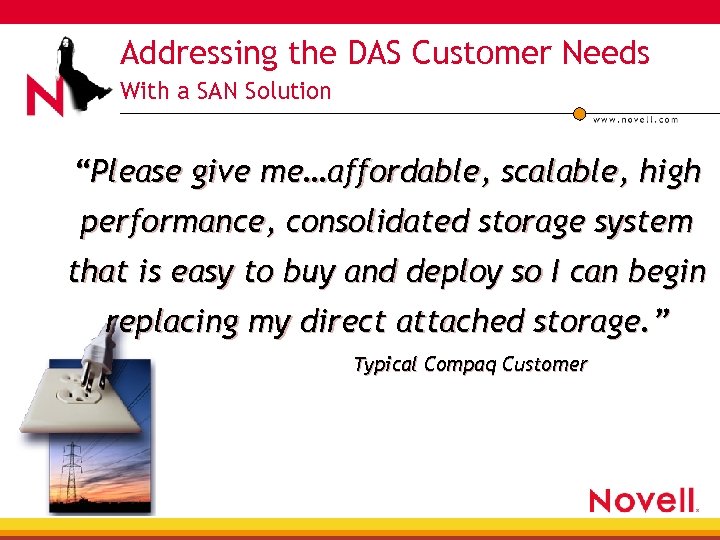

Addressing the DAS Customer Needs With a SAN Solution “Please give me…affordable, scalable, high performance, consolidated storage system that is easy to buy and deploy so I can begin replacing my direct attached storage. ” Typical Compaq Customer

What Is Dt. S? Dt. S = DAS to SAN Direct Attach Storage to Storage Area Network • Instant consolidation of existing DAS data into a Compaq SAN • Significant simplification of storage consolidation 4 Creates an easy migration from Smart Array DAS to SAN 4 Minimizes application disruption during data migration 4 Protects investments in drives and data

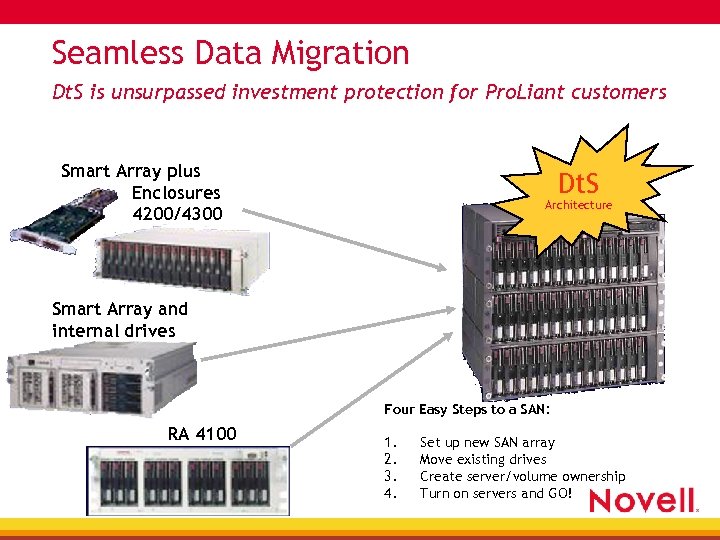

Seamless Data Migration Dt. S is unsurpassed investment protection for Pro. Liant customers Smart Array plus Enclosures 4200/4300 Dt. S Architecture Smart Array and internal drives Four Easy Steps to a SAN: RA 4100 1. 2. 3. 4. Set up new SAN array Move existing drives Create server/volume ownership Turn on servers and GO!

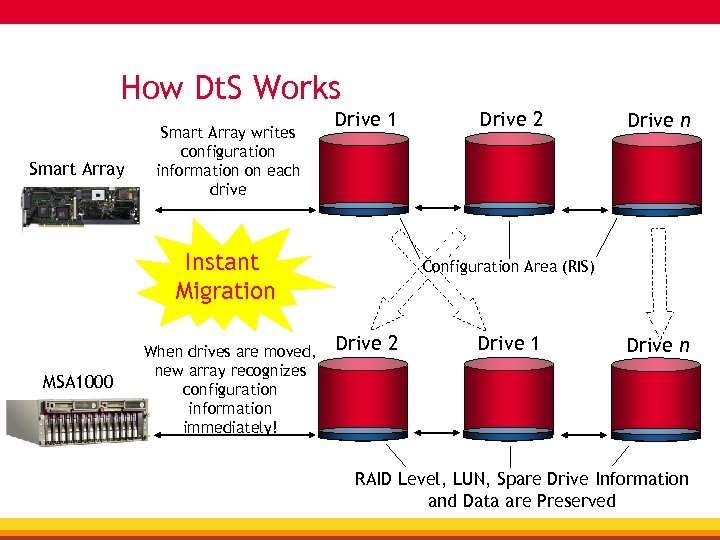

How Dt. S Works Smart Array writes configuration information on each drive Drive 1 Instant Migration MSA 1000 When drives are moved, new array recognizes configuration information immediately! Drive 2 Drive n Configuration Area (RIS) Drive 2 Drive 1 Drive n RAID Level, LUN, Spare Drive Information and Data are Preserved

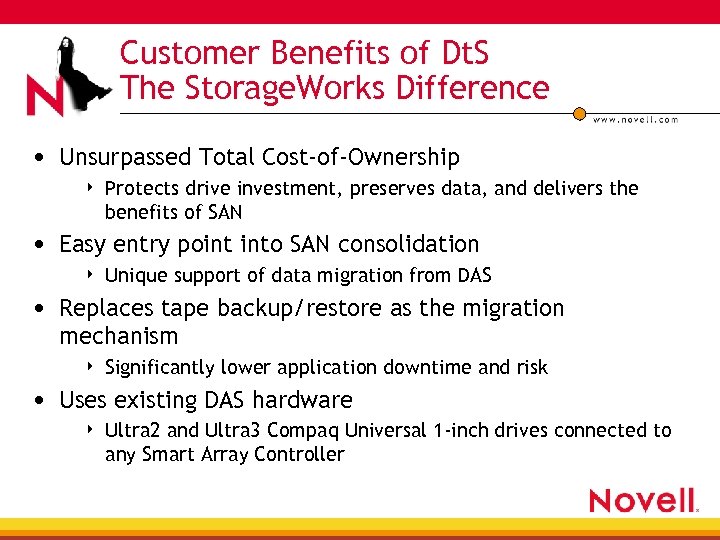

Customer Benefits of Dt. S The Storage. Works Difference • Unsurpassed Total Cost-of-Ownership 4 Protects drive investment, preserves data, and delivers the benefits of SAN • Easy entry point into SAN consolidation 4 Unique support of data migration from DAS • Replaces tape backup/restore as the migration mechanism 4 Significantly lower application downtime and risk • Uses existing DAS hardware 4 Ultra 2 and Ultra 3 Compaq Universal 1 -inch drives connected to any Smart Array Controller

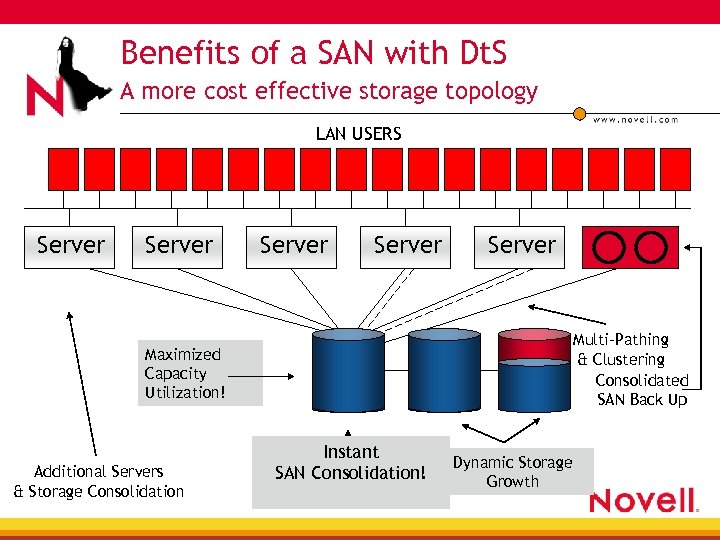

Benefits of a SAN with Dt. S A more cost effective storage topology LAN USERS Server Server Multi-Pathing & Clustering Consolidated SAN Back Up Maximized Capacity Utilization! Instant Additional Servers & Storage Consolidation Migration of SAN Consolidation! drives and data from Smart Array Dynamic Storage Growth

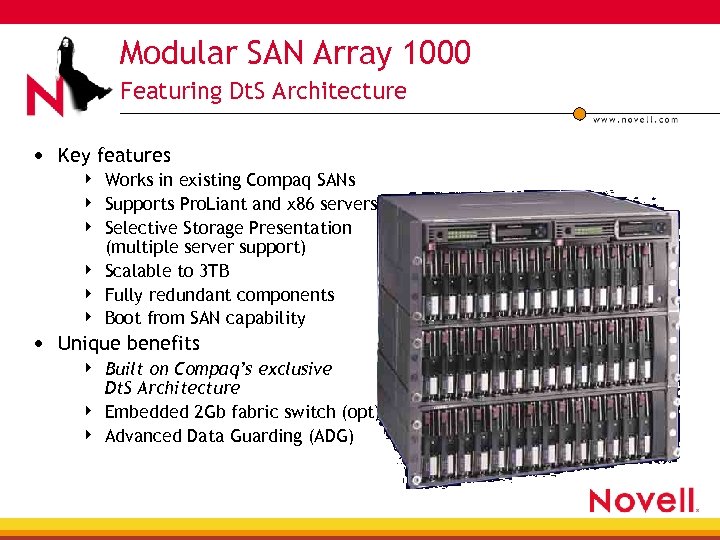

Modular SAN Array 1000 Featuring Dt. S Architecture • Key features 4 4 4 Works in existing Compaq SANs Supports Pro. Liant and x 86 servers Selective Storage Presentation (multiple server support) Scalable to 3 TB Fully redundant components Boot from SAN capability • Unique benefits 4 4 4 Built on Compaq’s exclusive Dt. S Architecture Embedded 2 Gb fabric switch (opt) Advanced Data Guarding (ADG)

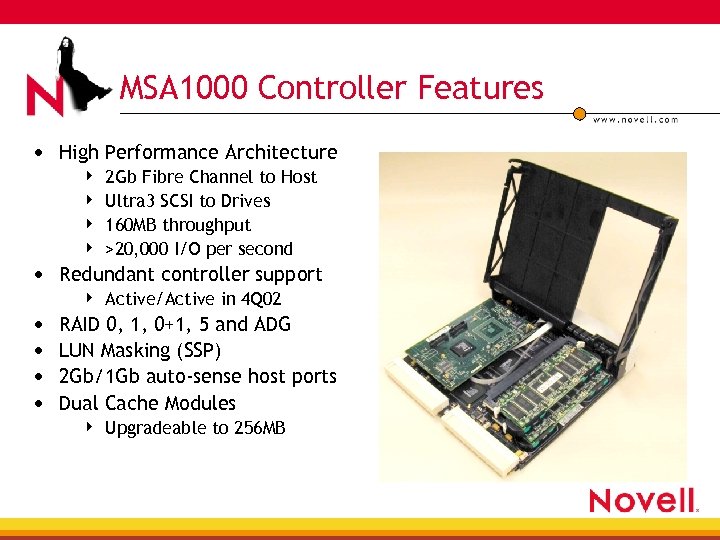

MSA 1000 Controller Features • High Performance Architecture 4 2 Gb Fibre Channel to Host Ultra 3 SCSI to Drives 160 MB throughput >20, 000 I/O per second 4 Active/Active in 4 Q 02 4 4 4 • Redundant controller support • • RAID 0, 1, 0+1, 5 and ADG LUN Masking (SSP) 2 Gb/1 Gb auto-sense host ports Dual Cache Modules 4 Upgradeable to 256 MB

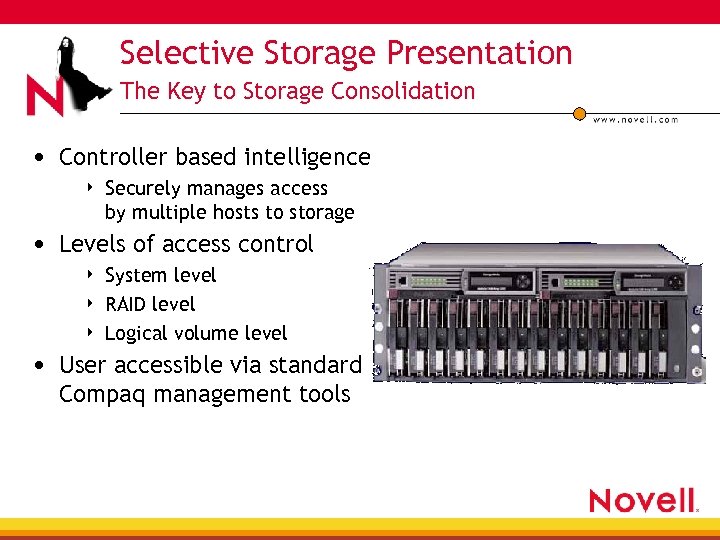

Selective Storage Presentation The Key to Storage Consolidation • Controller based intelligence 4 Securely manages access by multiple hosts to storage • Levels of access control 4 4 4 System level RAID level Logical volume level • User accessible via standard Compaq management tools

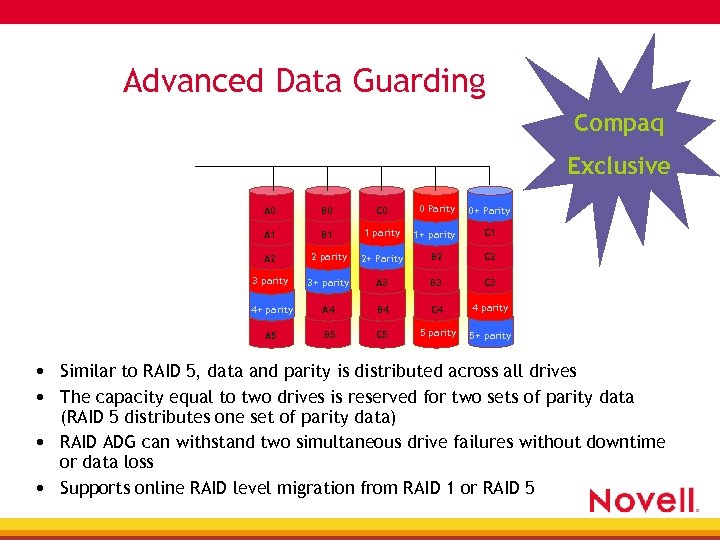

Advanced Data Guarding Compaq Exclusive A 0 B 0 C 0 0 Parity 0+ Parity A 1 B 1 1 parity 1+ parity C 1 A 2 2 parity 2+ Parity B 2 C 2 3 parity 3+ parity A 3 B 3 C 3 4+ parity A 4 B 4 C 4 4 parity A 5 B 5 C 5 5 parity 5+ parity • Similar to RAID 5, data and parity is distributed across all drives • The capacity equal to two drives is reserved for two sets of parity data (RAID 5 distributes one set of parity data) • RAID ADG can withstand two simultaneous drive failures without downtime or data loss • Supports online RAID level migration from RAID 1 or RAID 5

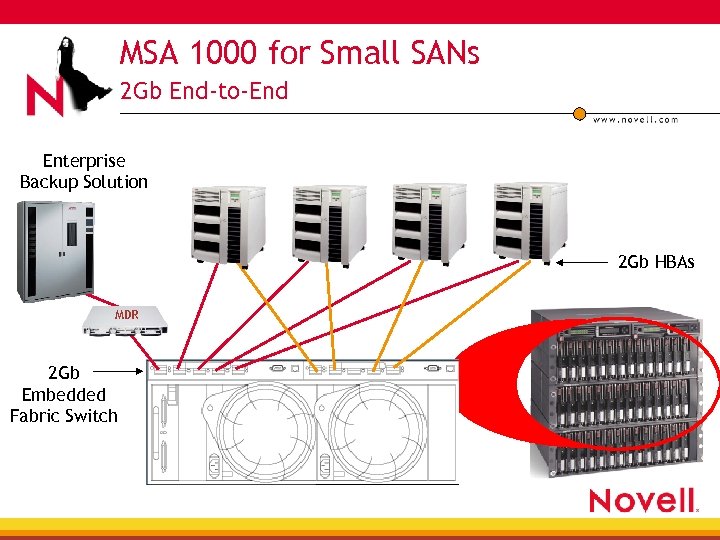

MSA 1000 for Small SANs 2 Gb End-to-End Enterprise Backup Solution 2 Gb HBAs MDR 2 Gb Embedded Fabric Switch

MSA 1000 in an Enterprise SAN UNIX Windows Open. VMS Net. Ware Linux § 1 Gb Fabric Switch Support – SAN Switch 8/8 EL – SAN Switch 16/16 EL FC Switches RA 4100 EMA 12000 MA 8000 EMA 16000 ESL 9326 ESL 9198

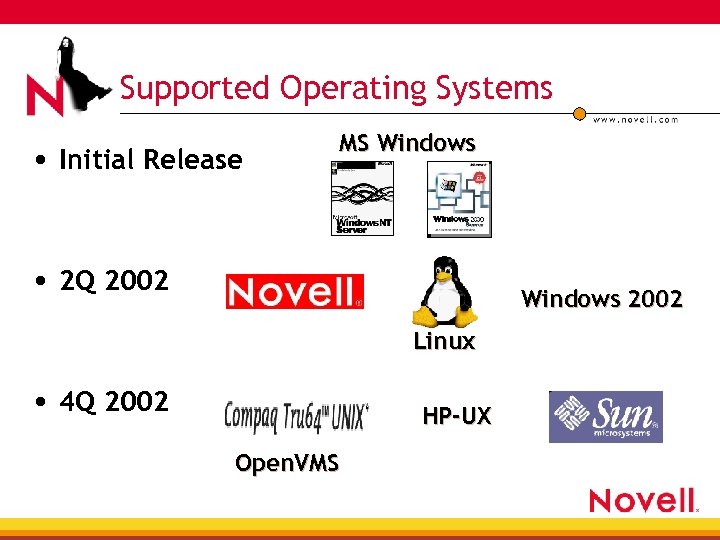

Supported Operating Systems • Initial Release MS Windows • 2 Q 2002 Windows 2002 Linux • 4 Q 2002 HP-UX Open. VMS

SANworks Secure. Path High Availability Option for MSA 1000 • The multi-path component used in high availability and fault tolerant solutions. 4 Maintains connections to storage 4 Monitors I/O paths and alerts on significant events 4 Assists in load balancing • Used in… 4 Standalone configurations 4 Cluster configurations 4 SAN configurations

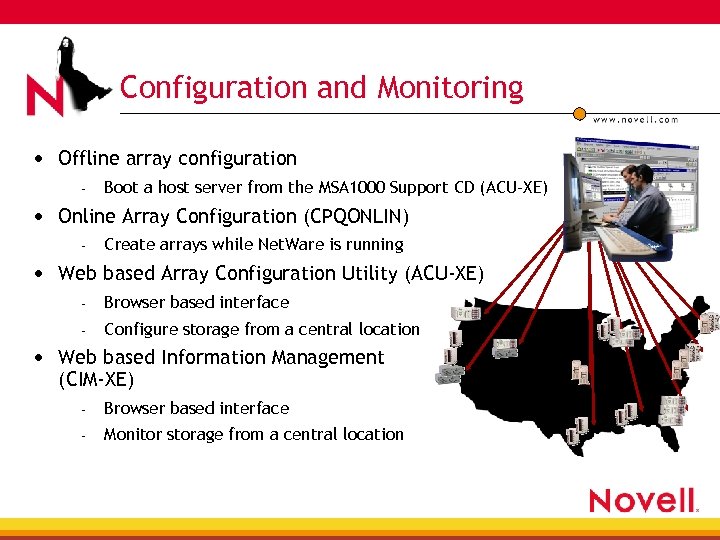

Configuration and Monitoring • Offline array configuration – Boot a host server from the MSA 1000 Support CD (ACU-XE) • Online Array Configuration (CPQONLIN) – Create arrays while Net. Ware is running • Web based Array Configuration Utility (ACU-XE) – Browser based interface – Configure storage from a central location • Web based Information Management (CIM-XE) – Browser based interface – Monitor storage from a central location

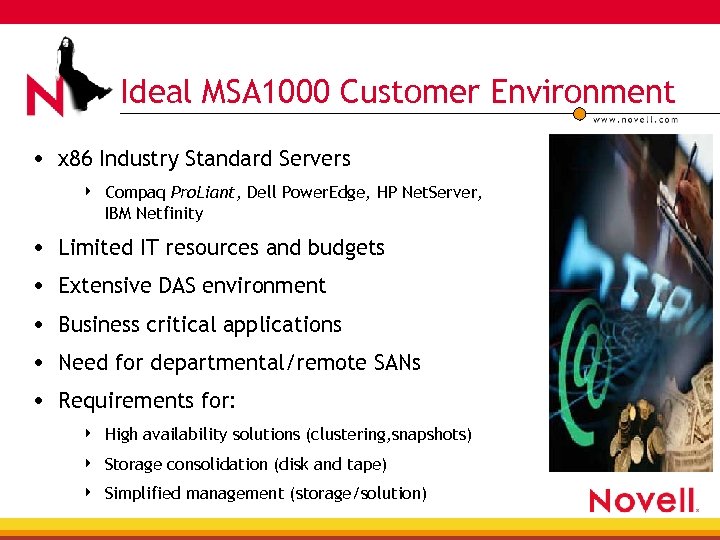

Ideal MSA 1000 Customer Environment • x 86 Industry Standard Servers 4 • • • Compaq Pro. Liant, Dell Power. Edge, HP Net. Server, IBM Netfinity Limited IT resources and budgets Extensive DAS environment Business critical applications Need for departmental/remote SANs Requirements for: 4 High availability solutions (clustering, snapshots) 4 Storage consolidation (disk and tape) 4 Simplified management (storage/solution)

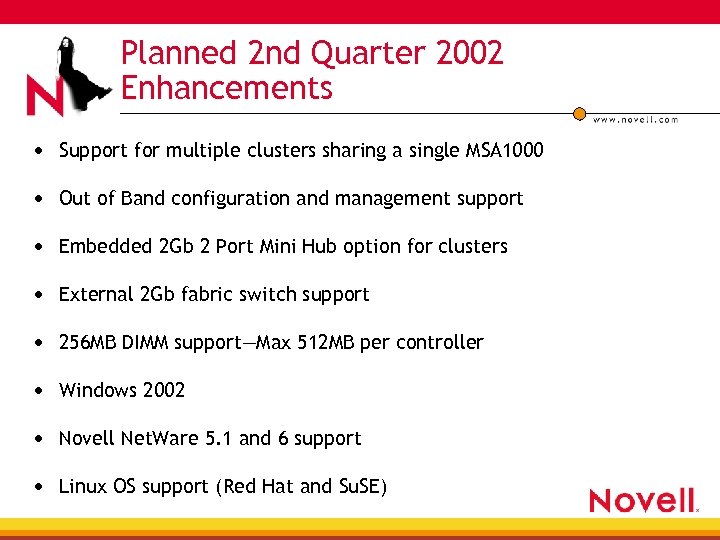

Planned 2 nd Quarter 2002 Enhancements • Support for multiple clusters sharing a single MSA 1000 • Out of Band configuration and management support • Embedded 2 Gb 2 Port Mini Hub option for clusters • External 2 Gb fabric switch support • 256 MB DIMM support—Max 512 MB per controller • Windows 2002 • Novell Net. Ware 5. 1 and 6 support • Linux OS support (Red Hat and Su. SE)

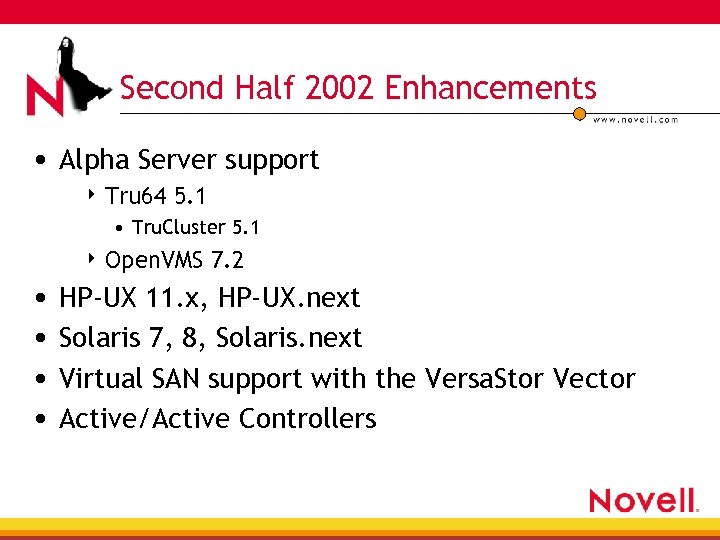

Second Half 2002 Enhancements • Alpha Server support 4 Tru 64 5. 1 • Tru. Cluster 5. 1 4 Open. VMS 7. 2 • HP-UX 11. x, HP-UX. next • Solaris 7, 8, Solaris. next • Virtual SAN support with the Versa. Stor Vector • Active/Active Controllers
