SAMGrid installation status He-uh-nu KIM UT-Arlington SAR-II

SAMGrid installation status He-uh-nu KIM : UT-Arlington SAR-II meeting Sep 26 -27 Univ. of Oklahoma at Norman Sep 26 2003 OU He-uh-nu KIM, UTA

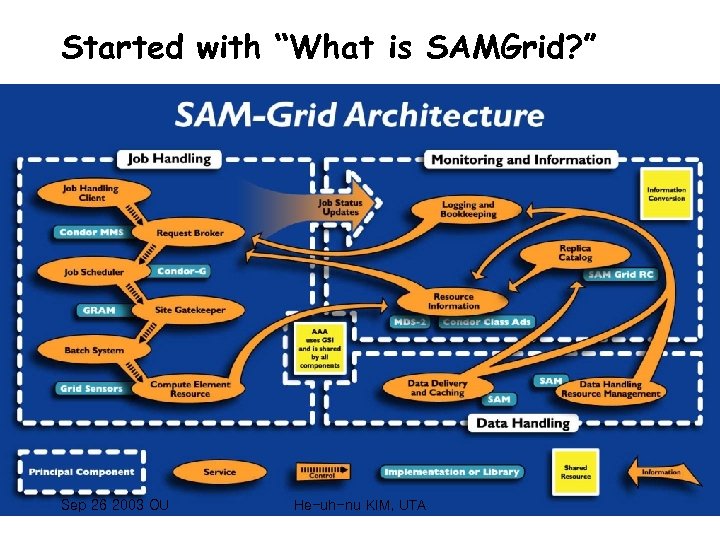

Started with “What is SAMGrid? ” Sep 26 2003 OU He-uh-nu KIM, UTA

SAMGrid from ordinary users’ point of view At first, I could not stop asking, “Why do we need all those complicated Globus-related packages like GRAM for Resource Management, GSI for security GASS for stderr, stdout transfer, MDS for Monitoring and Condor/Condor-G? Are they really necessary? ” Sep 26 2003 OU He-uh-nu KIM, UTA

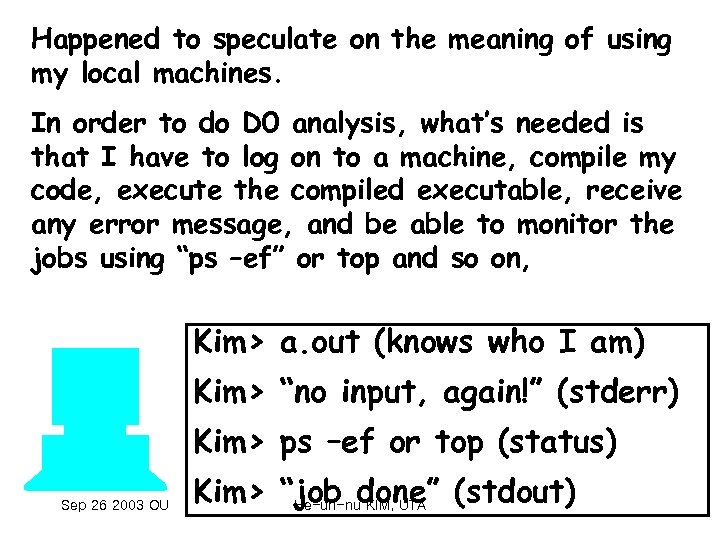

Happened to speculate on the meaning of using my local machines. In order to do D 0 analysis, what’s needed is that I have to log on to a machine, compile my code, execute the compiled executable, receive any error message, and be able to monitor the jobs using “ps –ef” or top and so on, Kim> a. out (knows who I am) Kim> “no input, again!” (stderr) Kim> ps –ef or top (status) Sep 26 2003 OU Kim> “job done” (stdout) He-uh-nu KIM, UTA

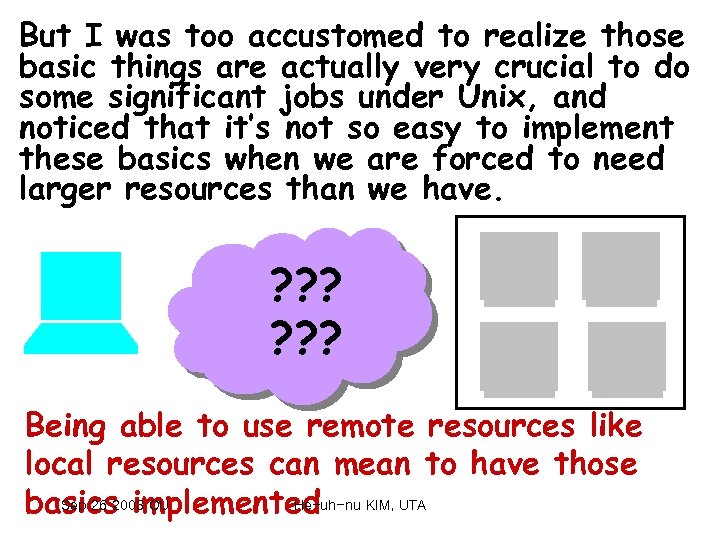

But I was too accustomed to realize those basic things are actually very crucial to do some significant jobs under Unix, and noticed that it’s not so easy to implement these basics when we are forced to need larger resources than we have. ? ? ? Being able to use remote resources like local resources can mean to have those Sep 26 2003 OU He-uh-nu basics implemented KIM, UTA

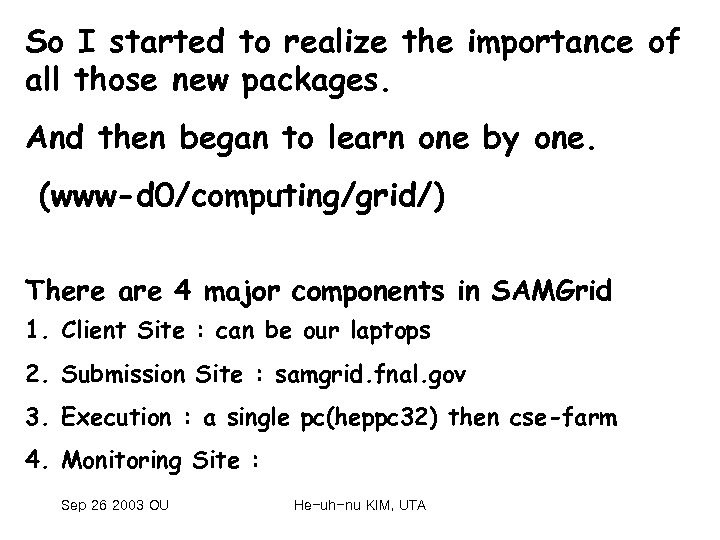

So I started to realize the importance of all those new packages. And then began to learn one by one. (www-d 0/computing/grid/) There are 4 major components in SAMGrid 1. Client Site : can be our laptops 2. Submission Site : samgrid. fnal. gov 3. Execution : a single pc(heppc 32) then cse-farm 4. Monitoring Site : Sep 26 2003 OU He-uh-nu KIM, UTA

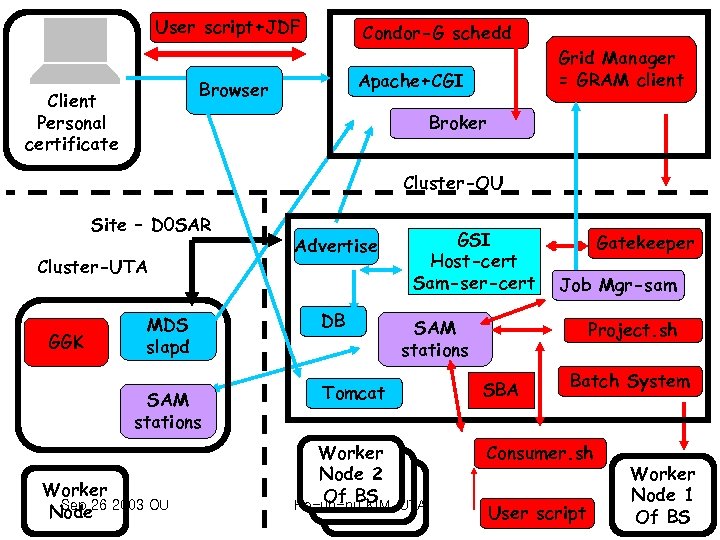

User script+JDF Condor-G schedd Apache+CGI Browser Client Personal certificate Grid Manager = GRAM client Broker Cluster-OU Site – D 0 SAR Cluster-UTA GGK MDS slapd SAM stations Worker Sep Node 26 2003 OU Advertise DB GSI Host-cert Sam-ser-cert Gatekeeper Job Mgr-sam SAM stations Tomcat Worker Node 2 Of BS He-uh-nu KIM, UTA Project. sh SBA Batch System Consumer. sh User script Worker Node 1 Of BS

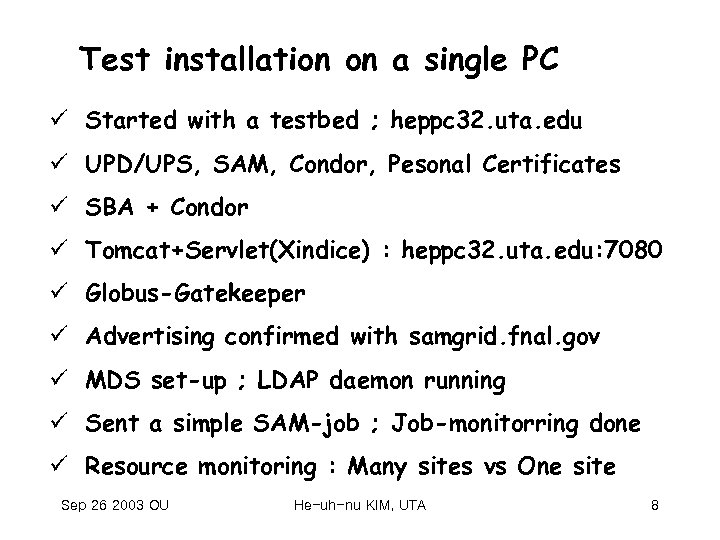

Test installation on a single PC ü Started with a testbed ; heppc 32. uta. edu ü UPD/UPS, SAM, Condor, Pesonal Certificates ü SBA + Condor ü Tomcat+Servlet(Xindice) : heppc 32. uta. edu: 7080 ü Globus-Gatekeeper ü Advertising confirmed with samgrid. fnal. gov ü MDS set-up ; LDAP daemon running ü Sent a simple SAM-job ; Job-monitorring done ü Resource monitoring : Many sites vs One site Sep 26 2003 OU He-uh-nu KIM, UTA 8

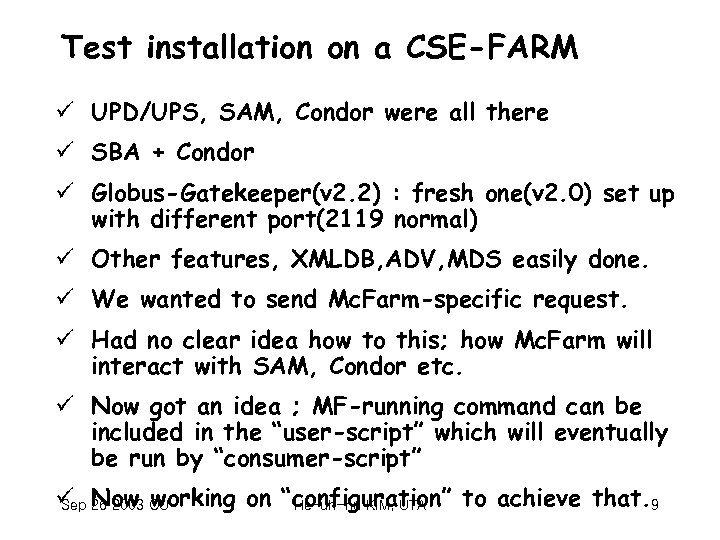

Test installation on a CSE-FARM ü UPD/UPS, SAM, Condor were all there ü SBA + Condor ü Globus-Gatekeeper(v 2. 2) : fresh one(v 2. 0) set up with different port(2119 normal) ü Other features, XMLDB, ADV, MDS easily done. ü We wanted to send Mc. Farm-specific request. ü Had no clear idea how to this; how Mc. Farm will interact with SAM, Condor etc. ü Now got an idea ; MF-running command can be included in the “user-script” which will eventually be run by “consumer-script” ü 26 2003 OU Sep Now working on “configuration” to achieve that. 9 He-uh-nu KIM, UTA

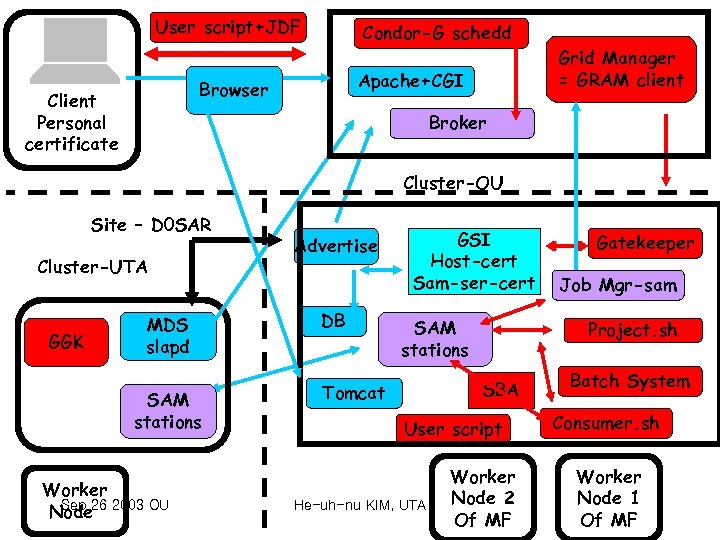

User script+JDF Condor-G schedd Apache+CGI Browser Client Personal certificate Grid Manager = GRAM client Broker Cluster-OU Site – D 0 SAR Cluster-UTA GGK MDS slapd SAM stations Worker Sep Node 26 2003 OU Advertise DB GSI Host-cert Sam-ser-cert SAM stations User script He-uh-nu KIM, UTA Job Mgr-sam Project. sh SBA Tomcat Gatekeeper Worker Node 2 Of MF Batch System Consumer. sh Worker Node 1 Of MF

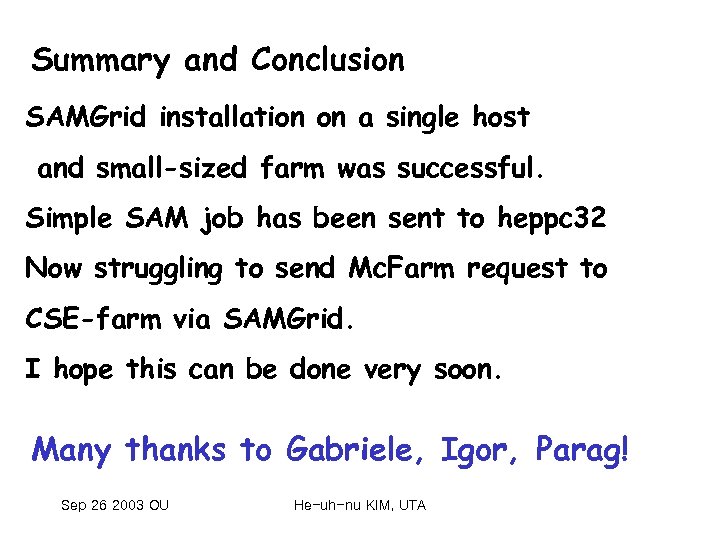

Summary and Conclusion SAMGrid installation on a single host and small-sized farm was successful. Simple SAM job has been sent to heppc 32 Now struggling to send Mc. Farm request to CSE-farm via SAMGrid. I hope this can be done very soon. Many thanks to Gabriele, Igor, Parag! Sep 26 2003 OU He-uh-nu KIM, UTA
