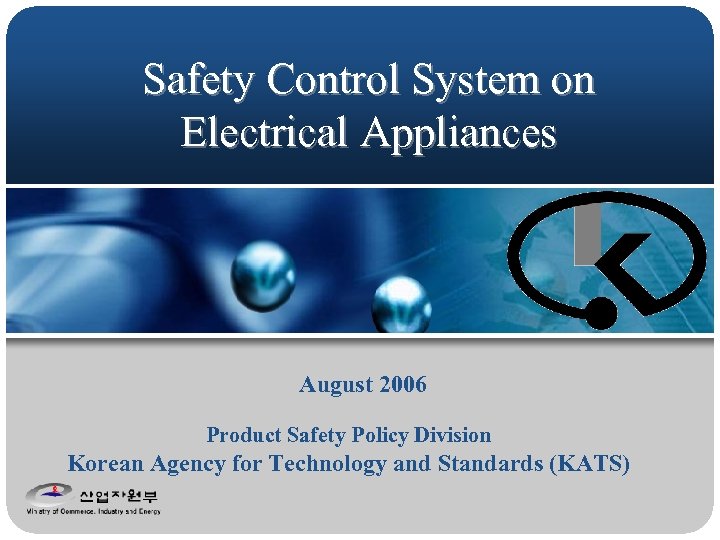

Safety Control System on Electrical Appliances August 2006

Safety Control System on Electrical Appliances August 2006 Product Safety Policy Division Korean Agency for Technology and Standards (KATS)

Contents 1 Objective 2 Safety Control Operational System 3 Safety Certification Scheme 4 Operation of Safety Criteria 5 Surveillance 6 Measures & Penal Provision on Infringement of Regulations Company Logo

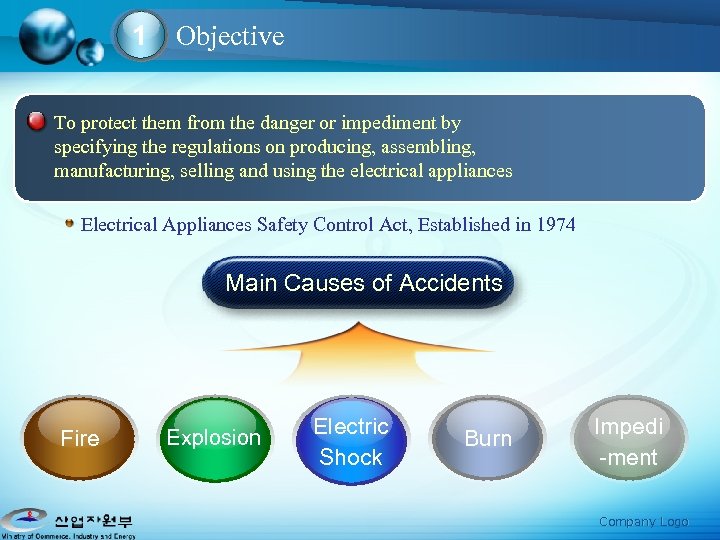

1 Objective To protect them from the danger or impediment by specifying the regulations on producing, assembling, manufacturing, selling and using the electrical appliances Electrical Appliances Safety Control Act, Established in 1974 Main Causes of Accidents Fire Explosion Electric Shock Burn Impedi -ment Company Logo

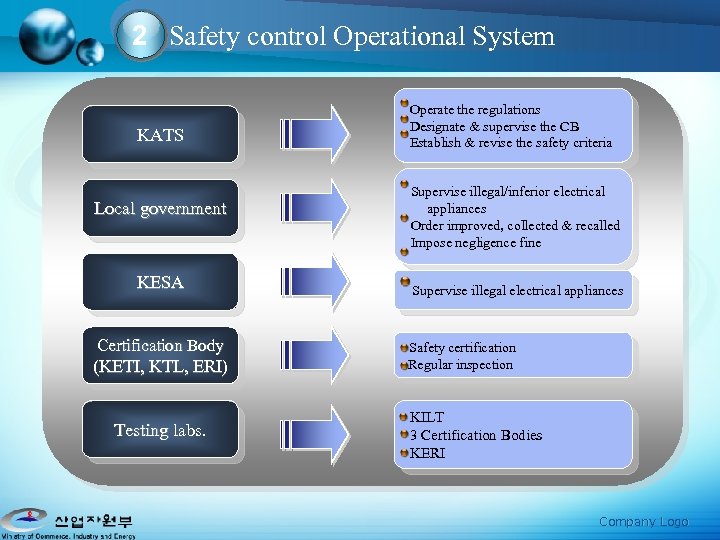

2 Safety control Operational System KATS Local government KESA Certification Body (KETI, KTL, ERI) Testing labs. Operate the regulations Designate & supervise the CB Establish & revise the safety criteria Supervise illegal/inferior electrical appliances Order improved, collected & recalled Impose negligence fine Supervise illegal electrical appliances Safety certification Regular inspection KILT 3 Certification Bodies KERI Company Logo

3 Safety Certification Scheme which is granted the safety certification on electrical appliances after testing them and assessing their production system Overseas/domestics manufacturers who produce the electrical appliances on the market of Korea shall obtain the safety certification on each model. Apply for the Safety Certification overseas/domestic manufacturers Conduct the factory Inspection Certification Body Issue the Certificate Test products Testing Laboratory Certification Body Within 45 days When the most influencing components of each model have been modified, the manufacturers shall apply for the safety certification on basic model to the certification body. application document : product description, circuit schematic diagram, list of components, agent identification(when an agent apply for safety certification) Company Logo

3 -1 Electrical appliances subject to Safety Certification 247 electrical appliances having the high hazard against safety which shall obtain the safety certification are mandatory, and others are voluntary. Mandatory(247 items) 1. Cables and cords: 10 items including rubber Voluntary 8. 2. Switches for electrical appliances: 10 items including interceptors for electrical appliances 3. 4. 9. 10. Capacitors: 3 items including X, Y capacitors Installation Accessories: 14 items including electrical appliances NOT subject to mandatory drills insulating materials Portable tools: 17 items including Electric certification whose safety certification has been Audio/video: 26 items including monitors regulated IT and Office equipment : 9 items including copying machine 11. ※ Voluntary safety certification criteria : 462 Lighting: 18 items including fluorescent lamp plugs 5. Installation protective equipment: 6 items ※ Mandatory safety certification criteria : 225 including fuse 6. Transformer: 3 items including voltage regulator 7. Household & similar equipment: 13 items including electric cleaners Company Logo

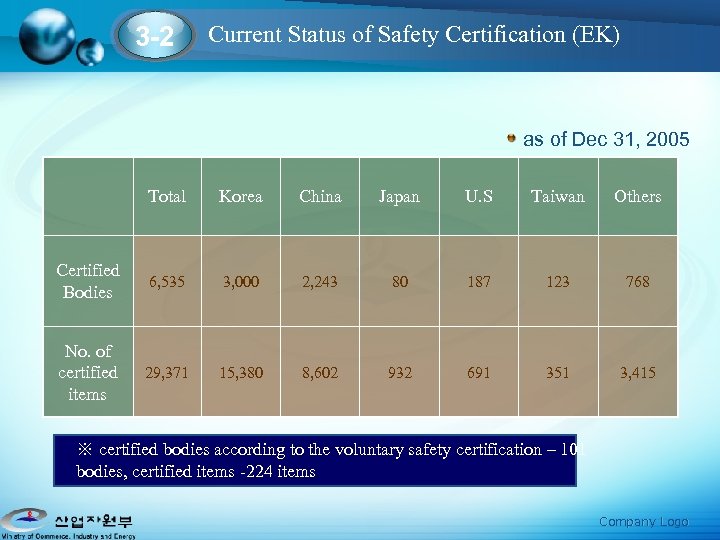

3 -2 Current Status of Safety Certification (EK) as of Dec 31, 2005 Total Korea China Japan U. S Taiwan Others Certified Bodies 6, 535 3, 000 2, 243 80 187 123 768 No. of certified items 29, 371 15, 380 8, 602 932 691 351 3, 415 ※ certified bodies according to the voluntary safety certification – 101 bodies, certified items -224 items Company Logo

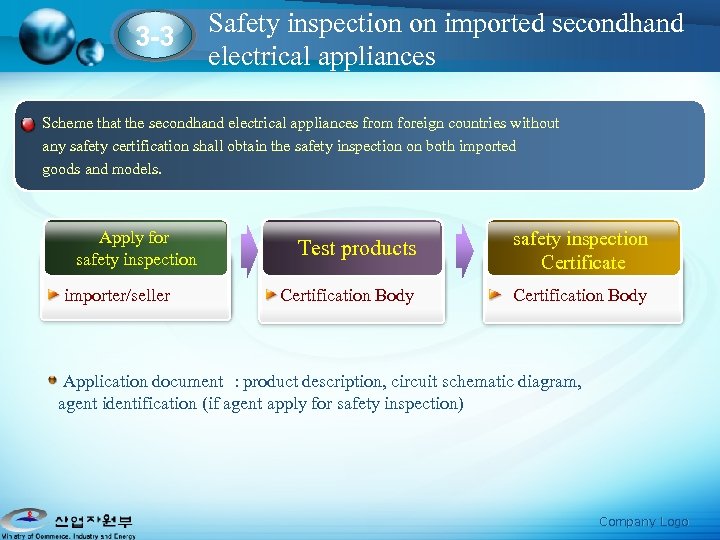

3 -3 Safety inspection on imported secondhand electrical appliances Scheme that the secondhand electrical appliances from foreign countries without any safety certification shall obtain the safety inspection on both imported goods and models. Apply for safety inspection importer/seller Test products safety inspection Certificate Certification Body Application document : product description, circuit schematic diagram, agent identification (if agent apply for safety inspection) Company Logo

3 -4 Marking of Safety Certification For the marking of safety certification or safety inspection on electrical appliances, domestic products or products which obtain the safety inspection should be attached before the delivery, while the imported products should be attached before the custom clearance. details that should be marked Regulated in Electric appliances regulated in safety control criteria of each product act - Warning or notice etc. - Certification mark, certification number regulated in regulations for electrical appliances safety control - Expressing method of electromagnetic waves Company Logo

3 -5 Items exempt from Safety certification products which import into Korea for the purpose of exporting to the overseas products which obtain the KS certification according to the Industrial Standardization Act components for repairing the imported electrical appliances subject to safety certification Not more than 2. 5% of imported finished products to be used for research at school & research institute products to be used for exhibition or fair Company Logo

3 -6 Certification Fee for testing the products has been regulated on each testing the products ※ Cheaper than that of UL(U. S), PSE(Japan), CCC(China) Fee for testing the products : regulated on each testing the products Issue the Certificate : 50, 000 KRW Factory inspection : 200, 000 KRW Company Logo

4 Operation of Safety Criteria Operate the safety criteria modified to suit Korean circumstance based on IEC Standards Mandatory : 225 , Voluntary : 462 manufacturers consumers distributors ·sellers MOCIE KATS Collect data Prepare draft Electrical appliances technical committee Stakeholders, testing labs etc Collect opinion Manufacturers’ association Consumer organization Testing labs· research institute National/international Technical level Foreign standards International standards WTO/TBT notification Notice Company Logo

4 -1 Establishing/Revising safety criteria (Sample) sample) electric water heater Cause - Hot water burns on infant sample) mobile phone battery charger Cause - Serial explosion caused by overcharging Actions - Mandatory to add ‘doublesafety device’ not to pour hot water directly Actions - Mandatory to add the overcharging preventive circuit - Standby power shall be less than 1 W sample) footbath Cause -water temperature exceeds 50℃ (concern about burns) -generate ozone exceedingly Actions -water temperature shall be less than 45 ℃. -volume of ozone shall be 0. 05 ppm Company Logo

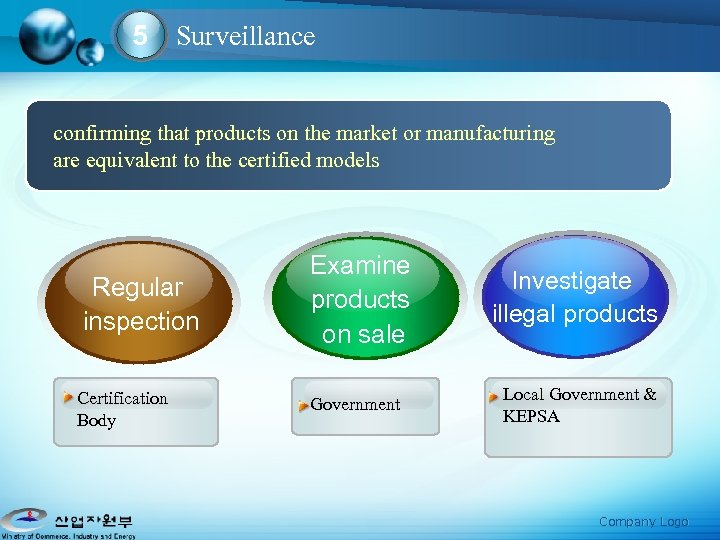

5 Surveillance confirming that products on the market or manufacturing are equivalent to the certified models Regular inspection Certification Body Examine products on sale Investigate illegal products Government Local Government & KEPSA Company Logo

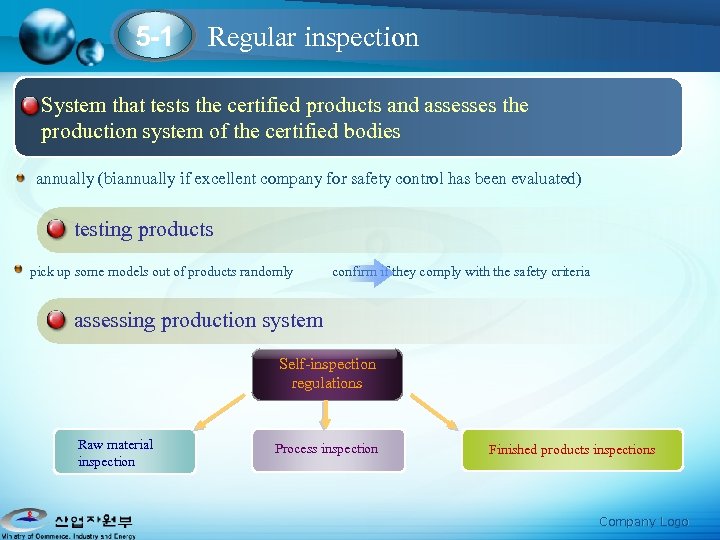

5 -1 Regular inspection System that tests the certified products and assesses the production system of the certified bodies annually (biannually if excellent company for safety control has been evaluated) testing products pick up some models out of products randomly confirm if they comply with the safety criteria assessing production system Self-inspection regulations Raw material inspection Process inspection Finished products inspections Company Logo

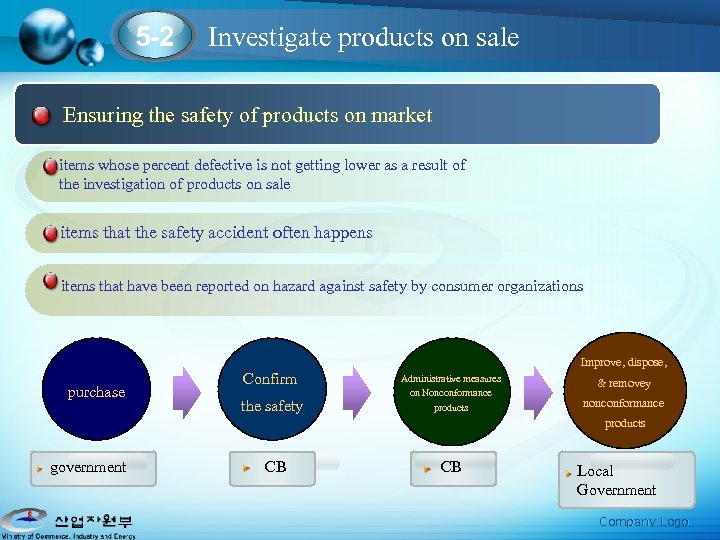

5 -2 Investigate products on sale Ensuring the safety of products on market items whose percent defective is not getting lower as a result of the investigation of products on sale items that the safety accident often happens items that have been reported on hazard against safety by consumer organizations Improve, dispose, purchase Confirm the safety Administrative measures on Nonconformance products & removey nonconformance products government CB CB Local Government Company Logo

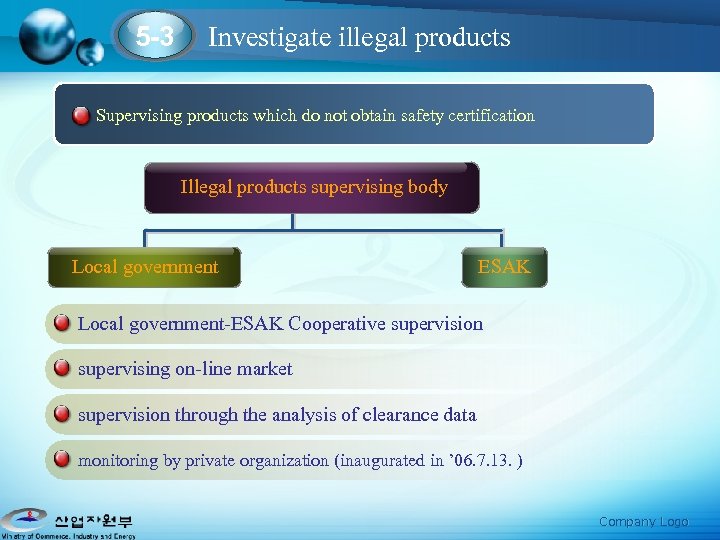

5 -3 Investigate illegal products Supervising products which do not obtain safety certification Illegal products supervising body Local government ESAK Local government-ESAK Cooperative supervision supervising on-line market supervision through the analysis of clearance data monitoring by private organization (inaugurated in ’ 06. 7. 13. ) Company Logo

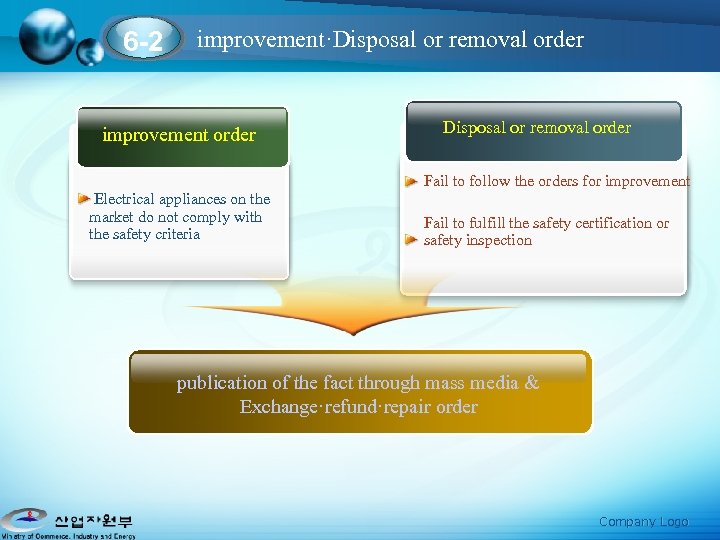

6 -2 improvement·Disposal or removal order improvement order Disposal or removal order Fail to follow the orders for improvement Electrical appliances on the market do not comply with the safety criteria Fail to fulfill the safety certification or safety inspection publication of the fact through mass media & Exchange·refund·repair order Company Logo

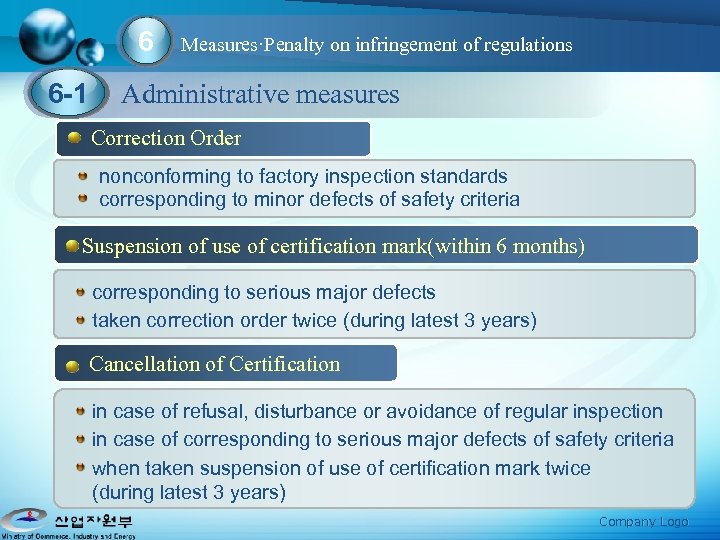

6 6 -1 Measures·Penalty on infringement of regulations Administrative measures Correction Order nonconforming to factory inspection standards corresponding to minor defects of safety criteria Suspension of use of certification mark(within 6 months) corresponding to serious major defects taken correction order twice (during latest 3 years) Cancellation of Certification in case of refusal, disturbance or avoidance of regular inspection in case of corresponding to serious major defects of safety criteria when taken suspension of use of certification mark twice (during latest 3 years) Company Logo

6 -2 improvement·Disposal or removal order improvement order Disposal or removal order Fail to follow the orders for improvement Electrical appliances on the market do not comply with the safety criteria Fail to fulfill the safety certification or safety inspection publication of the fact through mass media & Exchange·refund·repair order Company Logo

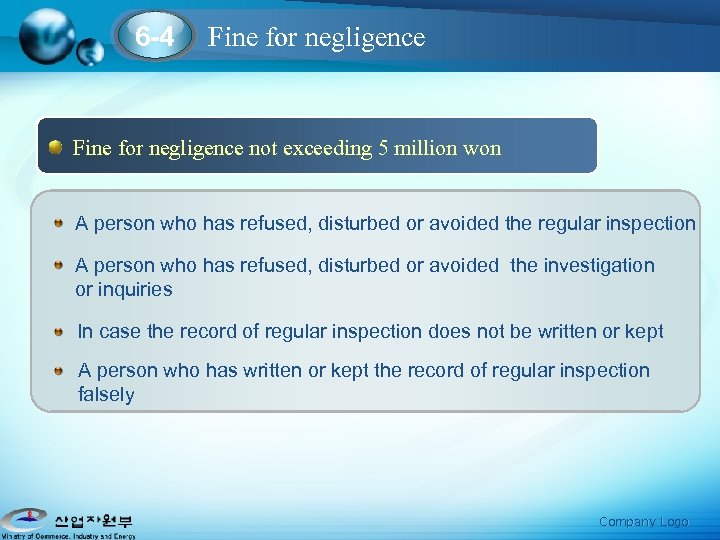

6 -4 Fine for negligence not exceeding 5 million won A person who has refused, disturbed or avoided the regular inspection A person who has refused, disturbed or avoided the investigation or inquiries In case the record of regular inspection does not be written or kept A person who has written or kept the record of regular inspection falsely Company Logo

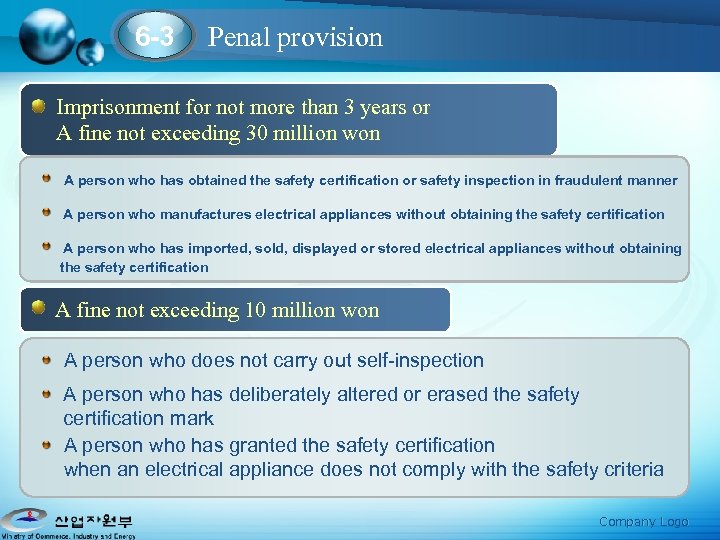

6 -3 Penal provision Imprisonment for not more than 3 years or A fine not exceeding 30 million won A person who has obtained the safety certification or safety inspection in fraudulent manner A person who manufactures electrical appliances without obtaining the safety certification A person who has imported, sold, displayed or stored electrical appliances without obtaining the safety certification A fine not exceeding 10 million won A person who does not carry out self-inspection A person who has deliberately altered or erased the safety certification mark A person who has granted the safety certification when an electrical appliance does not comply with the safety criteria Company Logo

Thank you! Company Logo
