RTI International Designing a high quality metabolomics experiment Grier P Page Ph. D. Senior Statistical Geneticist RTI International Atlanta Office gpage@rti. org 770 -407 -4907 RTI International is a trade name of Research Triangle Institute. www. rti. org

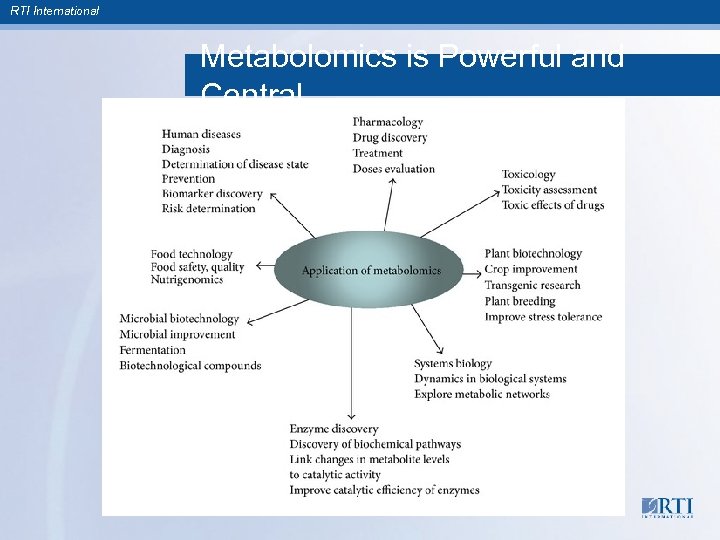

RTI International Metabolomics is Powerful and Central
RTI International Designing a good study

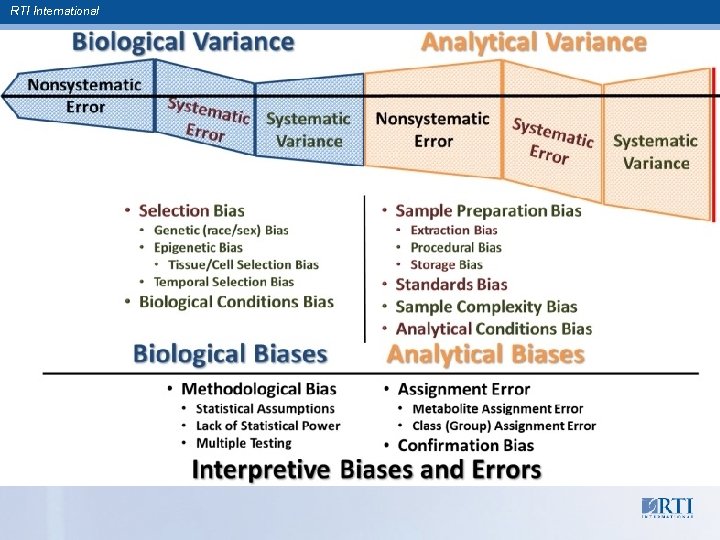

RTI International Errors Everywhere RTI International is a trade name of Research Triangle Institute. www. rti. org
RTI International

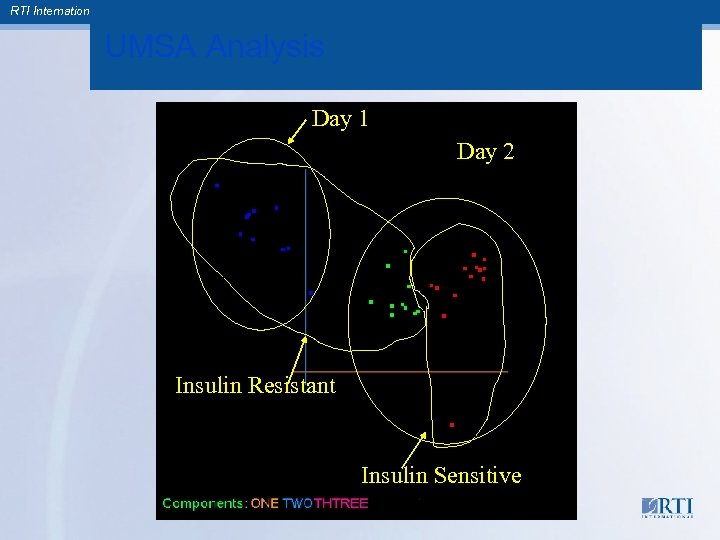

RTI International UMSA Analysis Day 1 Day 2 Insulin Resistant Insulin Sensitive

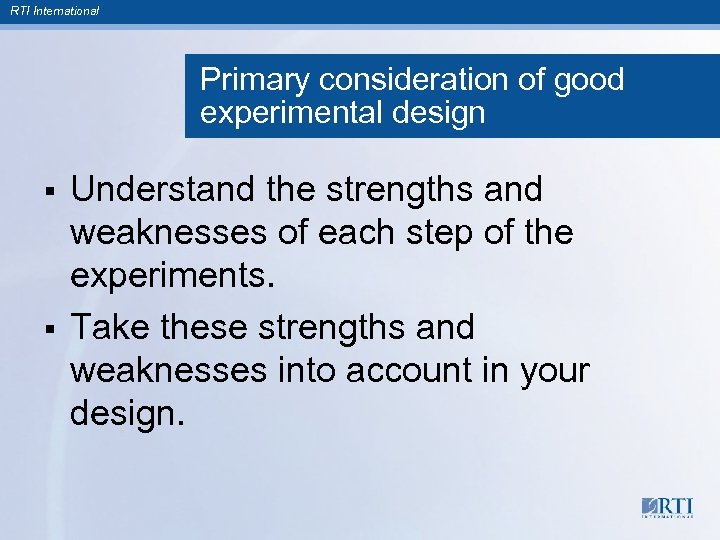

RTI International Primary consideration of good experimental design Understand the strengths and weaknesses of each step of the experiments. § Take these strengths and weaknesses into account in your design. §
RTI International is a trade name of Research Triangle Institute. www. rti. org

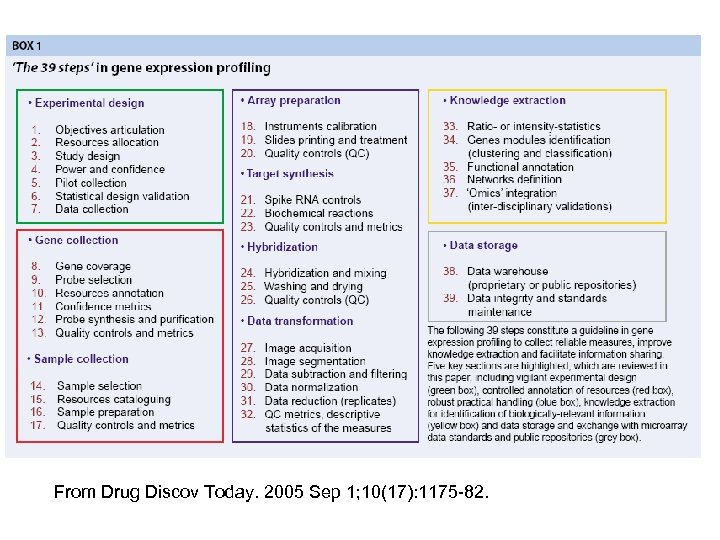

From Drug Discov Today. 2005 Sep 1; 10(17): 1175 -82.
RTI International State the Question and Articulate the Goals

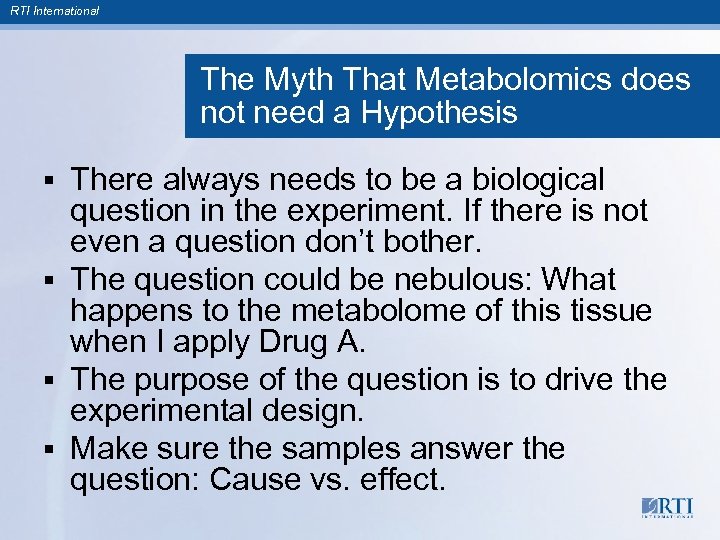

RTI International The Myth That Metabolomics does not need a Hypothesis There always needs to be a biological question in the experiment. If there is not even a question don’t bother. § The question could be nebulous: What happens to the metabolome of this tissue when I apply Drug A. § The purpose of the question is to drive the experimental design. § Make sure the samples answer the question: Cause vs. effect. §
RTI International

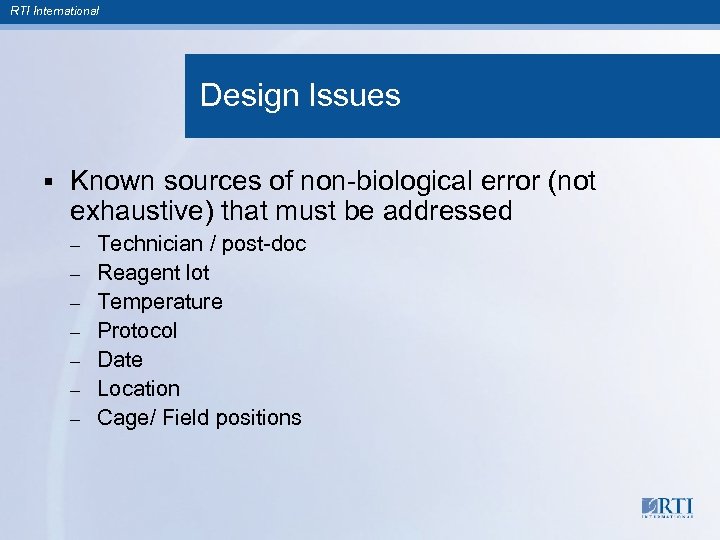

RTI International Design Issues § Known sources of non-biological error (not exhaustive) that must be addressed – – – – Technician / post-doc Reagent lot Temperature Protocol Date Location Cage/ Field positions
RTI International Experimental Design

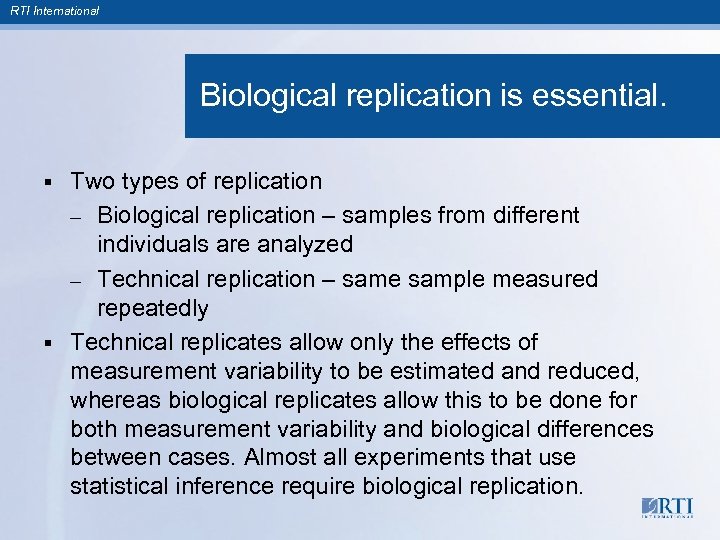

RTI International Biological replication is essential. Two types of replication – Biological replication – samples from different individuals are analyzed – Technical replication – same sample measured repeatedly § Technical replicates allow only the effects of measurement variability to be estimated and reduced, whereas biological replicates allow this to be done for both measurement variability and biological differences between cases. Almost all experiments that use statistical inference require biological replication. §

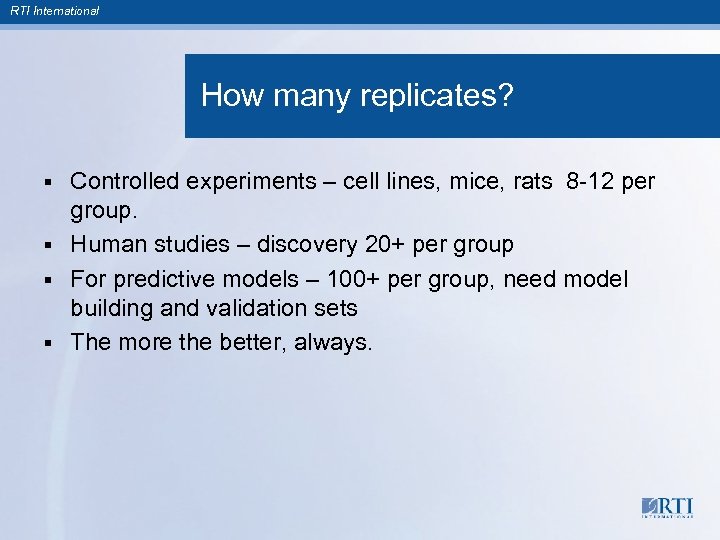

RTI International How many replicates? Controlled experiments – cell lines, mice, rats 8 -12 per group. § Human studies – discovery 20+ per group § For predictive models – 100+ per group, need model building and validation sets § The more the better, always. §
RTI International Experimental Conduct All experiments are subject to nonbiological variability that can confound any study

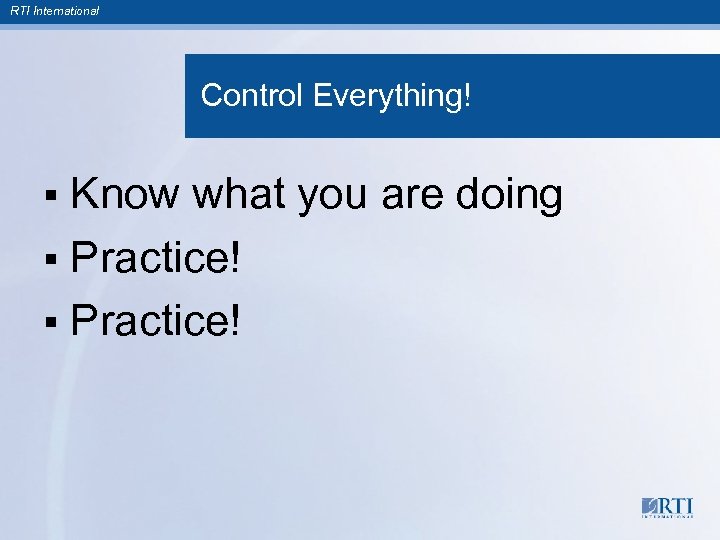

RTI International Control Everything! § Know what you are doing § Practice!

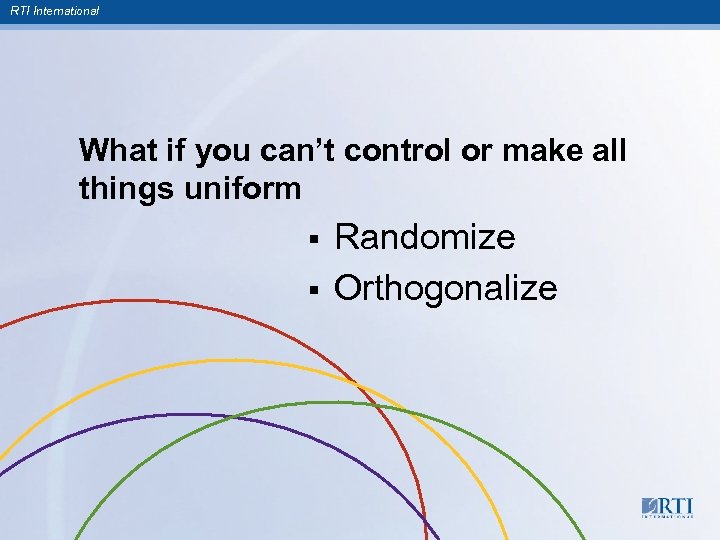

RTI International What if you can’t control or make all things uniform Randomize § Orthogonalize §

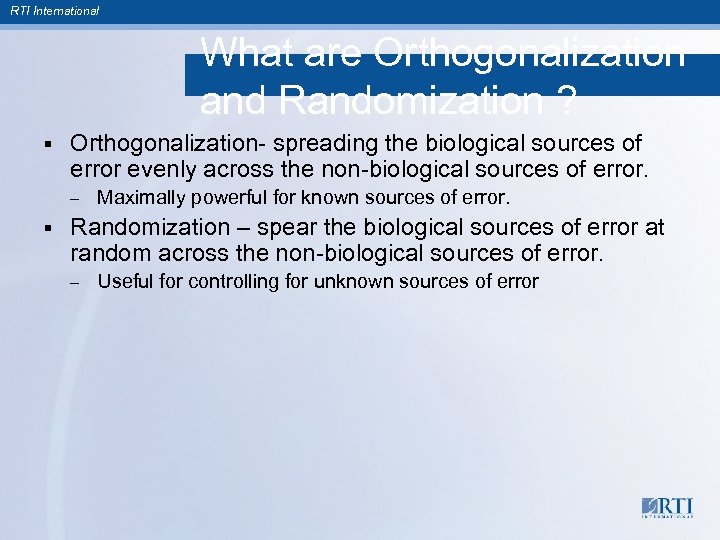

RTI International What are Orthogonalization and Randomization ? § Orthogonalization- spreading the biological sources of error evenly across the non-biological sources of error. – § Maximally powerful for known sources of error. Randomization – spear the biological sources of error at random across the non-biological sources of error. – Useful for controlling for unknown sources of error

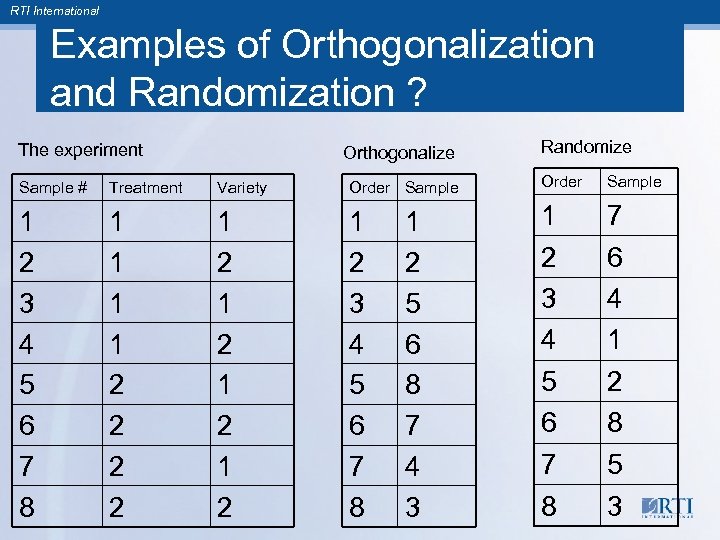

RTI International Examples of Orthogonalization and Randomization ? The experiment Orthogonalize Randomize Sample # Treatment Variety Order Sample 1 2 3 4 5 6 7 8 1 1 2 2 1 2 1 2 1 2 3 4 5 6 7 8 7 6 4 1 2 8 5 3 1 2 5 6 8 7 4 3
RTI International Statistical analyses have assumptions too RTI International is a trade name of Research Triangle Institute. www. rti. org

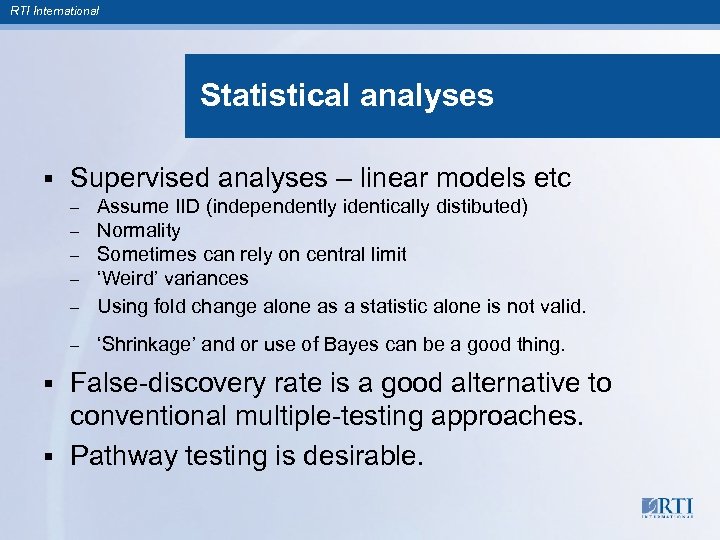

RTI International Statistical analyses § Supervised analyses – linear models etc Assume IID (independently identically distibuted) Normality Sometimes can rely on central limit ‘Weird’ variances – Using fold change alone as a statistic alone is not valid. – – – ‘Shrinkage’ and or use of Bayes can be a good thing. False-discovery rate is a good alternative to conventional multiple-testing approaches. § Pathway testing is desirable. §

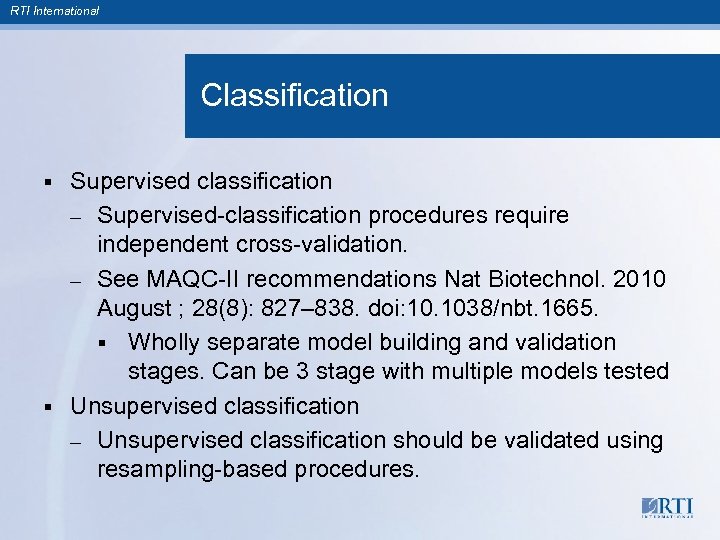

RTI International Classification Supervised classification – Supervised-classification procedures require independent cross-validation. – See MAQC-II recommendations Nat Biotechnol. 2010 August ; 28(8): 827– 838. doi: 10. 1038/nbt. 1665. § Wholly separate model building and validation stages. Can be 3 stage with multiple models tested § Unsupervised classification – Unsupervised classification should be validated using resampling-based procedures. §

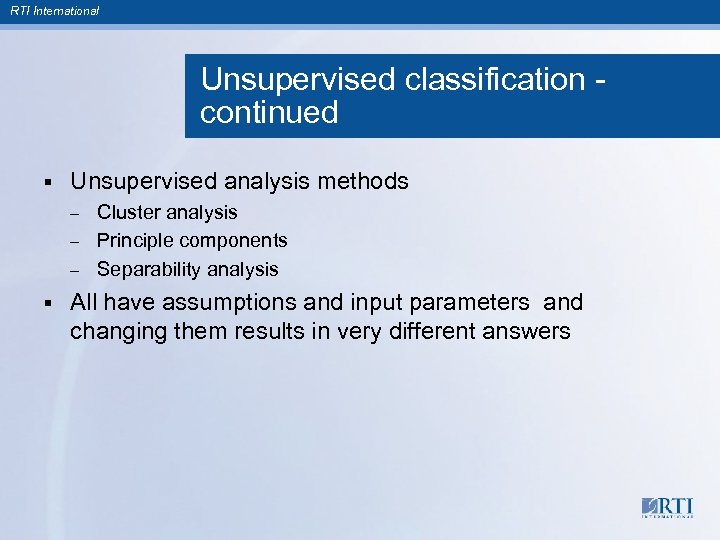

RTI International Unsupervised classification continued § Unsupervised analysis methods Cluster analysis – Principle components – Separability analysis – § All have assumptions and input parameters and changing them results in very different answers
RTI International
RTI International

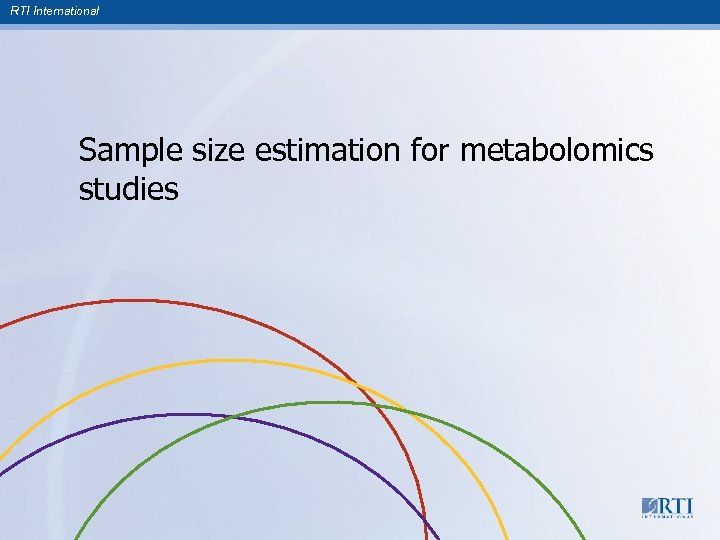

RTI International Sample size estimation for metabolomics studies

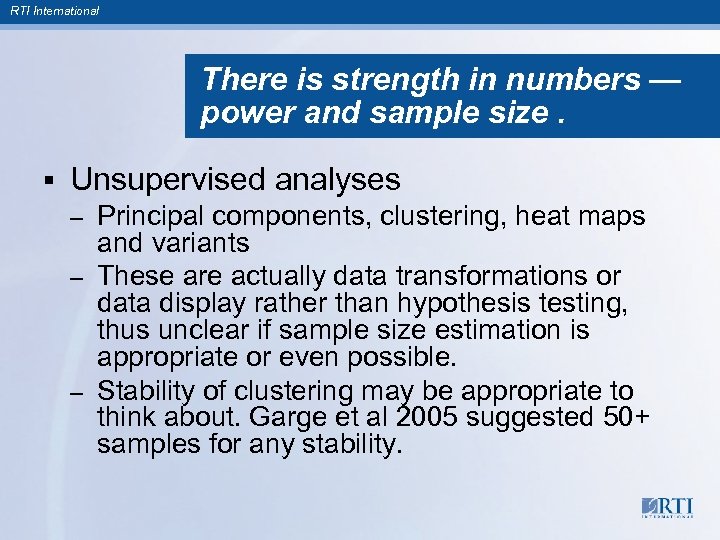

RTI International There is strength in numbers — power and sample size. § Unsupervised analyses Principal components, clustering, heat maps and variants – These are actually data transformations or data display rather than hypothesis testing, thus unclear if sample size estimation is appropriate or even possible. – Stability of clustering may be appropriate to think about. Garge et al 2005 suggested 50+ samples for any stability. –

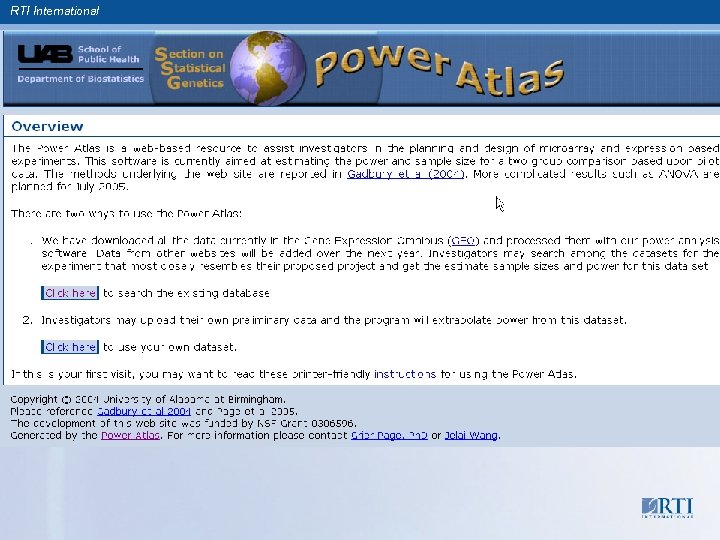

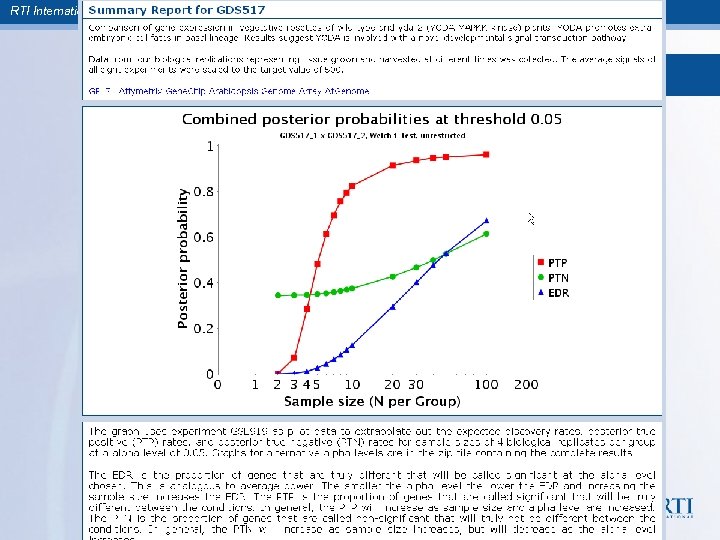

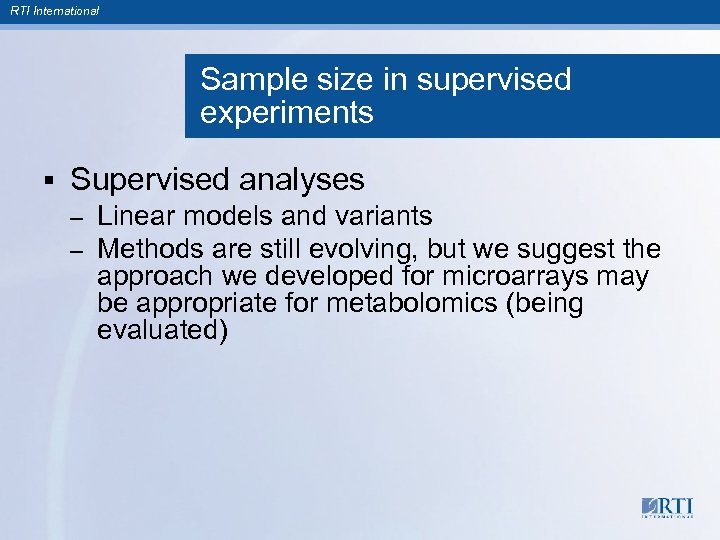

RTI International Sample size in supervised experiments § Supervised analyses – – Linear models and variants Methods are still evolving, but we suggest the approach we developed for microarrays may be appropriate for metabolomics (being evaluated)
RTI International
RTI International
RTI International Metabolomics does not reveal everything and different technologies show different things RTI International is a trade name of Research Triangle Institute. www. rti. org

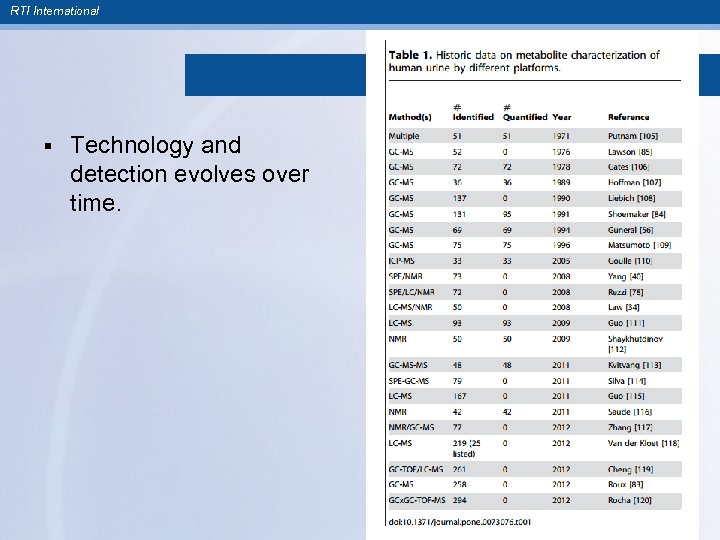

RTI International § Technology and detection evolves over time.

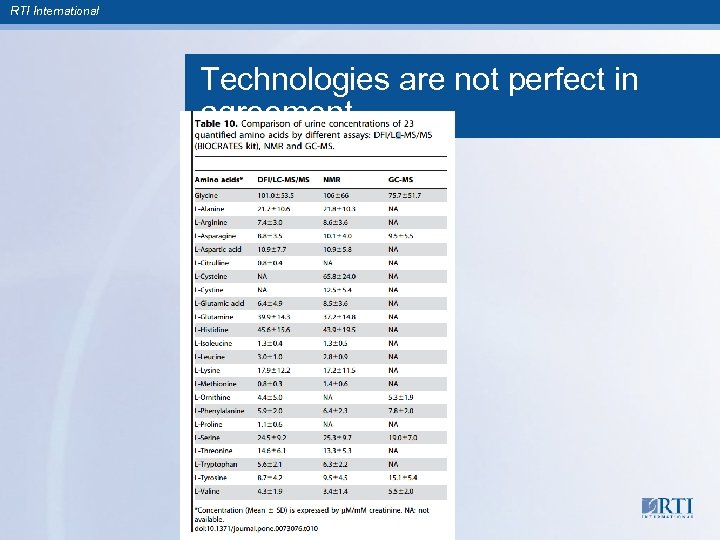

RTI International Technologies are not perfect in agreement

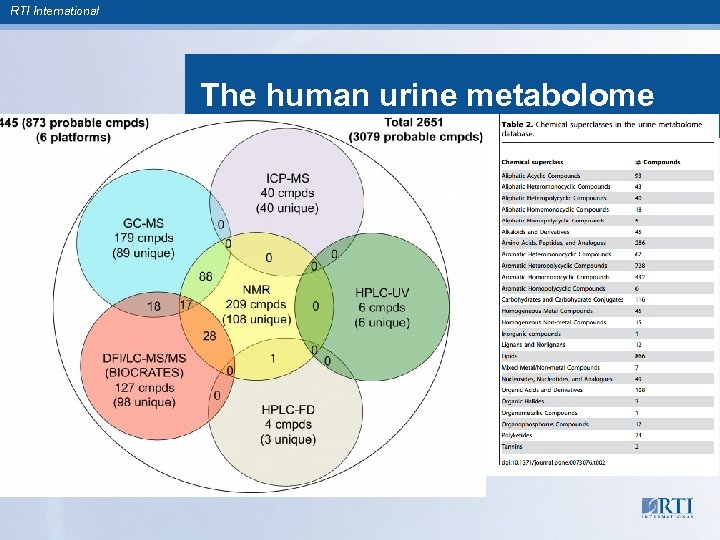

RTI International The human urine metabolome
RTI International Sample, Image and Data Quality Checking
RTI International

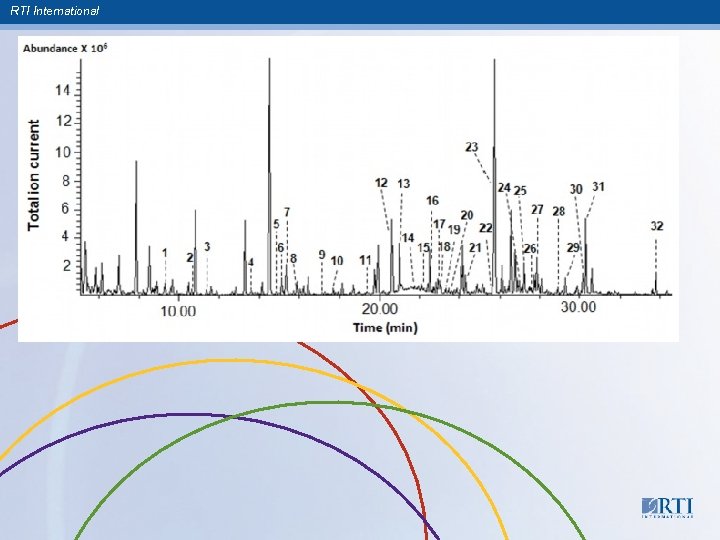

RTI International
RTI International
RTI International

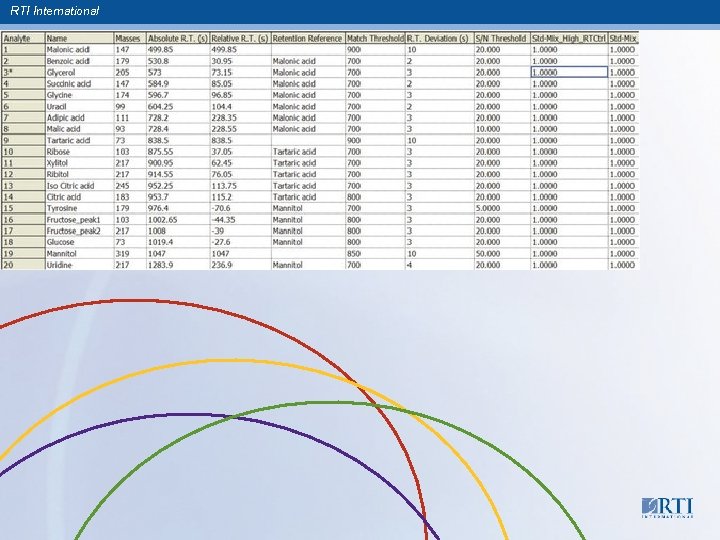

RTI International

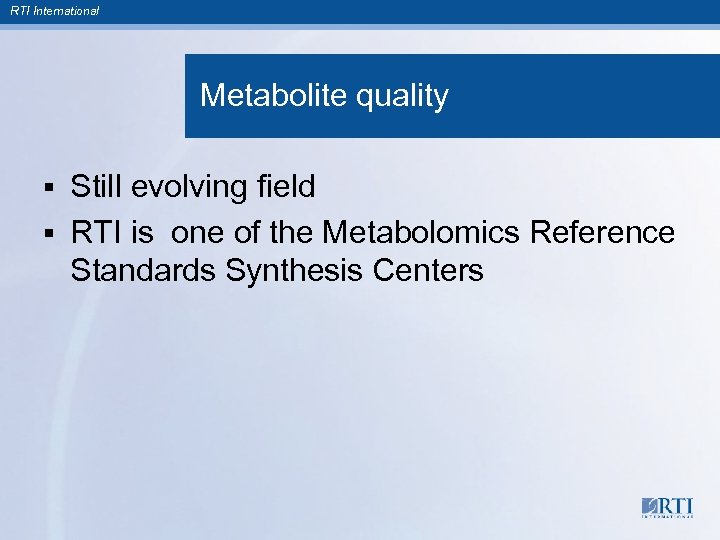

RTI International Metabolite quality Still evolving field § RTI is one of the Metabolomics Reference Standards Synthesis Centers §

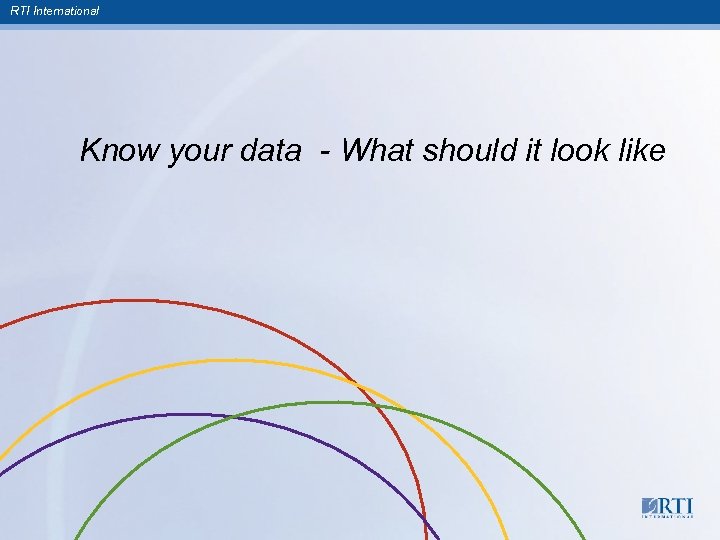

RTI International Know your data - What should it look like

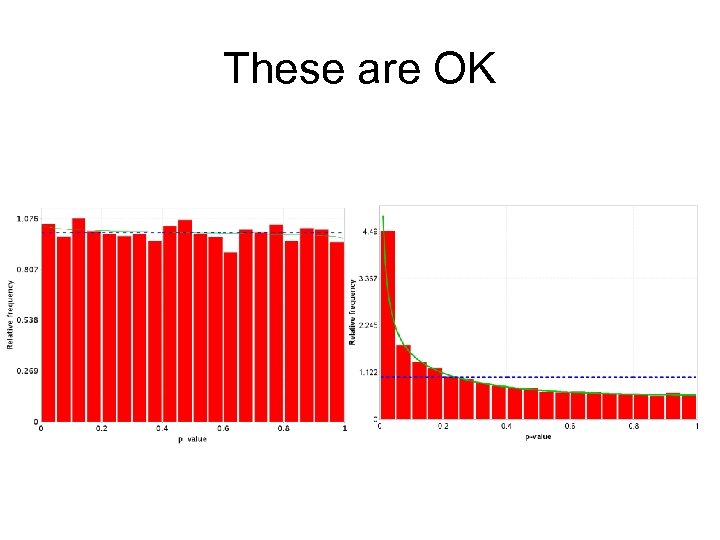

These are OK

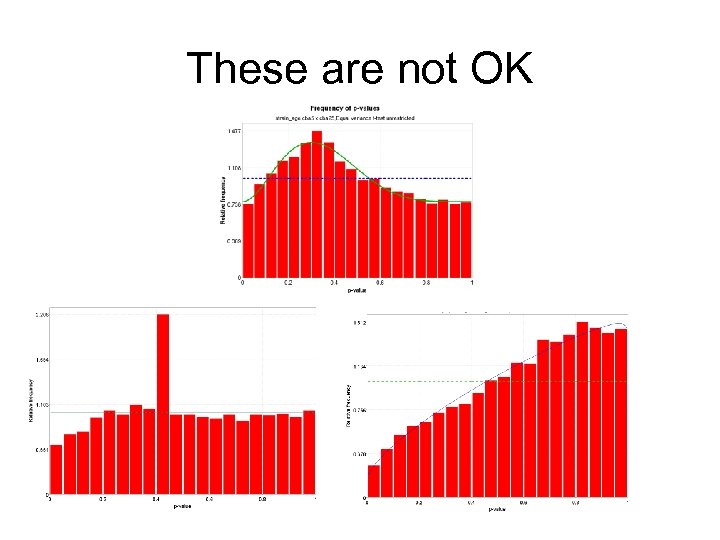

These are not OK
RTI International One bad sample can contaminate an experiment

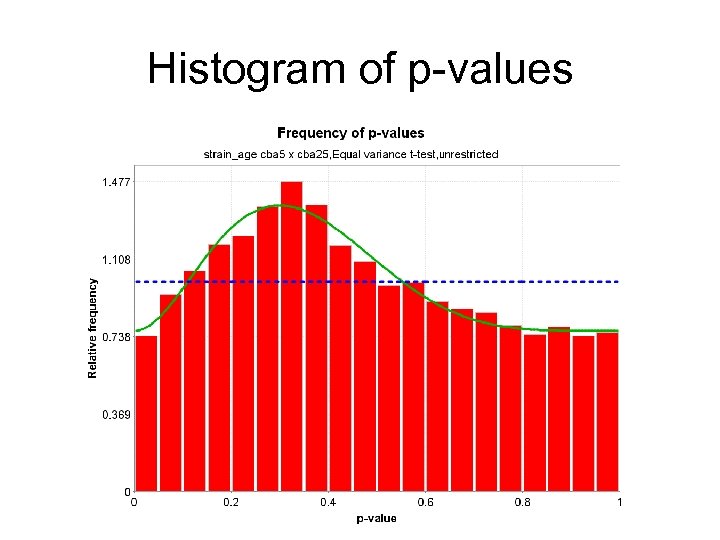

Histogram of p-values

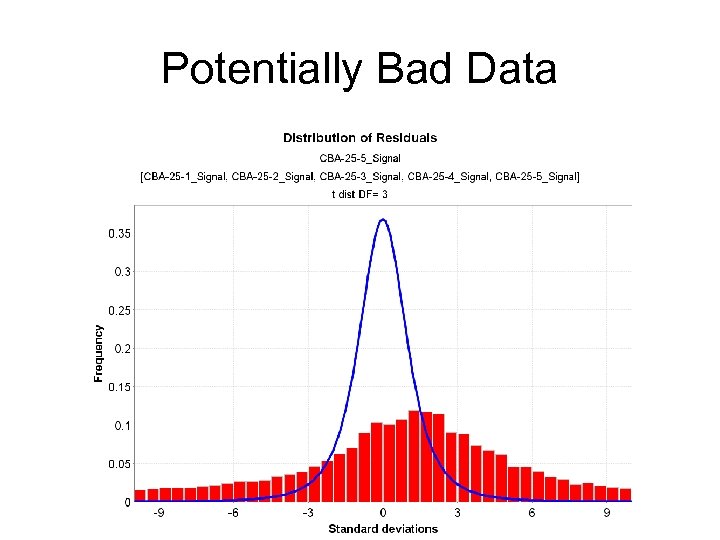

Potentially Bad Data
Histogram of p-values with bad data removed
RTI International Quality of Database, Bioinformatics and Interpretative tools

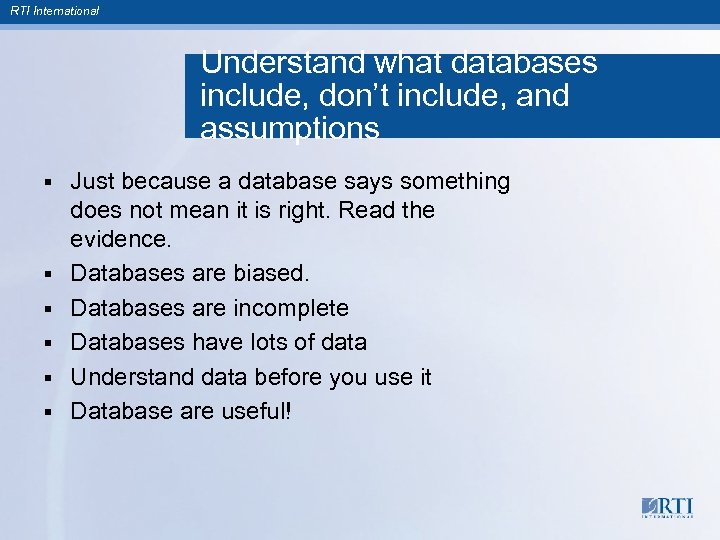

RTI International Understand what databases include, don’t include, and assumptions § § § Just because a database says something does not mean it is right. Read the evidence. Databases are biased. Databases are incomplete Databases have lots of data Understand data before you use it Database are useful!

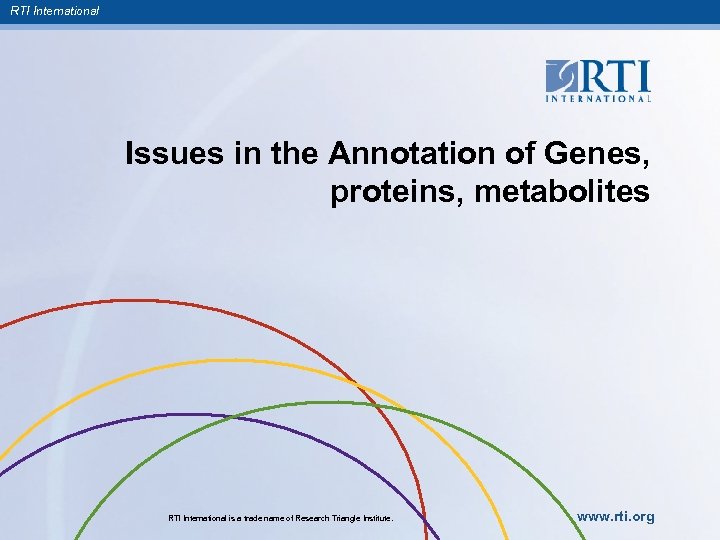

RTI International Issues in the Annotation of Genes, proteins, metabolites RTI International is a trade name of Research Triangle Institute. www. rti. org

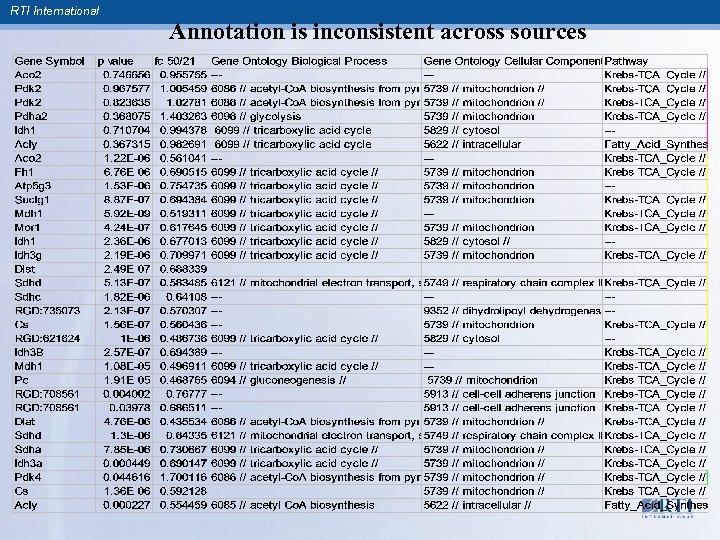

RTI International Annotation is inconsistent across sources
RTI International Issues with pathway data RTI International is a trade name of Research Triangle Institute. www. rti. org
RTI International

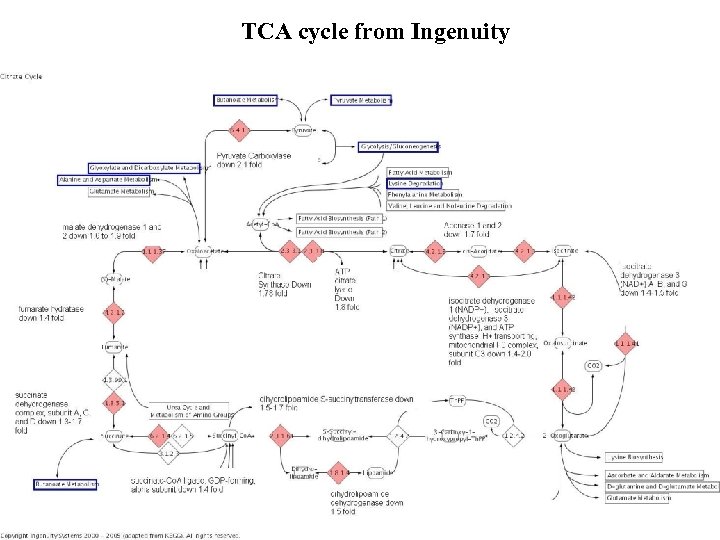

TCA cycle from Ingenuity

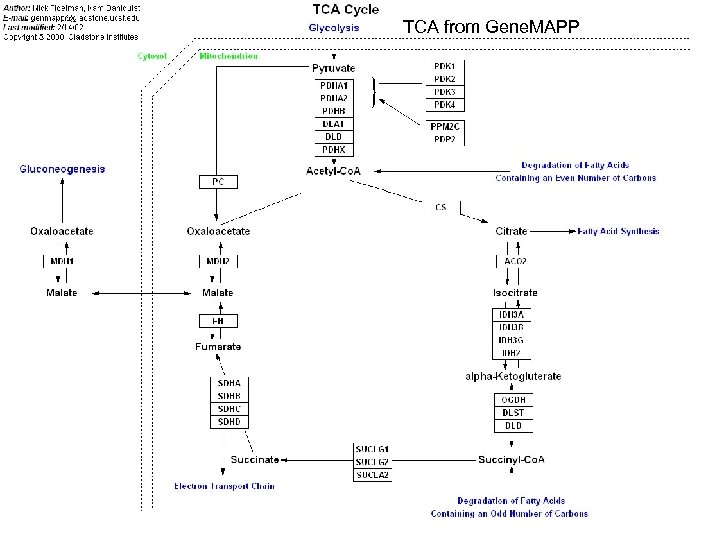

TCA from Gene. MAPP

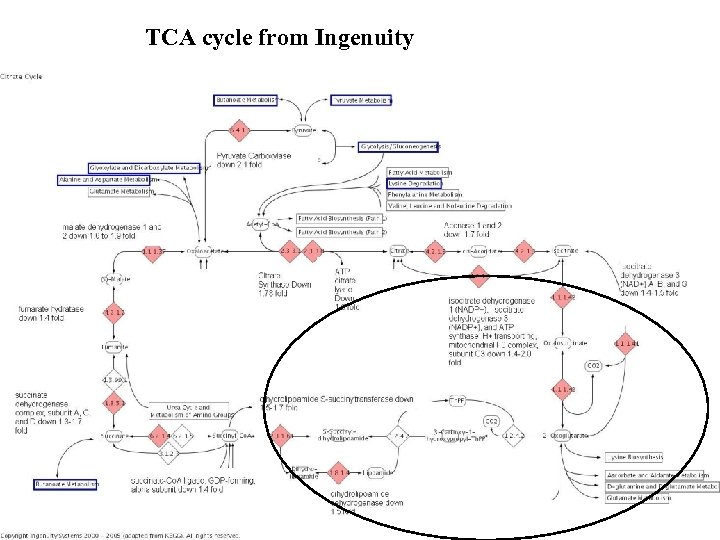

TCA cycle from Ingenuity

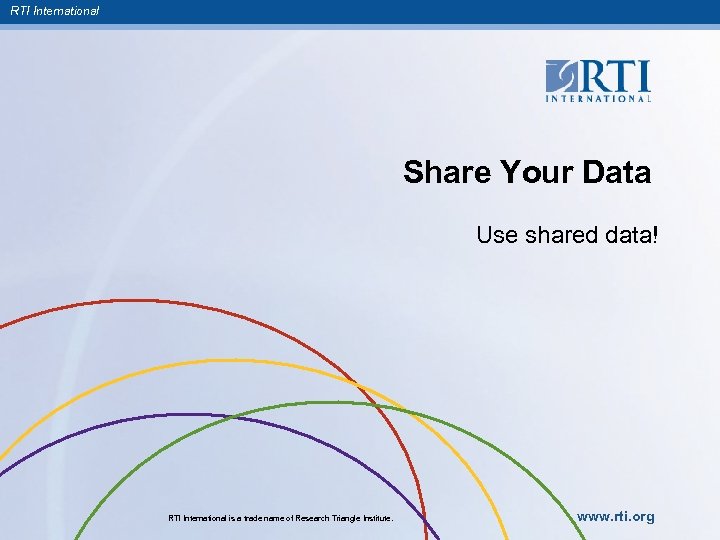

RTI International Share Your Data Use shared data! RTI International is a trade name of Research Triangle Institute. www. rti. org

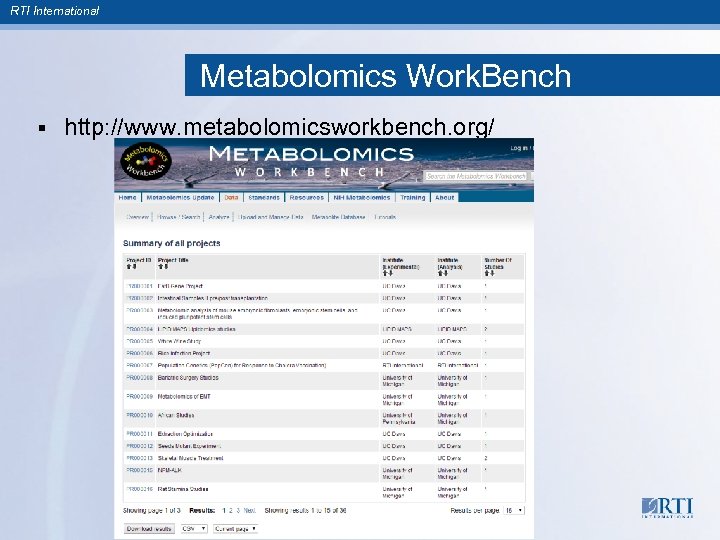

RTI International Metabolomics Work. Bench § http: //www. metabolomicsworkbench. org/

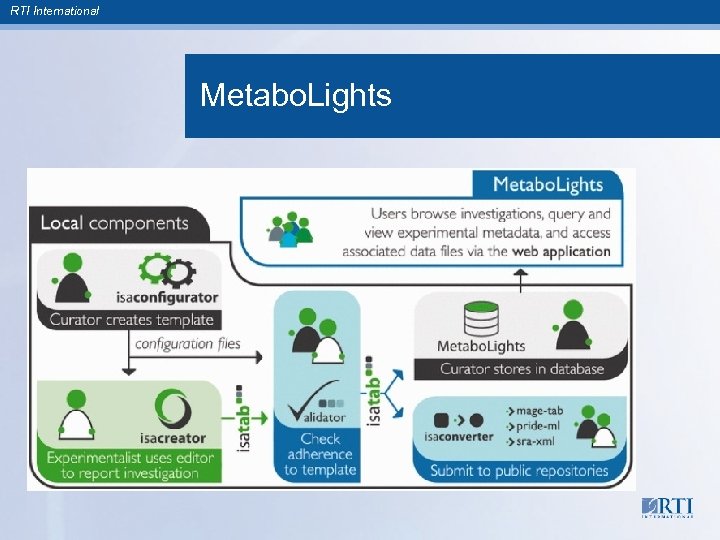

RTI International Metabo. Lights

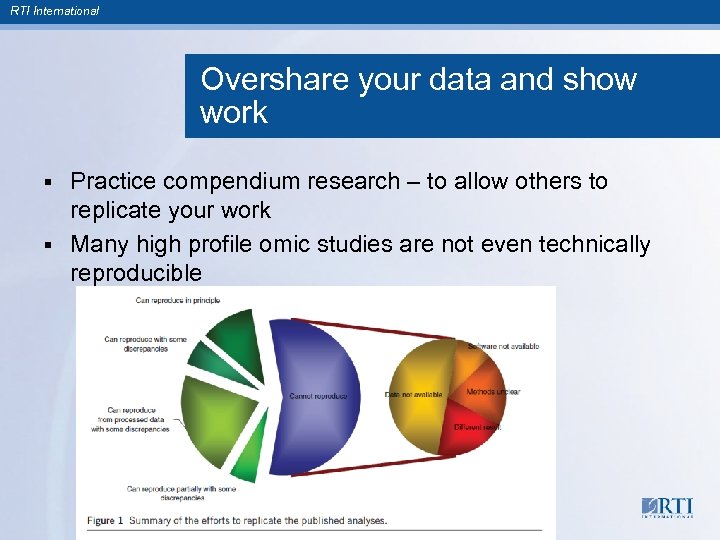

RTI International Overshare your data and show work Practice compendium research – to allow others to replicate your work § Many high profile omic studies are not even technically reproducible §

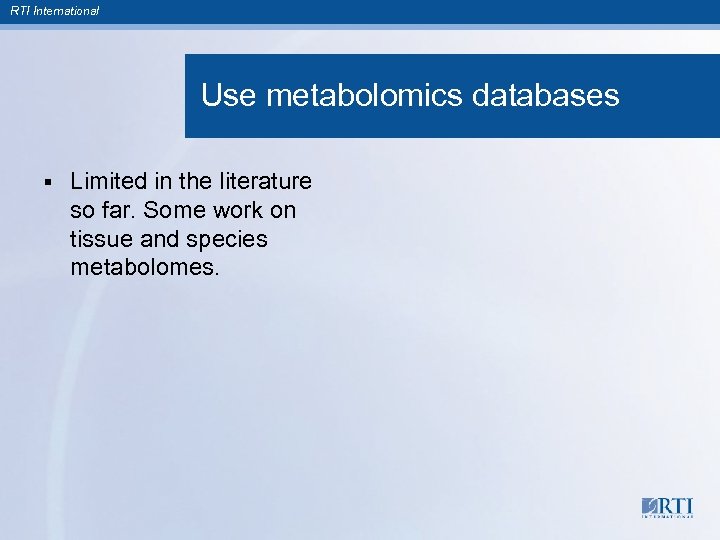

RTI International Use metabolomics databases § Limited in the literature so far. Some work on tissue and species metabolomes.

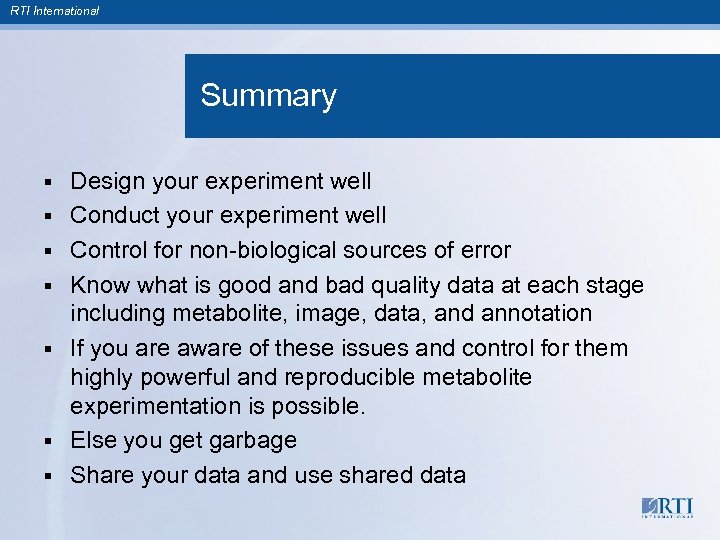

RTI International Summary § § § § Design your experiment well Conduct your experiment well Control for non-biological sources of error Know what is good and bad quality data at each stage including metabolite, image, data, and annotation If you are aware of these issues and control for them highly powerful and reproducible metabolite experimentation is possible. Else you get garbage Share your data and use shared data

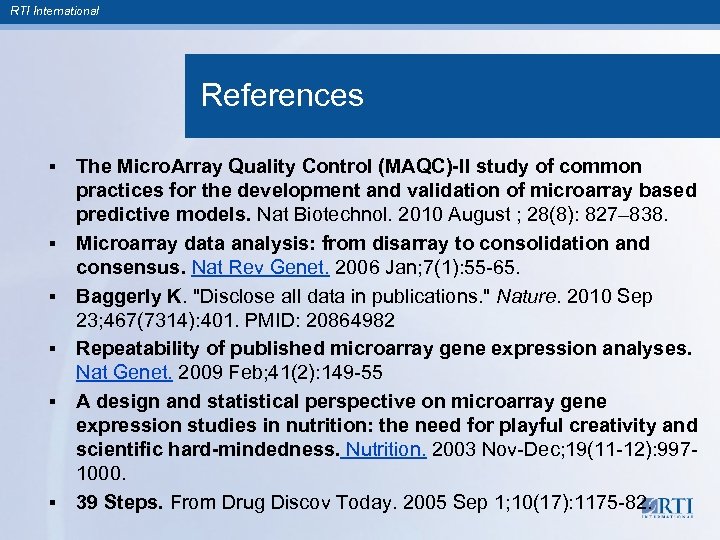

RTI International References § § § The Micro. Array Quality Control (MAQC)-II study of common practices for the development and validation of microarray based predictive models. Nat Biotechnol. 2010 August ; 28(8): 827– 838. Microarray data analysis: from disarray to consolidation and consensus. Nat Rev Genet. 2006 Jan; 7(1): 55 -65. Baggerly K. "Disclose all data in publications. " Nature. 2010 Sep 23; 467(7314): 401. PMID: 20864982 Repeatability of published microarray gene expression analyses. Nat Genet. 2009 Feb; 41(2): 149 -55 A design and statistical perspective on microarray gene expression studies in nutrition: the need for playful creativity and scientific hard-mindedness. Nutrition. 2003 Nov-Dec; 19(11 -12): 9971000. 39 Steps. From Drug Discov Today. 2005 Sep 1; 10(17): 1175 -82.

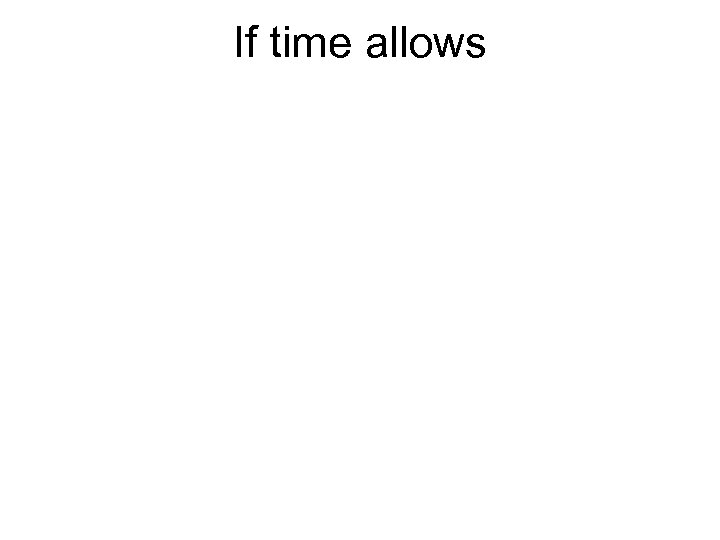

If time allows

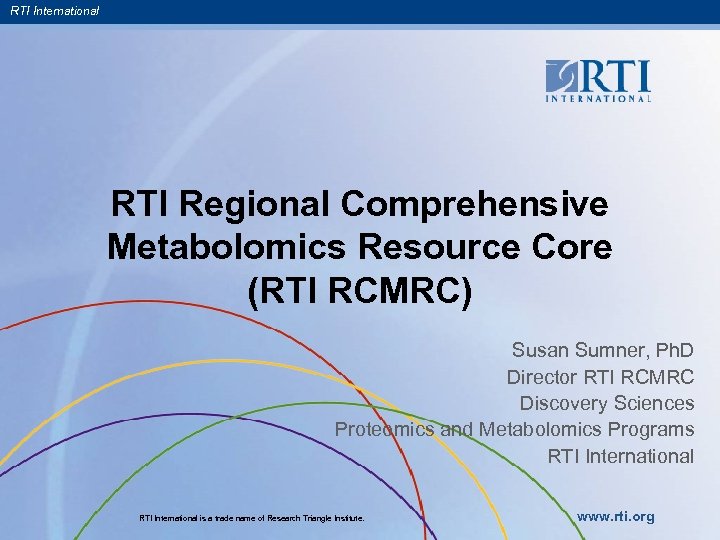

RTI International RTI Regional Comprehensive Metabolomics Resource Core (RTI RCMRC) Susan Sumner, Ph. D Director RTI RCMRC Discovery Sciences Proteomics and Metabolomics Programs RTI International is a trade name of Research Triangle Institute. www. rti. org

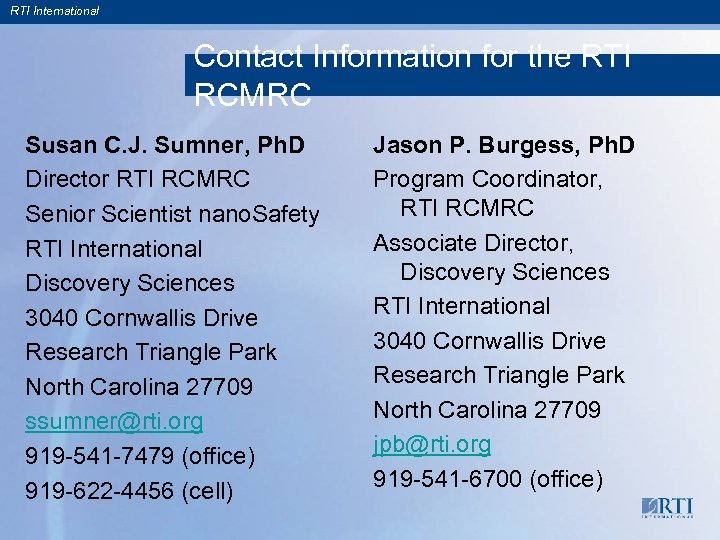

RTI International Contact Information for the RTI RCMRC Susan C. J. Sumner, Ph. D Director RTI RCMRC Senior Scientist nano. Safety RTI International Discovery Sciences 3040 Cornwallis Drive Research Triangle Park North Carolina 27709 ssumner@rti. org 919 -541 -7479 (office) 919 -622 -4456 (cell) Jason P. Burgess, Ph. D Program Coordinator, RTI RCMRC Associate Director, Discovery Sciences RTI International 3040 Cornwallis Drive Research Triangle Park North Carolina 27709 jpb@rti. org 919 -541 -6700 (office)

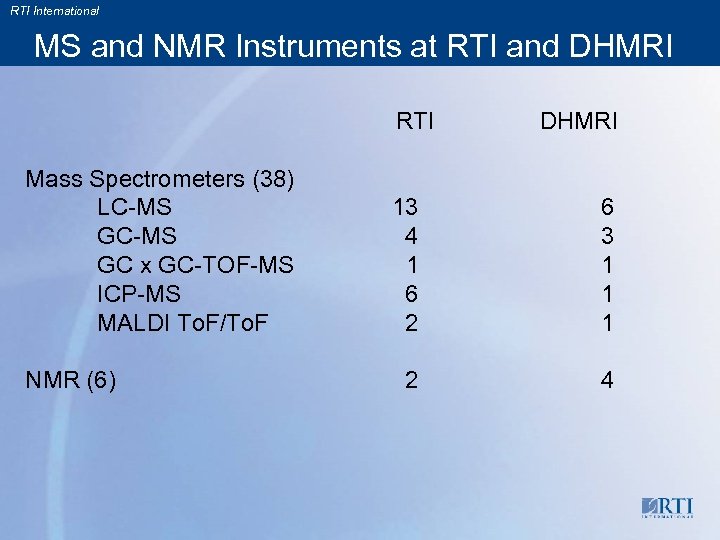

RTI International MS and NMR Instruments at RTI and DHMRI RTI Mass Spectrometers (38) LC-MS GC x GC-TOF-MS ICP-MS MALDI To. F/To. F NMR (6) DHMRI 13 4 1 6 2 6 3 1 1 1 2 4

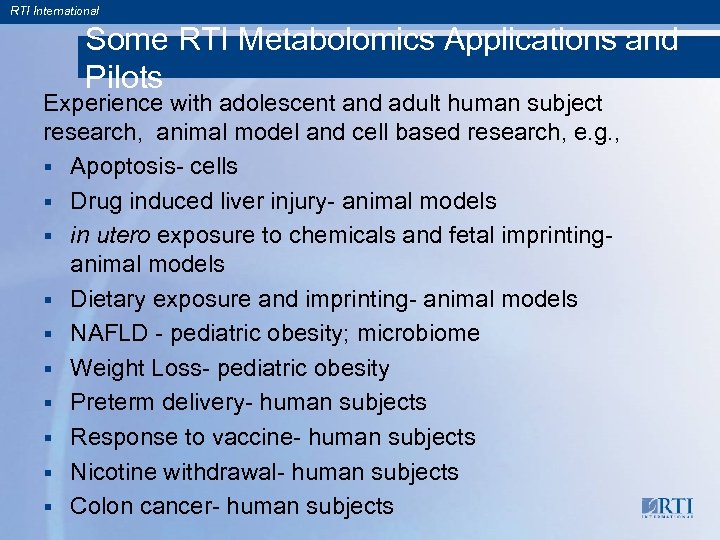

RTI International Some RTI Metabolomics Applications and Pilots Experience with adolescent and adult human subject research, animal model and cell based research, e. g. , § Apoptosis- cells § Drug induced liver injury- animal models § in utero exposure to chemicals and fetal imprintinganimal models § Dietary exposure and imprinting- animal models § NAFLD - pediatric obesity; microbiome § Weight Loss- pediatric obesity § Preterm delivery- human subjects § Response to vaccine- human subjects § Nicotine withdrawal- human subjects § Colon cancer- human subjects

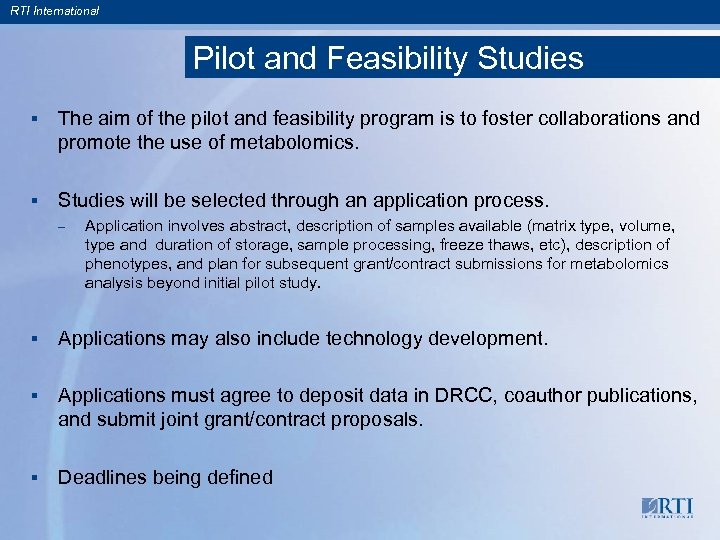

RTI International Pilot and Feasibility Studies § The aim of the pilot and feasibility program is to foster collaborations and promote the use of metabolomics. § Studies will be selected through an application process. – Application involves abstract, description of samples available (matrix type, volume, type and duration of storage, sample processing, freeze thaws, etc), description of phenotypes, and plan for subsequent grant/contract submissions for metabolomics analysis beyond initial pilot study. § Applications may also include technology development. § Applications must agree to deposit data in DRCC, coauthor publications, and submit joint grant/contract proposals. § Deadlines being defined
