RRD STATION AMENITY PROGRAM R 7 CHESTNUT

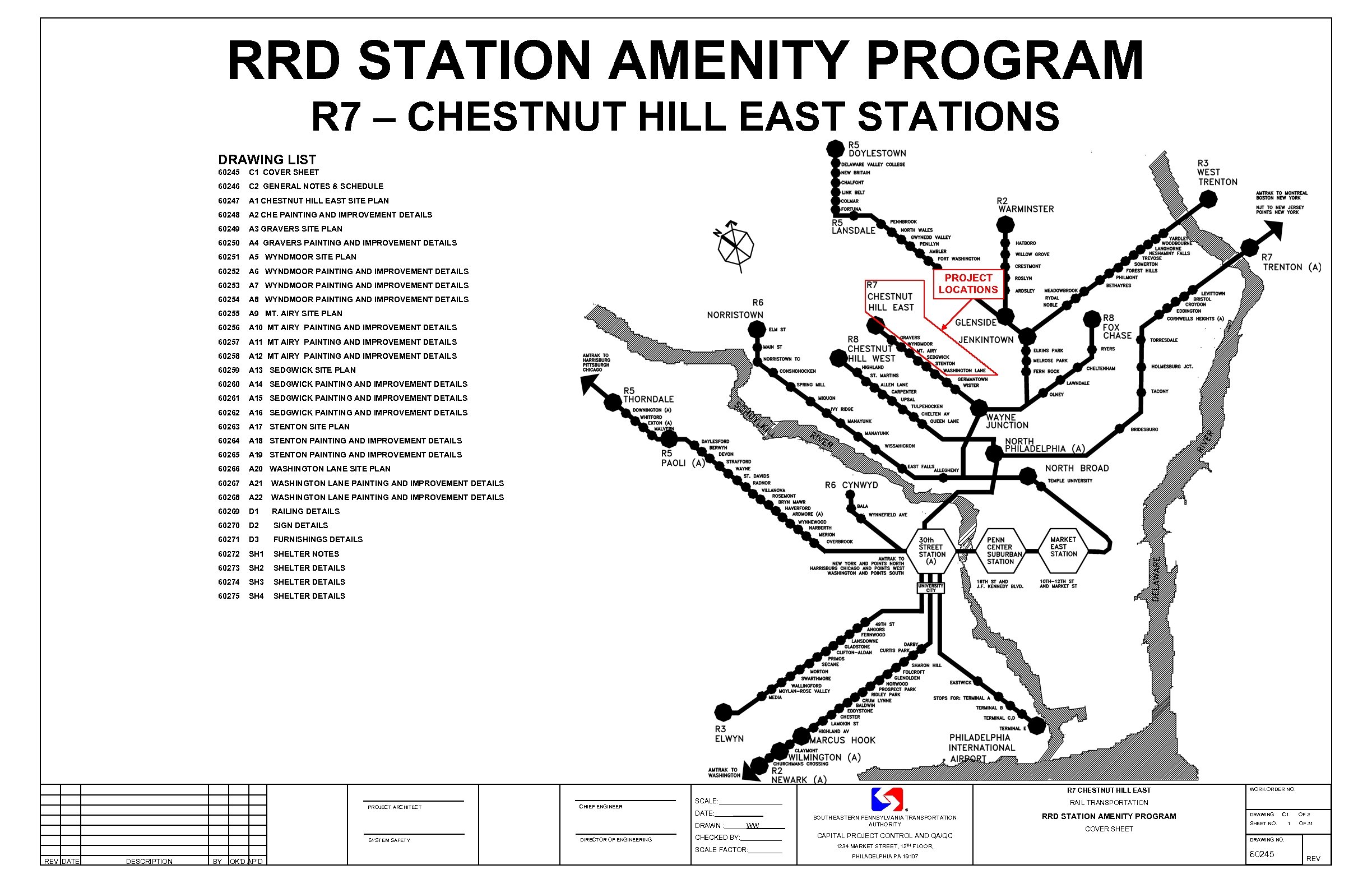

RRD STATION AMENITY PROGRAM R 7 – CHESTNUT HILL EAST STATIONS DRAWING LIST 60245 C 1 COVER SHEET 60246 C 2 GENERAL NOTES & SCHEDULE 60247 A 1 CHESTNUT HILL EAST SITE PLAN 60248 A 2 CHE PAINTING AND IMPROVEMENT DETAILS 60249 A 3 GRAVERS SITE PLAN 60250 A 4 GRAVERS PAINTING AND IMPROVEMENT DETAILS 60251 A 5 WYNDMOOR SITE PLAN 60252 A 6 WYNDMOOR PAINTING AND IMPROVEMENT DETAILS 60253 A 7 WYNDMOOR PAINTING AND IMPROVEMENT DETAILS 60254 A 8 WYNDMOOR PAINTING AND IMPROVEMENT DETAILS 60255 A 9 MT. AIRY SITE PLAN 60256 A 10 MT AIRY PAINTING AND IMPROVEMENT DETAILS 60257 A 11 MT AIRY PAINTING AND IMPROVEMENT DETAILS 60258 A 12 MT AIRY PAINTING AND IMPROVEMENT DETAILS 60259 A 13 SEDGWICK SITE PLAN 60260 A 14 SEDGWICK PAINTING AND IMPROVEMENT DETAILS 60261 A 15 SEDGWICK PAINTING AND IMPROVEMENT DETAILS 60262 A 16 SEDGWICK PAINTING AND IMPROVEMENT DETAILS 60263 A 17 STENTON SITE PLAN 60264 A 18 STENTON PAINTING AND IMPROVEMENT DETAILS 60265 A 19 STENTON PAINTING AND IMPROVEMENT DETAILS 60266 A 20 WASHINGTON LANE SITE PLAN 60267 A 21 WASHINGTON LANE PAINTING AND IMPROVEMENT DETAILS 60268 A 22 WASHINGTON LANE PAINTING AND IMPROVEMENT DETAILS 60269 D 1 RAILING DETAILS 60270 D 2 SIGN DETAILS 60271 D 3 FURNISHINGS DETAILS 60272 SH 1 SHELTER NOTES 60273 SH 2 SHELTER DETAILS 60274 SH 3 SHELTER DETAILS 60275 SH 4 SHELTER DETAILS PROJECT LOCATIONS R 7 CHESTNUT HILL EAST PROJECT ARCHITECT CHIEF ENGINEER SCALE: _________ DATE: _______ DRAWN : ______WW_______ RAIL TRANSPORTATION SOUTHEASTERN PENNSYLVANIA TRANSPORTATION AUTHORITY REV DATE DESCRIPTION BY OK’D AP’D DIRECTOR OF ENGINEERING CHECKED BY: ______ CAPITAL PROJECT CONTROL AND QA/QC SCALE FACTOR: _____ SYSTEM SAFETY WORK ORDER NO. 1234 MARKET STREET, 12 TH FLOOR, PHILADELPHIA PA 19107 RRD STATION AMENITY PROGRAM COVER SHEET DRAWING C 1 SHEET NO. 1 OF 2 OF 31 DRAWING NO. 60245 REV

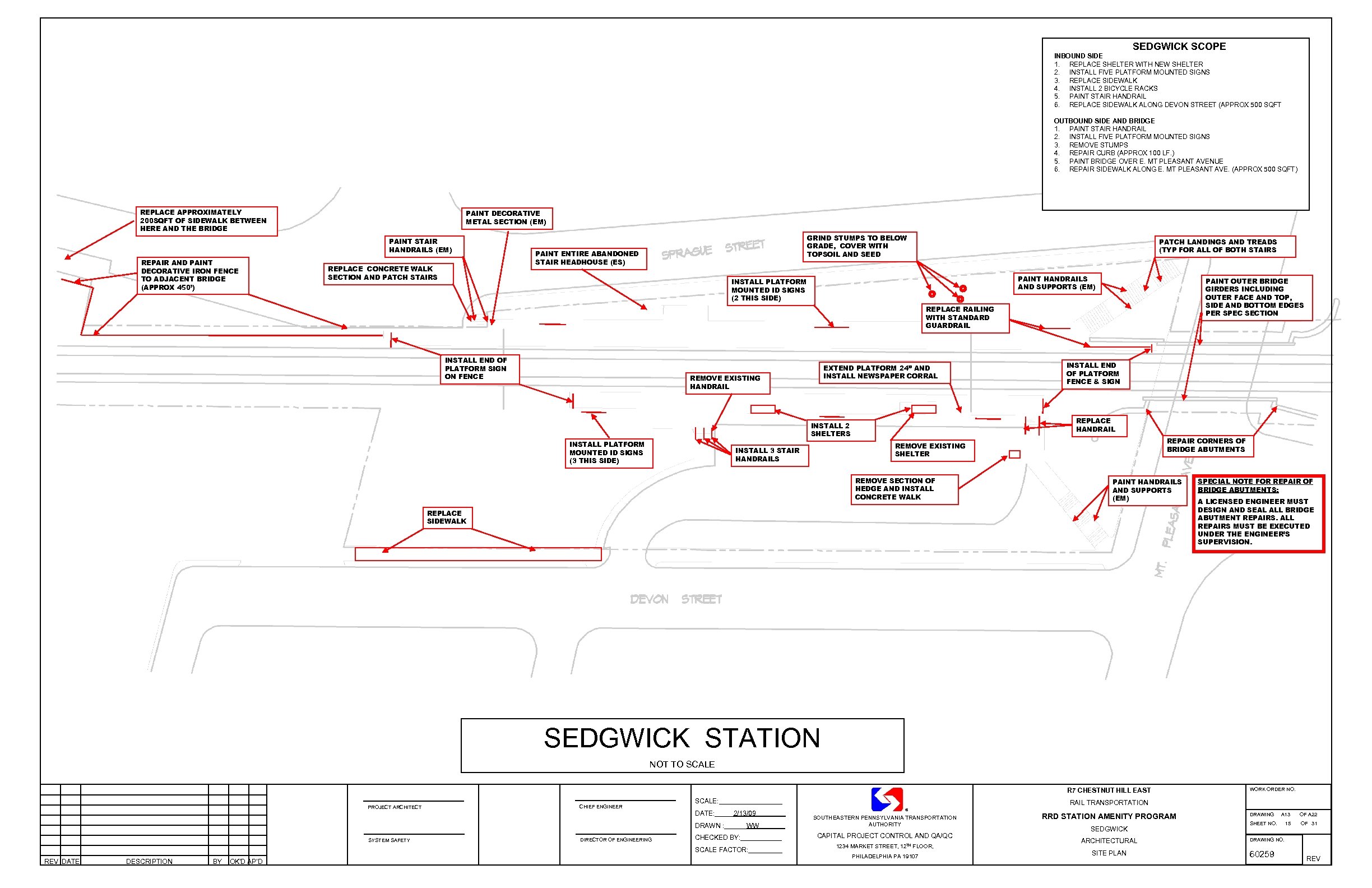

SEDGWICK SCOPE INBOUND SIDE 1. REPLACE SHELTER WITH NEW SHELTER 2. INSTALL FIVE PLATFORM MOUNTED SIGNS 3. REPLACE SIDEWALK 4. INSTALL 2 BICYCLE RACKS 5. PAINT STAIR HANDRAIL 6. REPLACE SIDEWALK ALONG DEVON STREET (APPROX 500 SQFT OUTBOUND SIDE AND BRIDGE 1. PAINT STAIR HANDRAIL 2. INSTALL FIVE PLATFORM MOUNTED SIGNS 3. REMOVE STUMPS 4. REPAIR CURB (APPROX 100 LF. ) 5. PAINT BRIDGE OVER E. MT PLEASANT AVENUE 6. REPAIR SIDEWALK ALONG E. MT PLEASANT AVE. (APPROX 500 SQFT) REPLACE APPROXIMATELY 200 SQFT OF SIDEWALK BETWEEN HERE AND THE BRIDGE PAINT DECORATIVE METAL SECTION (EM) PAINT STAIR HANDRAILS (EM) REPAIR AND PAINT DECORATIVE IRON FENCE TO ADJACENT BRIDGE (APPROX 450’) REPLACE CONCRETE WALK SECTION AND PATCH STAIRS GRIND STUMPS TO BELOW GRADE, COVER WITH TOPSOIL AND SEED PAINT ENTIRE ABANDONED STAIR HEADHOUSE (ES) PATCH LANDINGS AND TREADS (TYP FOR ALL OF BOTH STAIRS PAINT HANDRAILS AND SUPPORTS (EM) INSTALL PLATFORM MOUNTED ID SIGNS (2 THIS SIDE) PAINT OUTER BRIDGE GIRDERS INCLUDING OUTER FACE AND TOP, SIDE AND BOTTOM EDGES PER SPEC SECTION REPLACE RAILING WITH STANDARD GUARDRAIL INSTALL END OF PLATFORM SIGN ON FENCE EXTEND PLATFORM 24” AND INSTALL NEWSPAPER CORRAL REMOVE EXISTING HANDRAIL REPLACE HANDRAIL INSTALL 2 SHELTERS INSTALL PLATFORM MOUNTED ID SIGNS (3 THIS SIDE) INSTALL END OF PLATFORM FENCE & SIGN REPAIR CORNERS OF BRIDGE ABUTMENTS REMOVE EXISTING SHELTER INSTALL 3 STAIR HANDRAILS REMOVE SECTION OF HEDGE AND INSTALL CONCRETE WALK PAINT HANDRAILS AND SUPPORTS (EM) REPLACE SIDEWALK SPECIAL NOTE FOR REPAIR OF BRIDGE ABUTMENTS: A LICENSED ENGINEER MUST DESIGN AND SEAL ALL BRIDGE ABUTMENT REPAIRS. ALL REPAIRS MUST BE EXECUTED UNDER THE ENGINEER’S SUPERVISION. SEDGWICK STATION NOT TO SCALE R 7 CHESTNUT HILL EAST PROJECT ARCHITECT CHIEF ENGINEER SCALE: _________ DATE: _____2/13/09____ DRAWN : ______WW_______ RAIL TRANSPORTATION SOUTHEASTERN PENNSYLVANIA TRANSPORTATION AUTHORITY REV DATE DESCRIPTION BY OK’D AP’D DIRECTOR OF ENGINEERING CHECKED BY: ______ CAPITAL PROJECT CONTROL AND QA/QC SCALE FACTOR: _____ SYSTEM SAFETY WORK ORDER NO. 1234 MARKET STREET, 12 TH FLOOR, PHILADELPHIA PA 19107 RRD STATION AMENITY PROGRAM SEDGWICK ARCHITECTURAL SITE PLAN DRAWING A 13 OF A 22 15 OF 31 SHEET NO. DRAWING NO. 60259 REV

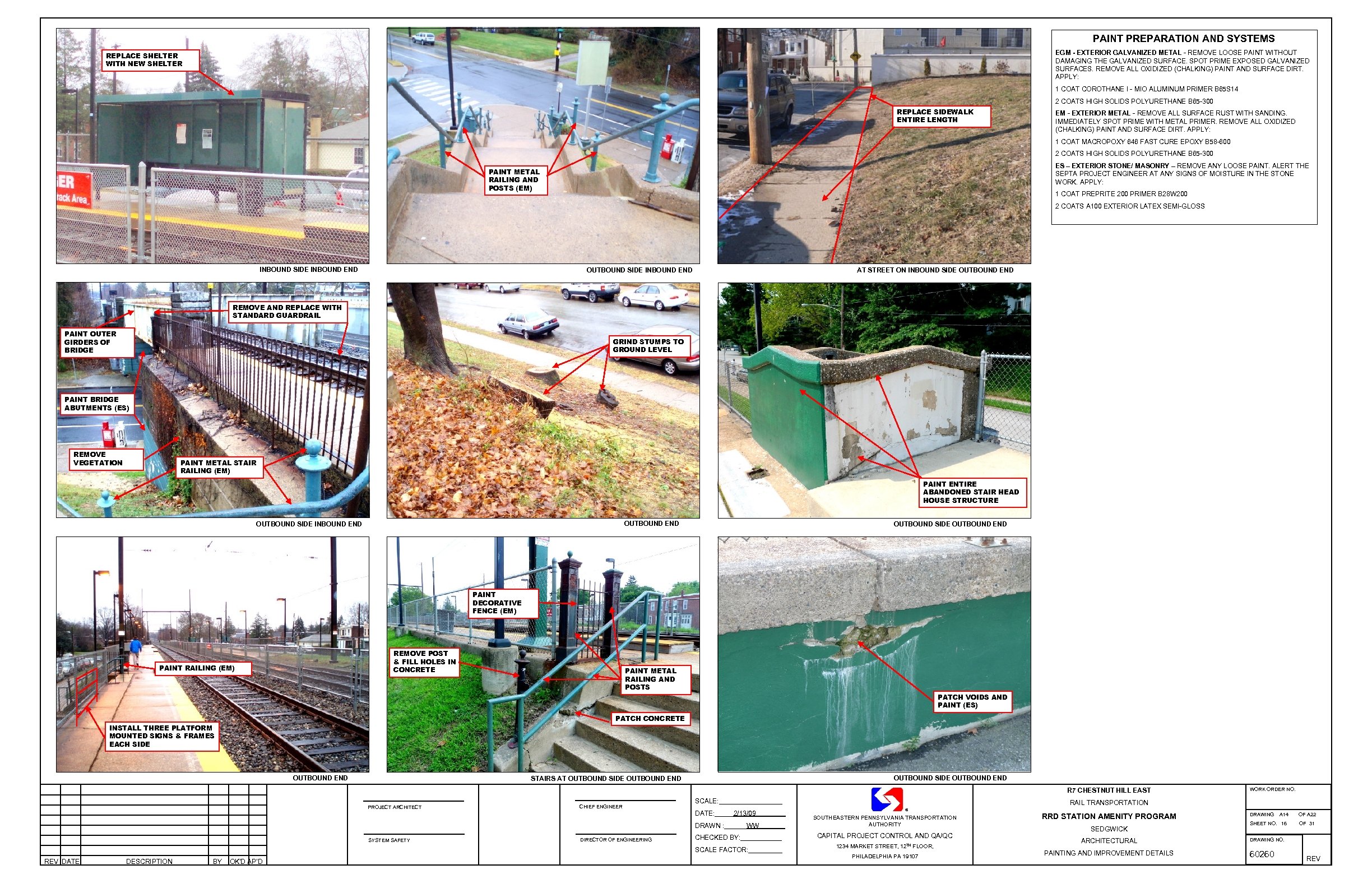

PAINT PREPARATION AND SYSTEMS EGM - EXTERIOR GALVANIZED METAL - REMOVE LOOSE PAINT WITHOUT DAMAGING THE GALVANIZED SURFACE. SPOT PRIME EXPOSED GALVANIZED SURFACES. REMOVE ALL OXIDIZED (CHALKING) PAINT AND SURFACE DIRT. APPLY: REPLACE SHELTER WITH NEW SHELTER 1 COAT COROTHANE I - MIO ALUMINUM PRIMER B 65 S 14 2 COATS HIGH SOLIDS POLYURETHANE B 65 -300 REPLACE SIDEWALK ENTIRE LENGTH EM - EXTERIOR METAL - REMOVE ALL SURFACE RUST WITH SANDING. IMMEDIATELY SPOT PRIME WITH METAL PRIMER. REMOVE ALL OXIDIZED (CHALKING) PAINT AND SURFACE DIRT. APPLY: 1 COAT MACROPOXY 646 FAST CURE EPOXY B 58 -600 2 COATS HIGH SOLIDS POLYURETHANE B 65 -300 ES – EXTERIOR STONE/ MASONRY – REMOVE ANY LOOSE PAINT. ALERT THE SEPTA PROJECT ENGINEER AT ANY SIGNS OF MOISTURE IN THE STONE WORK. APPLY: PAINT METAL RAILING AND POSTS (EM) 1 COAT PREPRITE 200 PRIMER B 28 W 200 2 COATS A 100 EXTERIOR LATEX SEMI-GLOSS INBOUND SIDE INBOUND END OUTBOUND SIDE INBOUND END AT STREET ON INBOUND SIDE OUTBOUND END REMOVE AND REPLACE WITH STANDARD GUARDRAIL PAINT OUTER GIRDERS OF BRIDGE GRIND STUMPS TO GROUND LEVEL PAINT BRIDGE ABUTMENTS (ES) REMOVE VEGETATION PAINT METAL STAIR RAILING (EM) PAINT ENTIRE ABANDONED STAIR HEAD HOUSE STRUCTURE OUTBOUND END OUTBOUND SIDE INBOUND END OUTBOUND SIDE OUTBOUND END PAINT DECORATIVE FENCE (EM) REMOVE POST & FILL HOLES IN CONCRETE PAINT RAILING (EM) PAINT METAL RAILING AND POSTS PATCH VOIDS AND PAINT (ES) PATCH CONCRETE INSTALL THREE PLATFORM MOUNTED SIGNS & FRAMES EACH SIDE OUTBOUND END OUTBOUND SIDE OUTBOUND END STAIRS AT OUTBOUND SIDE OUTBOUND END R 7 CHESTNUT HILL EAST PROJECT ARCHITECT CHIEF ENGINEER SCALE: _________ DATE: _____2/13/09____ DRAWN : ______WW_______ RAIL TRANSPORTATION SOUTHEASTERN PENNSYLVANIA TRANSPORTATION AUTHORITY REV DATE DESCRIPTION BY OK’D AP’D DIRECTOR OF ENGINEERING CHECKED BY: ______ CAPITAL PROJECT CONTROL AND QA/QC SCALE FACTOR: _____ SYSTEM SAFETY WORK ORDER NO. 1234 MARKET STREET, 12 TH FLOOR, PHILADELPHIA PA 19107 RRD STATION AMENITY PROGRAM SEDGWICK ARCHITECTURAL PAINTING AND IMPROVEMENT DETAILS DRAWING A 14 SHEET NO. 16 OF A 22 OF 31 DRAWING NO. 60260 REV

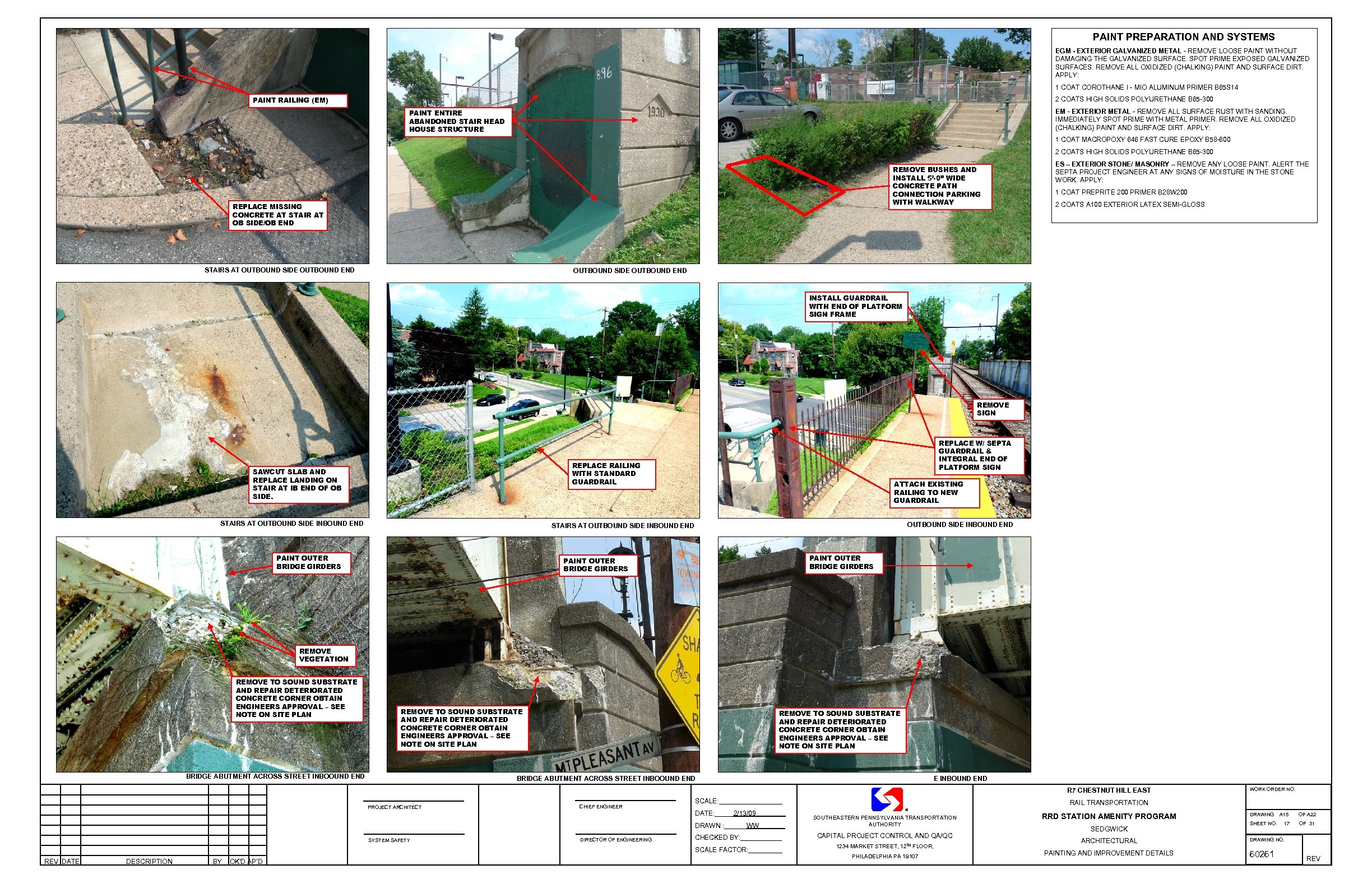

PAINT PREPARATION AND SYSTEMS EGM - EXTERIOR GALVANIZED METAL - REMOVE LOOSE PAINT WITHOUT DAMAGING THE GALVANIZED SURFACE. SPOT PRIME EXPOSED GALVANIZED SURFACES. REMOVE ALL OXIDIZED (CHALKING) PAINT AND SURFACE DIRT. APPLY: 1 COAT COROTHANE I - MIO ALUMINUM PRIMER B 65 S 14 PAINT RAILING (EM) 2 COATS HIGH SOLIDS POLYURETHANE B 65 -300 EM - EXTERIOR METAL - REMOVE ALL SURFACE RUST WITH SANDING. IMMEDIATELY SPOT PRIME WITH METAL PRIMER. REMOVE ALL OXIDIZED (CHALKING) PAINT AND SURFACE DIRT. APPLY: PAINT ENTIRE ABANDONED STAIR HEAD HOUSE STRUCTURE 1 COAT MACROPOXY 646 FAST CURE EPOXY B 58 -600 2 COATS HIGH SOLIDS POLYURETHANE B 65 -300 REMOVE BUSHES AND INSTALL 5’-0” WIDE CONCRETE PATH CONNECTION PARKING WITH WALKWAY REPLACE MISSING CONCRETE AT STAIR AT OB SIDE/OB END STAIRS AT OUTBOUND SIDE OUTBOUND ES – EXTERIOR STONE/ MASONRY – REMOVE ANY LOOSE PAINT. ALERT THE SEPTA PROJECT ENGINEER AT ANY SIGNS OF MOISTURE IN THE STONE WORK. APPLY: 1 COAT PREPRITE 200 PRIMER B 28 W 200 2 COATS A 100 EXTERIOR LATEX SEMI-GLOSS OUTBOUND SIDE OUTBOUND END INSTALL GUARDRAIL WITH END OF PLATFORM SIGN FRAME REMOVE SIGN REPLACE W/ SEPTA GUARDRAIL & INTEGRAL END OF PLATFORM SIGN REPLACE RAILING WITH STANDARD GUARDRAIL SAWCUT SLAB AND REPLACE LANDING ON STAIR AT IB END OF OB SIDE. STAIRS AT OUTBOUND SIDE INBOUND END ATTACH EXISTING RAILING TO NEW GUARDRAIL OUTBOUND SIDE INBOUND END STAIRS AT OUTBOUND SIDE INBOUND END PAINT OUTER BRIDGE GIRDERS REMOVE VEGETATION REMOVE TO SOUND SUBSTRATE AND REPAIR DETERIORATED CONCRETE CORNER OBTAIN ENGINEERS APPROVAL – SEE NOTE ON SITE PLAN BRIDGE ABUTMENT ACROSS STREET INBOOUND END REMOVE TO SOUND SUBSTRATE AND REPAIR DETERIORATED CONCRETE CORNER OBTAIN ENGINEERS APPROVAL – SEE NOTE ON SITE PLAN BRIDGE ABUTMENT ACROSS STREET INBOOUND E INBOUND END R 7 CHESTNUT HILL EAST PROJECT ARCHITECT CHIEF ENGINEER SCALE: _________ DATE: _____2/13/09____ DRAWN : ______WW_______ RAIL TRANSPORTATION SOUTHEASTERN PENNSYLVANIA TRANSPORTATION AUTHORITY REV DATE DESCRIPTION BY OK’D AP’D DIRECTOR OF ENGINEERING CHECKED BY: ______ CAPITAL PROJECT CONTROL AND QA/QC SCALE FACTOR: _____ SYSTEM SAFETY WORK ORDER NO. 1234 MARKET STREET, 12 TH FLOOR, PHILADELPHIA PA 19107 RRD STATION AMENITY PROGRAM SEDGWICK ARCHITECTURAL PAINTING AND IMPROVEMENT DETAILS DRAWING SHEET NO. A 15 OF A 22 17 OF 31 DRAWING NO. 60261 REV

REPLACE HANDRAILS WITH TREAD MOUNTED CODE COMPLIANT RAILING W/ 5’-0” CLEAR BETWEEN RAILS PAINT HANDRAIL AND CONCRETE PIERS AT BOTTOM (EM& ES) PAINT PREPARATION AND SYSTEMS REMOVE SHELTER, EXTEND PLATFORM SLAB 24” AT REAR AND INSTALL NEW SHELTER EGM - EXTERIOR GALVANIZED METAL - REMOVE LOOSE PAINT WITHOUT DAMAGING THE GALVANIZED SURFACE. SPOT PRIME EXPOSED GALVANIZED SURFACES. REMOVE ALL OXIDIZED (CHALKING) PAINT AND SURFACE DIRT. APPLY: 1 COAT COROTHANE I - MIO ALUMINUM PRIMER B 65 S 14 2 COATS HIGH SOLIDS POLYURETHANE B 65 -300 EM - EXTERIOR METAL - REMOVE ALL SURFACE RUST WITH SANDING. IMMEDIATELY SPOT PRIME WITH METAL PRIMER. REMOVE ALL OXIDIZED (CHALKING) PAINT AND SURFACE DIRT. APPLY: 1 COAT MACROPOXY 646 FAST CURE EPOXY B 58 -600 RELOCATE BENCH 2 COATS HIGH SOLIDS POLYURETHANE B 65 -300 ES – EXTERIOR STONE/ MASONRY – REMOVE ANY LOOSE PAINT. ALERT THE SEPTA PROJECT ENGINEER AT ANY SIGNS OF MOISTURE IN THE STONE WORK. APPLY: EXTEND PLATFORM SLAB 24” AT REAR AND INSTALL NEW SHELTER 1 COAT PREPRITE 200 PRIMER B 28 W 200 2 COATS A 100 EXTERIOR LATEX SEMI-GLOSS REMOVE VEGETATION AT JOINTS AND APPLY SEALANT STAIRS AT INBOUND SIDE INBOUND END REPLACE HANDREAILS WITH CODE COMPLIANT RAILING REPLACE EXISTING HANDRAIL INSTALL TWO ADDITIONAL HANDRAILS REMOVE RUST FROM NOSINGS AND PATCH STAIRS AT INBOUND SIDE OUTBOUND END EXTEND PLATFORM 24” AND INSTALL NEWSPAPER CORRAL INSTALL DANGER DO NOT PASS SIGN (TYP AT TWO LOCATIONS) (SF 1/D 2) STRAIGHTEN BENT WIRE BALUSTERS. PAINT FENCE ALL THE WAY TO ADJACENT BRIDGE (APPROX 450’) INBOUND SIDE INBOUND END INBOUND SIDE OUTBOUND END FENCE AT OUTBOUND SIDE INBOUND END R 7 CHESTNUT HILL EAST PROJECT ARCHITECT CHIEF ENGINEER SCALE: _________ DATE: _____2/13/09____ DRAWN : ______WW_______ RAIL TRANSPORTATION SOUTHEASTERN PENNSYLVANIA TRANSPORTATION AUTHORITY REV DATE DESCRIPTION BY OK’D AP’D DIRECTOR OF ENGINEERING CHECKED BY: ______ CAPITAL PROJECT CONTROL AND QA/QC SCALE FACTOR: _____ SYSTEM SAFETY WORK ORDER NO. 1234 MARKET STREET, 12 TH FLOOR, PHILADELPHIA PA 19107 RRD STATION AMENITY PROGRAM SEDGWICK ARCHITECTURAL PAINTING AND IMPROVEMENT DETAILS DRAWING SHEET NO. A 16 OF A 22 18 OF 31 DRAWING NO. 60262 REV
