Ri T s Patch View Solution A Selection

Ri. T’s Patch. View Solution

A Selection of Key Customers

Far Beyond Cabling… • Ri. T introduced the IIM concept in 1994 • Leader in IIM worldwide • One stop shop for your infrastructure needs

Bringing Intelligence to Your Infrastructure

Network & Infrastructure Management: Challenges • • Increased network complexity Business continuity and reliability is a must Maximized asset utilization Connectivity management across premises

Intelligent Network & Infrastructure Management: Benefits • Automated and accurate infrastructure documentation • Real-time connectivity control • Current location of all IP-driven devices • Physical layer security capabilities

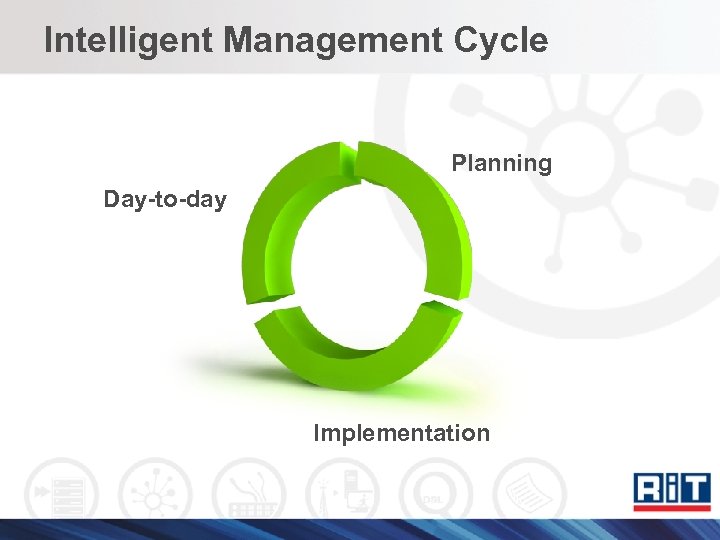

Intelligent Management Cycle Planning Day-to-day Implementation

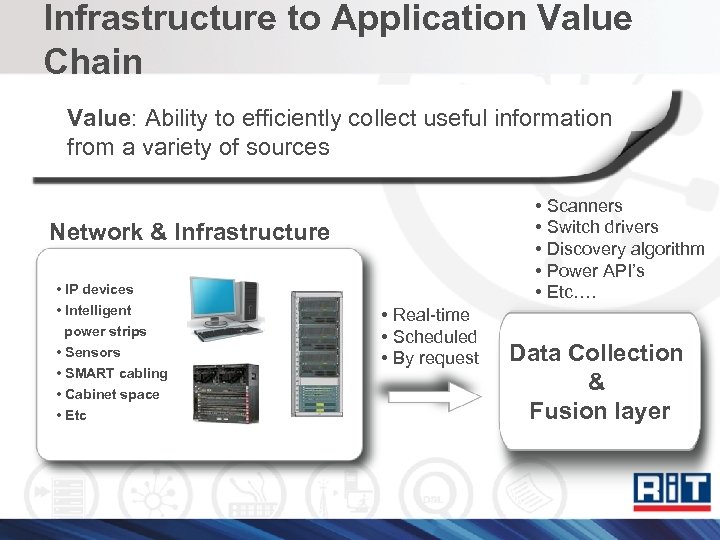

Infrastructure to Application Value Chain Value: Ability to efficiently collect useful information from a variety of sources • Scanners • Switch drivers • Discovery algorithm • Power API’s • Etc…. Network & Infrastructure • IP devices • Intelligent power strips • Sensors • SMART cabling • Cabinet space • Etc • Real-time • Scheduled • By request Data Collection & Fusion layer

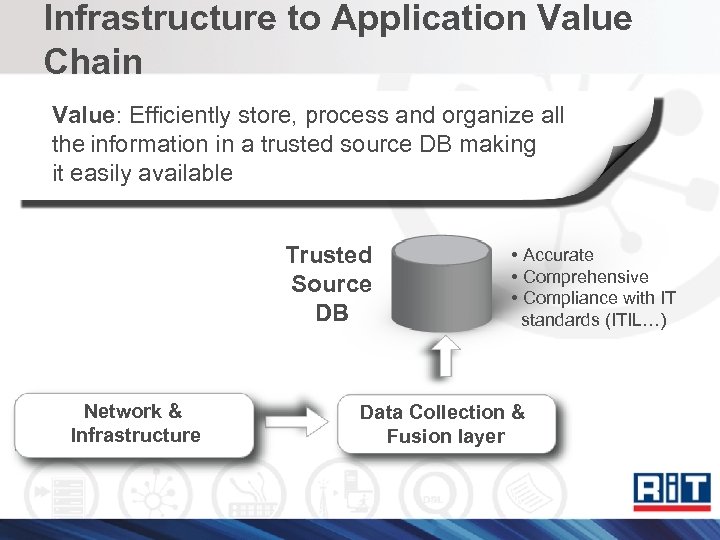

Infrastructure to Application Value Chain Value: Efficiently store, process and organize all the information in a trusted source DB making it easily available Trusted Source DB Network & Infrastructure • Accurate • Comprehensive • Compliance with IT standards (ITIL…) Data Collection & Fusion layer

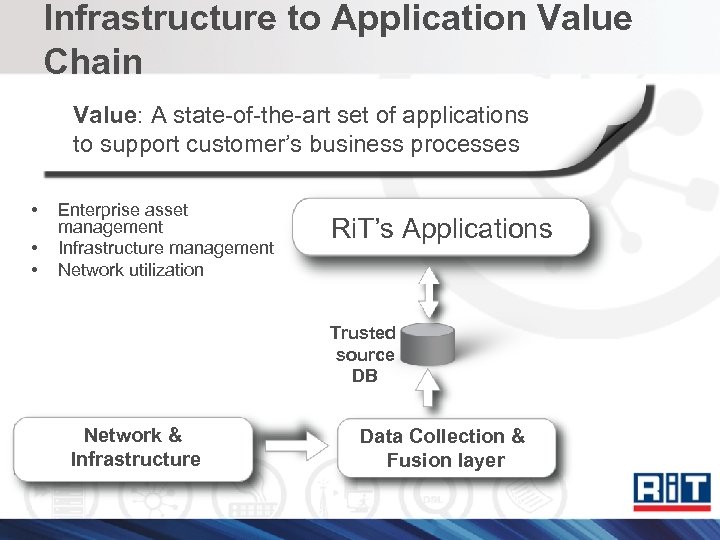

Infrastructure to Application Value Chain Value: A state-of-the-art set of applications to support customer’s business processes • • • Enterprise asset management Infrastructure management Network utilization Ri. T’s Applications Trusted source DB Network & Infrastructure Data Collection & Fusion layer

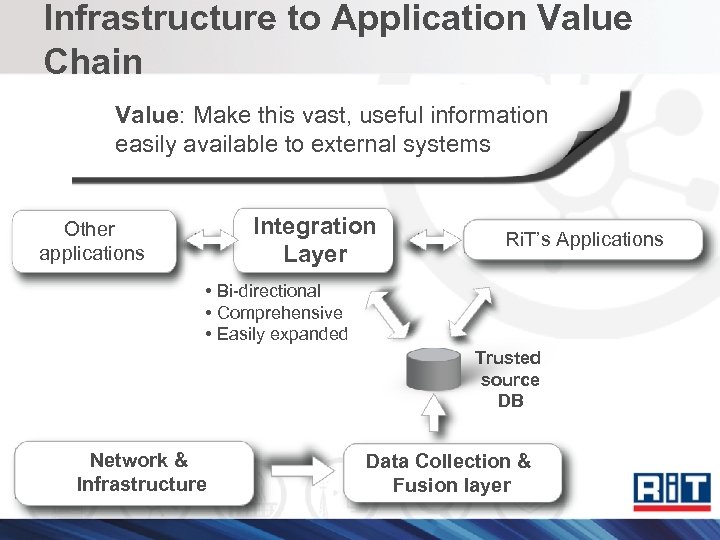

Infrastructure to Application Value Chain Value: Make this vast, useful information easily available to external systems Integration Layer Other applications Ri. T’s Applications • Bi-directional • Comprehensive • Easily expanded Trusted source DB Network & Infrastructure Data Collection & Fusion layer

Operations Management Element management layer

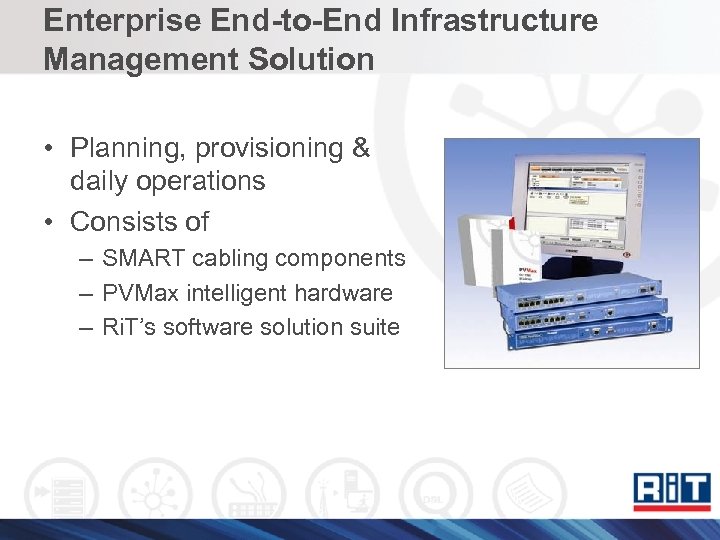

Enterprise End-to-End Infrastructure Management Solution • Planning, provisioning & daily operations • Consists of – SMART cabling components – PVMax intelligent hardware – Ri. T’s software solution suite

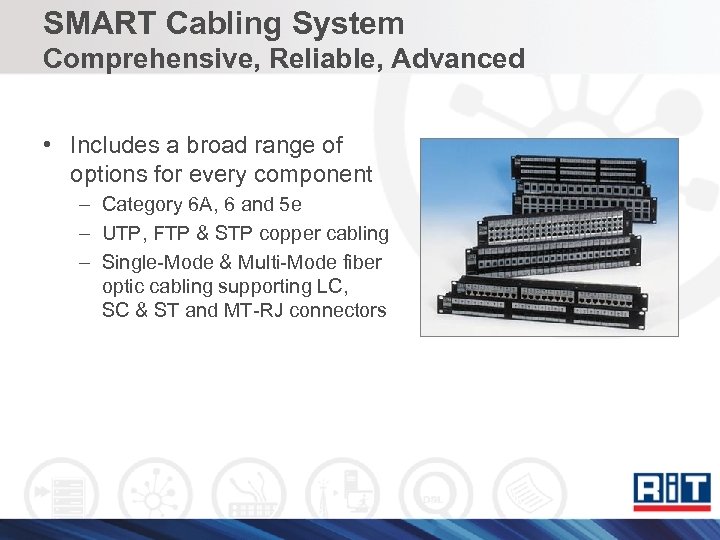

SMART Cabling System Comprehensive, Reliable, Advanced • Includes a broad range of options for every component – Category 6 A, 6 and 5 e – UTP, FTP & STP copper cabling – Single-Mode & Multi-Mode fiber optic cabling supporting LC, SC & ST and MT-RJ connectors

PVMax Intelligent Hardware • Provides a complete and accurate view of network connectivity • Modular design offers optimal solution for any network size • Allows the user centralized management of multiple remote locations

Software Solution Suite SDK PV 4 E Ri. T’s Dashboard Site. Pro Report Center Site. Builder

Patch. View for the Enterprise (PV 4 E( • Automates and accelerates some of your most labor intensive activities • Makes it easier to monitor & control networked assets • Gives you a new level of visibility into datacenter and workspace facilities • Provides valuable assistance in regulatory compliance

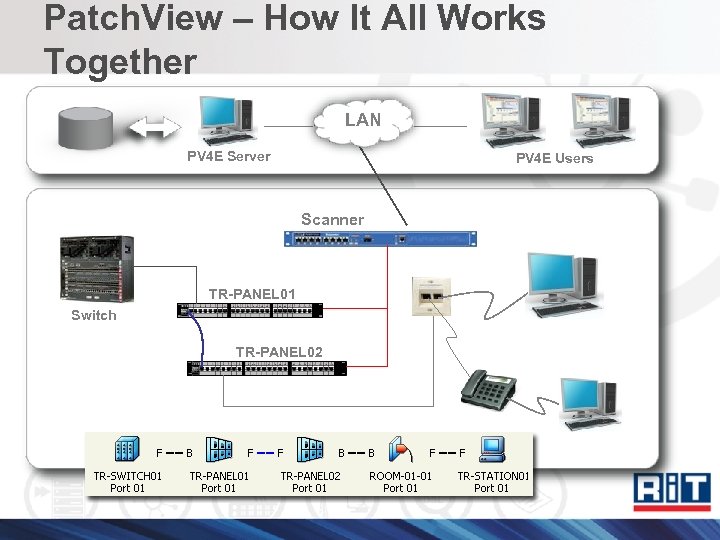

Patch. View – How It All Works Together LAN PV 4 E Server PV 4 E Users Scanner TR-PANEL 01 Switch TR-PANEL 02

Patch. View – Key Values Areas • Enterprise asset management • Infrastructure management – – – Change management Documentation & compliance Daily operation Remote site management Security systems support • Network utilization

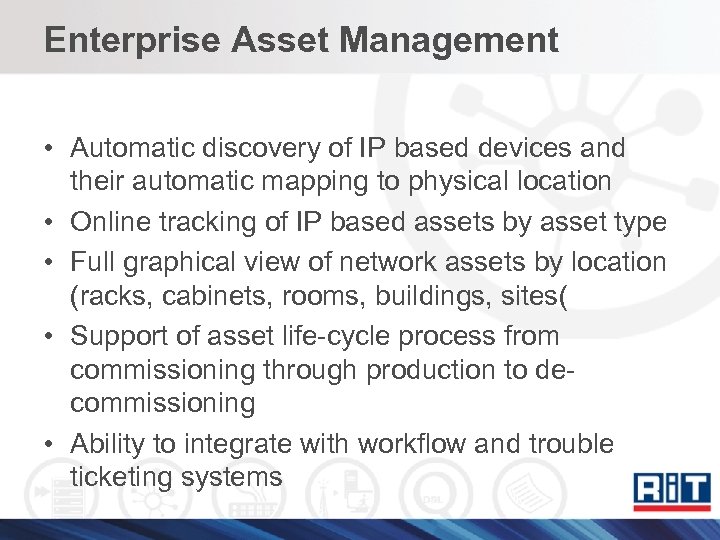

Enterprise Asset Management • Automatic discovery of IP based devices and their automatic mapping to physical location • Online tracking of IP based assets by asset type • Full graphical view of network assets by location (racks, cabinets, rooms, buildings, sites( • Support of asset life-cycle process from commissioning through production to decommissioning • Ability to integrate with workflow and trouble ticketing systems

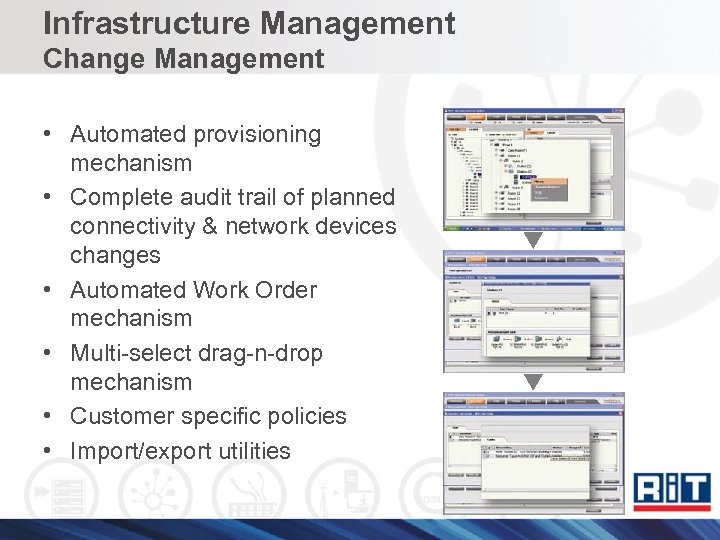

Infrastructure Management Change Management • Automated provisioning mechanism • Complete audit trail of planned connectivity & network devices changes • Automated Work Order mechanism • Multi-select drag-n-drop mechanism • Customer specific policies • Import/export utilities

Infrastructure Management Documentation & Compliance • Comprehensive, easy to maintain infrastructure documentation database • Powerful reporting capabilities • Intuitive graphical displays of key infrastructure information • Assistance in compliance with the demanding regulatory directives (SOX, HIPAA, Basel II(…

Infrastructure Management Daily Operations • • • Automated Provisioning Maintenance Reporting MACs Discovery Import/export utilities

Infrastructure Management Incident Management • Early-warning indicators and real-time fault identification & alerts • Immediate fault location and guided troubleshooting • Highly intelligent personalized alert mechanisms • Database update on unplanned MACs

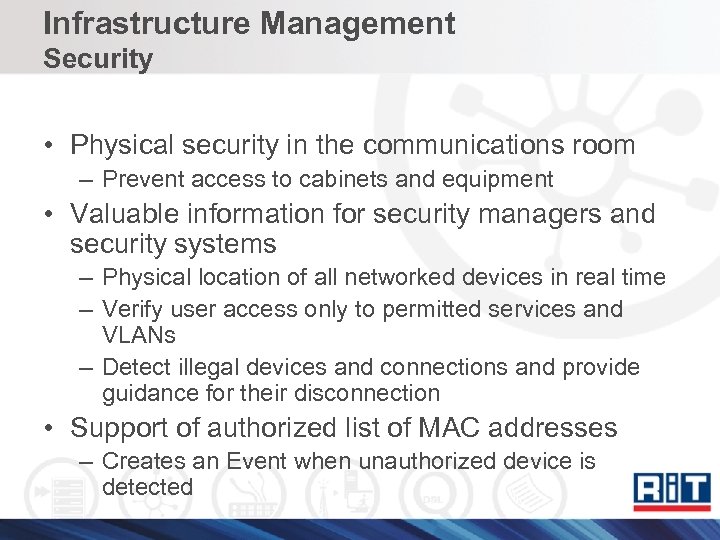

Infrastructure Management Security • Physical security in the communications room – Prevent access to cabinets and equipment • Valuable information for security managers and security systems – Physical location of all networked devices in real time – Verify user access only to permitted services and VLANs – Detect illegal devices and connections and provide guidance for their disconnection • Support of authorized list of MAC addresses – Creates an Event when unauthorized device is detected

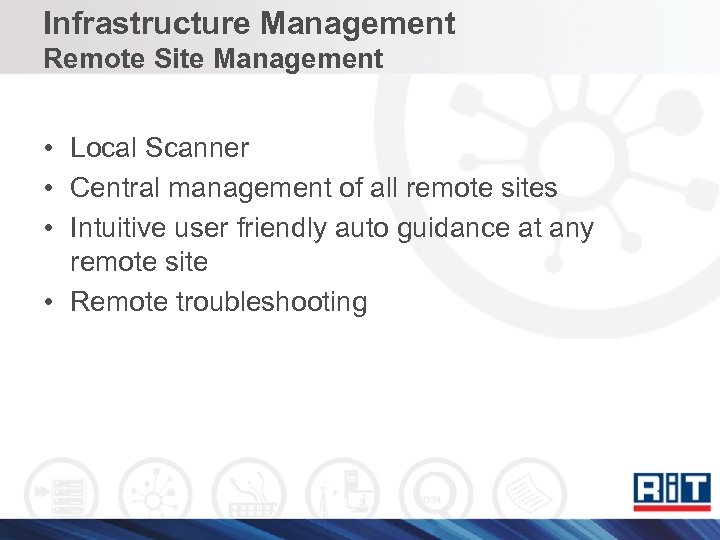

Infrastructure Management Remote Site Management • Local Scanner • Central management of all remote sites • Intuitive user friendly auto guidance at any remote site • Remote troubleshooting

Network Utilization • Comprehensive monitoring of asset utilization for – – – Switch ports Panel ports Outlets Cabinet space Cabinet power Cabinet environmentals (temp. , humidity…) • Threshold based utilization alert mechanism – Personalized per user • Reports and documentation

Integration Via Ri. T’s SDK • Open API and SDK documentation allow for easy integration • Based on common tools such as web services • Integration packs can be developed by Ri. T or 3 rd party integrators

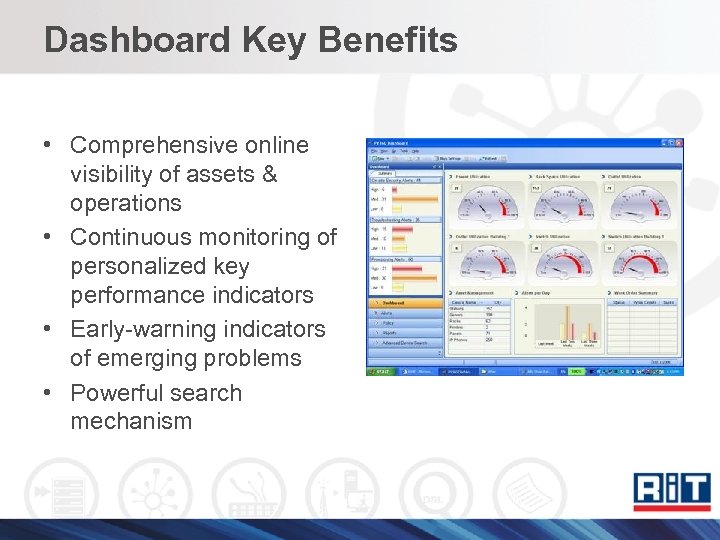

Dashboard Key Benefits • Comprehensive online visibility of assets & operations • Continuous monitoring of personalized key performance indicators • Early-warning indicators of emerging problems • Powerful search mechanism

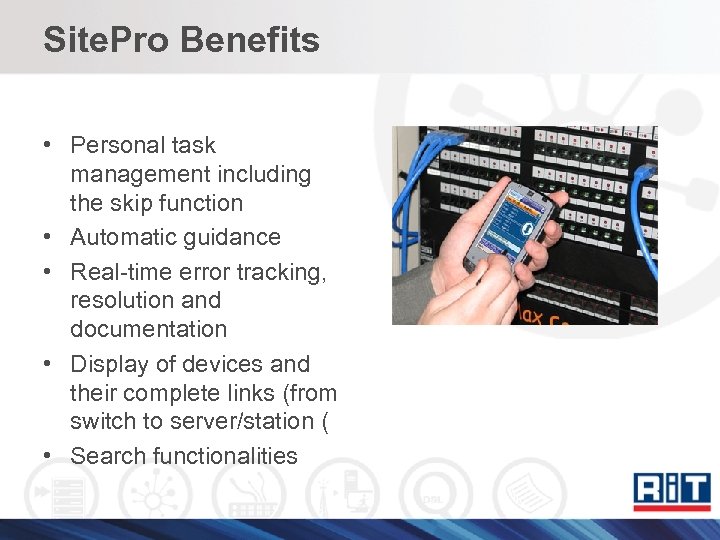

Site. Pro Benefits • Personal task management including the skip function • Automatic guidance • Real-time error tracking, resolution and documentation • Display of devices and their complete links (from switch to server/station ( • Search functionalities

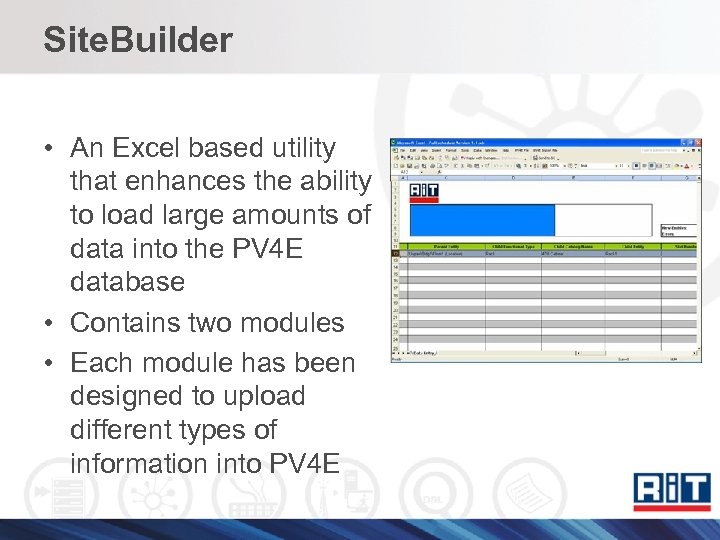

Site. Builder • An Excel based utility that enhances the ability to load large amounts of data into the PV 4 E database • Contains two modules • Each module has been designed to upload different types of information into PV 4 E

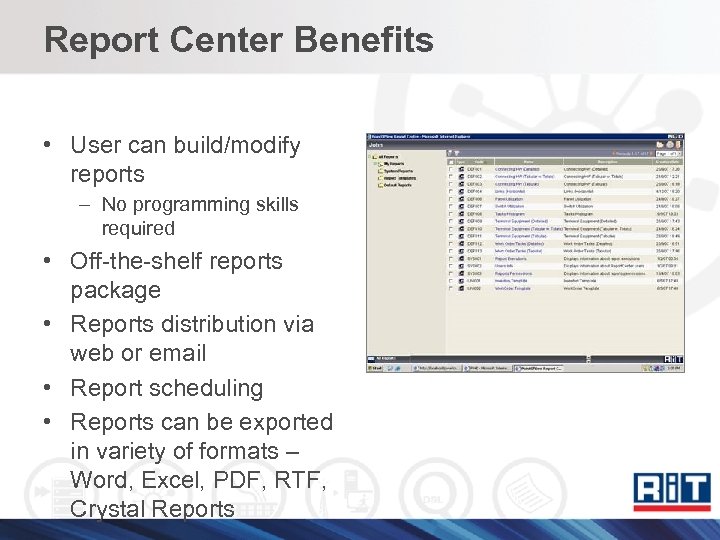

Report Center Benefits • User can build/modify reports – No programming skills required • Off-the-shelf reports package • Reports distribution via web or email • Report scheduling • Reports can be exported in variety of formats – Word, Excel, PDF, RTF, Crystal Reports

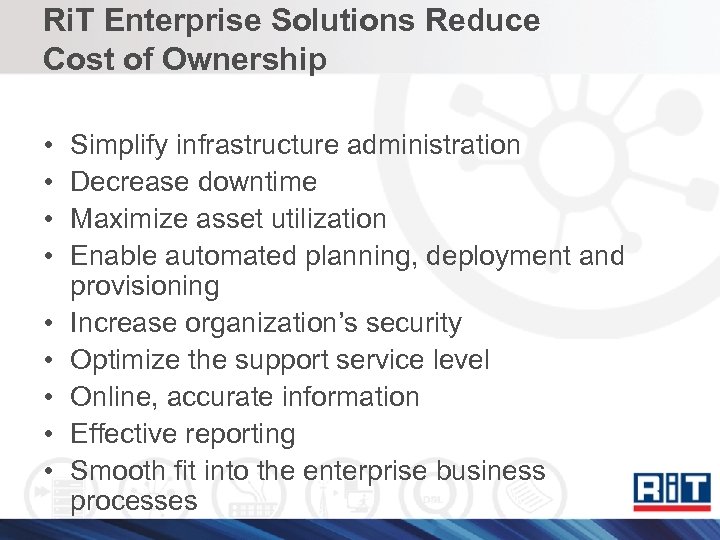

Ri. T Enterprise Solutions Reduce Cost of Ownership • • • Simplify infrastructure administration Decrease downtime Maximize asset utilization Enable automated planning, deployment and provisioning Increase organization’s security Optimize the support service level Online, accurate information Effective reporting Smooth fit into the enterprise business processes
