RESEARCH Global Platform for Rich Media Conferencing and

RESEARCH Global Platform for Rich Media Conferencing and Collaboration G. Denis, Caltech

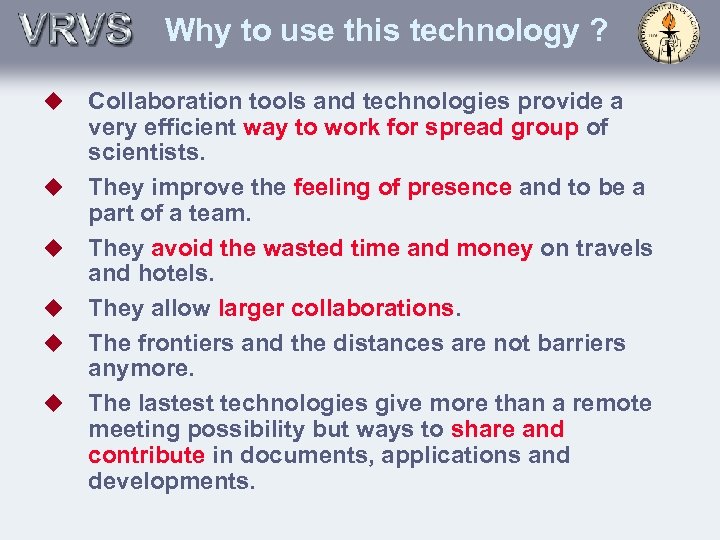

Why to use this technology ? u u u Collaboration tools and technologies provide a very efficient way to work for spread group of scientists. They improve the feeling of presence and to be a part of a team. They avoid the wasted time and money on travels and hotels. They allow larger collaborations. The frontiers and the distances are not barriers anymore. The lastest technologies give more than a remote meeting possibility but ways to share and contribute in documents, applications and developments.

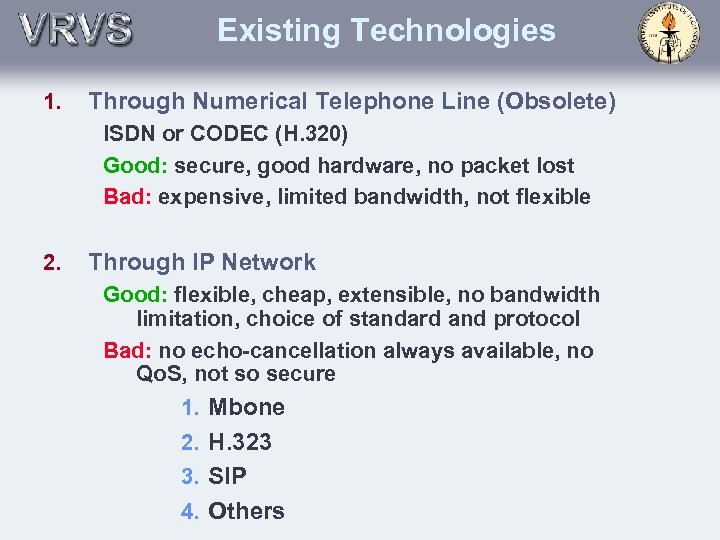

Existing Technologies 1. Through Numerical Telephone Line (Obsolete) ISDN or CODEC (H. 320) Good: secure, good hardware, no packet lost Bad: expensive, limited bandwidth, not flexible 2. Through IP Network Good: flexible, cheap, extensible, no bandwidth limitation, choice of standard and protocol Bad: no echo-cancellation always available, no Qo. S, not so secure 1. Mbone 2. H. 323 3. SIP 4. Others

Mbone Tools u u u These applications have been developed more 10 years ago to use the Multicast Backbone. The audio and video are split in 2 different applications. VIC is the video application that can decode and encode several different codecs. It is very flexible and provide controls to set the frame rate, the compression and bandwidth of the video sent. It can display dozens of videos at the same time. VAT and RAT are the audio applications. There’s no software echo cancellation built-in but they can code and decode a very large number of codecs. These applications are using RTP/RTCP protocol through unicast or multicast connection. Were the first videoconf. clients used in VRVS.

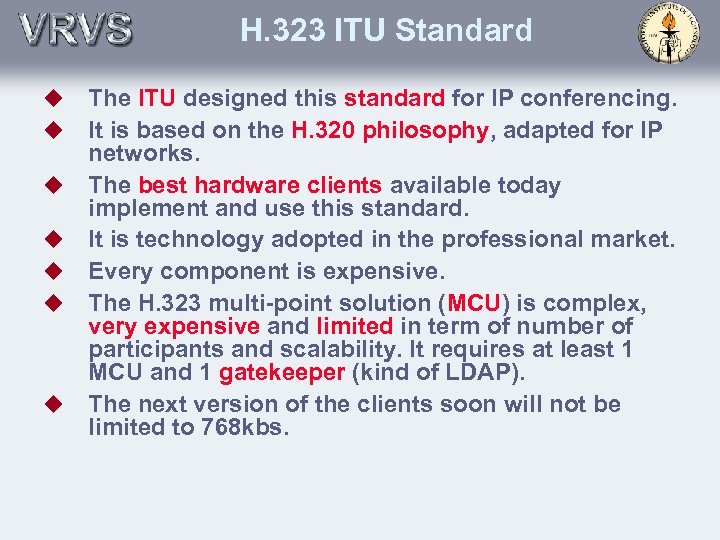

H. 323 ITU Standard u u u u The ITU designed this standard for IP conferencing. It is based on the H. 320 philosophy, adapted for IP networks. The best hardware clients available today implement and use this standard. It is technology adopted in the professional market. Every component is expensive. The H. 323 multi-point solution (MCU) is complex, very expensive and limited in term of number of participants and scalability. It requires at least 1 MCU and 1 gatekeeper (kind of LDAP). The next version of the clients soon will not be limited to 768 kbs.

Session Initiation Protocol u u u SIP is a signaling protocol for Internet conferencing, telephony, presence and instant messaging. Developed within the IETF MMUSIC (Multiparty Multimedia Session Control) working group , with work proceeding since September 1999 in the IETF SIP working group. It is more recent than H. 323 and has a better design to fit the IP networks needs, capabilities and constraints. No limitation and very open. Already adopted by Microsoft (Messenger), Apple (i. Chat AV) and other open source projects. Will be supported by VRVS very soon (already working in prototype version).

VRVS Description

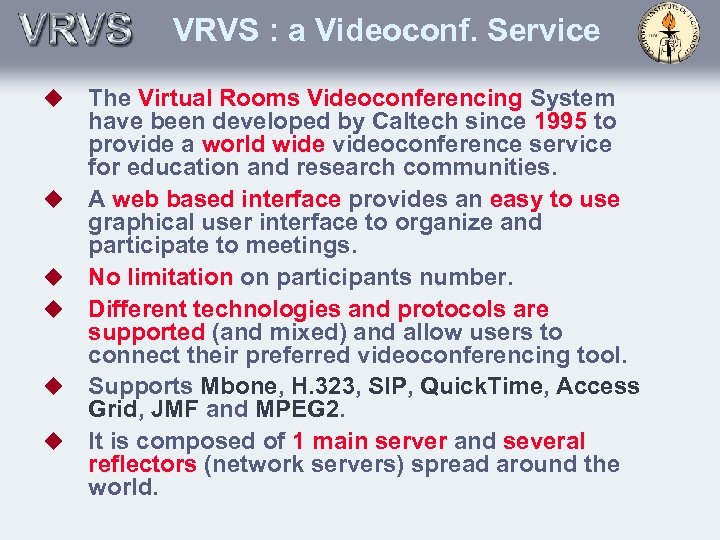

VRVS : a Videoconf. Service u u u The Virtual Rooms Videoconferencing System have been developed by Caltech since 1995 to provide a world wide videoconference service for education and research communities. A web based interface provides an easy to use graphical user interface to organize and participate to meetings. No limitation on participants number. Different technologies and protocols are supported (and mixed) and allow users to connect their preferred videoconferencing tool. Supports Mbone, H. 323, SIP, Quick. Time, Access Grid, JMF and MPEG 2. It is composed of 1 main server and several reflectors (network servers) spread around the world.

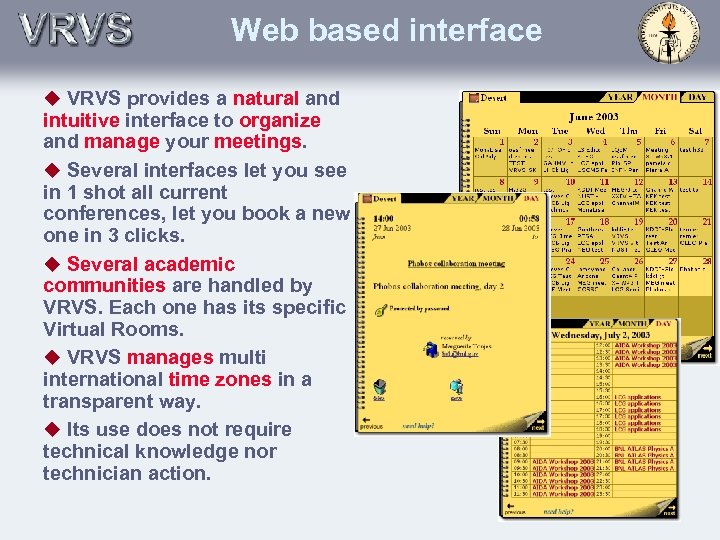

Web based interface u VRVS provides a natural and intuitive interface to organize and manage your meetings. u Several interfaces let you see in 1 shot all current conferences, let you book a new one in 3 clicks. u Several academic communities are handled by VRVS. Each one has its specific Virtual Rooms. u VRVS manages multi international time zones in a transparent way. u Its use does not require technical knowledge nor technician action.

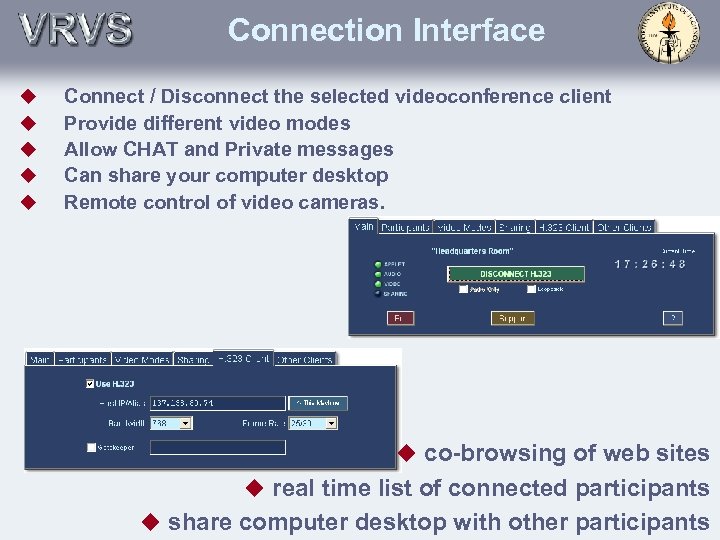

Connection Interface u u u Connect / Disconnect the selected videoconference client Provide different video modes Allow CHAT and Private messages Can share your computer desktop Remote control of video cameras. u co-browsing of web sites u real time list of connected participants u share computer desktop with other participants

Example 1: 20 participants BRAZIL (3 sites) + SWITZERLAND (CERN) + USA (Caltech)

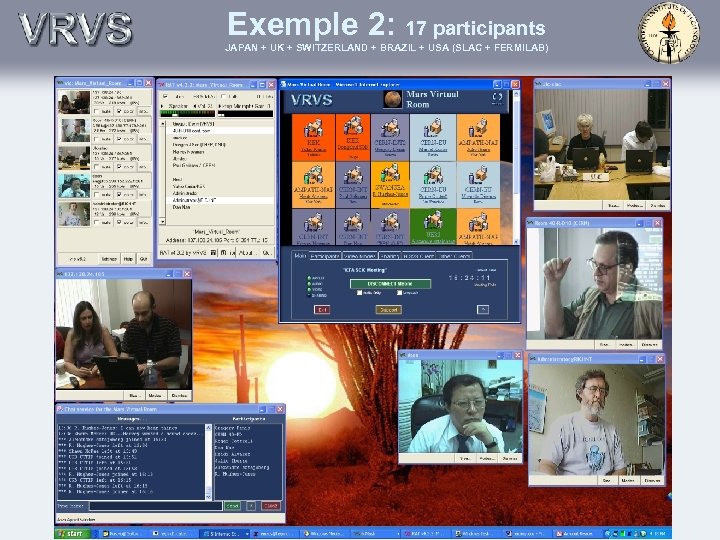

Exemple 2: 17 participants JAPAN + UK + SWITZERLAND + BRAZIL + USA (SLAC + FERMILAB)

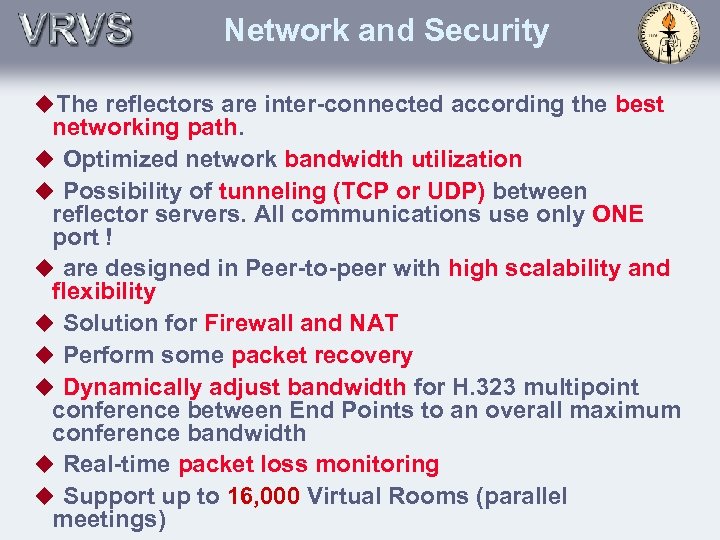

Network and Security u. The reflectors are inter-connected according the best networking path. u Optimized network bandwidth utilization u Possibility of tunneling (TCP or UDP) between reflector servers. All communications use only ONE port ! u are designed in Peer-to-peer with high scalability and flexibility u Solution for Firewall and NAT u Perform some packet recovery u Dynamically adjust bandwidth for H. 323 multipoint conference between End Points to an overall maximum conference bandwidth u Real-time packet loss monitoring u Support up to 16, 000 Virtual Rooms (parallel meetings)

VRVS Model Implementation VRVS Web User Interface (vic, vat/rat, . . ) SIP H. 323 Quick. Time Player MPEG Minerva Qo. S VRVS Reflectors (Unicast/Multicast) Real Time Protocol (RTP/RTCP) Collaborative Applications Mbone Tools Network Layer (TCP/IP) done Partially done Work in progress Continuously in development

Extra Features

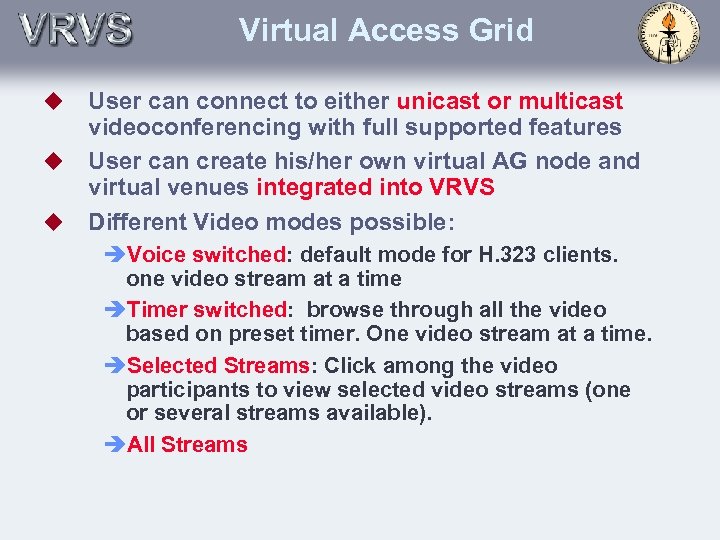

Virtual Access Grid User can connect to either unicast or multicast videoconferencing with full supported features u User can create his/her own virtual AG node and virtual venues integrated into VRVS u Different Video modes possible: u èVoice switched: default mode for H. 323 clients. one video stream at a time èTimer switched: browse through all the video based on preset timer. One video stream at a time. èSelected Streams: Click among the video participants to view selected video streams (one or several streams available). èAll Streams

VAG with Mbone Clients

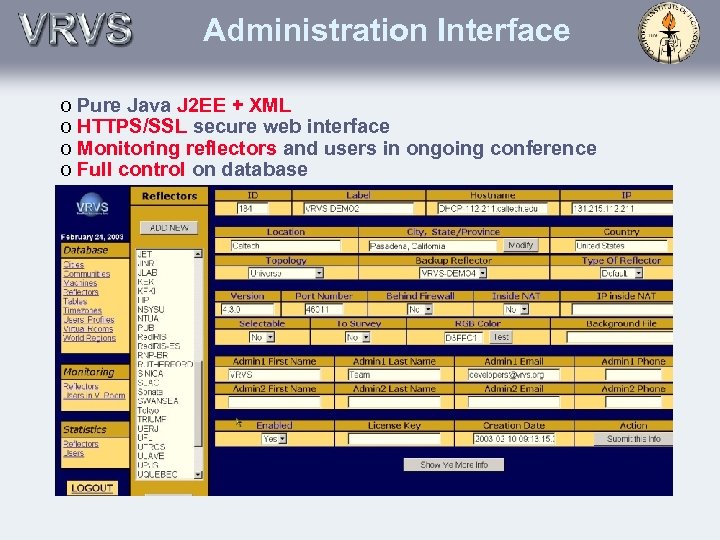

Administration Interface o Pure Java J 2 EE + XML o HTTPS/SSL secure web interface o Monitoring reflectors and users in ongoing conference o Full control on database

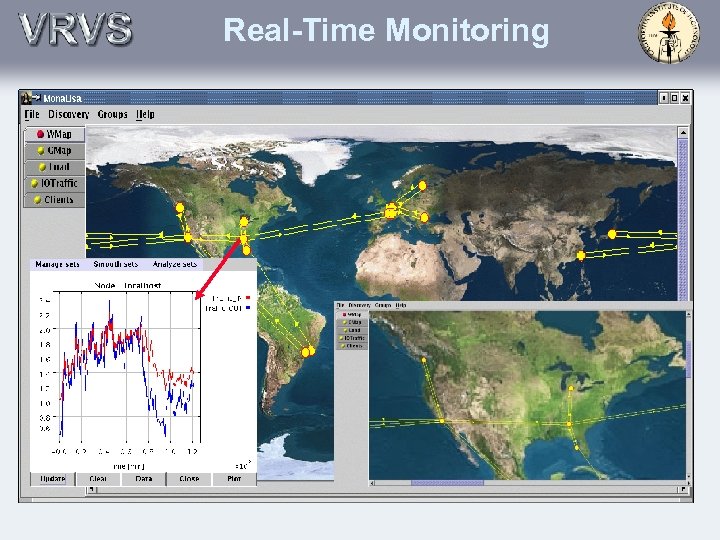

Real-Time Monitoring

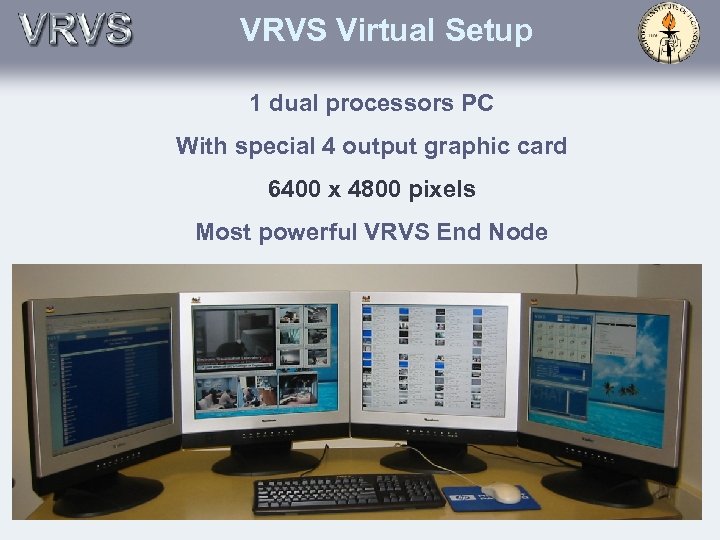

VRVS Virtual Setup 1 dual processors PC With special 4 output graphic card 6400 x 4800 pixels Most powerful VRVS End Node

What next ?

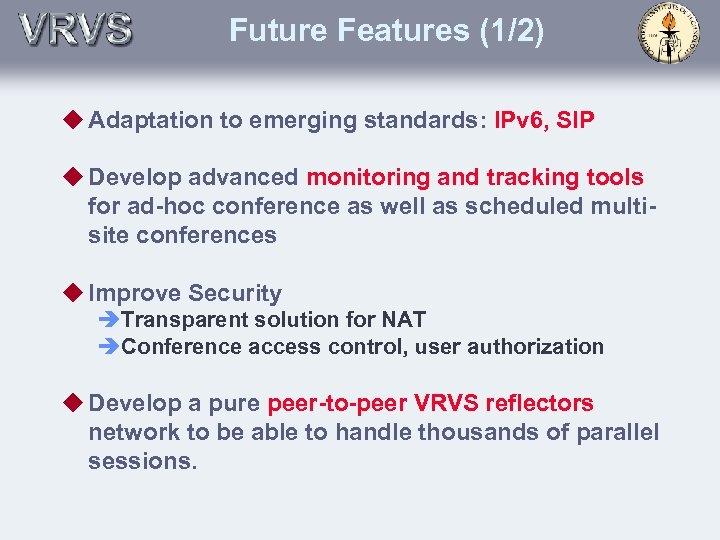

Future Features (1/2) u Adaptation to emerging standards: IPv 6, SIP u Develop advanced monitoring and tracking tools for ad-hoc conference as well as scheduled multisite conferences u Improve Security èTransparent solution for NAT èConference access control, user authorization u Develop a pure peer-to-peer VRVS reflectors network to be able to handle thousands of parallel sessions.

Future Features (2/2) u Wireless/Mobile Client Integration: è User Interface dedicated for small screens è Integration of low end client: k. Provide dedicated software clients (VVP, JMF) k. Transcode streams to lower bandwidth k. Support MPEG 4 u Integration of new hardware/software for high-end interactivity. è Already developed an MPEG 2 MCU (using Minerva codec). Will port to other codec if demand. k. Provide dedicated software clients (VVP, JMF) k. Developed a multipoint videoconferencing system based on MPEG 4 compression standard. k. Developed a system using HDTV standard If affordable hardware devices available.

VRVS Usage

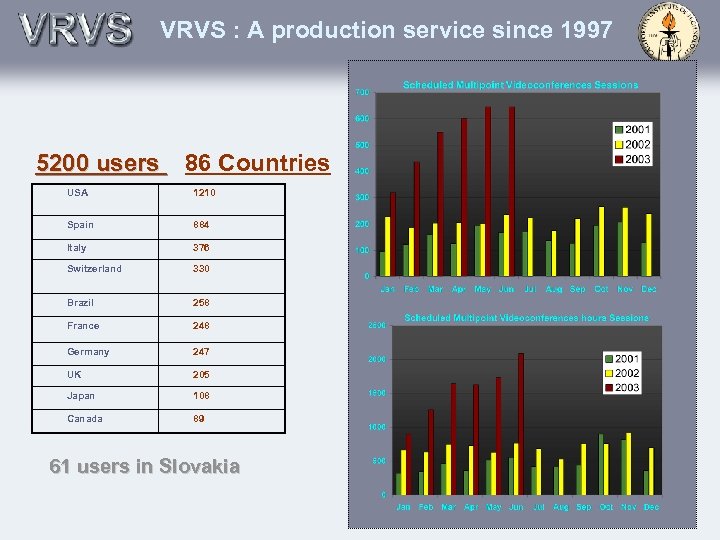

VRVS : A production service since 1997 Number of Registered Users: 5200 users m 86 Countries USA 1210 Spain 884 Italy 376 Switzerland 330 Brazil 258 France 248 Germany 247 UK 205 Japan 108 Canada 89 61 users in Slovakia

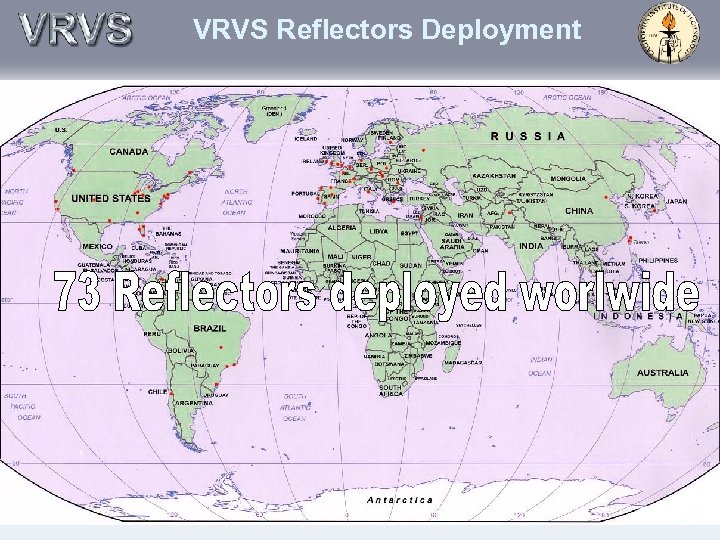

VRVS Reflectors Deployment

Machines and OS VRVS support different Operating Systems according to the need and the demand of the final users: 1 st : Windows 2 nd: Linux 3 rd: Macintosh 4 th: Other UNIX

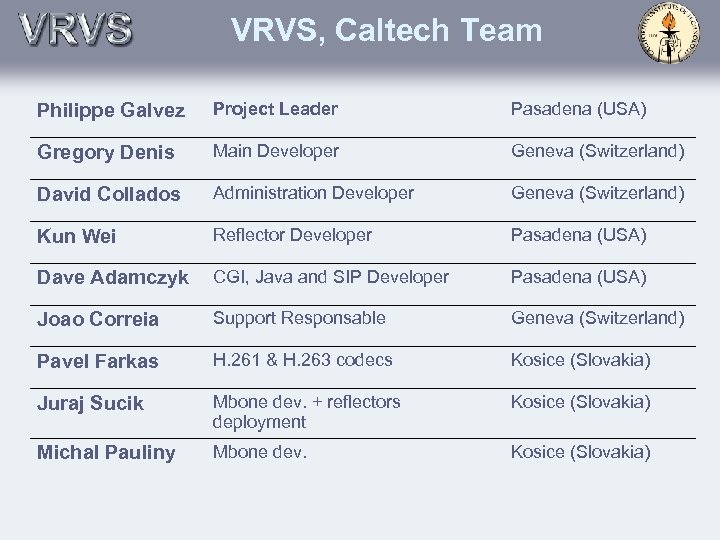

VRVS, Caltech Team Philippe Galvez Project Leader Pasadena (USA) Gregory Denis Main Developer Geneva (Switzerland) David Collados Administration Developer Geneva (Switzerland) Kun Wei Reflector Developer Pasadena (USA) Dave Adamczyk CGI, Java and SIP Developer Pasadena (USA) Joao Correia Support Responsable Geneva (Switzerland) Pavel Farkas H. 261 & H. 263 codecs Kosice (Slovakia) Juraj Sucik Mbone dev. + reflectors deployment Kosice (Slovakia) Michal Pauliny Mbone dev. Kosice (Slovakia)

WWW. VRVS. ORG Contact@VRVS. org Support@VRVS. org

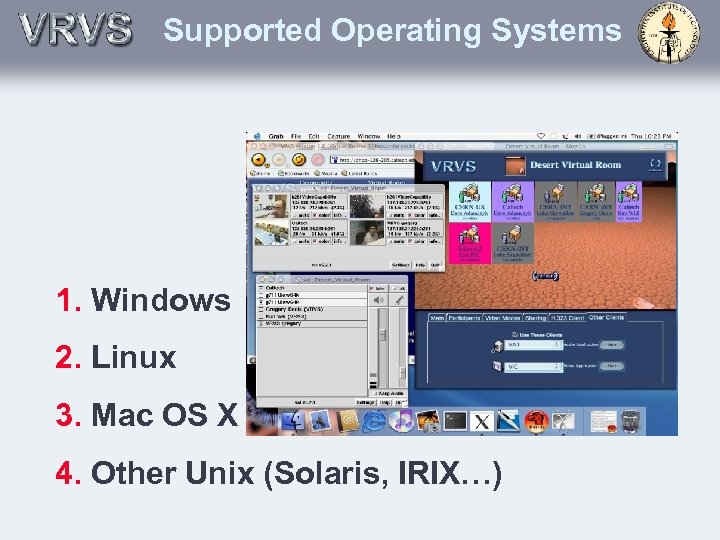

Supported Operating Systems 1. Windows 2. Linux 3. Mac OS X 4. Other Unix (Solaris, IRIX…)
