Reporting on I&C status and Vladimir Sivokon (JSC “SNIIP”) recommendations to Oleg Bozhenkov (JSC “VNIIAES”) IAEA TWG NPP I&C, 20 -22 May 2009, Vienna

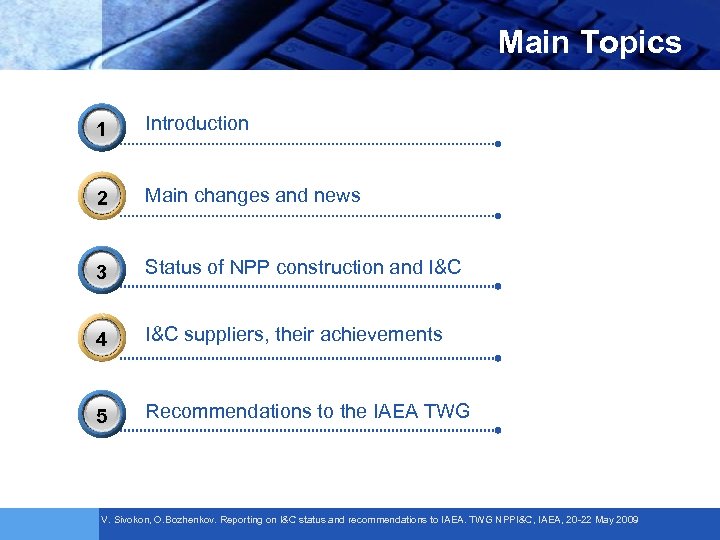

Main Topics 1 3 Introduction 2 Main changes and news 3 Status of NPP construction and I&C 4 I&C suppliers, their achievements 5 3 Recommendations to the IAEA TWG V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

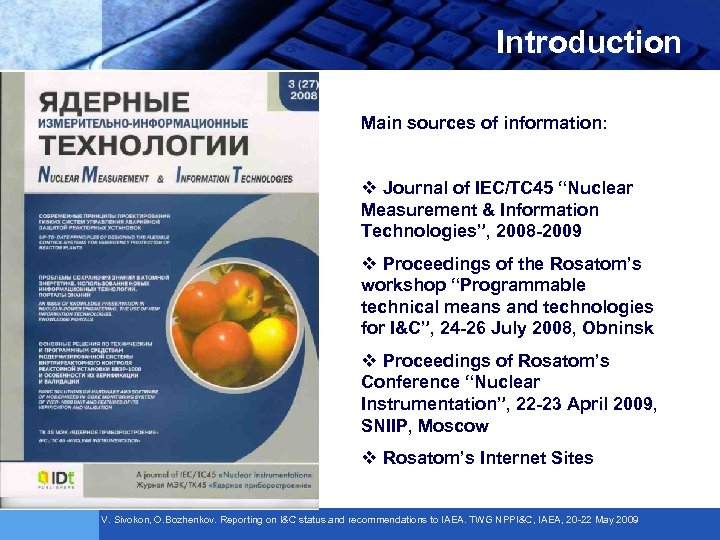

Introduction Main sources of information: v Journal of IEC/TC 45 “Nuclear Measurement & Information Technologies”, 2008 -2009 v Proceedings of the Rosatom’s workshop “Programmable technical means and technologies for I&C”, 24 -26 July 2008, Obninsk v Proceedings of Rosatom’s Conference “Nuclear Instrumentation”, 22 -23 April 2009, SNIIP, Moscow v Rosatom’s Internet Sites V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

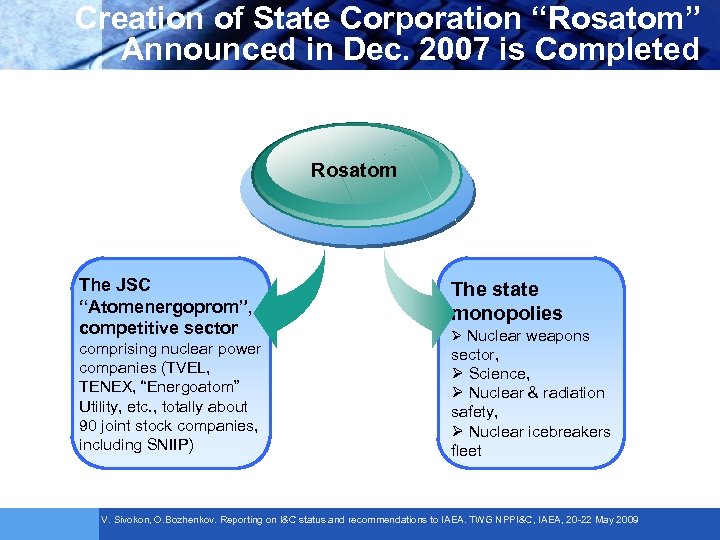

Creation of State Corporation “Rosatom” Announced in Dec. 2007 is Completed Rosatom The JSC “Atomenergoprom”, competitive sector The state monopolies comprising nuclear power companies (TVEL, TENEX, “Energoatom” Utility, etc. , totally about 90 joint stock companies, including SNIIP) sector, Ø Science, Ø Nuclear & radiation safety, Ø Nuclear icebreakers fleet Ø Nuclear weapons V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

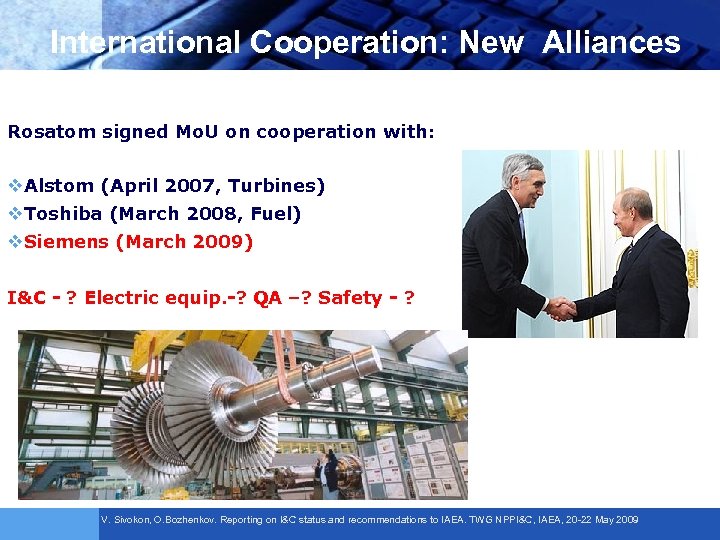

International Cooperation: New Alliances Rosatom signed Mo. U on cooperation with: v. Alstom (April 2007, Turbines) v. Toshiba (March 2008, Fuel) v. Siemens (March 2009) I&C - ? Electric equip. -? QA –? Safety - ? V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

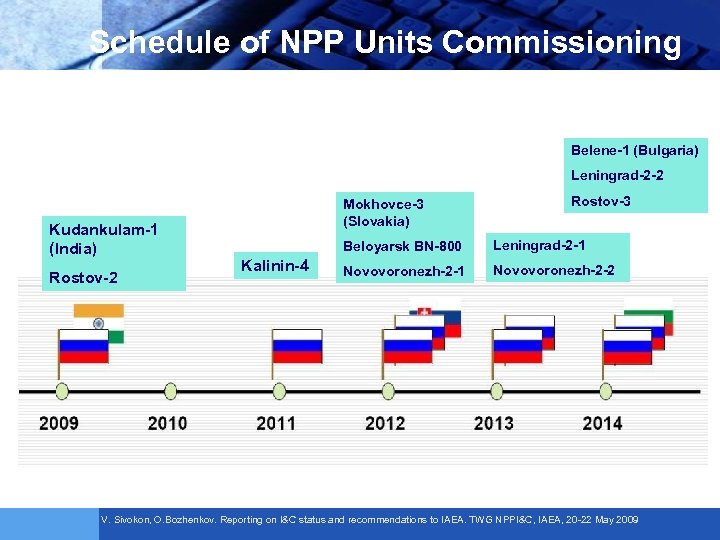

Schedule of NPP Units Commissioning Belene-1 (Bulgaria) Leningrad-2 -2 Kudankulam-1 (India) Rostov-2 Mokhovce-3 (Slovakia) Rostov-3 Beloyarsk BN-800 Kalinin-4 Leningrad-2 -1 Novovoronezh-2 -2 V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

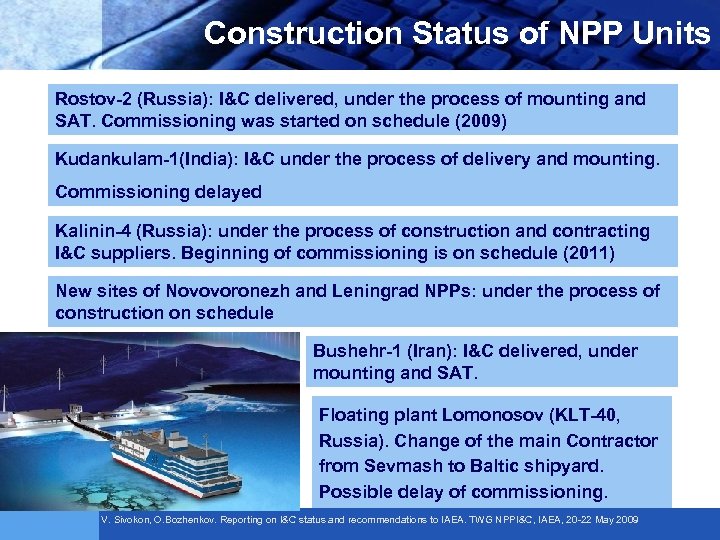

Construction Status of NPP Units Rostov-2 (Russia): I&C delivered, under the process of mounting and SAT. Commissioning was started on schedule (2009) Kudankulam-1(India): I&C under the process of delivery and mounting. Commissioning delayed Kalinin-4 (Russia): under the process of construction and contracting I&C suppliers. Beginning of commissioning is on schedule (2011) New sites of Novovoronezh and Leningrad NPPs: under the process of construction on schedule Bushehr-1 (Iran): I&C delivered, under mounting and SAT. Floating plant Lomonosov (KLT-40, Russia). Change of the main Contractor from Sevmash to Baltic shipyard. Possible delay of commissioning. V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

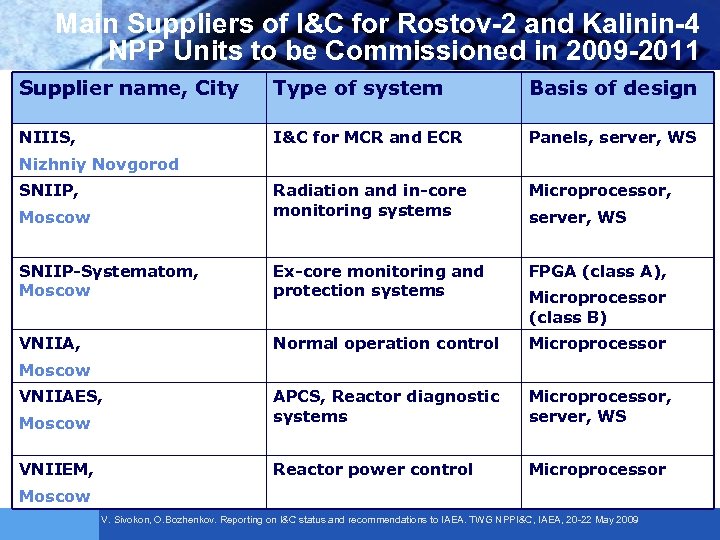

Main Suppliers of I&C for Rostov-2 and Kalinin-4 NPP Units to be Commissioned in 2009 -2011 Supplier name, City Type of system Basis of design NIIIS, I&C for MCR and ECR Panels, server, WS Microprocessor, Moscow Radiation and in-core monitoring systems SNIIP-Systematom, Moscow Ex-core monitoring and protection systems FPGA (class A), VNIIA, Normal operation control Microprocessor Moscow APCS, Reactor diagnostic systems Microprocessor, server, WS VNIIEM, Reactor power control Microprocessor Nizhniy Novgorod SNIIP, server, WS Microprocessor (class B) Moscow VNIIAES, Moscow V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

Reliability of Class A Modules Achieved with FPGA (statistical data) ü MTBF is about 200 million hours Statistical data are based on more www. systematom. ru that -40°С < t envir. < +85 С ü 200 million (FPGA * hours) operation since November 1999 till ü Power supply = 3. 3 V January 2008 at 25 NPP Units V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

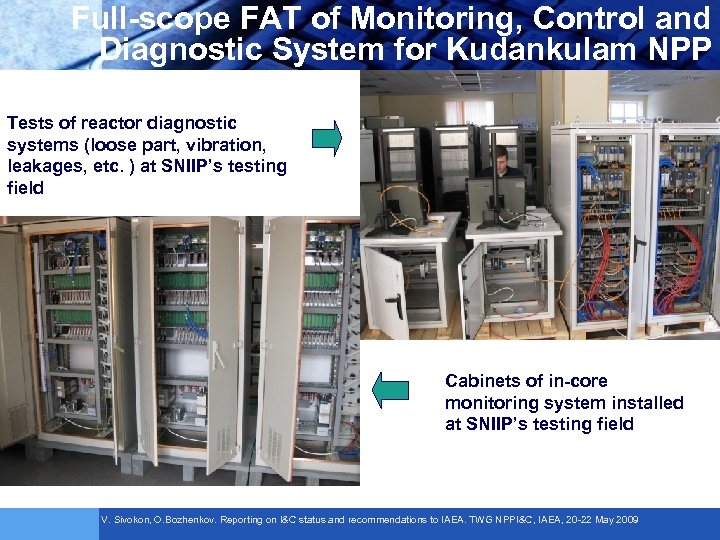

Full-scope FAT of Monitoring, Control and Diagnostic System for Kudankulam NPP Tests of reactor diagnostic systems (loose part, vibration, leakages, etc. ) at SNIIP’s testing field Cabinets of in-core monitoring system installed at SNIIP’s testing field V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

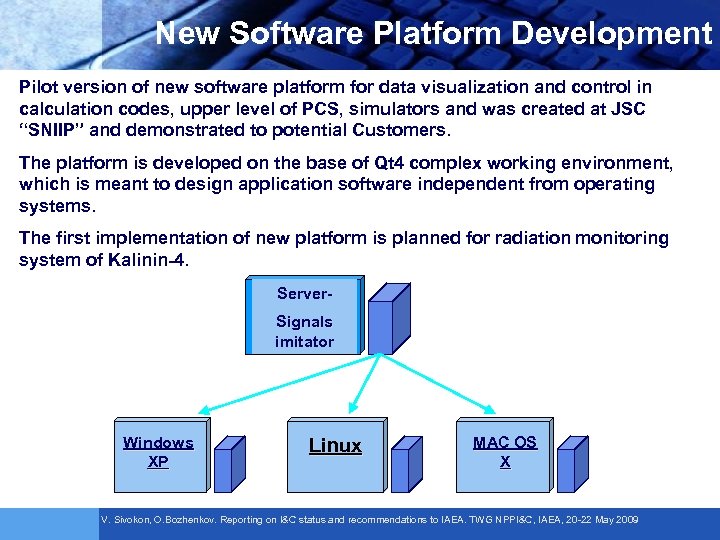

New Software Platform Development Pilot version of new software platform for data visualization and control in calculation codes, upper level of PCS, simulators and was created at JSC “SNIIP” and demonstrated to potential Customers. The platform is developed on the base of Qt 4 complex working environment, which is meant to design application software independent from operating systems. The first implementation of new platform is planned for radiation monitoring system of Kalinin-4. Server. Signals imitator Windows XP Linux MAC OS X V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

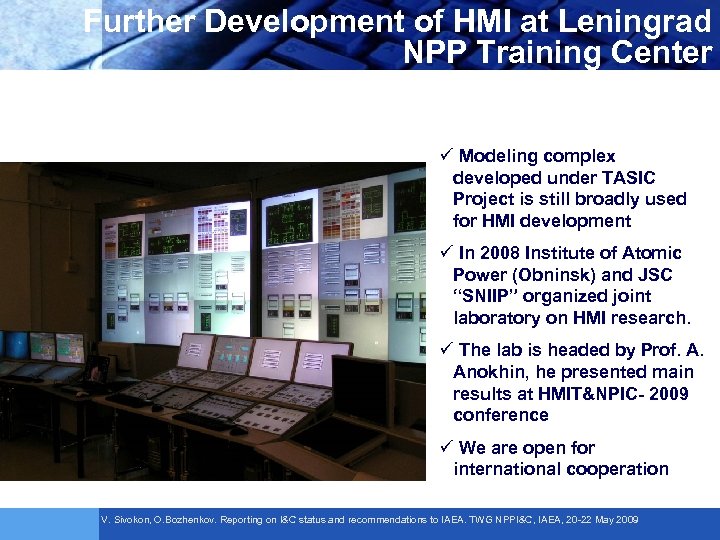

Further Development of HMI at Leningrad NPP Training Center ü Modeling complex developed under TASIC Project is still broadly used for HMI development ü In 2008 Institute of Atomic Power (Obninsk) and JSC “SNIIP” organized joint laboratory on HMI research. ü The lab is headed by Prof. A. Anokhin, he presented main results at HMIT&NPIC- 2009 conference ü We are open for international cooperation V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

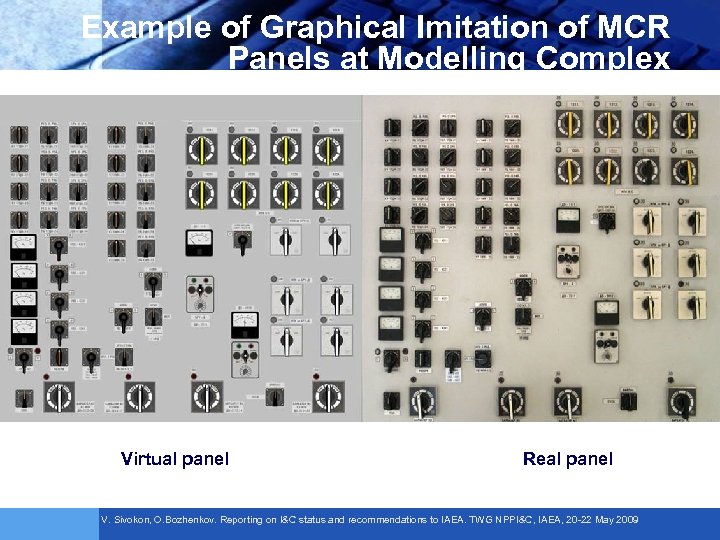

Example of Graphical Imitation of MCR Panels at Modelling Complex Virtual panel Real panel V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

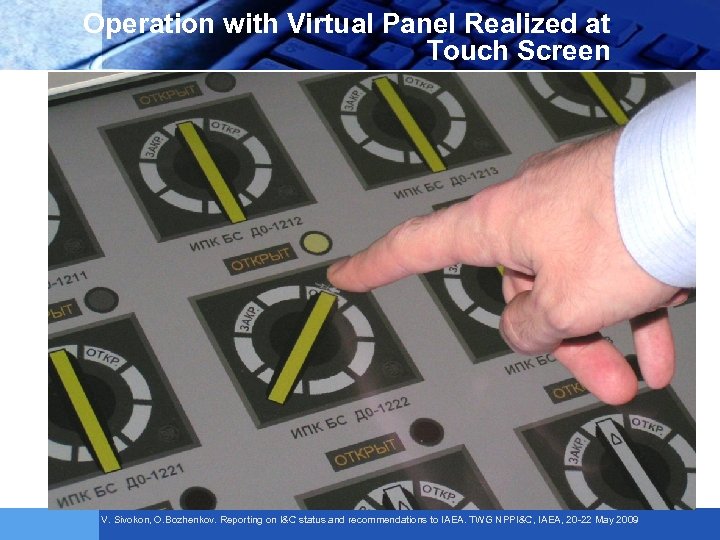

Operation with Virtual Panel Realized at Touch Screen V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

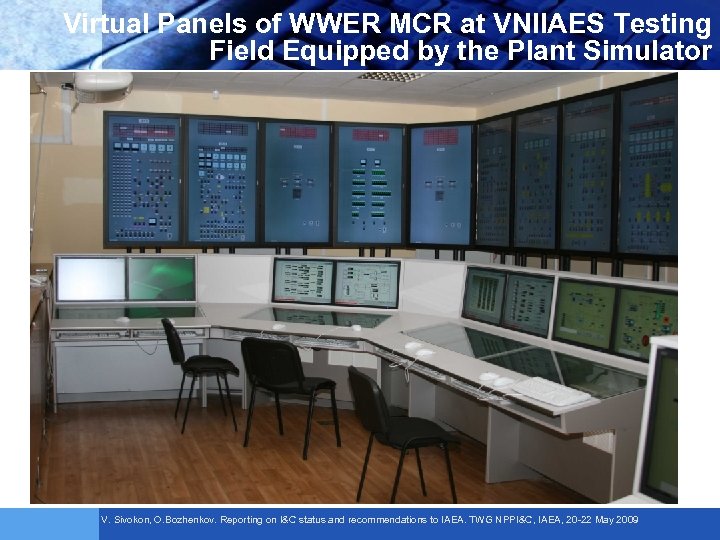

Virtual Panels of WWER MCR at VNIIAES Testing Field Equipped by the Plant Simulator V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

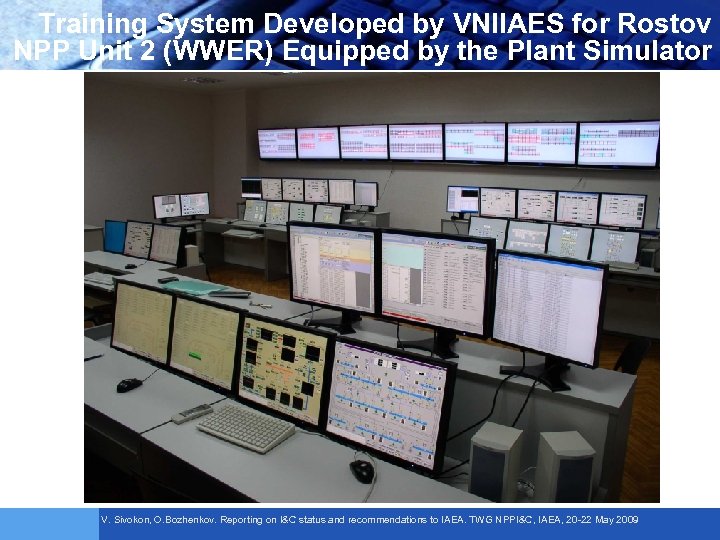

Training System Developed by VNIIAES for Rostov NPP Unit 2 (WWER) Equipped by the Plant Simulator V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

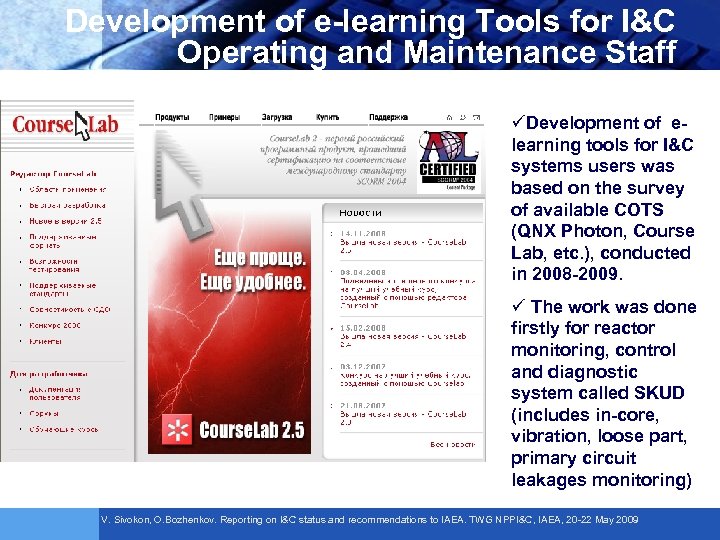

Development of e-learning Tools for I&C Operating and Maintenance Staff üDevelopment of elearning tools for I&C systems users was based on the survey of available COTS (QNX Photon, Course Lab, etc. ), conducted in 2008 -2009. ü The work was done firstly for reactor monitoring, control and diagnostic system called SKUD (includes in-core, vibration, loose part, primary circuit leakages monitoring) V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

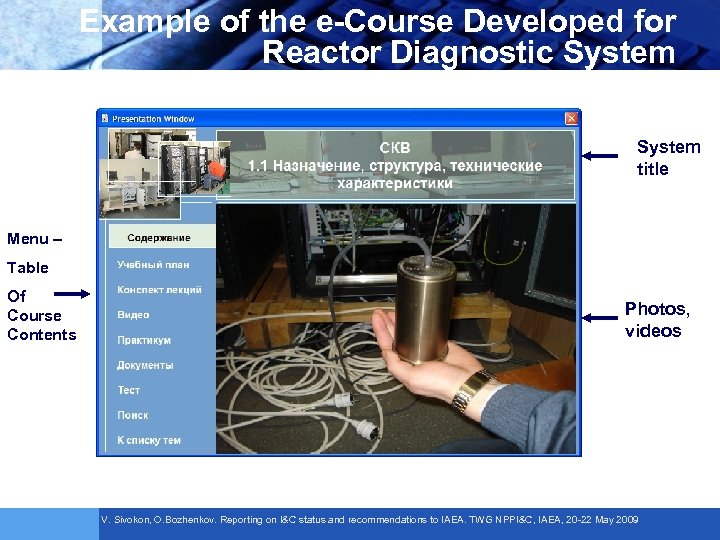

Example of the e-Course Developed for Reactor Diagnostic System title Menu – Table Of Course Contents Photos, videos V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

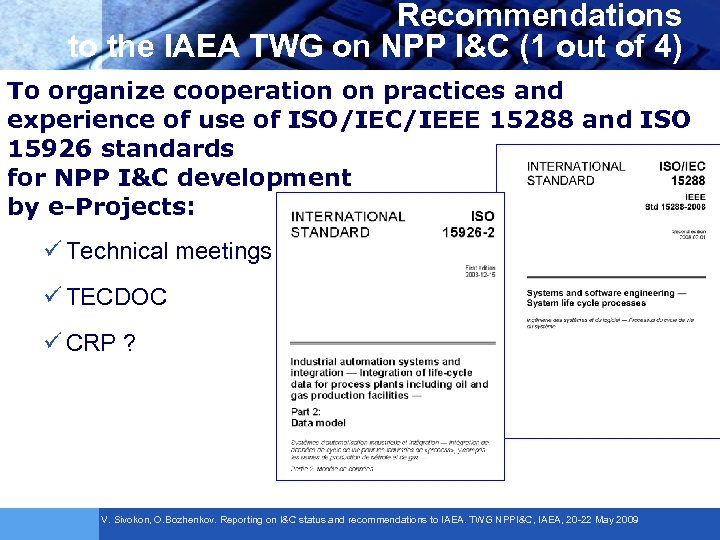

Recommendations to the IAEA TWG on NPP I&C (1 out of 4) To organize cooperation on practices and experience of use of ISO/IEC/IEEE 15288 and ISO 15926 standards for NPP I&C development by e-Projects: ü Technical meetings ü TECDOC ü CRP ? V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

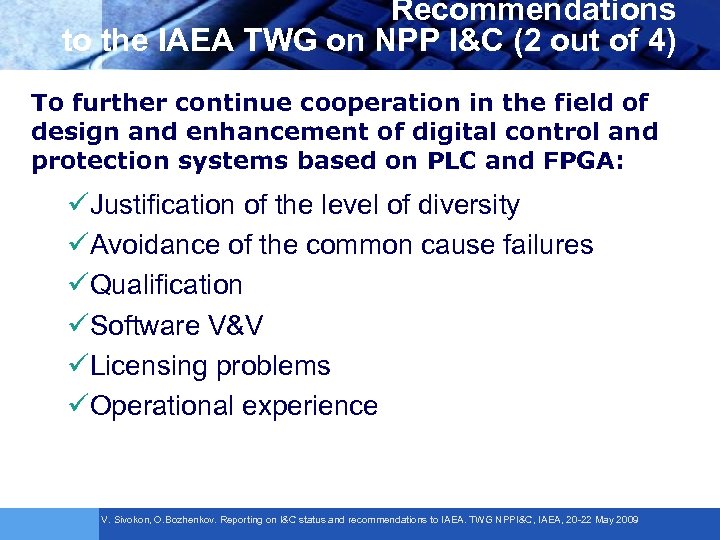

Recommendations to the IAEA TWG on NPP I&C (2 out of 4) To further continue cooperation in the field of design and enhancement of digital control and protection systems based on PLC and FPGA: üJustification of the level of diversity üAvoidance of the common cause failures üQualification üSoftware V&V üLicensing problems üOperational experience V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

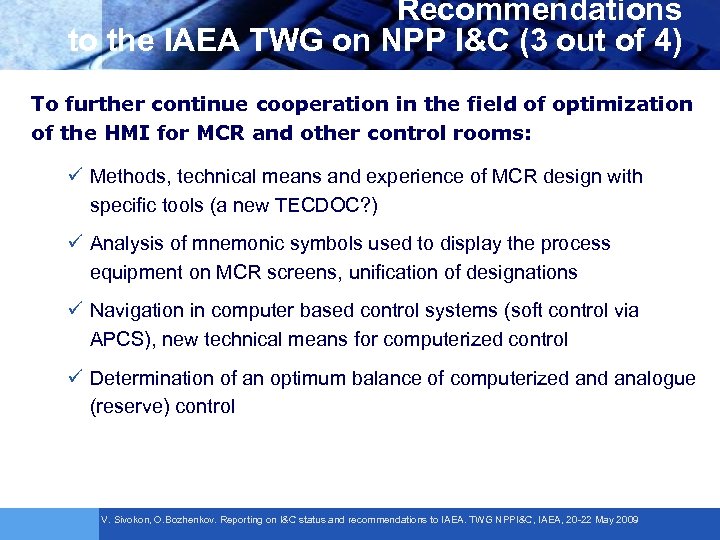

Recommendations to the IAEA TWG on NPP I&C (3 out of 4) To further continue cooperation in the field of optimization of the HMI for MCR and other control rooms: ü Methods, technical means and experience of MCR design with specific tools (a new TECDOC? ) ü Analysis of mnemonic symbols used to display the process equipment on MCR screens, unification of designations ü Navigation in computer based control systems (soft control via APCS), new technical means for computerized control ü Determination of an optimum balance of computerized analogue (reserve) control V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009

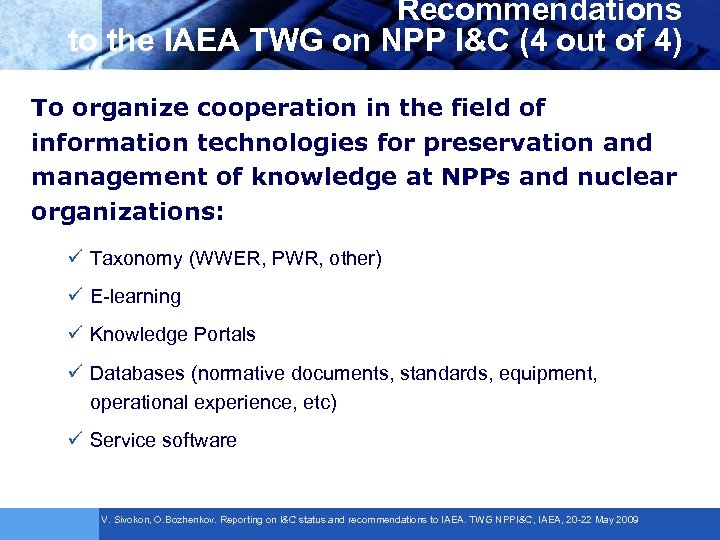

Recommendations to the IAEA TWG on NPP I&C (4 out of 4) To organize cooperation in the field of information technologies for preservation and management of knowledge at NPPs and nuclear organizations: ü Taxonomy (WWER, PWR, other) ü E-learning ü Knowledge Portals ü Databases (normative documents, standards, equipment, operational experience, etc) ü Service software V. Sivokon, O. Bozhenkov. Reporting on I&C status and recommendations to IAEA. TWG NPPI&C, IAEA, 20 -22 May 2009
