REPLUS BATTERY REGEN Technical sales support: electrical products Lode Baert

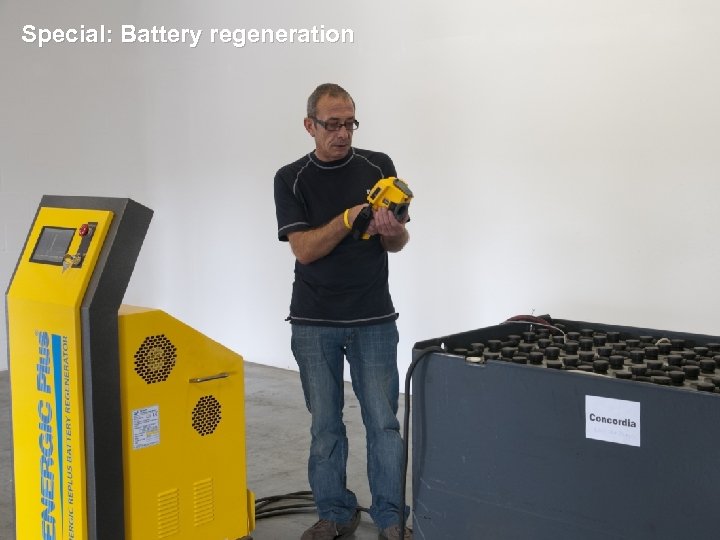

Special: Battery regeneration 2
Special: Battery Regeneration REPLUS Battery regenerator • Removal of excessive sulphate • Prolongs the lifespan of your battery • Gives detailed reports • Fully automatic, easy to handle • Free software included • Wireless data transfer to computer • Combination of charging/discharging • All types of lead-acid-based batteries • Gel batteries • Semi/traction -batteries • starter batteries • … 3

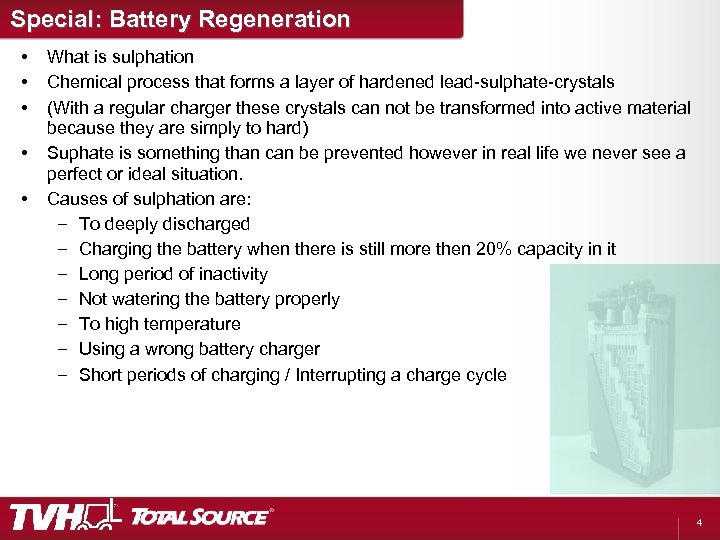

Special: Battery Regeneration • • • What is sulphation Chemical process that forms a layer of hardened lead-sulphate-crystals (With a regular charger these crystals can not be transformed into active material because they are simply to hard) Suphate is something than can be prevented however in real life we never see a perfect or ideal situation. Causes of sulphation are: – To deeply discharged – Charging the battery when there is still more then 20% capacity in it – Long period of inactivity – Not watering the battery properly – To high temperature – Using a wrong battery charger – Short periods of charging / Interrupting a charge cycle 4

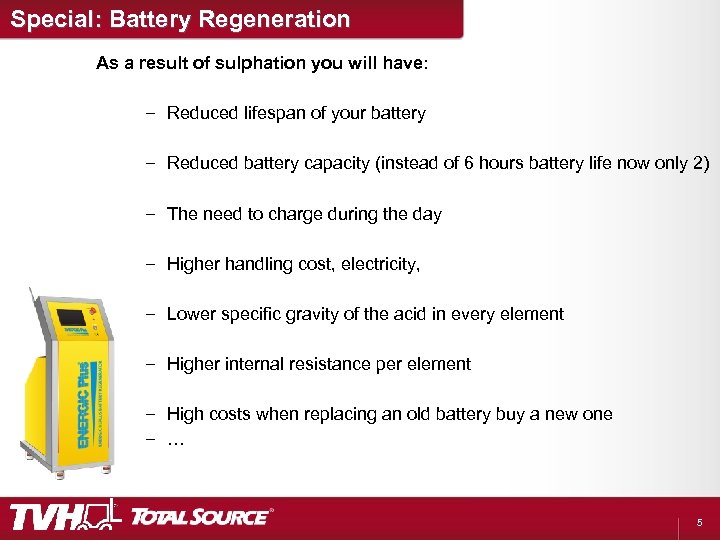

Special: Battery Regeneration As a result of sulphation you will have: – Reduced lifespan of your battery – Reduced battery capacity (instead of 6 hours battery life now only 2) – The need to charge during the day – Higher handling cost, electricity, – Lower specific gravity of the acid in every element – Higher internal resistance per element – High costs when replacing an old battery buy a new one – … 5

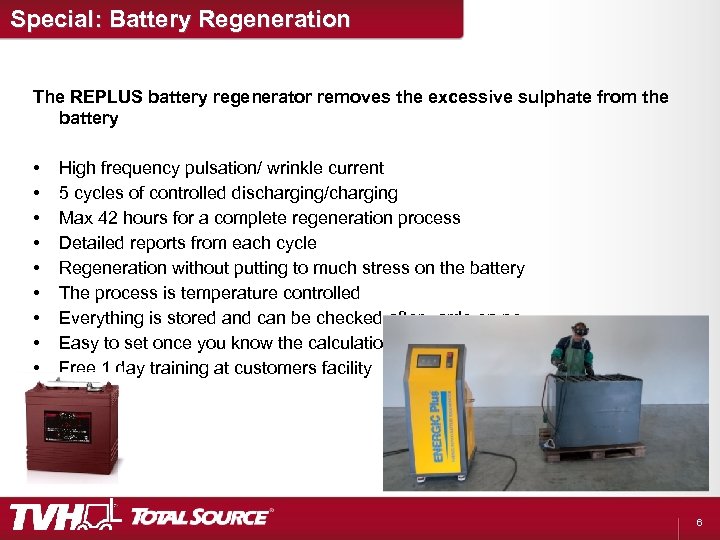

Special: Battery Regeneration The REPLUS battery regenerator removes the excessive sulphate from the battery • • • High frequency pulsation/ wrinkle current 5 cycles of controlled discharging/charging Max 42 hours for a complete regeneration process Detailed reports from each cycle Regeneration without putting to much stress on the battery The process is temperature controlled Everything is stored and can be checked afterwards on pc Easy to set once you know the calculation Free 1 day training at customers facility 6

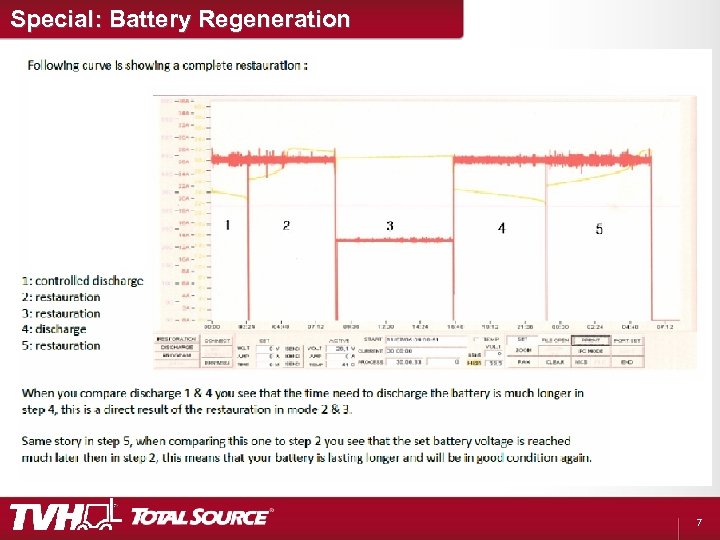

Special: Battery Regeneration 7

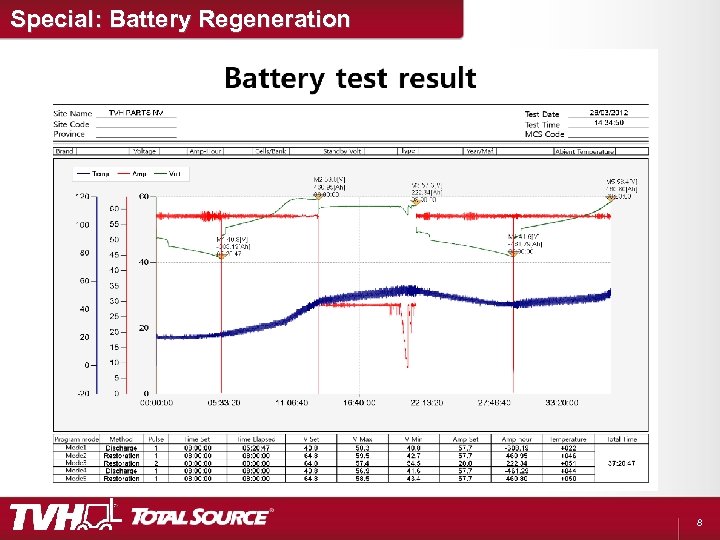

Special: Battery Regeneration 8

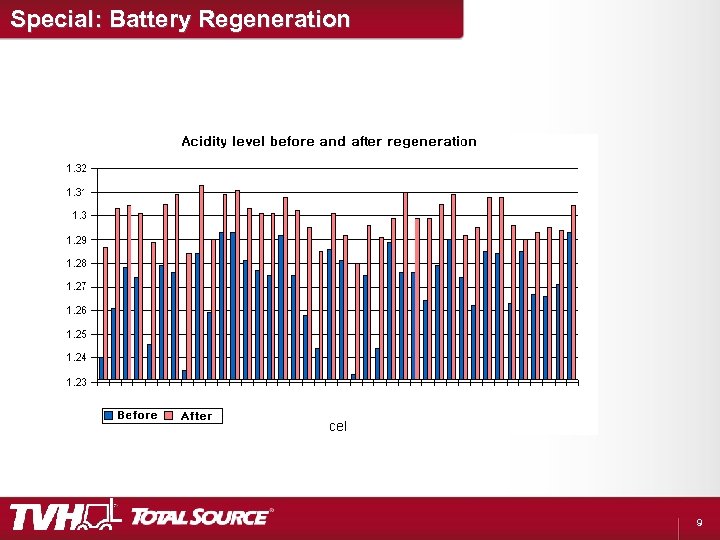

Special: Battery Regeneration 9
Special: Battery Regeneration 10

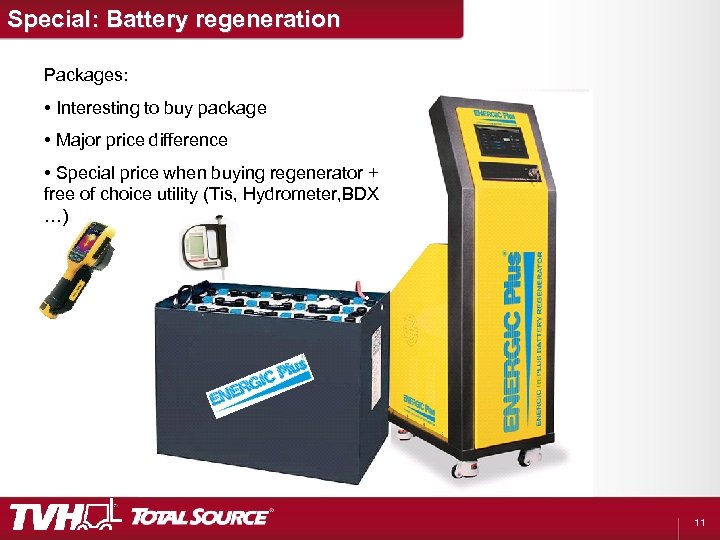

Special: Battery regeneration Packages: • Interesting to buy package • Major price difference • Special price when buying regenerator + free of choice utility (Tis, Hydrometer, BDX …) 11

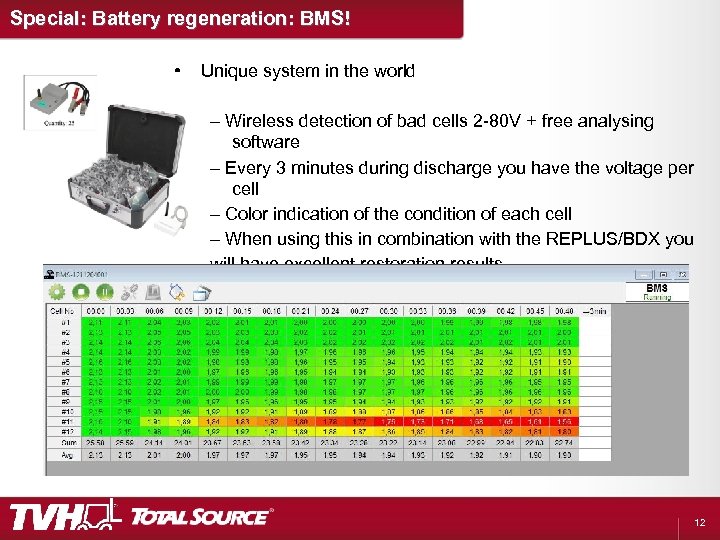

Special: Battery regeneration: BMS! • Unique system in the world – Wireless detection of bad cells 2 -80 V + free analysing software – Every 3 minutes during discharge you have the voltage per cell – Color indication of the condition of each cell – When using this in combination with the REPLUS/BDX you will have excellent restoration results 12
What’s New REF 138 ta 7531 DIGITAL HYDROMETER • Directly temperature compensated • Possibility to export data to your computer (. xls /. csv) • Fast, Easy, Compact, lightweight, one-hand measurement • Large LC display with backlight Specifications • Measuring range: • Density: 0 g/cm³ to 3 g/cm³ • Temperature: 0 °C to 40 °C • Data memory: 1024 measured results • Power supply: Two 1. 5 V alkaline batteries • Dimensions: 140 mm x 138 mm x 27 mm 13

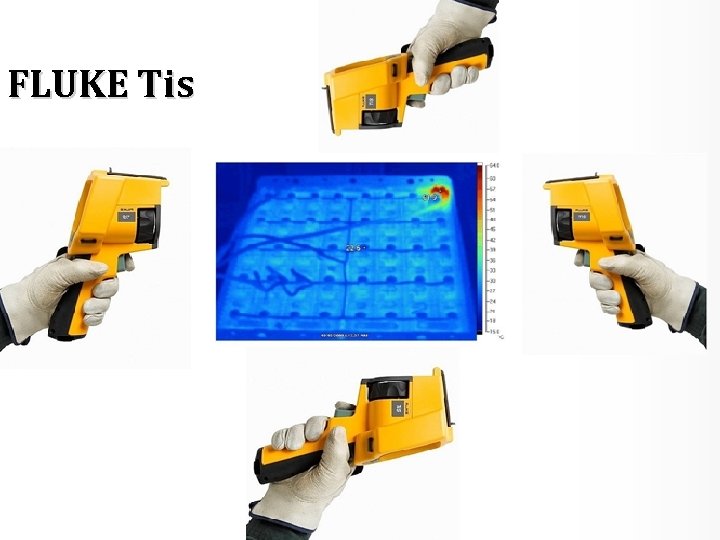

FLUKE Tis 14

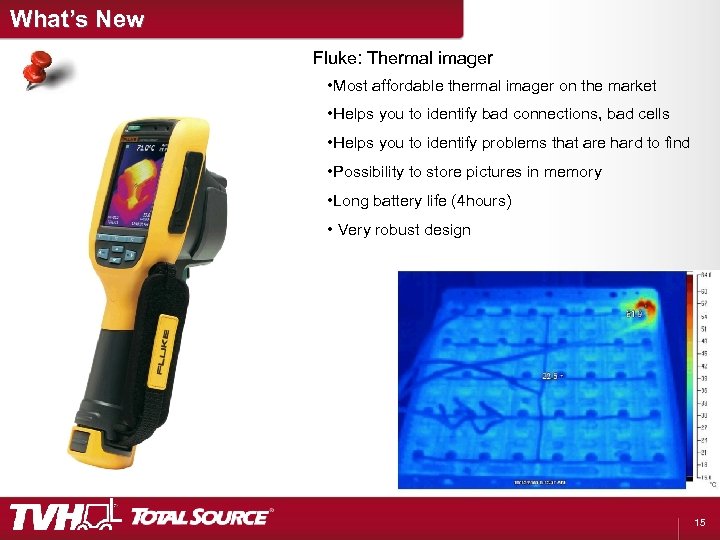

What’s New Fluke: Thermal imager • Most affordable thermal imager on the market • Helps you to identify bad connections, bad cells • Helps you to identify problems that are hard to find • Possibility to store pictures in memory • Long battery life (4 hours) • Very robust design 15
QUESTIONS ? ! 16
