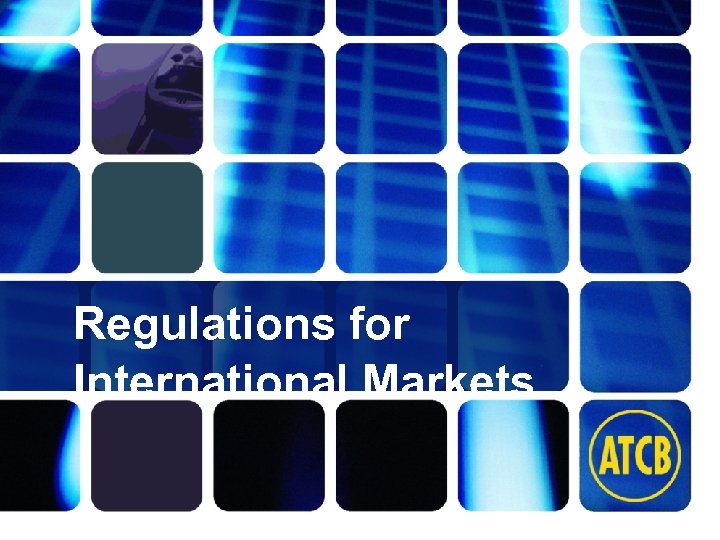

Regulations for International Markets Washington Laboratories (301) 417 -0220 web: www. wll. com 7560 Lindbergh Dr. Gaithersburg, MD 20879

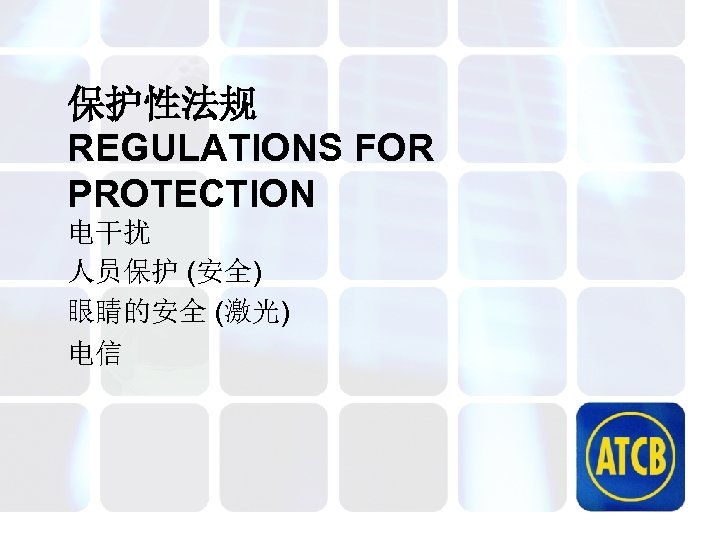

保护性法规 REGULATIONS FOR PROTECTION 电干扰 人员保护 (安全) 眼睛的安全 (激光) 电信

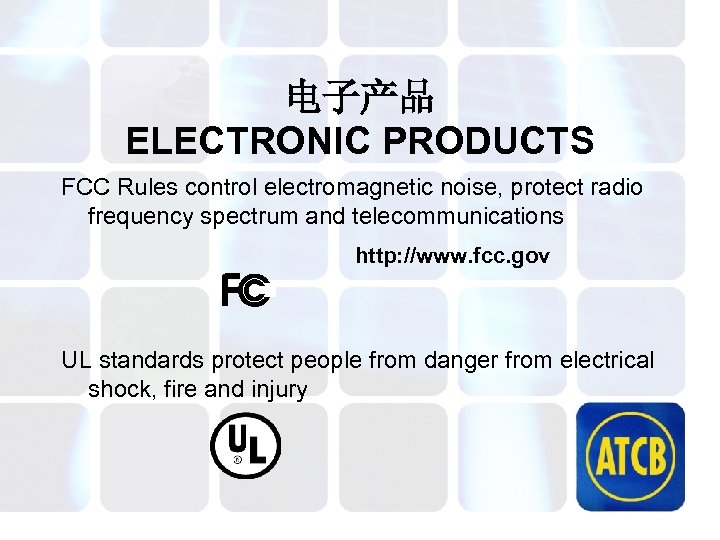

电子产品 ELECTRONIC PRODUCTS FCC Rules control electromagnetic noise, protect radio frequency spectrum and telecommunications http: //www. fcc. gov UL standards protect people from danger from electrical shock, fire and injury

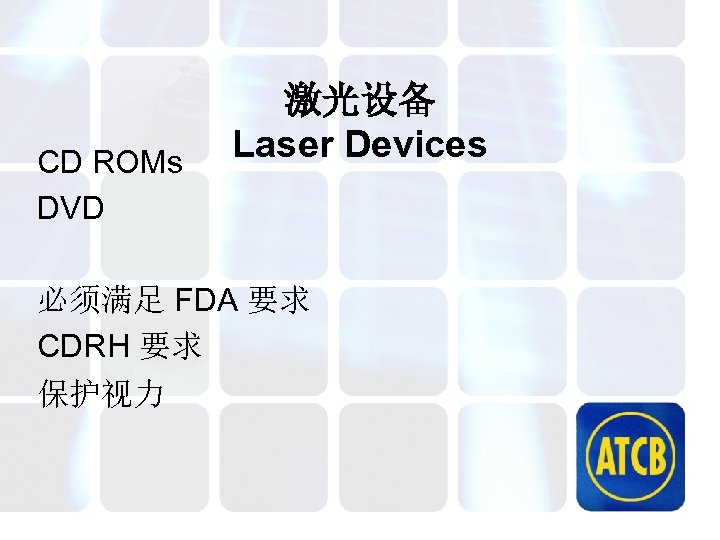

CD ROMs DVD 激光设备 Laser Devices 必须满足 FDA 要求 CDRH 要求 保护视力

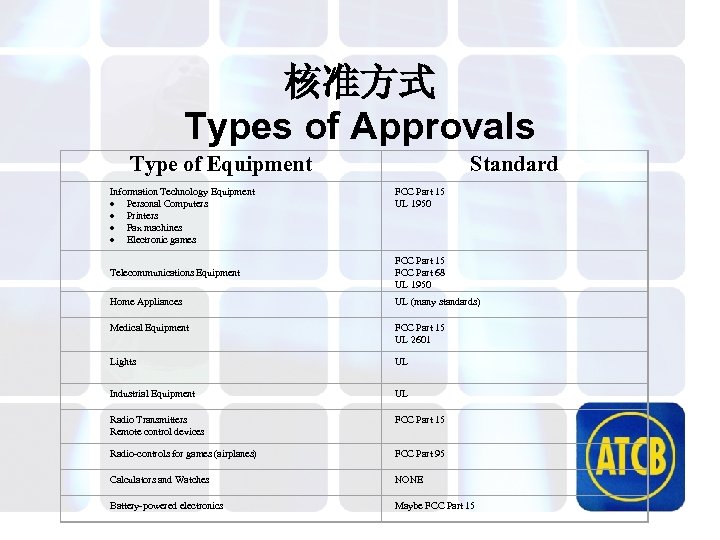

核准方式 Types of Approvals Type of Equipment Information Technology Equipment · Personal Computers · Printers · Fax machines · Electronic games Standard FCC Part 15 UL 1950 Telecommunications Equipment FCC Part 15 FCC Part 68 UL 1950 Home Appliances UL (many standards) Medical Equipment FCC Part 15 UL 2601 Lights UL Industrial Equipment UL Radio Transmitters Remote control devices FCC Part 15 Radio-controls for games (airplanes) FCC Part 95 Calculators and Watches NONE Battery-powered electronics Maybe FCC Part 15

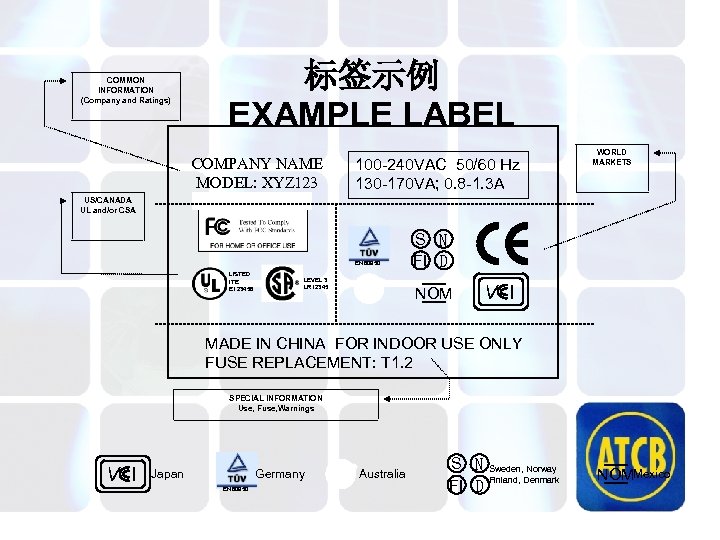

COMMON INFORMATION (Company and Ratings) 标签示例 EXAMPLE LABEL COMPANY NAME MODEL: XYZ 123 100 -240 VAC 50/60 Hz 130 -170 VA; 0. 8 -1. 3 A WORLD MARKETS US/CANADA UL and/or CSA EN 60950 LISTED ITE E 123456 LEVEL 3 LR 12345 S N FI D NOM V I MADE IN CHINA FOR INDOOR USE ONLY FUSE REPLACEMENT: T 1. 2 SPECIAL INFORMATION Use, Fuse, Warnings V I Japan Germany EN 60950 Australia S N FI D Sweden, Norway Finland, Denmark NOMMexico

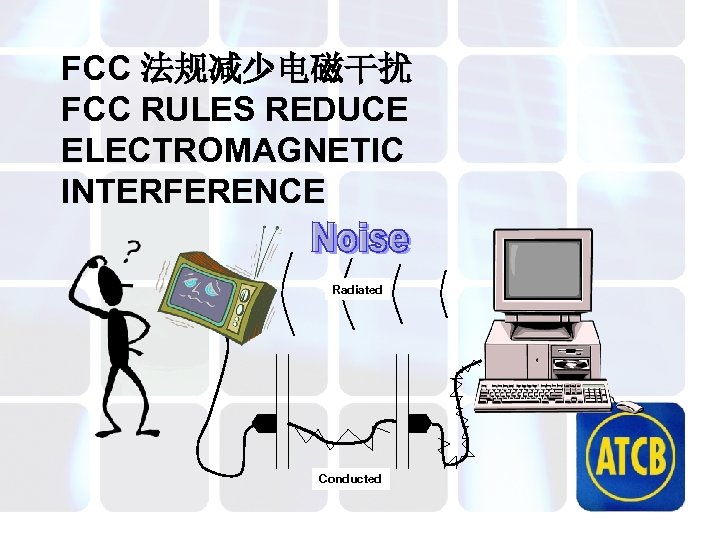

FCC 法规减少电磁干扰 FCC RULES REDUCE ELECTROMAGNETIC INTERFERENCE Radiated Conducted
FCC 管理和保护频谱 FCC CONTROLS AND PROTECTS FREQUENCY SPECTRUM 发射机 对讲机 蜂窝电话 电视 微波炉 卫星接收器 Canada has the same or very similar Technical Specifications

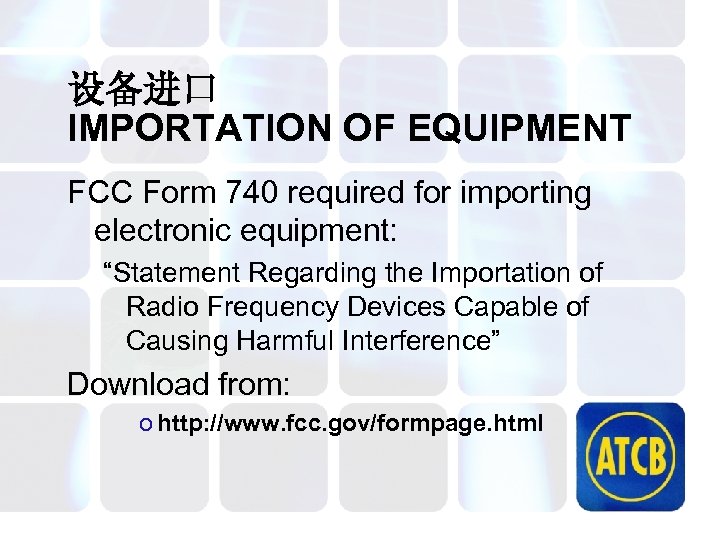

设备进口 IMPORTATION OF EQUIPMENT FCC Form 740 required for importing electronic equipment: “Statement Regarding the Importation of Radio Frequency Devices Capable of Causing Harmful Interference” Download from: o http: //www. fcc. gov/formpage. html

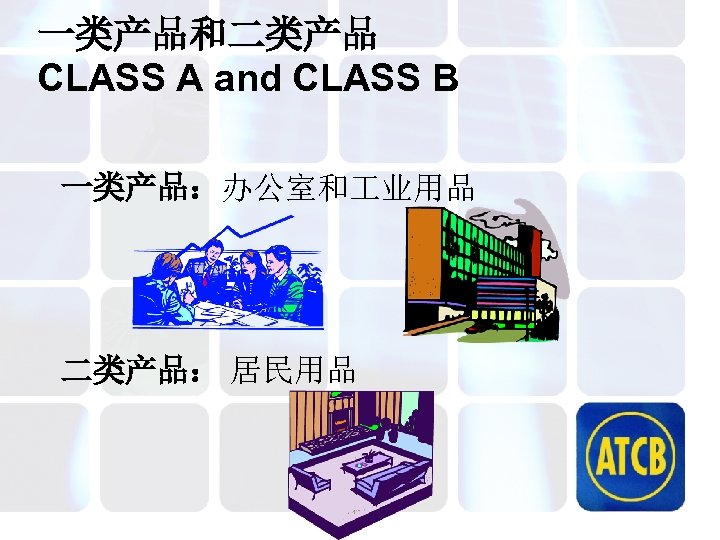

一类产品和二类产品 CLASS A and CLASS B 一类产品：办公室和 业用品 二类产品： 居民用品
电子产品必须满足FCC法规 ELECTRONIC PRODUCTS MUST MEET FCC RULES Examples Personal Computers CD Players Copying machines Radio Receivers Fax machines Video Games Office machines Electronic toys TVs Microwave ovens Class A Products o Test and Report Class B Products: Two Ways o Method #1: Declaration of Conformity o Method #2: Certification

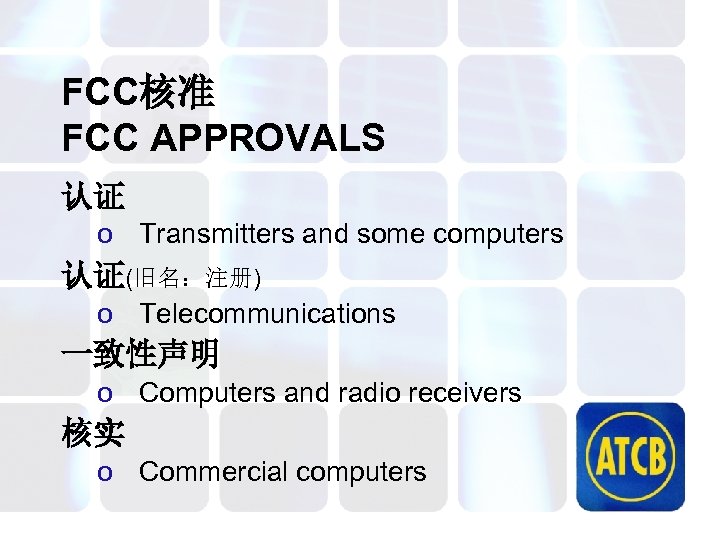

FCC核准 FCC APPROVALS 认证 o Transmitters and some computers 认证(旧名：注册) o Telecommunications 一致性声明 o Computers and radio receivers 核实 o Commercial computers

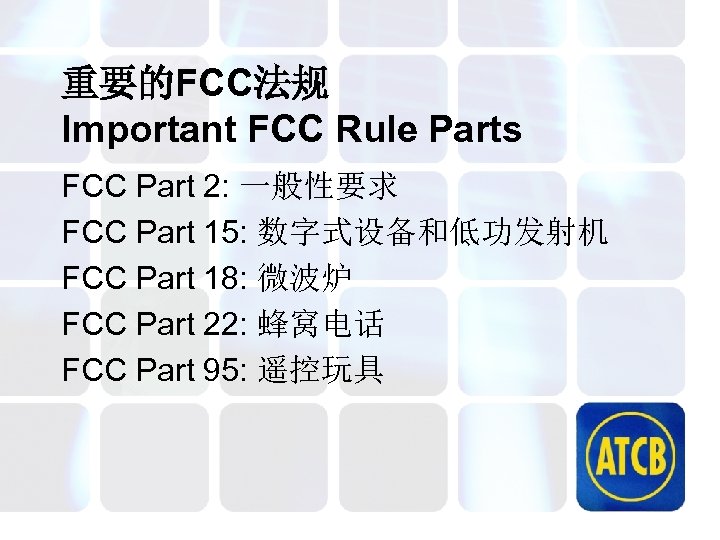

重要的FCC法规 Important FCC Rule Parts FCC Part 2: 一般性要求 FCC Part 15: 数字式设备和低功发射机 FCC Part 18: 微波炉 FCC Part 22: 蜂窝电话 FCC Part 95: 遥控玩具

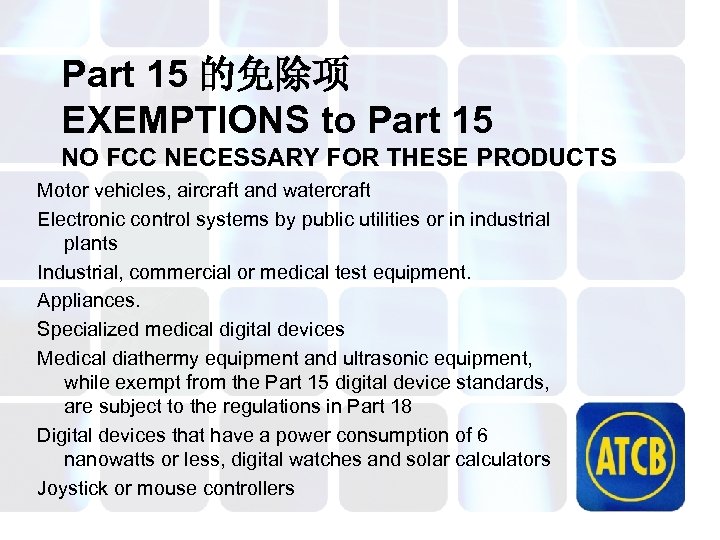

Part 15 的免除项 EXEMPTIONS to Part 15 NO FCC NECESSARY FOR THESE PRODUCTS Motor vehicles, aircraft and watercraft Electronic control systems by public utilities or in industrial plants Industrial, commercial or medical test equipment. Appliances. Specialized medical digital devices Medical diathermy equipment and ultrasonic equipment, while exempt from the Part 15 digital device standards, are subject to the regulations in Part 18 Digital devices that have a power consumption of 6 nanowatts or less, digital watches and solar calculators Joystick or mouse controllers

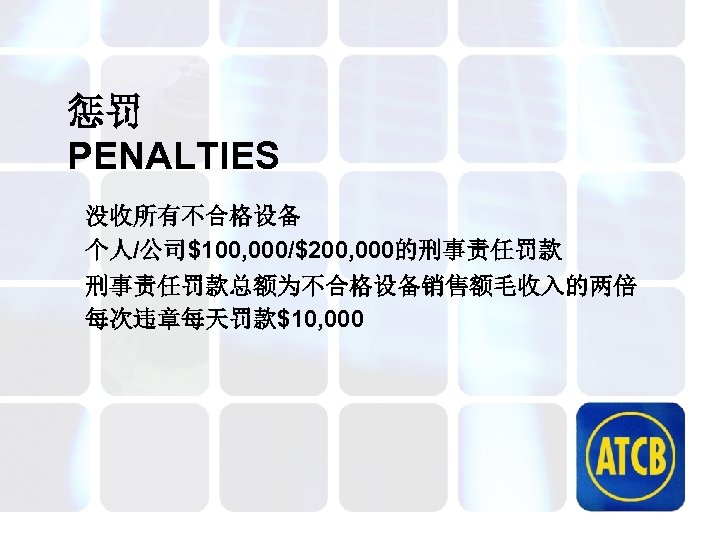

惩罚 PENALTIES 没收所有不合格设备 个人/公司$100, 000/$200, 000的刑事责任罚款总额为不合格设备销售额毛收入的两倍 每次违章每天罚款$10, 000

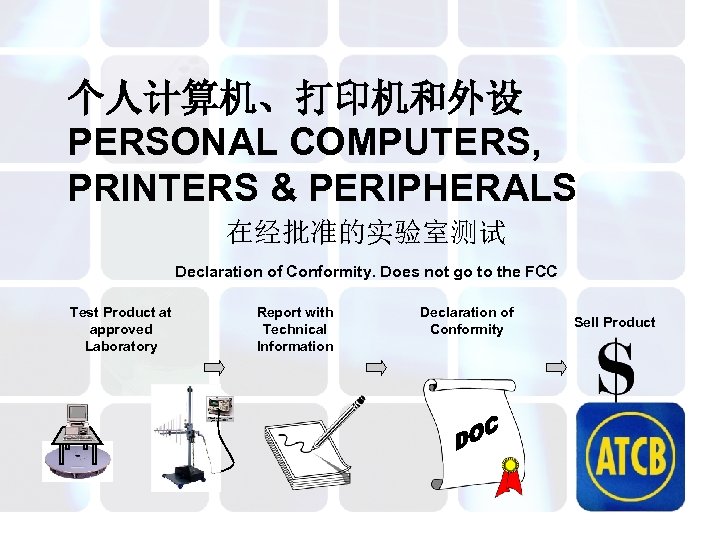

个人计算机、打印机和外设 PERSONAL COMPUTERS, PRINTERS & PERIPHERALS 在经批准的实验室测试 Declaration of Conformity. Does not go to the FCC Test Product at approved Laboratory Report with Technical Information Declaration of Conformity Sell Product

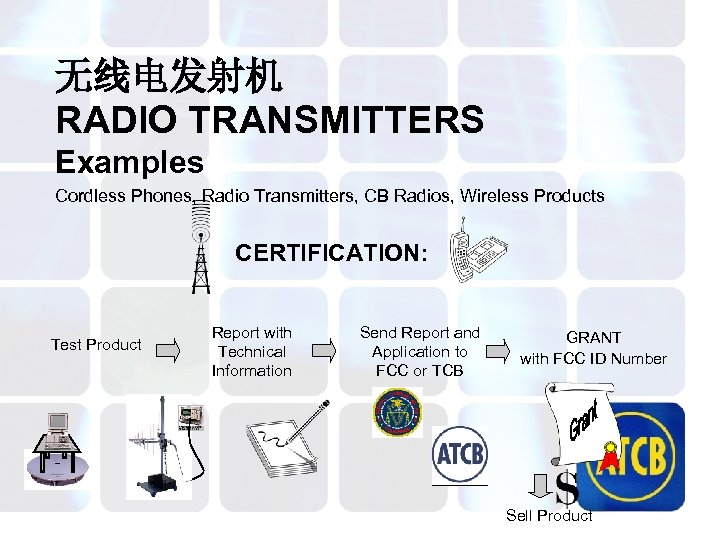

无线电发射机 RADIO TRANSMITTERS Examples Cordless Phones, Radio Transmitters, CB Radios, Wireless Products CERTIFICATION: Test Product Report with Technical Information Send Report and Application to FCC or TCB GRANT with FCC ID Number Sell Product

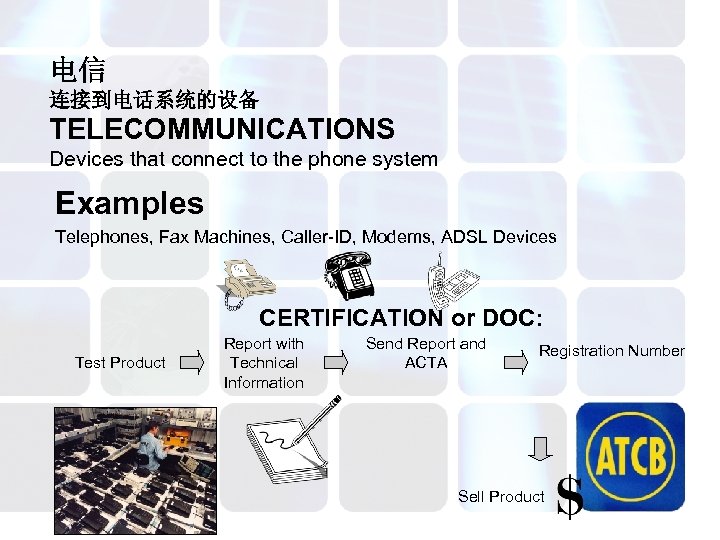

电信 连接到电话系统的设备 TELECOMMUNICATIONS Devices that connect to the phone system Examples Telephones, Fax Machines, Caller-ID, Modems, ADSL Devices CERTIFICATION or DOC: Test Product Report with Technical Information Send Report and ACTA Registration Number Sell Product

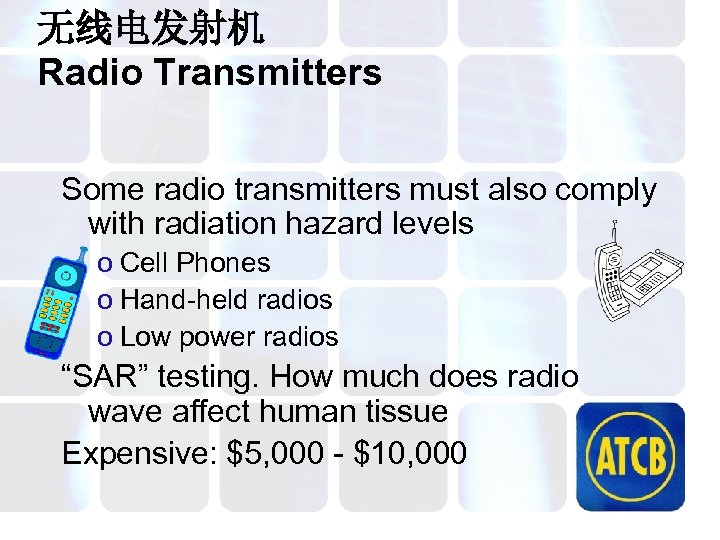

无线电发射机 Radio Transmitters Some radio transmitters must also comply with radiation hazard levels o Cell Phones o Hand-held radios o Low power radios “SAR” testing. How much does radio wave affect human tissue Expensive: $5, 000 - $10, 000

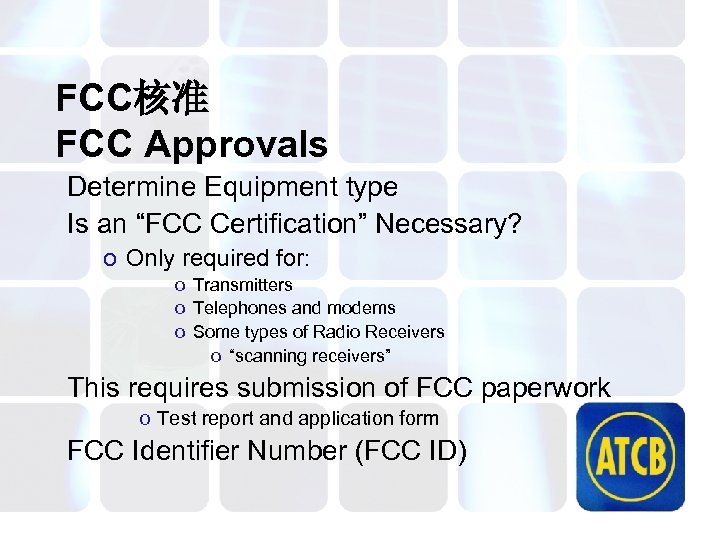

FCC核准 FCC Approvals Determine Equipment type Is an “FCC Certification” Necessary? o Only required for: o Transmitters o Telephones and modems o Some types of Radio Receivers o “scanning receivers” This requires submission of FCC paperwork o Test report and application form FCC Identifier Number (FCC ID)
FCC核准 FCC Approvals FCC Approval is required for: Digital devices: o PCs, computers, fax machines, POS terminals, printers, digital electronics o CLASS A: Computer equipment that is marketed exclusively for use in business and industrial environments is called Class A equipment and requires verification (self approval) by the manufacturer. o CLASS B: Personal computer equipment marketed for use in residential environments is called Class B and requires either certification by the FCC or self-approval under the Declaration of Conformity process

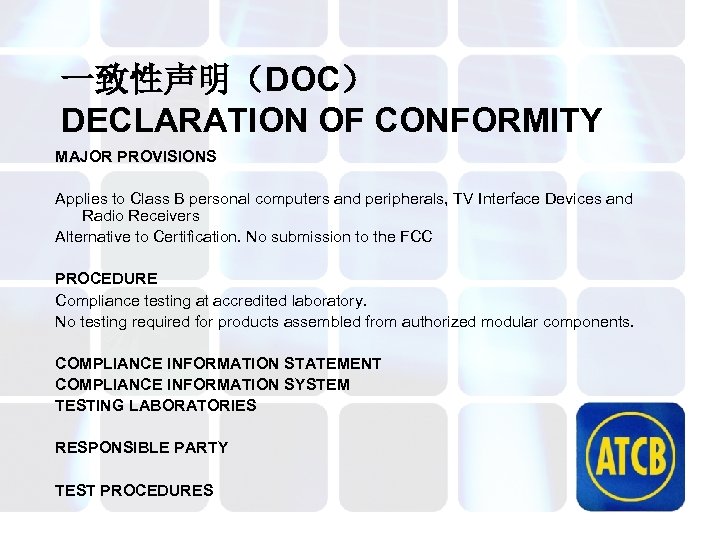

一致性声明（DOC） DECLARATION OF CONFORMITY MAJOR PROVISIONS Applies to Class B personal computers and peripherals, TV Interface Devices and Radio Receivers Alternative to Certification. No submission to the FCC PROCEDURE Compliance testing at accredited laboratory. No testing required for products assembled from authorized modular components. COMPLIANCE INFORMATION STATEMENT COMPLIANCE INFORMATION SYSTEM TESTING LABORATORIES RESPONSIBLE PARTY TEST PROCEDURES
DOC 标签 DOC LABEL Assembled from approved components: System Tested This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The label shall not be a stick-on, paper label. The label shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase. "Permanently affixed" means that the label is etched, engraved, stamped, silkscreened, indelibly printed or otherwise permanently marked on a permanent attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable.
申请认证 CERTIFICATION APPLICATION Cover Letters: o Request for Confidentiality (if desired) o Modifications Test Report from Lab User’s Manual Schematics Block Diagram Test Setup Photographs from Lab Internal/External Photographs by Lab FCC ID Label Artwork: FCC Label Position on Device Operational Description: Attestation Statements (for Transmitters)

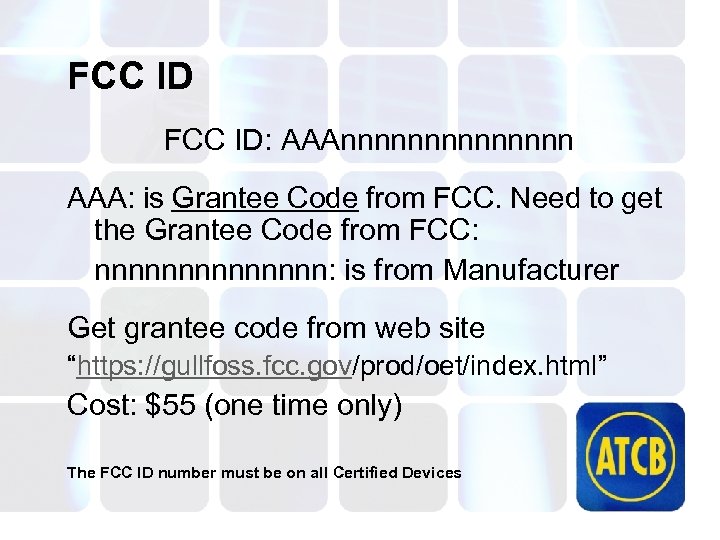

FCC ID: AAAnnnnnnn AAA: is Grantee Code from FCC. Need to get the Grantee Code from FCC: nnnnnnn: is from Manufacturer Get grantee code from web site “https: //gullfoss. fcc. gov/prod/oet/index. html” Cost: $55 (one time only) The FCC ID number must be on all Certified Devices

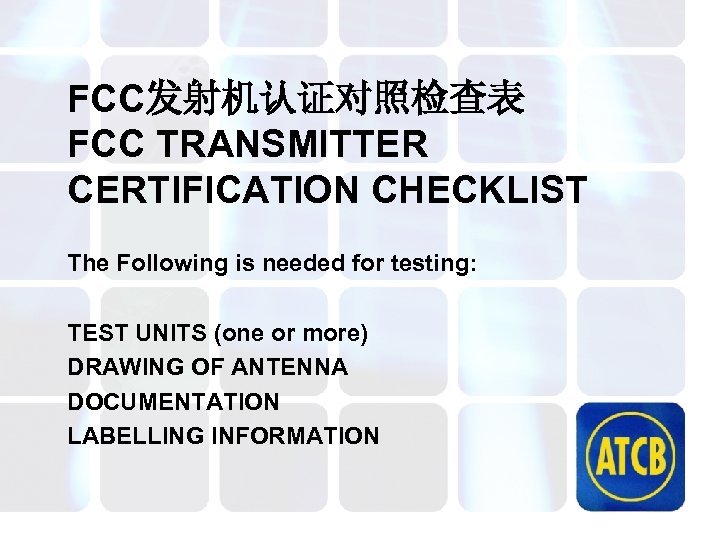

FCC发射机认证对照检查表 FCC TRANSMITTER CERTIFICATION CHECKLIST The Following is needed for testing: TEST UNITS (one or more) DRAWING OF ANTENNA DOCUMENTATION LABELLING INFORMATION

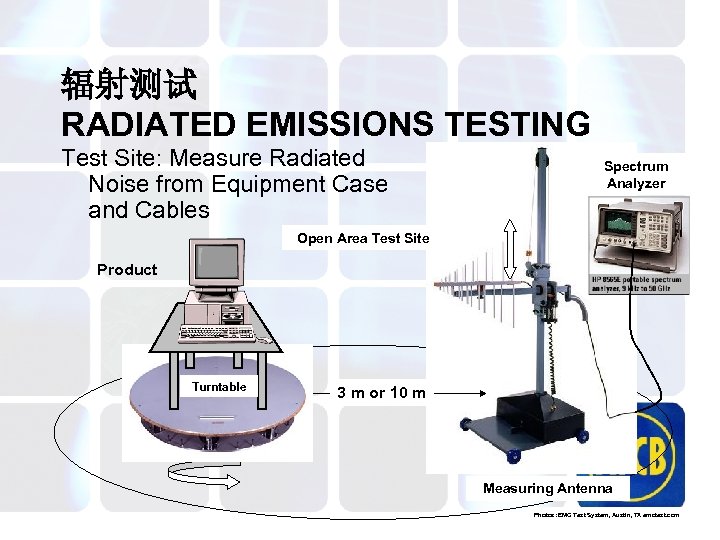

辐射测试 RADIATED EMISSIONS TESTING Test Site: Measure Radiated Noise from Equipment Case and Cables Spectrum Analyzer Open Area Test Site Product Turntable 3 m or 10 m Measuring Antenna Photos: EMC Test System, Austin, TX emctest. com

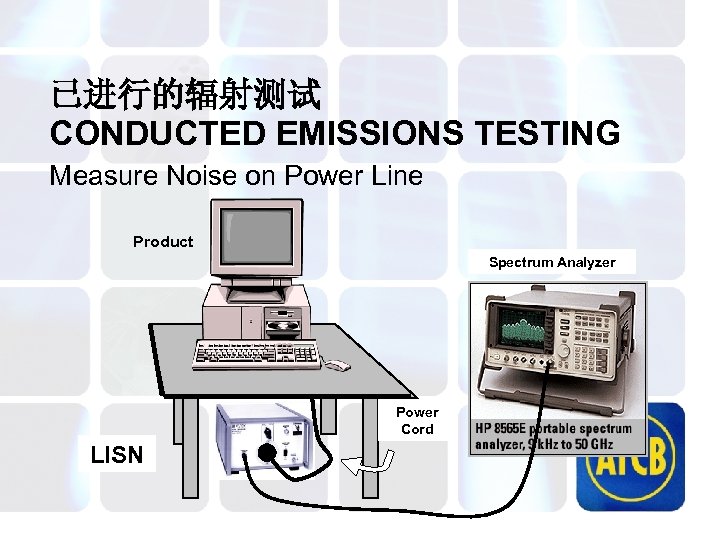

已进行的辐射测试 CONDUCTED EMISSIONS TESTING Measure Noise on Power Line Product Spectrum Analyzer Power Cord LISN

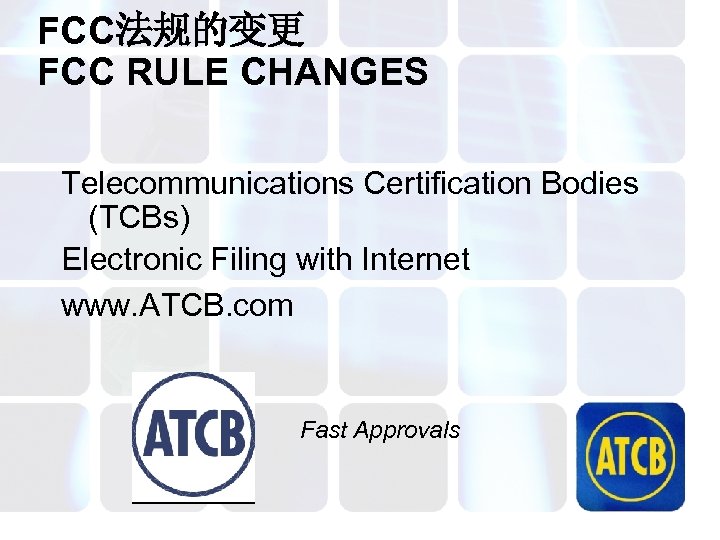

FCC法规的变更 FCC RULE CHANGES Telecommunications Certification Bodies (TCBs) Electronic Filing with Internet www. ATCB. com Fast Approvals

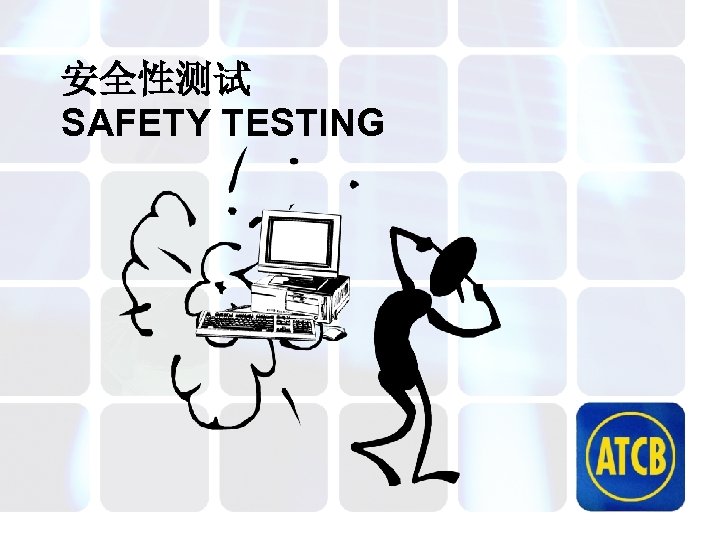

安全性测试 SAFETY TESTING

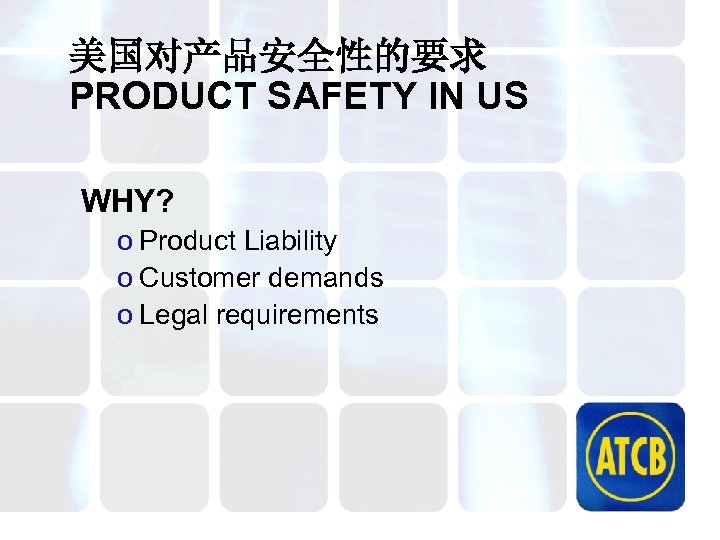

美国对产品安全性的要求 PRODUCT SAFETY IN US WHY? o Product Liability o Customer demands o Legal requirements

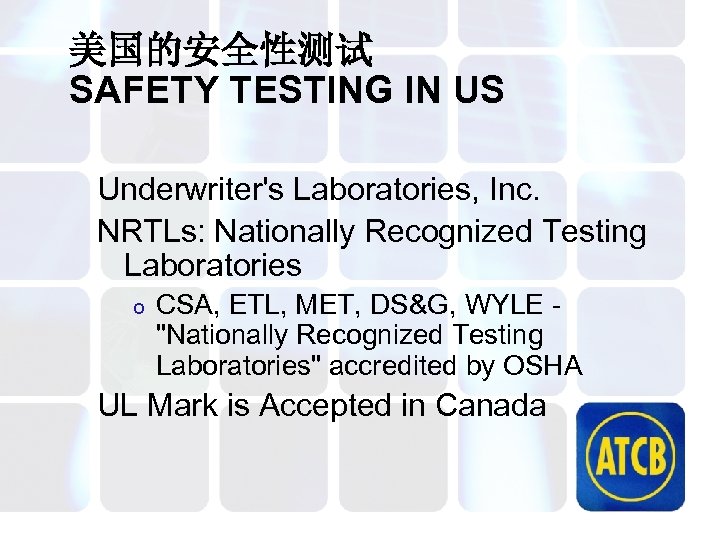

美国的安全性测试 SAFETY TESTING IN US Underwriter's Laboratories, Inc. NRTLs: Nationally Recognized Testing Laboratories o CSA, ETL, MET, DS&G, WYLE - "Nationally Recognized Testing Laboratories" accredited by OSHA UL Mark is Accepted in Canada

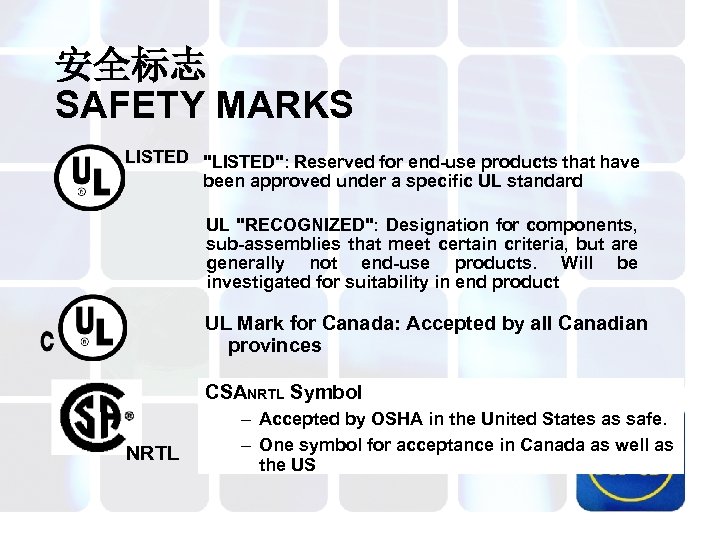

安全标志 SAFETY MARKS LISTED "LISTED": Reserved for end-use products that have been approved under a specific UL standard UL "RECOGNIZED": Designation for components, sub-assemblies that meet certain criteria, but are generally not end-use products. Will be investigated for suitability in end product UL Mark for Canada: Accepted by all Canadian provinces CSANRTL Symbol NRTL – Accepted by OSHA in the United States as safe. – One symbol for acceptance in Canada as well as the US

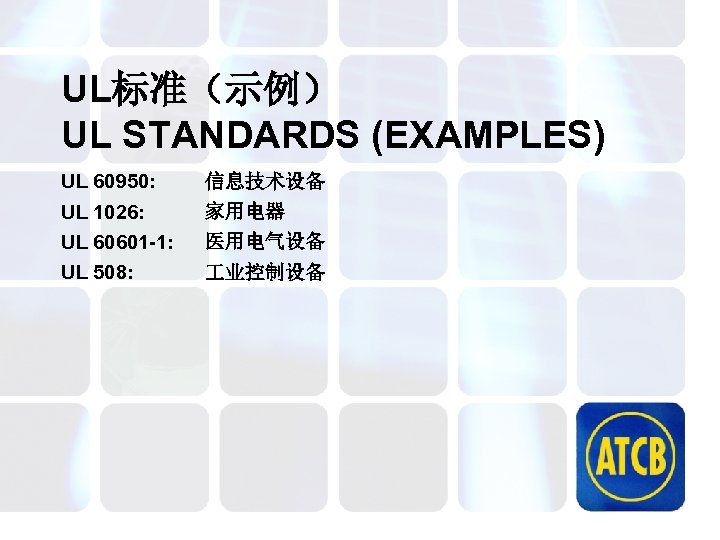

UL标准（示例） UL STANDARDS (EXAMPLES) UL 60950: 信息技术设备 UL 1026: 家用电器 UL 60601 -1: 医用电气设备 UL 508: 业控制设备

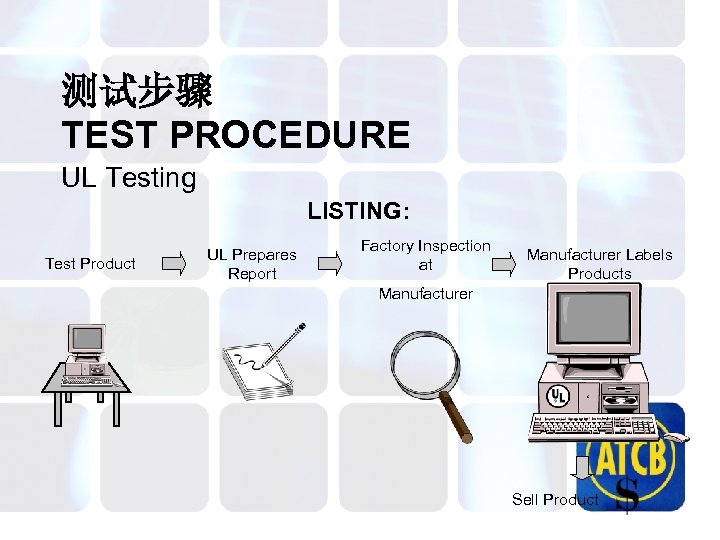

测试步骤 TEST PROCEDURE UL Testing LISTING: Test Product UL Prepares Report Factory Inspection at Manufacturer Labels Products Manufacturer Sell Product
一般性要求 General Requirements Design requirements Labeling and marking Thermal and electrical characteristics Language Abnormal operation User Instructions Connection to the Service Information supply Construction details / physical requirements

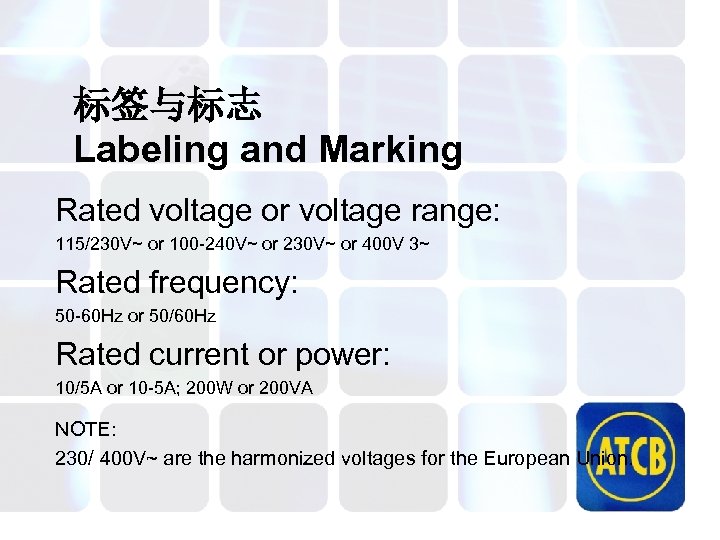

标签与标志 Labeling and Marking Rated voltage or voltage range: 115/230 V~ or 100 -240 V~ or 230 V~ or 400 V 3~ Rated frequency: 50 -60 Hz or 50/60 Hz Rated current or power: 10/5 A or 10 -5 A; 200 W or 200 VA NOTE: 230/ 400 V~ are the harmonized voltages for the European Union.

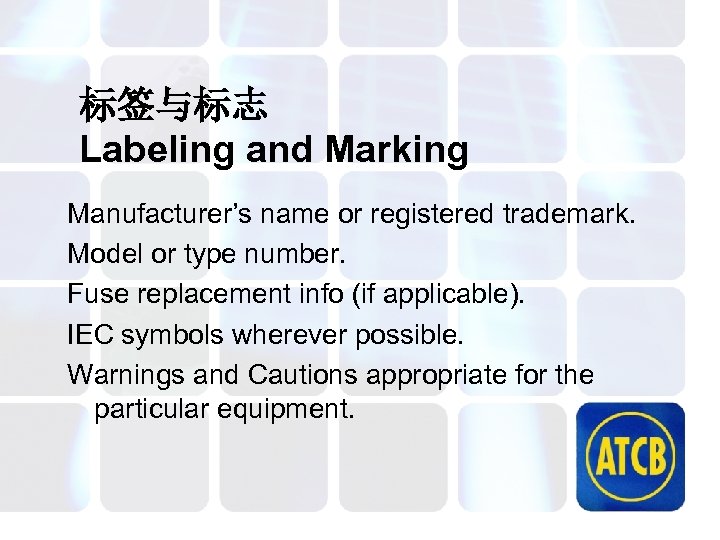

标签与标志 Labeling and Marking Manufacturer’s name or registered trademark. Model or type number. Fuse replacement info (if applicable). IEC symbols wherever possible. Warnings and Cautions appropriate for the particular equipment.

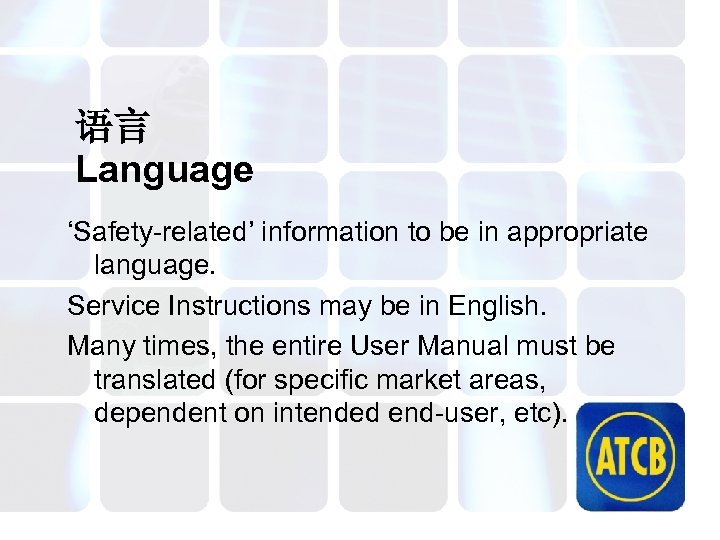

语言 Language ‘Safety-related’ information to be in appropriate language. Service Instructions may be in English. Many times, the entire User Manual must be translated (for specific market areas, dependent on intended end-user, etc).

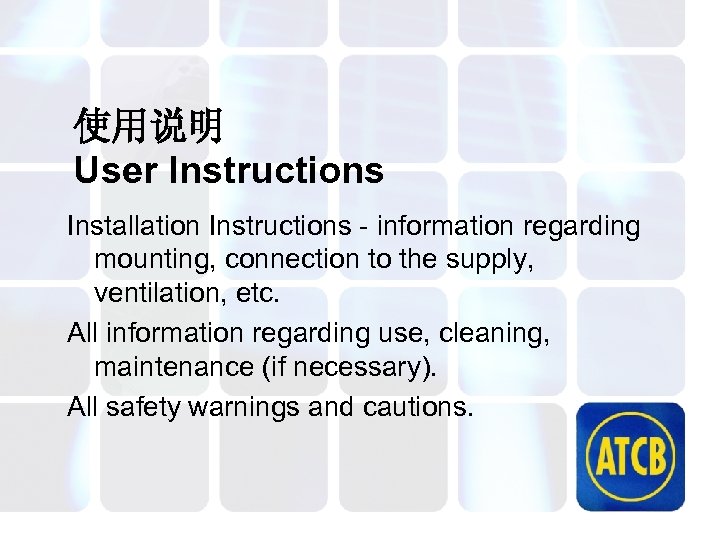

使用说明 User Instructions Installation Instructions - information regarding mounting, connection to the supply, ventilation, etc. All information regarding use, cleaning, maintenance (if necessary). All safety warnings and cautions.

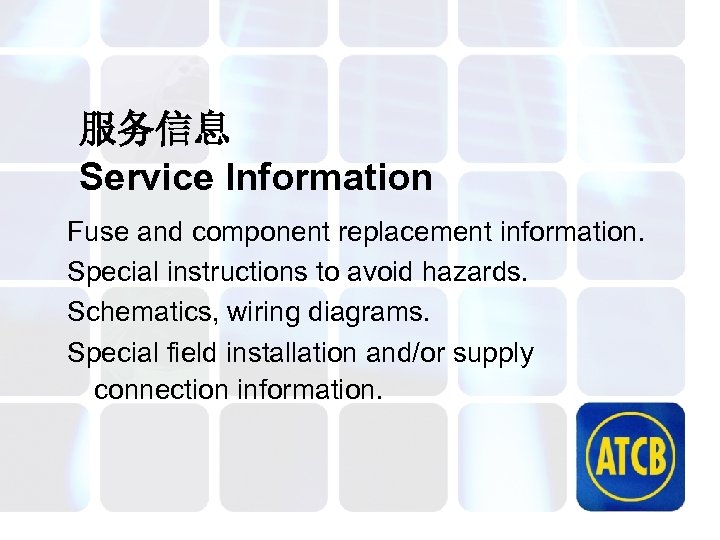

服务信息 Service Information Fuse and component replacement information. Special instructions to avoid hazards. Schematics, wiring diagrams. Special field installation and/or supply connection information.
不正常的操作 Abnormal Operation “None of the following conditions shall create a hazard within the meaning of the Standard: ” Fan Fail Transformer Overload Component Short- and Open-circuits Failure of unapproved Thermal Limiting device. Locked Rotor. and others, depending upon equipment.

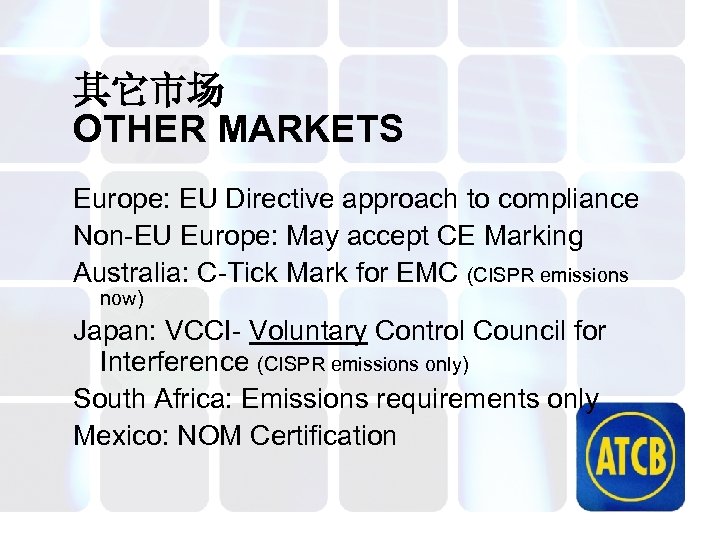

其它市场 OTHER MARKETS Europe: EU Directive approach to compliance Non-EU Europe: May accept CE Marking Australia: C-Tick Mark for EMC (CISPR emissions now) Japan: VCCI- Voluntary Control Council for Interference (CISPR emissions only) South Africa: Emissions requirements only Mexico: NOM Certification

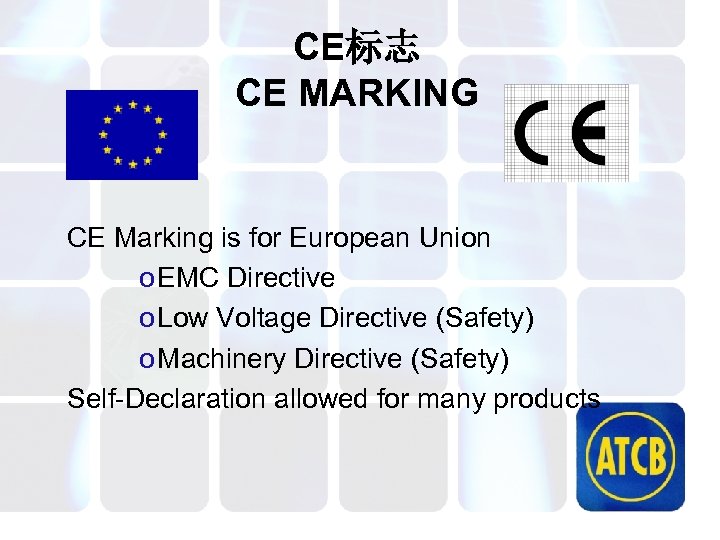

CE标志 CE MARKING CE Marking is for European Union o EMC Directive o Low Voltage Directive (Safety) o Machinery Directive (Safety) Self-Declaration allowed for many products

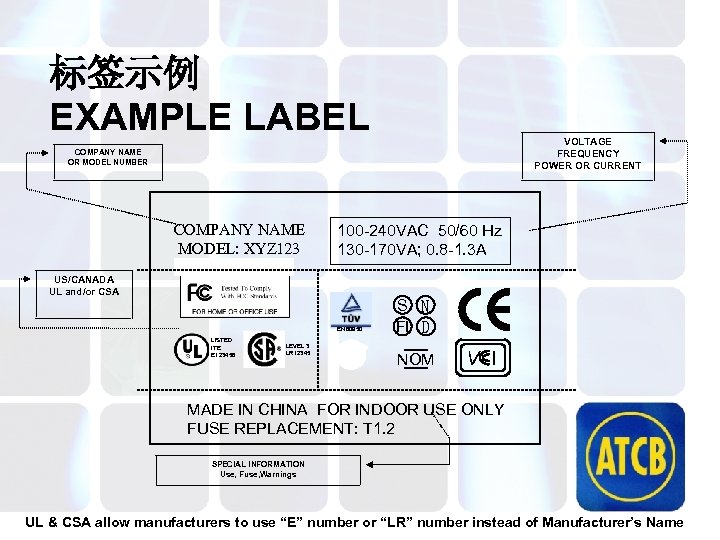

标签示例 EXAMPLE LABEL VOLTAGE FREQUENCY POWER OR CURRENT COMPANY NAME OR MODEL NUMBER COMPANY NAME MODEL: XYZ 123 100 -240 VAC 50/60 Hz 130 -170 VA; 0. 8 -1. 3 A US/CANADA UL and/or CSA EN 60950 LISTED ITE E 123456 LEVEL 3 LR 12345 S N FI D NOM V I MADE IN CHINA FOR INDOOR USE ONLY FUSE REPLACEMENT: T 1. 2 SPECIAL INFORMATION Use, Fuse, Warnings UL & CSA allow manufacturers to use “E” number or “LR” number instead of Manufacturer’s Name

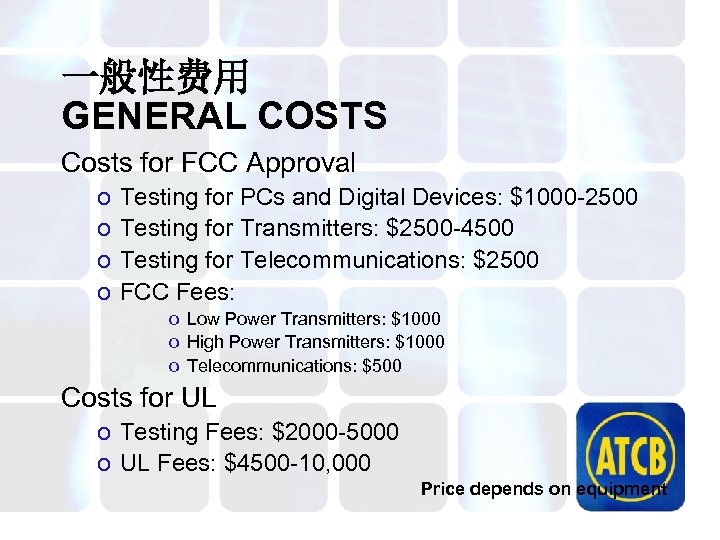

一般性费用 GENERAL COSTS Costs for FCC Approval o o Testing for PCs and Digital Devices: $1000 -2500 Testing for Transmitters: $2500 -4500 Testing for Telecommunications: $2500 FCC Fees: o Low Power Transmitters: $1000 o High Power Transmitters: $1000 o Telecommunications: $500 Costs for UL o Testing Fees: $2000 -5000 o UL Fees: $4500 -10, 000 Price depends on equipment

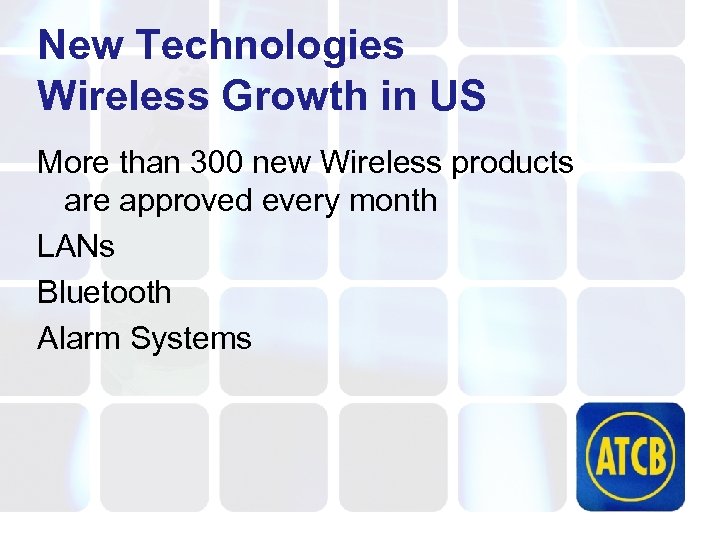

New Technologies Wireless Growth in US More than 300 new Wireless products are approved every month LANs Bluetooth Alarm Systems
US Electronics Industry $550 B Industry $200 B~Export Industry in 2001 Telecom export market ~$4. 5 B

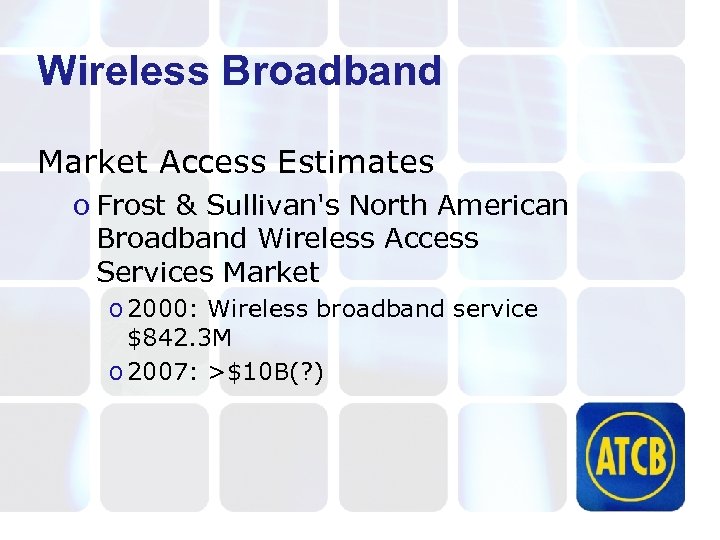

Wireless Broadband Market Access Estimates o Frost & Sullivan's North American Broadband Wireless Access Services Market o 2000: Wireless broadband service $842. 3 M o 2007: >$10 B(? )

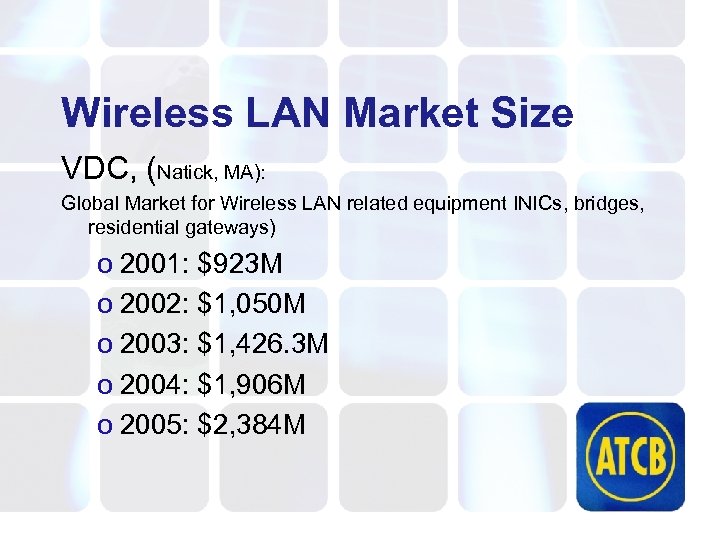

Wireless LAN Market Size VDC, (Natick, MA): Global Market for Wireless LAN related equipment INICs, bridges, residential gateways) o 2001: $923 M o 2002: $1, 050 M o 2003: $1, 426. 3 M o 2004: $1, 906 M o 2005: $2, 384 M

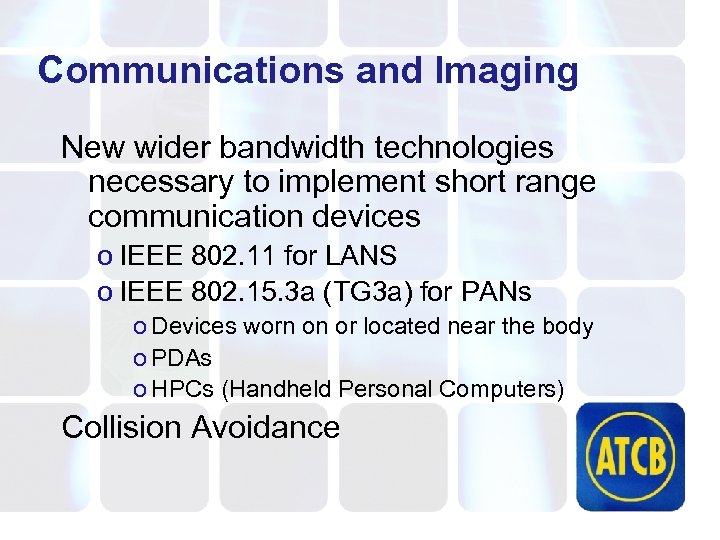

Communications and Imaging New wider bandwidth technologies necessary to implement short range communication devices o IEEE 802. 11 for LANS o IEEE 802. 15. 3 a (TG 3 a) for PANs o Devices worn on or located near the body o PDAs o HPCs (Handheld Personal Computers) Collision Avoidance

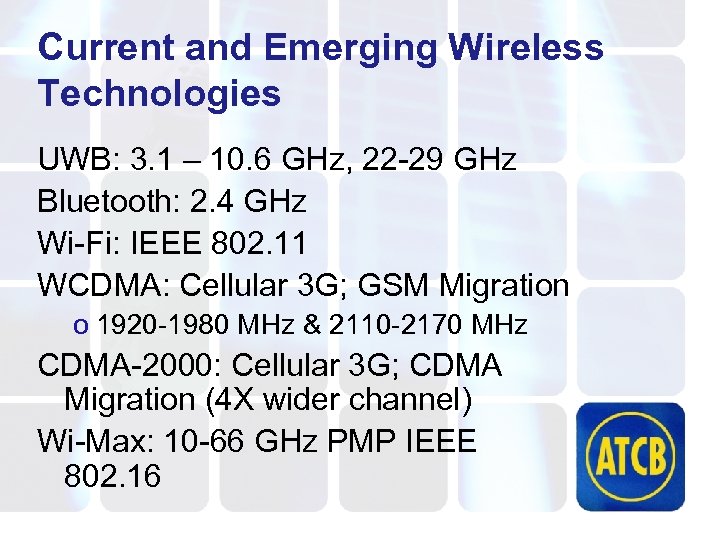

Current and Emerging Wireless Technologies UWB: 3. 1 – 10. 6 GHz, 22 -29 GHz Bluetooth: 2. 4 GHz Wi-Fi: IEEE 802. 11 WCDMA: Cellular 3 G; GSM Migration o 1920 -1980 MHz & 2110 -2170 MHz CDMA-2000: Cellular 3 G; CDMA Migration (4 X wider channel) Wi-Max: 10 -66 GHz PMP IEEE 802. 16
What’s the Trend? Market Potential for Wireless Technologies Growth Rates of Chipsets 2003 -2008 by Technology

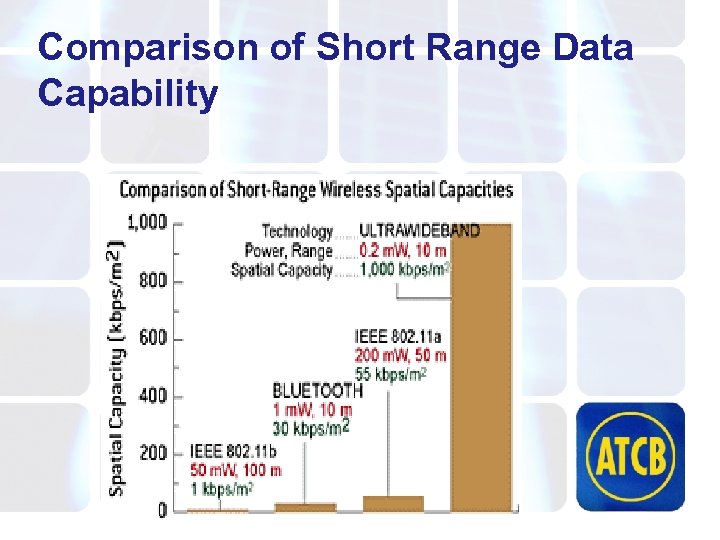

Comparison of Short Range Data Capability

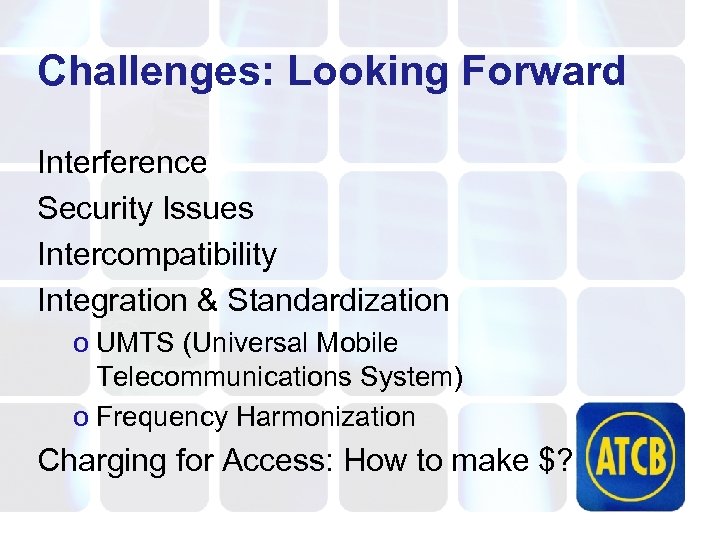

Challenges: Looking Forward Interference Security Issues Intercompatibility Integration & Standardization o UMTS (Universal Mobile Telecommunications System) o Frequency Harmonization Charging for Access: How to make $?
