Real-Time Remote Control of a Scanning Electron Microscope

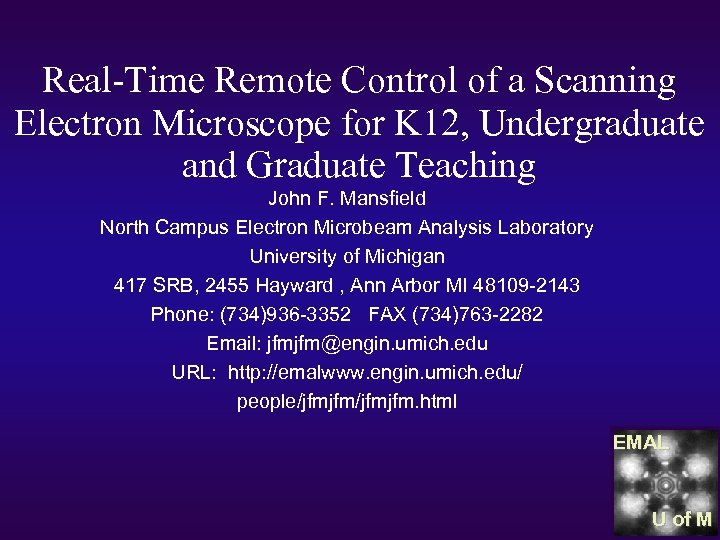

Real-Time Remote Control of a Scanning Electron Microscope for K 12, Undergraduate and Graduate Teaching John F. Mansfield North Campus Electron Microbeam Analysis Laboratory University of Michigan 417 SRB, 2455 Hayward , Ann Arbor MI 48109 -2143 Phone: (734)936 -3352 FAX (734)763 -2282 Email: [email protected] umich. edu URL: http: //emalwww. engin. umich. edu/ people/jfmjfm. html EMAL U of M

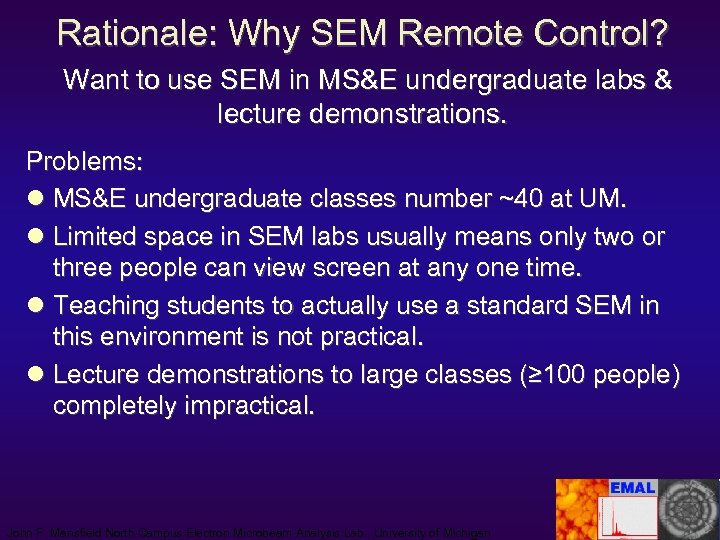

Rationale: Why SEM Remote Control? Want to use SEM in MS&E undergraduate labs & lecture demonstrations. Problems: MS&E undergraduate classes number ~40 at UM. Limited space in SEM labs usually means only two or three people can view screen at any one time. Teaching students to actually use a standard SEM in this environment is not practical. Lecture demonstrations to large classes (≥ 100 people) completely impractical. John F. Mansfield North Campus Electron Microbeam Analysis Lab. , University of Michigan

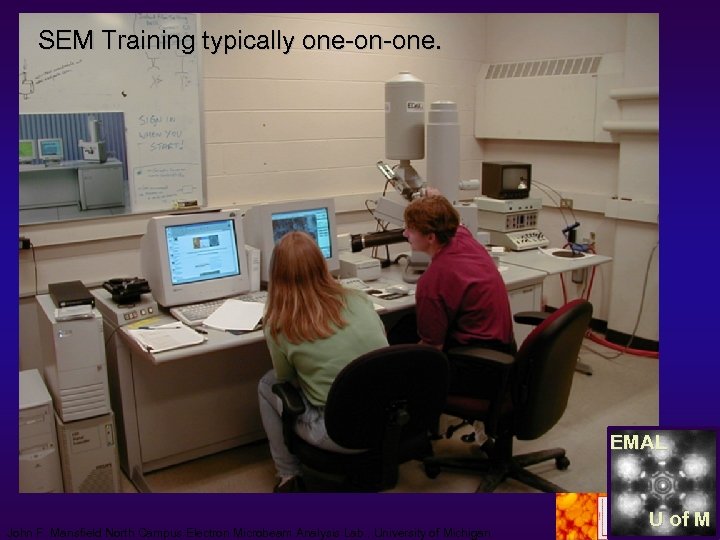

SEM Training typically one-on-one. EMAL John F. Mansfield North Campus Electron Microbeam Analysis Lab. , University of Michigan U of M

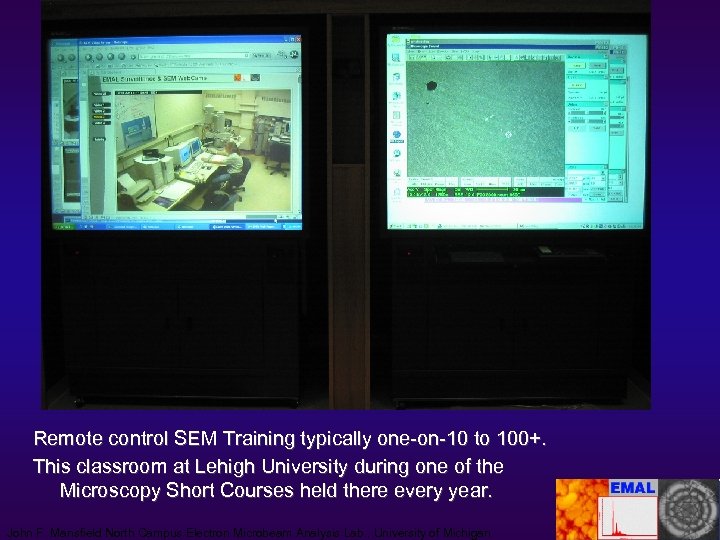

Remote control SEM Training typically one-on-10 to 100+. This classroom at Lehigh University during one of the Microscopy Short Courses held there every year. John F. Mansfield North Campus Electron Microbeam Analysis Lab. , University of Michigan

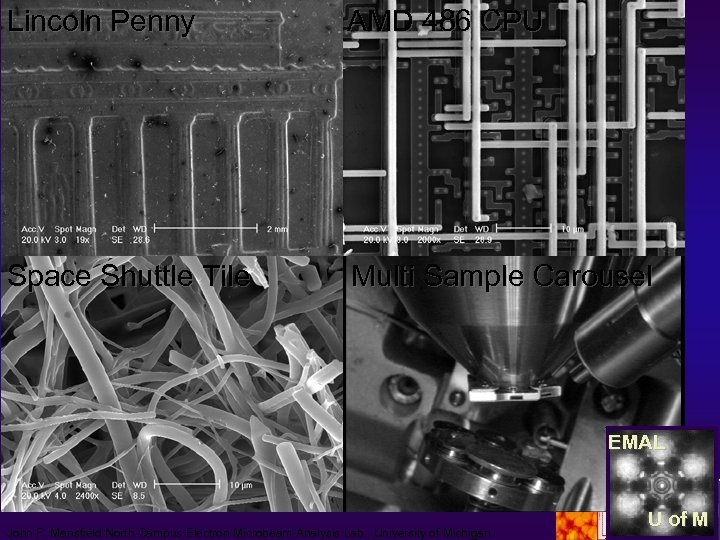

Lincoln Penny AMD 486 CPU Space Shuttle Tile Multi Sample Carousel EMAL John F. Mansfield North Campus Electron Microbeam Analysis Lab. , University of Michigan U of M

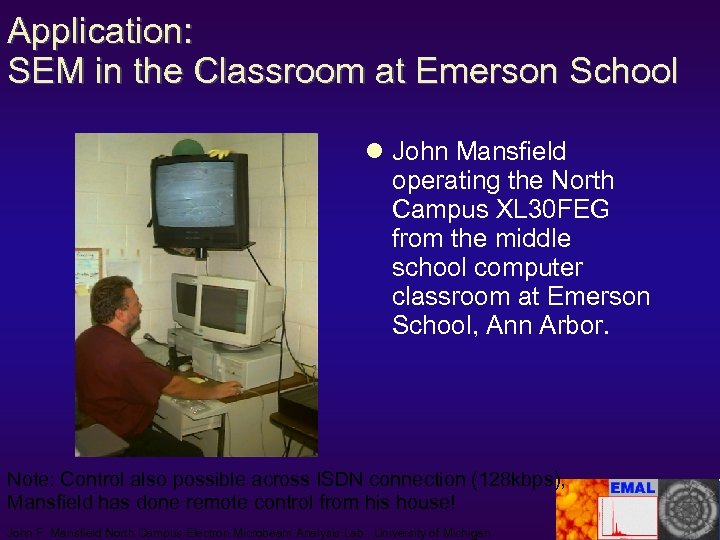

Application: SEM in the Classroom at Emerson School John Mansfield operating the North Campus XL 30 FEG from the middle school computer classroom at Emerson School, Ann Arbor. Note: Control also possible across ISDN connection (128 kbps), Mansfield has done remote control from his house! John F. Mansfield North Campus Electron Microbeam Analysis Lab. , University of Michigan
