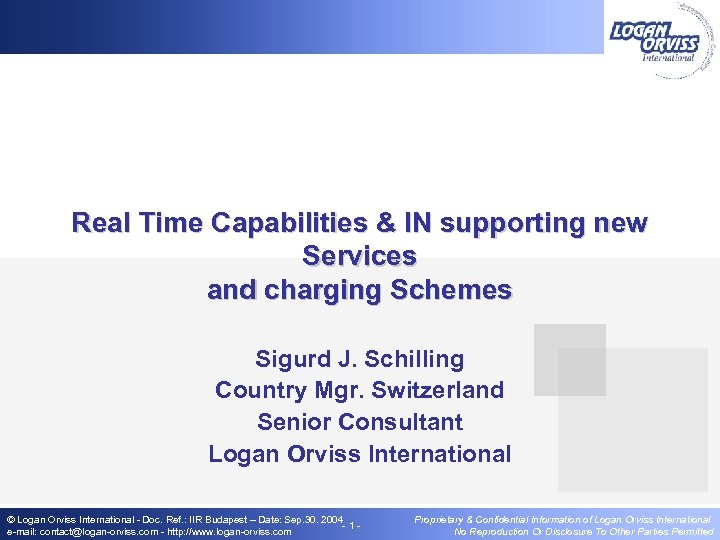

Real Time Capabilities & IN supporting new Services and charging Schemes Sigurd J. Schilling Country Mgr. Switzerland Senior Consultant Logan Orviss International © Logan Orviss International - Doc. Ref. : IIR Budapest – Date: Sep. 30. 2004 - 1 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

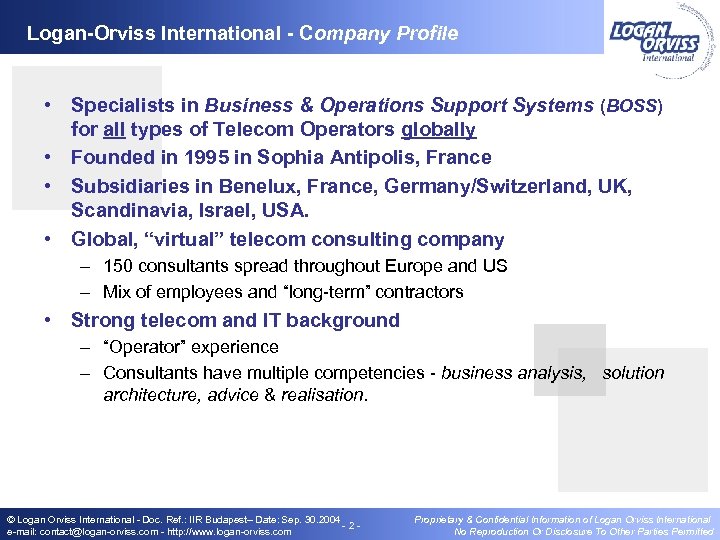

Logan-Orviss International - Company Profile • Specialists in Business & Operations Support Systems (BOSS) for all types of Telecom Operators globally • Founded in 1995 in Sophia Antipolis, France • Subsidiaries in Benelux, France, Germany/Switzerland, UK, Scandinavia, Israel, USA. • Global, “virtual” telecom consulting company – 150 consultants spread throughout Europe and US – Mix of employees and “long-term” contractors • Strong telecom and IT background – “Operator” experience – Consultants have multiple competencies - business analysis, solution architecture, advice & realisation. © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 2 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Logan-Orviss International at glance We have delivered over 150 consultancy projects in more than 30 countries LOI Americas LOI Scandinavia LOI France LOI UK LOI Israel LOI Germany Customer © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 3 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

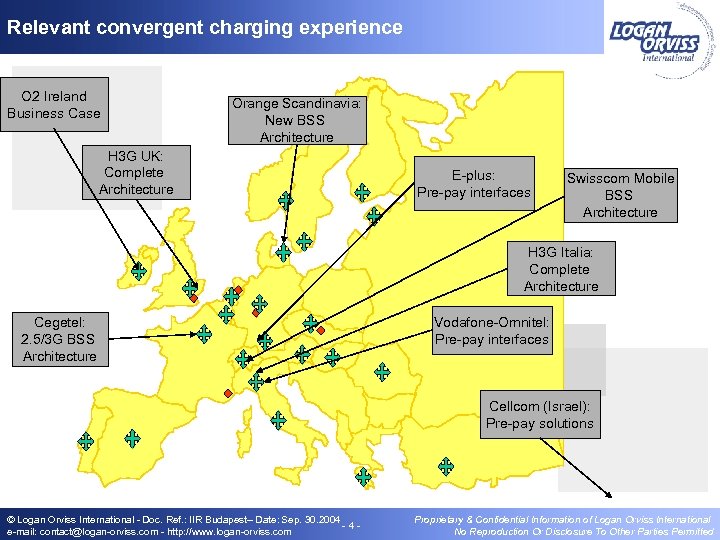

Relevant convergent charging experience O 2 Ireland Business Case Orange Scandinavia: New BSS Architecture H 3 G UK: Complete Architecture E-plus: Pre-pay interfaces Swisscom Mobile BSS Architecture H 3 G Italia: Complete Architecture Cegetel: 2. 5/3 G BSS Architecture Vodafone-Omnitel: Pre-pay interfaces Cellcom (Israel): Pre-pay solutions © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 4 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

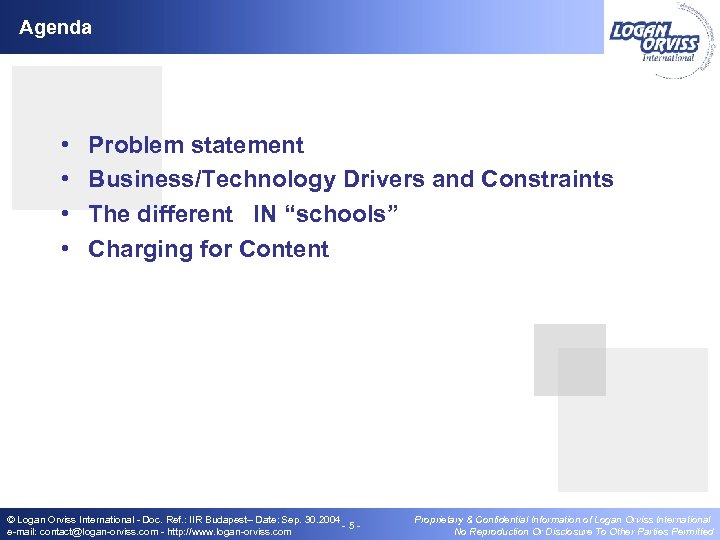

Agenda • • Problem statement Business/Technology Drivers and Constraints The different IN “schools” Charging for Content © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 5 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

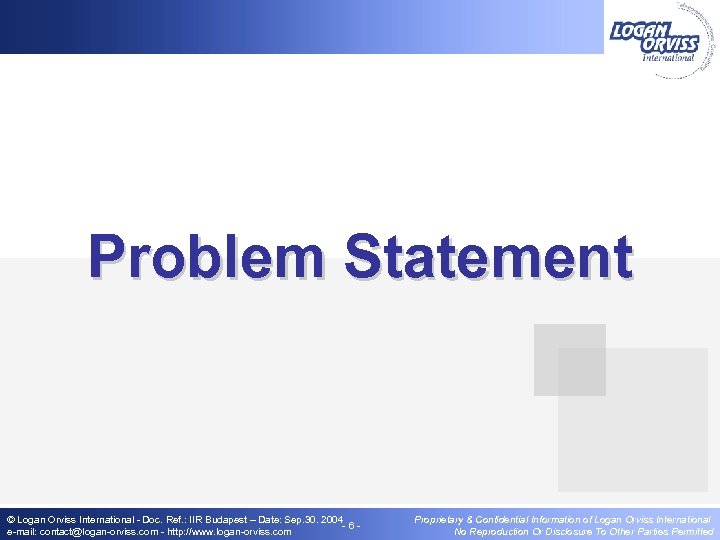

Problem Statement © Logan Orviss International - Doc. Ref. : IIR Budapest – Date: Sep. 30. 2004 - 6 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

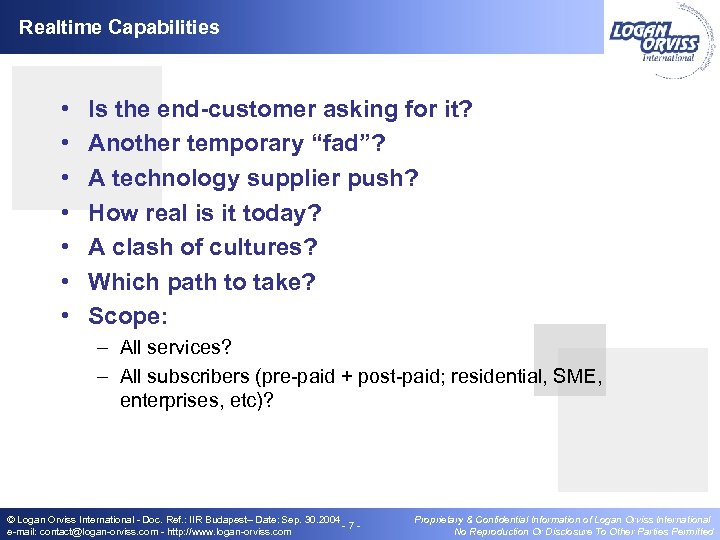

Realtime Capabilities • • Is the end-customer asking for it? Another temporary “fad”? A technology supplier push? How real is it today? A clash of cultures? Which path to take? Scope: – All services? – All subscribers (pre-paid + post-paid; residential, SME, enterprises, etc)? © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 7 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Business & Technology Drivers and Constraints - value based pricing - realtime - convergence: end-user perspective - openness © Logan Orviss International - Doc. Ref. : IIR Budapest – Date: Sep. 30. 2004 - 8 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

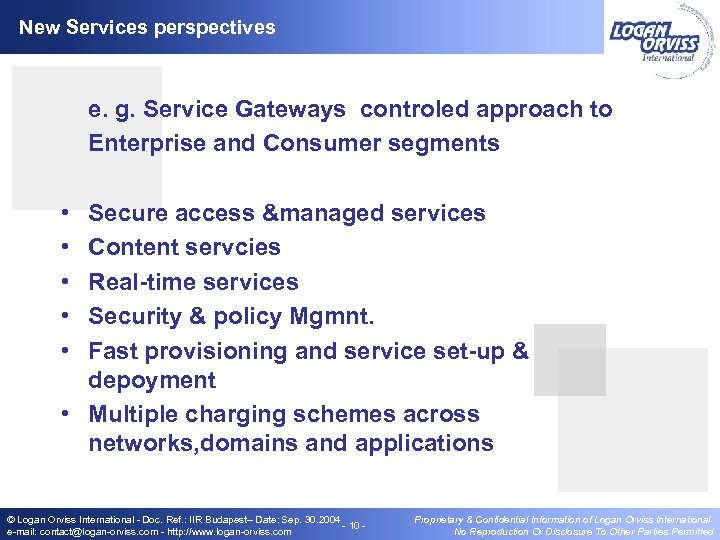

New Services perspectives e. g. Service Gateways controled approach to Enterprise and Consumer segments • • • Secure access &managed services Content servcies Real-time services Security & policy Mgmnt. Fast provisioning and service set-up & depoyment • Multiple charging schemes across networks, domains and applications © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 10 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
New Services e. g. • SIP VPN - Prepaid sessions on IN service cards - Call screening and forwarding - Self provisioning - „Busy/No answer“ notifying mail © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 11 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

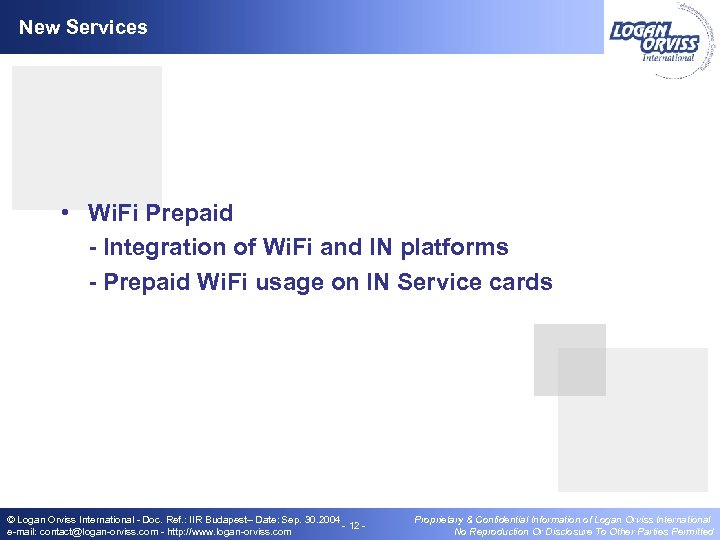

New Services • Wi. Fi Prepaid - Integration of Wi. Fi and IN platforms - Prepaid Wi. Fi usage on IN Service cards © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 12 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

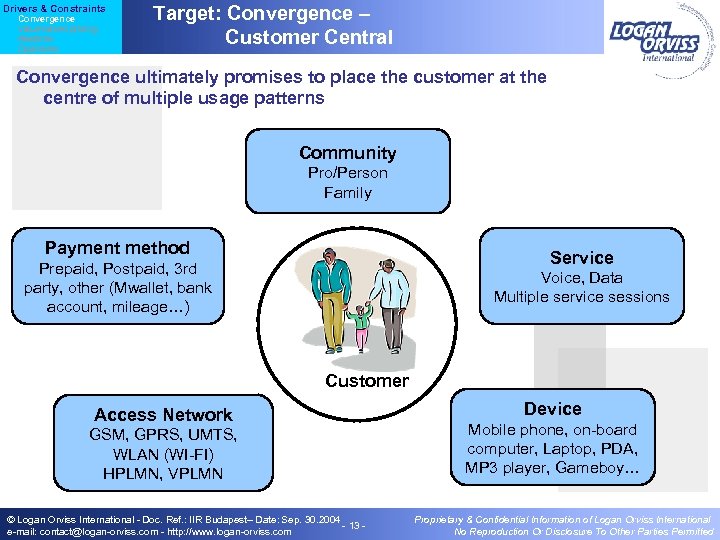

Drivers & Constraints Convergence Value based pricing Realtime Openness Target: Convergence – Customer Central Convergence ultimately promises to place the customer at the centre of multiple usage patterns Community Pro/Person Family Payment method Service Prepaid, Postpaid, 3 rd party, other (Mwallet, bank account, mileage…) Voice, Data Multiple service sessions Customer Access Network GSM, GPRS, UMTS, WLAN (WI-FI) HPLMN, VPLMN © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 13 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Device Mobile phone, on-board computer, Laptop, PDA, MP 3 player, Gameboy… Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Drivers & Constraints Value based pricing Realtime Convergence Openness Perceived value vs cost of transport Operators must find the right balance between pricing sophistication and implementation constraints in a given competitive market The Media Co. The Telco Charge for Value Cover Costs e. g. - You can charge more for the latest track by Britney Spears rather than one that is 6 months old e. g. - Data traffic across the RAN and GPRS can be charged by the byte - You can charge more to watch a replay of a goal in the first 30 mins after it was scored - Storage can be charged by the byte Pros: Cons: - Increased profits - Matches with perceived value - Higher risk of not covering costs - More complex charging model © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 14 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Pros: Cons: - Revenue based on costs, low risk - Simple charging model - Lower profits (becomes a commodity) - Customer does not understand value Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

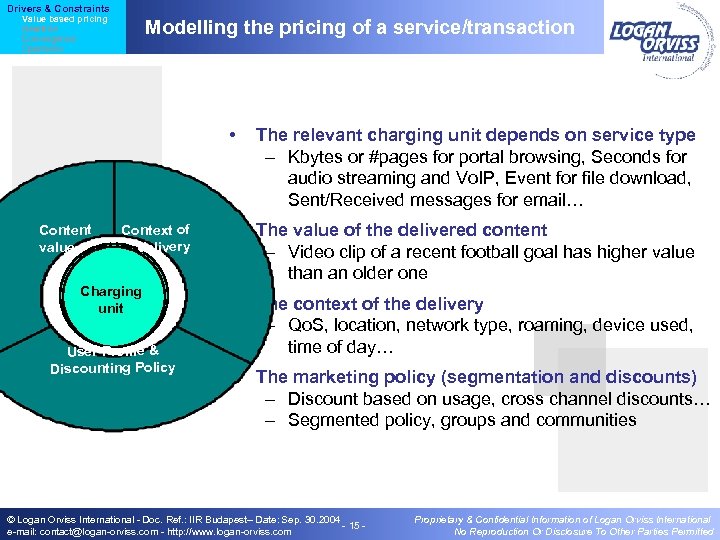

Drivers & Constraints Value based pricing Realtime Convergence Openness Modelling the pricing of a service/transaction • Content value Context of delivery Charging unit User Profile & Discounting Policy The relevant charging unit depends on service type – Kbytes or #pages for portal browsing, Seconds for audio streaming and Vo. IP, Event for file download, Sent/Received messages for email… • The value of the delivered content – Video clip of a recent football goal has higher value than an older one • The context of the delivery – Qo. S, location, network type, roaming, device used, time of day… • The marketing policy (segmentation and discounts) – Discount based on usage, cross channel discounts… – Segmented policy, groups and communities © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 15 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Drivers & Constraints Value based pricing Realtime Convergence Openness Modelling the pricing of a service/transaction To stay in control and to optimise their revenue streams, operators have interest to leverage (and charge for) their assets: Controled by content providers Context Content value Unit Network information • Network based information Not only ‘dumb pipe’ traffic, but also unique capabilities such as protocol used, end-to-end security, multidevice/multinetwork session handling, location, Qo. S, device type knowledge… Profile & Discounts Customer knowledge Controled by the operator • Customer knowledge The ability to leverage the knowledge of individual behaviours across multiple services can create differentiation and increase loyalty © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 16 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

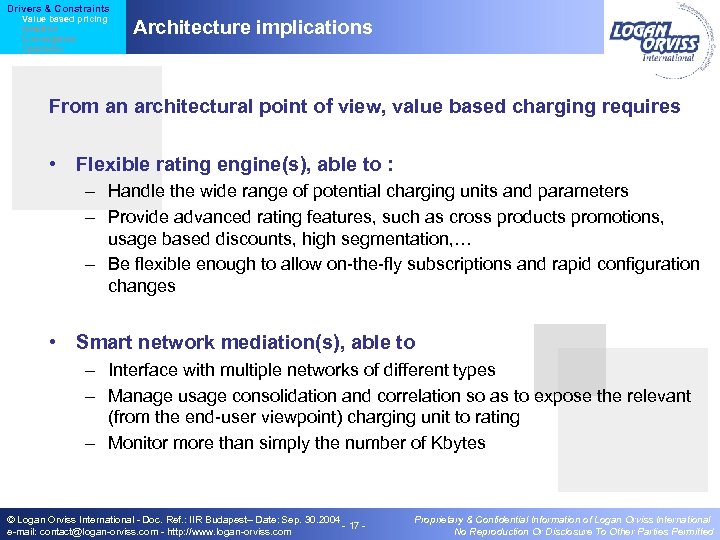

Drivers & Constraints Value based pricing Realtime Convergence Openness Architecture implications From an architectural point of view, value based charging requires • Flexible rating engine(s), able to : – Handle the wide range of potential charging units and parameters – Provide advanced rating features, such as cross products promotions, usage based discounts, high segmentation, … – Be flexible enough to allow on-the-fly subscriptions and rapid configuration changes • Smart network mediation(s), able to – Interface with multiple networks of different types – Manage usage consolidation and correlation so as to expose the relevant (from the end-user viewpoint) charging unit to rating – Monitor more than simply the number of Kbytes © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 17 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

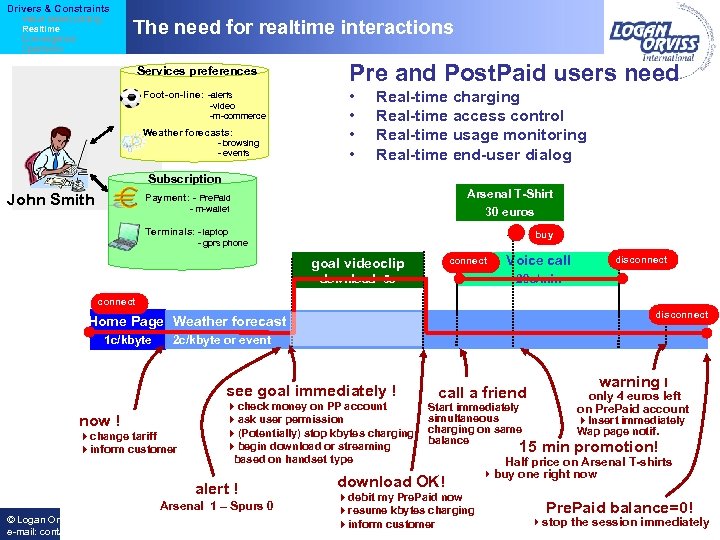

Drivers & Constraints Value based pricing Realtime Convergence Openness The need for realtime interactions Services preferences Foot-on-line: -alerts -video -m-commerce Weather forecasts: - browsing - events Pre and Post. Paid users need • • Real-time charging Real-time access control Real-time usage monitoring Real-time end-user dialog Subscription Payment: - Pre. Paid - m-wallet Arsenal T-Shirt 30 euros Terminals: - laptop John Smith buy - gprs phone connect goal videoclip download=5 c Voice call disconnect 20 c/min connect disconnect Home Page Weather forecast 1 c/kbyte 2 c/kbyte or event see goal immediately ! now ! 4 change tariff 4 inform customer 4 check money on PP account 4 ask user permission 4(Potentially) stop kbytes charging 4 begin download or streaming based on handset type alert ! call a friend Start immediately simultaneous charging on same balance download OK! warning ! only 4 euros left on Pre. Paid account 4 Insert immediately Wap page notif. 15 min promotion! Half price on Arsenal T-shirts 4 buy one right now 4 debit my Pre. Paid now Pre. Paid balance=0! 4 resume kbytes charging © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 inform customer Proprietary & Confidential 4 stop the session immediately Information of Logan Orviss International 4 - 18 - Arsenal 1 – Spurs 0 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com No Reproduction Or Disclosure To Other Parties Permitted

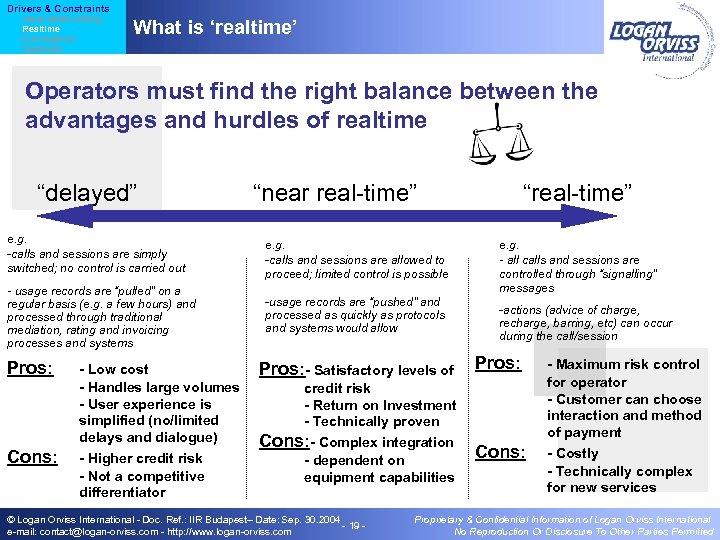

Drivers & Constraints Value based pricing Realtime Convergence Openness What is ‘realtime’ Operators must find the right balance between the advantages and hurdles of realtime “delayed” e. g. -calls and sessions are simply switched; no control is carried out - usage records are “pulled” on a regular basis (e. g. a few hours) and processed through traditional mediation, rating and invoicing processes and systems Pros: Cons: - Low cost - Handles large volumes - User experience is simplified (no/limited delays and dialogue) - Higher credit risk - Not a competitive differentiator “near real-time” e. g. -calls and sessions are allowed to proceed; limited control is possible -usage records are “pushed” and processed as quickly as protocols and systems would allow “real-time” e. g. - all calls and sessions are controlled through “signalling” messages -actions (advice of charge, recharge, barring, etc) can occur during the call/session Pros: - Satisfactory levels of Pros: credit risk - Return on Investment - Technically proven Cons: - Complex integration - dependent on equipment capabilities © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 19 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Cons: - Maximum risk control for operator - Customer can choose interaction and method of payment - Costly - Technically complex for new services Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

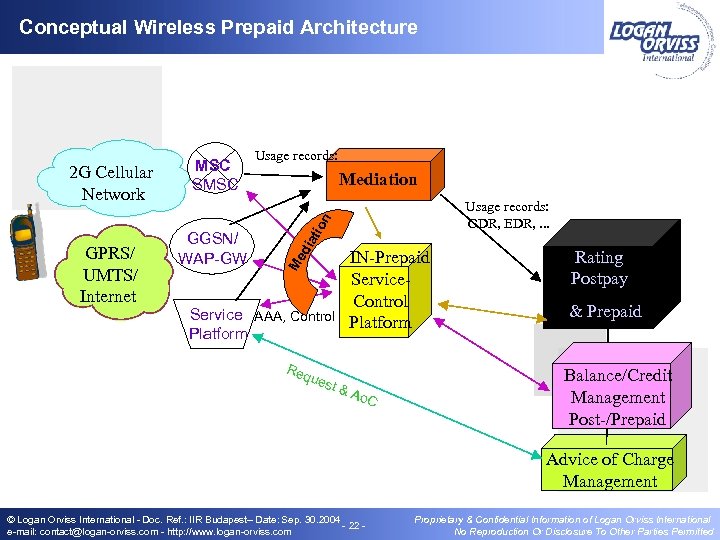

Conceptual Wireless Prepaid Architecture GGSN/ WAP-GW Mediation Usage records: CDR, EDR, . . . dia tio n GPRS/ UMTS/ Internet Usage records: Me 2 G Cellular Network MSC Service AAA, Control Platform Req ues t& IN-Prepaid Service. Control Platform Ao. C Rating Postpay & Prepaid Balance/Credit Management Post-/Prepaid Advice of Charge Management © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 22 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

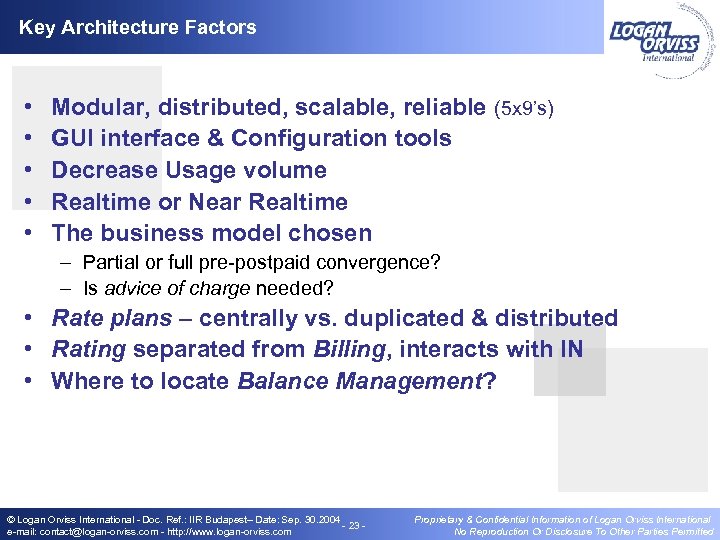

Key Architecture Factors • • • Modular, distributed, scalable, reliable (5 x 9’s) GUI interface & Configuration tools Decrease Usage volume Realtime or Near Realtime The business model chosen – Partial or full pre-postpaid convergence? – Is advice of charge needed? • Rate plans – centrally vs. duplicated & distributed • Rating separated from Billing, interacts with IN • Where to locate Balance Management? © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 23 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

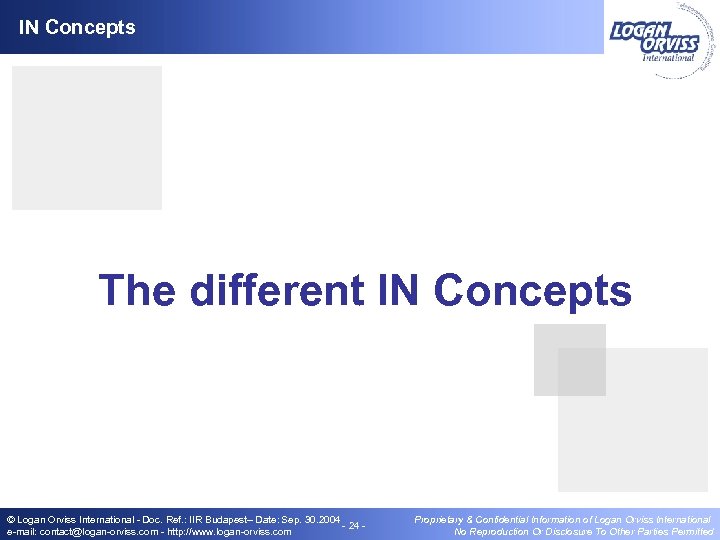

IN Concepts The different IN Concepts © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 24 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Solutions and Industry Trends – ‘The Four Schools’ We can identify four different “schools” which all attempt to provide a (often partial) solution to the mediation and charging challenges: – “IN/Core Network approach” (wireless specific) • Led by Core (Circuit and Packet) Network professionals – “IT/Billing approach” • Led by Information Systems professionals – “IP approach” • Led by Services Network professionals – “Content Providers approach” • Led by Content and Commerce professionals © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 25 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

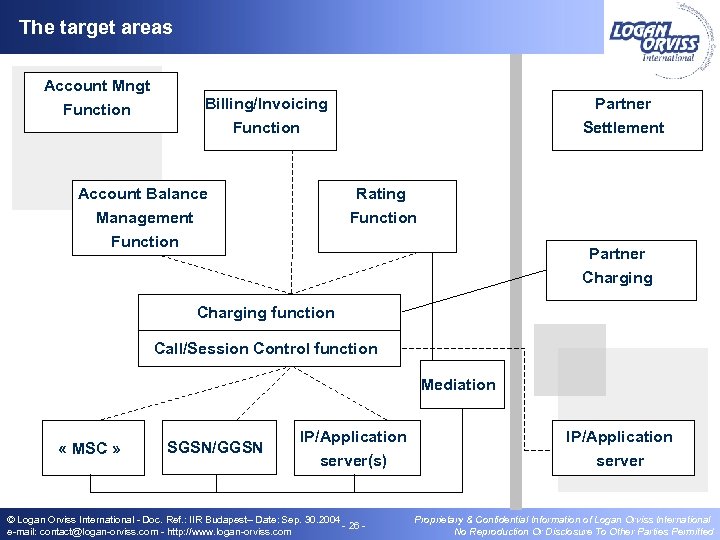

The target areas Account Mngt Function Billing/Invoicing Function Account Balance Management Partner Settlement Rating Function Partner Charging function Call/Session Control function Mediation « MSC » SGSN/GGSN IP/Application server(s) © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 26 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com IP/Application server Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

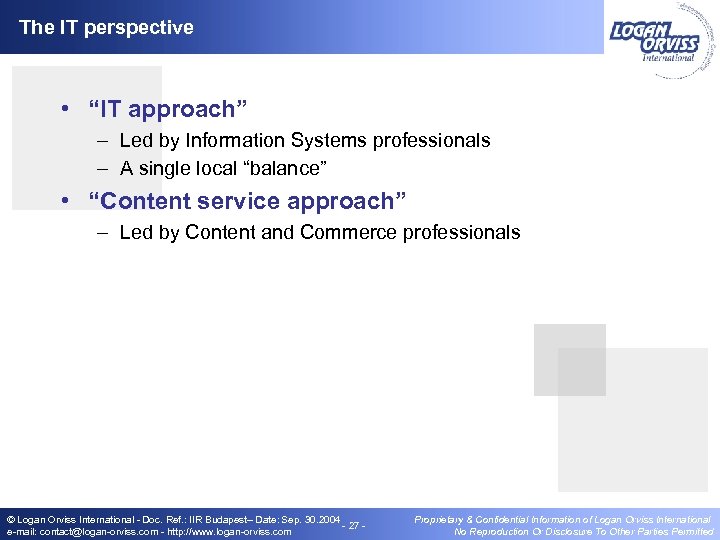

The IT perspective • “IT approach” – Led by Information Systems professionals – A single local “balance” • “Content service approach” – Led by Content and Commerce professionals © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 27 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

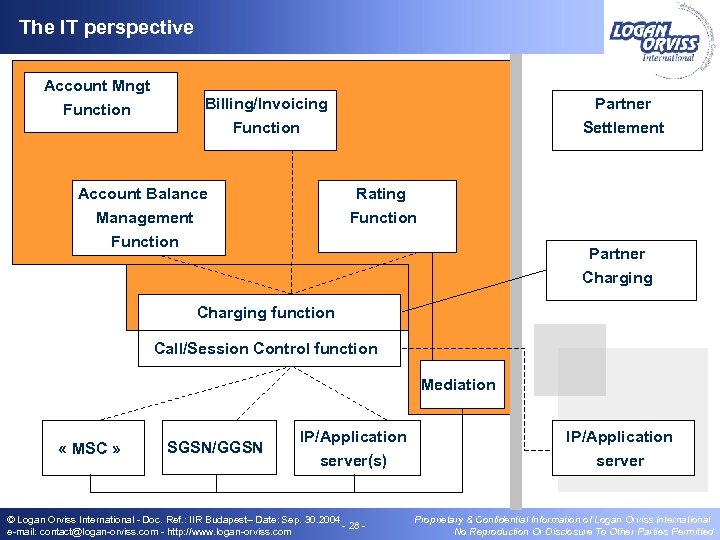

The IT perspective Account Mngt Function Billing/Invoicing Function Account Balance Management Partner Settlement Rating Function Partner Charging function Call/Session Control function Mediation « MSC » SGSN/GGSN IP/Application server(s) © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 28 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com IP/Application server Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

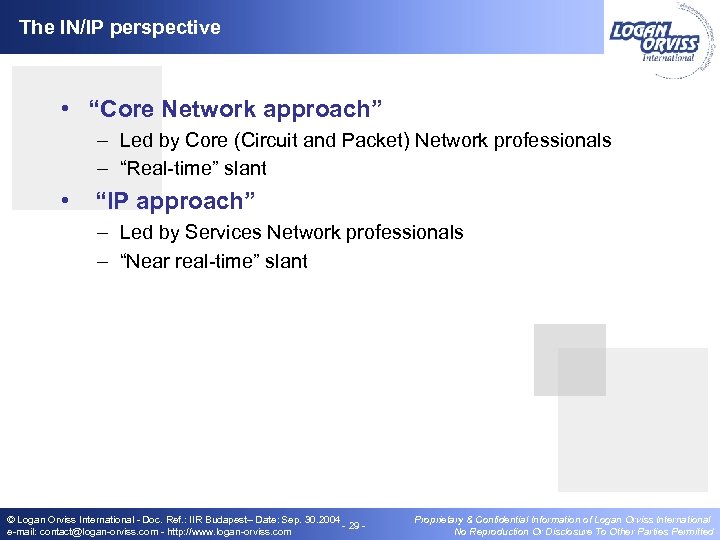

The IN/IP perspective • “Core Network approach” – Led by Core (Circuit and Packet) Network professionals – “Real-time” slant • “IP approach” – Led by Services Network professionals – “Near real-time” slant © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 29 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

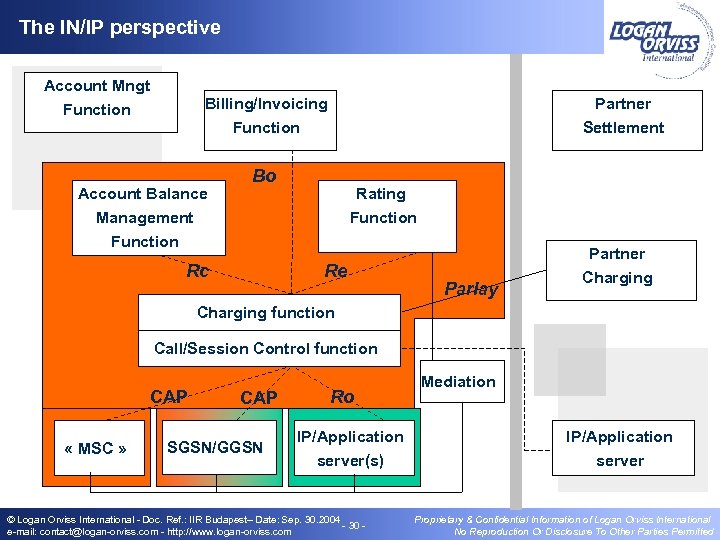

The IN/IP perspective Account Mngt Function Billing/Invoicing Function Account Balance Management Partner Settlement Bo Rating Function Rc Re Parlay Partner Charging function Call/Session Control function CAP « MSC » CAP SGSN/GGSN Ro IP/Application server(s) © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 30 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Mediation IP/Application server Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

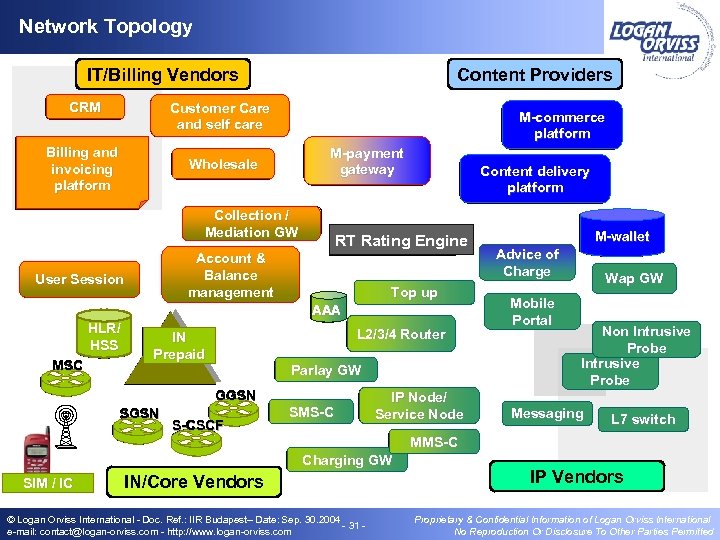

Network Topology Content Providers IT/Billing Vendors CRM Customer Care and self care Billing and invoicing platform M-commerce platform M-payment gateway Wholesale Collection / Collection GW Mediation GW Rating Engine RT Rating Engine Account & Account Balance management User Session Content delivery platform Top up AAA HLR/ HSS MSC L 2/3/4 Router IN Prepaid Parlay GW SCP GGSN S-CSCF SMS-C IP Node/ IPNode/ Service Node M-wallet Advice of Charge Mobile Portal Wap GW Non Intrusive Probe Messaging L 7 switch MMS-C Charging GW SIM / IC IN/Core Vendors © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 31 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com IP Vendors Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Solutions and Industry Trends – ‘The Four Schools’ Content Providers Billing Vendors Max. Bill COMPTEL Core/IN Vendors © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 32 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com IP Vendors Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Charging for Content Services – IN / Core based solutions – IT / Billing solutions – IP solutions – Content Providers solutions © Logan Orviss International - Doc. Ref. : IIR Budapest – Date: Sep. 30. 2004 - 33 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

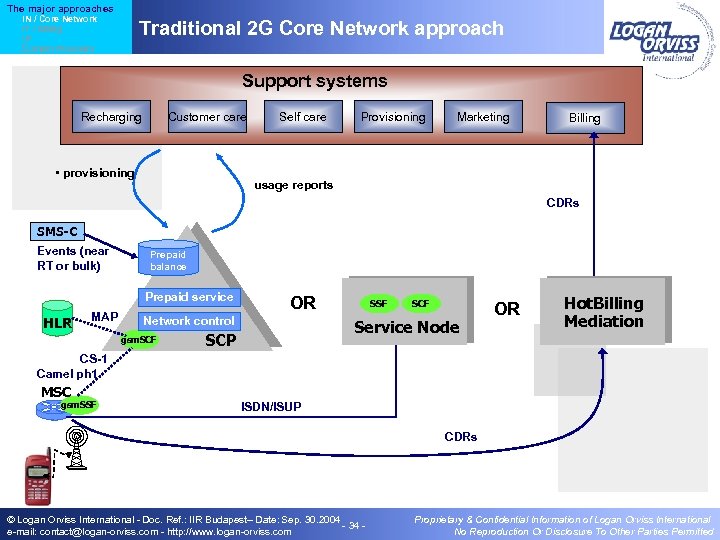

The major approaches IN / Core Network IT / Billing IP Content Providers Traditional 2 G Core Network approach Support systems Recharging Customer care • provisioning Self care Provisioning Marketing Billing usage reports CDRs SMS-C Events (near RT or bulk) Prepaid balance Prepaid service HLR MAP OR Network control gsm. SCF SSF SCF Service Node SCP OR Hot. Billing Mediation CS-1 Camel ph 1 MSC gsm. SSF ISDN/ISUP CDRs © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 34 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

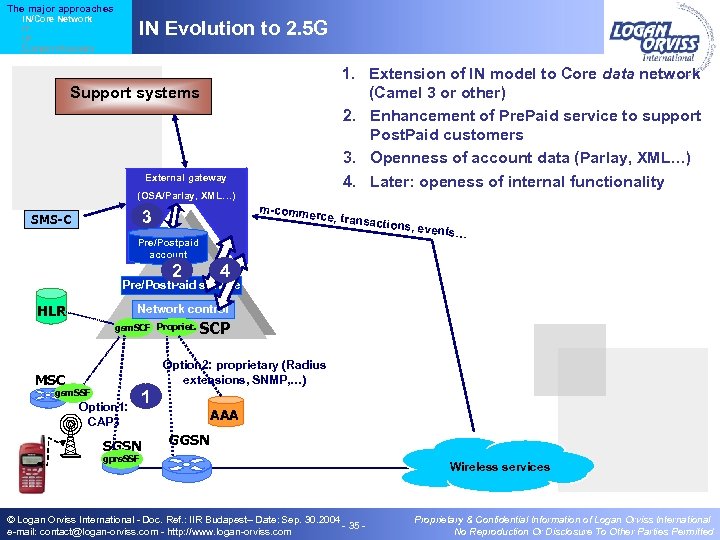

The major approaches IN/Core Network IT IP Content Providers IN Evolution to 2. 5 G 1. Extension of IN model to Core data network (Camel 3 or other) 2. Enhancement of Pre. Paid service to support Post. Paid customers 3. Openness of account data (Parlay, XML…) 4. Later: openess of internal functionality Support systems External gateway (OSA/Parlay, XML…) m-comm 3 SMS-C Prepaid Pre/Postpaid balance account 2 erce, tran sactions, events… 4 Pre. Paid service Pre/Post. Paid service HLR Network control gsm. SCF Propriet. SCP Option 2: proprietary (Radius extensions, SNMP, …) MSC gsm. SSF Option 1: CAP 3 1 SGSN AAA GGSN gprs. SSF © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 35 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Wireless services Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

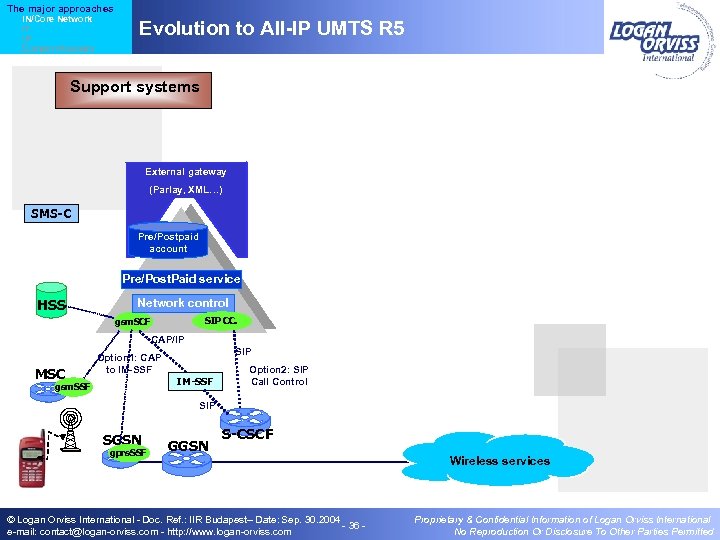

The major approaches IN/Core Network IT IP Content Providers Evolution to All-IP UMTS R 5 Support systems External gateway (Parlay, XML…) SMS-C Prepaid Pre/Postpaid balance account Pre/Post. Paid service Pre. Paid service HSS Network control SIP CC. SCP gsm. SCF CAP/IP MSC Option 1: CAP to IM-SSF gsm. SSF SIP IM-SSF Option 2: SIP Call Control SIP SGSN gprs. SSF GGSN S-CSCF © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 36 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Wireless services Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

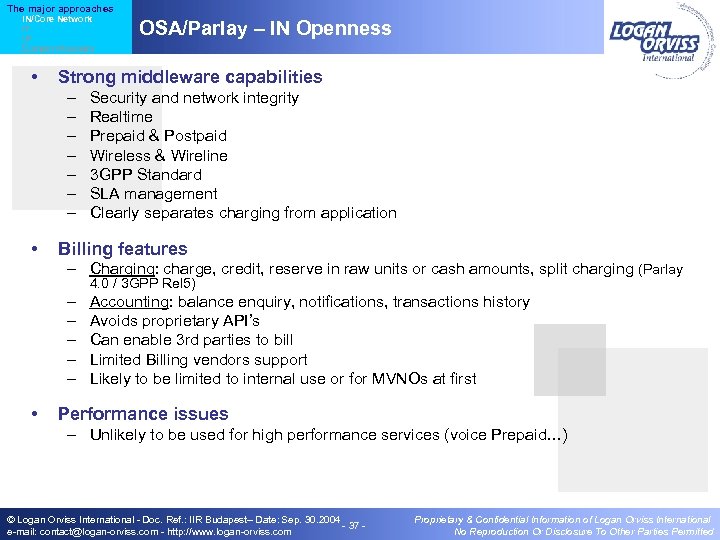

The major approaches IN/Core Network IT IP Content Providers • Strong middleware capabilities – – – – • OSA/Parlay – IN Openness Security and network integrity Realtime Prepaid & Postpaid Wireless & Wireline 3 GPP Standard SLA management Clearly separates charging from application Billing features – Charging: charge, credit, reserve in raw units or cash amounts, split charging (Parlay 4. 0 / 3 GPP Rel 5) – – – • Accounting: balance enquiry, notifications, transactions history Avoids proprietary API’s Can enable 3 rd parties to bill Limited Billing vendors support Likely to be limited to internal use or for MVNOs at first Performance issues – Unlikely to be used for high performance services (voice Prepaid…) © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 37 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

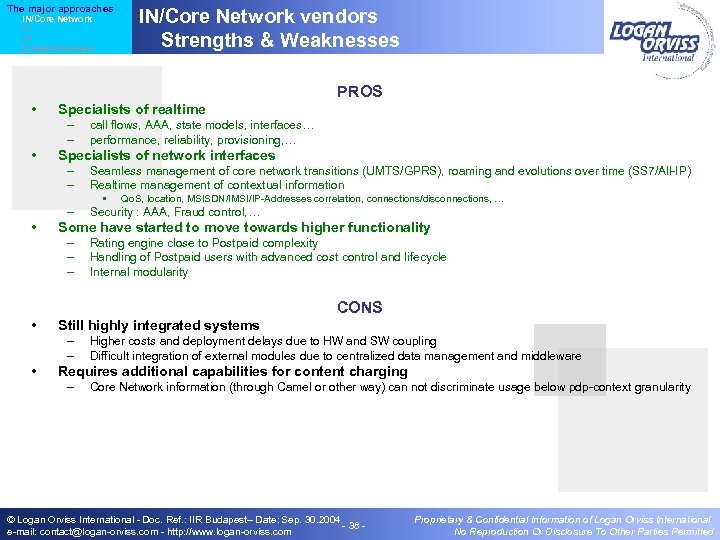

The major approaches IN/Core Network IT IP Content Providers IN/Core Network vendors Strengths & Weaknesses PROS • Specialists of realtime – – • call flows, AAA, state models, interfaces… performance, reliability, provisioning, … Specialists of network interfaces – – Seamless management of core network transitions (UMTS/GPRS), roaming and evolutions over time (SS 7/All-IP) Realtime management of contextual information – Security : AAA, Fraud control, … • • Qo. S, location, MSISDN/IMSI/IP-Addresses correlation, connections/disconnections, … Some have started to move towards higher functionality – – – Rating engine close to Postpaid complexity Handling of Postpaid users with advanced cost control and lifecycle Internal modularity CONS • Still highly integrated systems – – • Higher costs and deployment delays due to HW and SW coupling Difficult integration of external modules due to centralized data management and middleware Requires additional capabilities for content charging – Core Network information (through Camel or other way) can not discriminate usage below pdp-context granularity © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 38 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

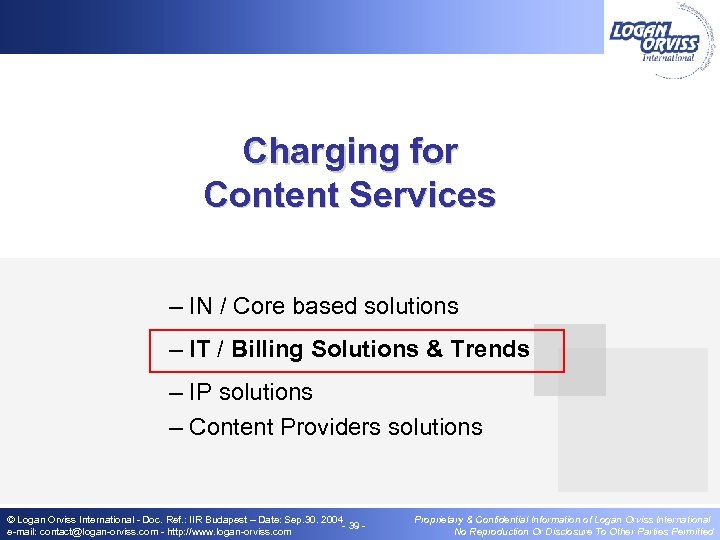

Charging for Content Services – IN / Core based solutions – IT / Billing Solutions & Trends – IP solutions – Content Providers solutions © Logan Orviss International - Doc. Ref. : IIR Budapest – Date: Sep. 30. 2004 - 39 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

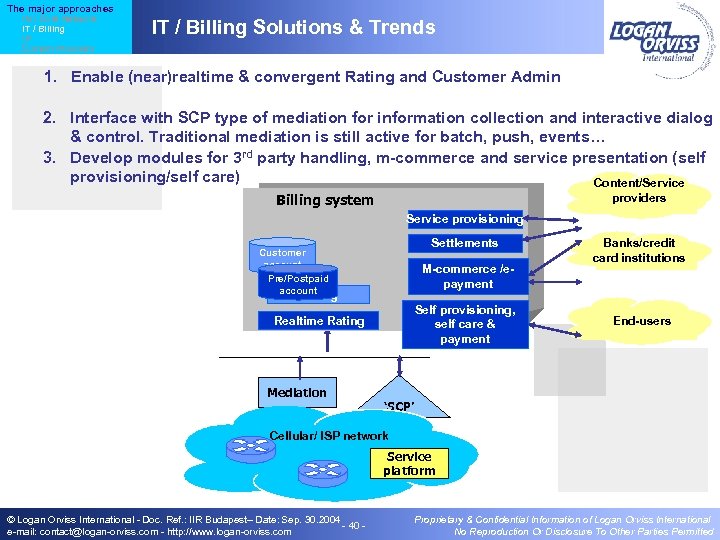

The major approaches IN / Core Network IT / Billing IP Content Providers IT / Billing Solutions & Trends 1. Enable (near)realtime & convergent Rating and Customer Admin 2. Interface with SCP type of mediation for information collection and interactive dialog & control. Traditional mediation is still active for batch, push, events… 3. Develop modules for 3 rd party handling, m-commerce and service presentation (self provisioning/self care) Content/Service providers Billing system Service provisioning Settlements Customer account Pre/Postpaid account M-commerce /epayment Rating Self provisioning, self care & payment Realtime Rating Banks/credit card institutions End-users Mediation ‘SCP’ Cellular/ ISP network Service platform © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 40 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

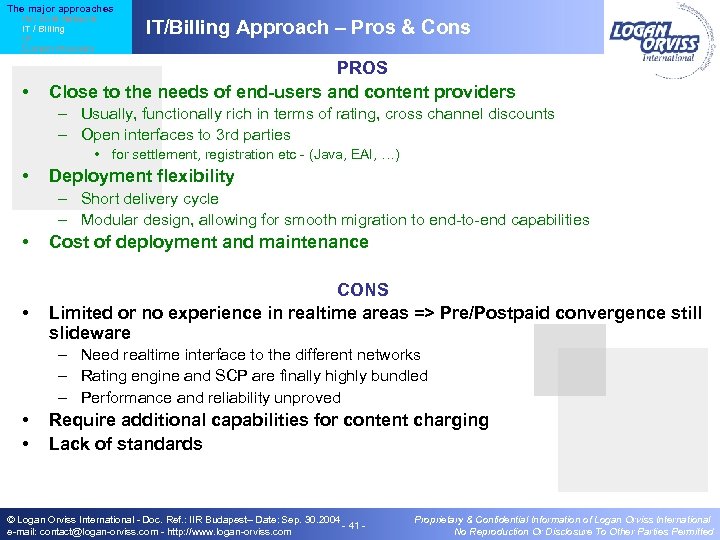

The major approaches IN / Core Network IT / Billing IP Content Providers • IT/Billing Approach – Pros & Cons PROS Close to the needs of end-users and content providers – Usually, functionally rich in terms of rating, cross channel discounts – Open interfaces to 3 rd parties • for settlement, registration etc - (Java, EAI, …) • Deployment flexibility – Short delivery cycle – Modular design, allowing for smooth migration to end-to-end capabilities • Cost of deployment and maintenance • CONS Limited or no experience in realtime areas => Pre/Postpaid convergence still slideware – Need realtime interface to the different networks – Rating engine and SCP are finally highly bundled – Performance and reliability unproved • • Require additional capabilities for content charging Lack of standards © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 41 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Charging for Content Services – IN/Core based solutions – IT/Billing solutions – IP solutions – Content Providers solutions © Logan Orviss International - Doc. Ref. : IIR Budapest – Date: Sep. 30. 2004 - 42 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

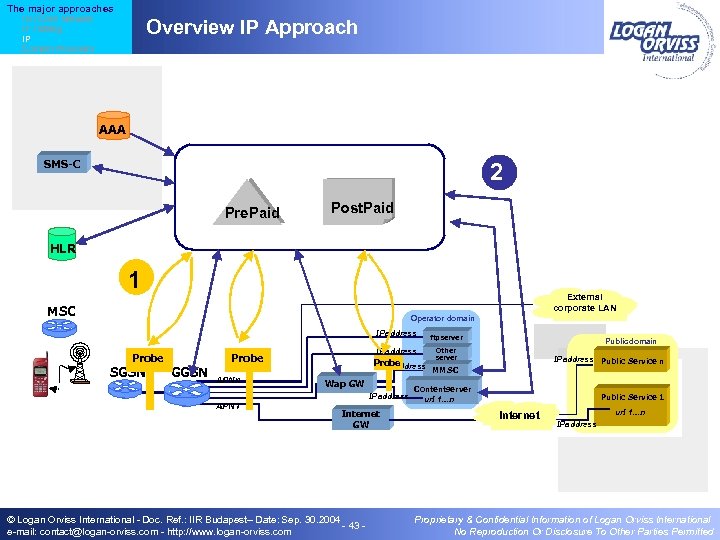

The major approaches IN / Core Network IT / Billing IP Content Providers Overview IP Approach AAA SMS-C 2 2 Pre. Paid Post. Paid HLR 1 1 External corporate LAN MSC Operator domain IP address Probe SGSN GGSN IP address Probe APNn Probe IP address Wap GW IP address APN 1 Internet GW © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 43 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com ftp server Public omain d Other server IP address Public Service n MMS -C Contentserver url 1…n Public Service 1 Internet url 1…n IP address Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

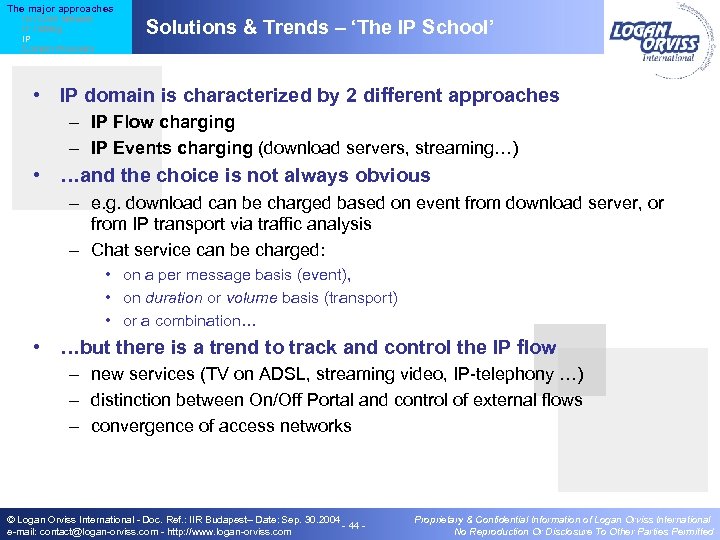

The major approaches IN / Core Network IT / Billing IP Content Providers Solutions & Trends – ‘The IP School’ • IP domain is characterized by 2 different approaches – IP Flow charging – IP Events charging (download servers, streaming…) • …and the choice is not always obvious – e. g. download can be charged based on event from download server, or from IP transport via traffic analysis – Chat service can be charged: • on a per message basis (event), • on duration or volume basis (transport) • or a combination… • …but there is a trend to track and control the IP flow – new services (TV on ADSL, streaming video, IP-telephony …) – distinction between On/Off Portal and control of external flows – convergence of access networks © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 44 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
The major approaches IN / Core Network IT / Billing IP Content Providers • • IP School - IP Probes allow to dive into the IP stream Generic IP Probes characteristics: – – – Collect/Aggregate/Report, No standards whatsoever, No dominant architecture or strategy, Applies indifferently to fixed, mobile, internet or WLAN. Data collection strategies: 1. Log files • Mediation-like, simplest, non realtime 2. Passive Probes - non-intrusive monitoring • Realtime, extensive data, NO control 3. Active Probes - intrusive monitoring • – Realtime, extensive data, control, expensive These strategies are not mutually exclusive © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 45 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

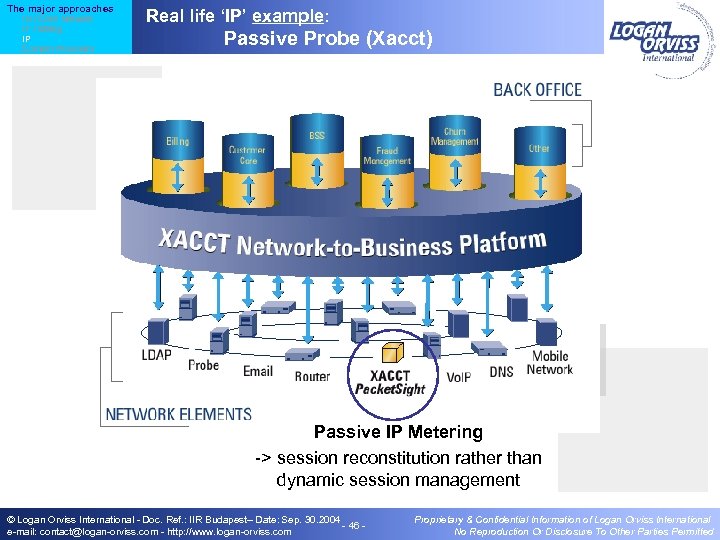

The major approaches IN / Core Network IT / Billing IP Content Providers Real life ‘IP’ example: Passive Probe (Xacct) Passive IP Metering -> session reconstitution rather than dynamic session management © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 46 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

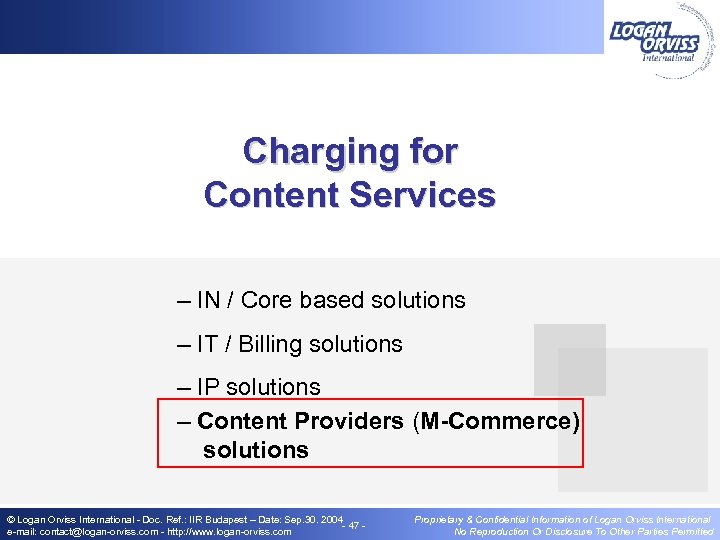

Charging for Content Services – IN / Core based solutions – IT / Billing solutions – IP solutions – Content Providers (M-Commerce) solutions © Logan Orviss International - Doc. Ref. : IIR Budapest – Date: Sep. 30. 2004 - 47 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

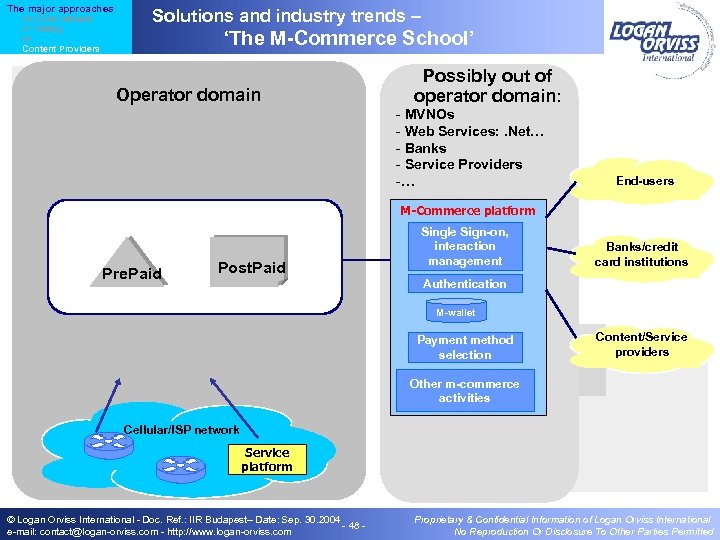

The major approaches IN / Core Network IT / Billing IP Content Providers Solutions and industry trends – ‘The M-Commerce School’ Operator domain Possibly out of operator domain: - MVNOs - Web Services: . Net… - Banks - Service Providers -… End-users M-Commerce platform Pre. Paid Post. Paid Single Sign-on, interaction management Banks/credit card institutions Authentication M-wallet Payment method selection Content/Service providers Other m-commerce activities Cellular/ISP network Service platform © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 48 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

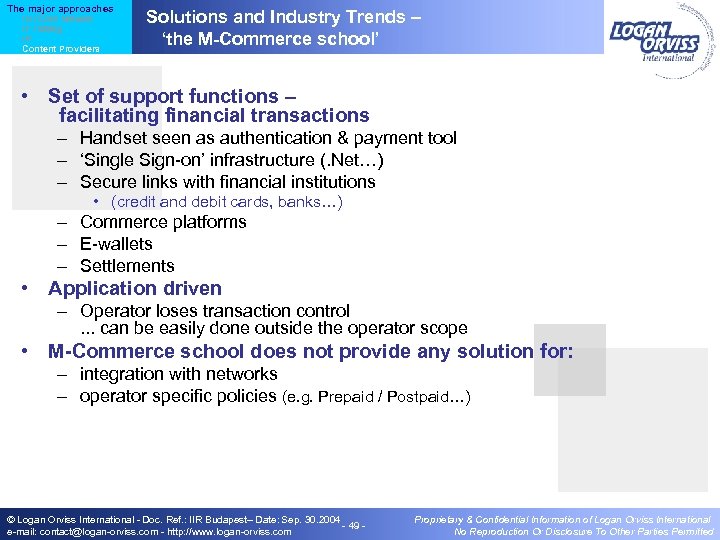

The major approaches IN / Core Network IT / Billing IP Content Providers Solutions and Industry Trends – ‘the M-Commerce school’ • Set of support functions – facilitating financial transactions – Handset seen as authentication & payment tool – ‘Single Sign-on’ infrastructure (. Net…) – Secure links with financial institutions • (credit and debit cards, banks…) – Commerce platforms – E-wallets – Settlements • Application driven – Operator loses transaction control. . . can be easily done outside the operator scope • M-Commerce school does not provide any solution for: – integration with networks – operator specific policies (e. g. Prepaid / Postpaid…) © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 49 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

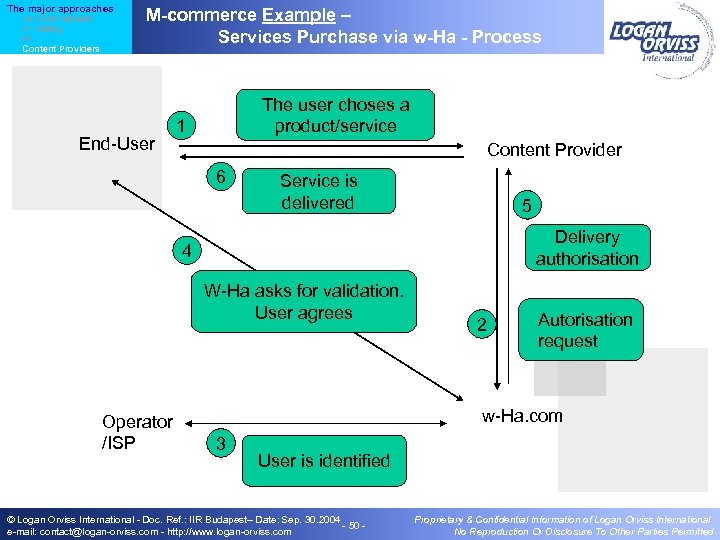

The major approaches IN / Core Network IT / Billing IP Content Providers M-commerce Example – Services Purchase via w-Ha - Process End-User The user choses a product/service 1 Content Provider 6 Service is delivered 5 Delivery authorisation 4 W-Ha asks for validation. User agrees Operator /ISP 2 Autorisation request w-Ha. com 3 User is identified © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 50 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Summary – Customer centered Content Services • to be monitored & charged for all customers, across all services, devices, networks, etc. – “IN/Core Network approach” • • Network & IN based solutions to IP/content challenges; Solid delivery track record Focused on (near) real-time, high performance & reliability Rely on standards – G/SGSN, CAMEL 3 (IP), OSA/Parlay interfaces, IPDR. – “IT approach” • • • Extend to Prepaid, Convergence & Balance mgt. Maturing real-time rating ( “all in memory”) and Interfaces Personalised, sophisticated rate plans & discounting Decouple SCP and Charging Marketing flexibility above performance & reliability. – “IP approach” • • Content and (packet) data are traditional IP territory Innovative, “can do” approach resulting in many “IP-solutions” • • • Passive & Active Probes – analyse, collect & control IP-usage “Island-Billing” features directly inside service delivery nodes (e. g. SMSC/MMSC real-time charging) Relying on standards – e. g. IP V 6, SIP, etc. Lack of maturity IP premise vision: complete control & visibility of the IP traffic of all OSI-layers – – – - SMSC, Messaging, portals, Wap GW, AAA, Probes, Session control. incl. protocols, encrypted connections, trusted/untrusted, private/public traffic application info, etc. – “Content Providers approach” • • Telco's ≈ ISPs, Network-access = commodity Charge service “value”, not traffic Use “M-Commerce” platform, Smart/SIM cards and own login and customer admin Attention needed: Fraud mgt, real-time, “carrier-grade” platforms, integration with networks! © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 51 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Realtime & Billing One Example OSA / Parlay and content charging © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 52 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

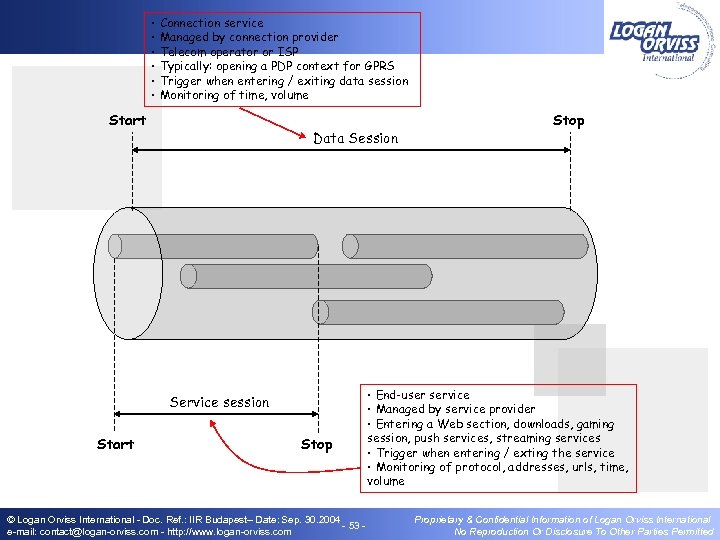

• Connection service • Managed by connection provider • Telecom operator or ISP • Typically: opening a PDP context for GPRS • Trigger when entering / exiting data session • Monitoring of time, volume Start Data Session Service session Start Stop © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 53 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Stop • End-user service • Managed by service provider • Entering a Web section, downloads, gaming session, push services, streaming services • Trigger when entering / exting the service • Monitoring of protocol, addresses, urls, time, volume Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

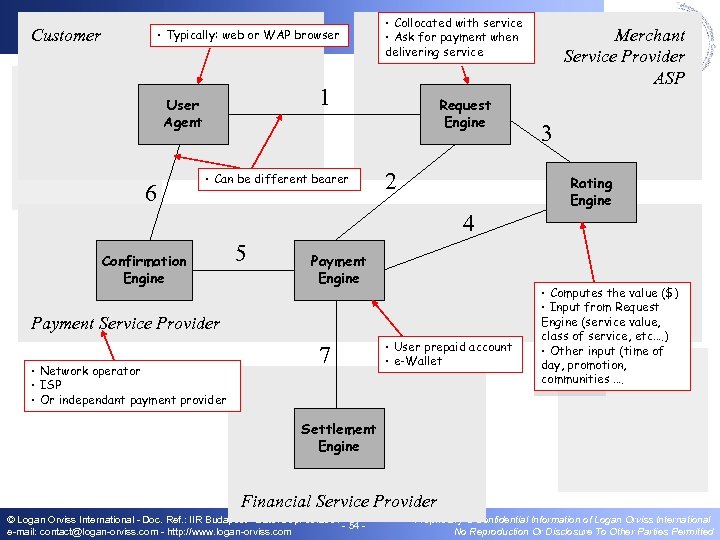

Customer • Typically: web or WAP browser 1 User Agent 6 • Collocated with service • Ask for payment when delivering service • Can be different bearer Request Engine 2 Merchant Service Provider ASP 3 Rating Engine 4 Confirmation Engine 5 Payment Engine Payment Service Provider • Network operator • ISP • Or independant payment provider 7 • User prepaid account • e-Wallet • Computes the value ($) • Input from Request Engine (service value, class of service, etc…. ) • Other input (time of day, promotion, communities …. Settlement Engine Financial Service Provider © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 54 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

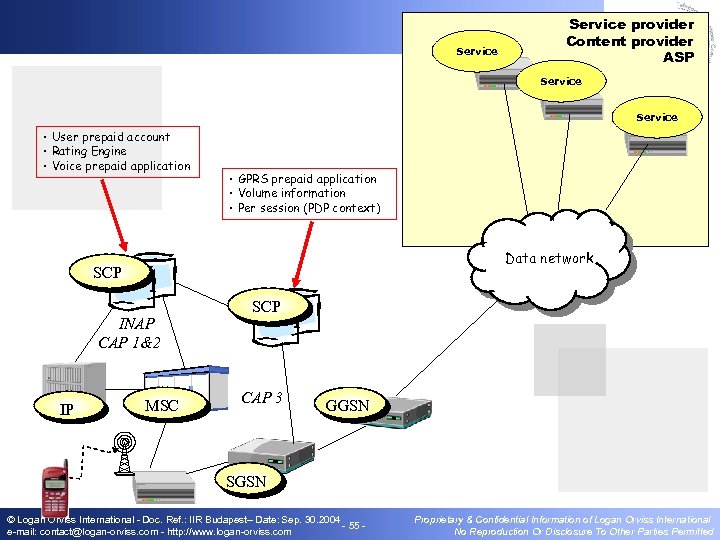

Service provider Content provider ASP Service • User prepaid account • Rating Engine • Voice prepaid application • GPRS prepaid application • Volume information • Per session (PDP context) Data network SCP INAP CAP 1&2 IP MSC SCP CAP 3 GGSN SGSN © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 55 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

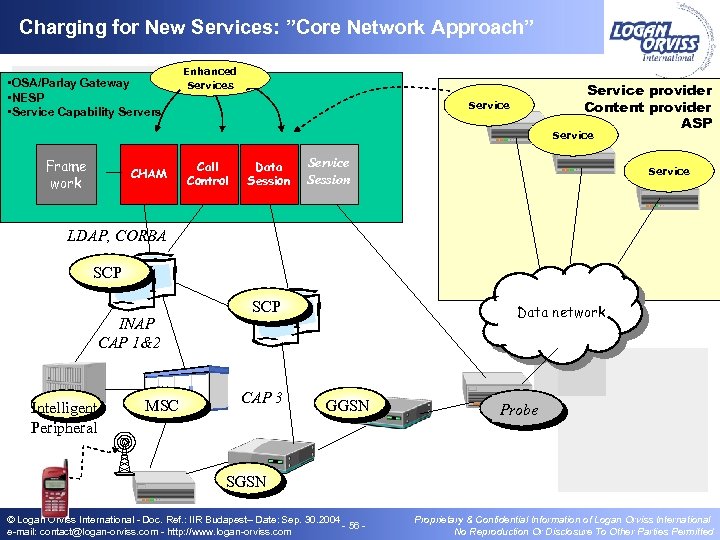

Charging for New Services: ”Core Network Approach” • OSA/Parlay Gateway • NESP • Service Capability Servers Enhanced Services Service provider Content provider ASP Service Frame work CHAM Call Control Data Session Service LDAP, CORBA SCP INAP CAP 1&2 Intelligent Peripheral MSC SCP CAP 3 Data network GGSN Probe SGSN © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 56 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

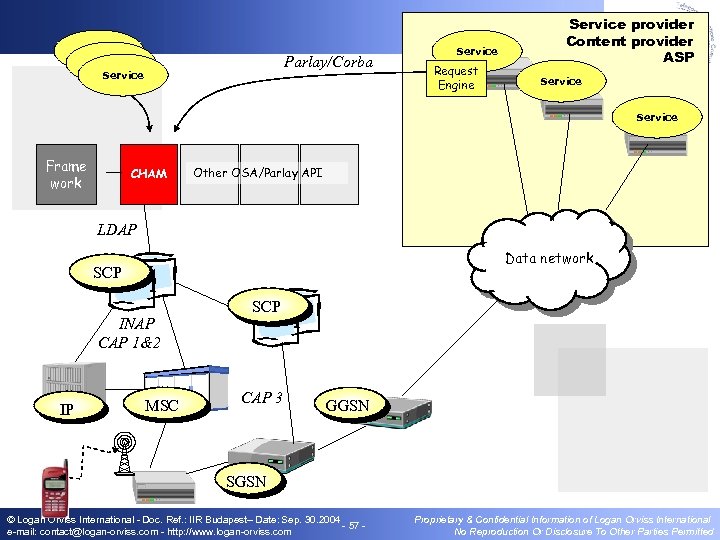

Service Parlay/Corba Service Request Engine Service provider Content provider ASP Service Frame work CHAM Other OSA/Parlay API LDAP Data network SCP INAP CAP 1&2 IP MSC SCP CAP 3 GGSN SGSN © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 57 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

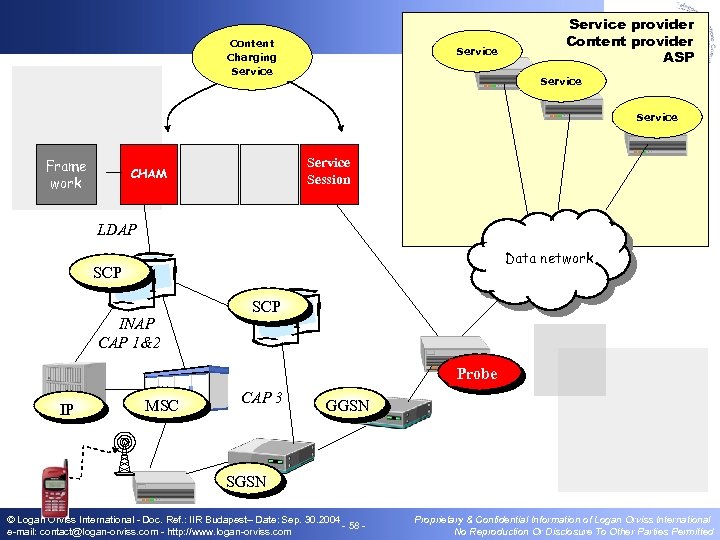

Content Charging Service provider Content provider ASP Service Frame work Service Session CHAM LDAP Data network SCP INAP CAP 1&2 SCP Probe IP MSC CAP 3 GGSN SGSN © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 58 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

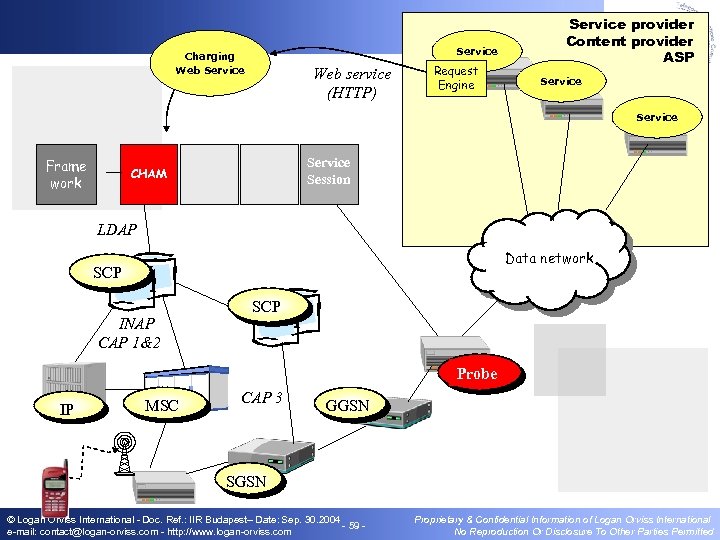

Service Charging Web Service Web service (HTTP) Request Engine Service provider Content provider ASP Service Frame work Service Session CHAM LDAP Data network SCP INAP CAP 1&2 SCP Probe IP MSC CAP 3 GGSN SGSN © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 59 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

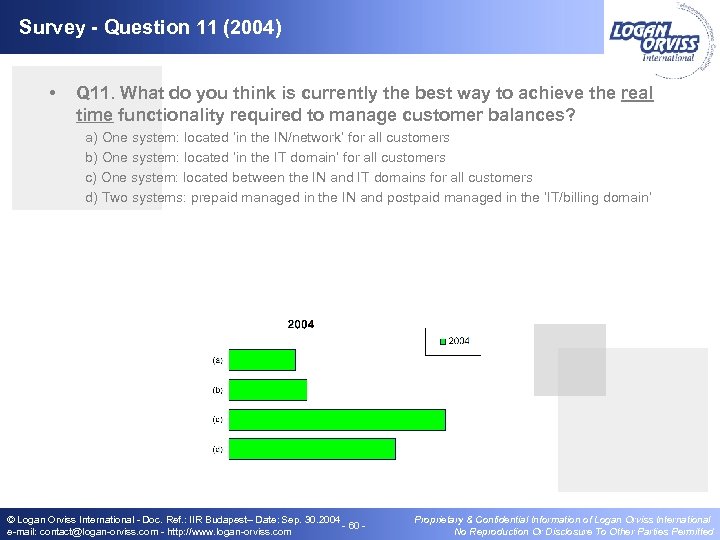

Survey - Question 11 (2004) • Q 11. What do you think is currently the best way to achieve the real time functionality required to manage customer balances? a) One system: located ‘in the IN/network’ for all customers b) One system: located ‘in the IT domain’ for all customers c) One system: located between the IN and IT domains for all customers d) Two systems: prepaid managed in the IN and postpaid managed in the ‘IT/billing domain’ © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 60 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
Questions © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 61 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
The End Thank you contact : sigurd. schilling@logan-orviss. com © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 62 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted

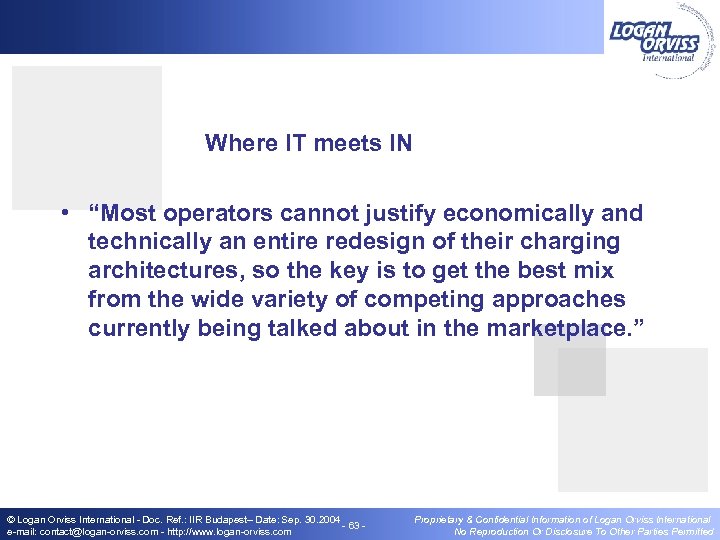

Where IT meets IN • “Most operators cannot justify economically and technically an entire redesign of their charging architectures, so the key is to get the best mix from the wide variety of competing approaches currently being talked about in the marketplace. ” © Logan Orviss International - Doc. Ref. : IIR Budapest– Date: Sep. 30. 2004 - 63 e-mail: contact@logan-orviss. com - http: //www. logan-orviss. com Proprietary & Confidential Information of Logan Orviss International No Reproduction Or Disclosure To Other Parties Permitted
