REAL PLAYER 影音播放系統什麼是real player n n

REAL PLAYER 影音播放系統

什麼是real player n n n 在網上收聽收看實時 Audio、Video 和 Flash 的最佳具。用 Real. Player 可欣賞網上在線音頻和視頻資料。帶有目標按紐，只需單擊滑鼠就可收聽新聞和娛樂資訊；近乎CD一樣的音頻效果全屏播放圖像功能（只適用於高帶寬連接情況）。

基本功能介紹 n n n 可播放 50種以上的檔案類型，包括： Windows Media 、Quicktime 和 DVD 包括進階CD燒錄功能 - 可建立自定 MP 3 CD 具有頂級音訊與視訊控制功能 - 圖形等化器、淡出淡入、亮度與對比控制使用具列模式可最大化桌面空間可存取全世界3，000多家廣播電台！

n 其他功能包括：內容頻道，自動升級功能， Smart. Stream 技術消除了再次緩衝，尋找媒介鏈結，支援 MP 3 格式等。

Real. Video 10 Compression • KEY FEATURES OF REALVIDEO 10 • THE REALVIDEO 10 COMPRESSION ALGORITHM • THE REALVIDEO 10 ENCODER

Bitrate n Very often used when speaking of video or audio quality -- defines how much physical space one second of audio or video takes in bits (note: not in bytes)

KEY FEATURES OF REALVIDEO 10 Broad reach — Compatible with all Real. Video 9 decoders n. No Real. One™ Player update is needed to play Real. Video 10 content Same system, processor requirements for playback as the previous generation Real. Video 9 n Also plays back in Real. Player 10 n

Unparalleled quality — State-of-theart video at all bit rates n Same Quality at 30% lower bitrate than Real. Video 9 n Same Quality at 80% lower bitrate than MPEG-2 n Same Quality at 75% lower bitrate than HDTV n Same Quality at 45% lower bitrate than MPEG-4 (ASP) n Same Quality at 30% lower bitrate than WMV 9 n Same Quality at 15% lower bitrate than H. 264

Cross Platform — Available for playback in multiple environments n Microsoft Windows, Intel Processor (MMXTM, SSE 2 TM) n Linux, Intel Processor (MMXTM, SSE 2 TM) n Mac OS, Power. PC Processor (Alti. Vec. TM) n Win. CE, ARM Processor (ARMv 4, Strong. ARM, XScale. TM) n Symbian, ARM Processor (ARMv 4, Strong. ARM, XScale. TM) n MIPS Processor (NEC vr 5500)

Any Device — Extends Internet media across the spectrum of devices from mobile to TV, PC, HDTV and beyond. n n HDTV Ready — supports all HD formats and resolutions including 720 p and 1080 i Interlaced Support — The Real. Video 10 bitstream can carry 60 fields per second interlaced content

THE REALVIDEO 10 COMPRESSION ALGORITHM n n n n Highly accurate motion modeling Proprietary spatial pixel prediction methods Multi-resolution residual analysis/synthesis stage Context adaptive entropy coding Psycho-visually tuned segmentation and filtering schemes Rate-Distortion optimized encoding algorithms Two-Pass encoding

The Real. Video 10 Decoder

THE REALVIDEO 10 ENCODER To accommodate these applications the Real. Video 10 encoder supports the following encoding modes: n. Constant Bitrate Variable Bitrate (with a possible maximum constrained bitrate) n Quality-Based Encoding (with a possible maximum constrained bitrate) n

Real player usage n n n Education Enterprise Government Service Providers Resource Library

Education • Universities, colleges, local school districts and other educators are discovering easy-to-use content creation, delivery and playback products and services from Real to communicate with employees, other institutions and students.

Case Study n n Thomas Telford School has developed a well-respected online curriculum employing digital media technology from Real. Watch Case Study

Enterprise n Financial services, health care, hightech and other enterprises are improving communication, increasing productivity and reducing costs with Real's complete universal media delivery system.

Case study n n Master. Card International saves over $10, 000 per company meeting using streaming media technology from Real. Watch this streaming video case study to find out how. Watch Case Study

Government n Federal, state and local government agencies are training employees, and communicating with constituents with Real's scalable and secure media delivery system.

Resource Library n To help professionals responsible for streaming media initiatives make informed decisions, we have gathered together a library of resources that includes case studies, application demos, product literature, online seminars and more.

Realvideo 10 Quality compare the bitrates required to achieve the same level of fidelity using Real. Video 10 and other popular video formats.

STREAM串流概念介紹 n 將一連串的影像壓縮後，經過網際網路分段傳送資料，在網路上即時傳輸影音以供觀賞的一種技術與過程；串流傳輸可傳送現場影音或預存於伺服器上的影片，當觀看者在收看這些影音檔時，影音資料在送達觀賞者的電腦後立即由特定播放軟體播放 (如 Windows Media Player, Real Player, 或 Quick. Time Player)。

◎串流格式之優缺點比較優點 n n 即時播放影片資料不易被複製不佔硬碟空間收看者即時隨點隨看

缺點 n 傳輸品質不佳、畫面失真為配合數據機或區域網連線的大小，必須壓縮及放棄多餘的影像資料，造成顆粒狀或模糊影像及間斷之聲音

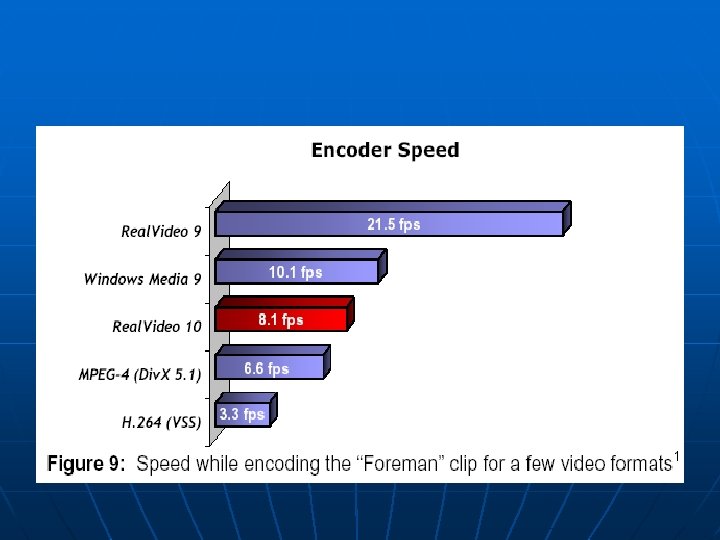

Comparison n Fidelity(Peak Signal-to-Noise Ratio, PSNR) Bitrate Encoder Speed

Real. Video 10 provides the same, or better, visual quality using 30% lower bitrate. (Images from the “Foreman” clip, encoded at 352 x 288)

Low action

Moderate action

Real. Video 10 Scalability

n The Helix™ platform (Producer, Server and Client) features Real. Networks’ Sure. Stream™ technology.

n Using the Helix Producer, multiple target bitrates can be selected and audio and video streams appropriate for those target bitrates are encoded.

n When streamed over a network, the Real. One™ Player and Helix Universal Server communicate the appropriate audio and video streams to be transmitted.

n All of the typical means of scalability (spatial, temporal and quality) are utilized in our Sure. Stream technology.

n When selecting multiple target bitrates for the encoding of a piece of content, each bitrate selection represents an independently decodable stream.

n n Each of these streams may be encoded at different resolutions, frame rates and image fidelities. And because there are no dependencies between streams, each stream can be encoded at a frame size, frame rate and quality level optimized for that bitrate.

n Real. Video 10 Error Resiliency

n Error resiliency is a major component of our media delivery platform. Error resiliency features implemented in our platform include:

n 1. The ability to dynamically set FEC packet insertion rates at nearly every stage of the delivery network, from Producer to Server, Server to Proxies, Proxies to Clients, etc.

n 2. Automatic retransmission requests allow clients to resend data packets that are lost.

n 3. The ability to enable error resiliency modes in our Real. Video family of codecs.

n Real. Video 10 Decoder Performance

n Since Real. Video 10 is designed for use on a wide variety of clients with very different performance capabilities, Real. Video 10 has built-in CPU scalability in both the encoder and decoder that allows the faster processing of video if needed.

CPU USAGE n The encoder/decoder complexity is asymmetric with the difference in complexity between the encoder and decoder near a factor of 3 -5 times under normal (default) encoder and decoder operation.

n n 1. CIF or QCIF for dial-up connections – For playback of typical content for dial-up speeds (176 x 132), a 200 MHz Pentium II (or better) is recommended. CIF是 352*288大小的影像 QCIF(176*144) SIF 大小(240 x 160 )

n 2. Full Screen – For playback of 640 x 480 video at full 24 fps (for film) or 30 fps (for video), a 750 MHz Pentium III (or better) is recommended.

n 3. HDTV – For playback of HDresolution content (e. g. 720 p), a 2. 6 GHz Pentium 4 (or better) is recommended.

TABLE 1: Real. Video 10 CPU performance, with zero-wait memory Simulation using ADS 1. 2 developer tools, with zero-wait memory Bitrate Image Size Frame Rate Contes ARM 92 XScale t Type 5 30 Kbps QCIF 15 fps Low Action 10. 8 M Hz 10. 7 M Hz 48 Kps QCIF 15 fps Moder ate Action 25. 4 M Hz 25. 6 M Hz 250 Kp s SIF 25 fps High Action 171. 7 MHz 172. 9 MHz 200 Kp s CIF 30 fps Moder ate Action 174. 9 MHz 179. 4 MHz 600 Kp s CIF 30 fps Moder ate Action 253. 3 MHz 257. 0 MHz

TABLE 2: Real. Video 10 decoder CPU usage on XScale™ Machine = ARM XScale, PXA 255, i. PAQ H 5550, 400 MHz Bitrate Image Size Frame Rate Content Type CPU Usage 30 Kbps QCIF 15 fps Low Action 22. 9 MHz 48 Kbps QCIF 15 fps Moderat e Action 39. 2 MHz 250 Kbps SIF 25 fps High Action 231. 3 MHz 200 Kbps CIF 30 fps Moderat e Action 260. 4 MHz 600 Kbps CIF 30 fps Moderat e Action 350. 2 MHz

TABLE 3: Real. Video 10 CPU usage on a 1. 4 GHz, Pentium™ 4 Machine = Pentium 4, 1. 4 GHz Bitrate Image Size Frame Rate Content Type CPU Usage 48 Kbps CIF 30 fps Low Action 81. 9 MHz 100 Kbps CIF 30 fps Moderate Action 150. 3 MHz 300 Kbps QVGA 30 fps Mixed Action 158. 3 MHz 800 Kbps CIF 30 fps Moderate Action 260. 0 MHz 1. 5 Mbps CIF 30 fps Moderate Action 307. 9 MHz

MEMORY USAGE n The memory usage of the Real. Video 10 decoder is dependent on the image size of the video being decoded. Table 4 presents the effective memory usage for several popular resolutions.

TABLE 4: Real. Video 10 memory usage Image Code Size RAM 2 All RAM 3 QCIF 172 KB 147 KB 257 KB CIF 172 KB 315 KB 868 KB

未來展望 n Real Player加入Google Bar Real. Networks宣佈他們將在他們的旗艦產品Real Player 10，加入Google Bar。在功能上，加入了搜尋Digital Media的功能，用戶就更加方便。在合作意義上，當然就Real. Networks這幾年都好像被微軟力壓，加入Google Bar就是利用Google 這大紅大紫的名稱，希望以Real Player 10重新上路。

n 我們可以預期在未來，REAL Player也會加入MSN的搜尋元素。若可以將MSN的 Search Engine，結合MSN Messenger 的Alert功能，那就更好。比如說，我喜歡 Jon Bon Jovi的話，我可在Windows Media Player內搜尋他們的歌，以後當在 Media Guide上有這歌手的新歌 / MTV時，便透過MSN Messenger Alert

Real. Networks的新消息 n 另外，他們宣佈了一款新的Final Cut Plugin，名為Real(TM) 10 Export Plugin for Mac OS X，讓Final Cut的用戶可以直接輸出Real. Audio 10或Real. Video 10格式的媒體。

Reference http: //www. realnetworks. com/indust ries/index. html n http: //docs. real. com/docs/rn/rv 10/R V 10_Tech_Overview. pdf Real. Networks Real. Vedio 10 Technical Overview Version 1. 0 Copyright c 2003 Real. Networks, Inc. All rights reserved. n

補充資料 n n n http: //toget. pchome. com. tw/intro/networ k_multimedia/11454. html http: //myurl. com. tw/b 9 md http: //myurl. com. tw/poci http: //www. azuremedia. net/tech/history/b rowser/000271. html http: //www. microsoft. com/taiwan/product s/windowsmedia/tw/compare/ http: //www. fg. tp. edu. tw/~betty/vcd. htm

補充資料 n n n http: //service. real. com/help/library/e ncoders. html https: //player. helixcommunity. org/ http: //enews. csie. nctu. edu. tw/life/tip s/tip 0006. htm
