«Rational Heating Systems» Factory Ltd. Membranous Electric Heater ECO-200
Heating to which we are accustomed to uses the convection principle where source of heat is radiator, convector or other similar item. First air near the radiator is heated. Then it gets discharged and goes up, when it gets into contact with enclosing structures a partial heat transfer takes place. After that cooled down air goes down and then the cycle repeats. During that the surface of radiator heats to a sufficiently high temperature. Under the ceiling the temperature is maximal while the floor remains uncomfortably cool.

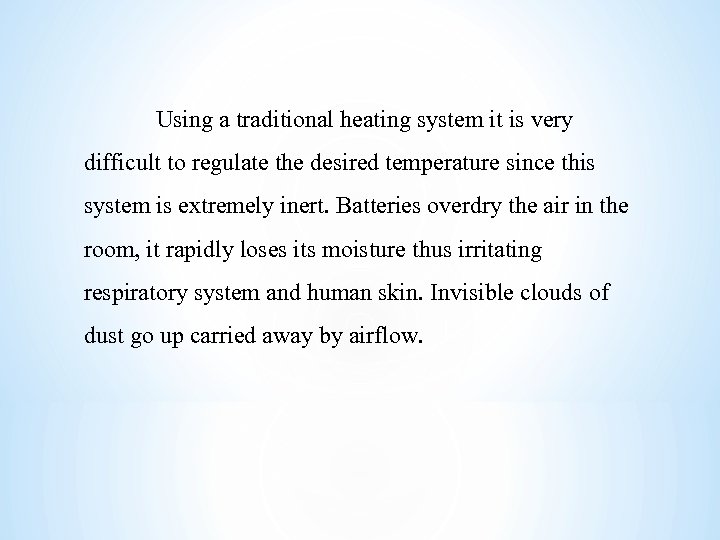

Using a traditional heating system it is very difficult to regulate the desired temperature since this system is extremely inert. Batteries overdry the air in the room, it rapidly loses its moisture thus irritating respiratory system and human skin. Invisible clouds of dust go up carried away by airflow.
When using traditional heating: - Difficult to regulate desired temperature; - Batteries overdry the air in room. Membranous electric heater ECO-200: - with the help of thermostat temperature is regulated for each room; - the heat flux from the heater is directly transmitted to the floor and furnishings and its then through them the air in room is heated; - used where there is no gas and centralized heating system.

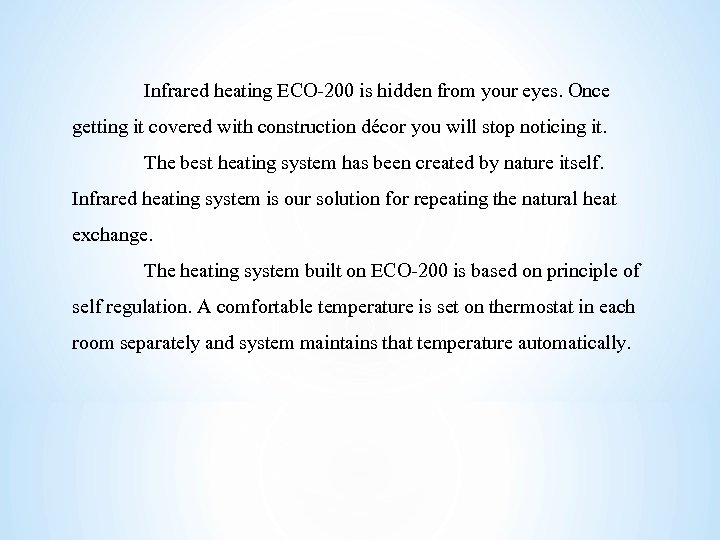

Infrared heating ECO-200 is hidden from your eyes. Once getting it covered with construction décor you will stop noticing it. The best heating system has been created by nature itself. Infrared heating system is our solution for repeating the natural heat exchange. The heating system built on ECO-200 is based on principle of self regulation. A comfortable temperature is set on thermostat in each room separately and system maintains that temperature automatically.

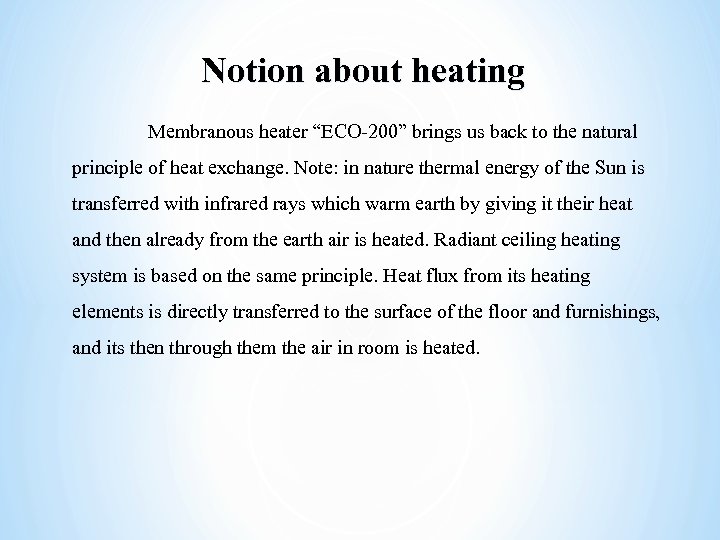

Notion about heating Membranous heater “ECO-200” brings us back to the natural principle of heat exchange. Note: in nature thermal energy of the Sun is transferred with infrared rays which warm earth by giving it their heat and then already from the earth air is heated. Radiant ceiling heating system is based on the same principle. Heat flux from its heating elements is directly transferred to the surface of the floor and furnishings, and its then through them the air in room is heated.
Main technical characteristics of the equipment 1. Nominal voltage: 200 -220 V 2. Capacity: 200 W/sq. m. +10% 3. Current frequency: 50 Hz 4. Leaf thickness: 0. 5 mm 5. Net weight: 450 gr/sq. m.
Advantages of ECO-200 Ecological Safe Reliable Durable Cost effective Comfortable

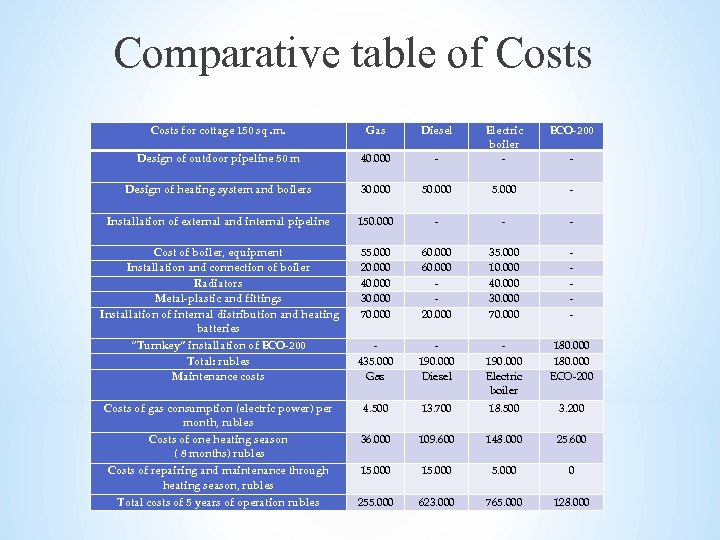

Comparative table of Costs for cottage 150 sq. m. Design of outdoor pipeline 50 m Gas Diesel ECO-200 - Electric boiler - 40. 000 Design of heating system and boilers 30. 000 5. 000 - Installation of external and internal pipeline 150. 000 - - - Cost of boiler, equipment Installation and connection of boiler Radiators Metal-plastic and fittings Installation of internal distribution and heating batteries 55. 000 20. 000 40. 000 30. 000 70. 000 60. 000 20. 000 35. 000 10. 000 40. 000 30. 000 70. 000 - “Turnkey” installation of ECO-200 Total: rubles Maintenance costs 435. 000 Gas 190. 000 Diesel 190. 000 Electric boiler 180. 000 ECO-200 Costs of gas consumption (electric power) per month, rubles 4. 500 13. 700 18. 500 3. 200 Costs of one heating season ( 8 months) rubles 36. 000 109. 600 148. 000 25. 600 Costs of repairing and maintenance through heating season, rubles 15. 000 0 Total costs of 5 years of operation rubles 255. 000 623. 000 765. 000 128. 000 -

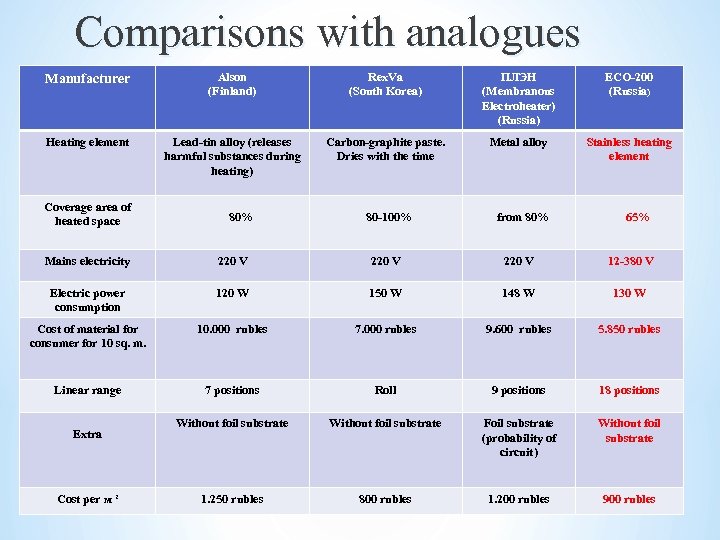

Comparisons with analogues Manufacturer Alson (Finland) Rex. Va (South Korea) ПЛЭН (Membranous Electroheater) (Russia) ECO-200 (Russia) Heating element Lead-tin alloy (releases harmful substances during heating) Carbon-graphite paste. Dries with the time Metal alloy Stainless heating element Coverage area of heated space 80% 80 -100% from 80% 65% Mains electricity 220 V 12 -380 V Electric power consumption 120 W 150 W 148 W 130 W Cost of material for consumer for 10 sq. m. 10. 000 rubles 7. 000 rubles 9. 600 rubles 5. 850 rubles Linear range 7 positions Roll 9 positions 18 positions Without foil substrate Foil substrate (probability of circuit) Without foil substrate 1. 250 rubles 800 rubles 1. 200 rubles 900 rubles Extra Cost per м ²
Innovativeness Design of “ECO-200” heater developed by “RHS” Factory allows transition into operating mode in a very short time thus much faster heating the indoor space to the required degree after which it passes into standby mode which saves power consumption.

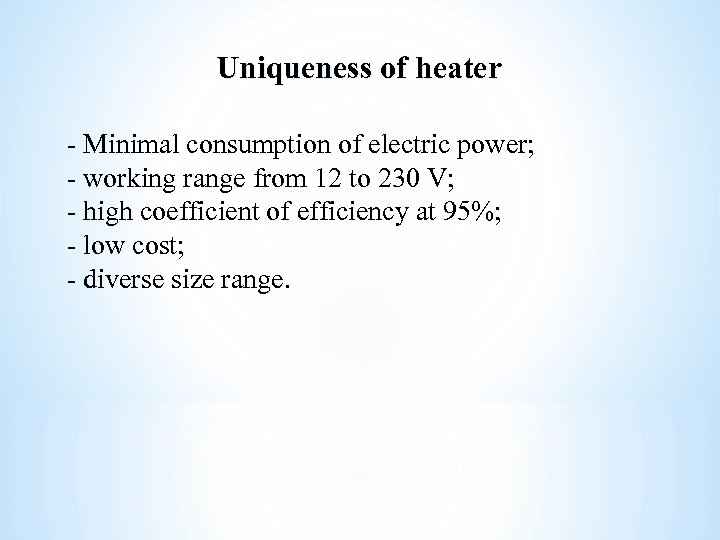

Uniqueness of heater - Minimal consumption of electric power; - working range from 12 to 230 V; - high coefficient of efficiency at 95%; - low cost; - diverse size range.

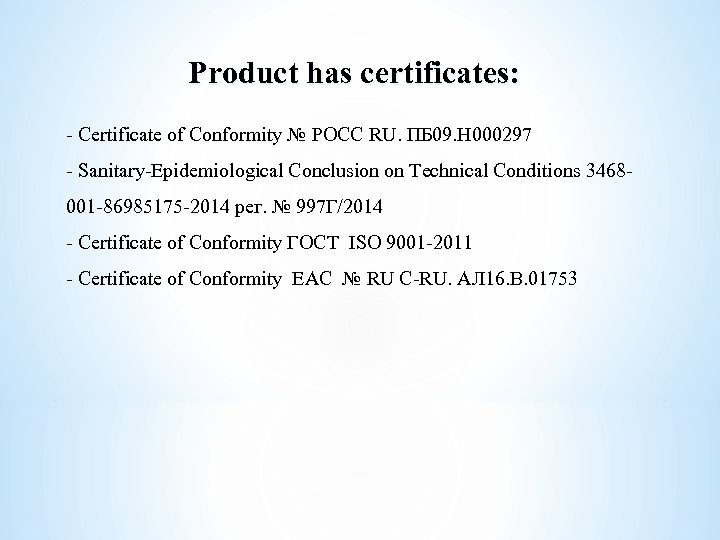

Product has certificates: - Certificate of Conformity № РОСС RU. ПБ 09. Н 000297 - Sanitary-Epidemiological Conclusion on Technical Conditions 3468001 -86985175 -2014 рег. № 997 Г/2014 - Certificate of Conformity ГОСТ ISO 9001 -2011 - Certificate of Conformity EAC № RU С-RU. АЛ 16. В. 01753
Estimated power consumption of the radiant heating system for the heating season at a temperature regime of – 300 С in the street and + 240 С indoors is: - for residential premises – 11 k. W-hours per month per 1 sq. m. м 2 of heated area; - for administrative premises – 15 k. W-hours per month per 1 sq. m. м 2 of heated area. Radiant heating system heats enclosing structures in the first place that’s why it is very important that they have sufficient thermal resistance (ability to prevent the passage of heat through them to the outside). At insufficient thermal resistance the heat will be lost through the enclosing structures. The minimum values of thermal resistance for areas are listed in СНи. П (Building Code) 23 -02 -2003 «Thermal protection of buildings» .

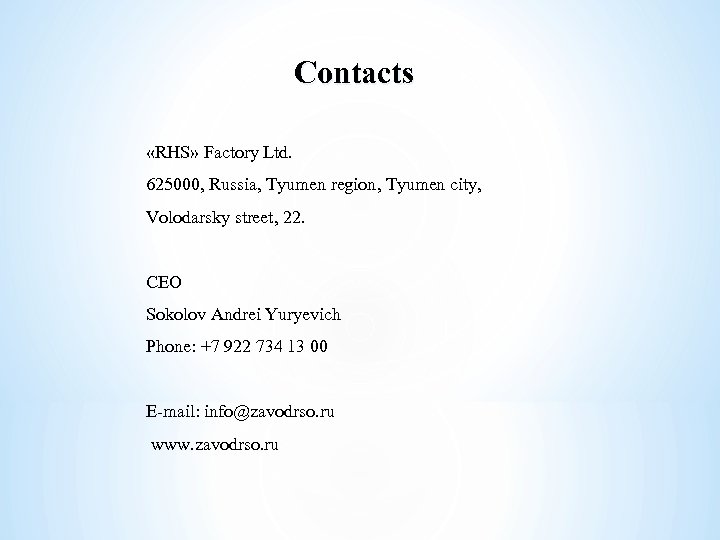

Contacts «RHS» Factory Ltd. 625000, Russia, Tyumen region, Tyumen city, Volodarsky street, 22. CEO Sokolov Andrei Yuryevich Phone: +7 922 734 13 00 E-mail: info@zavodrso. ru www. zavodrso. ru
