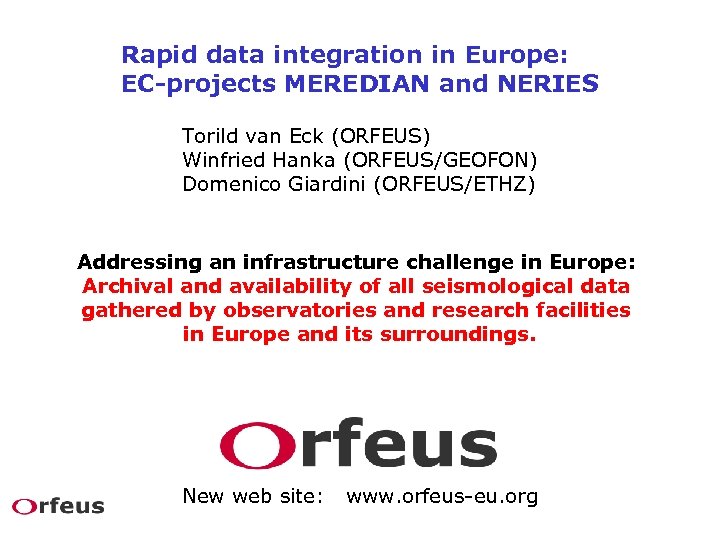

Rapid data integration in Europe: EC-projects MEREDIAN and NERIES Torild van Eck (ORFEUS) Winfried Hanka (ORFEUS/GEOFON) Domenico Giardini (ORFEUS/ETHZ) Addressing an infrastructure challenge in Europe: Archival and availability of all seismological data gathered by observatories and research facilities in Europe and its surroundings. New web site: www. orfeus-eu. org

Global and European collaboration in earthquake monitoring IASPEI (global) International Association of Seismology and Physics of the Earth FDSN (global) Federation of Digital Seismograph Networks ESC (Euro. Med) European Seismological Commission ORFEUS (Euro. Med) Observatories and Research Facilities for European Seismology EMSC (Euro. Med) European Mediterranean Seismological Center Board of Directors Executive Committee Participants Assembly of all members Coordination bureau Executive Council

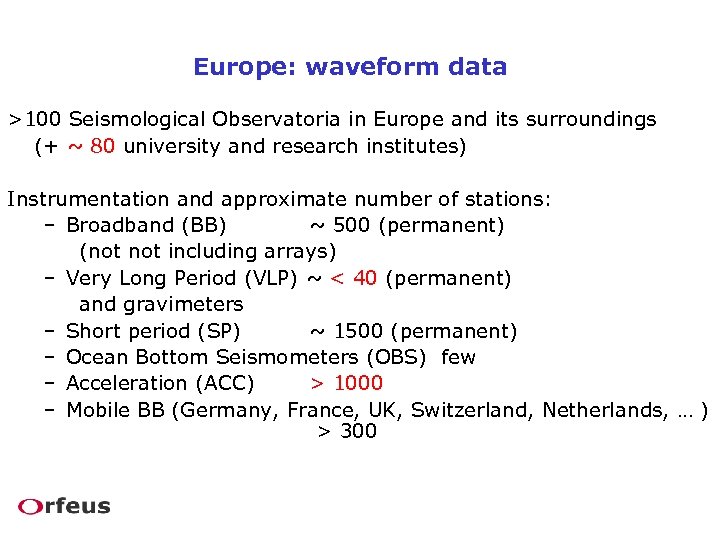

Europe: waveform data >100 Seismological Observatoria in Europe and its surroundings (+ ~ 80 university and research institutes) Instrumentation and approximate number of stations: – Broadband (BB) ~ 500 (permanent) (not including arrays) – Very Long Period (VLP) ~ < 40 (permanent) and gravimeters – Short period (SP) ~ 1500 (permanent) – Ocean Bottom Seismometers (OBS) few – Acceleration (ACC) > 1000 – Mobile BB (Germany, France, UK, Switzerland, Netherlands, … ) > 300

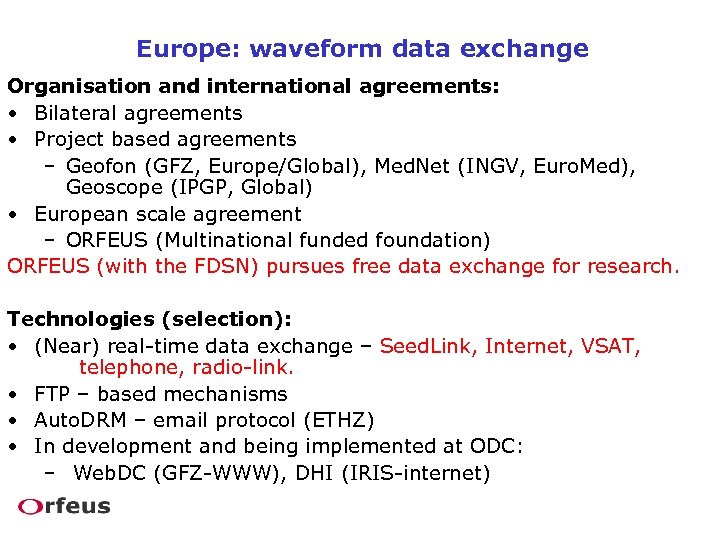

Europe: waveform data exchange Organisation and international agreements: • Bilateral agreements • Project based agreements – Geofon (GFZ, Europe/Global), Med. Net (INGV, Euro. Med), Geoscope (IPGP, Global) • European scale agreement – ORFEUS (Multinational funded foundation) ORFEUS (with the FDSN) pursues free data exchange for research. Technologies (selection): • (Near) real-time data exchange – Seed. Link, Internet, VSAT, telephone, radio-link. • FTP – based mechanisms • Auto. DRM – email protocol (ETHZ) • In development and being implemented at ODC: – Web. DC (GFZ-WWW), DHI (IRIS-internet)

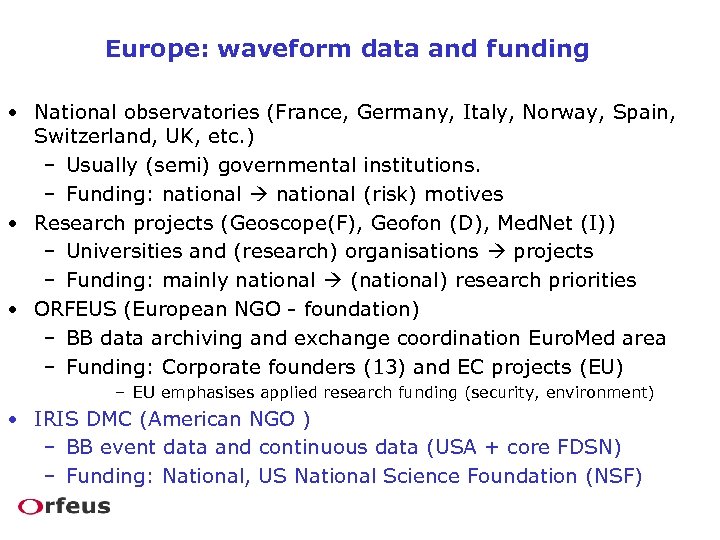

Europe: waveform data and funding • National observatories (France, Germany, Italy, Norway, Spain, Switzerland, UK, etc. ) – Usually (semi) governmental institutions. – Funding: national (risk) motives • Research projects (Geoscope(F), Geofon (D), Med. Net (I)) – Universities and (research) organisations projects – Funding: mainly national (national) research priorities • ORFEUS (European NGO - foundation) – BB data archiving and exchange coordination Euro. Med area – Funding: Corporate founders (13) and EC projects (EU) – EU emphasises applied research funding (security, environment) • IRIS DMC (American NGO ) – BB event data and continuous data (USA + core FDSN) – Funding: National, US National Science Foundation (NSF)

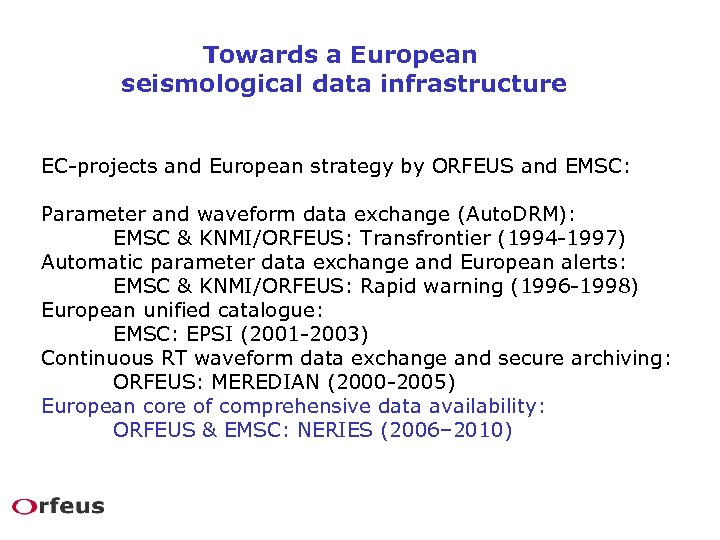

Towards a European seismological data infrastructure EC-projects and European strategy by ORFEUS and EMSC: Parameter and waveform data exchange (Auto. DRM): EMSC & KNMI/ORFEUS: Transfrontier (1994 -1997) Automatic parameter data exchange and European alerts: EMSC & KNMI/ORFEUS: Rapid warning (1996 -1998) European unified catalogue: EMSC: EPSI (2001 -2003) Continuous RT waveform data exchange and secure archiving: ORFEUS: MEREDIAN (2000 -2005) European core of comprehensive data availability: ORFEUS & EMSC: NERIES (2006– 2010)

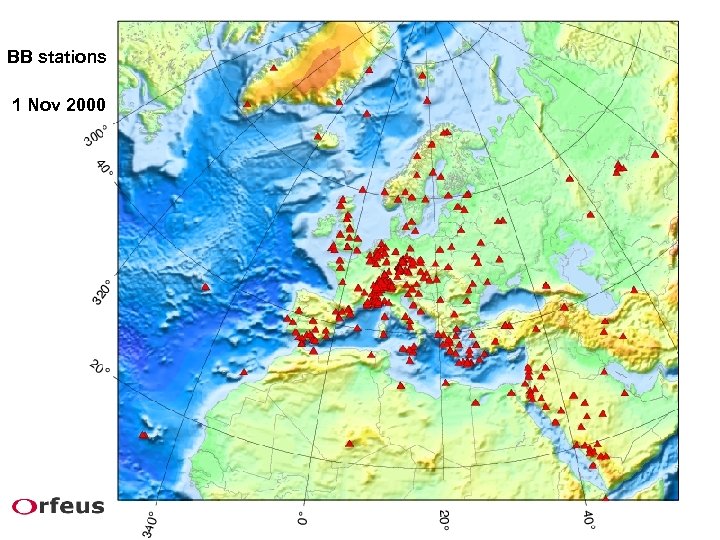

BB stations 1 Nov 2000

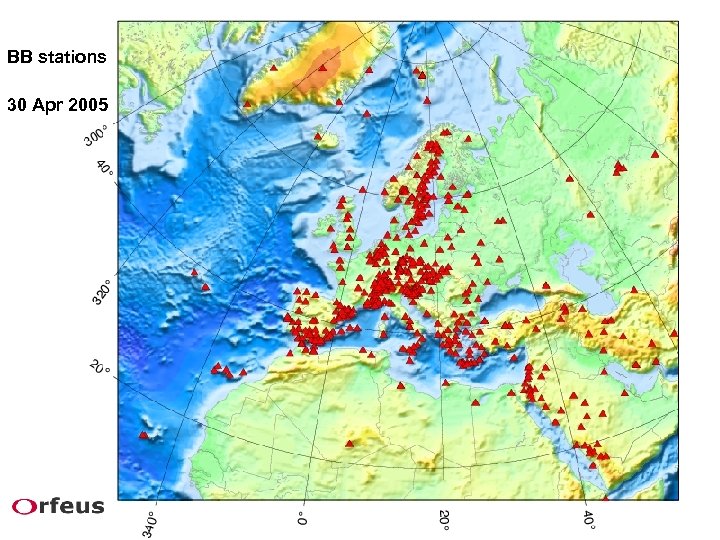

BB stations 30 Apr 2005

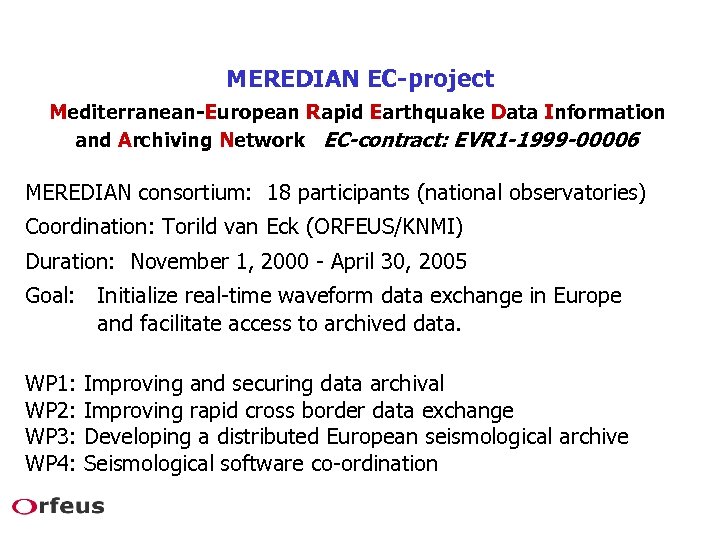

MEREDIAN EC-project Mediterranean-European Rapid Earthquake Data Information and Archiving Network EC-contract: EVR 1 -1999 -00006 MEREDIAN consortium: 18 participants (national observatories) Coordination: Torild van Eck (ORFEUS/KNMI) Duration: November 1, 2000 - April 30, 2005 Goal: Initialize real-time waveform data exchange in Europe and facilitate access to archived data. WP 1: WP 2: WP 3: WP 4: Improving and securing data archival Improving rapid cross border data exchange Developing a distributed European seismological archive Seismological software co-ordination

VEBSN 1 Jan 2003

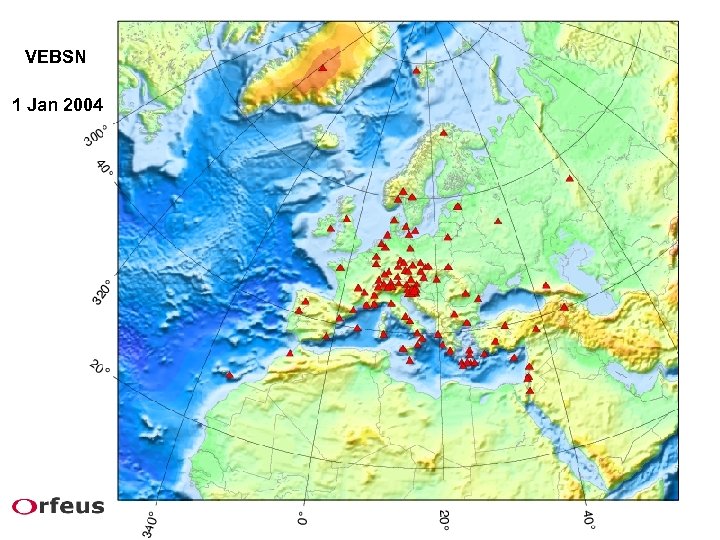

VEBSN 1 Jan 2004

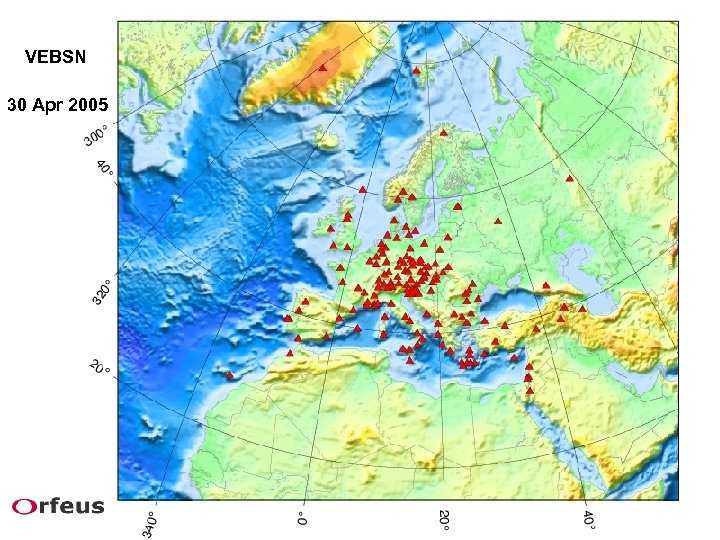

VEBSN 30 Apr 2005

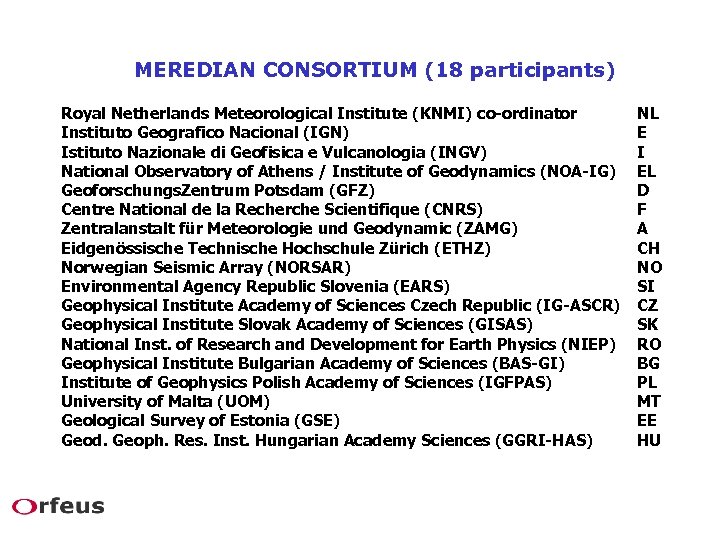

MEREDIAN CONSORTIUM (18 participants) Royal Netherlands Meteorological Institute (KNMI) co-ordinator Instituto Geografico Nacional (IGN) Istituto Nazionale di Geofisica e Vulcanologia (INGV) National Observatory of Athens / Institute of Geodynamics (NOA-IG) Geoforschungs. Zentrum Potsdam (GFZ) Centre National de la Recherche Scientifique (CNRS) Zentralanstalt für Meteorologie und Geodynamic (ZAMG) Eidgenössische Technische Hochschule Zürich (ETHZ) Norwegian Seismic Array (NORSAR) Environmental Agency Republic Slovenia (EARS) Geophysical Institute Academy of Sciences Czech Republic (IG-ASCR) Geophysical Institute Slovak Academy of Sciences (GISAS) National Inst. of Research and Development for Earth Physics (NIEP) Geophysical Institute Bulgarian Academy of Sciences (BAS-GI) Institute of Geophysics Polish Academy of Sciences (IGFPAS) University of Malta (UOM) Geological Survey of Estonia (GSE) Geod. Geoph. Res. Inst. Hungarian Academy Sciences (GGRI-HAS) NL E I EL D F A CH NO SI CZ SK RO BG PL MT EE HU

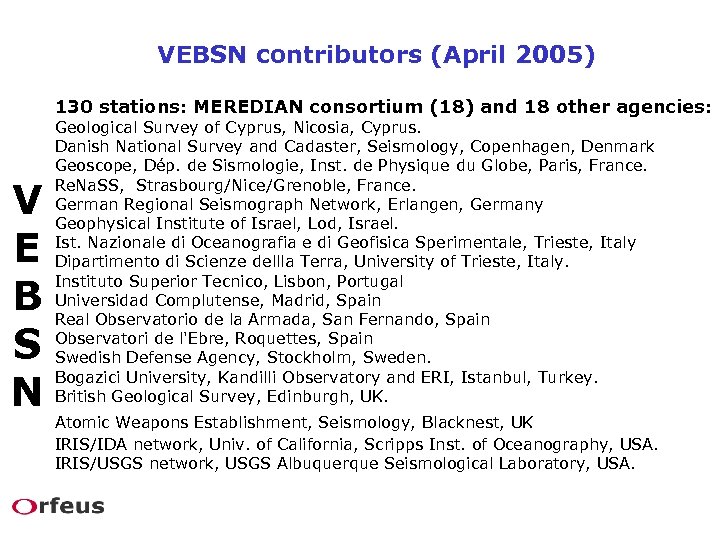

VEBSN contributors (April 2005) 130 stations: MEREDIAN consortium (18) and 18 other agencies: V E B S N Geological Survey of Cyprus, Nicosia, Cyprus. Danish National Survey and Cadaster, Seismology, Copenhagen, Denmark Geoscope, Dép. de Sismologie, Inst. de Physique du Globe, Paris, France. Re. Na. SS, Strasbourg/Nice/Grenoble, France. German Regional Seismograph Network, Erlangen, Germany Geophysical Institute of Israel, Lod, Israel. Ist. Nazionale di Oceanografia e di Geofisica Sperimentale, Trieste, Italy Dipartimento di Scienze dellla Terra, University of Trieste, Italy. Instituto Superior Tecnico, Lisbon, Portugal Universidad Complutense, Madrid, Spain Real Observatorio de la Armada, San Fernando, Spain Observatori de l'Ebre, Roquettes, Spain Swedish Defense Agency, Stockholm, Sweden. Bogazici University, Kandilli Observatory and ERI, Istanbul, Turkey. British Geological Survey, Edinburgh, UK. Atomic Weapons Establishment, Seismology, Blacknest, UK IRIS/IDA network, Univ. of California, Scripps Inst. of Oceanography, USA. IRIS/USGS network, USGS Albuquerque Seismological Laboratory, USA.

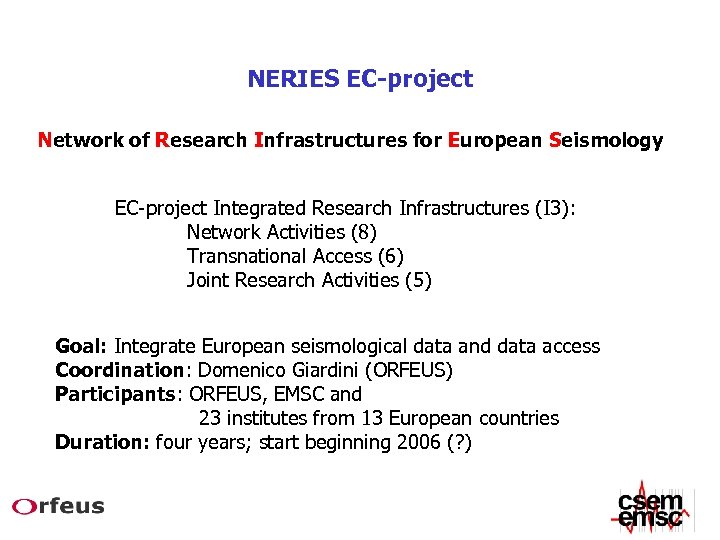

NERIES EC-project Network of Research Infrastructures for European Seismology EC-project Integrated Research Infrastructures (I 3): Network Activities (8) Transnational Access (6) Joint Research Activities (5) Goal: Integrate European seismological data and data access Coordination: Domenico Giardini (ORFEUS) Participants: ORFEUS, EMSC and 23 institutes from 13 European countries Duration: four years; start beginning 2006 (? )

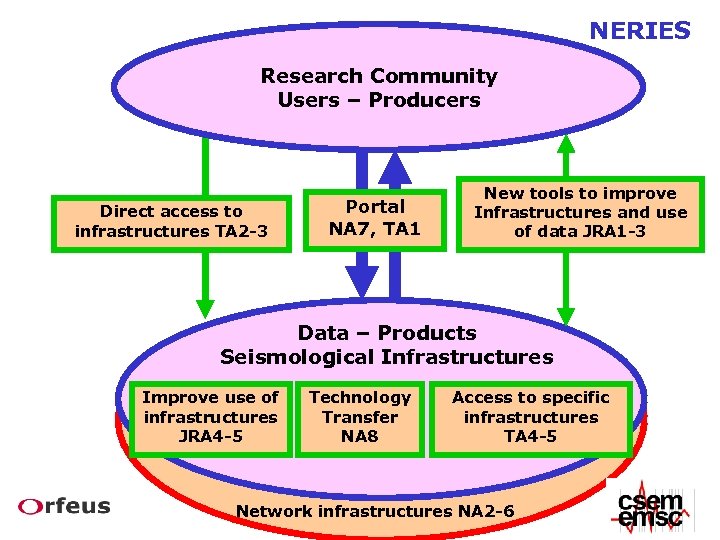

NERIES Research Community Users – Producers Direct access to infrastructures TA 2 -3 Portal NA 7, TA 1 New tools to improve Infrastructures and use of data JRA 1 -3 Data – Products Seismological Infrastructures Improve use of infrastructures JRA 4 -5 Technology Transfer NA 8 Access to specific infrastructures TA 4 -5 Network infrastructures NA 2 -6

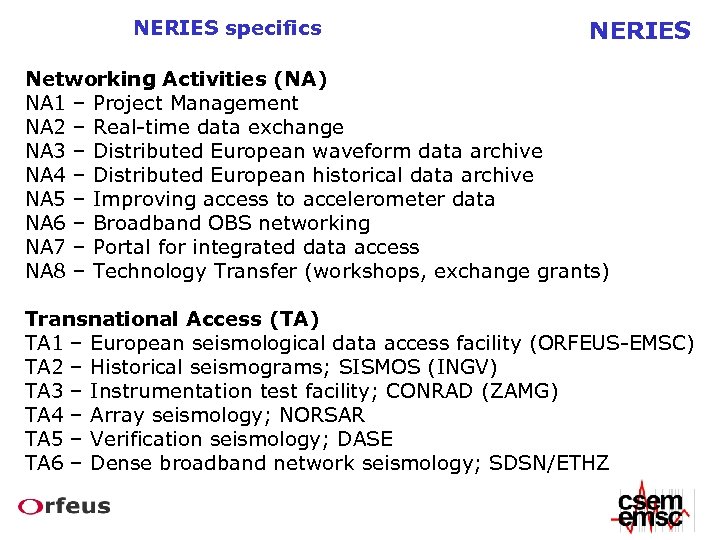

NERIES specifics NERIES Networking Activities (NA) NA 1 – Project Management NA 2 – Real-time data exchange NA 3 – Distributed European waveform data archive NA 4 – Distributed European historical data archive NA 5 – Improving access to accelerometer data NA 6 – Broadband OBS networking NA 7 – Portal for integrated data access NA 8 – Technology Transfer (workshops, exchange grants) Transnational Access (TA) TA 1 – European seismological data access facility (ORFEUS-EMSC) TA 2 – Historical seismograms; SISMOS (INGV) TA 3 – Instrumentation test facility; CONRAD (ZAMG) TA 4 – Array seismology; NORSAR TA 5 – Verification seismology; DASE TA 6 – Dense broadband network seismology; SDSN/ETHZ

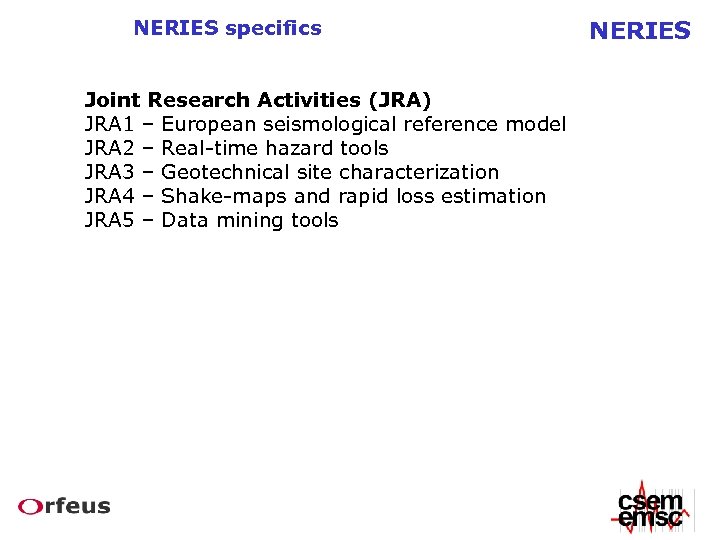

NERIES specifics Joint Research Activities (JRA) JRA 1 – European seismological reference model JRA 2 – Real-time hazard tools JRA 3 – Geotechnical site characterization JRA 4 – Shake-maps and rapid loss estimation JRA 5 – Data mining tools NERIES

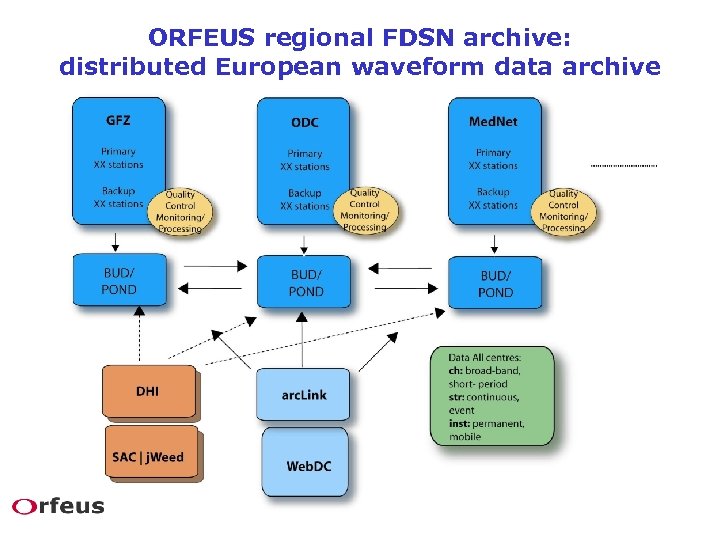

ORFEUS regional FDSN archive: distributed European waveform data archive

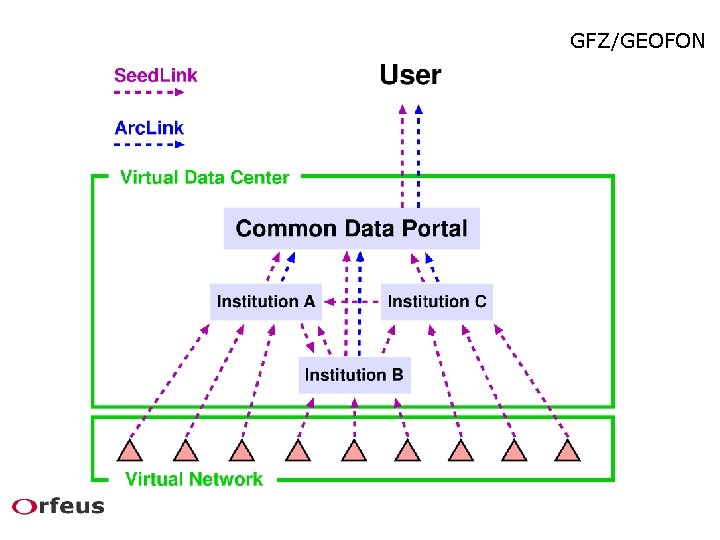

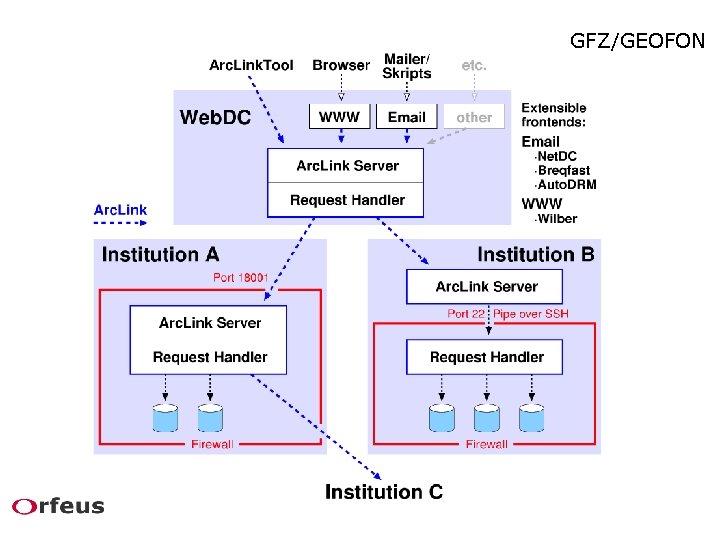

GFZ/GEOFON
