Rainfall Estimation from Satellite Data Beth Ebert BMRC

Rainfall Estimation from Satellite Data Beth Ebert BMRC Satellite Applications Workshop, September 2003

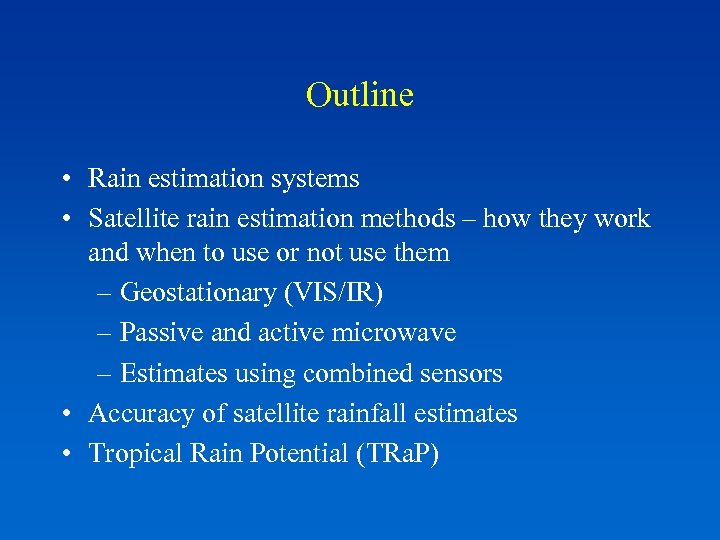

Outline • Rain estimation systems • Satellite rain estimation methods – how they work and when to use or not use them – Geostationary (VIS/IR) – Passive and active microwave – Estimates using combined sensors • Accuracy of satellite rainfall estimates • Tropical Rain Potential (TRa. P)

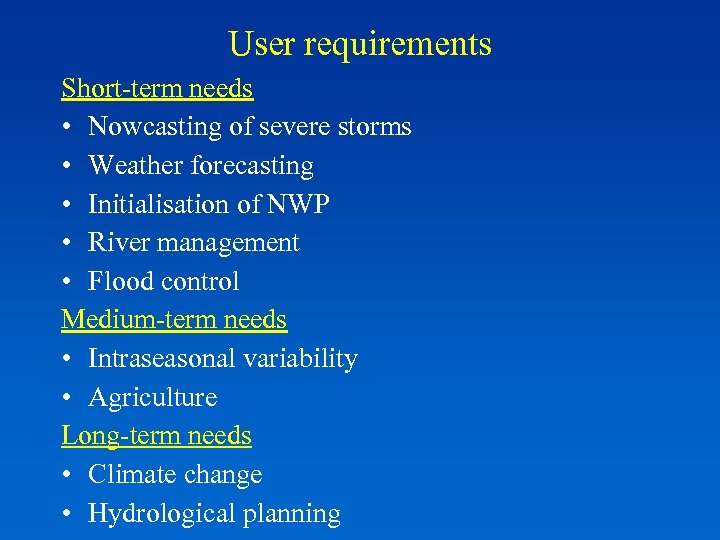

User requirements Short-term needs • Nowcasting of severe storms • Weather forecasting • Initialisation of NWP • River management • Flood control Medium-term needs • Intraseasonal variability • Agriculture Long-term needs • Climate change • Hydrological planning

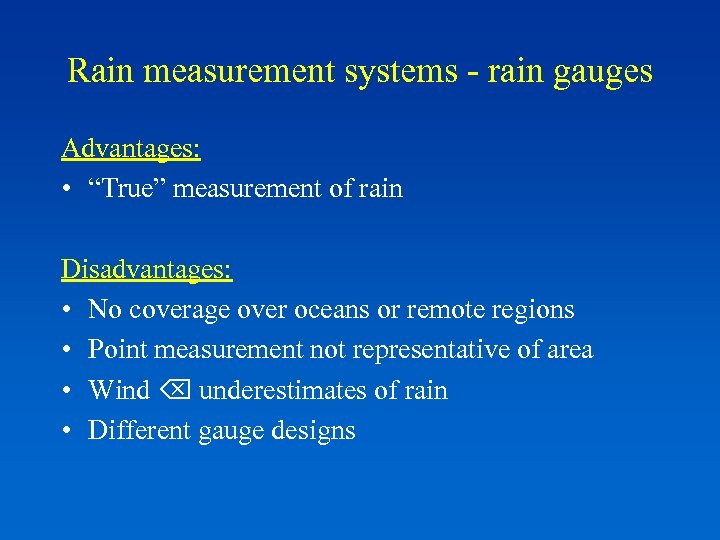

Rain measurement systems - rain gauges Advantages: • “True” measurement of rain Disadvantages: • No coverage over oceans or remote regions • Point measurement not representative of area • Wind underestimates of rain • Different gauge designs

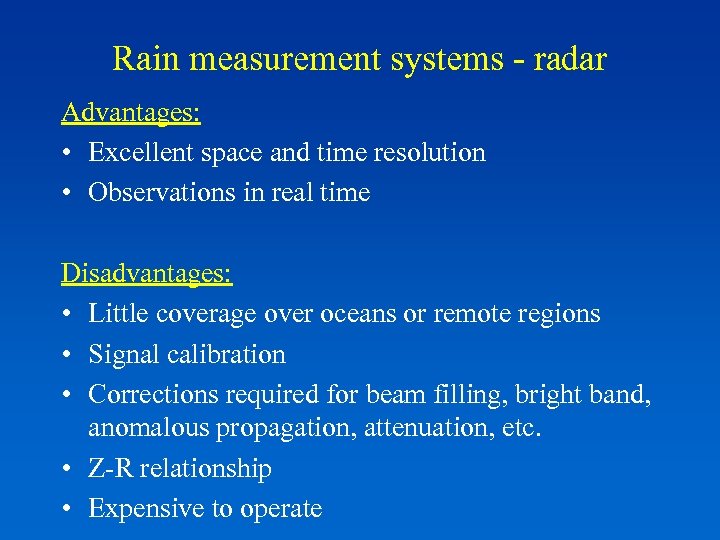

Rain measurement systems - radar Advantages: • Excellent space and time resolution • Observations in real time Disadvantages: • Little coverage over oceans or remote regions • Signal calibration • Corrections required for beam filling, bright band, anomalous propagation, attenuation, etc. • Z-R relationship • Expensive to operate

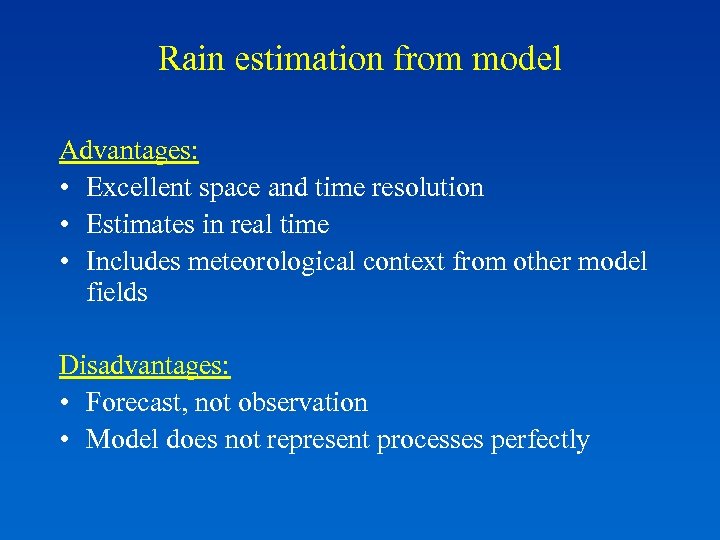

Rain estimation from model Advantages: • Excellent space and time resolution • Estimates in real time • Includes meteorological context from other model fields Disadvantages: • Forecast, not observation • Model does not represent processes perfectly

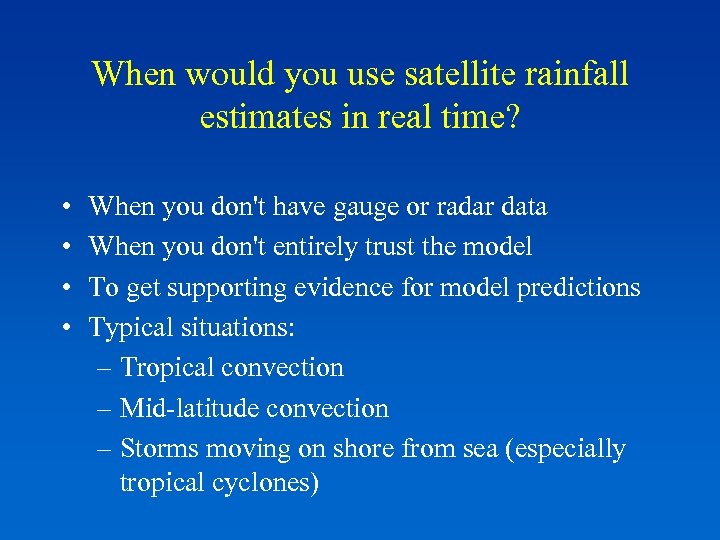

When would you use satellite rainfall estimates in real time? • • When you don't have gauge or radar data When you don't entirely trust the model To get supporting evidence for model predictions Typical situations: – Tropical convection – Mid-latitude convection – Storms moving on shore from sea (especially tropical cyclones)

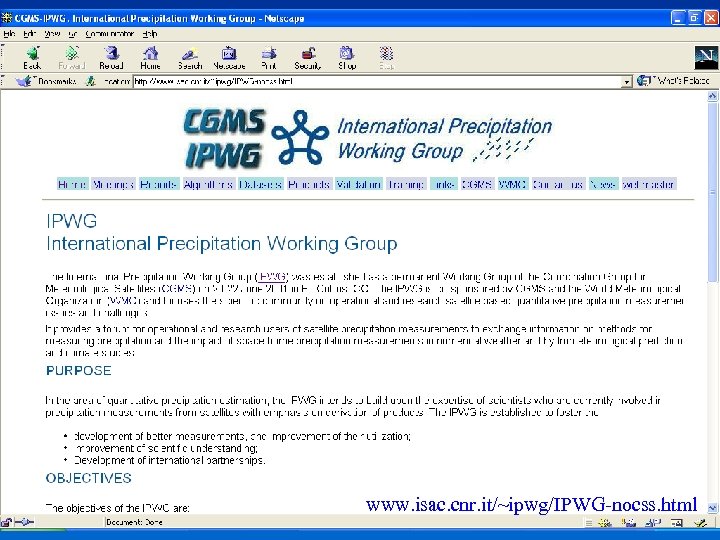

IPWG www. isac. cnr. it/~ipwg/IPWG-nocss. html

Rain measurement systems geostationary satellite (VIS/IR) Advantages: • Good space and time resolution • Observations in near real time • Samples oceans and remote regions • Consistent measurement system Disadvantages: • Measures cloud-top properties instead of rain ð May mistake cirrus for rain clouds ð Does not capture rain from warm clouds

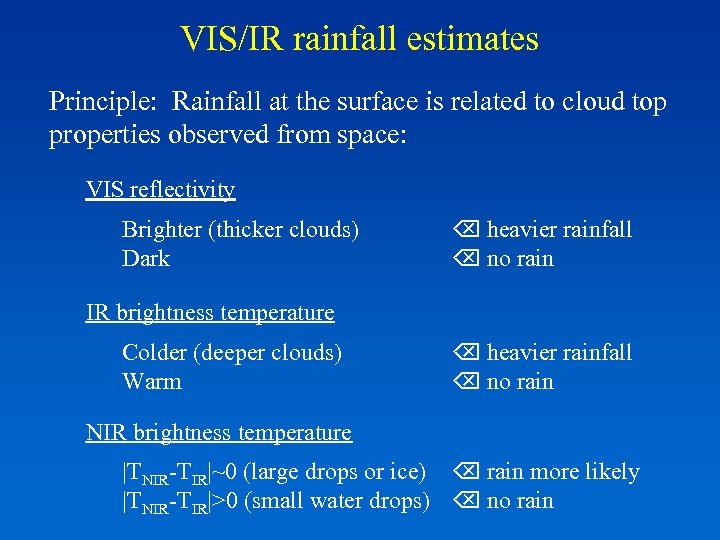

VIS/IR rainfall estimates Principle: Rainfall at the surface is related to cloud top properties observed from space: VIS reflectivity Brighter (thicker clouds) Dark heavier rainfall no rain IR brightness temperature Colder (deeper clouds) Warm heavier rainfall no rain NIR brightness temperature |TNIR-TIR|~0 (large drops or ice) rain more likely |TNIR-TIR|>0 (small water drops) no rain

$GOES Precipitation Index (GPI) Simple threshold method: R = 3. 0 mm/hr * (fraction$

GOES Precipitation Index (GPI) Simple threshold method: R = 3. 0 mm/hr * (fraction of pixels with TB 235 K) • Works better over large areas and long times (i. e. , monthly) • Better suited to convective rainfall Arkin (1979)

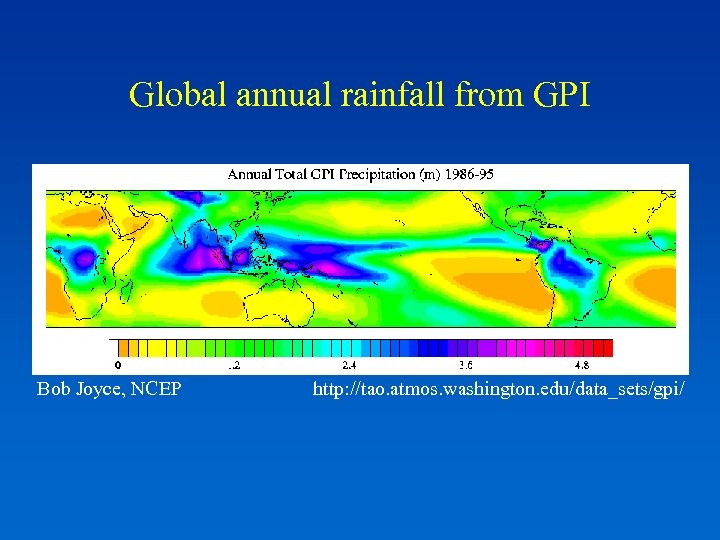

Global annual rainfall from GPI Bob Joyce, NCEP http: //tao. atmos. washington. edu/data_sets/gpi/

Power law technique IR image R = a (T 0 -TB)b - R 0 Rain rate ( TB 253 K)

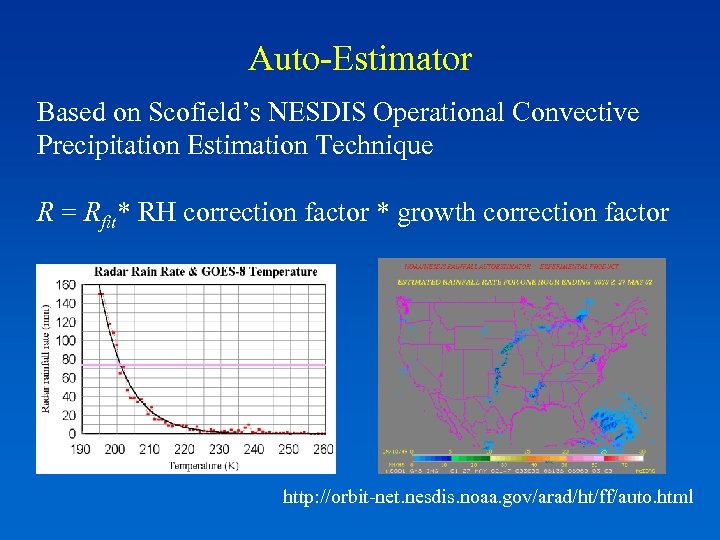

Auto-Estimator Based on Scofield’s NESDIS Operational Convective Precipitation Estimation Technique R = Rfit* RH correction factor * growth correction factor http: //orbit-net. nesdis. noaa. gov/arad/ht/ff/auto. html

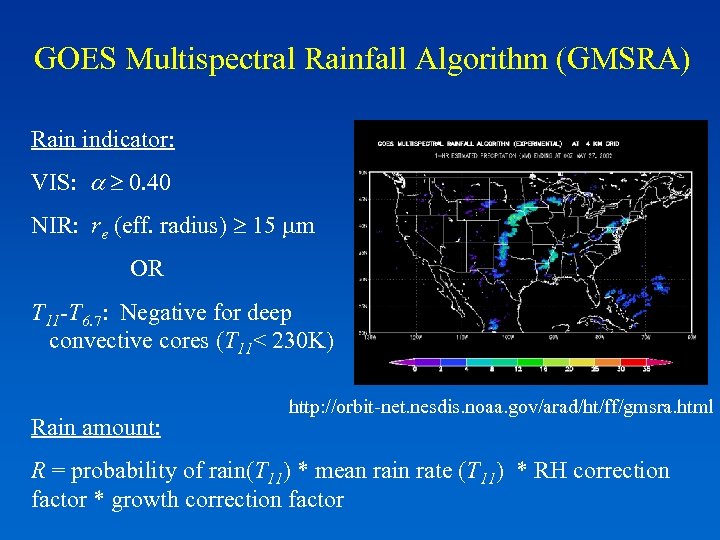

GOES Multispectral Rainfall Algorithm (GMSRA) Rain indicator: VIS: a 0. 40 NIR: re (eff. radius) 15 mm OR T 11 -T 6. 7: Negative for deep convective cores (T 11< 230 K) Rain amount: http: //orbit-net. nesdis. noaa. gov/arad/ht/ff/gmsra. html R = probability of rain(T 11) * mean rain rate (T 11) * RH correction factor * growth correction factor

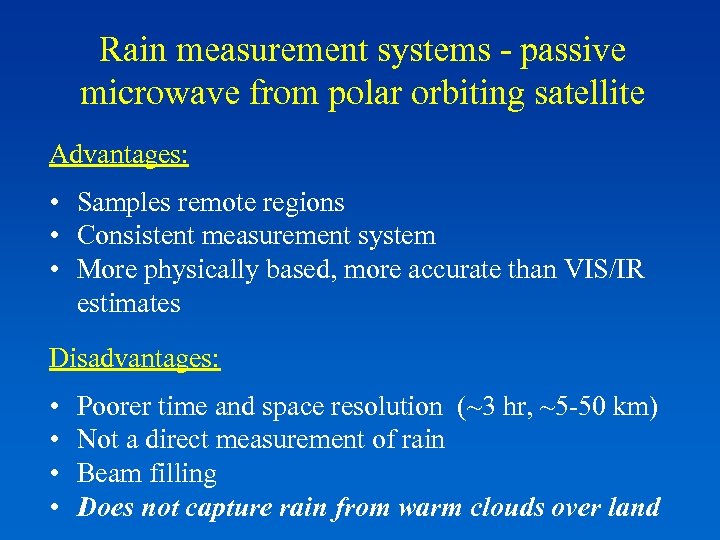

Rain measurement systems - passive microwave from polar orbiting satellite Advantages: • Samples remote regions • Consistent measurement system • More physically based, more accurate than VIS/IR estimates Disadvantages: • • Poorer time and space resolution (~3 hr, ~5 -50 km) Not a direct measurement of rain Beam filling Does not capture rain from warm clouds over land

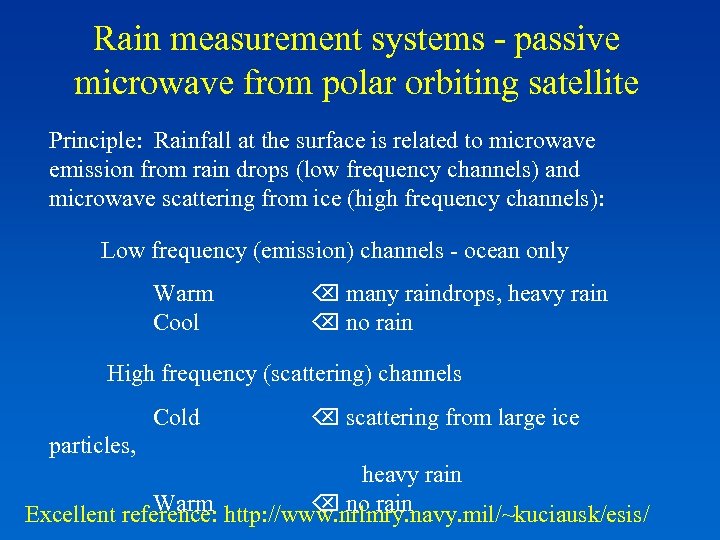

Rain measurement systems - passive microwave from polar orbiting satellite Principle: Rainfall at the surface is related to microwave emission from rain drops (low frequency channels) and microwave scattering from ice (high frequency channels): Low frequency (emission) channels - ocean only Warm Cool many raindrops, heavy rain no rain High frequency (scattering) channels Cold scattering from large ice particles, heavy rain Warm no rain Excellent reference: http: //www. nrlmry. navy. mil/~kuciausk/esis/

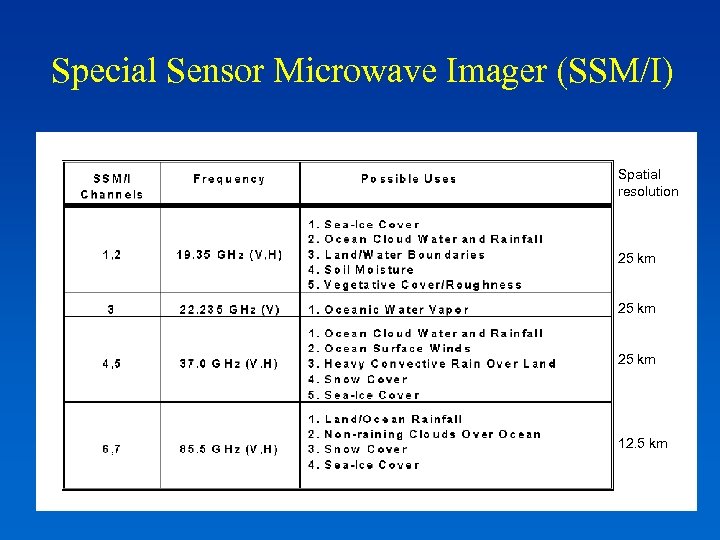

Special Sensor Microwave Imager (SSM/I) Spatial resolution 25 km 12. 5 km

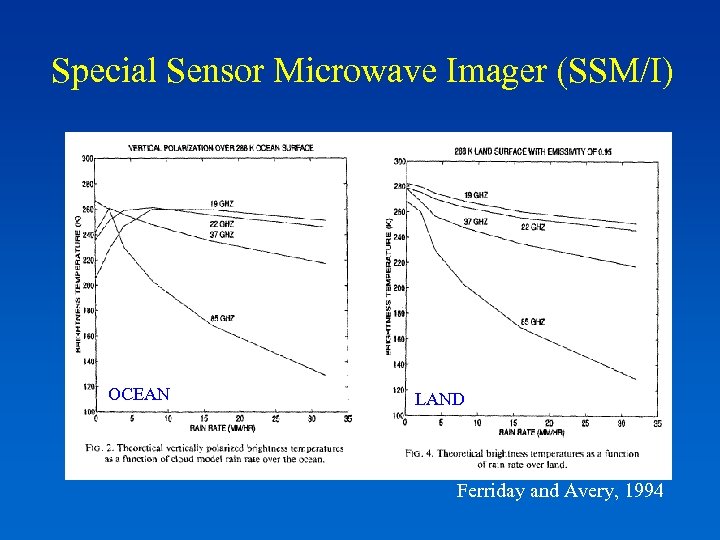

Special Sensor Microwave Imager (SSM/I) OCEAN LAND Ferriday and Avery, 1994

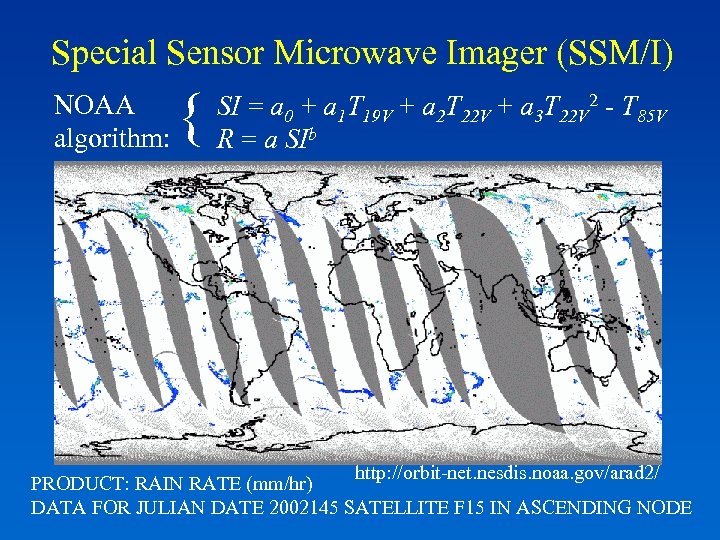

Special Sensor Microwave Imager (SSM/I) NOAA algorithm: { SI = a 0 + a 1 T 19 V + a 2 T 22 V + a 3 T 22 V 2 - T 85 V R = a SIb http: //orbit-net. nesdis. noaa. gov/arad 2/ PRODUCT: RAIN RATE (mm/hr) DATA FOR JULIAN DATE 2002145 SATELLITE F 15 IN ASCENDING NODE

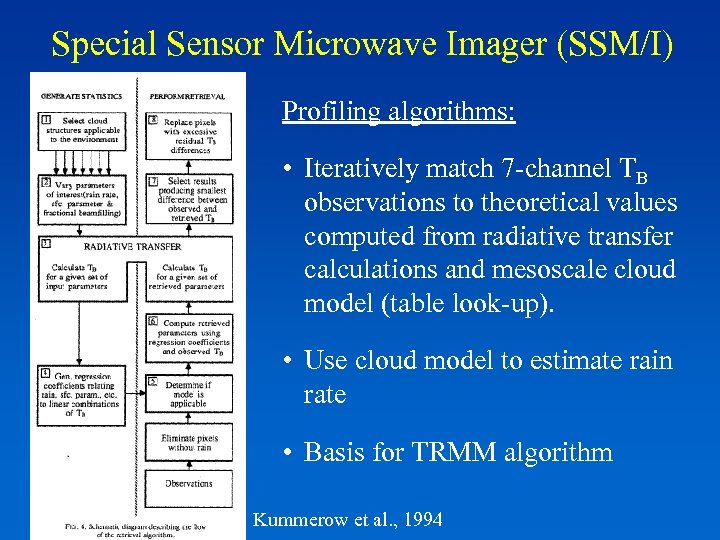

Special Sensor Microwave Imager (SSM/I) Profiling algorithms: • Iteratively match 7 -channel TB observations to theoretical values computed from radiative transfer calculations and mesoscale cloud model (table look-up). • Use cloud model to estimate rain rate • Basis for TRMM algorithm Kummerow et al. , 1994

Advanced Microwave Sounding Unit (AMSU) AMSU-A (~50 km spatial resolution): 1 23. 8 GHz 2 31. 4 GHz 3 -14 50. 3 -57. 29 GHz 15 89 GHz AMSU-B (~17 km spatial resolution): 1 89 GHz 2 150 GHz 3 -5 ~183. 3 GHz (water vapour line)

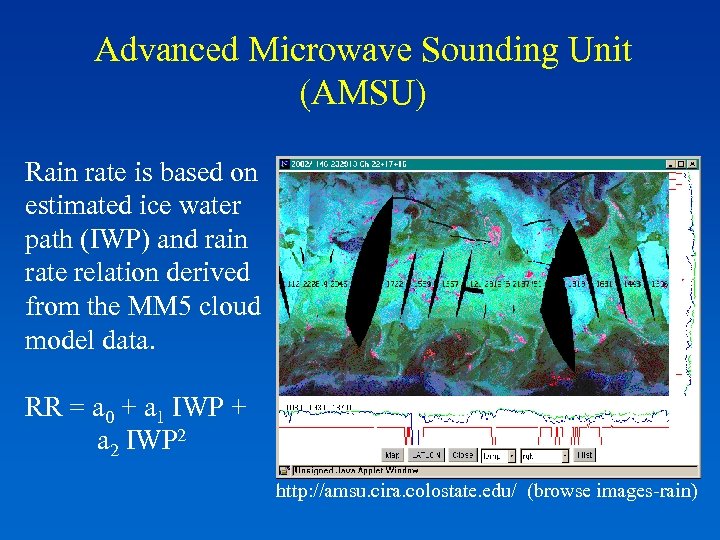

Advanced Microwave Sounding Unit (AMSU) Rain rate is based on estimated ice water path (IWP) and rain rate relation derived from the MM 5 cloud model data. RR = a 0 + a 1 IWP + a 2 IWP 2 http: //amsu. cira. colostate. edu/ (browse images-rain)

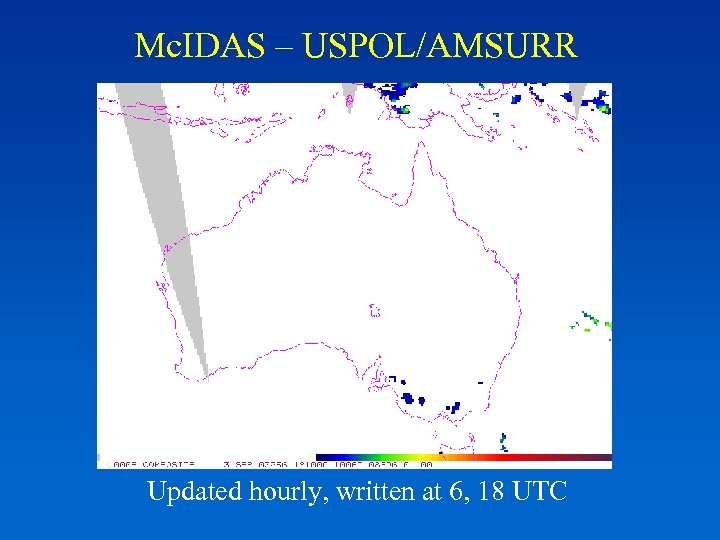

Mc. IDAS – USPOL/AMSURR Updated hourly, written at 6, 18 UTC

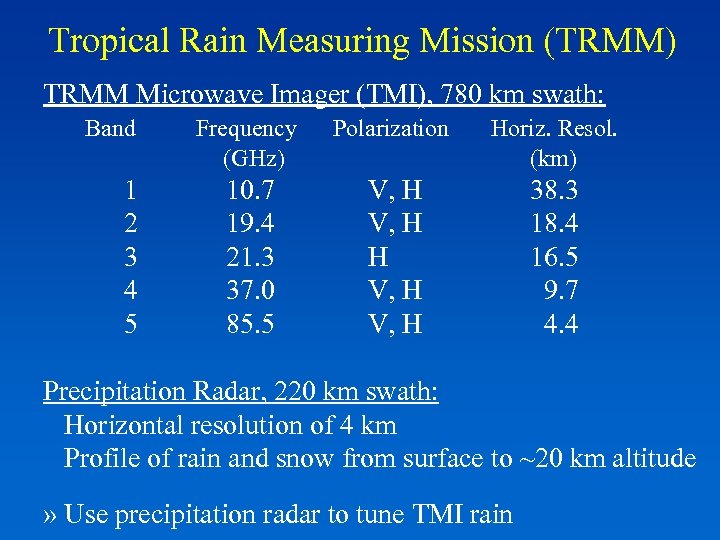

Tropical Rain Measuring Mission (TRMM) TRMM Microwave Imager (TMI), 780 km swath: Band 1 2 3 4 5 Frequency (GHz) Polarization Horiz. Resol. (km) 10. 7 19. 4 21. 3 37. 0 85. 5 V, H H V, H 38. 3 18. 4 16. 5 9. 7 4. 4 Precipitation Radar, 220 km swath: Horizontal resolution of 4 km Profile of rain and snow from surface to ~20 km altitude » Use precipitation radar to tune TMI rain

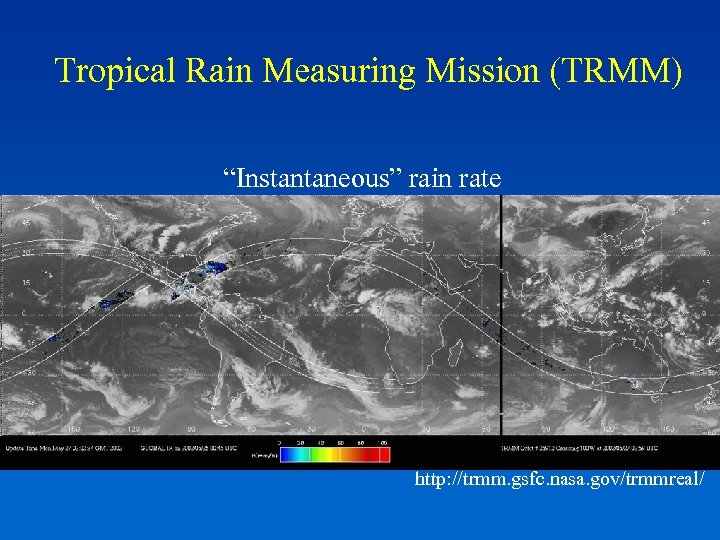

Tropical Rain Measuring Mission (TRMM) “Instantaneous” rain rate http: //trmm. gsfc. nasa. gov/trmmreal/

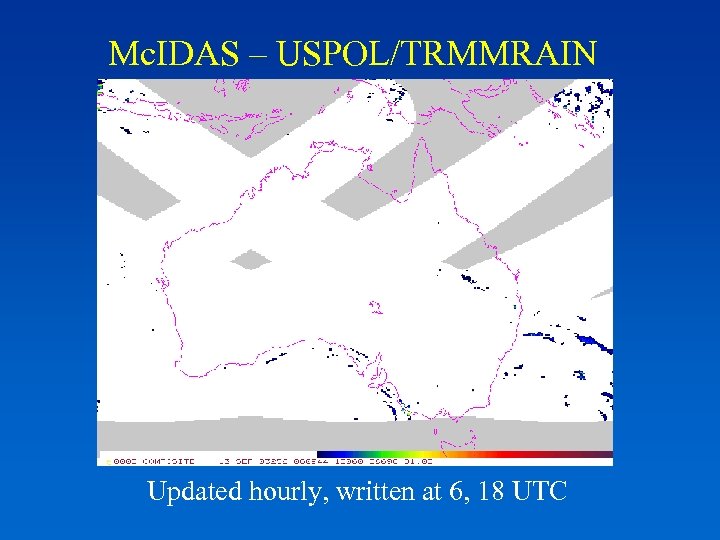

Mc. IDAS – USPOL/TRMMRAIN Updated hourly, written at 6, 18 UTC

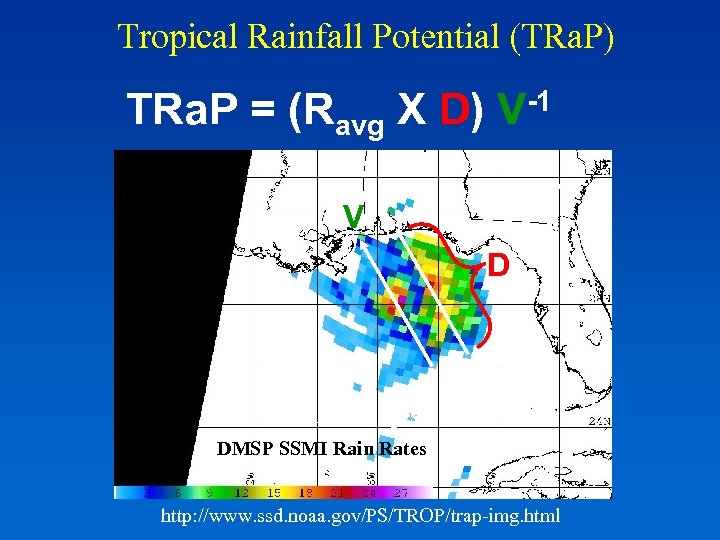

Tropical Rainfall Potential (TRa. P) TRa. P = (Ravg X D) -1 V 1436 utc Sept 27 1998 V D Hurricane Georges DMSP SSMI Rain Rates http: //www. ssd. noaa. gov/PS/TROP/trap-img. html

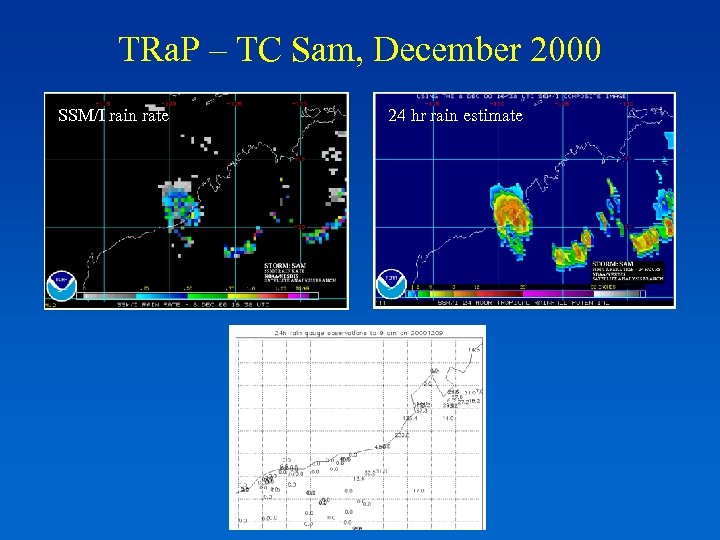

TRa. P – TC Sam, December 2000 SSM/I rain rate 24 hr rain estimate

Satellites used to perform TRa. P DMSP SSMI NOAA AMSU NASA TRMM NESDIS AE Resolution 15 km 16 km Frequency 1 -2 per 12 hrs 1 per 6 -12 hrs # Satellites Max RR Priority 3 35 mm/hr 1 2 20 mm/hr 2 5 km 1 per 24 hrs 1 60 mm/hr 3 4 km 1 per 30 min 2 50 mm/hr 4 Slides courtesy of Sheldon Kusselson, NOAA/NESDIS Satellite Services Division

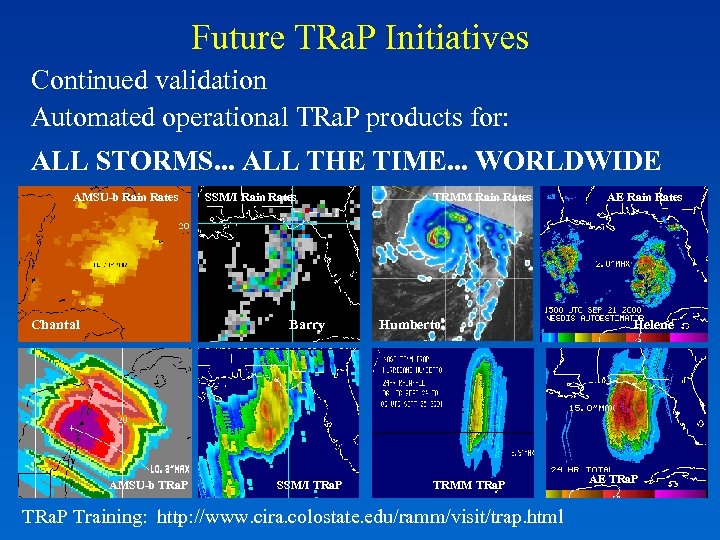

Future TRa. P Initiatives Continued validation Automated operational TRa. P products for: ALL STORMS. . . ALL THE TIME. . . WORLDWIDE AMSU-b Rain Rates Chantal SSM/I Rain Rates Barry AMSU-b TRa. P SSM/I TRa. P TRMM Rain Rates Humberto TRMM TRa. P Training: http: //www. cira. colostate. edu/ramm/visit/trap. html AE Rain Rates Helene AE TRa. P

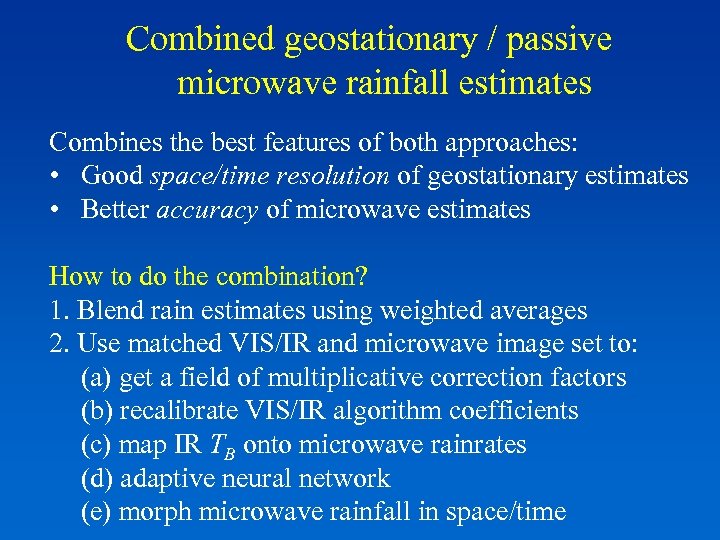

Combined geostationary / passive microwave rainfall estimates Combines the best features of both approaches: • Good space/time resolution of geostationary estimates • Better accuracy of microwave estimates How to do the combination? 1. Blend rain estimates using weighted averages 2. Use matched VIS/IR and microwave image set to: (a) get a field of multiplicative correction factors (b) recalibrate VIS/IR algorithm coefficients (c) map IR TB onto microwave rainrates (d) adaptive neural network (e) morph microwave rainfall in space/time

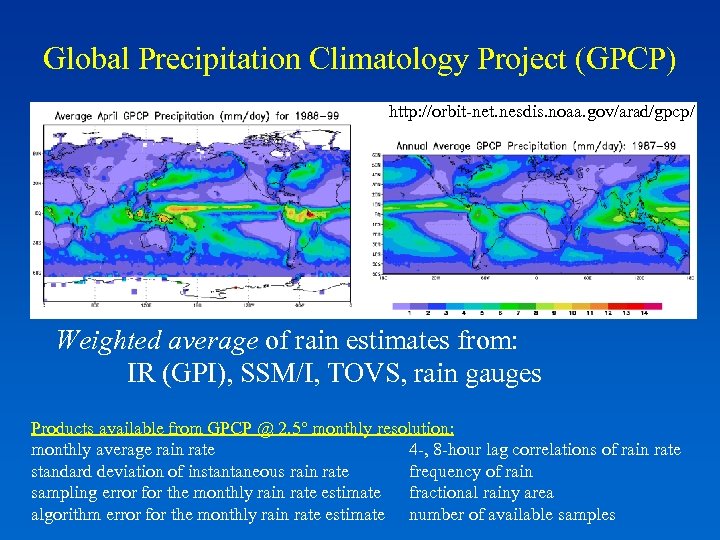

Global Precipitation Climatology Project (GPCP) http: //orbit-net. nesdis. noaa. gov/arad/gpcp/ Weighted average of rain estimates from: IR (GPI), SSM/I, TOVS, rain gauges Products available from GPCP @ 2. 5° monthly resolution: monthly average rain rate 4 -, 8 -hour lag correlations of rain rate standard deviation of instantaneous rain rate frequency of rain sampling error for the monthly rain rate estimate fractional rainy area algorithm error for the monthly rain rate estimate number of available samples

Global Precipitation Climatology Project (GPCP)

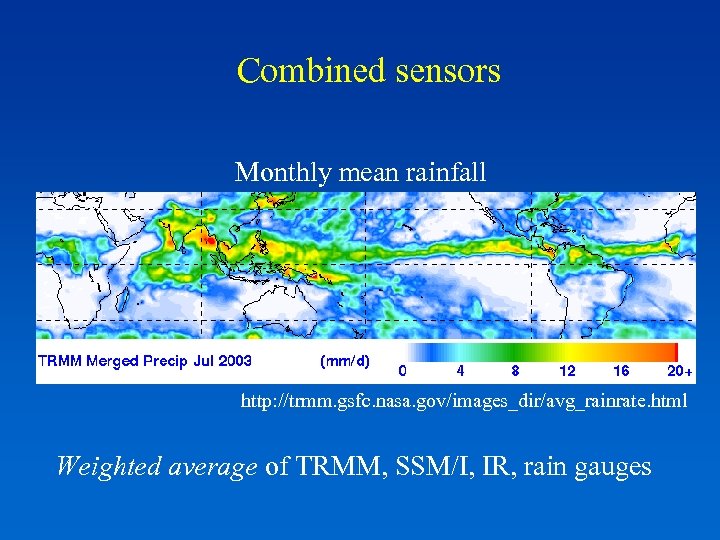

Combined sensors Monthly mean rainfall http: //trmm. gsfc. nasa. gov/images_dir/avg_rainrate. html Weighted average of TRMM, SSM/I, IR, rain gauges

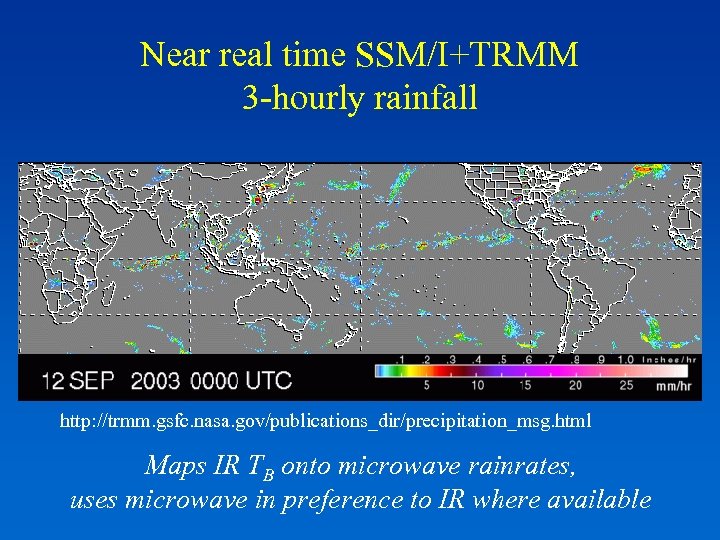

Near real time SSM/I+TRMM 3 -hourly rainfall http: //trmm. gsfc. nasa. gov/publications_dir/precipitation_msg. html Maps IR TB onto microwave rainrates, uses microwave in preference to IR where available

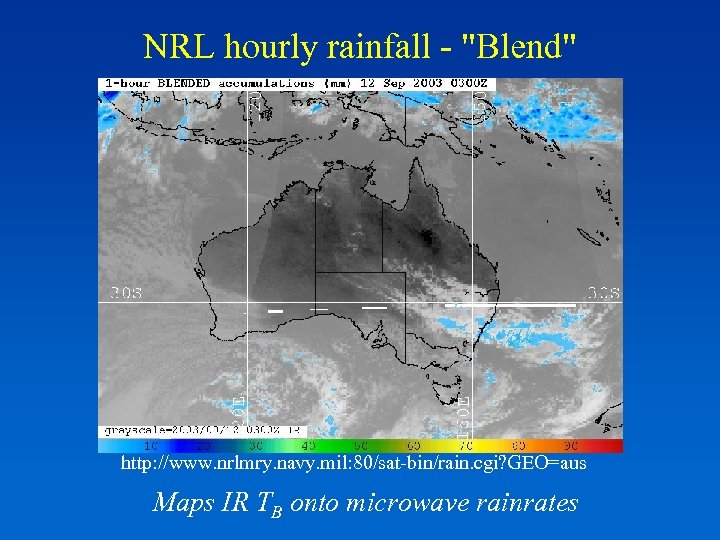

NRL hourly rainfall - "Blend" http: //www. nrlmry. navy. mil: 80/sat-bin/rain. cgi? GEO=aus Maps IR TB onto microwave rainrates

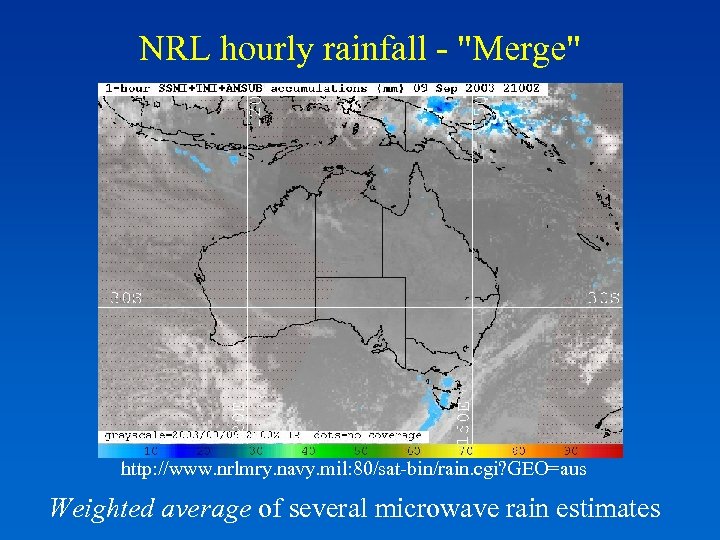

NRL hourly rainfall - "Merge" http: //www. nrlmry. navy. mil: 80/sat-bin/rain. cgi? GEO=aus Weighted average of several microwave rain estimates

PERSIANN Precipitation Estimation from Remotely Sensed Information using Artificial Neural Networks Uses an adaptive neural network to update the coefficients of an IR algorithm using surface or passive microwave rainfall observations. http: //www 2. hwr. arizona. edu/persiann/

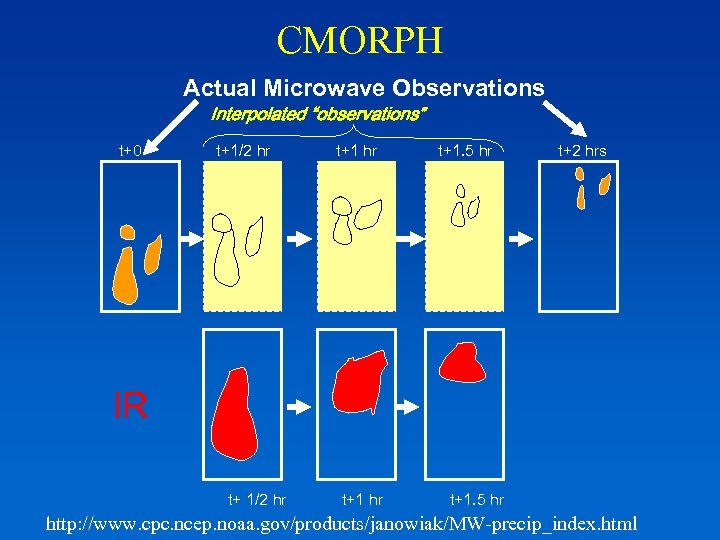

CMORPH Actual Microwave Observations Interpolated “observations” t+0 t+1/2 hr t+1. 5 hr t+2 hrs IR t+ 1/2 hr t+1. 5 hr http: //www. cpc. ncep. noaa. gov/products/janowiak/MW-precip_index. html

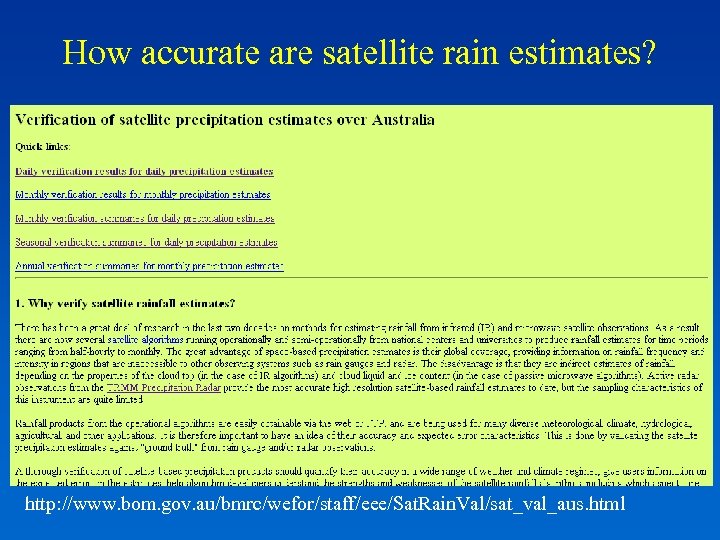

How accurate are satellite rain estimates? http: //www. bom. gov. au/bmrc/wefor/staff/eee/Sat. Rain. Val/sat_val_aus. html

Daily verification

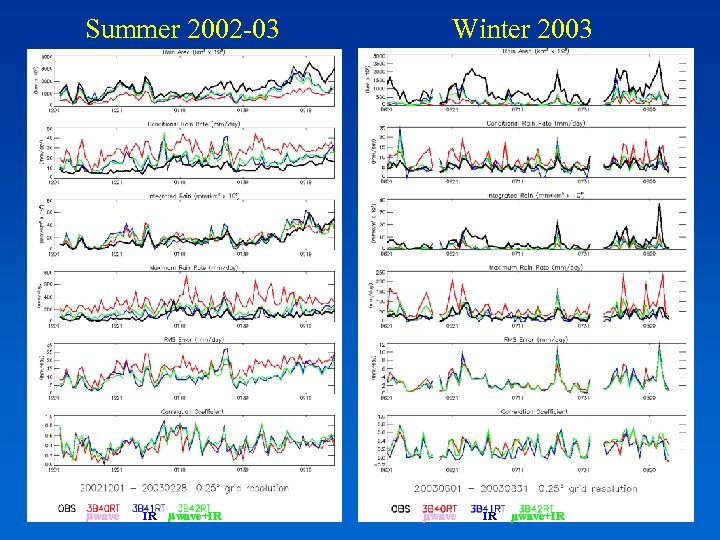

Summer 2002 -03 mwave IR mwave+IR Winter 2003 mwave IR mwave+IR

IR+microwave blending techniques Australian summer 2002 -03 RMS (%) Correlation Eq. threat score Recalibrate IR coefficients (GPCP 1 DD) 73% 0. 517 0. 358 Map IR TB to mwave RR (NRL "blend") 75% 0. 466 0. 296 Adaptive neural network (U. Ariz. PERSIANN) 69% 0. 522 0. 308 --- --- 63% 0. 531 0. 369 Morphing (NOAA CPC CMORPH) NWP (meso. LAPS)

IR+microwave blending techniques Australian winter 2003 RMS (%) Correlation Eq. threat score Recalibrate IR coefficients (GPCP 1 DD) 55% 0. 140 0. 065 Map IR TB to mwave RR (NRL "blend") 45% 0. 235 0. 096 Adaptive neural network (U. Ariz. PERSIANN) 38% 0. 249 0. 152 Morphing (NOAA CPC CMORPH) 34% 0. 435 0. 258 NWP (meso. LAPS) 29% 0. 677 0. 430

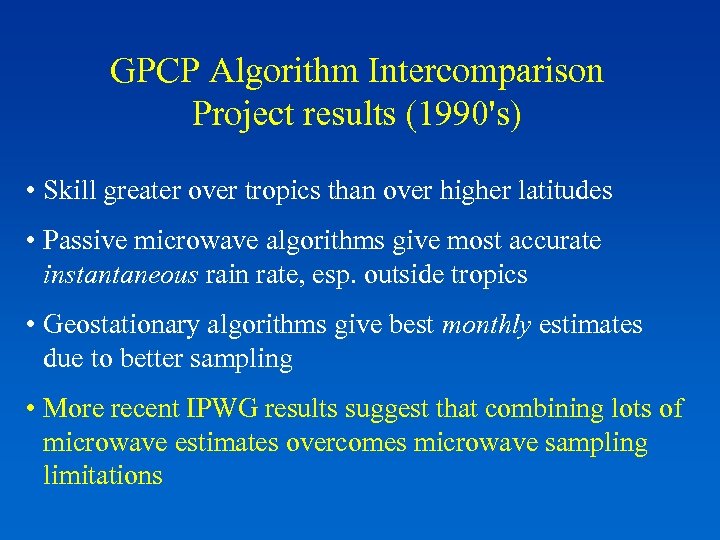

GPCP Algorithm Intercomparison Project results (1990's) • Skill greater over tropics than over higher latitudes • Passive microwave algorithms give most accurate instantaneous rain rate, esp. outside tropics • Geostationary algorithms give best monthly estimates due to better sampling • More recent IPWG results suggest that combining lots of microwave estimates overcomes microwave sampling limitations

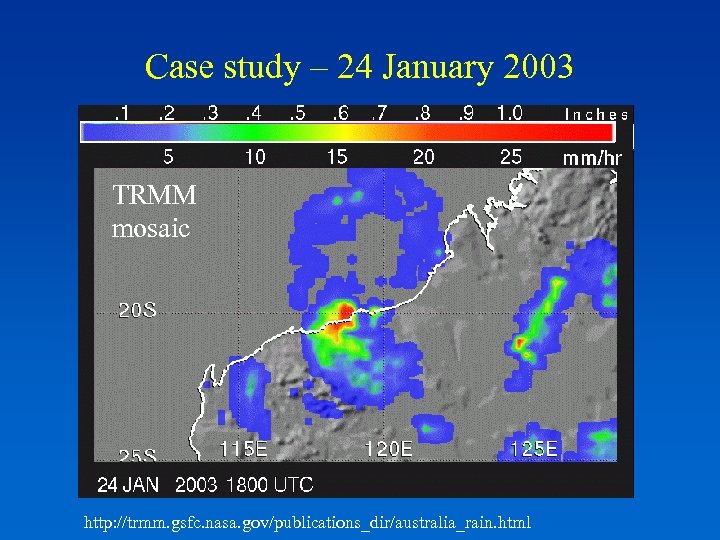

Case study – 24 January 2003 TRMM mosaic http: //trmm. gsfc. nasa. gov/publications_dir/australia_rain. html

(go to training/case 0. html)

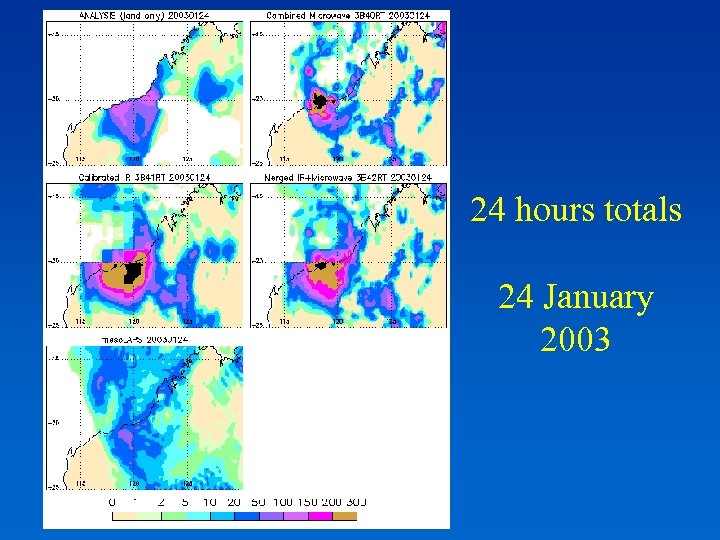

24 hours totals 24 January 2003

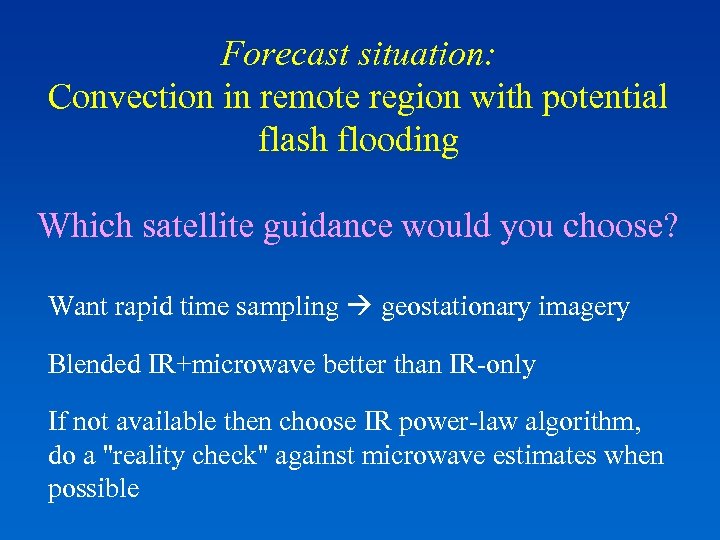

Forecast situation: Convection in remote region with potential flash flooding Which satellite guidance would you choose? Want rapid time sampling geostationary imagery Blended IR+microwave better than IR-only If not available then choose IR power-law algorithm, do a "reality check" against microwave estimates when possible

Forecast situation: Tropical storm moving onshore Which satellite guidance would you choose? Rapid time sampling perhaps less critical Over the ocean microwave-only may be better than blended IR+microwave TRMM most accurate but worst sampling; AMSU and SSM/I have better sampling If named tropical cyclone, then use TRa. P

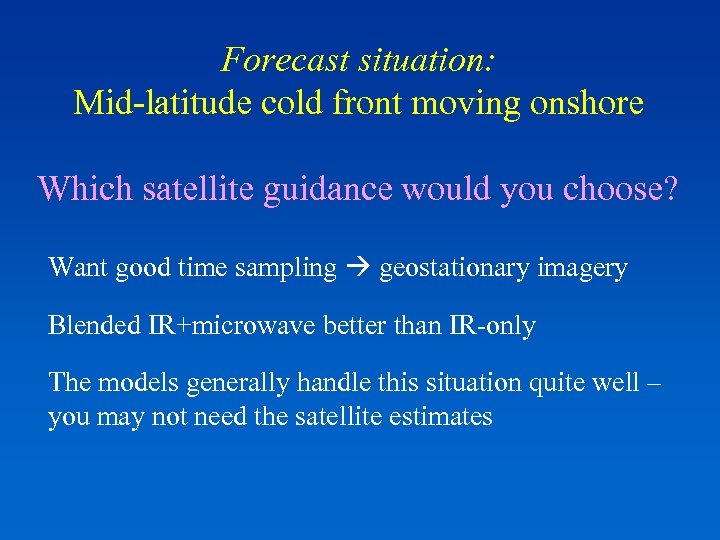

Forecast situation: Mid-latitude cold front moving onshore Which satellite guidance would you choose? Want good time sampling geostationary imagery Blended IR+microwave better than IR-only The models generally handle this situation quite well – you may not need the satellite estimates

Forecast situation: Shallow rain showers moving onshore Which satellite guidance would you choose? NONE!! Reasons: • IR algorithms only expect rain in deep systems • Although microwave instruments can measure warm rain over the see, the microwave footprint is to big to "see" small-sized showers

Forecast situation: Orographic rainfall in the mountains Which satellite guidance would you choose? None, unless convection also developed Reasons: • IR algorithms only expect rain in deep systems • Over land microwave instruments cannot measure rain from warm-topped clouds.

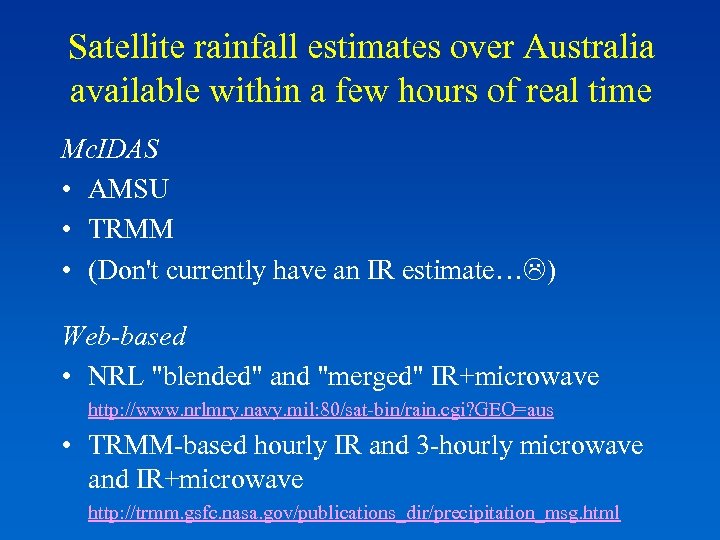

Satellite rainfall estimates over Australia available within a few hours of real time Mc. IDAS • AMSU • TRMM • (Don't currently have an IR estimate… ) Web-based • NRL "blended" and "merged" IR+microwave http: //www. nrlmry. navy. mil: 80/sat-bin/rain. cgi? GEO=aus • TRMM-based hourly IR and 3 -hourly microwave and IR+microwave http: //trmm. gsfc. nasa. gov/publications_dir/precipitation_msg. html

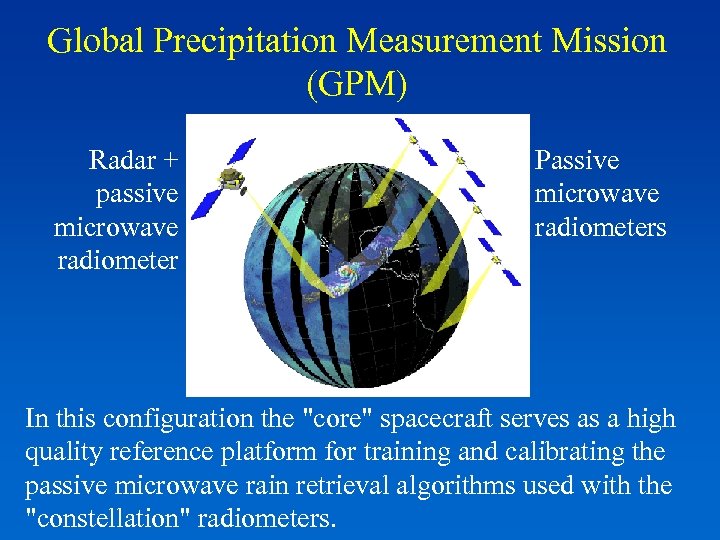

Global Precipitation Measurement Mission (GPM) Radar + passive microwave radiometer Passive microwave radiometers In this configuration the "core" spacecraft serves as a high quality reference platform for training and calibrating the passive microwave rain retrieval algorithms used with the "constellation" radiometers.
