Rail Switch RS 2 -4 R q Fast

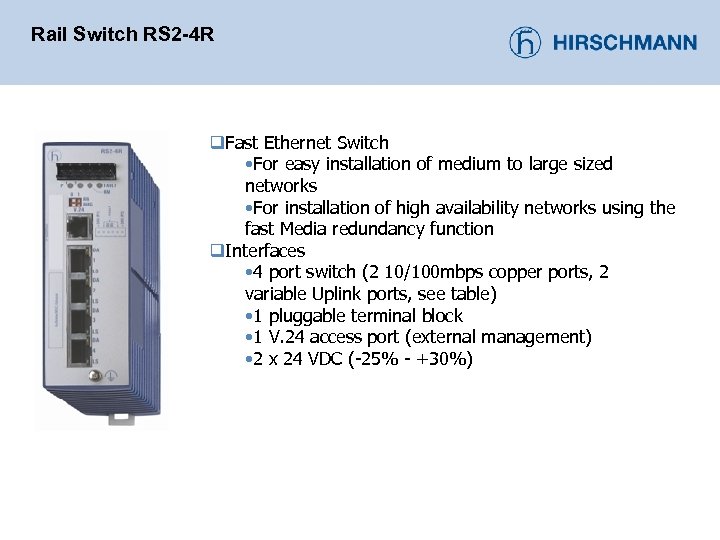

Rail Switch RS 2 -4 R q. Fast Ethernet Switch • For easy installation of medium to large sized networks • For installation of high availability networks using the fast Media redundancy function q. Interfaces • 4 port switch (2 10/100 mbps copper ports, 2 variable Uplink ports, see table) • 1 pluggable terminal block • 1 V. 24 access port (external management) • 2 x 24 VDC (-25% - +30%)

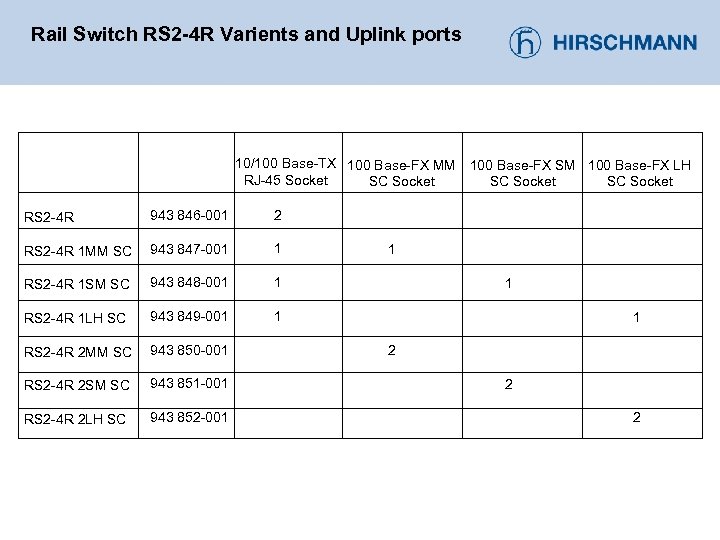

Rail Switch RS 2 -4 R Varients and Uplink ports 10/100 Base-TX 100 Base-FX MM 100 Base-FX SM 100 Base-FX LH RJ-45 Socket SC Socket RS 2 -4 R 943 846 -001 2 RS 2 -4 R 1 MM SC 943 847 -001 1 RS 2 -4 R 1 SM SC 943 848 -001 1 RS 2 -4 R 1 LH SC 943 849 -001 1 RS 2 -4 R 2 MM SC 943 850 -001 RS 2 -4 R 2 SM SC 943 851 -001 RS 2 -4 R 2 LH SC 943 852 -001 1 2 2 2

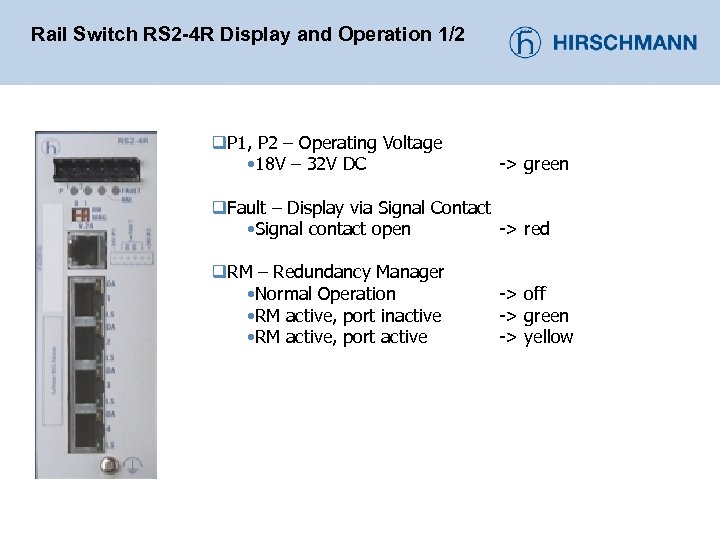

Rail Switch RS 2 -4 R Display and Operation 1/2 q. P 1, P 2 – Operating Voltage • 18 V – 32 V DC -> green q. Fault – Display via Signal Contact • Signal contact open -> red q. RM – Redundancy Manager • Normal Operation • RM active, port inactive • RM active, port active -> off -> green -> yellow

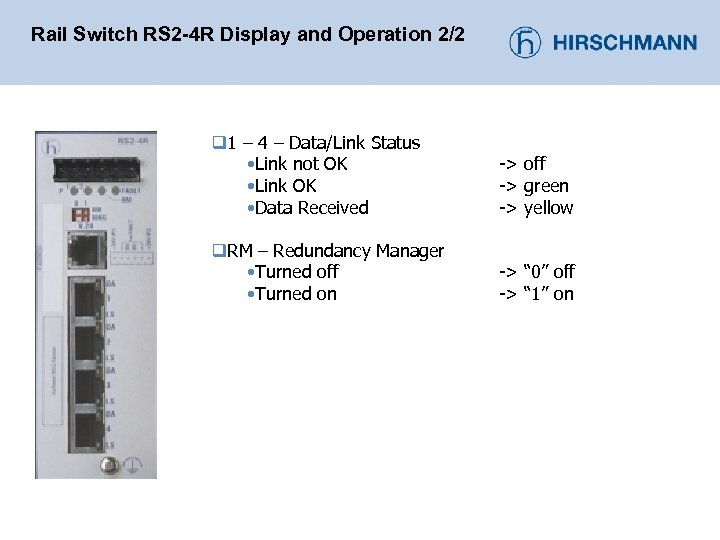

Rail Switch RS 2 -4 R Display and Operation 2/2 q 1 – 4 – Data/Link Status • Link not OK • Link OK • Data Received -> off -> green -> yellow q. RM – Redundancy Manager • Turned off • Turned on -> “ 0” off -> “ 1” on

Rail Switch RS 2 -4 R Service 1/3 q. Management • SNMP v 1, v 2, v 3 • Web Interface • Serial Interface via V. 24 port q. Diagnostics • LED’s • Signal Contact/Fault Relays q. Configuration • Hi. Discovery • Web Interface • ACA-11 (Auto-Configuration Adapter) • Terminal Software • BOOTP, DHCP w/Option 82 q. Redundancy • HIPER-Ring • RSTP

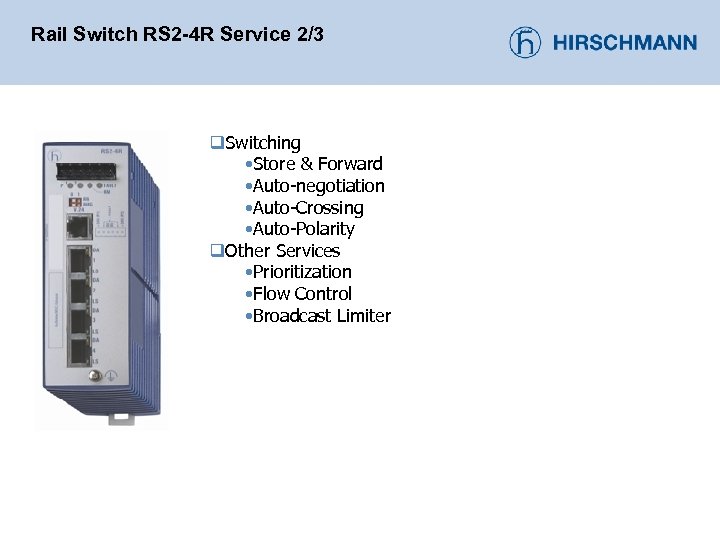

Rail Switch RS 2 -4 R Service 2/3 q. Switching • Store & Forward • Auto-negotiation • Auto-Crossing • Auto-Polarity q. Other Services • Prioritization • Flow Control • Broadcast Limiter

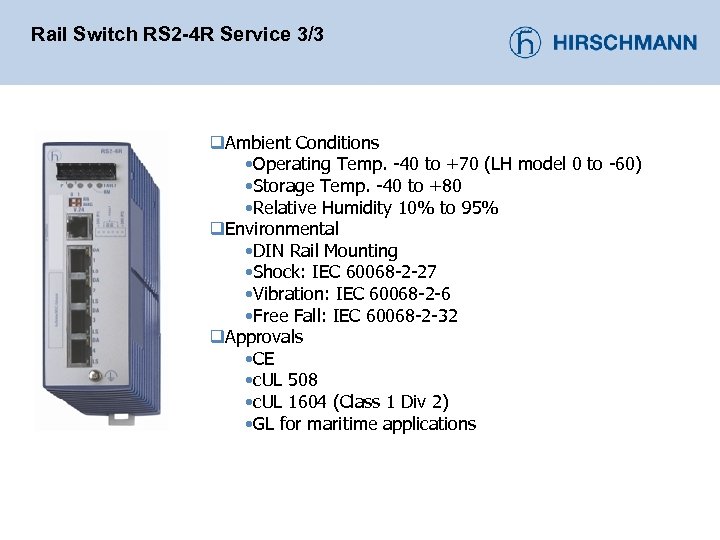

Rail Switch RS 2 -4 R Service 3/3 q. Ambient Conditions • Operating Temp. -40 to +70 (LH model 0 to -60) • Storage Temp. -40 to +80 • Relative Humidity 10% to 95% q. Environmental • DIN Rail Mounting • Shock: IEC 60068 -2 -27 • Vibration: IEC 60068 -2 -6 • Free Fall: IEC 60068 -2 -32 q. Approvals • CE • c. UL 508 • c. UL 1604 (Class 1 Div 2) • GL for maritime applications

Rail Switch RS 2 -4 R Scenarios 1/3 Slide A Office Network Controls Network RS 2 -4 R

Rail Switch RS 2 -4 R Scenarios 2/3 Slide A RS 2 -4 R

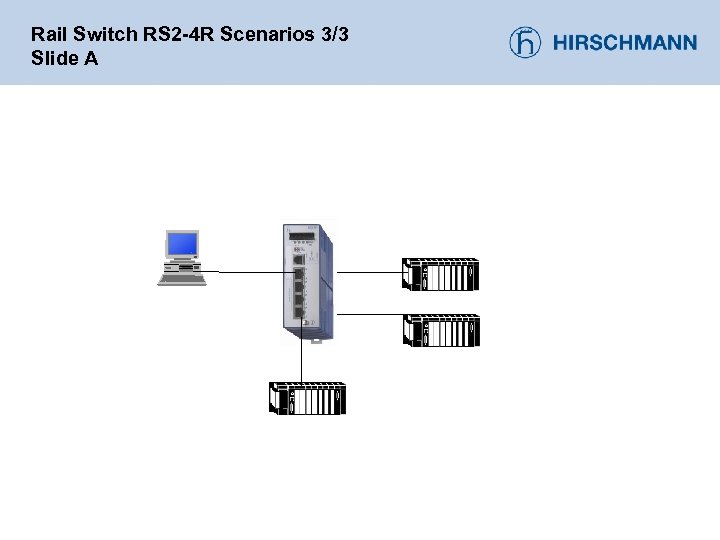

Rail Switch RS 2 -4 R Scenarios 3/3 Slide A

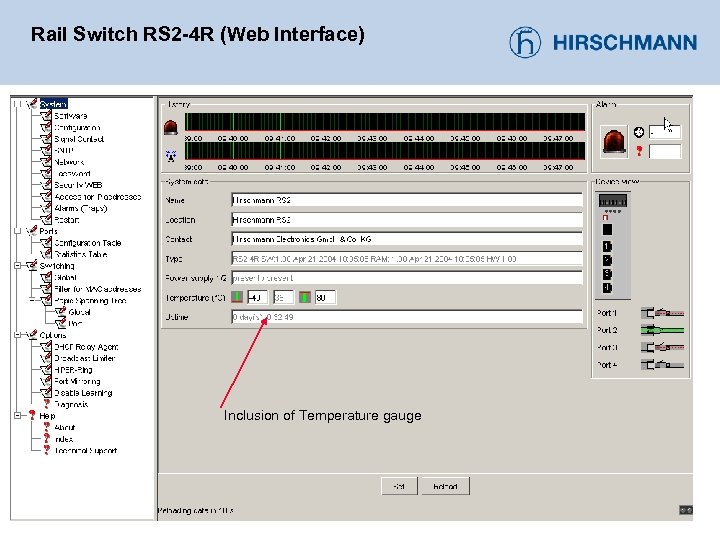

Rail Switch RS 2 -4 R (Web Interface) Inclusion of Temperature gauge

Rail Switch RS 2 -4 R (Web Interface-Differences) Multicast Filtering VLAN

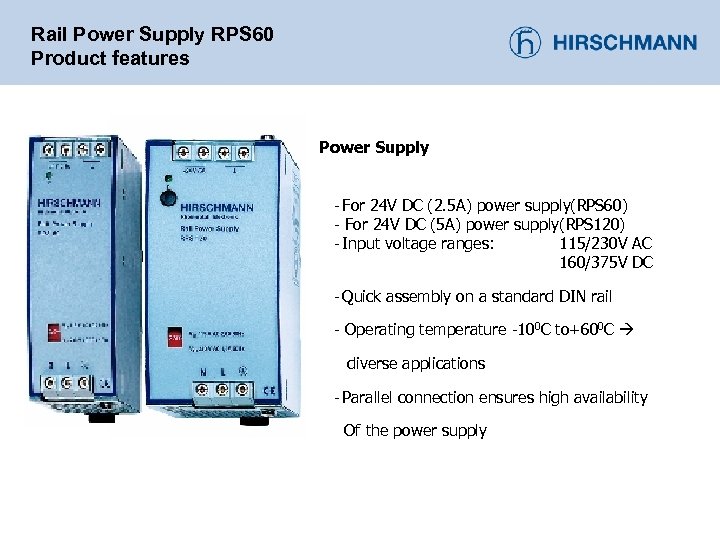

Rail Power Supply RPS 60 Product features Power Supply - For 24 V DC (2. 5 A) power supply(RPS 60) - For 24 V DC (5 A) power supply(RPS 120) - Input voltage ranges: 115/230 V AC 160/375 V DC - Quick assembly on a standard DIN rail - Operating temperature -100 C to+600 C diverse applications - Parallel connection ensures high availability Of the power supply
