Radolid protection caps Radolid Thiel Gmb H

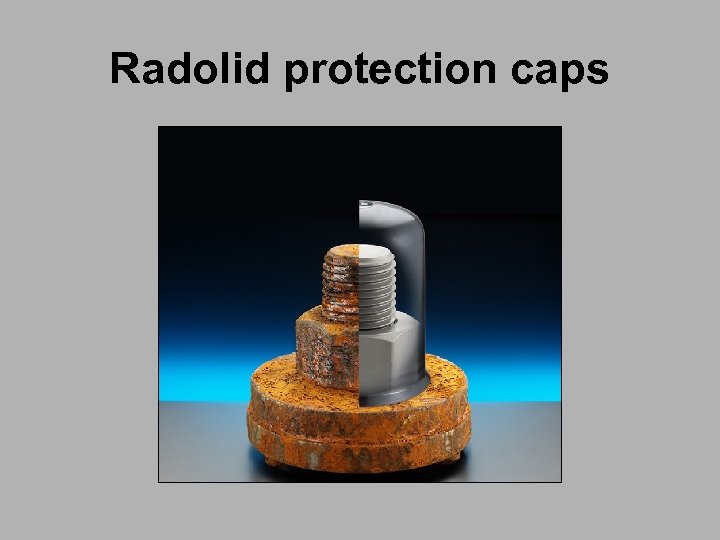

Radolid protection caps

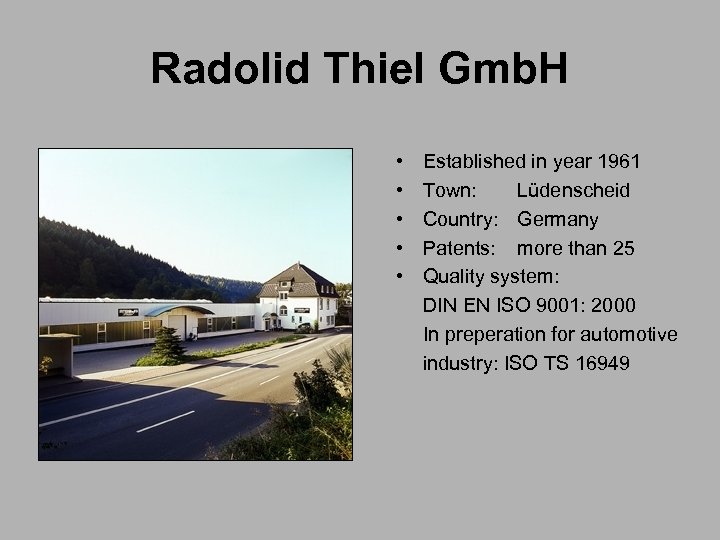

Radolid Thiel Gmb. H • • • Established in year 1961 Town: Lüdenscheid Country: Germany Patents: more than 25 Quality system: DIN EN ISO 9001: 2000 In preperation for automotive industry: ISO TS 16949

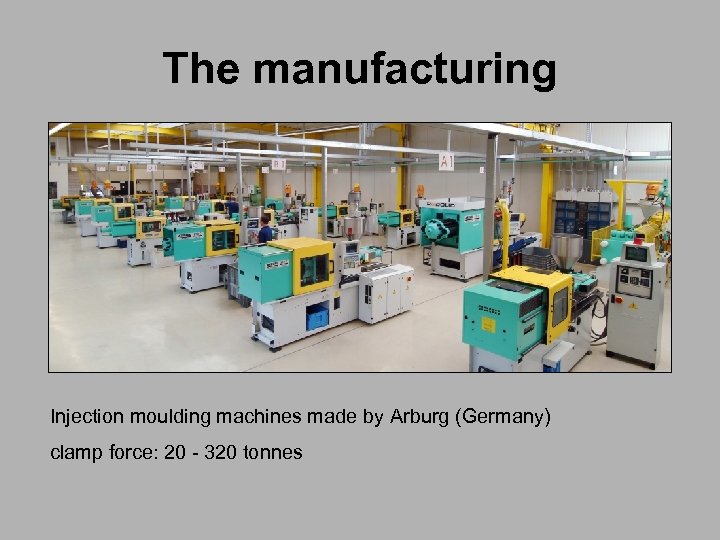

The manufacturing Injection moulding machines made by Arburg (Germany) clamp force: 20 - 320 tonnes

ARBURG host computer system (ALS) • Modular production management system • Gradual expansion possible • Fully-fledged basic system with machine and operating data acquisition • Order administration, quality assurance, reports, management of DNC configuration data records as well as communication with higher-order planning systems possible centrally and individually plannable • All data can be represented in various timeframes • Graphic processing of data and results enables clear overview

Our Partners Australia: Danmark: China: UK: Japan: Netherlands: Austria: Switzerland: Spain: Sweden: USA: Savcor ART Pty. Ltd. Cobalch Ap. S. Bossard Industrial Fasteners Int'l Trading (Shanghai) Co. Ltd. Rotabold Ltd. Imao Corporation Radolid NL Tschapka Vertretungen Maag Technic AG Anticorrosion y Seguridad S. L. Tematic AB Engineering Services, Inc. (ESI)

Range of application

On land • • Plant engineering Automobile industry Railway technology Power supply Pumps Public Water supply Wind power industry

On water • Docks • Marine technology • Offshore oil production • Ship building industry

In the Air • Aircraft industry • Airport building

In space • Ariane 5 • ISS • Space Lab 2

Automobile & utility vehicle industry • • Chassis Inner room Engine compartment Wheel nuts • • • • Audi BMW Daimler Isringhausen Iveco Karmann Lamborghini MAN Maybach Mercedes Benz Scania Schmitz Cargobull Volkswagen ect.

Railway technology • • • Seating Chassis Inner room Air condition Magnetic brake ABB Alstom Faiveley Transport Siemens Thyssen Krupp Vossloh

Offshore • • • Superstructure screwing Drilling equipment Container span gantries Radar units Foundation of ship engines Cranes • • • • Aramamco BP Blohm & Voss Werft DEA Hydrolift Molde Cranes Luerssen Werft Maersk Mannesmann Demag Neuenfelder Maschinenbau Phillips-Petrol Norsk Stadoil Shell Texaco

Wind energy • • Foundation Rotor blade connection Screw joint on gondola Screw joint on tower • • • De. Wind Enercon Fuhrländer Gamesa GE Wind Nordex Repower Siemens Wind Power Suzlon Vestas

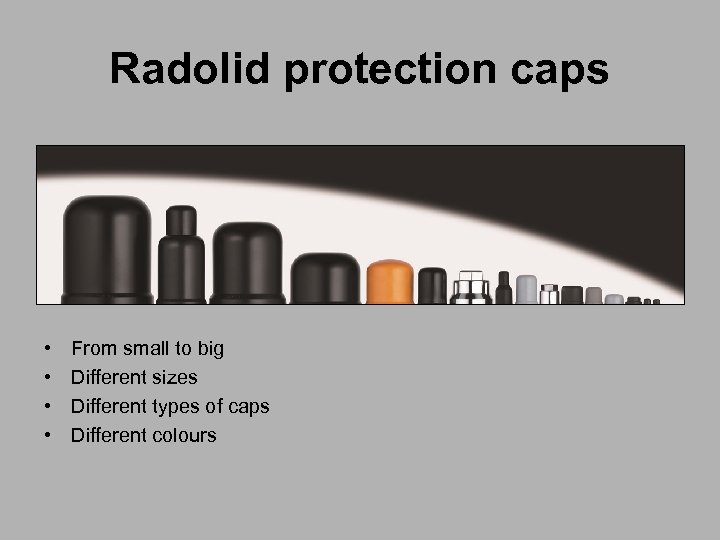

Radolid protection caps • • From small to big Different sizes Different types of caps Different colours

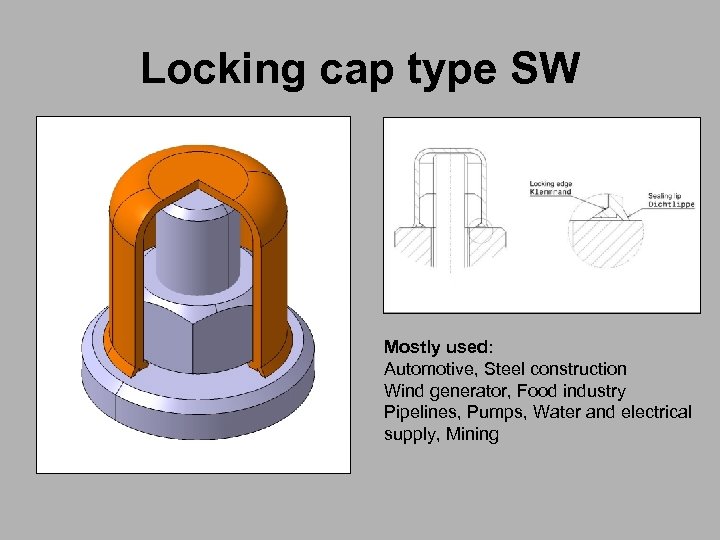

Locking cap type SW • Corrosion protection for the screw head and the nut with and without washers • Damage protection • Width across flats: 5, 5 – 155 mm • Easy assembly by hand (patent) • All colours according to RAL • Design

Locking cap type SW Mostly used: Automotive, Steel construction Wind generator, Food industry Pipelines, Pumps, Water and electrical supply, Mining

Telescopic cap type TSW • Corrosion protection for the nuts with long threads • With or without washer • Damage protection • Width across flats: 13 – 155 mm • Easy assembly by hand (patent) • All colours according to RAL • Design

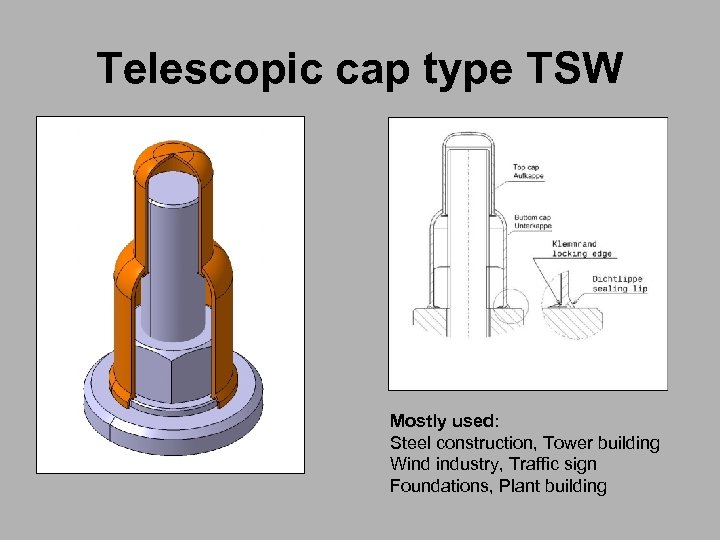

Telescopic cap type TSW Mostly used: Steel construction, Tower building Wind industry, Traffic sign Foundations, Plant building

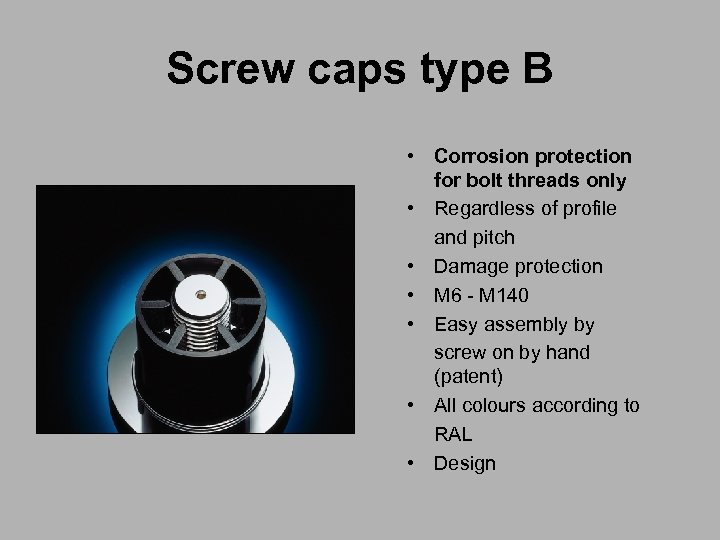

Screw caps type B • Corrosion protection for bolt threads only • Regardless of profile and pitch • Damage protection • M 6 - M 140 • Easy assembly by screw on by hand (patent) • All colours according to RAL • Design

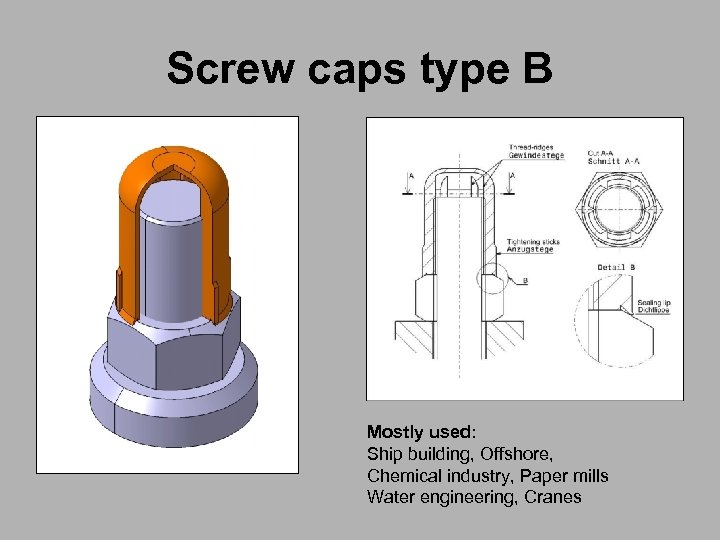

Screw caps type B Mostly used: Ship building, Offshore, Chemical industry, Paper mills Water engineering, Cranes

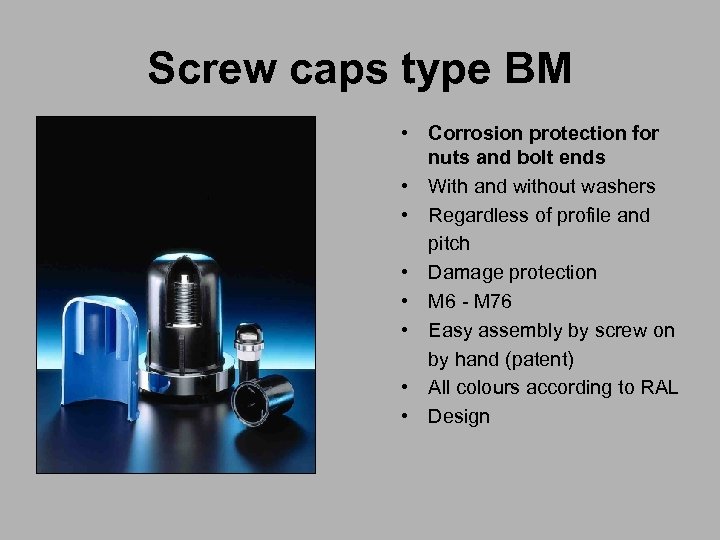

Screw caps type BM • Corrosion protection for nuts and bolt ends • With and without washers • Regardless of profile and pitch • Damage protection • M 6 - M 76 • Easy assembly by screw on by hand (patent) • All colours according to RAL • Design

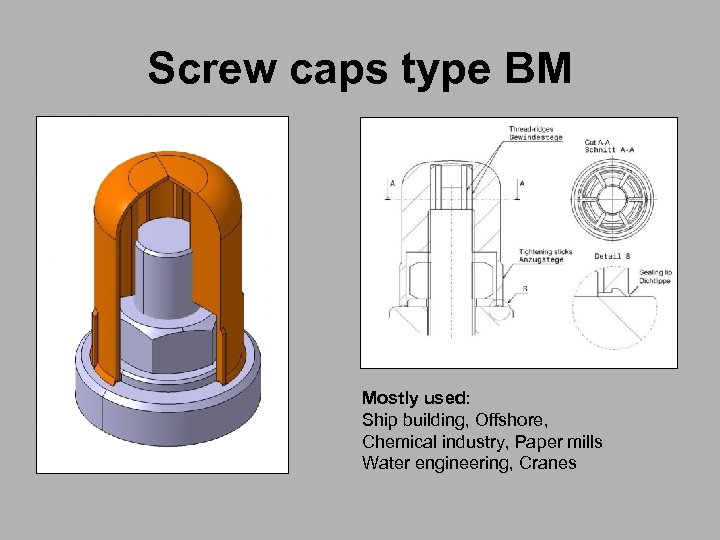

Screw caps type BM Mostly used: Ship building, Offshore, Chemical industry, Paper mills Water engineering, Cranes

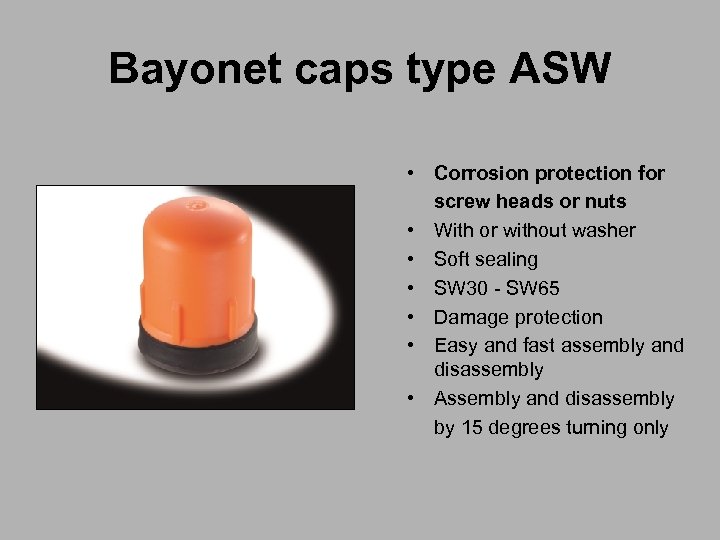

Bayonet caps type ASW • Corrosion protection for screw heads or nuts • With or without washer • Soft sealing • SW 30 - SW 65 • Damage protection • Easy and fast assembly and disassembly • Assembly and disassembly by 15 degrees turning only

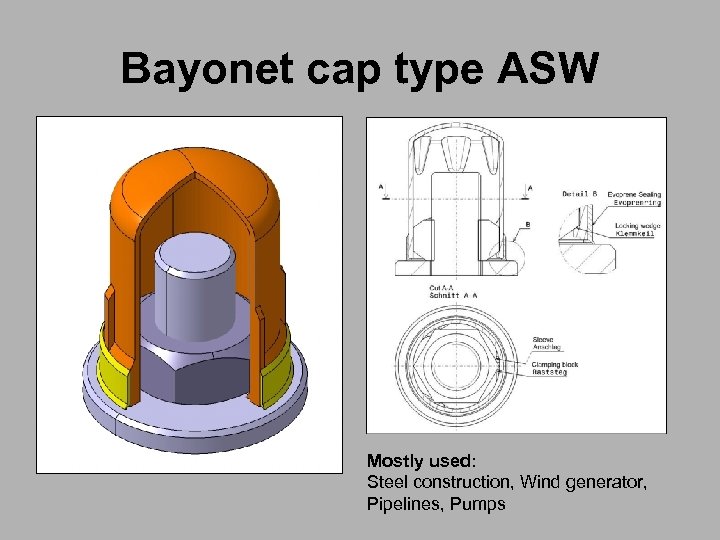

Bayonet cap type ASW Mostly used: Steel construction, Wind generator, Pipelines, Pumps

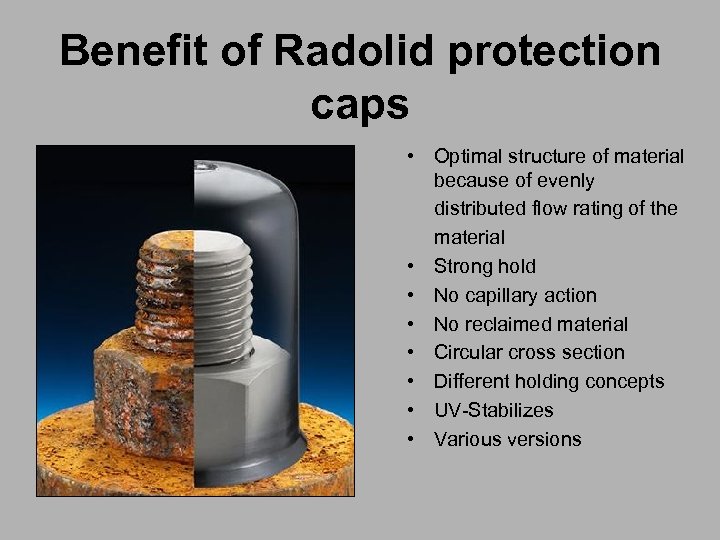

Benefit of Radolid protection caps • Optimal structure of material because of evenly distributed flow rating of the material • Strong hold • No capillary action • No reclaimed material • Circular cross section • Different holding concepts • UV-Stabilizes • Various versions

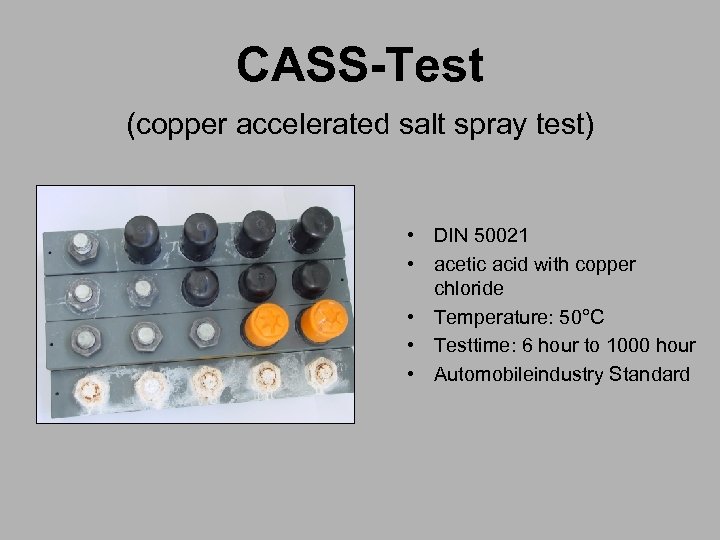

CASS-Test (copper accelerated salt spray test) • DIN 50021 • acetic acid with copper chloride • Temperature: 50°C • Testtime: 6 hour to 1000 hour • Automobileindustry Standard

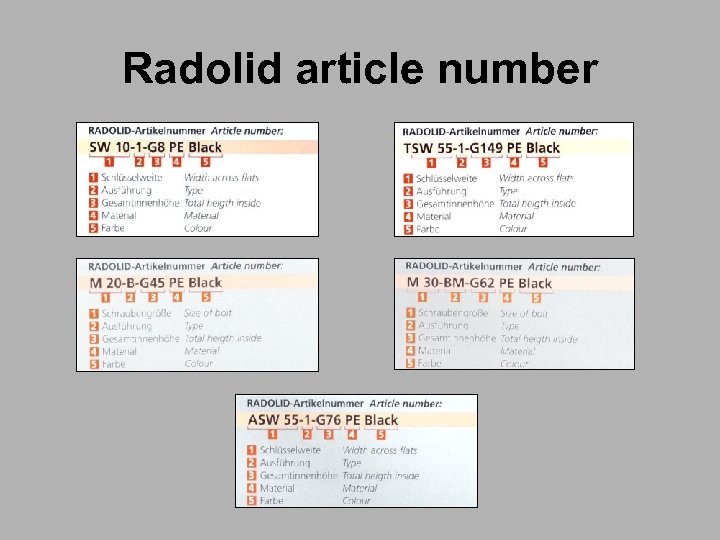

Radolid article number

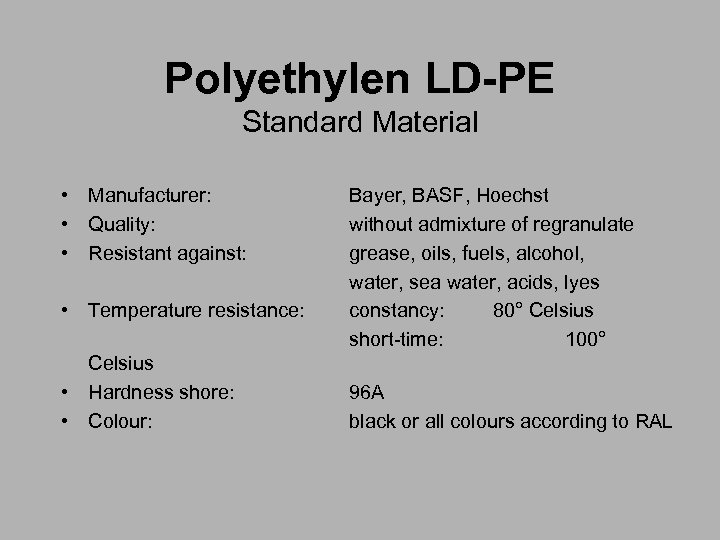

Polyethylen LD-PE Standard Material • Manufacturer: • Quality: • Resistant against: • Temperature resistance: Celsius • Hardness shore: • Colour: Bayer, BASF, Hoechst without admixture of regranulate grease, oils, fuels, alcohol, water, sea water, acids, lyes constancy: 80° Celsius short-time: 100° 96 A black or all colours according to RAL

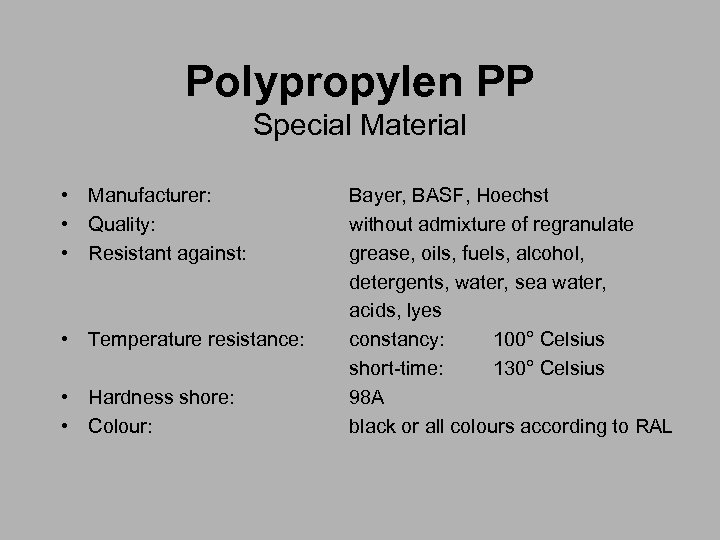

Polypropylen PP Special Material • Manufacturer: • Quality: • Resistant against: • Temperature resistance: • Hardness shore: • Colour: Bayer, BASF, Hoechst without admixture of regranulate grease, oils, fuels, alcohol, detergents, water, sea water, acids, lyes constancy: 100° Celsius short-time: 130° Celsius 98 A black or all colours according to RAL

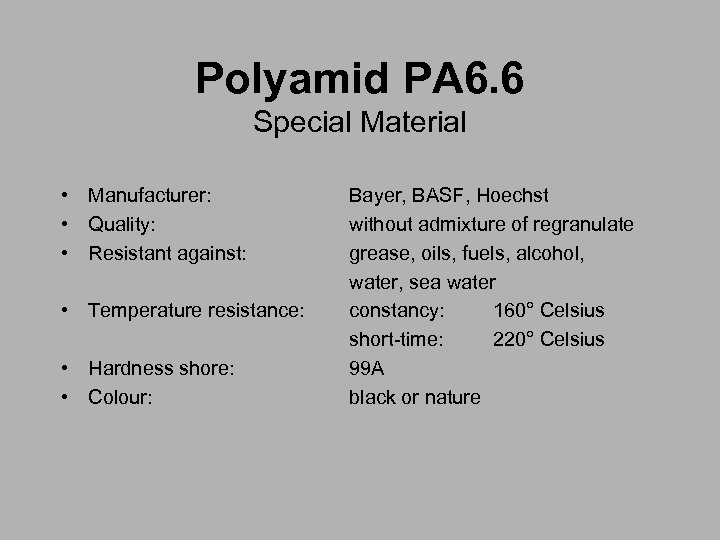

Polyamid PA 6. 6 Special Material • Manufacturer: • Quality: • Resistant against: • Temperature resistance: • Hardness shore: • Colour: Bayer, BASF, Hoechst without admixture of regranulate grease, oils, fuels, alcohol, water, sea water constancy: 160° Celsius short-time: 220° Celsius 99 A black or nature

Polyamid PA 6 GF 30 Special Material • • special feature: Manufacturer: Quality: Resistant against: • Temperature resistance: • Hardness shore: • Colour: with fibreglass 30% Bayer, BASF, Hoechst without admixture of regranulate grease, oils, fuels, alcohol, detergents, water, sea water, lyes - 30° Celsius + 160° Celsius 99 A black or nature
