Quality Control in the Storm Shelter Industry Presented to: REGION VI GRANT MANAGERS MEETING Quality Control in the Storm Shelter Industry Presented to: REGION VI GRANT MANAGERS MEETING Denton, Texas May 17, 2007 Presented by: Ernst W. Kiesling, P. E. , Ph. D. Executive Director, NSSA

Experiencing Extreme Winds • TORNADOES strike terror wherever they occur Experiencing Extreme Winds • TORNADOES strike terror wherever they occur

Experiencing Extreme Winds • Severe Weather Watches and Warnings Lead to Anxiety • Each Experiencing Extreme Winds • Severe Weather Watches and Warnings Lead to Anxiety • Each year, over three billion person-hours are spent under severe weather watches

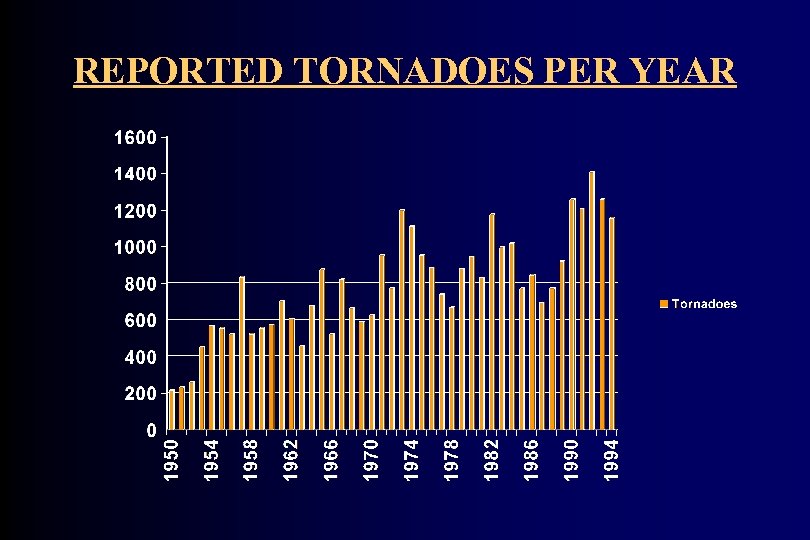

REPORTED TORNADOES PER YEAR REPORTED TORNADOES PER YEAR

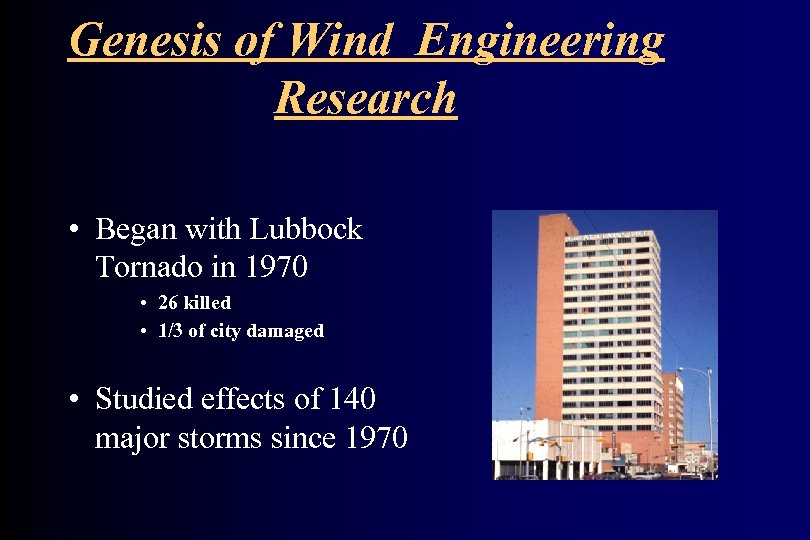

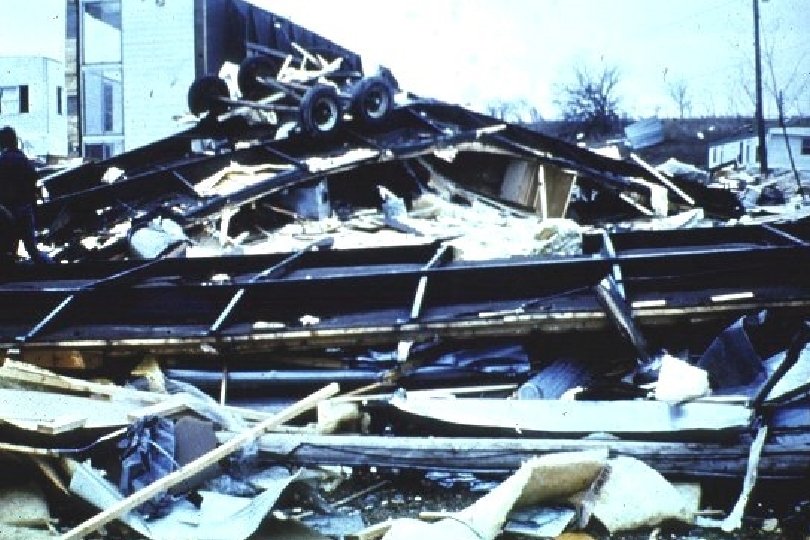

Genesis of Wind Engineering Research • Began with Lubbock Tornado in 1970 • 26 Genesis of Wind Engineering Research • Began with Lubbock Tornado in 1970 • 26 killed • 1/3 of city damaged • Studied effects of 140 major storms since 1970

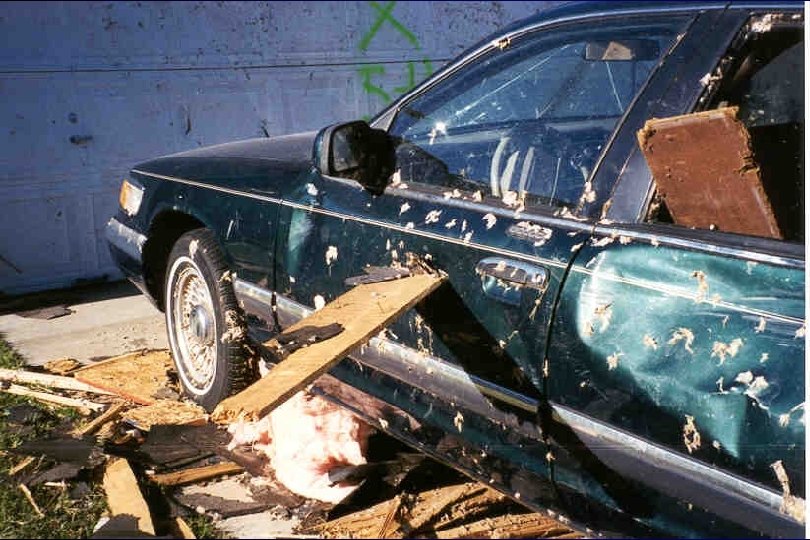

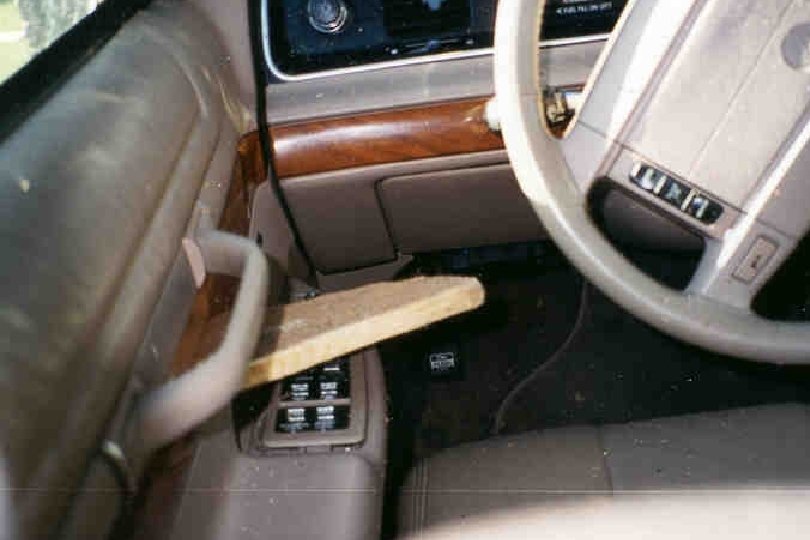

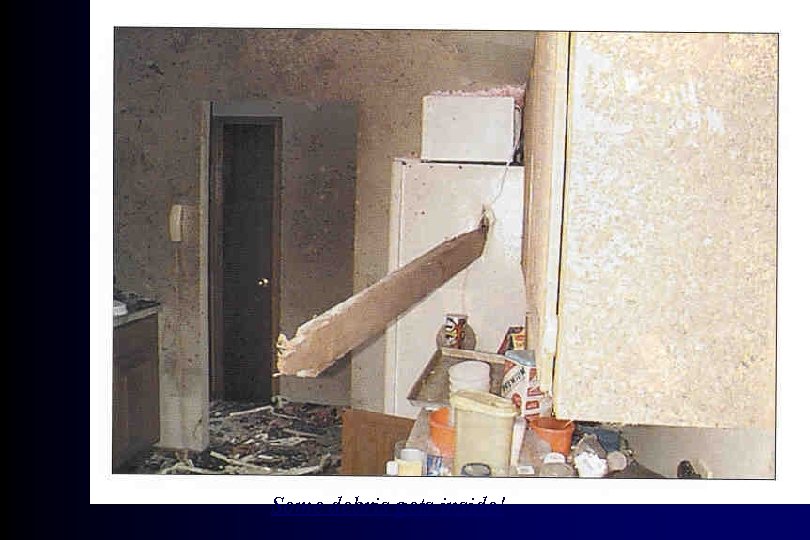

Some debris gets inside! Some debris gets inside!

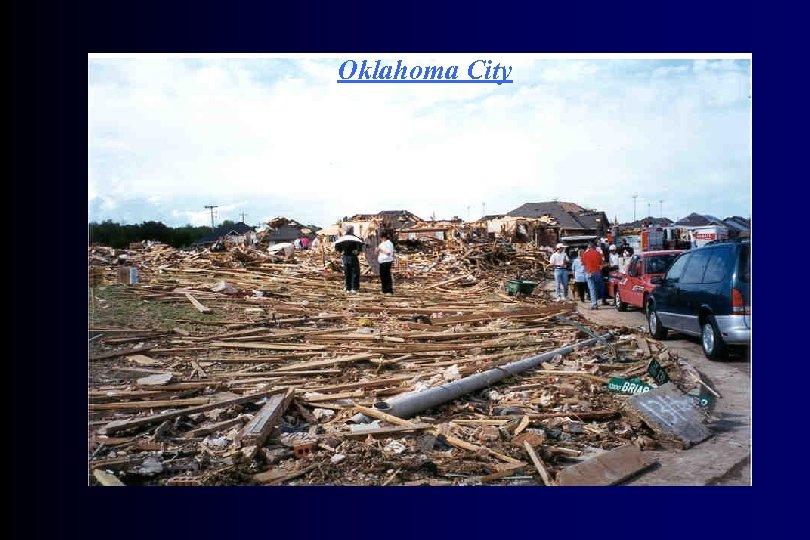

Oklahoma City Oklahoma City

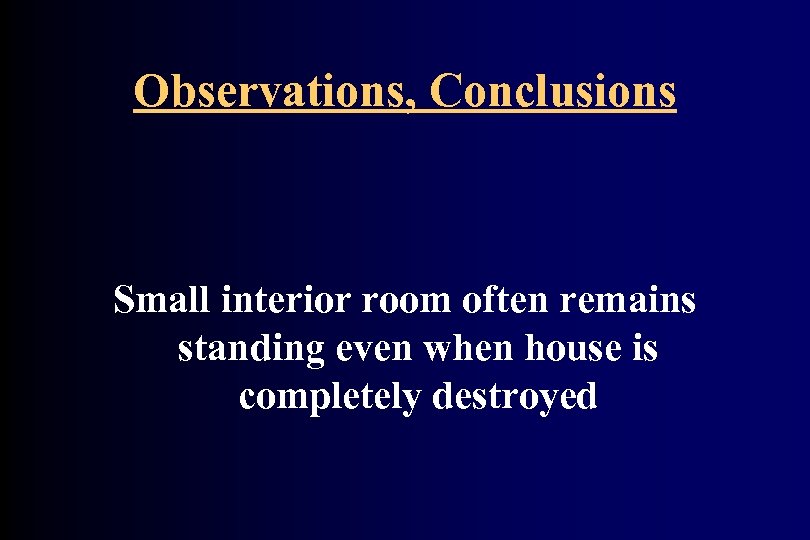

Observations, Conclusions Small interior room often remains standing even when house is completely destroyed Observations, Conclusions Small interior room often remains standing even when house is completely destroyed

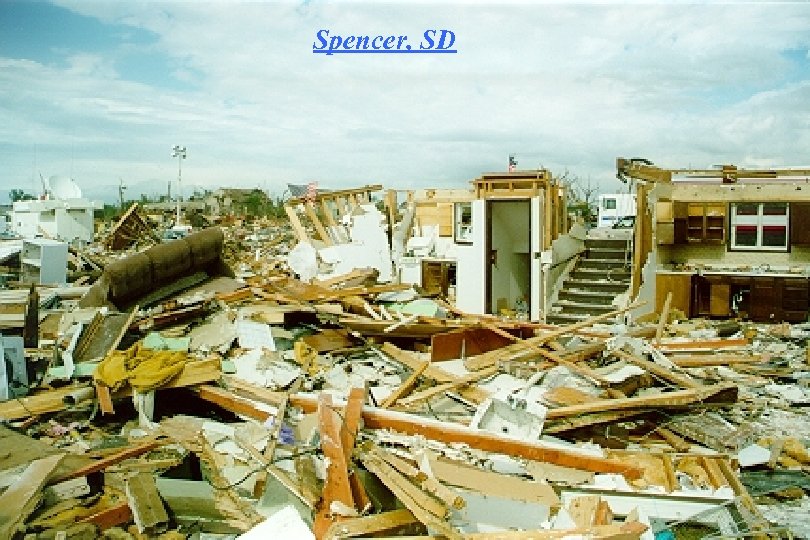

Spencer, SD Spencer, SD

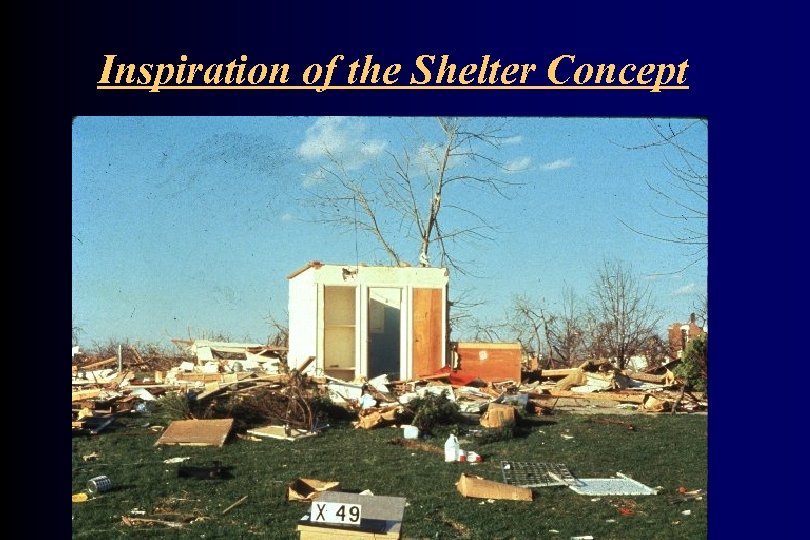

Inspiration of the Shelter Concept Inspiration of the Shelter Concept

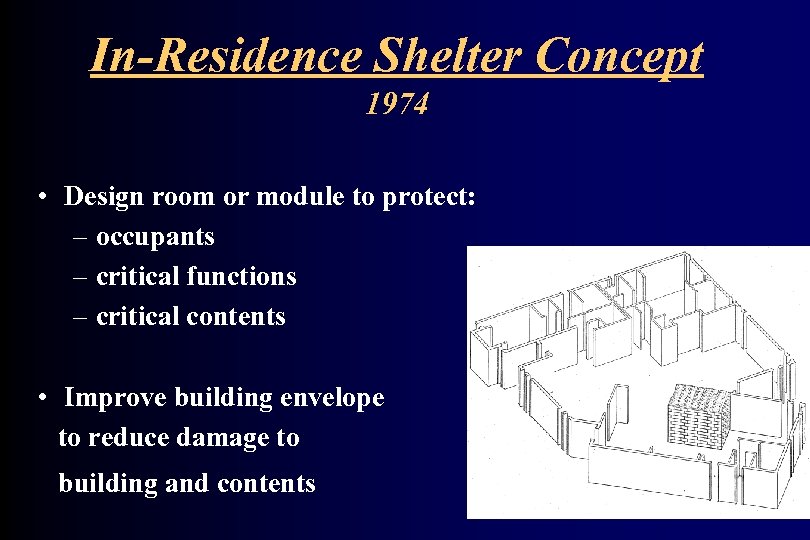

In-Residence Shelter Concept 1974 • Design room or module to protect: – occupants – In-Residence Shelter Concept 1974 • Design room or module to protect: – occupants – critical functions – critical contents • Improve building envelope to reduce damage to building and contents

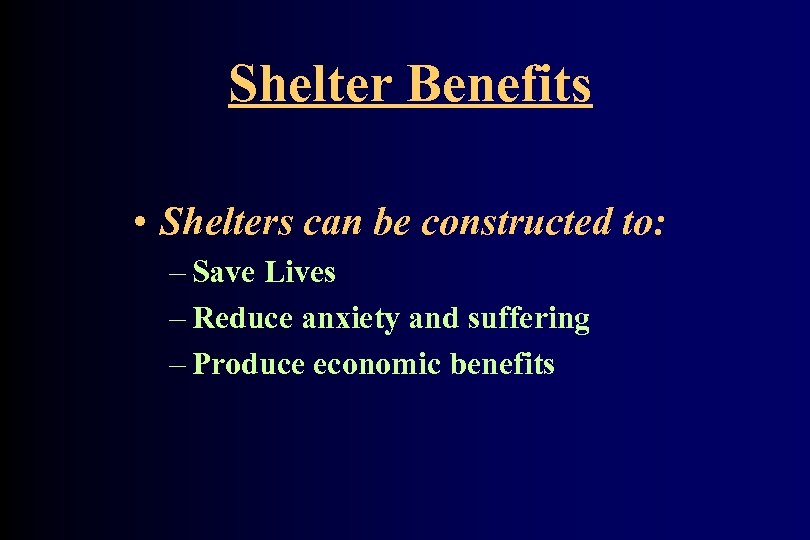

Shelter Benefits • Shelters can be constructed to: – Save Lives – Reduce anxiety Shelter Benefits • Shelters can be constructed to: – Save Lives – Reduce anxiety and suffering – Produce economic benefits

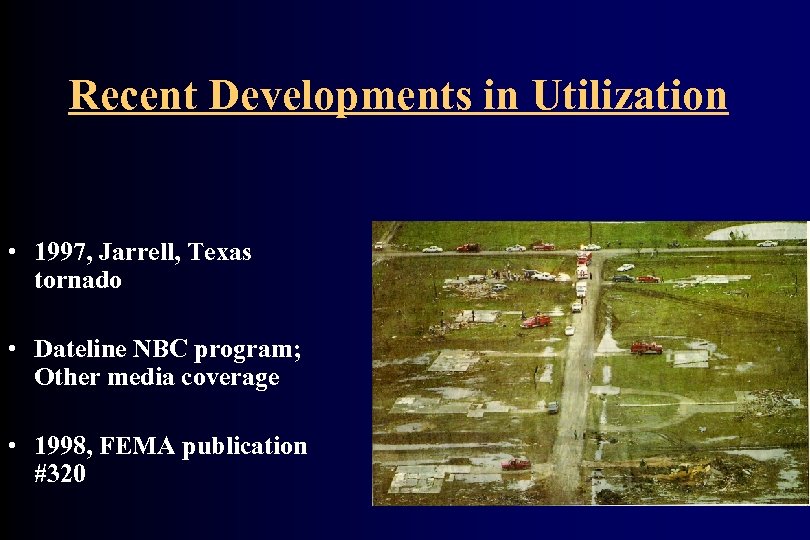

Recent Developments in Utilization • 1997, Jarrell, Texas tornado • Dateline NBC program; Other Recent Developments in Utilization • 1997, Jarrell, Texas tornado • Dateline NBC program; Other media coverage • 1998, FEMA publication #320

FEMA 320 Prescriptive Designs for Residential Shelters FEMA 320 Prescriptive Designs for Residential Shelters

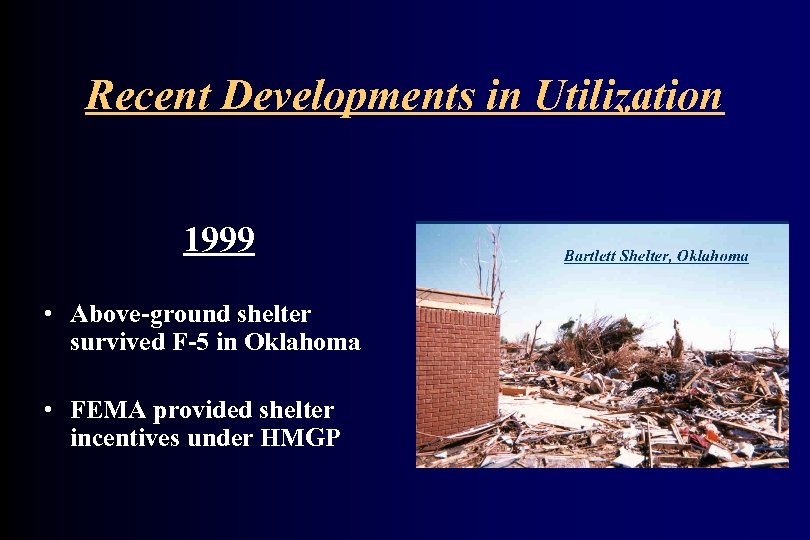

Recent Developments in Utilization 1999 • Above-ground shelter survived F-5 in Oklahoma • FEMA Recent Developments in Utilization 1999 • Above-ground shelter survived F-5 in Oklahoma • FEMA provided shelter incentives under HMGP

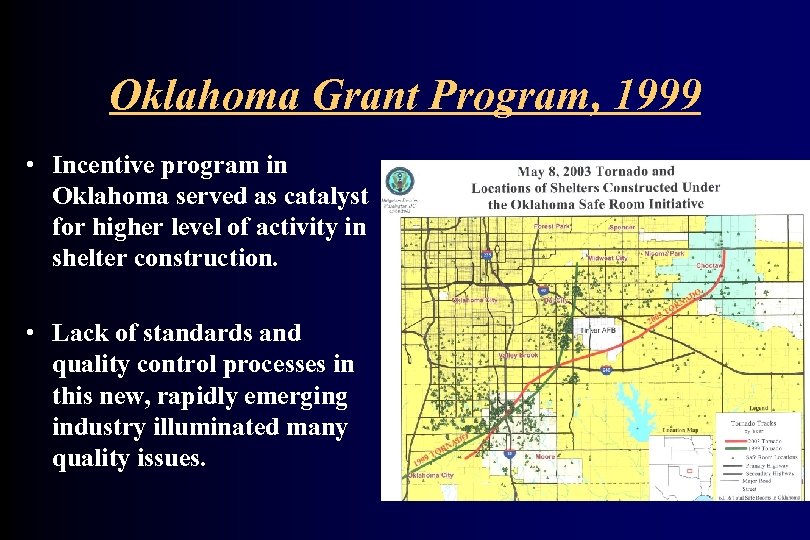

Oklahoma Grant Program, 1999 • Incentive program in Oklahoma served as catalyst for higher Oklahoma Grant Program, 1999 • Incentive program in Oklahoma served as catalyst for higher level of activity in shelter construction. • Lack of standards and quality control processes in this new, rapidly emerging industry illuminated many quality issues.

National Storm Shelter Association Guide to Quality Assurance National Storm Shelter Association Guide to Quality Assurance

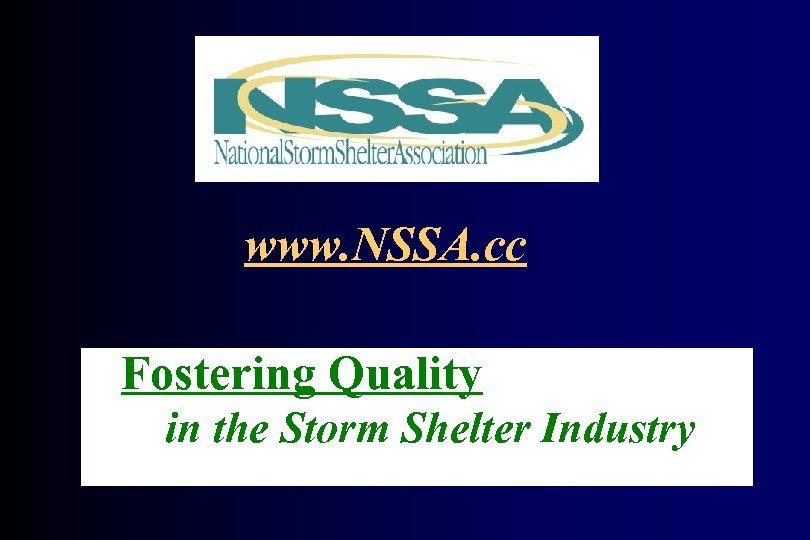

www. NSSA. cc Fostering Quality in the Storm Shelter Industry www. NSSA. cc Fostering Quality in the Storm Shelter Industry

Recent Developments in Utilization • Manufacturers created new products and expanded markets • Founded Recent Developments in Utilization • Manufacturers created new products and expanded markets • Founded the National Storm Shelter Association

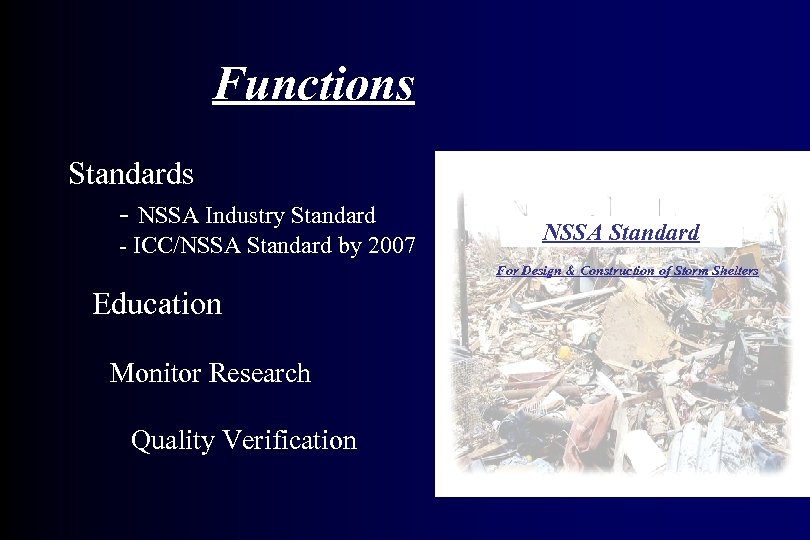

Functions Standards - NSSA Industry Standard - ICC/NSSA Standard by 2007 NSSA Standard For Functions Standards - NSSA Industry Standard - ICC/NSSA Standard by 2007 NSSA Standard For Design & Construction of Storm Shelters Education Monitor Research Quality Verification

Description of NSSA • NSSA in a not-for-profit trade association • Chartered in Texas Description of NSSA • NSSA in a not-for-profit trade association • Chartered in Texas as an IRS 501(c) 6 • Self-policing for the benefit of the public and a strong, credible industry

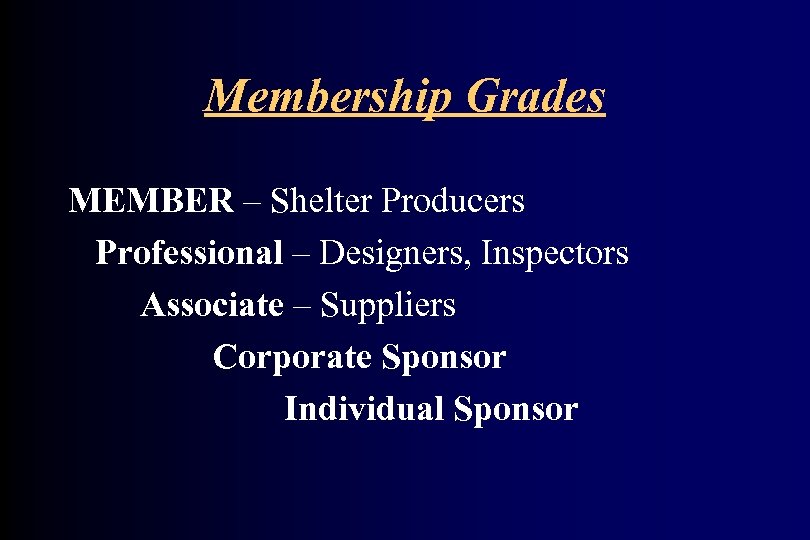

Membership Grades MEMBER – Shelter Producers Professional – Designers, Inspectors Associate – Suppliers Corporate Membership Grades MEMBER – Shelter Producers Professional – Designers, Inspectors Associate – Suppliers Corporate Sponsor Individual Sponsor

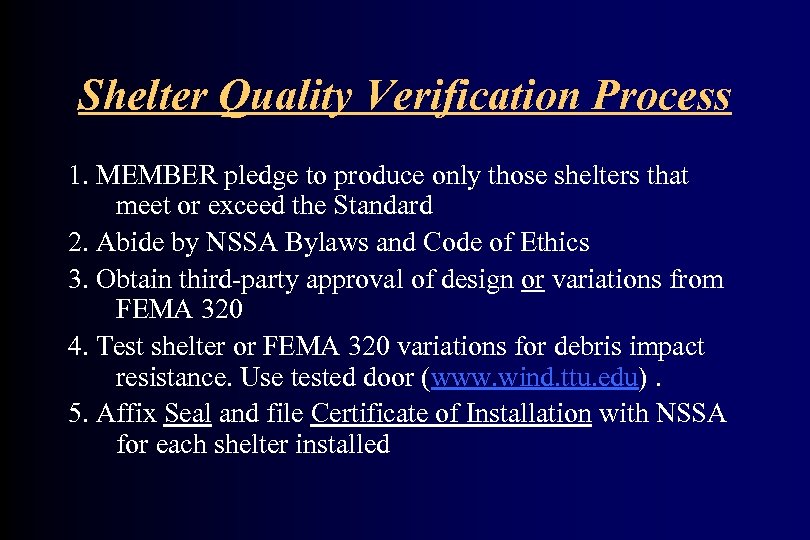

Shelter Quality Verification Process 1. MEMBER pledge to produce only those shelters that meet Shelter Quality Verification Process 1. MEMBER pledge to produce only those shelters that meet or exceed the Standard 2. Abide by NSSA Bylaws and Code of Ethics 3. Obtain third-party approval of design or variations from FEMA 320 4. Test shelter or FEMA 320 variations for debris impact resistance. Use tested door (www. wind. ttu. edu). 5. Affix Seal and file Certificate of Installation with NSSA for each shelter installed

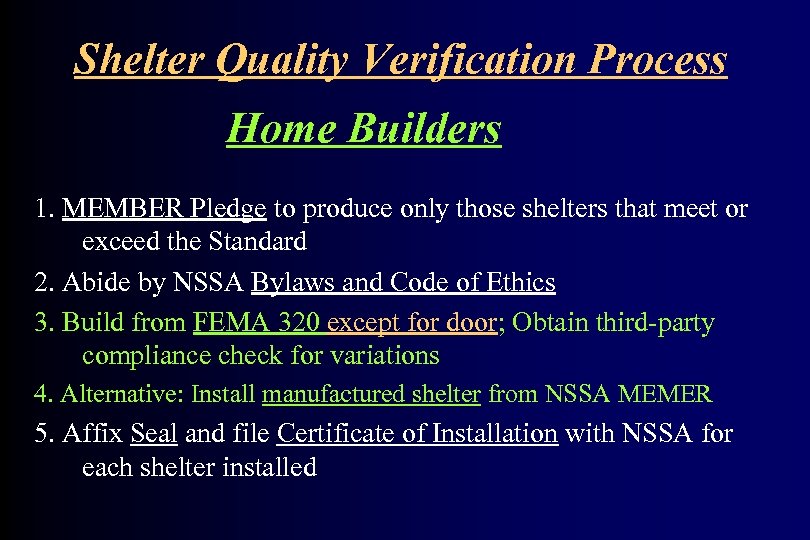

Shelter Quality Verification Process Home Builders 1. MEMBER Pledge to produce only those shelters Shelter Quality Verification Process Home Builders 1. MEMBER Pledge to produce only those shelters that meet or exceed the Standard 2. Abide by NSSA Bylaws and Code of Ethics 3. Build from FEMA 320 except for door; Obtain third-party compliance check for variations 4. Alternative: Install manufactured shelter from NSSA MEMER 5. Affix Seal and file Certificate of Installation with NSSA for each shelter installed

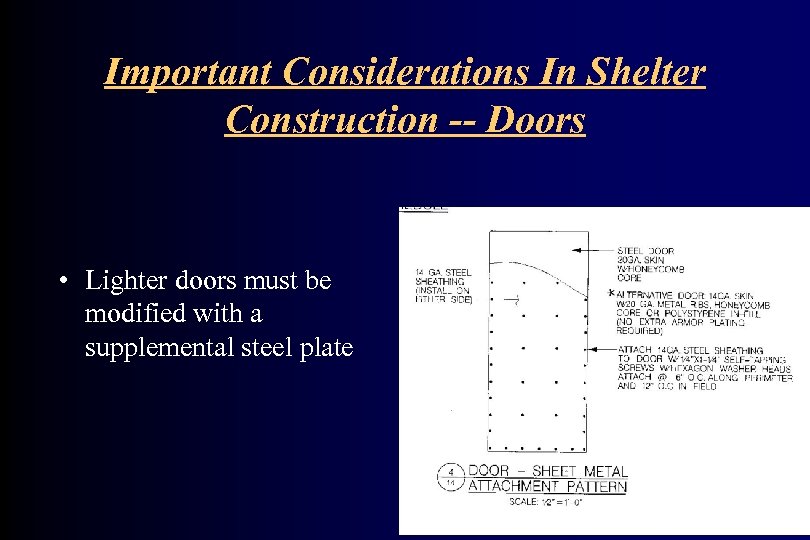

Important Considerations In Shelter Construction -- Doors • Lighter doors must be modified with Important Considerations In Shelter Construction -- Doors • Lighter doors must be modified with a supplemental steel plate

Important Considerations In Door Selection • At least one door meeting FEMA 320 specifications Important Considerations In Door Selection • At least one door meeting FEMA 320 specifications has failed to meet the debris impact test. Important • Use tested door (www. wind. ttu. edu) or have your door tested.

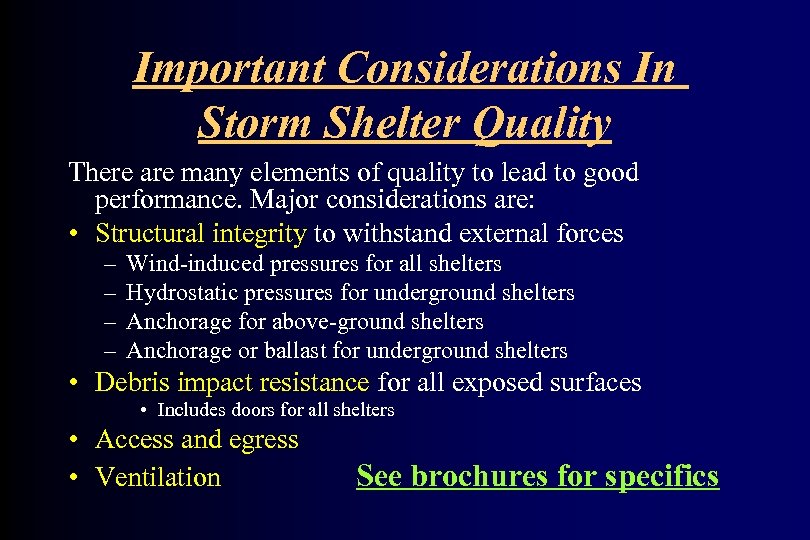

Important Considerations In Storm Shelter Quality There are many elements of quality to lead Important Considerations In Storm Shelter Quality There are many elements of quality to lead to good performance. Major considerations are: • Structural integrity to withstand external forces – – Wind-induced pressures for all shelters Hydrostatic pressures for underground shelters Anchorage for above-ground shelters Anchorage or ballast for underground shelters • Debris impact resistance for all exposed surfaces • Includes doors for all shelters • Access and egress • Ventilation See brochures for specifics

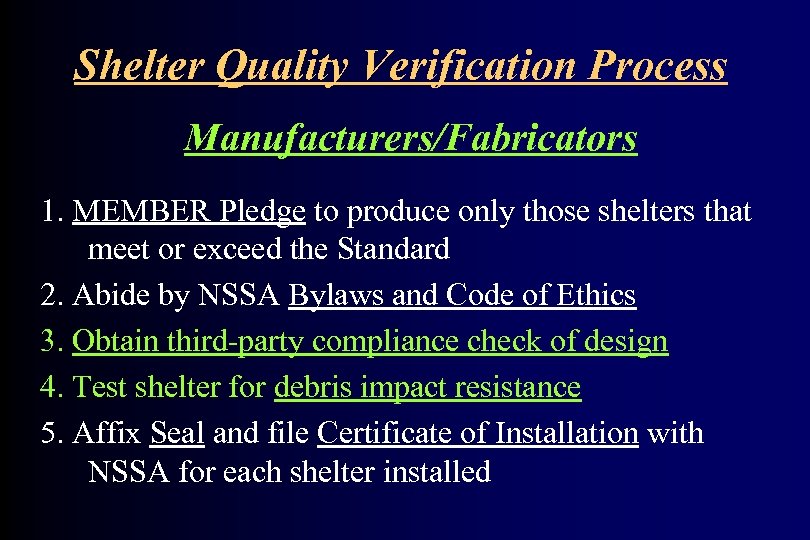

Shelter Quality Verification Process Manufacturers/Fabricators 1. MEMBER Pledge to produce only those shelters that Shelter Quality Verification Process Manufacturers/Fabricators 1. MEMBER Pledge to produce only those shelters that meet or exceed the Standard 2. Abide by NSSA Bylaws and Code of Ethics 3. Obtain third-party compliance check of design 4. Test shelter for debris impact resistance 5. Affix Seal and file Certificate of Installation with NSSA for each shelter installed

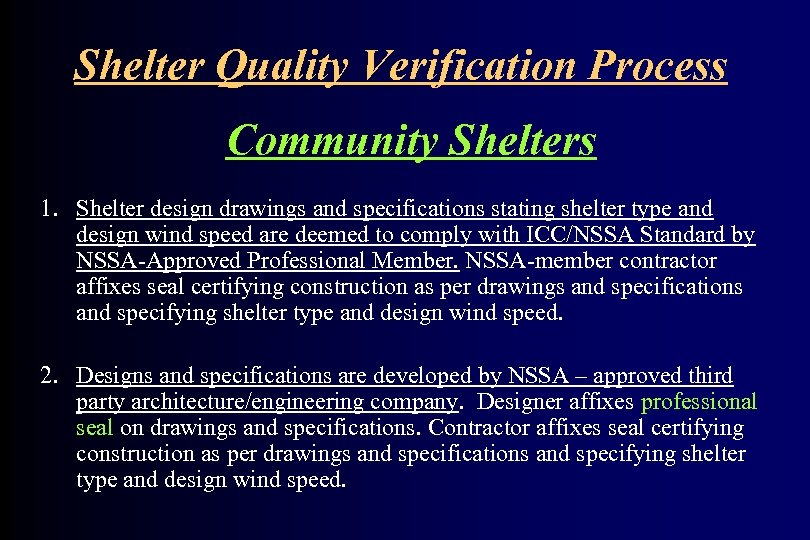

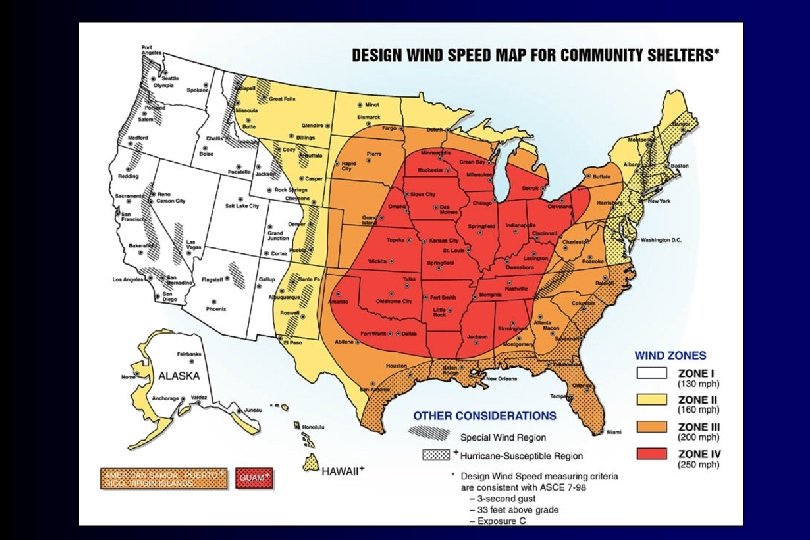

Shelter Quality Verification Process Community Shelters 1. Shelter design drawings and specifications stating shelter Shelter Quality Verification Process Community Shelters 1. Shelter design drawings and specifications stating shelter type and design wind speed are deemed to comply with ICC/NSSA Standard by NSSA-Approved Professional Member. NSSA-member contractor affixes seal certifying construction as per drawings and specifications and specifying shelter type and design wind speed. 2. Designs and specifications are developed by NSSA – approved third party architecture/engineering company. Designer affixes professional seal on drawings and specifications. Contractor affixes seal certifying construction as per drawings and specifications and specifying shelter type and design wind speed.

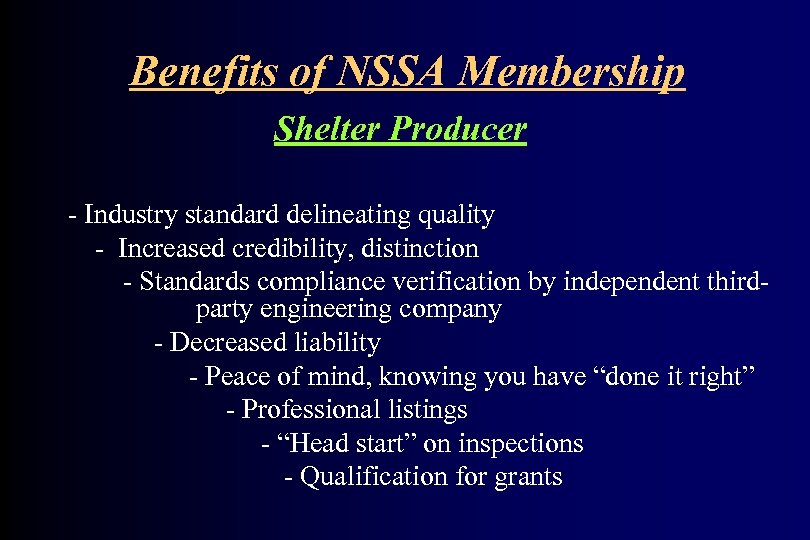

Benefits of NSSA Membership Shelter Producer - Industry standard delineating quality - Increased credibility, Benefits of NSSA Membership Shelter Producer - Industry standard delineating quality - Increased credibility, distinction - Standards compliance verification by independent thirdparty engineering company - Decreased liability - Peace of mind, knowing you have “done it right” - Professional listings - “Head start” on inspections - Qualification for grants

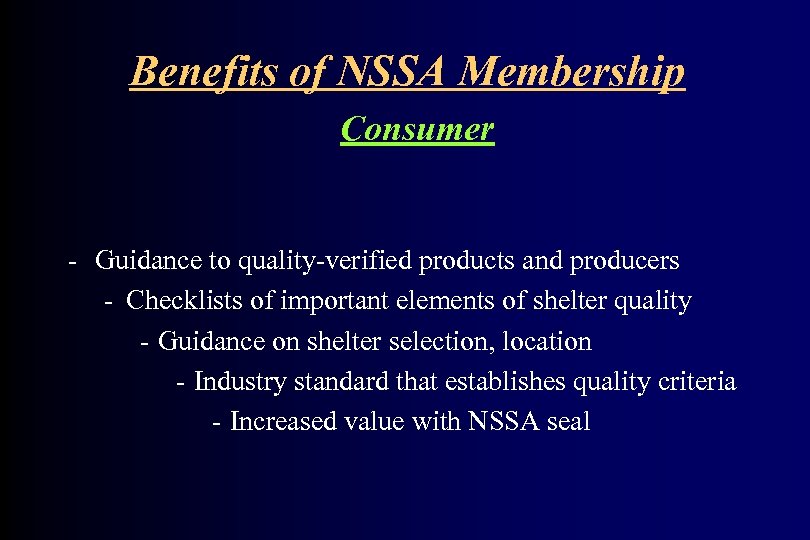

Benefits of NSSA Membership Consumer - Guidance to quality-verified products and producers - Checklists Benefits of NSSA Membership Consumer - Guidance to quality-verified products and producers - Checklists of important elements of shelter quality - Guidance on shelter selection, location - Industry standard that establishes quality criteria - Increased value with NSSA seal

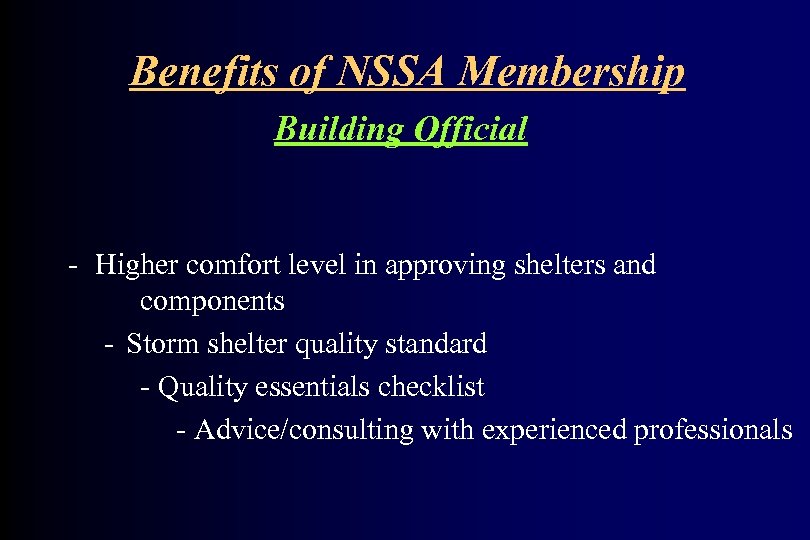

Benefits of NSSA Membership Building Official - Higher comfort level in approving shelters and Benefits of NSSA Membership Building Official - Higher comfort level in approving shelters and components - Storm shelter quality standard - Quality essentials checklist - Advice/consulting with experienced professionals

Benefits of NSSA Membership Policy/Program Administrator - Industry standard based on FEMA and ASCE Benefits of NSSA Membership Policy/Program Administrator - Industry standard based on FEMA and ASCE publications - Quality criteria defined by Standard, translated by experts - Quality verification through established processes - Industry leaders available for guidance on mitigation policies and strategies

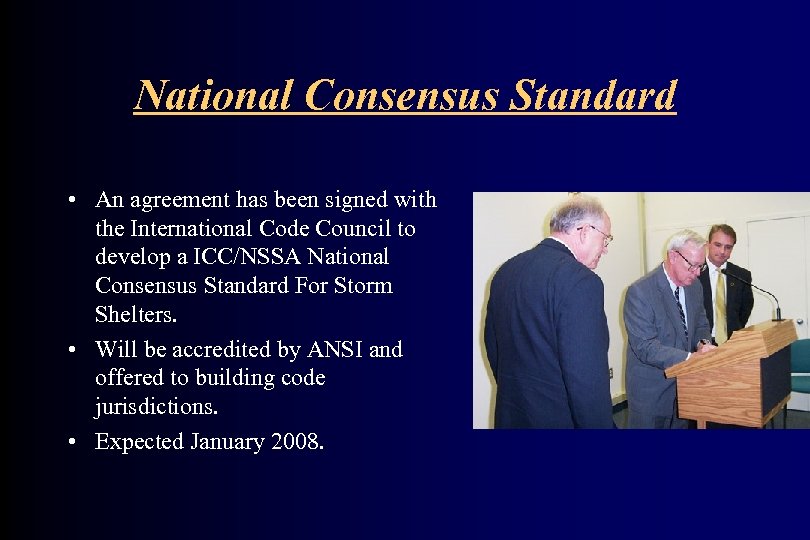

National Consensus Standard • An agreement has been signed with the International Code Council National Consensus Standard • An agreement has been signed with the International Code Council to develop a ICC/NSSA National Consensus Standard For Storm Shelters. • Will be accredited by ANSI and offered to building code jurisdictions. • Expected January 2008.

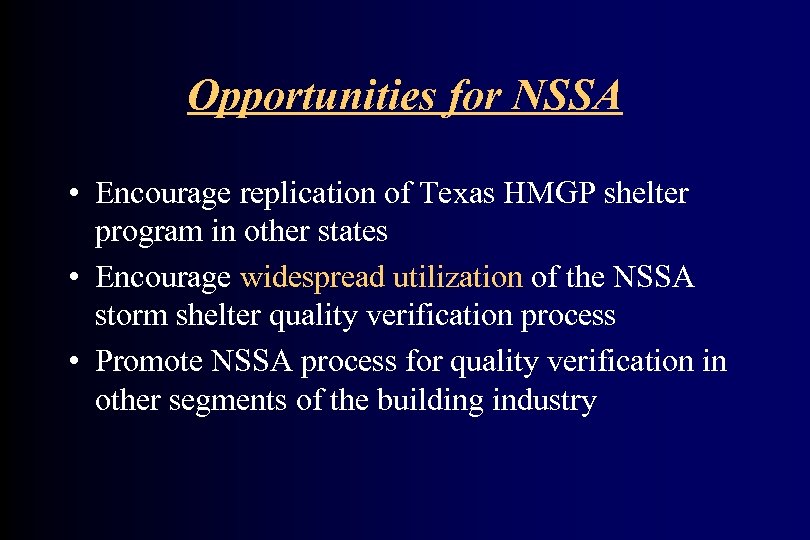

Opportunities for NSSA • Encourage replication of Texas HMGP shelter program in other states Opportunities for NSSA • Encourage replication of Texas HMGP shelter program in other states • Encourage widespread utilization of the NSSA storm shelter quality verification process • Promote NSSA process for quality verification in other segments of the building industry

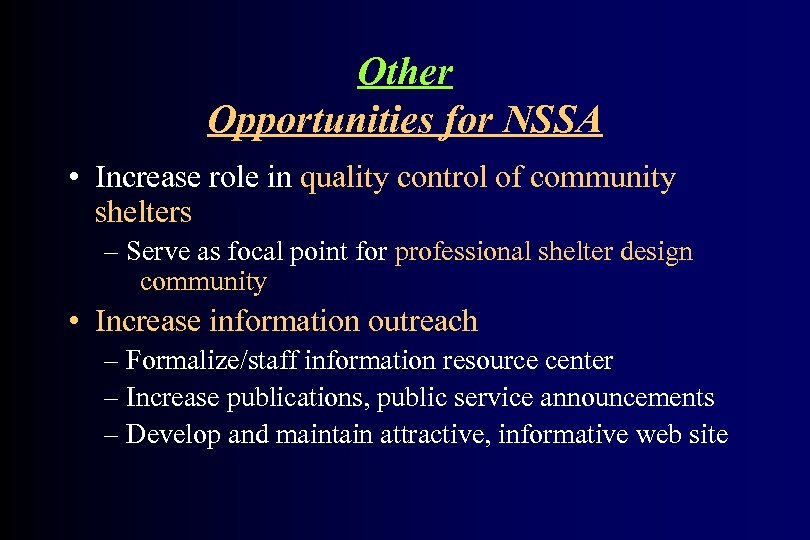

Other Opportunities for NSSA • Increase role in quality control of community shelters – Other Opportunities for NSSA • Increase role in quality control of community shelters – Serve as focal point for professional shelter design community • Increase information outreach – Formalize/staff information resource center – Increase publications, public service announcements – Develop and maintain attractive, informative web site

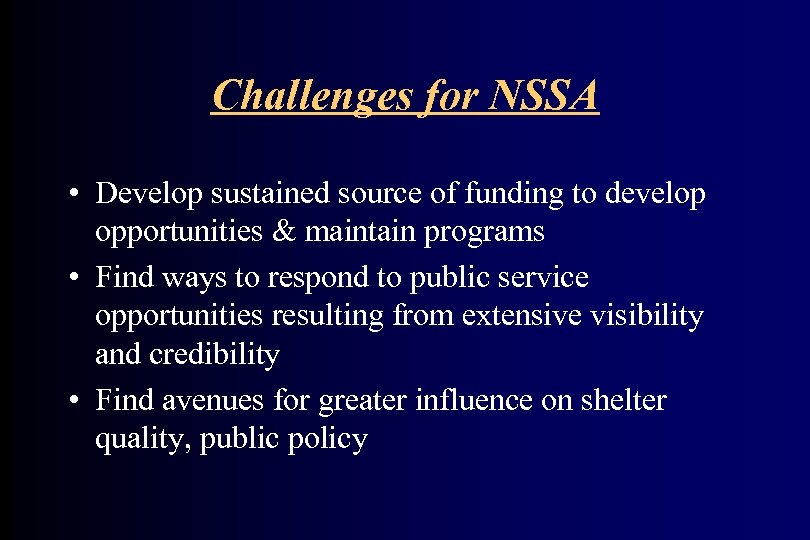

Challenges for NSSA • Develop sustained source of funding to develop opportunities & maintain Challenges for NSSA • Develop sustained source of funding to develop opportunities & maintain programs • Find ways to respond to public service opportunities resulting from extensive visibility and credibility • Find avenues for greater influence on shelter quality, public policy

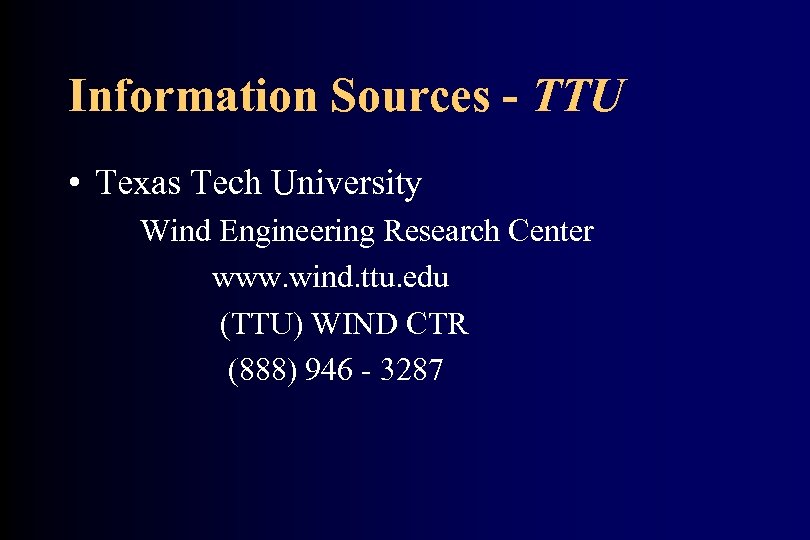

Information Sources - TTU • Texas Tech University Wind Engineering Research Center www. wind. Information Sources - TTU • Texas Tech University Wind Engineering Research Center www. wind. ttu. edu (TTU) WIND CTR (888) 946 - 3287

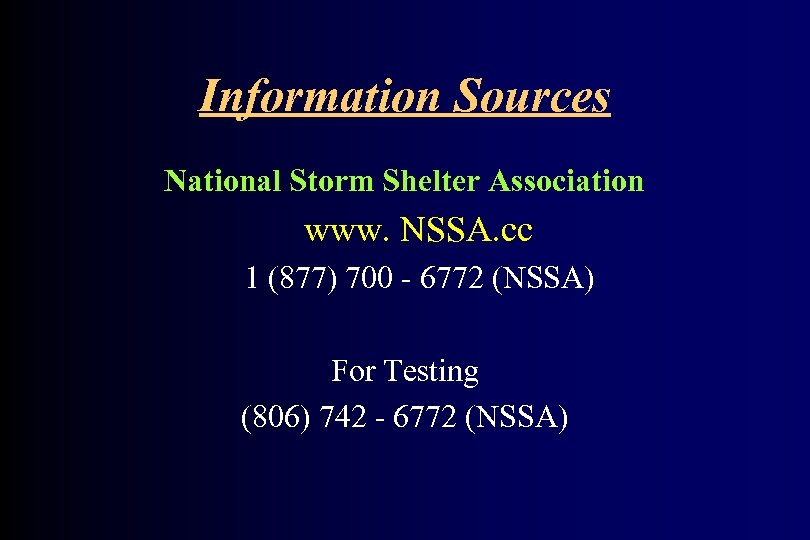

Information Sources National Storm Shelter Association www. NSSA. cc 1 (877) 700 - 6772 Information Sources National Storm Shelter Association www. NSSA. cc 1 (877) 700 - 6772 (NSSA) For Testing (806) 742 - 6772 (NSSA)

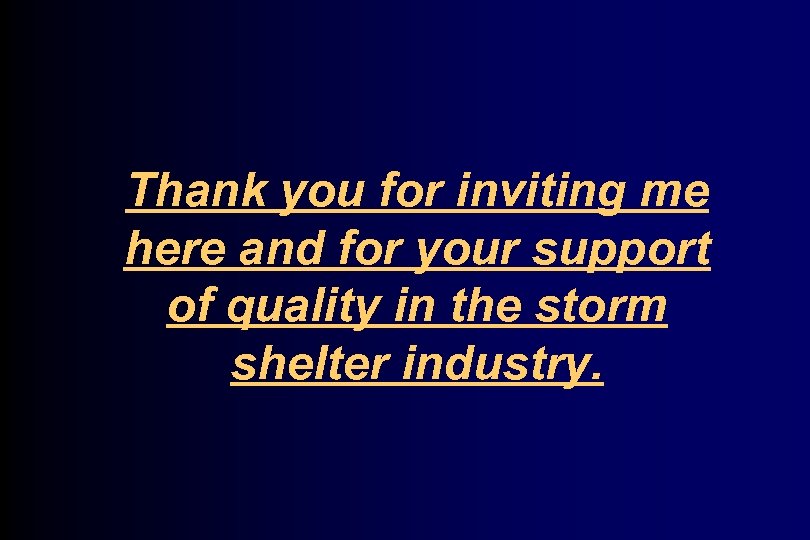

Thank you for inviting me here and for your support of quality in the Thank you for inviting me here and for your support of quality in the storm shelter industry.
