Q-MAC Electronics PRESENTS TACTICAL RADIOS Secure Simple to

Q-MAC Electronics PRESENTS TACTICAL RADIOS Secure Simple to use low cost

Q-MAC Electronics HF & VHF Transceivers, Antennas and Data Systems Secure Simple to use low cost

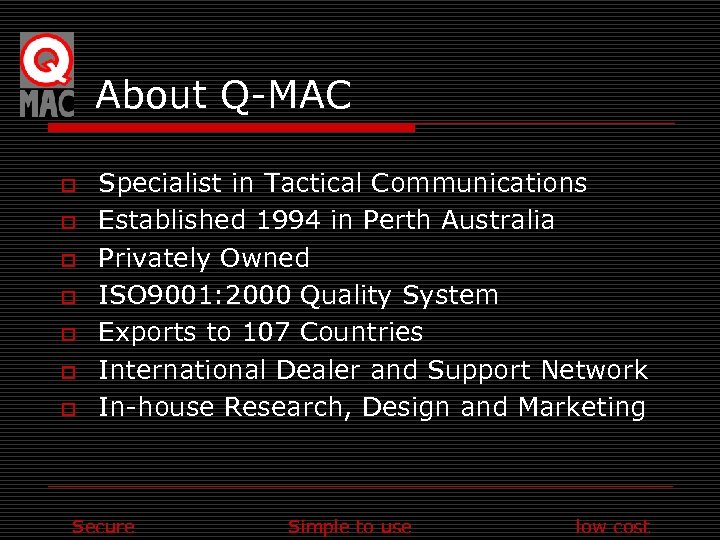

About Q-MAC o o o o Specialist in Tactical Communications Established 1994 in Perth Australia Privately Owned ISO 9001: 2000 Quality System Exports to 107 Countries International Dealer and Support Network In-house Research, Design and Marketing Secure Simple to use low cost

Our Customers o o o o o Military and paramilitary Police Forces United Nations and other aid/relief agencies Mining and Drilling contractors Forestry organisations Emergencies service (natural disaster organisations) Telecommunications authorities Road/bridge/pipeline construction organisations Environmental, conservation & wildlife authorities Fisheries Secure Simple to use low cost

Governmental/Military/Policing Customers We are not publish list with names of the customer in open resources if you interesting to get references please contact as Secure Simple to use low cost

HF-90 M HF Radio o o Multi-role HF transceiver Optional Frequency Hopping Lightweight (1 kg) Lightest in the world! 50 W Peak power Selective Calling Data capable Simple to use Simple to service Low cost 3 Year International Warranty Secure Simple to use low cost

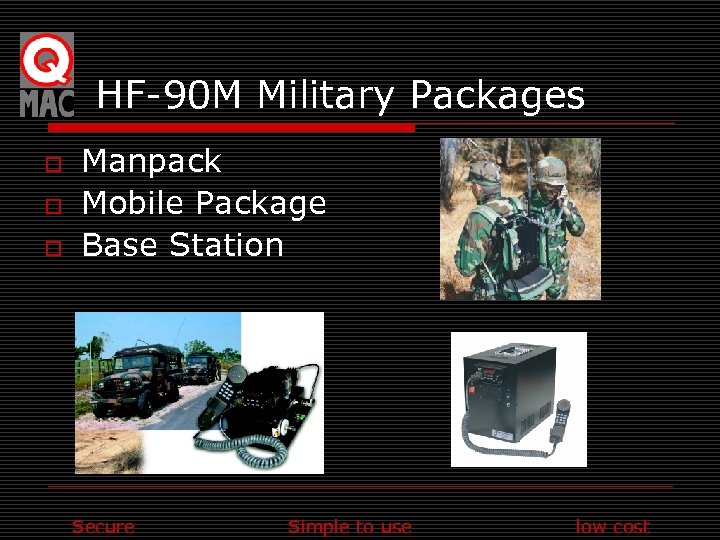

HF-90 M Military Packages o o o Manpack Mobile Package Base Station Secure Simple to use low cost

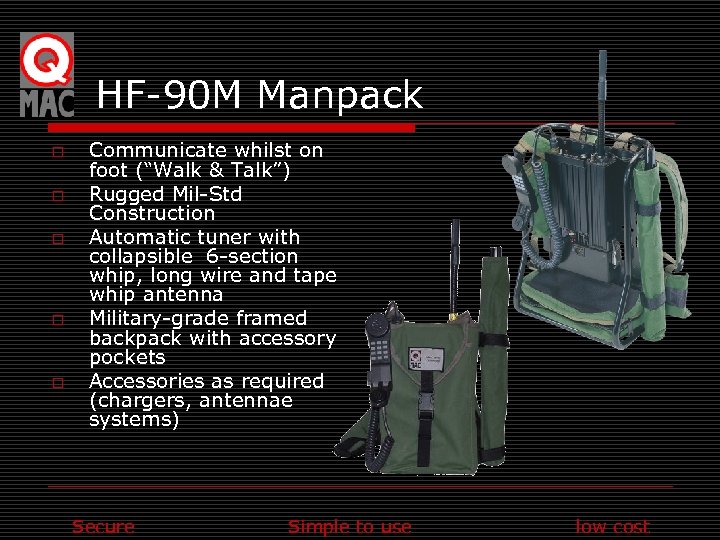

HF-90 M Manpack o o o Communicate whilst on foot (“Walk & Talk”) Rugged Mil-Std Construction Automatic tuner with collapsible 6 -section whip, long wire and tape whip antenna Military-grade framed backpack with accessory pockets Accessories as required (chargers, antennae systems) Secure Simple to use low cost

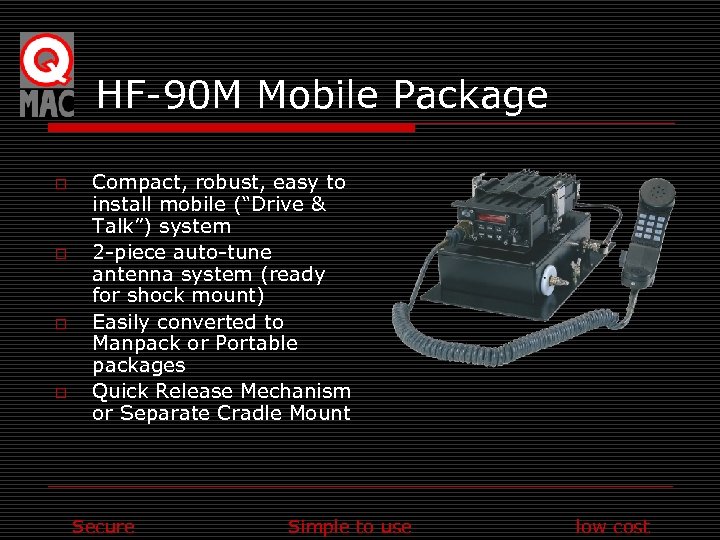

HF-90 M Mobile Package o o Compact, robust, easy to install mobile (“Drive & Talk”) system 2 -piece auto-tune antenna system (ready for shock mount) Easily converted to Manpack or Portable packages Quick Release Mechanism or Separate Cradle Mount Secure Simple to use low cost

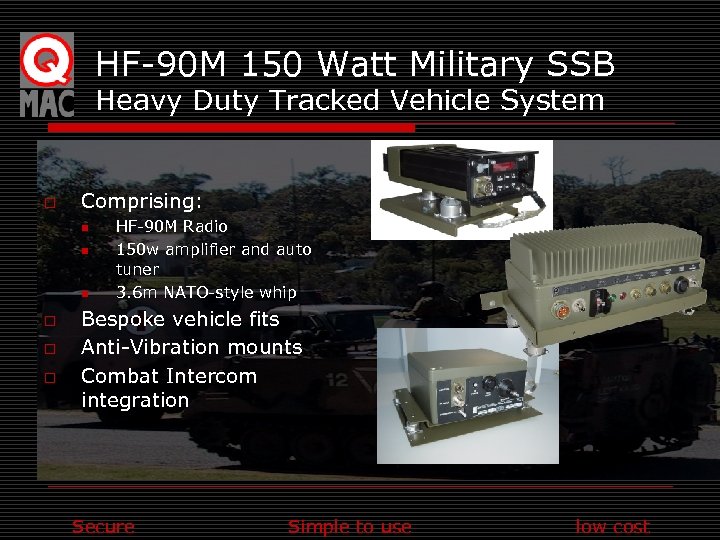

HF-90 M 150 Watt Military SSB Heavy Duty Tracked Vehicle System o Comprising: n n n o o o HF-90 M Radio 150 w amplifier and auto tuner 3. 6 m NATO-style whip Bespoke vehicle fits Anti-Vibration mounts Combat Intercom integration Secure Simple to use low cost

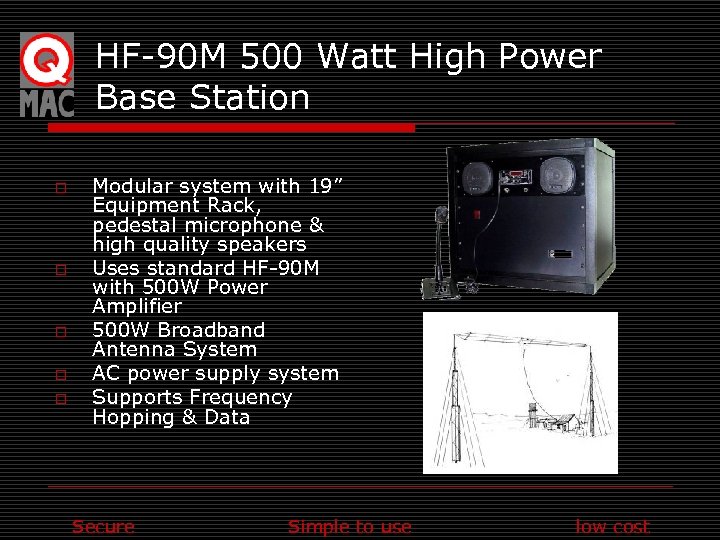

HF-90 M 500 Watt High Power Base Station o o o Modular system with 19” Equipment Rack, pedestal microphone & high quality speakers Uses standard HF-90 M with 500 W Power Amplifier 500 W Broadband Antenna System AC power supply system Supports Frequency Hopping & Data Secure Simple to use low cost

HF-90 M NVIS Roof Rack Antenna Secure Simple to use low cost

NVIS Antenna o o o o o Revolutionary High Gain Auto -Tuning NVIS Antenna System 14 d. B better than whip style antenna systems Continuous HF coverage from 0 -1, 000 km (No Skip Zones) Easily relocated to alternate vehicle Removable or Fixed Installation Fixed or Removable Installation Folds down when not in use High Quality Signal – Limits Adjacent Channel Noise Rejects Vehicle Ignition Noise Omni Directional Propagation Secure Simple to use low cost

Q-MAC Frequency Hopping o Secure communications for n n o Military & Paramilitary Aid / Relief Organisations Advantages of Frequency Hopping: n n Protection against detection Protection against jamming Protection against interception High quality voice Secure Simple to use low cost

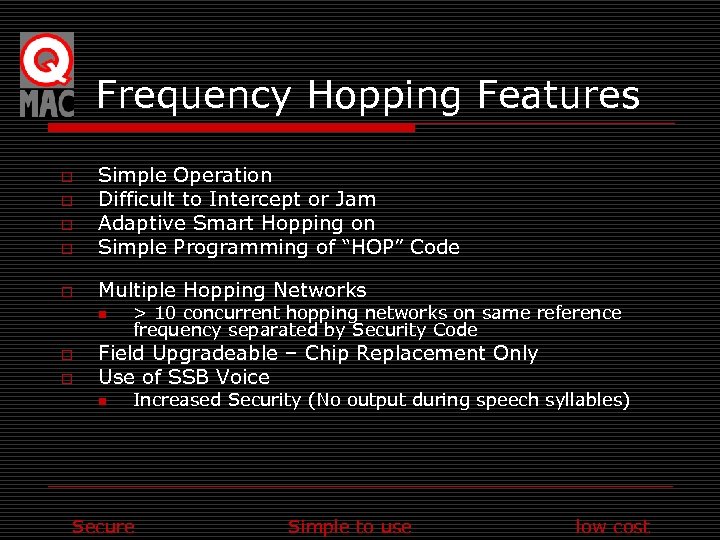

Frequency Hopping Features o Simple Operation Difficult to Intercept or Jam Adaptive Smart Hopping on Simple Programming of “HOP” Code o Multiple Hopping Networks o o o n o o > 10 concurrent hopping networks on same reference frequency separated by Security Code Field Upgradeable – Chip Replacement Only Use of SSB Voice n Increased Security (No output during speech syllables) Secure Simple to use low cost

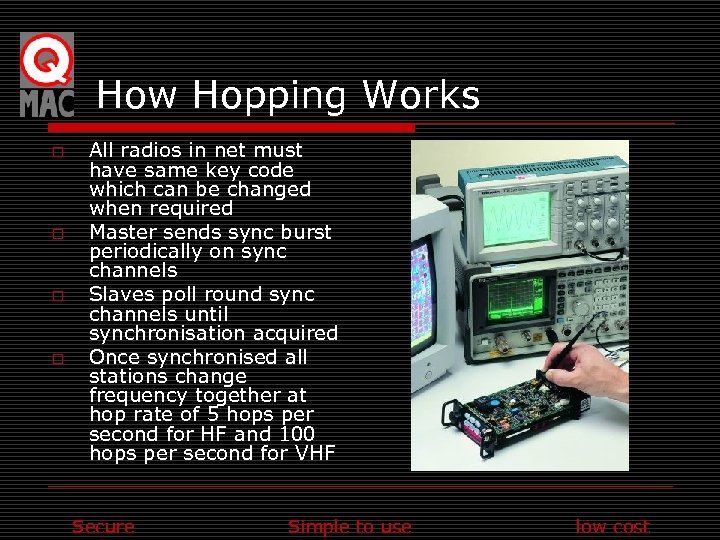

How Hopping Works o o All radios in net must have same key code which can be changed when required Master sends sync burst periodically on sync channels Slaves poll round sync channels until synchronisation acquired Once synchronised all stations change frequency together at hop rate of 5 hops per second for HF and 100 hops per second for VHF Secure Simple to use low cost
