PT INDONESIA COMNETS PLUS Mobile Backhaul : Carrier Ethernet PT. INDONESIA COMNETS PLUS Gedung PLN lt. 9 Jl. Gatot Subroto Kav. 18 Jakarta Selatan 12950 Telp: 5253019, 5253083, 5253147 Fax: 5253659
PT INDONESIA COMNETS PLUS Terminology and Concepts • The Mobile Backhaul is defined as the network between the: – Radio Network Controllers (RNCs), and – Radio Access Networks Base Station (RAN BS). • Mobile Network Structure : PDH over µwave PDH (E 1/T 1) Legacy RAN BS 2 G and 3 G SDH/SONET over Fibre Access Network PDH / SDH Aggregation Network SDH Legacy RAN NC 2 G and 3 G
PT INDONESIA COMNETS PLUS Cellular Market – Migration, why? • Phenomenal growth in mobile subscribers during Y 2009 • Significant increase in packet-data services in mobile network – The trend is heading 50 Mbps capacity per cell site for Y 2010 • Packet Switched Network based on FO promises more bandwidth at lower costs – Traditional wireline TDM expansion can’t meet traffic growth and expenses – Frequency crowded for microwave backhaul • Standardization process – 3 GPP (3 rd Generation Partnership Project) – – – ITU-T / ITU-R (Telecommunications / Radio) IEEE 802. 16 / Wi. MAX forum Carrier Ethernet MEF 22 (MBH IA) MPLS & Broadband forum (Framework & requirements) IOMETRIX – MEF and CES services certification EANTC – Mobile backhaul interoperability events
PT INDONESIA COMNETS PLUS 3 stages of IP/Ethernet backhaul for LTE • IP/Ethernet backhaul solves ARPU-traffic disconnect today and backhaul problem for HSPA today…and LTE tomorrow Copyright © 2010 Infonetics Research, Inc.

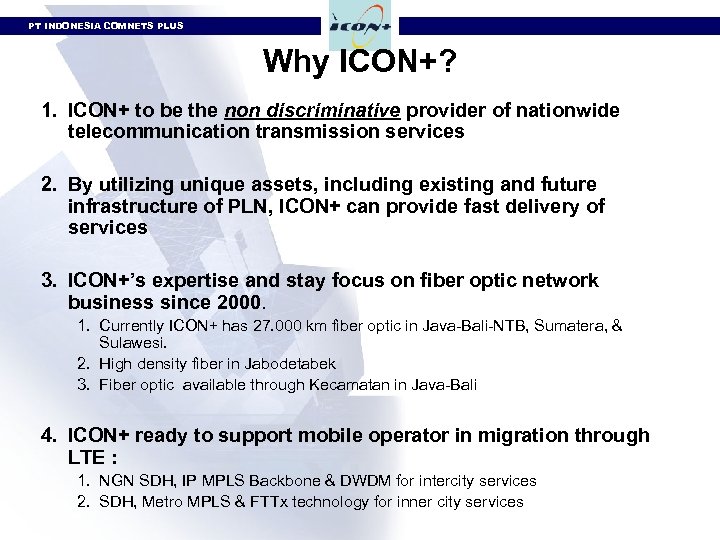

PT INDONESIA COMNETS PLUS Why ICON+? 1. ICON+ to be the non discriminative provider of nationwide telecommunication transmission services 2. By utilizing unique assets, including existing and future infrastructure of PLN, ICON+ can provide fast delivery of services 3. ICON+’s expertise and stay focus on fiber optic network business since 2000. 1. Currently ICON+ has 27. 000 km fiber optic in Java-Bali-NTB, Sumatera, & Sulawesi. 2. High density fiber in Jabodetabek 3. Fiber optic available through Kecamatan in Java-Bali 4. ICON+ ready to support mobile operator in migration through LTE : 1. NGN SDH, IP MPLS Backbone & DWDM for intercity services 2. SDH, Metro MPLS & FTTx technology for inner city services
PT INDONESIA COMNETS PLUS ICON+ Readiness Network & Support RO SUMBAGUT . RO SUMBAGSEL RO JABAR RO INTIM Singapore RO SUMBAGTENG RO JATIM RO BALI NUSRA

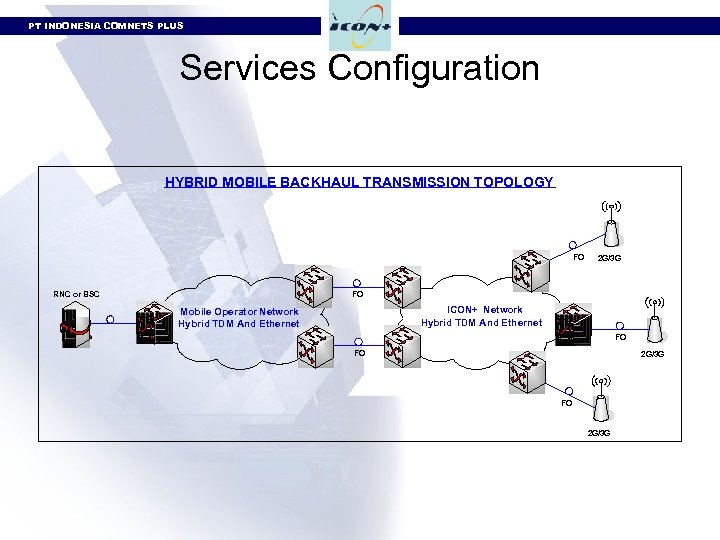

PT INDONESIA COMNETS PLUS Services Configuration HYBRID MOBILE BACKHAUL TRANSMISSION TOPOLOGY FO RNC or BSC 2 G/3 G FO ICON+ Network Hybrid TDM And Ethernet Mobile Operator Network Hybrid TDM And Ethernet FO FO 2 G/3 G

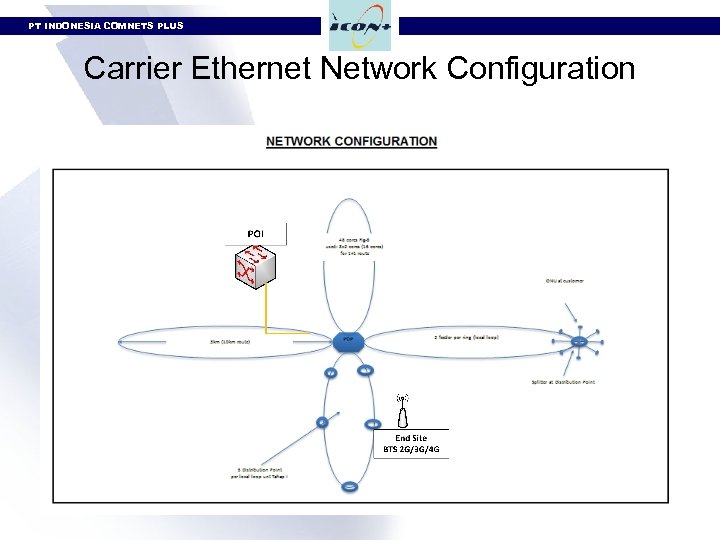

PT INDONESIA COMNETS PLUS Carrier Ethernet Network Configuration
PT INDONESIA COMNETS PLUS Contoh Area DKI 2006
PT INDONESIA COMNETS PLUS Contoh Jateng 2006
PT INDONESIA COMNETS PLUS Q&A
PT INDONESIA COMNETS PLUS
