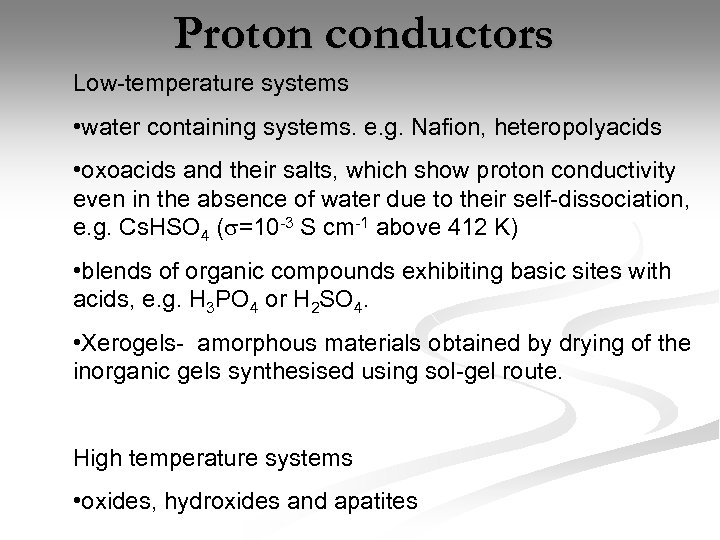

Proton conductors Low-temperature systems • water containing systems. e. g. Nafion, heteropolyacids • oxoacids Proton conductors Low-temperature systems • water containing systems. e. g. Nafion, heteropolyacids • oxoacids and their salts, which show proton conductivity even in the absence of water due to their self-dissociation, e. g. Cs. HSO 4 (s=10 -3 S cm-1 above 412 K) • blends of organic compounds exhibiting basic sites with acids, e. g. H 3 PO 4 or H 2 SO 4. • Xerogels- amorphous materials obtained by drying of the inorganic gels synthesised using sol-gel route. High temperature systems • oxides, hydroxides and apatites

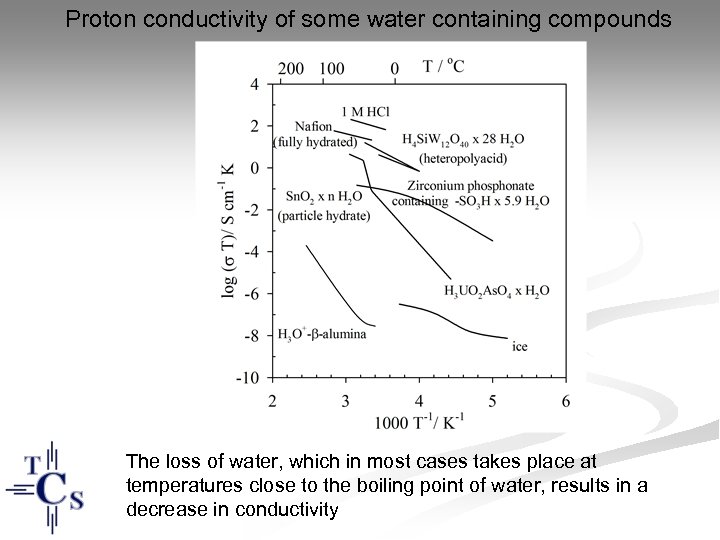

Proton conductivity of some water containing compounds The loss of water, which in most Proton conductivity of some water containing compounds The loss of water, which in most cases takes place at temperatures close to the boiling point of water, results in a decrease in conductivity

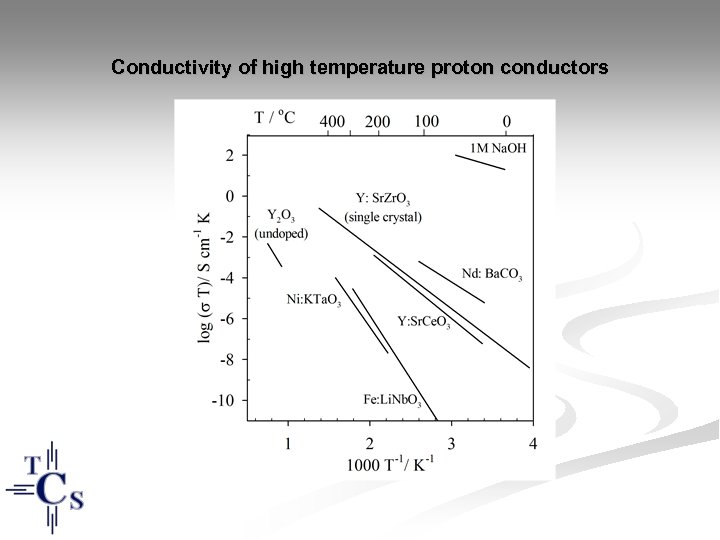

Conductivity of high temperature proton conductors Conductivity of high temperature proton conductors

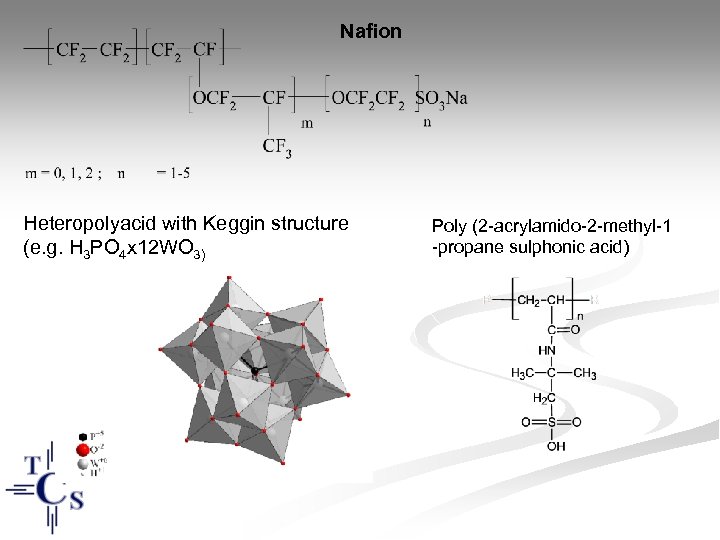

Nafion Heteropolyacid with Keggin structure (e. g. H 3 PO 4 x 12 WO Nafion Heteropolyacid with Keggin structure (e. g. H 3 PO 4 x 12 WO 3) Poly (2 -acrylamido-2 -methyl-1 -propane sulphonic acid)

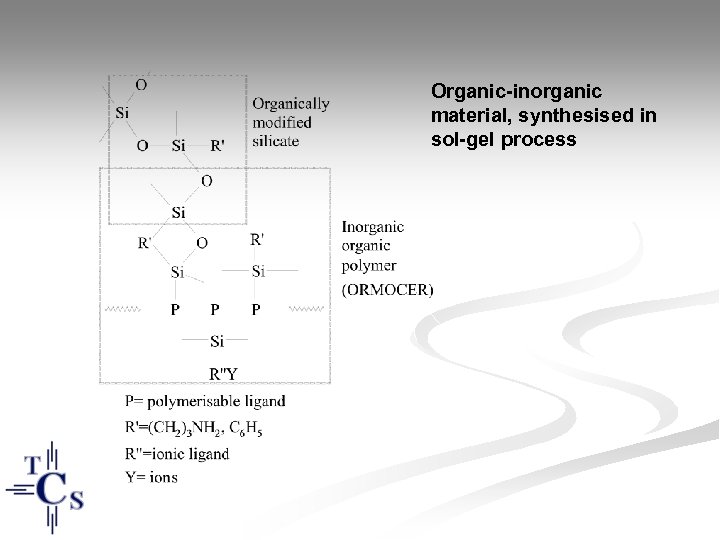

Organic-inorganic material, synthesised in sol-gel process Organic-inorganic material, synthesised in sol-gel process

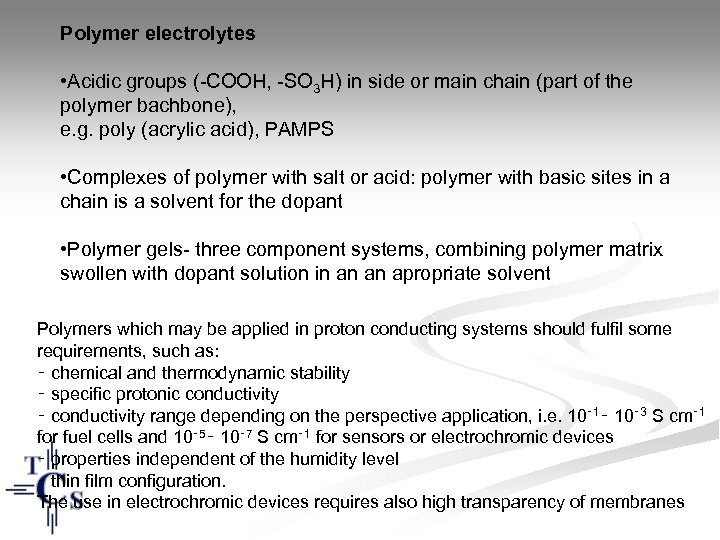

Polymer electrolytes • Acidic groups (-COOH, -SO 3 H) in side or main chain Polymer electrolytes • Acidic groups (-COOH, -SO 3 H) in side or main chain (part of the polymer bachbone), e. g. poly (acrylic acid), PAMPS • Complexes of polymer with salt or acid: polymer with basic sites in a chain is a solvent for the dopant • Polymer gels- three component systems, combining polymer matrix swollen with dopant solution in an an apropriate solvent Polymers which may be applied in proton conducting systems should fulfil some requirements, such as: ‑ chemical and thermodynamic stability ‑ specific protonic conductivity ‑ conductivity range depending on the perspective application, i. e. 10‑ 1‑ 10‑ 3 S cm‑ 1 for fuel cells and 10‑ 5‑ 10‑ 7 S cm‑ 1 for sensors or electrochromic devices ‑ properties independent of the humidity level ‑ thin film configuration. The use in electrochromic devices requires also high transparency of membranes

Gel electrolytes Polymers: Acrylic and methacrylic polymers (PMMA, PAN, PGMA, PAAM), poly (vinylidene fluoride), Gel electrolytes Polymers: Acrylic and methacrylic polymers (PMMA, PAN, PGMA, PAAM), poly (vinylidene fluoride), poly (vinyl chloride), PEO Solvents: Propylene carbonate, ethylene carbonate, N, Ndimethylformamide, glymes, N-vinylpyrrolidone Acids: Phosphoric acid and its acidic esters, sulfuric acid, sulphonic acids, phosphonic acids, heteropolyacids

Structure of glycidyl methacrylate and products of its reaction with phosphoric acid G. Zukowska, Structure of glycidyl methacrylate and products of its reaction with phosphoric acid G. Zukowska, V. Robertson, M. Marcinek, K. R. Jeffrey, J. R. Stevens J. Phys. Chem. B 10 (2003) 5797

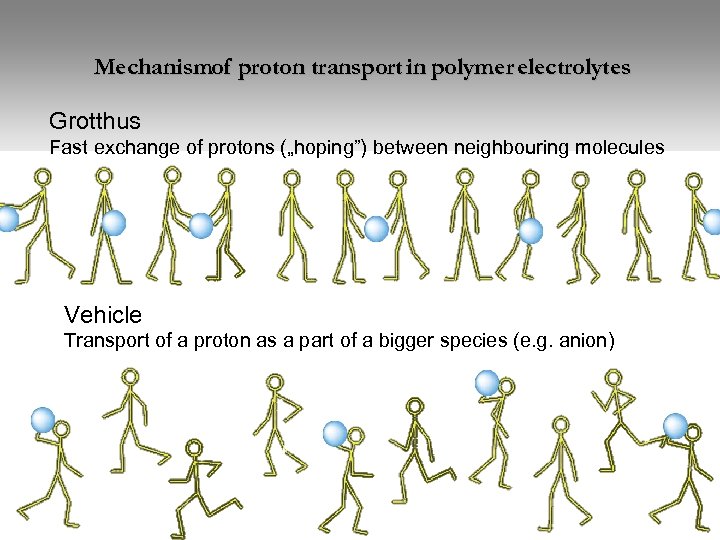

Mechanismof proton transport in polymer electrolytes Grotthus Fast exchange of protons („hoping”) between neighbouring Mechanismof proton transport in polymer electrolytes Grotthus Fast exchange of protons („hoping”) between neighbouring molecules Vehicle Transport of a proton as a part of a bigger species (e. g. anion)

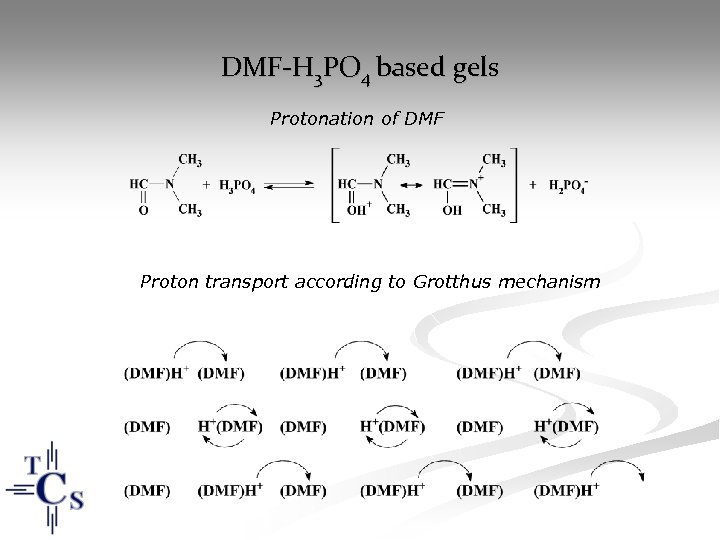

DMF-H 3 PO 4 based gels Protonation of DMF Proton transport according to Grotthus DMF-H 3 PO 4 based gels Protonation of DMF Proton transport according to Grotthus mechanism

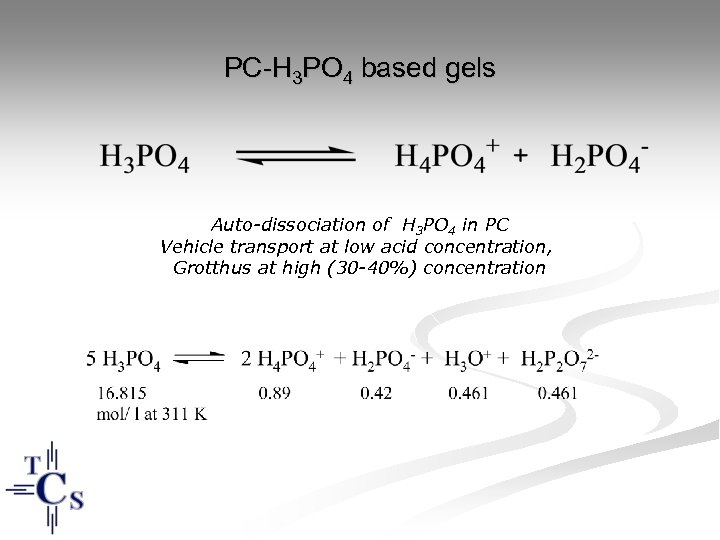

PC-H 3 PO 4 based gels Auto-dissociation of H 3 PO 4 in PC PC-H 3 PO 4 based gels Auto-dissociation of H 3 PO 4 in PC Vehicle transport at low acid concentration, Grotthus at high (30 -40%) concentration

Conductivity isotherms for anhydrous proton conductinggels - solvent: DMF - solvent: PC Conductivity isotherms for anhydrous proton conductinggels - solvent: DMF - solvent: PC

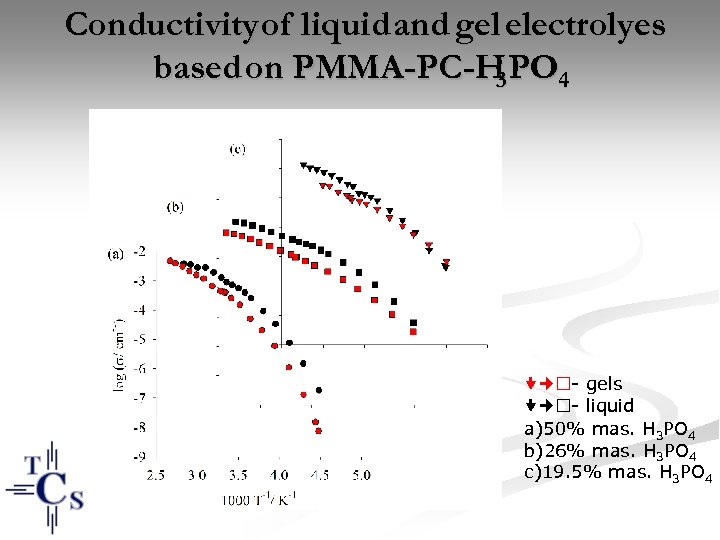

Conductivity of liquid and gel electrolyes based on PMMA-PC-H PO 4 3 - gels Conductivity of liquid and gel electrolyes based on PMMA-PC-H PO 4 3 - gels - liquid a)50% mas. H 3 PO 4 b)26% mas. H 3 PO 4 c)19. 5% mas. H 3 PO 4

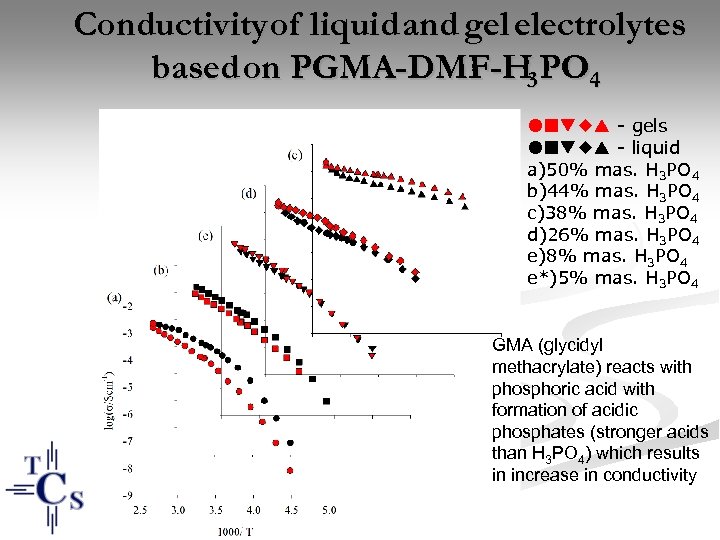

Conductivity of liquid and gel electrolytes based on PGMA-DMF-H 3 PO 4 - gels Conductivity of liquid and gel electrolytes based on PGMA-DMF-H 3 PO 4 - gels - liquid a)50% mas. H 3 PO 4 b)44% mas. H 3 PO 4 c)38% mas. H 3 PO 4 d)26% mas. H 3 PO 4 e)8% mas. H 3 PO 4 e*)5% mas. H 3 PO 4 GMA (glycidyl methacrylate) reacts with phosphoric acid with formation of acidic phosphates (stronger acids than H 3 PO 4) which results in increase in conductivity

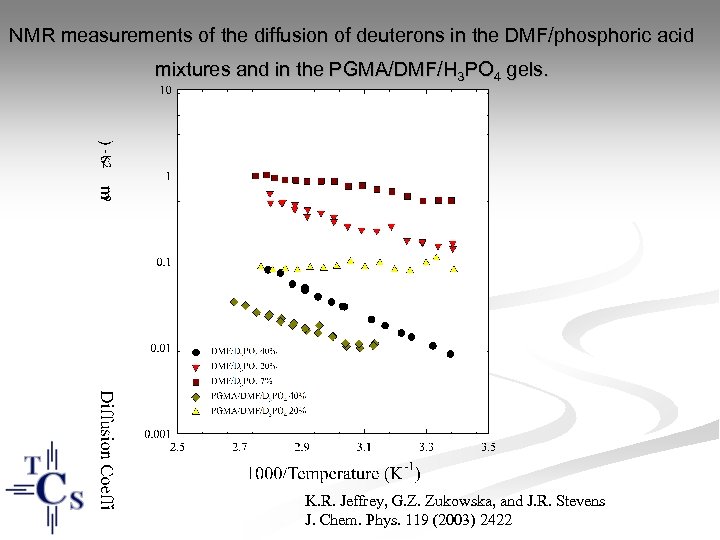

NMR measurements of the diffusion of deuterons in the DMF/phosphoric acid mixtures and in NMR measurements of the diffusion of deuterons in the DMF/phosphoric acid mixtures and in the PGMA/DMF/H 3 PO 4 gels. K. R. Jeffrey, G. Z. Zukowska, and J. R. Stevens J. Chem. Phys. 119 (2003) 2422

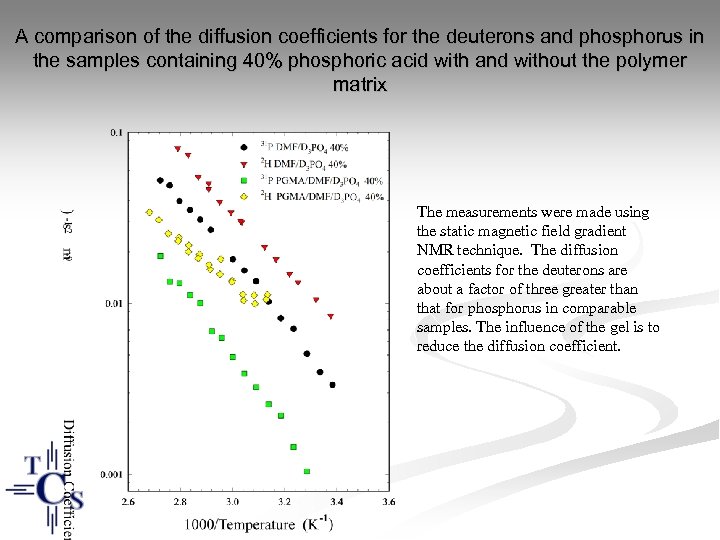

A comparison of the diffusion coefficients for the deuterons and phosphorus in the samples A comparison of the diffusion coefficients for the deuterons and phosphorus in the samples containing 40% phosphoric acid with and without the polymer matrix The measurements were made using the static magnetic field gradient NMR technique. The diffusion coefficients for the deuterons are about a factor of three greater than that for phosphorus in comparable samples. The influence of the gel is to reduce the diffusion coefficient.

Influence of the type of proton donor on conductivity in electrolytes based on PMMA-PCDMF Influence of the type of proton donor on conductivity in electrolytes based on PMMA-PCDMF (a) and PVd. F-DMF (b) (a) - PWA, - diphenyl phosphate, - H 3 PO 4 (b)

+ + + Elec troc hro mic Tra laye nsp r aren t co + + + Elec troc hro mic Tra laye nsp r aren t co ndu ctor Gla ss Ele ctro lyte T con ransp duc a torp rent rzew Elec odn troc ik hro mic laye r Gla ss Electrochromicdevice - ions According to Granqvist

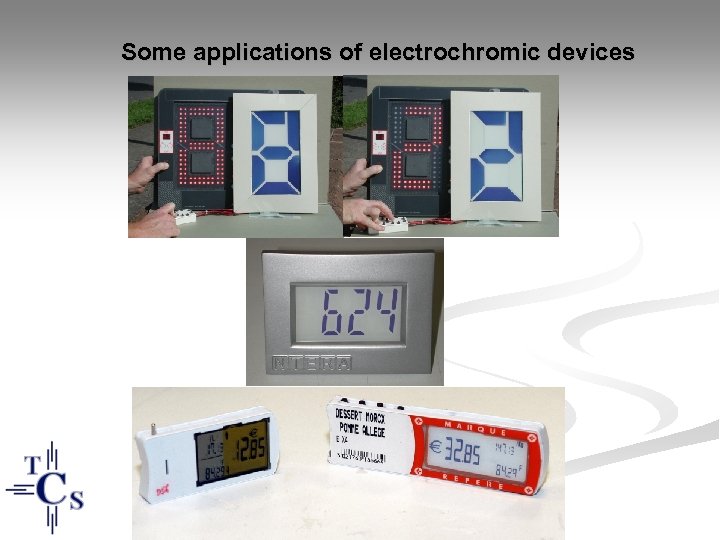

Some applications of electrochromic devices Some applications of electrochromic devices

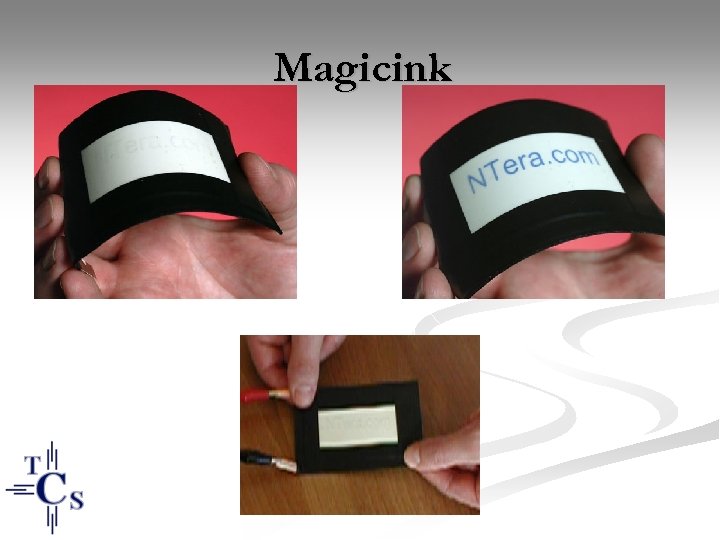

Magicink Magicink

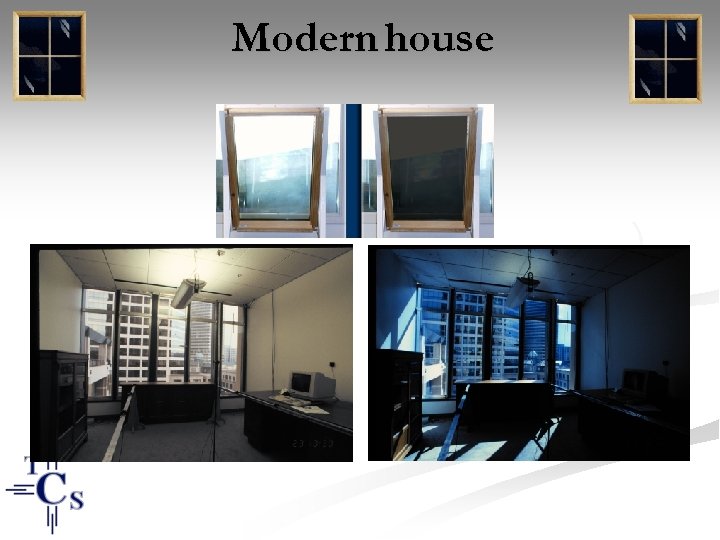

Modern house Modern house
