Protocol Converter Inverse Multiplexer & Ethernet over SDH International Department July, 2006 Raisecom Protocol Converter Inverse Multiplexer & Ethernet over SDH International Department July, 2006 Raisecom

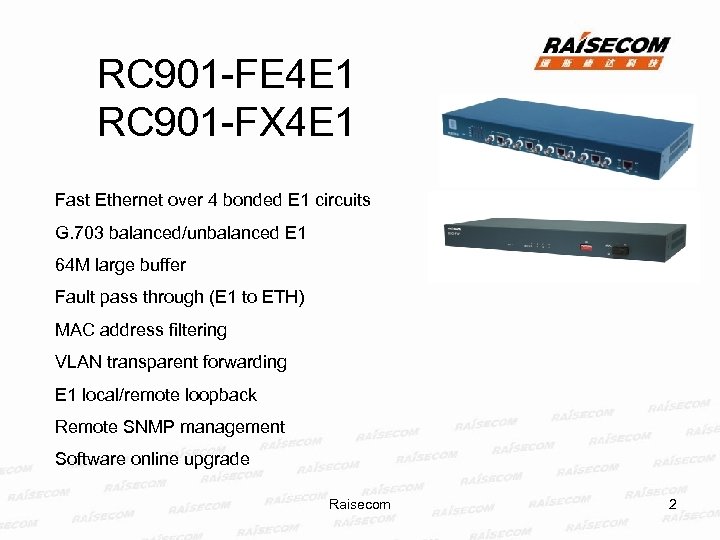

RC 901 -FE 4 E 1 RC 901 -FX 4 E 1 Fast Ethernet RC 901 -FE 4 E 1 RC 901 -FX 4 E 1 Fast Ethernet over 4 bonded E 1 circuits G. 703 balanced/unbalanced E 1 64 M large buffer Fault pass through (E 1 to ETH) MAC address filtering VLAN transparent forwarding E 1 local/remote loopback Remote SNMP management Software online upgrade Raisecom 2

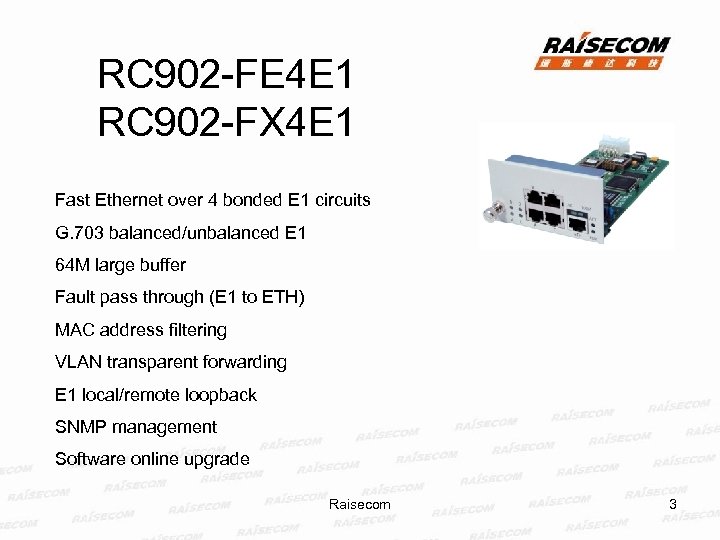

RC 902 -FE 4 E 1 RC 902 -FX 4 E 1 Fast Ethernet RC 902 -FE 4 E 1 RC 902 -FX 4 E 1 Fast Ethernet over 4 bonded E 1 circuits G. 703 balanced/unbalanced E 1 64 M large buffer Fault pass through (E 1 to ETH) MAC address filtering VLAN transparent forwarding E 1 local/remote loopback SNMP management Software online upgrade Raisecom 3

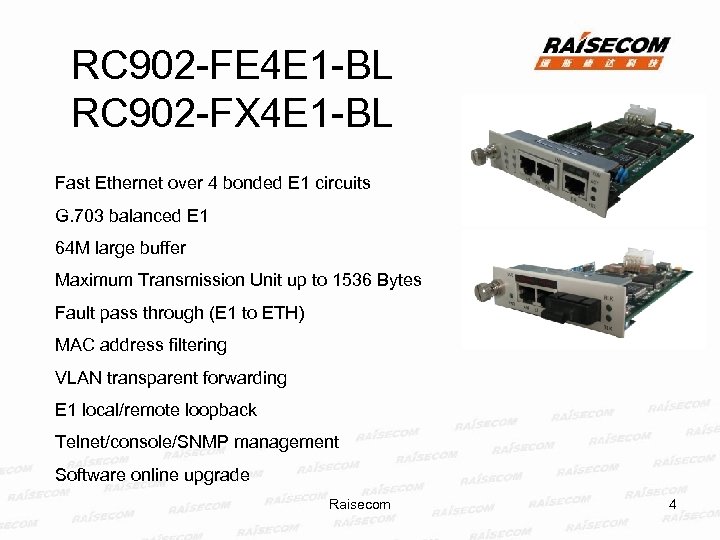

RC 902 -FE 4 E 1 -BL RC 902 -FX 4 E 1 -BL RC 902 -FE 4 E 1 -BL RC 902 -FX 4 E 1 -BL Fast Ethernet over 4 bonded E 1 circuits G. 703 balanced E 1 64 M large buffer Maximum Transmission Unit up to 1536 Bytes Fault pass through (E 1 to ETH) MAC address filtering VLAN transparent forwarding E 1 local/remote loopback Telnet/console/SNMP management Software online upgrade Raisecom 4

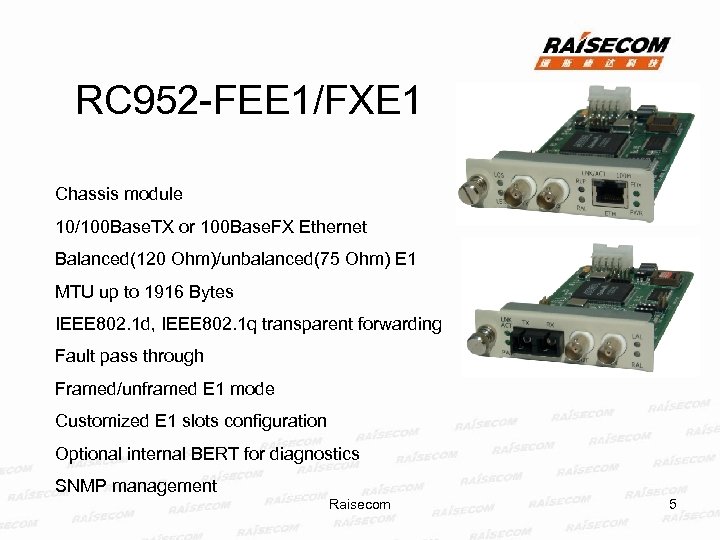

RC 952 -FEE 1/FXE 1 Chassis module 10/100 Base. TX or 100 Base. FX RC 952 -FEE 1/FXE 1 Chassis module 10/100 Base. TX or 100 Base. FX Ethernet Balanced(120 Ohm)/unbalanced(75 Ohm) E 1 MTU up to 1916 Bytes IEEE 802. 1 d, IEEE 802. 1 q transparent forwarding Fault pass through Framed/unframed E 1 mode Customized E 1 slots configuration Optional internal BERT for diagnostics SNMP management Raisecom 5

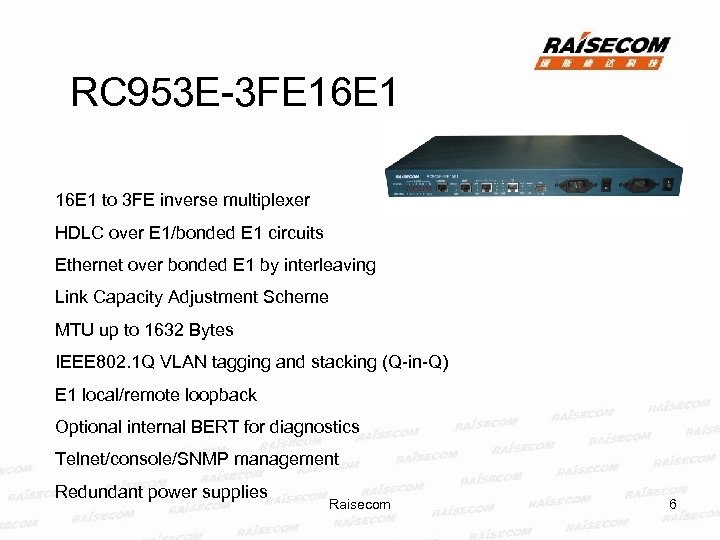

RC 953 E-3 FE 16 E 1 to 3 FE inverse multiplexer HDLC over RC 953 E-3 FE 16 E 1 to 3 FE inverse multiplexer HDLC over E 1/bonded E 1 circuits Ethernet over bonded E 1 by interleaving Link Capacity Adjustment Scheme MTU up to 1632 Bytes IEEE 802. 1 Q VLAN tagging and stacking (Q-in-Q) E 1 local/remote loopback Optional internal BERT for diagnostics Telnet/console/SNMP management Redundant power supplies Raisecom 6

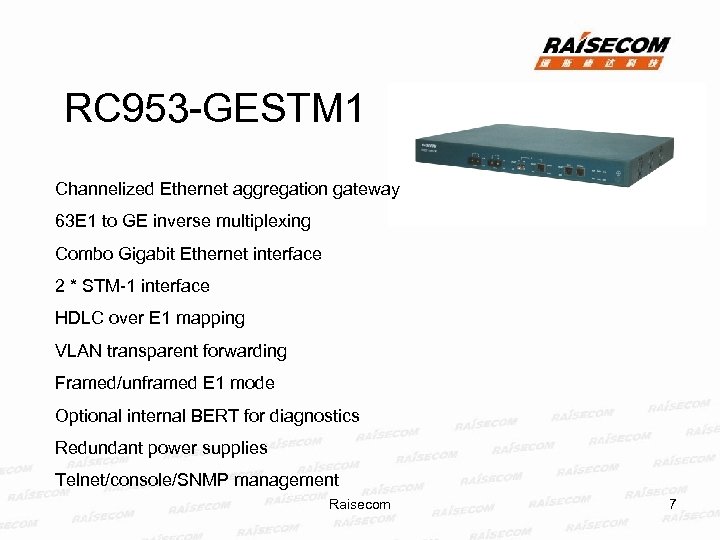

RC 953 -GESTM 1 Channelized Ethernet aggregation gateway 63 E 1 to GE inverse RC 953 -GESTM 1 Channelized Ethernet aggregation gateway 63 E 1 to GE inverse multiplexing Combo Gigabit Ethernet interface 2 * STM-1 interface HDLC over E 1 mapping VLAN transparent forwarding Framed/unframed E 1 mode Optional internal BERT for diagnostics Redundant power supplies Telnet/console/SNMP management Raisecom 7

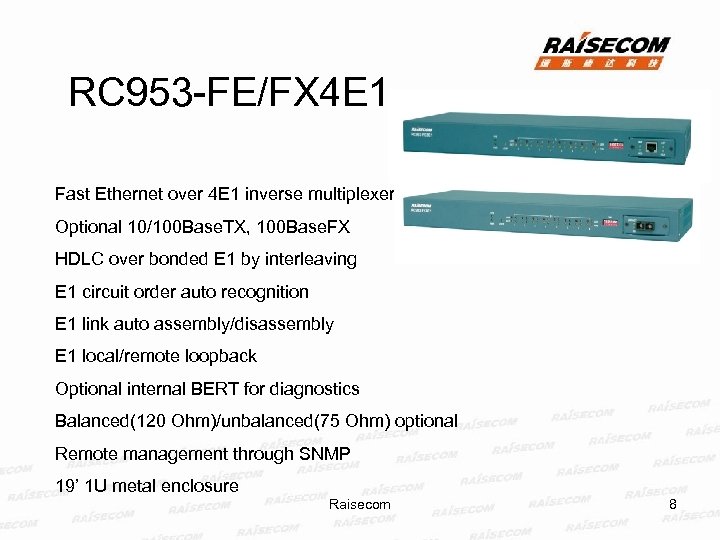

RC 953 -FE/FX 4 E 1 Fast Ethernet over 4 E 1 inverse multiplexer RC 953 -FE/FX 4 E 1 Fast Ethernet over 4 E 1 inverse multiplexer Optional 10/100 Base. TX, 100 Base. FX HDLC over bonded E 1 by interleaving E 1 circuit order auto recognition E 1 link auto assembly/disassembly E 1 local/remote loopback Optional internal BERT for diagnostics Balanced(120 Ohm)/unbalanced(75 Ohm) optional Remote management through SNMP 19’ 1 U metal enclosure Raisecom 8

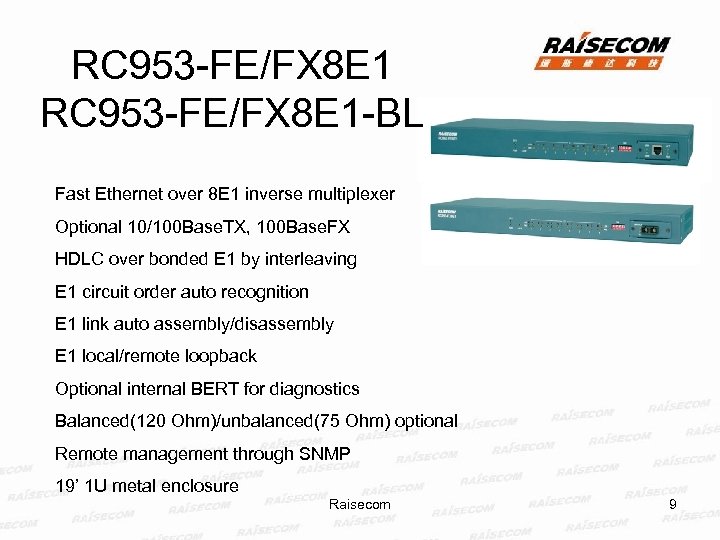

RC 953 -FE/FX 8 E 1 -BL Fast Ethernet over 8 E 1 inverse RC 953 -FE/FX 8 E 1 -BL Fast Ethernet over 8 E 1 inverse multiplexer Optional 10/100 Base. TX, 100 Base. FX HDLC over bonded E 1 by interleaving E 1 circuit order auto recognition E 1 link auto assembly/disassembly E 1 local/remote loopback Optional internal BERT for diagnostics Balanced(120 Ohm)/unbalanced(75 Ohm) optional Remote management through SNMP 19’ 1 U metal enclosure Raisecom 9

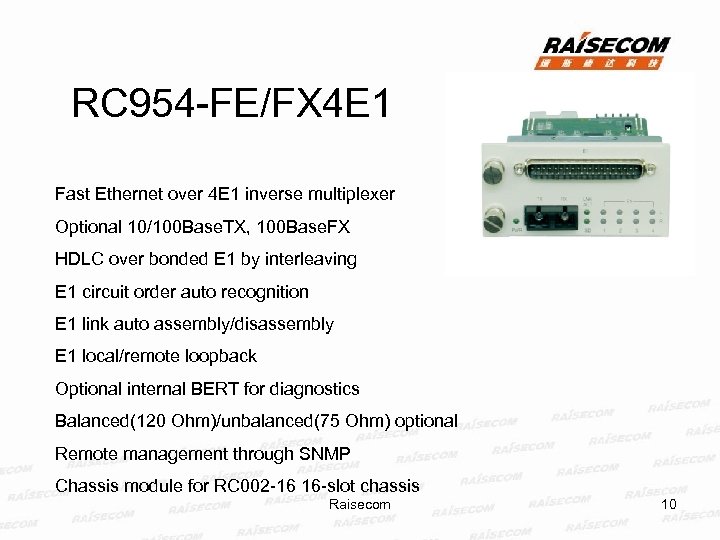

RC 954 -FE/FX 4 E 1 Fast Ethernet over 4 E 1 inverse multiplexer RC 954 -FE/FX 4 E 1 Fast Ethernet over 4 E 1 inverse multiplexer Optional 10/100 Base. TX, 100 Base. FX HDLC over bonded E 1 by interleaving E 1 circuit order auto recognition E 1 link auto assembly/disassembly E 1 local/remote loopback Optional internal BERT for diagnostics Balanced(120 Ohm)/unbalanced(75 Ohm) optional Remote management through SNMP Chassis module for RC 002 -16 16 -slot chassis Raisecom 10

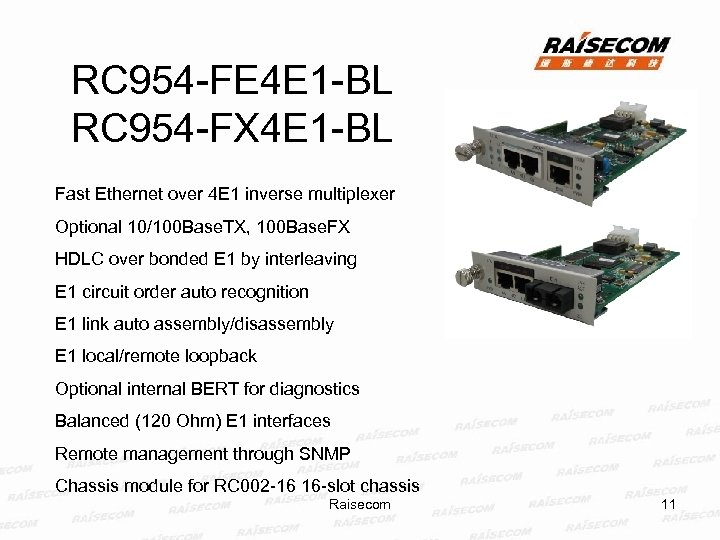

RC 954 -FE 4 E 1 -BL RC 954 -FX 4 E 1 -BL RC 954 -FE 4 E 1 -BL RC 954 -FX 4 E 1 -BL Fast Ethernet over 4 E 1 inverse multiplexer Optional 10/100 Base. TX, 100 Base. FX HDLC over bonded E 1 by interleaving E 1 circuit order auto recognition E 1 link auto assembly/disassembly E 1 local/remote loopback Optional internal BERT for diagnostics Balanced (120 Ohm) E 1 interfaces Remote management through SNMP Chassis module for RC 002 -16 16 -slot chassis Raisecom 11

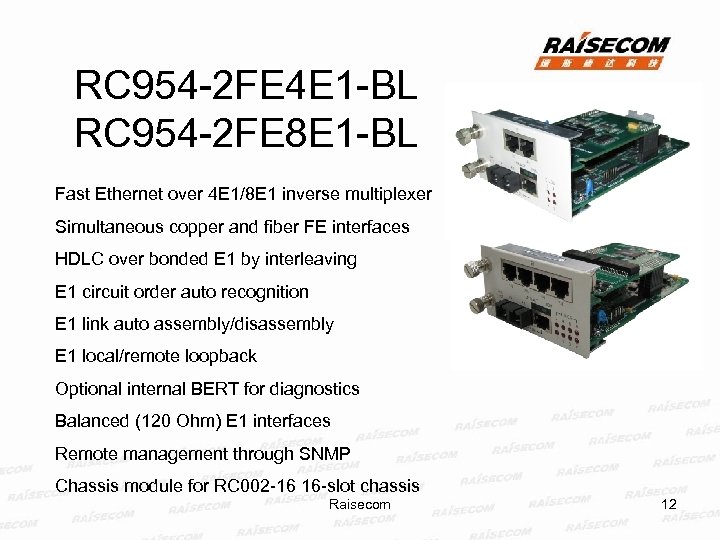

RC 954 -2 FE 4 E 1 -BL RC 954 -2 FE 8 E RC 954 -2 FE 4 E 1 -BL RC 954 -2 FE 8 E 1 -BL Fast Ethernet over 4 E 1/8 E 1 inverse multiplexer Simultaneous copper and fiber FE interfaces HDLC over bonded E 1 by interleaving E 1 circuit order auto recognition E 1 link auto assembly/disassembly E 1 local/remote loopback Optional internal BERT for diagnostics Balanced (120 Ohm) E 1 interfaces Remote management through SNMP Chassis module for RC 002 -16 16 -slot chassis Raisecom 12

RC 956 -FE 8 E 1 Rack mountable module (for RC 006 chassis) 8 RC 956 -FE 8 E 1 Rack mountable module (for RC 006 chassis) 8 E 1 to Fast Ethernet inverse multiplexing Optional copper or fiber FE interface 802. 3 u 10/100 Base. TX, G. 703 E 1 interface HDLC over bonded E 1 by interleaving MTU up to 1632 Bytes IEEE 802. 1 Q VLAN tagging and stacking (Q-in-Q) E 1 local/remote loopback Link Capacity Adjustment Scheme Balanced(120 Ohm)/unbalanced(75 Ohm) optional Management through SNMP agent Raisecom 13

RC 702 (Rev. C) Fast Ethernet over STM-1 CPE Optional electrical/optical Ethernet interface Optional RC 702 (Rev. C) Fast Ethernet over STM-1 CPE Optional electrical/optical Ethernet interface Optional electrical/optical STM-1 interface VC 4 virtual connection options GFP/LAPS encapsulation VLAN transparent forwarding Redundant power supplies Telnet/console/SNMP management Software online upgrade Raisecom 14

RC 702 -GE-T/X Gigabit Ethernet over STM-1 CPE Optional electrical/optical Ethernet interface Optional electrical/optical RC 702 -GE-T/X Gigabit Ethernet over STM-1 CPE Optional electrical/optical Ethernet interface Optional electrical/optical STM-1 interface VC 4 virtual connection options GFP/LAPS encapsulation VLAN transparent forwarding Redundant power supplies Telnet/console/SNMP management Software online upgrade Raisecom 15

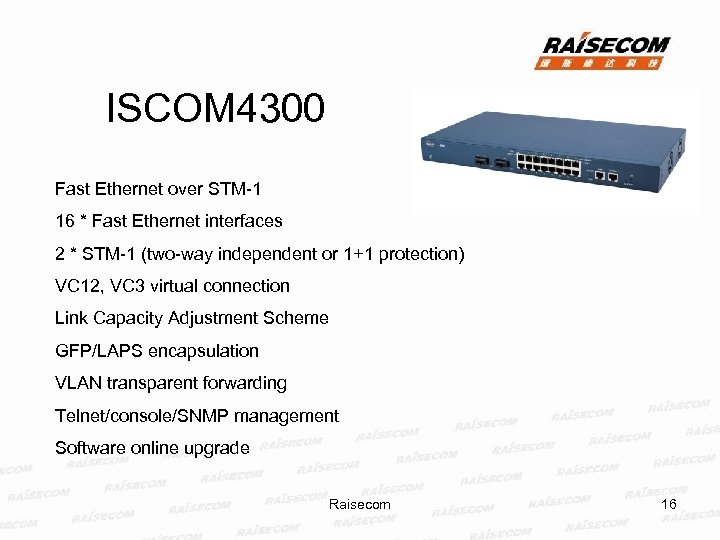

ISCOM 4300 Fast Ethernet over STM-1 16 * Fast Ethernet interfaces 2 * STM-1 ISCOM 4300 Fast Ethernet over STM-1 16 * Fast Ethernet interfaces 2 * STM-1 (two-way independent or 1+1 protection) VC 12, VC 3 virtual connection Link Capacity Adjustment Scheme GFP/LAPS encapsulation VLAN transparent forwarding Telnet/console/SNMP management Software online upgrade Raisecom 16

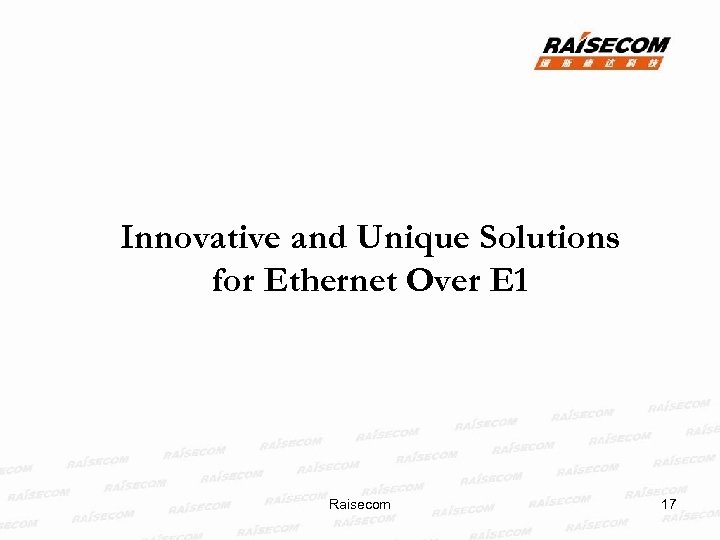

Innovative and Unique Solutions for Ethernet Over E 1 Raisecom 17 Innovative and Unique Solutions for Ethernet Over E 1 Raisecom 17

Ethernet over 4 E 1 – High-density, costefficient point-to-point solution • Up to 15 Ethernet over 4 E 1 – High-density, costefficient point-to-point solution • Up to 15 units in one 3 U chassis • GUI-based network management for both local and remote units • Cost-efficient point-to-point solutions for Ethernet over 4 E 1 solutions Raisecom 18

Ethernet over 4/8 E 1 – High-density, cost-efficient point-to-point solution • Ethernet over 4 Ethernet over 4/8 E 1 – High-density, cost-efficient point-to-point solution • Ethernet over 4 or 8 E 1 with both copper and optical Fast Ethernet interfaces for reducing the inventory cost • GUI-based network management for both local and remote units Raisecom 19

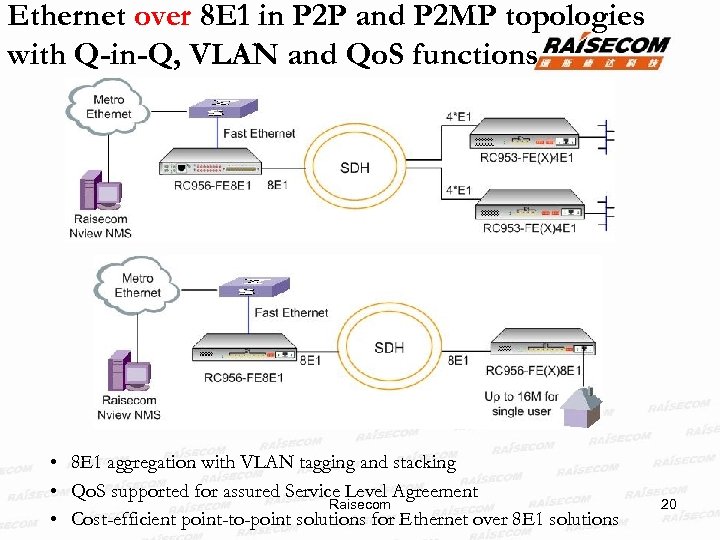

Ethernet over 8 E 1 in P 2 P and P 2 MP topologies Ethernet over 8 E 1 in P 2 P and P 2 MP topologies with Q-in-Q, VLAN and Qo. S functions • 8 E 1 aggregation with VLAN tagging and stacking • Qo. S supported for assured Service Level Agreement Raisecom • Cost-efficient point-to-point solutions for Ethernet over 8 E 1 solutions 20

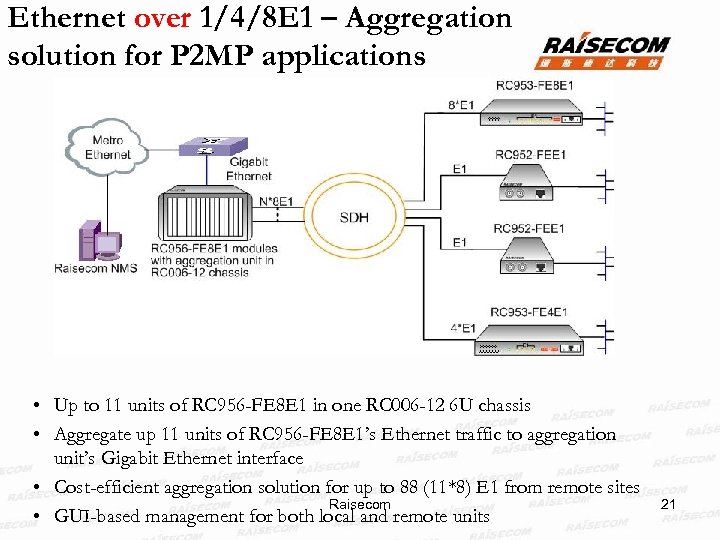

Ethernet over 1/4/8 E 1 – Aggregation solution for P 2 MP applications • Ethernet over 1/4/8 E 1 – Aggregation solution for P 2 MP applications • Up to 11 units of RC 956 -FE 8 E 1 in one RC 006 -12 6 U chassis • Aggregate up 11 units of RC 956 -FE 8 E 1’s Ethernet traffic to aggregation unit’s Gigabit Ethernet interface • Cost-efficient aggregation solution for up to 88 (11*8) E 1 from remote sites Raisecom • GUI-based management for both local and remote units 21

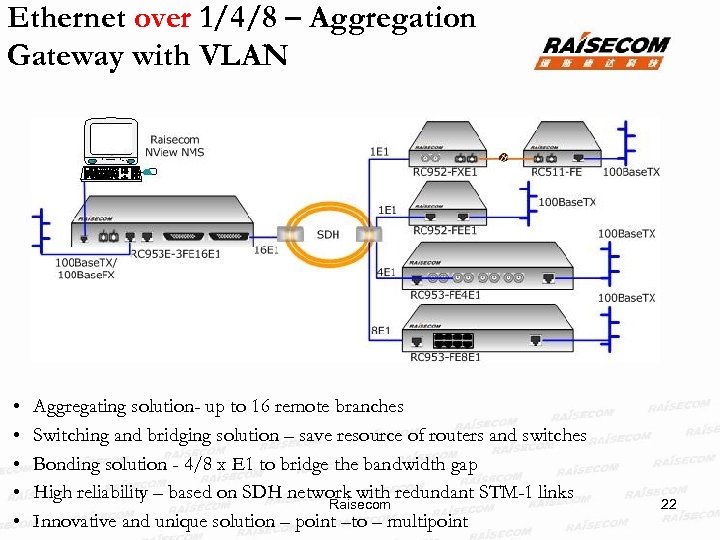

Ethernet over 1/4/8 – Aggregation Gateway with VLAN • • • Aggregating solution- up Ethernet over 1/4/8 – Aggregation Gateway with VLAN • • • Aggregating solution- up to 16 remote branches Switching and bridging solution – save resource of routers and switches Bonding solution - 4/8 x E 1 to bridge the bandwidth gap High reliability – based on SDH network with redundant STM-1 links Raisecom Innovative and unique solution – point –to – multipoint 22

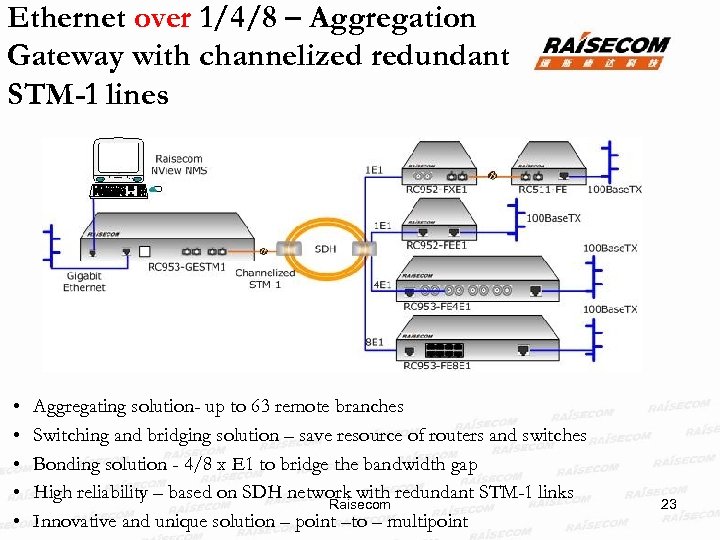

Ethernet over 1/4/8 – Aggregation Gateway with channelized redundant STM-1 lines • • • Ethernet over 1/4/8 – Aggregation Gateway with channelized redundant STM-1 lines • • • Aggregating solution- up to 63 remote branches Switching and bridging solution – save resource of routers and switches Bonding solution - 4/8 x E 1 to bridge the bandwidth gap High reliability – based on SDH network with redundant STM-1 links Raisecom Innovative and unique solution – point –to – multipoint 23

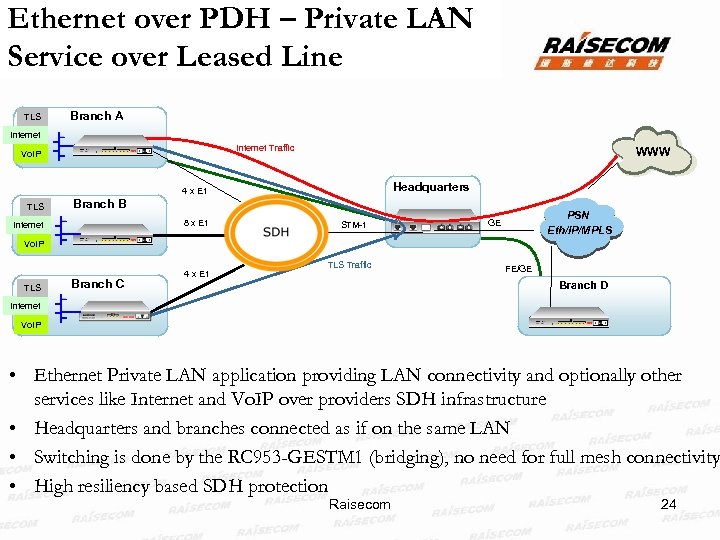

Ethernet over PDH – Private LAN Service over Leased Line TLS Branch A Internet Ethernet over PDH – Private LAN Service over Leased Line TLS Branch A Internet Traffic Vo. IP WWW Headquarters 4 x E 1 TLS Branch B 8 x E 1 Internet STM-1 PSN Eth/IP/MPLS GE Vo. IP TLS Branch C 4 x E 1 TLS Traffic FE/GE Branch D Internet Vo. IP • Ethernet Private LAN application providing LAN connectivity and optionally other services like Internet and Vo. IP over providers SDH infrastructure • Headquarters and branches connected as if on the same LAN • Switching is done by the RC 953 -GESTM 1 (bridging), no need for full mesh connectivity • High resiliency based SDH protection Raisecom 24

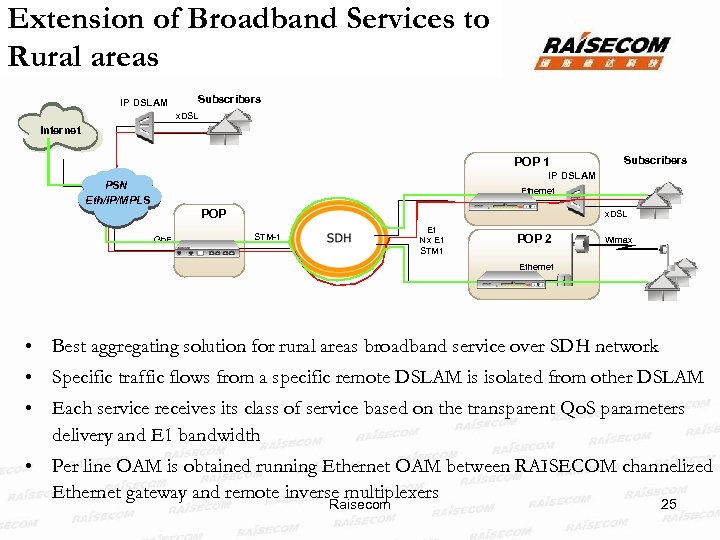

Extension of Broadband Services to Rural areas IP DSLAM Subscribers x. DSL Internet POP Extension of Broadband Services to Rural areas IP DSLAM Subscribers x. DSL Internet POP 1 Subscribers IP DSLAM PSN Eth/IP/MPLS Ethernet POP Gb. E x. DSL E 1 N x E 1 STM-1 POP 2 Wimax Ethernet • Best aggregating solution for rural areas broadband service over SDH network • Specific traffic flows from a specific remote DSLAM is isolated from other DSLAM • Each service receives its class of service based on the transparent Qo. S parameters delivery and E 1 bandwidth • Per line OAM is obtained running Ethernet OAM between RAISECOM channelized Ethernet gateway and remote inverse multiplexers Raisecom 25

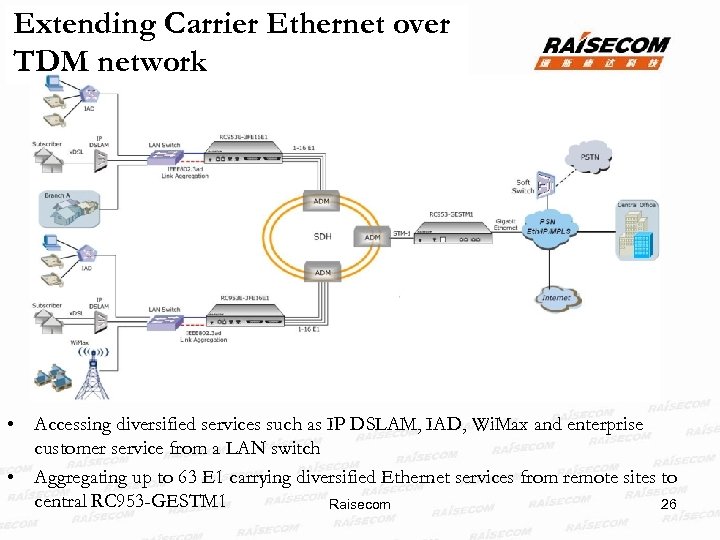

Extending Carrier Ethernet over TDM network • Accessing diversified services such as IP DSLAM, Extending Carrier Ethernet over TDM network • Accessing diversified services such as IP DSLAM, IAD, Wi. Max and enterprise customer service from a LAN switch • Aggregating up to 63 E 1 carrying diversified Ethernet services from remote sites to central RC 953 -GESTM 1 Raisecom 26

VLAN based bandwidth allocation for enforced SLA agreement • Different traffic flows of different VLAN based bandwidth allocation for enforced SLA agreement • Different traffic flows of different services are allocated with different bandwidth according to their VLAN ID Raisecom • Assured Service Level Agreement (SLA) for mission critical services 27

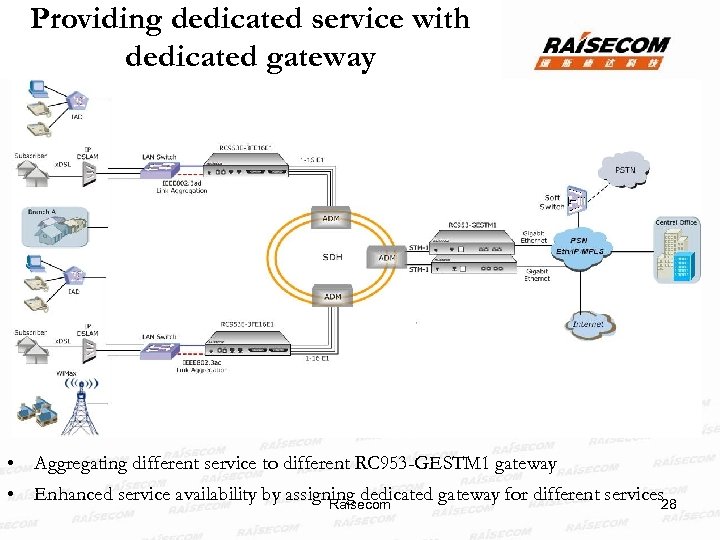

Providing dedicated service with dedicated gateway • Aggregating different service to different RC 953 Providing dedicated service with dedicated gateway • Aggregating different service to different RC 953 -GESTM 1 gateway • Enhanced service availability by assigning dedicated gateway for different services 28 Raisecom

Management for EOE solution • SNMP management, CLI, Telnet, GUI software along with RAISECOM Management for EOE solution • SNMP management, CLI, Telnet, GUI software along with RAISECOM NMS • Configuration management: C 2, J byte configuration; protection switching over for STM-1; VC management; • Performance management: E 1 traffic statistics; E 1 error statistics, etc • Alarm management • Remote device management Raisecom 29
