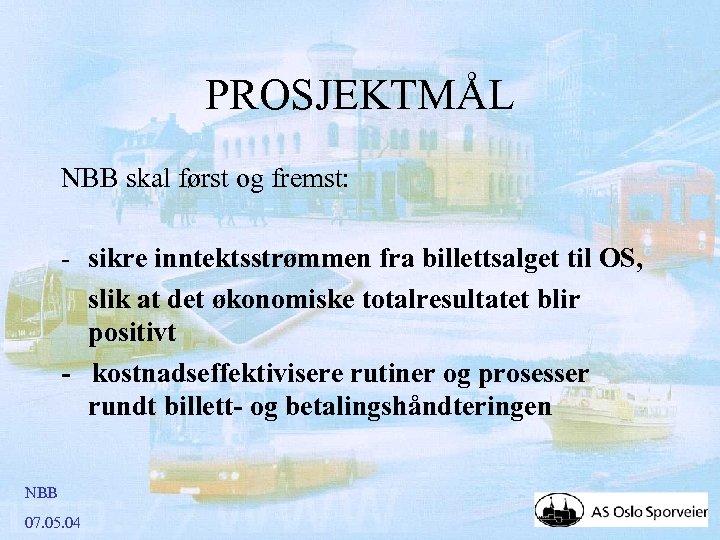

PROSJEKTMÅL NBB skal først og fremst: - sikre inntektsstrømmen fra billettsalget til OS, slik at det økonomiske totalresultatet blir positivt - kostnadseffektivisere rutiner og prosesser rundt billett- og betalingshåndteringen NBB 07. 05. 04

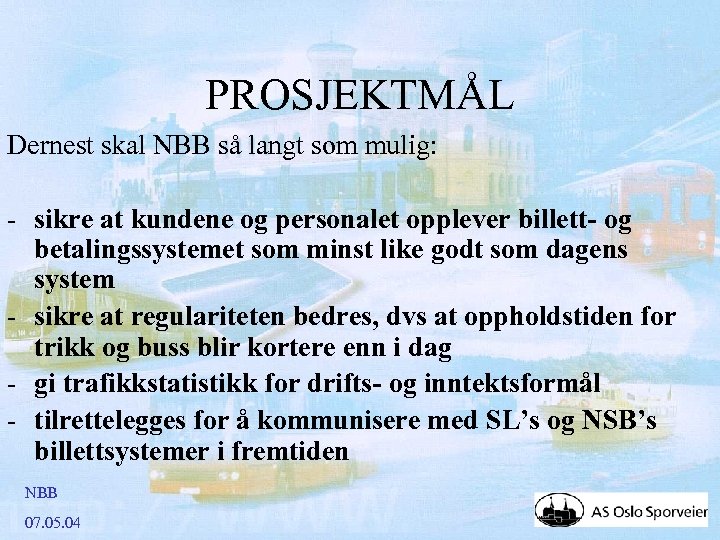

PROSJEKTMÅL Dernest skal NBB så langt som mulig: - sikre at kundene og personalet opplever billett- og betalingssystemet som minst like godt som dagens system - sikre at regulariteten bedres, dvs at oppholdstiden for trikk og buss blir kortere enn i dag - gi trafikkstatistikk for drifts- og inntektsformål - tilrettelegges for å kommunisere med SL’s og NSB’s billettsystemer i fremtiden NBB 07. 05. 04
NBB 07. 05. 04
NBB 07. 05. 04

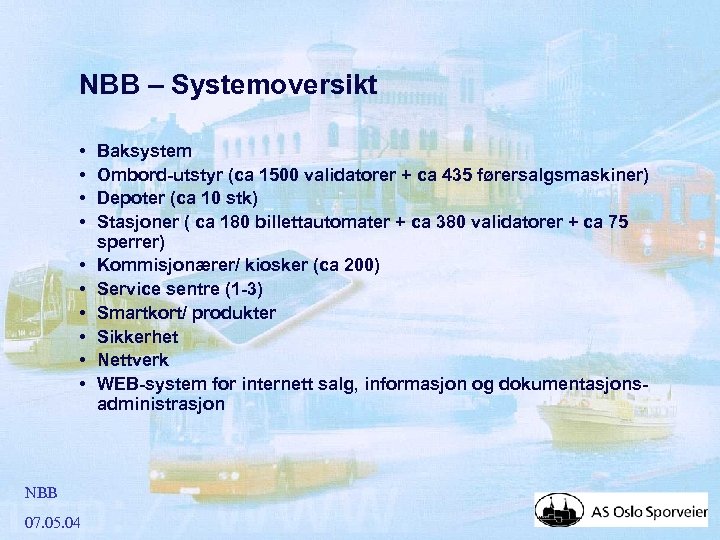

NBB – Systemoversikt • • • NBB 07. 05. 04 Baksystem Ombord-utstyr (ca 1500 validatorer + ca 435 førersalgsmaskiner) Depoter (ca 10 stk) Stasjoner ( ca 180 billettautomater + ca 380 validatorer + ca 75 sperrer) Kommisjonærer/ kiosker (ca 200) Service sentre (1 -3) Smartkort/ produkter Sikkerhet Nettverk WEB-system for internett salg, informasjon og dokumentasjonsadministrasjon

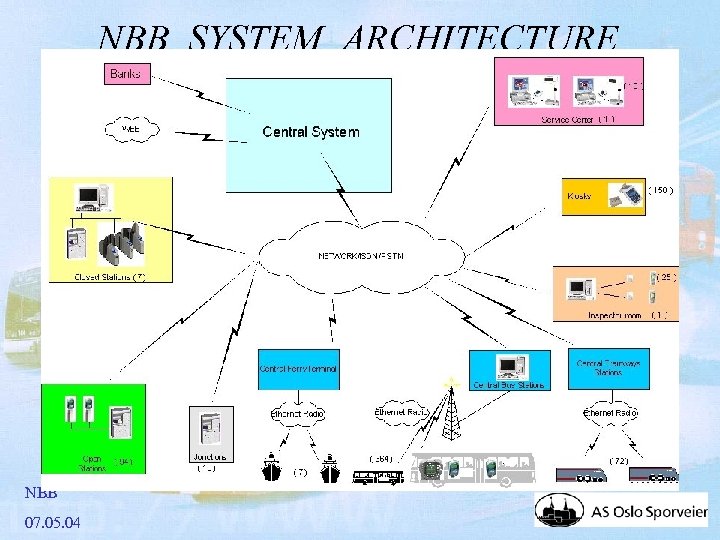

NBB SYSTEM ARCHITECTURE NBB 07. 05. 04

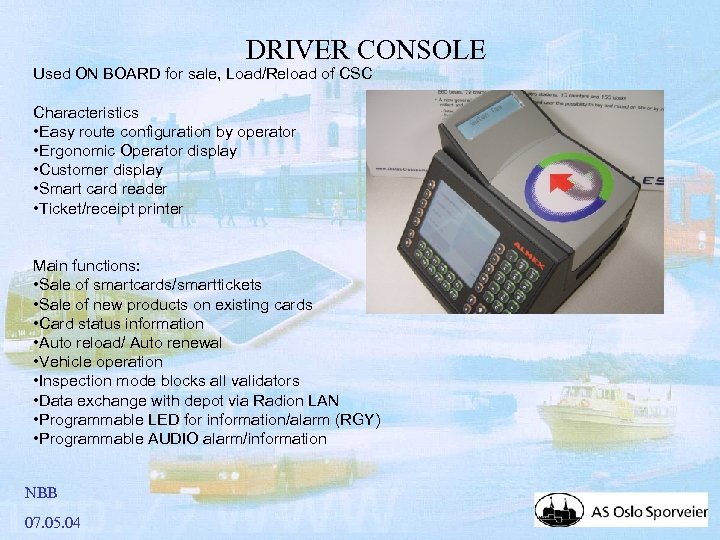

DRIVER CONSOLE Used ON BOARD for sale, Load/Reload of CSC Characteristics • Easy route configuration by operator • Ergonomic Operator display • Customer display • Smart card reader • Ticket/receipt printer Main functions: • Sale of smartcards/smarttickets • Sale of new products on existing cards • Card status information • Auto reload/ Auto renewal • Vehicle operation • Inspection mode blocks all validators • Data exchange with depot via Radion LAN • Programmable LED for information/alarm (RGY) • Programmable AUDIO alarm/information NBB 07. 05. 04
NBB 07. 05. 04

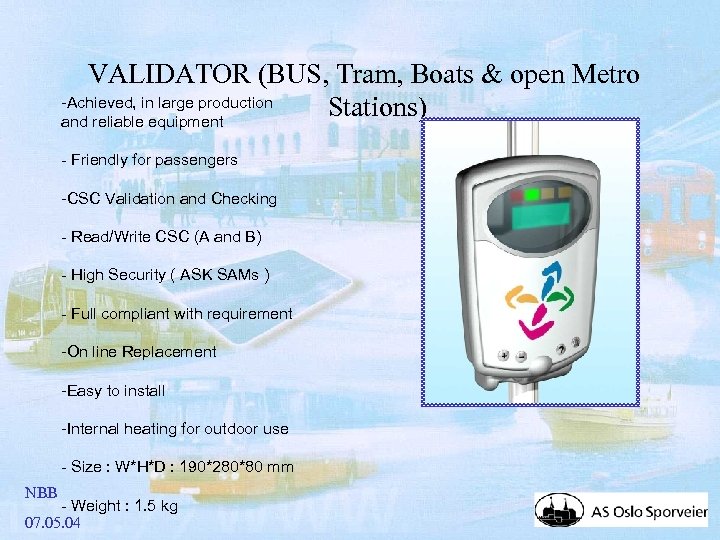

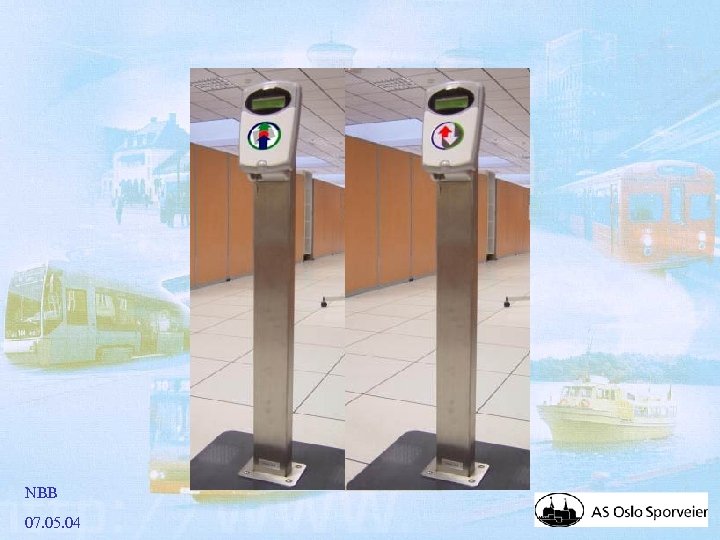

VALIDATOR (BUS, Tram, Boats & open Metro -Achieved, in large production Stations) and reliable equipment - Friendly for passengers -CSC Validation and Checking - Read/Write CSC (A and B) - High Security ( ASK SAMs ) - Full compliant with requirement -On line Replacement -Easy to install -Internal heating for outdoor use - Size : W*H*D : 190*280*80 mm NBB - Weight : 1. 5 kg 07. 05. 04

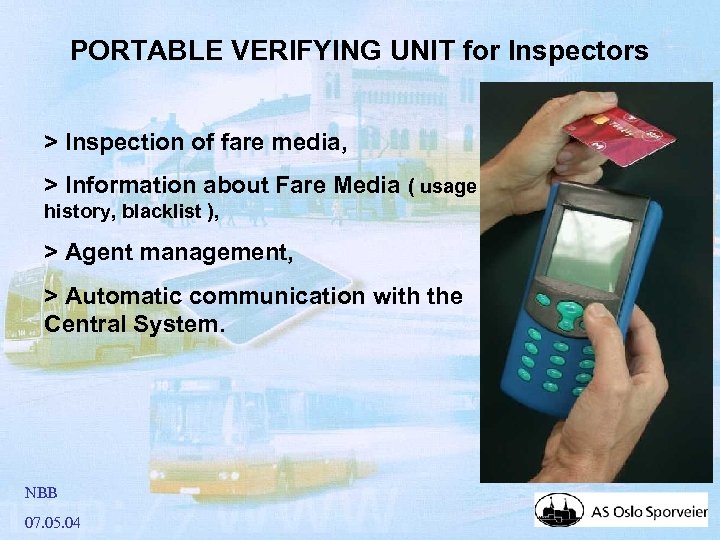

PORTABLE VERIFYING UNIT for Inspectors > Inspection of fare media, > Information about Fare Media ( usage history, blacklist ), > Agent management, > Automatic communication with the Central System. NBB 07. 05. 04

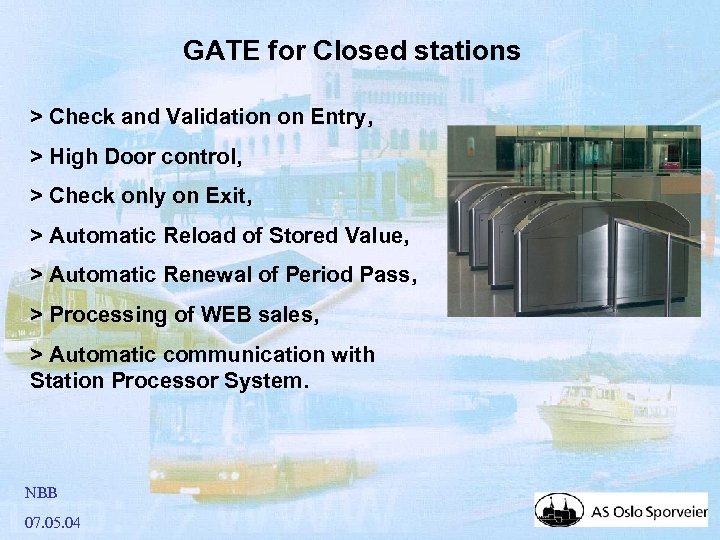

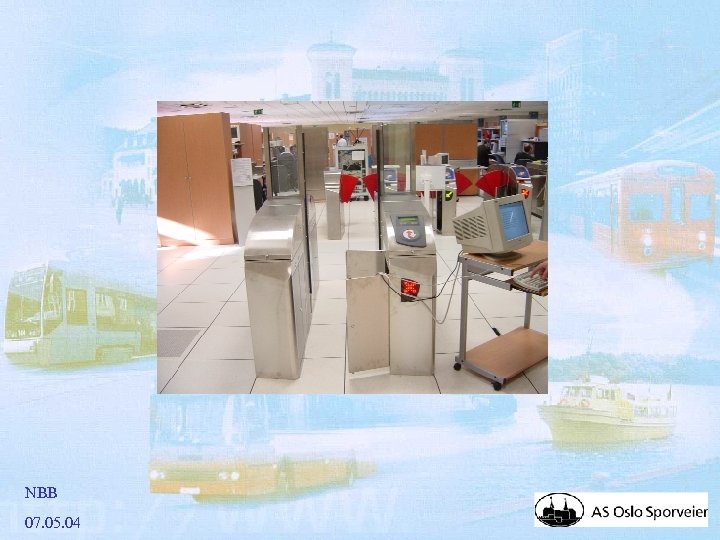

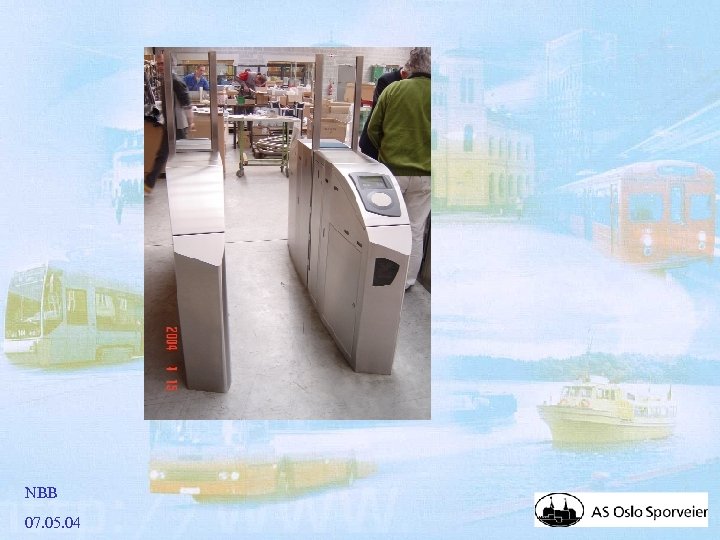

GATE for Closed stations > Check and Validation on Entry, > High Door control, > Check only on Exit, > Automatic Reload of Stored Value, > Automatic Renewal of Period Pass, > Processing of WEB sales, > Automatic communication with Station Processor System. NBB 07. 05. 04

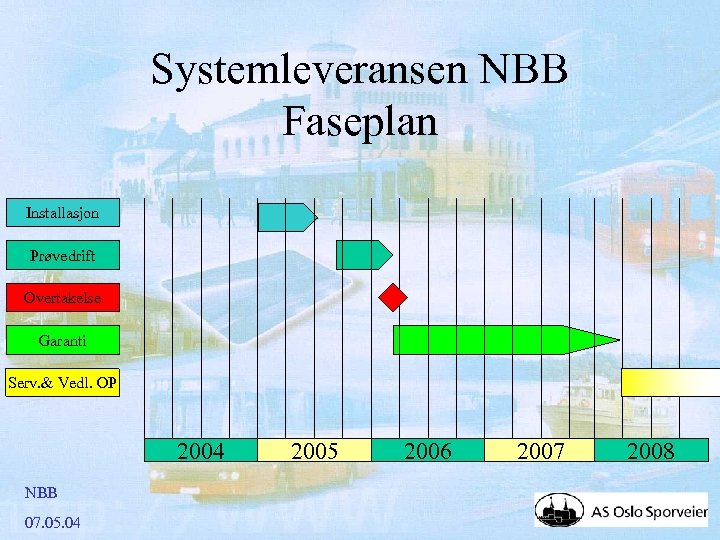

Systemleveransen NBB Faseplan Installasjon Prøvedrift Overtakelse Garanti Serv. & Vedl. OP 2004 NBB 07. 05. 04 2005 2006 2007 2008

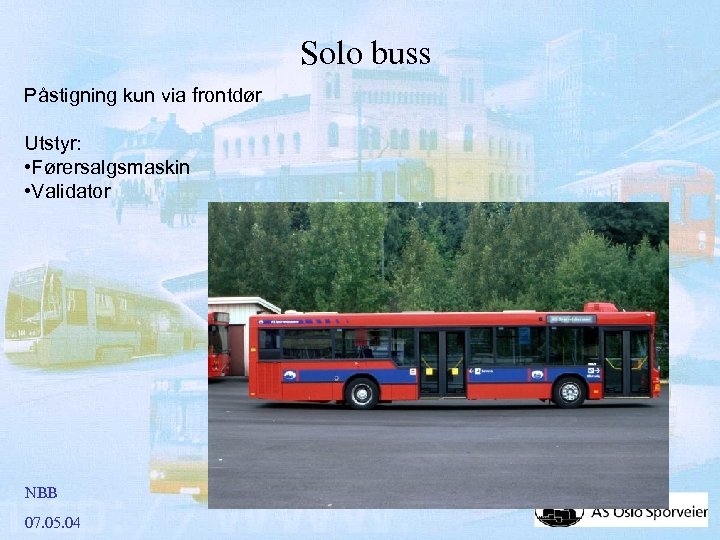

Solo buss Påstigning kun via frontdør Utstyr: • Førersalgsmaskin • Validator NBB 07. 05. 04

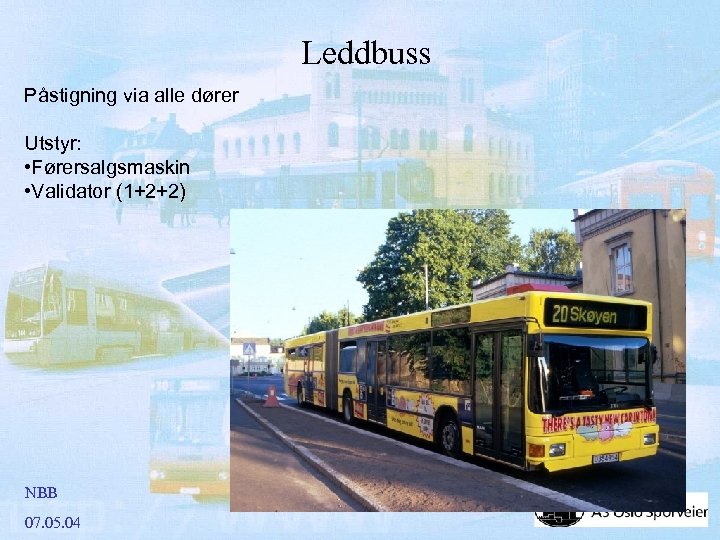

Leddbuss Påstigning via alle dører Utstyr: • Førersalgsmaskin • Validator (1+2+2) NBB 07. 05. 04
Midibuss Påstigning kun via frontdør Utstyr: • Førersalgsmaskin • Validator NBB 07. 05. 04

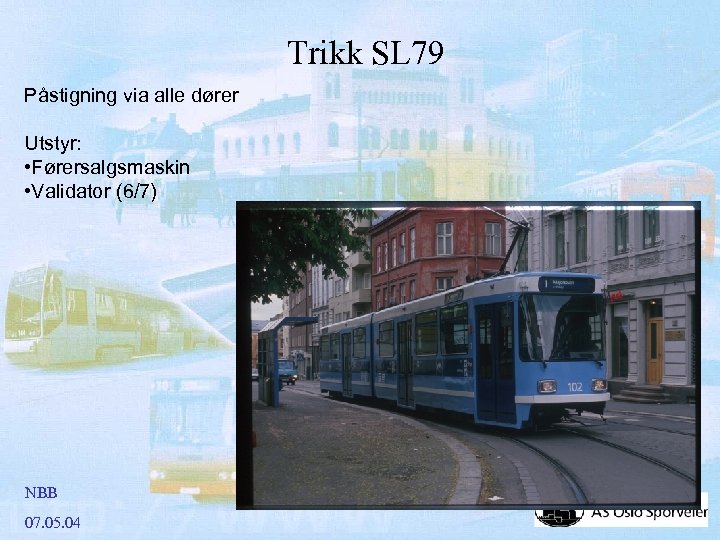

Trikk SL 79 Påstigning via alle dører Utstyr: • Førersalgsmaskin • Validator (6/7) NBB 07. 05. 04

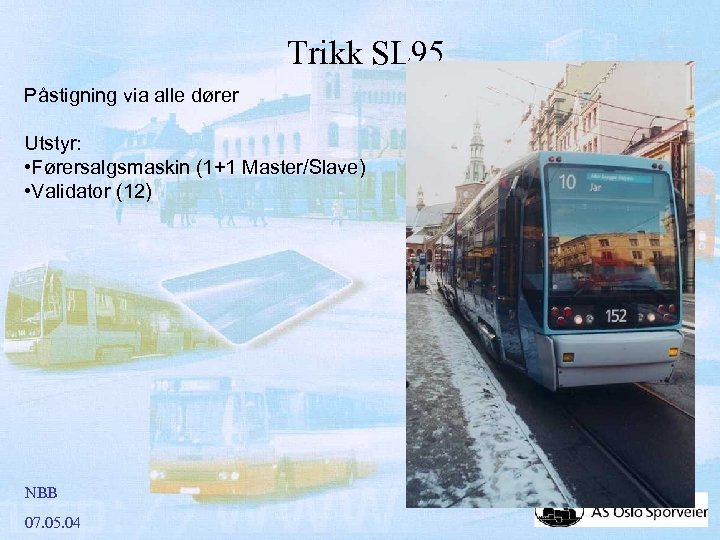

Trikk SL 95 Påstigning via alle dører Utstyr: • Førersalgsmaskin (1+1 Master/Slave) • Validator (12) NBB 07. 05. 04
NBB 07. 05. 04
NBB 07. 05. 04

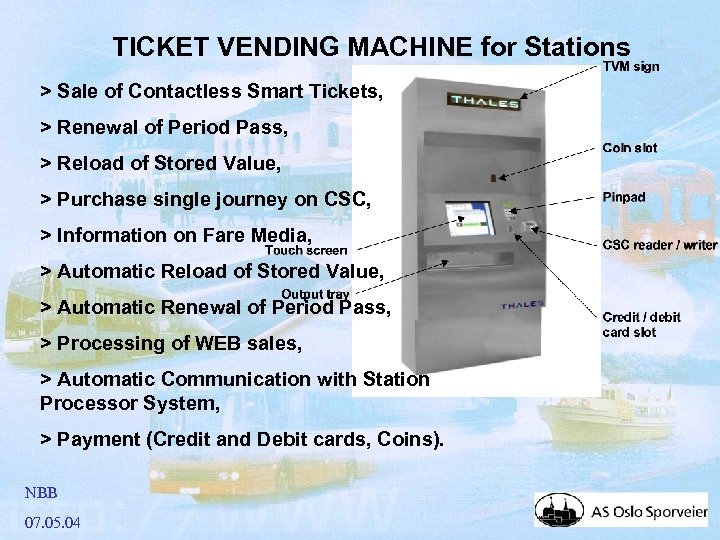

TICKET VENDING MACHINE for Stations > Sale of Contactless Smart Tickets, > Renewal of Period Pass, > Reload of Stored Value, > Purchase single journey on CSC, > Information on Fare Media, > Automatic Reload of Stored Value, > Automatic Renewal of Period Pass, > Processing of WEB sales, > Automatic Communication with Station Processor System, > Payment (Credit and Debit cards, Coins). NBB 07. 05. 04
POINT OF SALE TERMINAL for Service Centre > Register customer’s data, > Register for “ Autopay” Renewal or Reload, > Personalisation (electronic) of CSC, > Sale of Contactless Smart Tickets, > Sale, Renewal of Period Pass, > Reload of Stored Value, > Customer Service ( Refund, Reconstitution, Information, Claims ) > Agent management (Start of shift, End of shift, Pause), > Communication with Central System, > Credit and Debit cards payment management. NBB 07. 05. 04

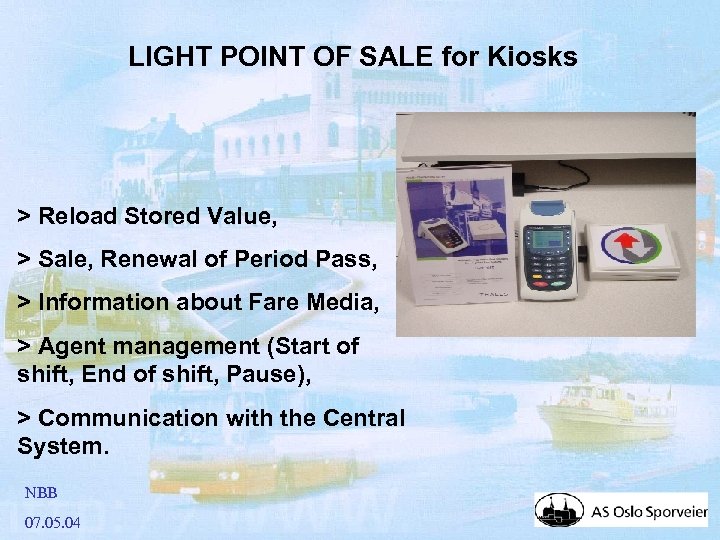

LIGHT POINT OF SALE for Kiosks > Reload Stored Value, > Sale, Renewal of Period Pass, > Information about Fare Media, > Agent management (Start of shift, End of shift, Pause), > Communication with the Central System. NBB 07. 05. 04
